TRAP/BPEL

A Framework for Dynamic Adaptation of Composite Services

Onyeka Ezenwoye, S. Masoud Sadjadi

School of Computing and Information Sciences, Florida International University, 11200 SW 8th Street, Miami, Florida, USA

Keywords:

TRAP/BPEL, generic proxy, self-management, dynamic service discovery.

Abstract:

TRAP/BPEL is a framework that adds autonomic behavior into existing BPEL processes automatically and

transparently. We deﬁne an autonomic BPEL process as a composite Web service that is capable of responding

to changes in its execution environment (e.g., a failure in a partner Web service). Unlike other approaches,

TRAP/BPEL does not require any manual modiﬁcations to the original code of the BPEL processes and there

is no need to extend the BPEL language nor its BPEL engine. In this paper, we describe the details of the

TRAP/BPEL framework and use a case study to demonstrate the feasibility and effectiveness of our approach.

1 INTRODUCTION

Service Oriented Computing (SOC) allows for

reusable components to be dynamically discovered

and integrated to create new applications. Web ser-

vices play a vital role in facilitating the realization of

the SOC paradigm. With Web services, autonomous,

self-contained and remotely accessible components

can be integrated to create composite services. The

characteristics of Web services that make them so

suitable for SOC also present big challenges to their

reliability. The autonomy of the services in any in-

teraction gives rise to concerns about their continued

availability and trust (i.e., those service will actually

do what they are expected to do). The best-effort de-

livery method of the communication channels (i.e.,

the Internet) through which these service interact is

known to be unreliable. Also, the availability of the

numerous of new services that are being developed

often makes composite services quickly obsolete and

leads to frequent redevelopment.

As an example, nodes on computational Grids

are currently being exposed as services to ensure

openness. Grid programming environments (e.g.,

Globus) allow for the creation of applications that in-

tegrate Grid services for coordinated problem solving

(e.g., for Bioinformatics and Computational Chem-

istry). For such applications, when a Grid service

partner fails, the whole application fails and has

to be restarted even though there are other nodes

on the Grid that can substitute for the failed ser-

vice(Slominski, 2004). This problem is made more

sever by the fact that such applications are often long

running. This concern is a major characteristic of

composite services, but it is often not addressed in

the speciﬁcation of composition languages. There is

therefore, a need to make composite services adapt-

able to the changes in their execution environment.

Our work focuses on adapting composite services de-

ﬁned in the Business Process Execution Language

(BPEL), a common XML-based language for com-

posing aggregate Web services. Speciﬁcally, we fo-

cus on how to transparently adapt existing composite

services to encapsulate autonomic behavior (Kephart

and Chess, 2003).

The rest of this paper is is structured as follows.

Section 2 provides some background information.

Section 3 motivates the need for generic proxies in

more detail. Section 4 describes the TRAP/BPEL

framework. In section 5, we use a case study to

demonstrate the feasibility and effectiveness of our

approach. Section 6 compares TRAP/BPEL to some

related work. Finally, some concluding remarks and a

discussion on further research directions are provided

in Section 7.

216

Ezenwoye O. and Masoud Sadjadi S. (2007).

TRAP/BPEL - A Framework for Dynamic Adaptation of Composite Services.

In Proceedings of the Third International Conference on Web Information Systems and Technologies - Internet Technology, pages 216-221

DOI: 10.5220/0001277002160221

 SciTePress

2 BACKGROUND

In this section, we provide some background informa-

tion that is necessary for understanding the rest of the

material.

2.1 Bpel, Autonomic Computing, and

Transparent Shaping

BPEL is an XML-based workﬂow language that can

be used to create composite services that comprise

other Web services An XML grammer that deﬁnes a

BPEL process is interpreted and executed by a vir-

tual machine called a BPEL engine. Although the

BPEL speciﬁcation provides constructs for fault and

event handling, such language constructs are not suf-

ﬁcient to make a BPEL process deal with the failure

of its partner services. Although this is a major prob-

lem for composed services, the management of such

non-functional issues is assumed to be outside the lan-

guage speciﬁcation.

Autonomic computing (Kephart and Chess, 2003)

promises to solve the management problem by em-

bedding the management of complex systems inside

the systems themselves, freeing the users from po-

tentially overwhelming details. The ultimate goal

of autonomic computing is to create self-managing

systems that are able to function with very lit-

tle direct human intervention. A Web service is

said to be autonomic if it encapsulates some auto-

nomic attributes (Gurguis and Zeid, 2005). Auto-

nomic attributes include (1): Self-Conﬁguration, for

the automatic conﬁguration of components; (2) Self-

Optimization, for automatic monitoring and control;

(3) Self-Healing, for automatic discovery, and man-

agement of faults; and (4) Self-Protection, for auto-

matic identiﬁcation and protection from attacks.

As BPEL’s programming model does not suf-

ﬁciently allow for the encapsulation of self-

management behavior, we use Transparent Shap-

ing (Sadjadi and McKinley, 2005) to augment BPEL

processes with such behavior. Transparent Shaping is

a programming model that provides dynamic adap-

tation in applications. Its goal is to adapt existing

applications in order to better respond to changes in

their non-functional requirements or execution envi-

ronment. In transparent shaping, an application is

augmented with hooks that intercept and redirect in-

teraction to adaptive code. An adapted application is

said to be adapt-ready. The adaptation is transparent

because it preserves the original functional behavior

and does not tangle the code that provides the new

behavior (adaptive code) with the application code.

2.2 Robustbpel

RobustBPEL (Ezenwoye and Sadjadi, 2006) is a

framework that was developed as part of the trans-

parent shaping programming model. Using Ro-

bustBPEL, an adapt-ready version of an existing

BPEL process can be automatically generated to pro-

vide better fault tolerance. An adapt-ready process

generated by Robust-BPEL is capable of monitor-

ing the invocation of its Web service partners and

will upon their failure invoke a proxy service through

which autonomic behavior is provided.

To understand how the static proxy works , in Fig-

ure 1 we provide architectural diagrams that show

the differences between the sequence of interac-

tions among the components in a typical aggregate

Web service (Figure 1(a)), and in RobustBPEL (Fig-

ure 1(b)). In a typical composite Web service, ﬁrst a

request is sent by the client program, then the aggre-

gate Web service interacts with its partner Web ser-

vices (i.e., W S

to W S

) and responds to the client.

If one of the partner services fails, then the whole pro-

cess is subject to failure. To avoid such situations, an

adapt-ready process monitors the behavior of it part-

ners and tries to tolerate their failure by forwarding

the failed request to its proxy, which in its turn tries to

ﬁnd another service to substitute for the failed one.

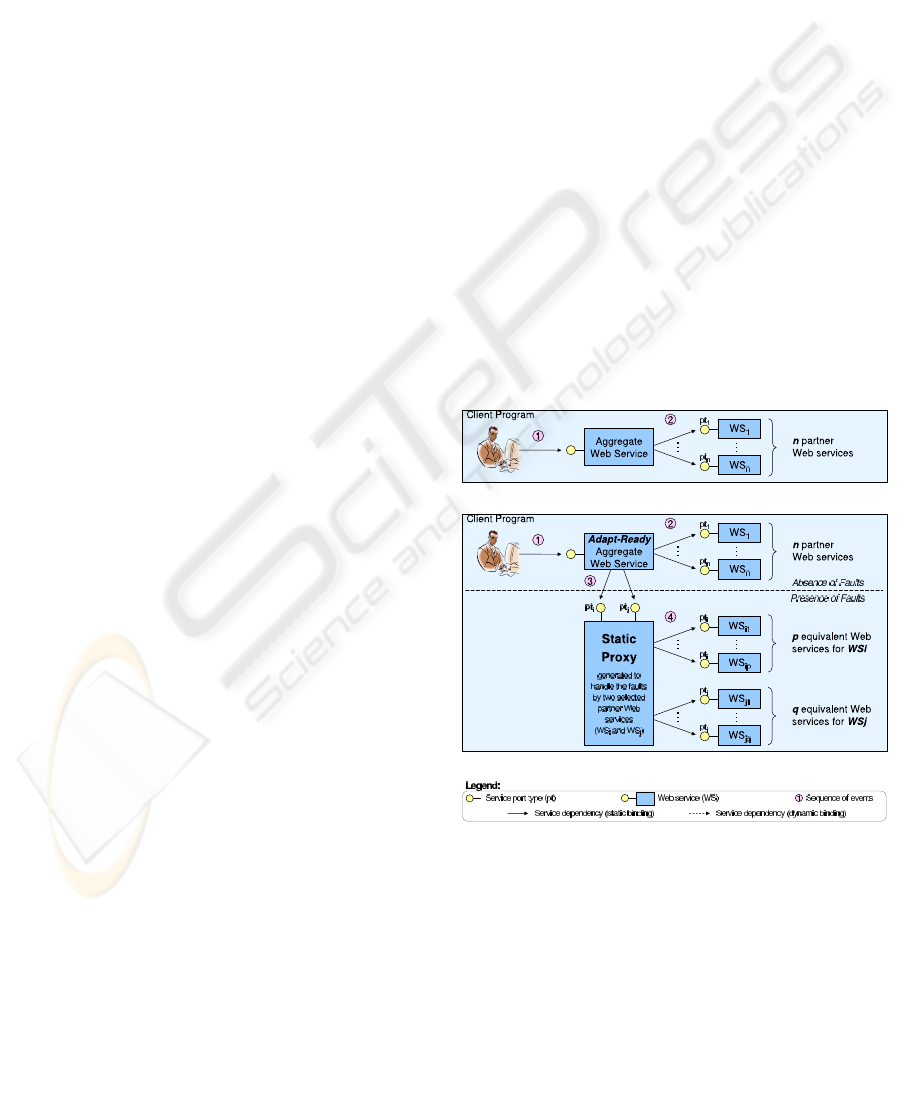

(a) Architecture of a typical aggregate Web service.

(b) Aggregate Web service interaction using a static proxy.

Figure 1: Sequence of interaction among the components

in a BPEL process and its adapt-ready version in Ro-

bustBPEL.

As monitoring all the partner Web services might

not be necessary, the developer can select only a sub-

set of Web service partners to be monitored. For ex-

ample, in Figure 1(b) W S

and W S

have been se-

TRAP/BPEL - A Framework for Dynamic Adaptation of Composite Services

217

lected for monitoring. The adapt-ready process mon-

itors these two partner Web services and in the pres-

ence of faults it will forward the corresponding re-

quest to the static proxy. The static proxy is generated

speciﬁcally for this adapt-ready process and provides

the same port types as those of the monitored Web

services (i.e., pt

and pt

). The static proxy in its turn

forwards the request to a substitute Web service. In-

formation about the substitute services is “hardwired”

into the code of this proxy at the time it is generated.

3 WHY TRAP/BPEL?

Although the RobustBPEL framework is able to pro-

vide some self-healing and self-optimizing behavior,

it is limited in the level of adaptive behavior it can pro-

vide. For instance, after a service is determined to be

faulty, there are no mechanisms to prevent the process

from invoking that service again. Normal operation is

only intercepted if a fault occurs upon the invocation

of a partner Web service (Figures 1(b)), thus adaptive

behavior is only exhibited at the occurrence of a fault.

RobustBPEL cannot be used to provide a choice for

service invocation if some other service is determined

to provide better QoS than the default service in the

composition.

In addition to the above limitation, each proxy

service generated by RobustBPEL is speciﬁc to one

BPEL process and cannot be reused for any other pro-

cesses. Therefore, it is not possible to provide a com-

mon autonomic behavior to a set of services. This

lack of support for code reuse and for scalability that

comes from having numerous redundant proxies is

counter to the promise of service-oriented computing.

In the rest of this paper, we show how TRAP/BPEL

addresses the above limitations by using a generic

proxy.

4 THE FRAMEWORK

For the TRAP/BPEL framework we have developed

a generic proxy that can interact with one or more

adapt-ready BPEL processes.Some behavioral policy

is used in the proxy to guide the adaptive behavior for

each monitored service. In this section, we show the

architecture of the generic proxy and explain how an

adapt-ready BPEL process is generated.

4.1 High-Level Architecture

Figure 2 illustrates the architectural diagram of

TRAP/BPEL at run time. As can be seen from the

ﬁgure, several adapt-ready BPEL processes can be

assigned to one generic proxy, which augments the

BPEL processes with self-management behavior. The

generic proxy uses a look-up mechanism to query a

registry service at runtime to ﬁnd out about available

services. But unlike the static proxy (Figure 1(b)), the

generic proxy has a standard interface which bears no

relation to the interfaces of the monitored services.

The generic proxy has as interface pt

that is able to

receive requests for any monitored Web service (e.g.,

W S

and W S

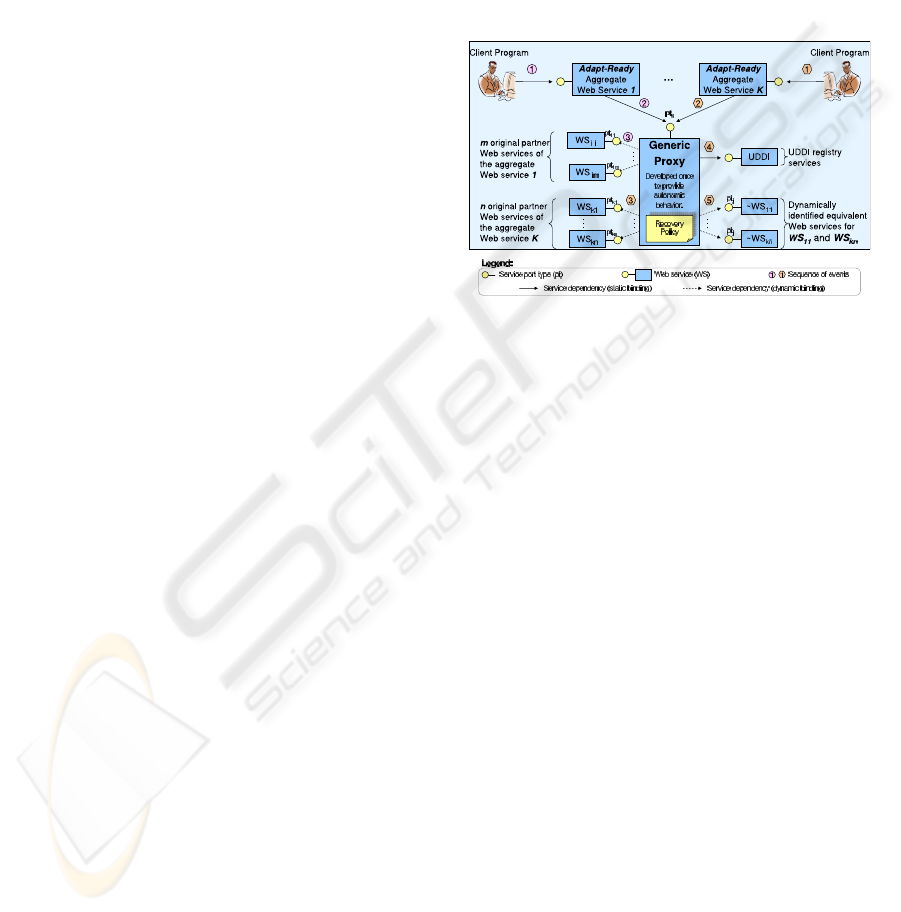

Figure 2: Architectural diagram showing the sequence of

interactions among the components in TRAP/BPEL.

The generic proxy can provide self-management

behavior either common to all adapt-ready BPEL pro-

cesses or speciﬁc to each monitored invocation us-

ing some high-level policies. At this point of our re-

search, these high-level policies are speciﬁed in a con-

ﬁguration ﬁle that is loaded at startup time into the

generic proxy. We plan to allow runtime modiﬁca-

tion to these high-level policies in a future version of

TRAP/BPEL. Figure 3 shows an example policy ﬁle

where each unique monitored invocation can have a

policy speciﬁed under a service element. The Invo-

keName element (line 4) has a value that uniquely

identiﬁes a monitored invocation in an adapt-ready

BPEL process. The generic proxy checks all inter-

cepted invocations and tries to match these invoca-

tions with the speciﬁed policies. If it ﬁnds a policy for

that invocation, the proxy behaves accordingly, other-

wise it follows its default behavior.

If a policy exists, the generic proxy may take one

of the following actions according to the policy: (1)

invoke the service being recommended in the policy

(line 6); (2) ﬁnd and invoke another service to sub-

stitute for the monitored service; and (3) retry the in-

vocation of the monitored service in the event of its

failure (line 10). The policy also speciﬁes the time

interval between retries (line 12). The default behav-

ior of the proxy is to consult the registry to ﬁnd and

invoke an appropriate a service that implements the

WEBIST 2007 - International Conference on Web Information Systems and Technologies

218

1. <Policy>

2. <Service>

3.

4. <InvokeName value="WS-Invoke"/>

5.

6. <WsdlUrl pref="true" value="f.wsdl"/>

7.

8. <Timeout seconds="2"/>

9.

10. <MaxRetry value="2"/>

11.

12. <RetryInterval seconds="5"/>

13. </Service>

14. <Service>

15. ...

16. </Service>

17.</Policy>

Figure 3: A portion of a policy ﬁle for the generic proxy.

same interface as the monitored invocation.

4.2 Service Discovery

A key part of our framework lies on the ability to ﬁnd

services to substitute for failed services. The abil-

ity to describe the capabilities of Web services in an

unambiguous and machine-readable form is vital for

service requesters to be able to ﬁnd suitable services.

The two aspects that the World Wide Web Consortium

currently deﬁnes for the full description of Web ser-

vices are; (1) syntactic functional description as rep-

resented by WSDL (2) the semantics of the service

and is not currently covered by a speciﬁcation (Akki-

raju et al., 2005). At this time, the WSDL speciﬁ-

cation (WSDL 1.1) focus on the description of the

service interface. This type of description presents a

limitation to automatic service discovery and compo-

sition because the interface description of a service is

not sufﬁcient to determine what a service does. There-

fore, service discovery with the current speciﬁcation

requires some human input at some point in the selec-

tion process.

Semantic description of Web services can greatly

improve service discovery and application integra-

tion since it would provide a means to expressively

describe the capabilities of a service in an unam-

biguous machine-readable language. Although the

current WSDL speciﬁcation does not support se-

mantic service description, there are several research

projects (Martin et al., ; Patil et al., ) that aim to ad-

dress the issue. Despite the push towards the adop-

tion of standards for semantic description, the cur-

rent UDDI (Universal Description, Discovery and In-

tegration) speciﬁcation does not support the adequate

representation of semantic information in service reg-

istries since the current focus is on syntax. This limi-

tation is however being addressed for future versions

of the speciﬁcation (Akkiraju et al., 2005).

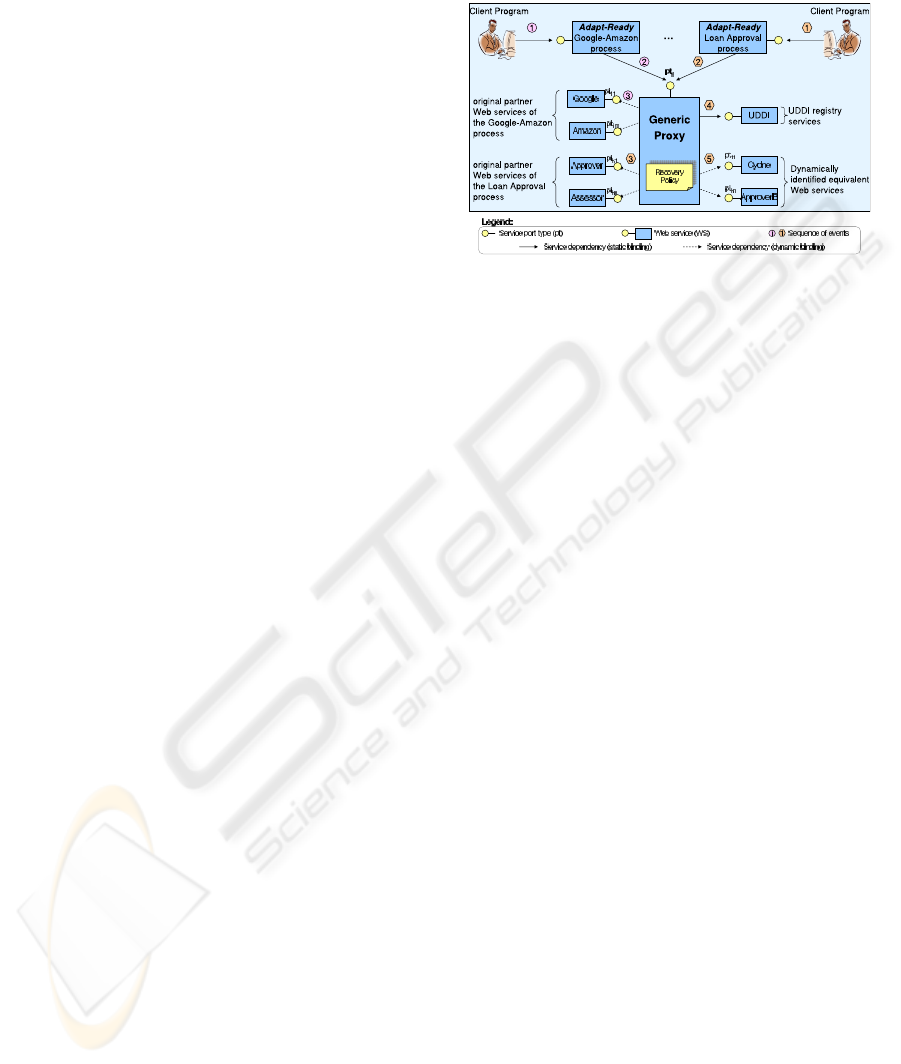

Figure 4: The interaction between the applications and the

proxy.

5 CASE STUDY

In this section, we use a case study to demonstrate the

feasibility and effectiveness of TRAP/BPEL. For the

case study, we use two sample BPEL process.

5.1 The Bpel Processes

The Google-Amazon business process integrates the

Google Web service for spelling suggestions with the

Amazon E-Commerce Web service for querying its

store catalog. The business process takes as input a

phrase (keywords) which is sent to the Google spell-

checker for corrections. If any word in the input

phrase is misspelled, the Google spell-checker sends

back as reply the phrase with the misspelled words

corrected (the phrase is unchanged if the spellings are

correct). The reply from the Google service is used to

create keyword search of the Amazon bookstore via

the Amazon Web service.

The Loan-Approval process is a commonly used

sample BPEL process. The Loan-Approval BPEL

process is an aggregate Web service composed of two

other Web services: a low-risk assessor service and a

high-risk assessor service. The Loan-Approval pro-

cess implements a business process that uses its two

partner services to decide whether a given individual

qualiﬁes for a given loan amount. Both the business

process and the risk assessor services are deployed

locally. The Loan-Approval BPEL process receives

as input a loan request. The loan request message

comprises two variables: the name of the customer

and the loan amount. If the loan amount is less than

TRAP/BPEL - A Framework for Dynamic Adaptation of Composite Services

219

$10,000, then the low-risk assessor Web service is in-

voked, otherwise the high-risk assessor Web service

is invoked.

5.2 The Experiment Setup and Results

We used the TRAP/BPEL generator to generate the

adapt-ready versions of the two sample processes. As

illustrated in Figure 4, for the Google-Amazon pro-

cess, we have selected the Google spell checker ser-

vice and for the Loan Approval process, we have se-

lected the high-risk assessor service (Approver) to be-

come adaptable. As can be followed in the ﬁgure, a

policy is used to forward the intercepted calls to their

original services (labels 1, 2, and 3) and use a substi-

tute service in case an original service fails (labels 4

and 5 for the Loan Approval process).

To evaluate the performance of the TRAP/BPEL,

we conﬁgured the client applications to sequentially

make calls to their corresponding processes. Due to

page limitations, we only show the performance chart

for the Google-Amazon process in Figure 5. As the

X-axis of the chart shows the number of total conse-

quent calls is 50. The initial runs were made against

the original BPEL process. The results are plotted in

the chart in Figure 5 under the original curve. Simi-

larly, the results of the observed completion times of

the adapt-ready version are plotted in Figure 5 under

the adapted curve.

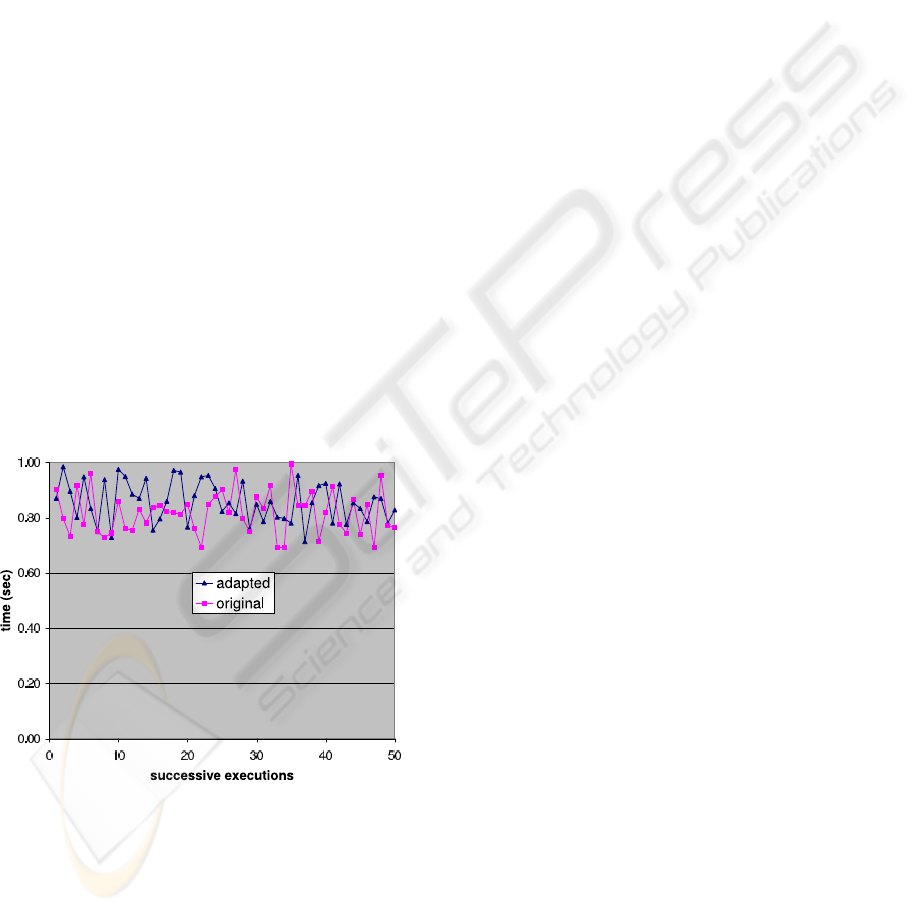

Figure 5: The response time of the Google-Amazon Pro-

cess.

For the Loan-Approval process, the average com-

pletion time for the original process is approximately

0.06 seconds and for its adapt-ready version is 0.11

seconds. For the Google-Amazon process, the aver-

age completion time for the original process is ap-

proximately 0.82 seconds and for its adapt-ready ver-

sion is 0.86 seconds. Although we expected that there

be some performance overhead in process execution

time caused by redirecting invocations through the

proxy, this experiment shows that the overhead intro-

duced by the TRAP/BPEL framework (approximately

0.045 seconds) is negligible.

6 RELATED WORK

Baresi’s approach (Baresi et al., 2004) to monitor-

ing involves the use of annotations that are stated

as comments in the source BPEL program and then

translated to generate a target monitored BPEL pro-

gram. In addition to monitoring functional require-

ments, timeouts and runtime errors are also moni-

tored. Whenever any of the monitored conditions in-

dicates misbehavior, suitable exception handling code

in the generated BPEL program will intervene. This

approach is much similar to ours in that monitoring

code is added after the original BPEL process has

been produced. This approach achieves the desired

separation of concern; however, it requires modifying

the original BPEL processes manually and the anota-

tion is scattered all over the original code. The man-

ual modiﬁcation of BPEL code is not only difﬁcult

and error prone, but also hinders maintainability.

Charﬁ et al (Charﬁ and Mezini, 2005) use an

aspect-based container to provide middleware sup-

port for BPEL. The two inputs to the framework are

the BPEL process and a deployment descriptor. The

descriptor speciﬁes the non-functional requirements

(e.g., security). All interactions go through the con-

tainer which plugs in support for non-functional re-

quirements. Aspects can be generated using the de-

ployment descriptor to specify the pointcuts. Aspects

specify what and how SOAP messages can be mod-

iﬁed to add, for instance, security information. This

framework is different form our because it requires a

purpose built BPEL engine. Also, the adaptation is

done at a much lower level (the messaging layer).

AdaptiveBPEL (Erradi et al., 2005) is much like

Charﬁ (Charﬁ and Mezini, 2005), with the only ma-

jor differences being that AdaptiveBPEL proposes to

augment an existing BPEL engine with aspect weav-

ing capabilities to address QoS concerns and adapt

processes logic. In addition, adaptation is driven by

a policy negotiated at runtime between the interacting

endpoints.

Erradi et al. (Erradi and Maheshwari, 2005) pro-

vide reliability through a policy driven middleware

named Web Services Message Bus (wsBus), which

is used to transparently enact recovery actions. The

wsBus intercepts the execution of composite services

and transparently provides recovery services based on

WEBIST 2007 - International Conference on Web Information Systems and Technologies

220

an extensible set of recovery policies (e.g., retry, skip,

and use equivalent services). The wsBus provides

exception-handling and recovers from failures such as

service unavailability and timeout. This approach is

modular and separates the business logic of the pro-

cess from the QoS requirements, however, adaptation

is done at a much lower messaging layer. Our adapta-

tion is at the application level, which simpliﬁes main-

tenance of the adaptive process.

Finally, BPELJ (Blow et al., 2004) is an extension

to BPEL. The goal of BPELJ is to improve the func-

tionality and fault tolerance of BPEL processes. This

is accomplished by embedding snippets of Java code

in the BPEL process. This however requires a spe-

cial BPEL engine, thereby limiting the portability of

BPELJ processes. The works mentioned above, al-

though are able to provide some means of monitoring

for aggregate Web services, some require extensions

to be made to the language or execution engine, others

hinder maintainability by performing adaptation at a

much lower messaging level.

7 CONCLUSION

We presented an approach to transparently incorpo-

rating self-management behavior into existing BPEL

processes. Using the TRAP/BPEL framework, we

demonstrated how a generic proxy can be used to en-

capsulate autonomic behavior through the use of self-

management policies. Finally, with the use of a case

study, we evaluated the performance hit introduce by

the TRAP/BPEL framework, which is negligible.

In our future work, we plan to address the follow-

ing issues. First, we plan to provide a GUI for de-

veloping high-level policies and enabling a developer

to modify the policies at runtime. Second, we real-

ized that the task of adding self-management behav-

ior for multiple service collaborations is made even

more complex if the collaborating services are state-

ful. We plan to investigate this problem by using Grid

services, which are stateful Web services. Finally, we

plan to study the existing ranking systems for service

discovery.

ACKNOWLEDGEMENTS

This work was supported in part by IBM and in

part by the National Science Foundation grants OCI-

0636031 and REU-0552555.

REFERENCES

Akkiraju, R., Farrell, J., Miller, J., Nagarajan, M., Schmidt,

M.-T., Sheth, A., and Verma, K. (2005). Web service

semantics - WSDL-S. W3C member submission.

Baresi, L., Ghezzi, C., and Guinea, S. (2004). Smart moni-

tors for composed services. In ICSOC ’04: Proceed-

ings of the 2nd international conference on Service

oriented computing, pages 193–202. ACM Press.

Birman, K. P., van Renesse, R., and Vogels, W. (2004).

Adding high availability and autonomic behavior to

web services. In Proceedings of the 26th Interna-

tional Conference on Software Engineering (ICSE

2004), pages 17–26, Edinburgh, United Kingdom.

IEEE Computer Society.

Blow, M., Goland, Y., Kloppmann, M., Leymann, F., Pfau,

G., Roller, D., and Rowley, M. (2004). Bpelj: BPEL

for Java. White Paper.

Charﬁ, A. and Mezini, M. (2005). An aspect based process

container for BPEL. In Proceedings of the 1st Work-

shop on Aspect-Oriented Middleware Developement,

Genoble, France.

Erradi, A. and Maheshwari, P. (2005). wsBus: QoS-aware

middleware for relaible web services interaction. In

IEEE International Conference on e-Technology, e-

Commerce and e-Service, Hong Kong, China.

Erradi, A., Maheshwari, P., and Padmanabhuni, S. (2005).

Towards a policy driven framework for adaptive web

services composition. In Proceedings of International

Conference on Next Generation Web Services Prac-

tices.

Ezenwoye, O. and Sadjadi, S. M. (2006). Enabling robust-

ness in existing BPEL processes. In Proceedings of

the 8th International Conference on Enterprise Infor-

mation Systems.

Gurguis, S. and Zeid, A. (2005). Towards autonomic web

services: Achieving self-healing using web services.

In Proceedings of DEAS’05, Missouri, USA.

Kephart, J. O. and Chess, D. M. (2003). The vision of auto-

nomic computing. IEEE Computer, 36(1):41–50.

Martin, D., Paolucci, M., McIlraith, S., Burstein, M., Mc-

Dermott, D., McGuinness, D., Parsia, B., Payne, T.,

Sabou, M., Solanki, M., Srinivasan, N., and Sycara,

K. Bringing semantics to web services: The OWL-S

approach. In The First International Workshop on Se-

mantic Web Services and Web Process Composition.

Patil, A., Oundhakar, S., Sheth, A., and Verma, K.

METEOR-S web service annotation framework. In

The Thirteenth International World Wide Web Confer-

ence.

Sadjadi, S. M. and McKinley, P. K. (2005). Using trans-

parent shaping and web services to support self-

management of composite systems. In Proceedings

of the International Conference on Autonomic Com-

puting (ICAC’05), Seattle, Washington.

Slominski, A. (2004). On using BPEL extensibility to im-

plement OGSI and WSRF grid workﬂows. In GGF10

Workshop on Workﬂow in Grid Systems, Berlin, Ger-

many.

TRAP/BPEL - A Framework for Dynamic Adaptation of Composite Services

221
