A NETWORK-BASED ANOMALY DETECTION SYSTEM USING
MULTIPLE NETWORK FEATURES
Yuji Waizumi, Yohei Sato and Yoshiaki Nemoto
Graduate School of Information Sciences, Tohoku University
6-6-05, Aramaki-Aza-Aoba, Aobaku, Sendai-shi, Miyagi, 980-8579 Japan
Keywords:
Anomaly Detection, Multiple Network Features, Intrusion Detection System, Principal Component Analysis.
Abstract:
Accuracy of anomaly-based intrusion detection greatly depends on features, the numerical values representing
characteristics of network traffic. In order to increase accuracy, it is necessary to choose appropriate features
that can correctly detect anomalous events. In this paper, we stress the fact that a specific kind of anomaly
changes specific features. We propose a highly accurate and robust intrusion detection system using multiple
features. Each feature is used for evaluating anomalous events independently by a statistical detection method.
Through experiments, we investigate the accuracy of the proposed scheme.
1 INTRODUCTION
The use of Internet has expanded to global scale.
Along with its growth, network crimes and illegal ac-
cesses are also on the rise. Network Intrusion De-
tection Systems (NIDSs) are commonly used to de-
fend against such crimes. The two most common
detection techniques adopted by NIDSs are signature
based detection and anomaly based detection. Signa-
ture based detection techniques search for character-
istics of known attacks. Although this technique can
precisely detect illegal accesses defined in the signa-
ture database, it can not detect novel attacks.
The anomaly detection technique defines the nor-
mal state of the network traffic. It regards any net-
work state deviating from the normal state as anoma-
lous. Thus, anomaly detection technique can be used
to detect unknown attacks. However, this method has
also high detection error rate because it is difficult to
precisely define the normal network state. Although
many researches have been carried out in the anomaly
detection field (Debra et al., 1995) (SPADE, ) (Ma-
honey and Chan, 2001) (M.Mahoney, 2003) to reduce
the detection error, the detection accuracy is insuffi-
cient.
A more detailed traffic information is necessary to
build an advanced anomaly detection system. In this
paper, we propose a new anomaly detection technique
based on multiple features of network traffic. The pro-
posed features are selected based on three different
type of attack characteristics. The three features are
1) the number of packets, 2) characteristics of pack-
ets of flow units and 3) histogram of character code of
payloads. To detect any anomalous traffic, we adopt
Principal Component Analysis.
2 THREE DIFFERENT
FEATURES BASED ON
CHARACTERISTICS OF
ATTACKS
The attacks of (DARPA, 1999) are classified into four
types, Denial of Service (DoS),Probe,Remote to Lo-
cal (R2L),User to Root (U2R).
In order for NIDS to detect attacks, the traffic
should be studied in a different basis. We reclassify
these attacks based on the type of anomalies they cre-
ate, as follows:
C1 Anomaly in the amount of traffic and the range of
communication (DoS, Probe)
C2 Anomaly in communication procedures (Probe)
C3 Anomaly in content of communication
(DoS,R2L,U2R)
410
Waizumi Y., Sato Y. and Nemoto Y. (2007).
A NETWORK-BASED ANOMALY DETECTION SYSTEM USING MULTIPLE NETWORK FEATURES.
In Proceedings of the Third International Conference on Web Information Systems and Technologies - Internet Technology, pages 410-413
DOI: 10.5220/0001279304100413
Copyright
c
SciTePress
We next propose three feature sets corresponding
to the above anomalies.
2.1 Timeslot Type Feature Set
Based on C1, we define Timeslot type feature set
which numerically expresses the amount of traffic and
the range of the communication. This feature set ex-
presses the state of the network as a 34-dimensional
vector. The Timeslot type feature set is extracted by
counting the following items at fixed interval of time
T
t
. # of TCP, UDP, ICMP packets (3 elements), # of
bytes sent and received through all TCP connections
(1 element), # of TCP ports, # of occurrences of TCP
flags (5 elements), # of DNS (UDP, port 53) packets
(1 element), # of fragmented packets (1 element) and
# of values of the 4 fields of IP addresses.
-1.0
-0.5
0.0
0.5
1.0
1.5
2.0
2.5
3.0
0 5 10 15 20 25 30 35
Feature Value
Normalized Frequency

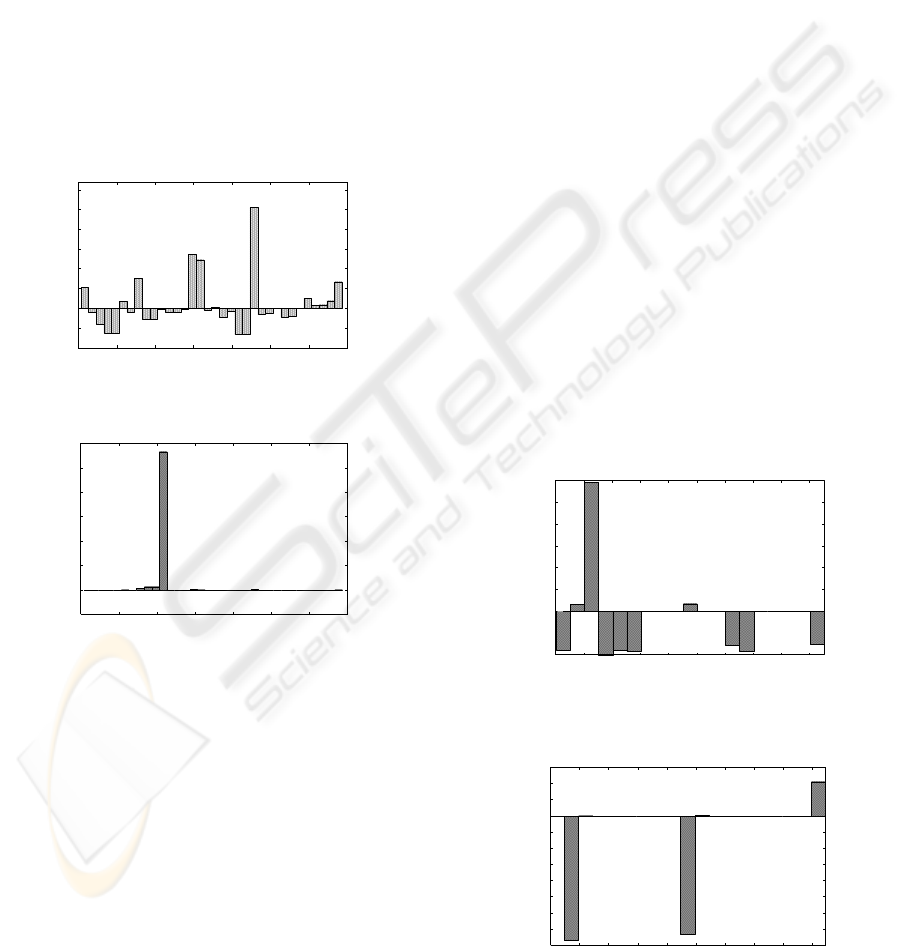

Figure 1: Timeslot type feature set of normal network state.
-100
0
100
200
300
400
500
600
0 5 10 15 20 25 30 35
Feature Value
Normalized Frequency
Figure 2: Timeslot type feature set of scanning ftp services.
The Timeslot type feature set is suitable for the
detection of attacks which bring about changes in the
amount of traffic. Examples of such attacks are scan-
ning specific port numbers and Flood DoS. Figure 1
and 2 show a normal network state and a probe traf-
fic, respectively. From these figures, we can see that
a few specific elements extracted attack traffic(figure
2) are extremely larger than other elements compared
to the normal network state(figure 1).
2.2 Flow Count Type Feature Set
Flow Count type feature set is defined from C2 of the
reclassification to express the state of a flow by cal-
culating the number of packets, flags, etc. Here, a
flow is defined as the aggregation of packets which
have same attributes defined by using 5-tuple (pro-
tocol,source and destination IP addresses, source and
destination port numbers) (Brownlee, 1998). The start
and the end of a TCP Flow are decided depending on
flag bits. The end of a UDP flow, thus, is decided by
setting timeout T
u
.
The Flow Count type feature sets of TCP and UDP
are 19-dimensional vector and 7-dimensional vector,
respectively, and are defined as follows. Items about
a TCP flow are # of packets (1 element), # of flows
of the current flow’s port number (1 element), # of
fragmented packets (1 element), # of occurrences of
the 8 TCP flags (8 elements) and # of occurrences of
packets with only one kind of flag (8 elements). Items
about a UDP flow are # of packets (1 element), # of
flows of the current flow’s port number (1 element), #
of fragmented packets (1 element), # of sent and re-
ceived packets (2 elements) and # of sent and received
bytes (2 elements).
This feature set is defined to detect attacks which
bring about anomalous changes in the flow structure.
In other words, this feature set is defined to detect at-
tacks which contain anomalous sequence of the flags
and access to the ports which are not used by normal
programs. Figure 3 and 4 depict examples of Flow
Count type feature sets. Some specific elements of
the port sweep traffic are extremely high.
-0.04
-0.02
0.00
0.02
0.04
0.06
0.08
0.10
0.12
0 2 4 6 8 10 12 14 16 18
Feature Value
Normalized Frequency
Figure 3: Flow Count type feature set of normal flow.
-160
-140
-120
-100
-80
-60
-40
-20
0
20
40
60
0 2 4 6 8 10 12 14 16 18
Feature Value
Normalized Frequency
Figure 4: Flow Count type feature set of port sweep.
A NETWORK-BASED ANOMALY DETECTION SYSTEM USING MULTIPLE NETWORK FEATURES
411
2.3 Flow Payload Type Feature Set
From reclassification C3, we define Flow Payload
type feature set to detect anomaly of the transmitted
data by calculating the character code distribution of
their payloads. This feature set consists of the ratio of
appearance frequencies of 8-bit codes of the flow pay-
load. This feature is extracted from the traffics from
client to server and from server to client separately.
Hence this feature is expressed by a 512-dimensional
vector.
The items of the Flow Payload type are as follows:
The appearance probability of each code in the
traffic from client to server (256 elements)
The appearance probability of each code in the
traffic from server to client (256 elements)
-2
0
2
4
6
8
10
12
14
0 100 200 300 400 512
Feature Value
Normalized Frequency

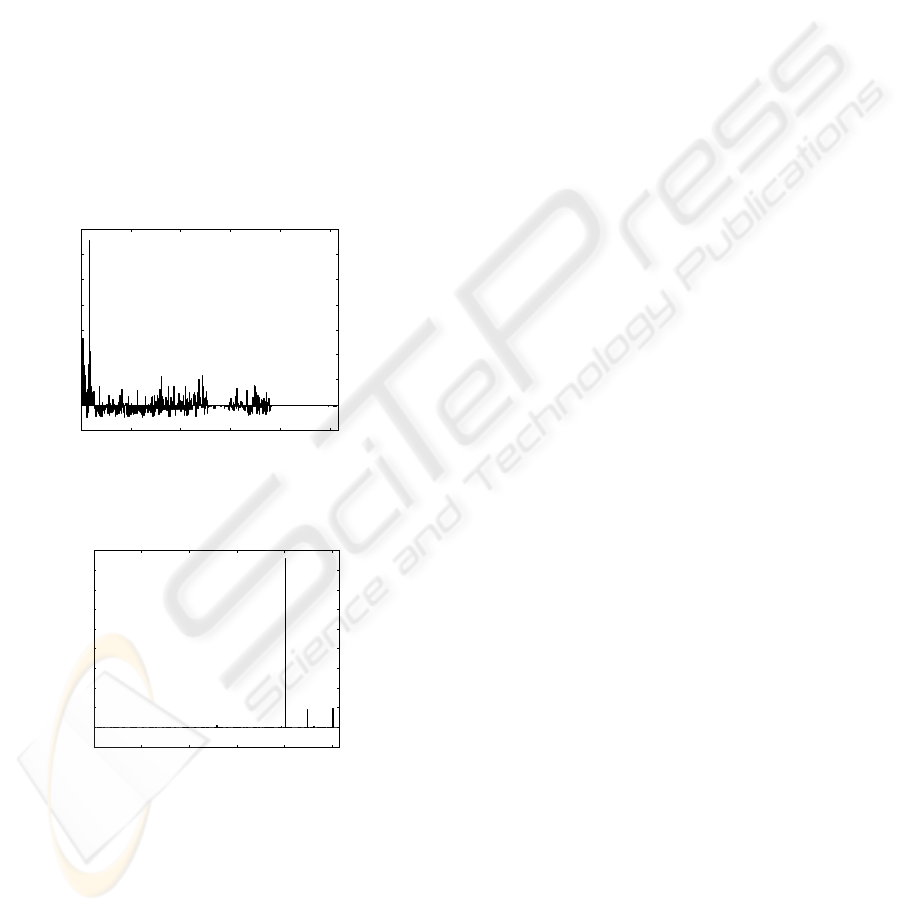

Figure 5: Flow Payload type feature set of a normal flow.
-500
0
500
1000
1500
2000
2500
3000
3500
4000
4500
0 100 200 300 400 512
Feature Value
Normalized Frequency
Figure 6: Flow Payload type feature set of a flow of imap
attack.
Figure 5 and 6 show a normal flown and a flow
of imap attack, respectively. Some elements of Flow
Payload type feature set of an imap attack are excep-
tionally high. It is considered that these high values
indicate buffer overflow traffic. Examples of such at-
tacks are worms and DoS attacks that exploit vulnera-
bilities of softwares and insert large amounts of codes
in order to provoke buffer overflow.
3 DETECTION OF ATTACKS BY
USING MULTIPLE MODULES
The proposed method detect attacks by combining the
results of modules which are defined per each feature
set, as explained in 2. We unify the results of these
modules and obtain the final result. While detecting
the attacks by using Flow Payload type feature sets,
we use the five subsets of TCP flows which are re-
lated to the ports 20, 21, 23, 25, 80. Consequently,
the number of modules corresponding to each feature
set of the proposed method are as follows.
Timeslot type - 1 module
Flow Count type- 2 modules
Flow Payload type - 6 modules
The final result of the proposed detection system
is the logical OR of the detection results of these
modules. That is, if any one of these modules identi-
fies an anomaly, the system generates an alert.
The detection modules of the proposed system
adopt the detection method described in (OIKAWA
et al., 2002) which uses Principal Component Analy-
sis (PCA). This method undergoes through Learning
phase and Detecting phase. At Learning phase, the
principal component axis is obtained from learning
data by using PCA. This axis shows the characteris-
tics of variance involving the correlations of normal
traffic. At detection phase , distances from the prin-
cipal component axis (Projection Distance) are cal-
culated as Anomaly Score for newly extracted feature
sets. When the anomaly score of a feature set sur-
passes a threshold, it is judged as attack at Detecting
phase.
4 VERIFICATION AND
EVALUATION OF THE
PROPOSED SYSTEM
4.1 Experimental Environment
In this experiment, we use the data set in (DARPA,
1999) which includes five-week data. We carry out
experiments taking two scenarios in mind. In sce-
nario 1, we use the data of week 1 and 3 (attack-free)
together for learning, and the data of week 4 and 5
(including attacks) for detection test. In scenario 2, to
confirm our system’s ability to detect attacks even if
attack-included data is used for learning, data of each
day of week 4 and 5 are used for learning as well as
for detecting attacks. Of course, the information of
WEBIST 2007 - International Conference on Web Information Systems and Technologies
412
Table 1: Detection Results (Scenario 1).
Method Detection rate(%)
Proposed Method 60.8%(104/171)
(M.Mahoney, 2003) 71.4%(132/185)
(Tyson et al., 2000) 55.6%(15/27)
(Neumann and Porras, 1999) 50.3%(85 / 169)
(Vigna et al., 2000) 46.8%(81 / 173)
(Barbara et al., 2001) 40.2%(41 / 102)
Table 2: Detection Results (Scenario 2).
Method Detection rate(%)
The proposed System 58.5%(100/171)
NETAD 37.8%(70/185)
the attacks are not used for learning. In both scenar-
ios, we normalize all elements of feature sets to zero
mean and unit variance.
The parameters setup of the experiment are fol-
lows: # of permissible false alarms is 10/day(R. and
et al, 2000), time-slot interval is 60 seconds, time out
(T
u
) of UDP flow is 600 seconds and validity time
(T
f
) is 600 seconds.
The total number of false alarms permitted in two
weeks(10 days) is 100 (10 per day). The threshold of
projection distance for each day for each module is
determined by preliminary experiment.
4.2 Detection Performance
The detection results of the proposed system and con-
ventional systems are shown in Table 1. The pro-
posed system has better results for both the number
of attacks detected and the detection rate compared
to other methods, except for NETAD (M.Mahoney,
2003). The total number of each method is different
because each method observes different objects.
The detection results of the proposed system and
NETAD for scenario 2 are shown in Table 2. Table
2 shows that the detection number and the detection
rate of NETAD, which shows best performance when
attack-free data is used for learning, have greatly de-
creased. On the other hand, the detection result of
the proposed system hardly deteriorates and the detec-
tion number and detection rate are higher than those
of NETAD. Most of the anomaly-based IDS require
attack-free data for learning. But in practice, such
attack-free data are very hard to get and it is thought
that the learning data that such IDSs learn have at least
a few attacks. The results of scenario 2 are close to
those of a real network. Therefore, the detection abil-
ity of the proposed system does not deteriorate much
even under an environment close to that of a real net-
work, scenario 2. This proves that our proposed sys-
tem has high accuracy and robustness.
5 CONCLUSION
In this paper, we have proposed a anomaly detec-
tion system using three different feature sets which
are extracted based on the reclassification of attacks.
Our proposed method effectively detects wide range
of attacks by independently treating the feature sets,
and suppresses the negative effect of attack traffic in-
cluded in learning data by using a statistical method
in learning phase.
We have demonstrated that our proposed system
can achieve high detection rate and high robustness
by experiments using the data set in (DARPA, 1999).
REFERENCES
Barbara, D., Jajodia, S., Wu, N., and Speegle, B. (2001).
Adam: Detecting intrusions by data mining.
Brownlee, N. (1998). Network management and realtime
trafficflow measurement. Journal of Network and Sys-
tems Management, 6(2):223–227.
DARPA (1999). Mit lincoln laboratory - darpa intrusion de-
tection evaluation. http://www.ll.mit.edu/
IST/ideval/.
Debra, A., F.Lunt, T., Tamaru, H. J. A., and Valdes, A.
(1995). Detecting unusual program behavior using the
statistical component of the nextgeneration intrusion
detection expert system(nides). Technical report.
Mahoney, M. V. and Chan, P. K. (2001). Detecting novel at-
tacks by identifying anomalousnetwork packet head-
ers. Technical report.
M.Mahoney (2003). Network traffic anomaly detection
based on packet bytes. In ACM-SAC, pages 346–350.
Neumann, P. and Porras, P. (1999). Experience with emer-
ald to date. In Proceedings of First USENIX Work-
shop on Intrusion Detection and Network Monitoring,
pages 73–80.
OIKAWA, T., WAIZUMI, Y., OHTA, K., KATO, N., and
NEMOTO, Y. (2002). Network anomaly detection us-
ing statistical clustering method. Technical report.
R., L. and et al (2000). The 1999 darpa off-line intrusion
detection evaluation. 34:579–595.
SPADE. http://www.silicondefense.com/
software/spice/.
Tyson, M., Berry, P., Williams, N., Moran, D., and Blei, D.
(2000). Derbi: Diagnosis, explanation and recovery
from computer break-ins. Technical report.
Vigna, G., Eckmann, S., and Kemmerer, R. (2000). The
stat tool suite. In Proceedings of the 2000 DARPA
Information Survivability Conference and Exposition
(DISCEX).
A NETWORK-BASED ANOMALY DETECTION SYSTEM USING MULTIPLE NETWORK FEATURES
413
