EZK: A ZERO KNOWLEDGE TOOL FOR GENERATING,

HANDLING, AND SECURING ELECTRONIC BILLS OF LADING

Andrea Visconti

Dipartmento di Informatica e Comunicazione, Università degli Studi di Milano, via Comelico 39/41, Milano, Italy

Keywords: Blind merchandise counts, electronic bill of lading, EDI, digital signature, zero-knowledge, cryptography.

Abstract: EZK is a tool for generating, handling, and securing electronic bills of lading. EZK implements the

cryptographic protocol suggested by Pagnoni and Visconti in (Pagnoni and Visconti, 2006), cryptographic

protocol that is based on a shipper-carrier-holder model. This protocol makes use of (a) blind merchandise

counts, or zero-knowledge counts, − that is, counts that do not reveal any information about the quantities

actually counted, − (b) secure timestamps, and (c) digital signatures. We show how EZK generates and

handles order e-BOLs and how the cryptographic techniques implemented in EZK make a number of

common fraud schemes impossible.

1 INTRODUCTION

A bill of lading (BOL, for short) is a negotiable

document, that is, a document the physical

possession of which is sufficient evidence of a

certain set of rights. Examples of negotiable

documents are: phone card, bearer bonds, bus

tickets, etc. Negotiable documents are subject to

many kinds of security threats – forgery, duplication,

etc. – and pose particular challenges in the context

of electronic data interchange (ISO/TS 20625,

2002).

An electronic bill of lading (e-BOL) may be

designed as either a bearer, or an order document.

Modelling digital bearer documents is a quite

challenging task that requires a strong notion of

original copy of a file. This problem has been well

studied by researchers working in the area of e-cash,

or digital cash – most notably by Chaum (Chaum,

1988), Okamoto et al. (Okamoto and Ohta, 1992)

and Brands (Brands, 2001). Endorsed, or order,

digital BOLs are easier to model: digital signatures

can be used for endorsement, thus providing a first

measure of originality to the document.

This paper introduce EZK a cryptographic tool

for generating, handling, and securing an order e-

BOL, that is, a digital bill of lading that stores all

relevant shipping information in a way that can be

safely used for all payment purposes. EZK

implements the cryptographic protocol suggested by

Pagnoni and Visconti in (Pagnoni and Visconti,

2006), cryptographic protocol that is based on a

shipper-carrier-holder model. The relevant features

of this tool are (a) blind merchandise counts, – that

are counts with no previous information about

merchandise quantities, – separately done by the

shipper, carrier, and holder; (b) non repudiability of

such counts and (c) non forgery of the e-BOL itself.

This paper is organized as follow: Section 2

discusses how to generate and handle e-BOLs;

Section 3 discusses how to secure e-BOLs; Section 4

presents tests and results of our tool. Finally,

conclusions and future work are briefly discussed in

Section 5. In the sequel, we shall assume readers to

be familiar with both zero-knowledge protocols and

digital signatures, and refer respectively to (Menezes

et al., 1997) and (Stallings, 2006) for a basic

introduction to these topics.

2 GENERATING E-BOLS

An easy way for generating and handling e-BOLs is

to implement the cryptographic protocol (Pagnoni

and Visconti, 2006) based on a shipper-carrier-

holder model. In this section, we briefly present the

main ideas of the protocol. We shall assume the

existence of five actors in our model: Shila (S) the

shipper, Carl (C) the carrier, Hans (H) the holder, a

bank (B) for payment purposes, and a Trusted Third

238

Visconti A. (2007).

EZK: A ZERO KNOWLEDGE TOOL FOR GENERATING, HANDLING, AND SECURING ELECTRONIC BILLS OF LADING.

In Proceedings of the Third International Conference on Web Information Systems and Technologies - Society, e-Business and e-Government /

e-Learning, pages 238-241

DOI: 10.5220/0001280102380241

 SciTePress

Party (TTP) in charge of the generation, distribution,

and maintain all cryptographic keys.

Setup Procedure. Before shipping the

merchandise, EZK needs some information such as

public and private keys of each actor, destination

and type of merchandise and e-BOL identifier. This

information will be generated by TTP during the

setup procedure. For these reasons, shipper Shila

asks TTP to begin setup process. The Trusted Third

Party generates:

 public (P

, P

TTP

) and private (σ

, σ

TTP

) keys for each actor, and

publishes public keys on its repository;

 numbers p and g, where p is a large prime, and

g is a generator of Z

, with 1<g<p. This two

numbers will be used by actors for counting

merchandise (see Section 3.3) and, for this

reason, p and g are public numbers. TTP

publishes both p and g on its repository;

 a binary timestamp T (see Section 3.1 for

details) that will be used as identification

number of the e-BOL.

Shipping merchandise procedure. This

procedure is done by Shila, Carl, and Hans. Shila:

 generates a blank e-BOL

e-BOL = (--, merchandise info, --, --)

 computes her blind count K

(see Section 3.3

for details) based on Hans’ order and signs K

with her private key σ

;

 fills out the blank e-BOL with (a) signed blind

count σ

), and (b) e-BOL’s identifier ID,

that is ID=(T, σ

(T), --, --).

e-BOL = (ID, merchandise info, σ

), --)

 transmits the e-BOL to carrier Carl, and

delivers the ordered merchandise to him.

Carl:

 computes his blind count K

;

 checks if Shila’s blind count K

and Shila’s

timestamp are respectively equal to K

and T.

If both the numbers are correct, Carl accepts

e-BOL and merchandise, else he rejects;

 if he accepts, Carl signs blind count K

with his

private key σ

;

 fills out the e-BOL with (a) his signed blind

count σ

), and (b) e-BOL’s identifier ID,

that now is ID=(T, σ

(T), σ

(T), --)

e-BOL = (ID, merchandise info, σ

), σ

))

 transmits the e-BOL to holder Hans, and

delivers the ordered merchandise to him.

Again, Hans:

 computes his blind count K

;

 checks Shila’s blind count K

, Carl’s blind

count K

, Shila’s timestamp and Carl’s

timestamp. If the four numbers are correct,

Hans accepts e-BOL and merchandise, else he

rejects;

 if he accepts, he fills out the e-BOL with e-

BOL’s identifier ID, that now is ID=(T,

(T), σ

(T))

e-BOL = (ID, merchandise info, σ

), σ

))

 transmits the e-BOL to Shila and Carl.

 encrypts the e-BOL with public key of the bank

(e-BOL) and transmits it to bank B for

payment purposes.

Validation procedure. This procedure is done

by bank B. The bank decrypts the e-BOL received

from Hans with its private key σ

, and checks all

timestamps and blind counts recovered from the e-

BOL. If all data are not corrupted or altered, bank B

begins the payment procedure, else begins the fraud

control procedure.

Payment procedure. The bank pays Shila for

the merchandise and Carl for his services and then

sends the e-BOL signed with its private keys σ

Shila and Carl as a payment acknowledgement.

Upon checking that her bank account has been

properly credited, Shila signs the e-BOL with her

private key σ

and send the signed e-BOL to the

bank. Bank B stores Shila’ signed e-BOL as proof of

payment. Carl will do the same operation with his

private key σ

Fraud control procedure. The bank discovers

actors that try to cheat (Pagnoni and Visconti, 2006)

submitting the e-BOL to bank B twice with the same

or different timestamps T, filling out the e-BOL with

erroneous blind counts, modifying the blind count

after forwarding merchandise, trying to fake an e-

BOL ex-novo, and so on. Checking all timestamps T

and blind counts, the bank will discover dishonest

actors and stop all payment procedure.

3 SECURING E-BOLS

An easy way for securing e-BOL is combining

several cryptographic techniques for preventing

fraud schemes. We choose digital signatures, zero-

knowledge representation, and encryption

operations. Before introducing the cryptographic

techniques used in our application, we would list

few properties of signed e-BOLs. Signed e-BOL (a)

constitute a sure proof of the author’s identity, (b)

cannot be repudiated by the signer, and (c) cannot be

altered by any evil actor. In order to achieve

previous properties, EZK uses secure binary

timestamps, digital signatures, unforgeable blind

counts, and encryption operations.

EZK: A ZERO KNOWLEDGE TOOL FOR GENERATING, HANDLING, AND SECURING ELECTRONIC BILLS OF

LADING

239

3.1 Binary Timestamp

For generating a secure binary timestamp T (see

Figure 1), EZK (a) creates a timestamp t of the

actual transaction (month, day, year, hour, min, sec),

(b) subjects the timestamp t to a secret random

permutation, (c) computes ones’ complement of the

previous permutation, (d) creates a hash file (see

section 3.2 for details), and then (e) signs the output

hash file with TTP’s secret key σTTP. Moreover,

TTP securely stores the secret random permutation

to be used for investigating possible cheating

schemes.

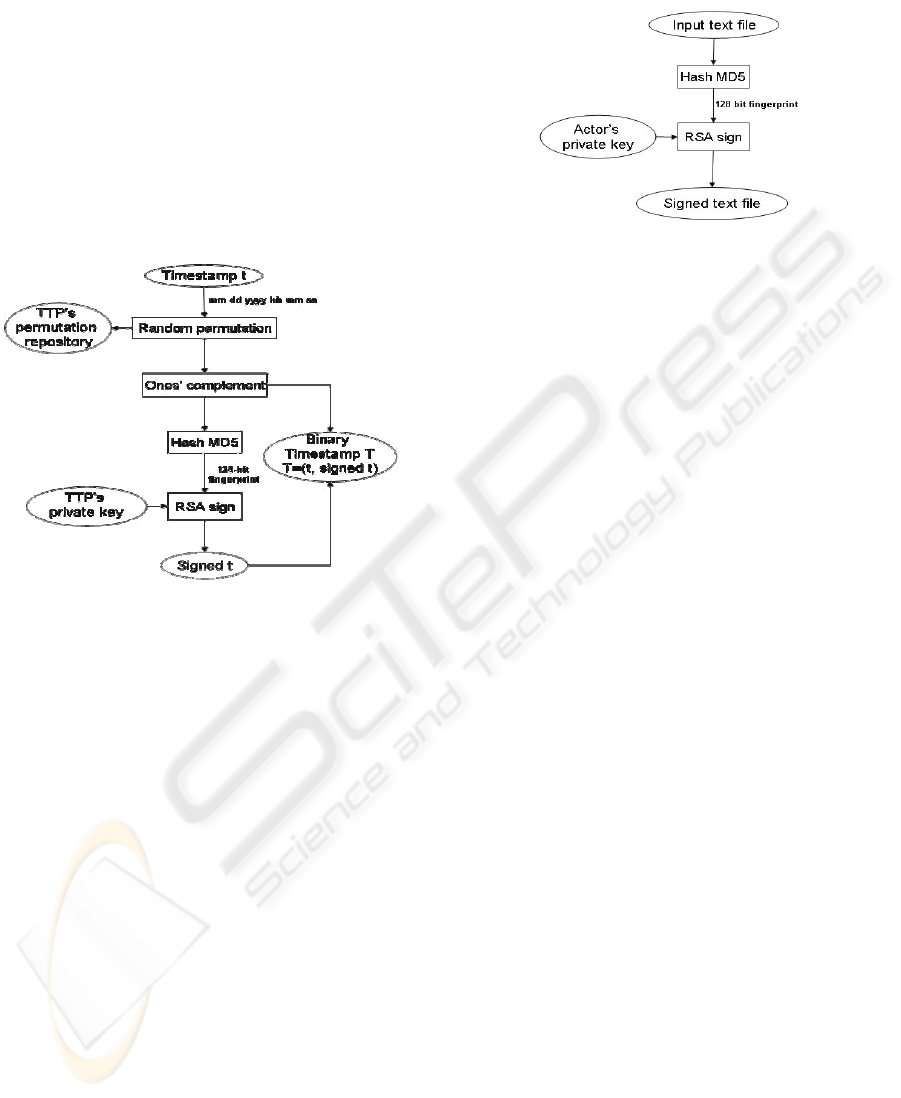

Figure 1: TTP generates binary timestamp T.

3.2 Digital Signature

For signing timestamp t (see Figure 1), endorsing

order e-BOL, and implementing all signature

operations EZK will use an asymmetric

cryptographic algorithm. The main problem of

signature operations is that apply a signature to large

files is a very time-consuming operation.

Unfortunately, if we ship a big number of different

items, our e-BOL will be a large text file. For this

reason, we cannot directly sign it, but we can solve

the problem by means of a hash function. Let us

explain how.

A hash function is function that provides a way

of creating a small digital fingerprint, or so called

message digest, for an arbitrarily long input file.

Therefore, we can (a) input our large text file to a

hash function algorithm that produce a small digital

fingerprint and then, (b) sign the small fingerprint.

We choose MD5 message digest algorithm as

hash function and RSA as asymmetric cryptographic

algorithm for signature operations. MD5 algorithm

takes as input any file of arbitrary size and produces

as output a 128-bit fingerprint. Then, we can quickly

sign this 128-bit fingerprint by means of RSA (See

Figure 2) with keys of 1024 bits.

Figure 2: Signature operations.

Both MD5 and RSA algorithms were taken from

OpenSSL library (OpenSSL, 2006). These

cryptosystems need specific function for generating

and manipulating large primes, functions

implemented in OpenSSL library (OpenSSL, 2006).

3.3 Blind Counts

For counting merchandise, we introduce blind

counts, a technique based on zero-knowledge

representation (Menezes 1997). Blind counts are the

representation of actual merchandise counts, that do

not reveal any information about the specific

quantities counted of each item.

Each actor can compute its blind merchandise

counts K

by counting the quantity q

of each item i

and then executing this operation:

= g

· g

· … · g

mod p

where g

are random number of Z

that identify n

different items. Numbers g

… g

are written onto the

e-BOL by shipper Shila before computing her blind

count K

. Altering the value of blind counts K

will

be computationally unfeasible because evil actors

should invert multi-logarithmic functions over finite

fields and know actors’ private keys for signing the

new fake value.

3.4 Encryption

For protecting data stored in the e-BOL that will be

sent over the Internet, EZK makes use of encryption.

As mentioned in Section 3.2 encryption and

decryption operations, applied to large input files,

are very time consuming operations and we can use

it only few times. In our application, encryption and

decryption operations are respectively done by Hans

and bank B just one time. Hans encrypts the e-BOL

with the public key of the bank P

and sends it to

WEBIST 2007 - International Conference on Web Information Systems and Technologies

240

bank B. The bank decrypts the e-BOL and starts the

validation procedure. Encryption and decryption

operation are all based on RSA cryptographic

functions implemented in OpenSSL library.

4 TESTS AND RESULTS

EZK is a stand-alone and portable application

developed in ANSI C, which runs on any

architecture and any operating system having

OpenSSL library installed (OpenSSL, 2006). EZK

has been tested on Intel

Pentium

III, at 1GHz,

with 1Gb of RAM under Linux. For computing the

time spent by EZK during signature operations and

encryption/decryption, we used UNIX command

time. This command shows us:

 the total number of CPU-seconds spent by the

process in user mode (U);

 the total number of CPU-seconds spent by the

process in kernel mode, that means time spent

by the system on behalf of the process (S);

 the elapsed real time spent by the process (R).

The length of the keys used by EZK for data

encryption/decryption and signature operations was

1024 bits. All tests have been repeated ten times and

the average values, expressed in second, are

presented in the following tables.

Table 1: Computation times for the generation of RSA key

pairs.

RSA key size (bits) R (secs) U (secs) S (secs)

512 0,179 0,164 0,003

768 0,385 0,364 0,003

1024 2,815 2,565 0,012

2048 21,596 20,061 0,081

Table 2: Computation times for generating and signing a

128-bit fingerprint.

Key size (bits) R (secs) U (secs) S (secs)

512 0,028 0,021 0,004

1024 0,038 0,030 0,005

2048 0,083 0,074 0,006

Table 3: Computation times for verifying digital

signatures previously computed in Table 2.

Key size (bits) R (secs) U (secs) S (secs)

512 0,020 0,014 0,003

1024 0,022 0,017 0,004

2048 0,028 0,021 0,004

Table 4: Computation times spent by Hans for encrypting

the e-BOL.

Plaintext (Kbytes) R (secs) U (secs) S (secs)

1 0,008 0,003 0,003

8 0,023 0,016 0,004

32 0,080 0,061 0,004

128 0,233 0,226 0,004

Table 5: Computation times spent by bank B for

decrypting the e-BOL.

Ciphertext (Kbytes) R (secs) U (secs) S (secs)

1 0,268 0,251 0,003

8 1,726 1,576 0,012

32 7,574 6,903 0,041

128 24,805 24,116 0,072

5 CONCLUSIONS

We have presented a tool based on cryptography

techniques for generating, handling, and securing

electronic bills of lading. In particular, we have

shown how it is possible to generate a secure e-BOL

using cryptographic techniques, e-BOL that cannot

be forged, repudiated, or altered. The strength of

EZK is ensured by the computational complexity of

inverting multi-logarithmic functions over finite

fields, complexity that makes forging our digital

BOLs computationally unfeasible.Future research

will focus on designing secure XML order e-BOLs

that can be generated and handled by a web server.

REFERENCES

Brands, S.A., 2001. Rethinking Public Key Infrastructure

and Digital Certificates Building in Privacy. The MIT

Press, Cambridge.

Chaum, D. et al., 1988, Untraceable electronic cash.

Advances in cryptology – CRYPTO’88, LNCS 403.

ISO/TS 20625, 2002, Electronic data interchange for

administration, commerce and transport (EDIFACT),

available at http://www.iso.org/.

EDI 2006, Electronic Data Interchange, available at

http://www.edi-guide.com/.

Menezes, A.J. et al., 1997. Handbook of Applied

Cryptography. CRC Press, New York.

Okamoto, T. and Ohta, K., 1992, Universal electronic

cash. Advances in cryptology,CRYPTO’91, LNCS 576.

OpenSSL 2006, OpenSSL library, available at

http://www.openssl.org

Pagnoni, A. and Visconti, A., 2006. Electronic Bill of

Lading: a Cryptographic Protocol. In e-commerce

2006, IADIS International Conference. IADIS Press.

Stallings, W., 2006. Cryptography and Network Security

4th Ed.

EZK: A ZERO KNOWLEDGE TOOL FOR GENERATING, HANDLING, AND SECURING ELECTRONIC BILLS OF

LADING

241
