APPLYING QUALITY HYPERMEDIA DESIGN PRINCIPLES TO

A WEB-BASED EDUCATIONAL SYSTEM

Roberto F. Arroyo, Nuria Medina, Miguel J. Hornos and Fernando Molina

Dept. Lenguajes y Sistemas Informáticos, E.T.S.I. Informática y de Telecomunicación, University of Granada, Spain

Keywords: Web-based educational system, hypermedia design, user adaptation.

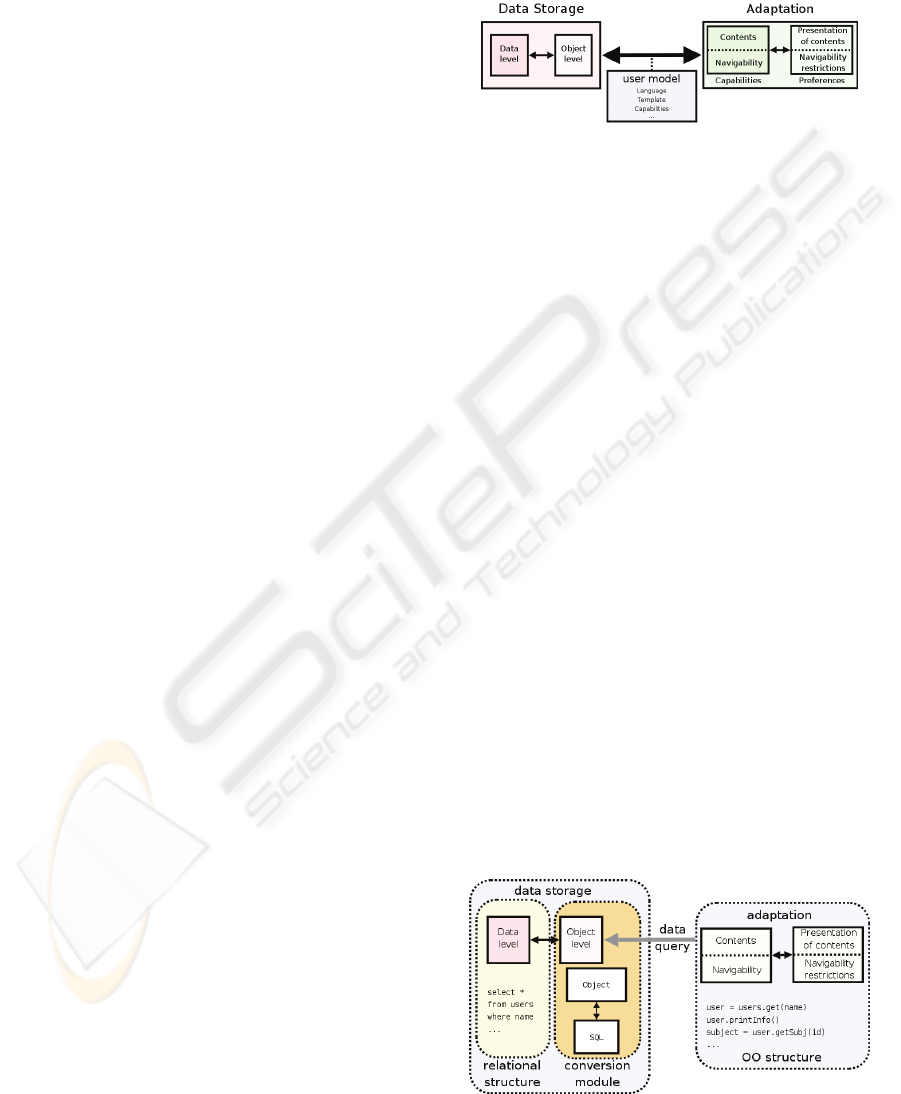

Abstract: We present a web-based educational system modeled using hypermedia design principles. The design

establishes two interrelated and interacting layers: a data storage layer and an adaptation layer, linked by the

user model. The data storage layer is structured in a data level and an object level. The first level is

responsible for maintaining a relational representation of all data, and the second one converts data from the

relational schemes into object oriented structures, used out of the storage layer. The adaptation layer

performs an adaptive process in two levels: contents and presentation. The former decides what must be

shown and depends on the user’s capabilities, while the latter determines how it must be shown and depends

on the user’s preferences. Moreover, the system uses dynamic role assignments based on users’ capabilities.

1 INTRODUCTION

Hypermedia systems, and web systems, considered

as the subset of hypermedia systems that operate in

specific Web environments (Díaz, 2005), structure

the information in conceptual units that are

interrelated by means of links, so the selection of a

link causes the retrieval of the information contained

in the destination unit. This associative organization

of the information is similar to the one used by the

human mind in order to interrelate memories (Rada,

1991) and has its origin in the paper presented by

Bush (1945). Nowadays hypermedia can be

considered to be a mature technology in whose

theoretical bases the scientific community is still

working.

If we focus on theoretical models, we must cite:

HAM model (Campbell, 1988) as the first attempt to

express a hypermedia system by means of an

abstract model; Trellis model (Furuta, 1990), which

defines five logical levels and establishes the need of

separating the structure from the content elements

that will be associated to such structure; and Dexter

model (Halasz, 1990), which explicitly separates in

different layers the storage and presentation of the

information.

Regarding design methods we can find, among

others: OOHDM (Schwabe, 1996), which adapts

object oriented notation and abstraction

mechanisms, and establishes four steps of design:

conceptual, navigational, abstract interface and

implementation; WSDM (De Troyer, 1998), where

data is modeled from each user’s point of view in

three steps: user modeling, conceptual design and

implementation; WebML (Ceri, 2000), oriented to

the design of web sites with a large amount of data,

where a web site is defined as the combination of

structure, composition, navigation and presentation;

UWE (Koch, 2001), an object oriented approach

based on UML and on the unified process that takes

into account user adaptation; OO-HMethod

(Cachero, 2000), which extends conventional object

oriented models with two new diagrams that specify

navigational access and abstract presentation and

which, in addition, uses a catalogue of interface

patterns; and ADM (Díaz, 2005), which establishes a

user-centered iterative process, divided into three

phases with a different abstraction level: conceptual

design, detailed design and evaluation.

Focusing in the adaptive capabilities of the

system, many authors propose models or

architectures with the aim of developing a

hypermedia system that is able to adjust both the

presentation of contents and the way their link

structure is navigated to the needs of each user,

therefore reducing the problems of disorientation

and cognitive overhead usually associated to

hypermedia systems. For example, we can cite

AHAM model (De Bra, 1998), AHA architecture

(De Bra, 2003), or the model and architecture SEM-

HP (Medina, 2005).

458

F. Arroyo R., Medina N., J. Hornos M. and Molina F. (2007).

APPLYING QUALITY HYPERMEDIA DESIGN PRINCIPLES TO A WEB-BASED EDUCATIONAL SYSTEM.

In Proceedings of the Third International Conference on Web Information Systems and Technologies - Society, e-Business and e-Government /

e-Learning, pages 458-463

DOI: 10.5220/0001285504580463

 SciTePress

This brief review shows that quality in

hypermedia applications is a growing concern in the

present scientific and technologic community. It is

also known that the quality in processes affects the

quality in the products, and that the quality in the

products influences the usage quality (Olsina, 2005).

In this way, the concept of Web Engineering arises

as the application of a systematic, disciplined and

measurable approach to the development, operation

and maintenance of hypermedia systems and

applications (Lowe, 1999). In addition, specific

methodologies and tools to measure the quality of

this kind of applications arise, such as WebQEM and

WebQEM-Tool (Olsina, 2002).

Nevertheless, in spite of all the efforts done in

the scientific environment, the reality is that,

nowadays, there are still web applications that are

built without taking into account sound design

principles and user adaptation. In this sense, in this

paper we present our experience in the design of a

web-based educational platform, in which initially

these aspects were not taken into account. After a

period of exploitation and subsequent evaluation, we

decided to reimplement the system, this time

grounded on quality hypermedia design principles.

This paper is organized as follows: Section 2

presents the principles and context regarding the first

implementation of the platform. Section 3 shows the

architecture and design principles followed in the

development of a new version of the system. Finally,

last section presents the conclusions.

2 WORK CONTEXT

In the academic year 2003/04, a group of lecturers at

the University of Granada decided to create, in the

context of an Educational Innovation Project, a web-

based system to support the teaching and learning of

the subjects we taught and the management of

academic information related to them (Hornos,

2006), but our aim was not to build an e-learning

tool, like the existing ones, since in this case we

would have opted by one of them. This system,

called Tutor (http://tutor.ugr.es), was initially used

by about one thousand students and about twelve

teachers, and was designed with different free access

sections, such as: Introduction, with general

information about the system; Staff, with

information about the development team and the

teachers using it; Subjects, with detailed information

about the syllabus, timetables, exam calendars, etc.

regarding the subjects managed by the system;

Links, selected and classified into categories by the

teachers, leading to interesting web pages for their

students; Notice Board, where the administrator or

the teachers can place notices or news related to the

platform or to any of the subjects managed by it;

Suggestions, which allows the users to communicate

problems or suggestions related to the platform, its

subjects and/or teachers, being each received

communication automatically forwarded to the most

appropriate recipient. In addition, there is a

Restricted section, which can be used only by

registered users that authenticate by properly

logging in. This section has more functionality than

the others, and provides the information that requires

a higher level of privacy. For example, students can

most interested, consult their marks, update their

personal information, download didactic materials,

upload solutions to assignments, etc. Teachers can

create theoretical and laboratory groups, upload

materials to the download area, propose

assignments, control the attendance to classes, and

set marks, among many other functions.

Regarding users, four different profiles were

created: one for non authenticated users, in which

the user (who is not registered in the system or has

not logged in) can navigate in any section except the

Restricted section, and three authenticated user

profiles, corresponding to administrator, teacher and

student, each of which gives access to the

appropriate restricted section. All the registered

users can use several communication mechanisms

such as: internal mail, discussion forums, chat, IP

telephony, instant messaging and access to restricted

notices. The shown elements and the set of available

actions for a user not only depend on the user

profile, but also on the role the user is performing

with regard to a specific subject. The system

distinguishes between the roles of theory teacher,

laboratory teacher and subject coordinator in the

teacher profile, and between theory group student

and laboratory group student in the student profile.

The number of users and subjects in Tutor

increases each year. This academic year the platform

is used by 45 teachers and 32 subjects,

corresponding to 11 different degree courses,

counting more than 5500 registered students. This

increase requires a considerable extension of the

system functionality, because of specific needs that

new subjects and users have. For example, the

addition of subjects with a high number of foreign

students from the Socrates/Erasmus exchange

programme has made us to consider that Tutor

provides information in more languages than only

Spanish.

APPLYING QUALITY HYPERMEDIA DESIGN PRINCIPLES TO A WEB-BASED EDUCATIONAL SYSTEM

459

The system we initially developed was adequate

for a limited number of users and subjects, but, due

to its design, its adaptation to such a big growth (in

users, contents and specially in functionality)

requires an excessive effort. This is mainly because

the aspects of information storage and navigation

were not separated, a formal user modelling was not

performed, and mechanisms to carry out a

satisfactory user adaptation were not defined.

For all these reasons, we have decided, in the

context of a second Educational Innovation Project,

to develop a new version of Tutor which, in addition

to improving the user interface and navigation

system, allows adaptiveness and adaptability.

3 DESIGN AND ARCHITECTURE

The new design, which has been done taking into

account the specific directives of hypermedia

systems, encompasses most of the features proposed

by the methods reviewed in the Introduction section:

object orientation, distinction between conceptual

and navigational modelling, user modelling, user

adaptation, and separation of the information storage

from its subsequent presentation. Moreover, the

performed development process follows the basic

principles proposed in the SEM-HP model (Medina,

2005), adapted in each case to the specific features

of Tutor. In addition, the final design tries to provide

an adequate navigability, not forgetting the need of

an easy and fast upgrading and extensibility of the

system, since it is predicted that the new system will

grow even more that the initial version. It also

provides specific user adaptation mechanisms, and a

simpler and more intuitive user interface.

The previous design was oriented to the role (or

user profile), directing both the way in which the

data was stored and the form of presentation and

navigation to the role played by the user navigating

the system, independently on the part of the system

being visited. The new design completely changes

this orientation, proposing an object oriented design

(data and operations), where it is also important

what is being visited, and not only who visits it. The

first-level objects we have considered include the

system users, subjects, degree courses, groups,

schools and departments, as well as notices and

internal messages. All these objects constitute the

system navigability core, and are the main

information structure of the system, so their design

deserves a major consideration. The new design is

divided into two layers (see Figure 1): data storage

and adaptation to each user. The connection

between them is the user model, which stores,

maintains and updates the user’s main features. In

the following subsections we describe in detail the

different parts of this design, commenting the

objectives we want to achieve.

Figure 1: Model based in a clear separation between

information storage and display, linked by the user model.

3.1 Data Storage Layer

Data storage is structured in two levels: a relational

level and an object oriented level. We store all the

data in a set of relational tables at the least abstract

level of the information storage, called data level

(see Figure 1), and use an object-relational mapping

(Stonebraker, 1999) for linking data in relational

databases to object-oriented language concepts. We

opted to code our own tailored object-relational

mapping instead of using an existent package that

performs this technique.

In addition, we provide a more abstract level

inside the data storage layer (see Figure 1): the

object level, which gives an object oriented view

using the underlying relational database. This level

builds an extended object from the information

stored in the data level, taking into account the

information associated to that object.

The adaptation layer, which always works with

objects, transmits its requests to the object level,

which is in charge of converting object oriented

requests to relational queries, returning an answer

consisting on an extended object constructed from a

set of relational data. Figure 2 shows the scheme of

this conversion, where the conversion module hides

the relational nature of the storage. This allows

designing the adaptation layer independently from

the data storage support.

Figure 2: Scheme of our object-relational mapping.

WEBIST 2007 - International Conference on Web Information Systems and Technologies

460

3.2 User Model

The user model, which links the data storage and the

user adaptation layers (see Figure 1), establishes

some basic patterns that affect the final presentation

of the information. The user model is used to control

several options, such as the language in which the

pages are displayed or the general aspect of the user

interface. It also captures the user's capabilities,

which are fundamental for the adaptation phase. A

capability is an ability or responsibility associated to

a user, which allow the user to play roles and to do

tasks, subactivities or actions.

Among other things, the user model stores the

following items: the language in which the

information must be displayed; a customized

template to change the general aspect of the

platform; the capabilities which cannot be

determined automatically by the system using the

stored information about the users; special

accessibility needs, like a high contrast color

scheme; and other preferences, like maximum width,

text-only representation, etc.

When the information is obtained with a

personalized format, the users feel more

comfortable, and it is easier for them to understand

the provided information. Tutor allows this, since,

for example, the page in Figure 3 shows the contents

in the middle, with two side-bars containing a

calendar and quick links to interesting sections for

that user, but users can determine, through their user

model, if they want only one side-bar (as Figure 4

shows), and choose its contents and aspect.

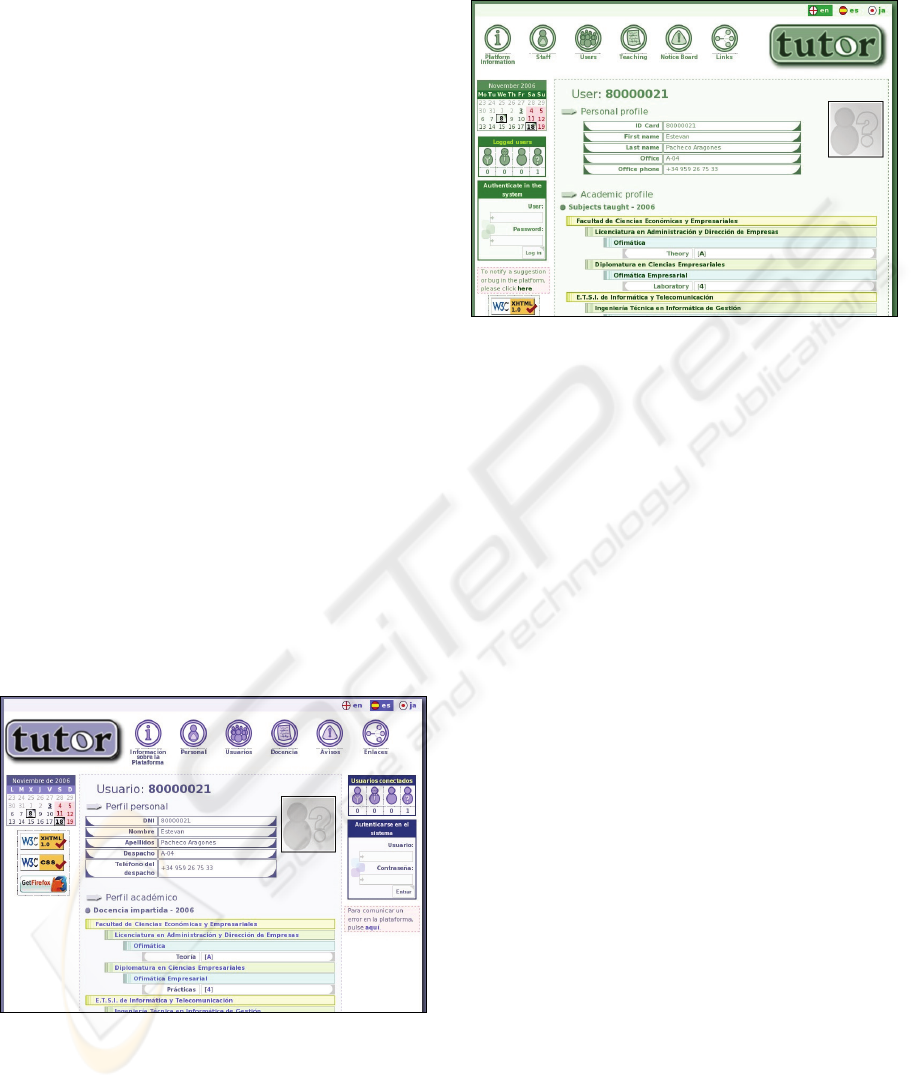

Figure 3: Tutor’s user interface showing a three-column

purple colour scheme, in Spanish.

Templates regarding user’s capabilities or the

selected language are not stored in the user model.

This kind of templates is stored in the data storage

layer, as they are common for every user with the

same capability or language, unlike the custom

template, which could be unique for every user.

Figure 4: Tutor’s user interface showing a two-column

green colour scheme, in English.

Our objective is to provide all the contents in any

of the available languages. Therefore, it is not

enough to translate only the system labels, but we

have also to translate the contents stored in the

database into different languages. This makes us to

add a localization system in the database, which is

done in three phases. Firstly, the system tries to

obtain the information in the language requested by

the user. Secondly, the parts that are not available in

that language are requested in the language

established in the user model. Thirdly, if there are

parts that are still not available, the system will

obtain them in the platform default language.

3.3 Adaptation Layer

This layer is separated into two levels, as Figure 1

shows. The first one, where the contents and

navigability are decided, depends on the user’s

capabilities, while the second level, where the

presentation of the contents and the additional

navigation restrictions are established, depends on

the user’s preferences. Consequently, the adaptation

of the information to the user includes two phases,

where what must be shown and how it must be

shown is respectively decided. What must be shown

is determined mainly by the user’s capabilities

regarding the item being accessed. These capabilities

not only determine the shown information but also

the allowed navigation, since they select which

contents and related items must be accessible. For

example, all the users can visit any subject stored in

the system, but depending on their capabilities they

could perform different actions on it and access

different information about it. How the information

APPLYING QUALITY HYPERMEDIA DESIGN PRINCIPLES TO A WEB-BASED EDUCATIONAL SYSTEM

461

is shown is determined by the user's preferences.

Additionally, these preferences restrict the

navigability, avoiding an excess of unused links and

promoting a set of more useful links according to the

user's criteria. For example, the teachers could

choose their preferred language (for displaying the

information) and set the actions they frequently use

on a quick bar, hiding the least used ones.

The information objects are common to all the

users in the platform, but both the operations the

user can perform and the degree of completeness of

the extended object (which can be partially built) are

determined by the user’s capabilities. The roles and

user profiles present in the previous version do not

exist now in the same manner. Therefore, the users

do not have to choose which profile they want to use

when authenticating, as it was done in the previous

version, but they have just to log in, and the system

will check their capabilities regarding each visited

item, and it will assign them the corresponding roles

according to these capabilities.

Our platform uses the features of W3C’s

Cascade Style Sheet (CSS), along with a set of

interchangeable templates and a localization system

that facilitates the adaptation to the user’s

preferences. This allows, for example, to define

templates with bigger fonts and high contrast colours

in order to make easier the accessibility for users

with sight deficiencies. These templates also contain

keywords that will be replaced either by more

complex structures or by the final contents.

The adaptation phase is based on what has

previously been established in the user model. As

Figure 5 shows, adaptation is progressive. A multi-

template system is used to refine the user

adaptability. Initially the system employs a template,

taken as the default template, which is replaced,

modified and/or complete in accordance with the

user model. Afterwards, the system completes the

resulting template with fragments relative to the

user's capabilities. Finally, details about the user’s

preferences are changed or added, and the template

is filled in with the corresponding information,

before the resulting web page is ready to be shown.

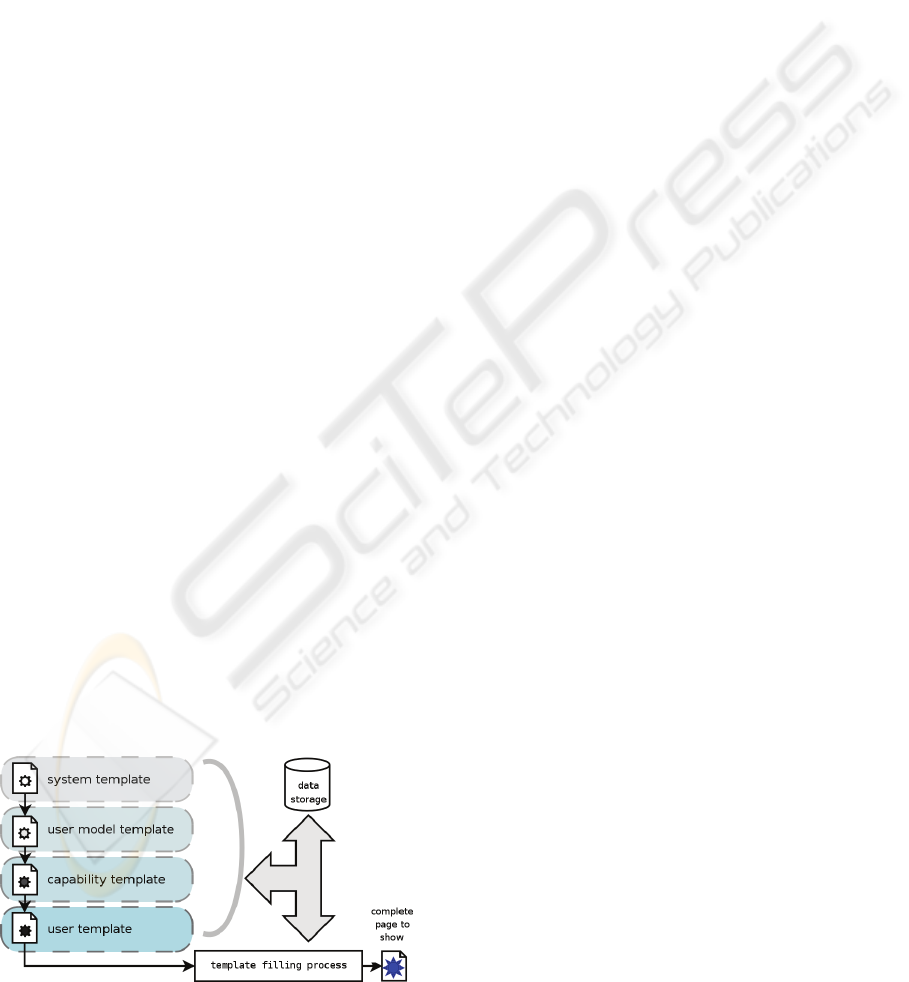

Figure 5: Adaptation based on template composition.

The presentation of information can be carried

out in up to three definition phases: firstly, a default

configuration is established, which is initially used;

secondly, the system determines the modifications to

apply according to the user’s capabilities regarding

the visited element; and thirdly, the user chooses the

final details about how the selected information must

be displayed.

This division of concepts allows an expandable

and adaptable control of navigability, with a clear

separation between the available information and

how it has to be shown to a specific user.

4 CONCLUSIONS

We have presented the design of a web-based

educational platform as an example of applying

quality design principles to a hypermedia system.

The evaluation of the first version of the platform

showed that it lacked the essential groundings to be

easily expandable and adaptable to users, being

necessary to spend a considerable effort to add new

functionalities. In addition, our experience showed

the need of a more intuitive navigation system, and

that the orientation to roles, not taking into account

the visited information, did not contribute to

improve the user’s navigation.

The main problems detected in the previous

version have been solved with the new design, while

its positive aspects have been kept. The change of

perspective from role orientation to object

orientation allows a more intuitive and controlled

navigation, with a better structured presentation of

the information. This permits an easier expansion

and upgrading of the platform to new requirements,

being at the same time more scalable, not negatively

affecting the provided functionality. The active role

of the system in taking decisions has also been

increased, replacing the manual selection of the user

profile with an automatic query of the user’s

capabilities while the user visits any page of the

system.

The new design establishes two interrelated and

interacting layers: the data storage layer and the

adaptation layer. The link between both layers is the

user model. The data storage layer is structured in

two levels: data level and object level. The former

maintains a relational representation of the

information and communicates with the DBMS,

while the latter builds extended objects in

accordance with the existing relations between data

and communicates with the adaptation layer. The

adaptation layer performs an adaptive process in two

WEBIST 2007 - International Conference on Web Information Systems and Technologies

462

levels, deciding respectively what to show (i.e. the

contents and navigability) and how to show it (i.e.

the presentation of the contents and the navigability

restrictions). The first level depends on the user’s

capabilities, while the second one depends on the

preferences established by each user.

Consequently, this new design, which is based

on the aspects proposed by the majority of

hypermedia design methods and follows the basic

principles of SEM-HP model, has shown to be more

robust and future-proof than the previous design,

which was done nearly ad-hoc, according to a

traditional methodology that did not take into

account the hypermedia features of the system.

The implementation of the new version of the

platform is in an advanced state, but not finished, so

we are currently working in order to finish its

development, with the aim of replacing the previous

version. We also plan to increase the functionalities

of the new system, extending the available tools with

new options and operations, and adding new tools to

the ones already included in the platform at the

request of users.

ACKNOWLEDGEMENTS

This work is financed by an Educational Innovation

Project from the University of Granada (code 05-03-

46) and by a Spanish CICYT Project (code

TIN2004-08000-C03-02).

REFERENCES

Bush, V. (1945). As We May Think. Atlantic Monthly,

176, 101-108.

Cachero, C.; Gómez, J.; Pastor, O. (2000). Object-

Oriented Conceptual Modeling of Web Application

Interfaces: the OO-HMethod Abstract Presentation

Model. Electronic Commerce and Web Technologies

(EC-Web), 206-215.

Campbell, B.; Goodman, J. (1988). HAM: A General

Purpose Hypertext Abstract Machine. Commun. ACM,

31(7):856-861.

Ceri, S.; Fraternali, P.; Bongio, A. (2000). Web Modelling

Language (WebML): A Modelling Language for

Designing Web Sites. Conference WWW9/Computer

Networks 33 (1-6), 137-157.

De Bra, P.; Aerts, A.; Berden, B.; De Lange, B.;

Rousseau, B.; Santic, T.; Smits, D.; Stash, N. (2003).

AHA! The Adaptive Hypermedia Architecture.

Proceedings of the fourteenth ACM Conference on

Hypertext and Hypermedia, 81-84.

De Bra, P.; Houben, G.J.; Wu, H. (1998). AHAM: A

Reference Model to Support Adaptive Hypermedia

Authoring. InfWet’98 Conference, 51-76.

De Troyer, O.; Leune, C. (1998). WSDM: A User-

Centered Design Method for Web Sites. Computer

Networks and ISDN systems. 7th International World

Wide Web Conference. Elsevier, 85- 94.

Díaz, P.; Montero, S.; Aedo, I. (2005). Ingeniería de la

Web y Patrones de Diseño. Prentice Hall (in Spanish).

Furuta, R.; Stotts, P.D. (1990). The Trellis Hypertext

Reference Model. NIST Hypertext Standardization

Workshop, 83-93.

Halasz, F.; Schwartz, M. (1990). The Dexter Hypertext

Reference Model. NIST Hypertext Standardization

Workshop, 95-133.

Hornos, M. J.; Abad, M. M.; Hurtado, M. V.; López-

Sánchez-Huete, M. I.; Molina, F.; Muñoz-Ropa, A.;

Martínez, J. J. (2006). Web-Based Learning-Support

System for Computer Science Applied to Business.

International Journal of Learning, vol. 12, nº 11, 145-

155.

Koch, N.; Kraus, A.; Hennicker, R. (2001). The Authoring

Process of the UML-based Web Engineering

Approach. Proceedings of the 1st International

Workshop on Web-Oriented Software Technology.

http://www.dsic.upv.es/~west2001/iwwost01//WWOS

TContent.htm.

Lowe, D.; Hall, W. (1999). Hypermedia and the Web. An

Engineering Approach. John Wiley & Son.

Medina, N.; Molina, F.; García, L. (2005). Diversity of

Structures and Adaptive Methods on an Evolutionary

Hypermedia System. IEE Proceedings –

Software, vol. 152, n

3, 119-126.

Olsina L.; Rossi G. (2002). Measuring Web Application

Quality with WebQEM. IEEE Multimedia, vol. 9, nº 4,

20-29.

Olsina, L. (2005). Conferencia: Una Estrategia de

Evaluación de Aplicaciones Web. I Jornadas de

Ingeniería Web Retrieved October 28, 2006, from

http://www.informandote.com/jornadasIngWEB/progr

ama.asp (in Spanish).

Rada, R. (1991). Hypertext: from Text to Expertext.

McGraw-Hill.

Schwabe, D.; Rossi, G.; Barbosa, S. D. J. (1996).

Systematic Hypermedia Application Design with

OOHDM. Hypertext '96. Proceedings of the Seventh

ACM Conference on Hypertext, 116-128.

Stonebraker, M.; Brown, P.; Moore, D. (1999). Object

Relational DBMS: Tracking the Next Great Wave.

Morgan Kaufmann.

APPLYING QUALITY HYPERMEDIA DESIGN PRINCIPLES TO A WEB-BASED EDUCATIONAL SYSTEM

463
