XML BASED FRAMEWORK FOR CONTACT CENTER

APPLICATIONS

Nikolay Anisimov, Brian Galvin and Herbert Ristock

Genesys Telecommunication Laboratories (an Alcatel-Lucent company)

2001 Junipero Serra, Daly City, CA, USA

Keywords: Call center, contact center application, VoiceXML, Call Control XML, organizational structure.

Abstract: W3C languages, VoiceXML and CCXML all play an important role in contact centers (CC) by simplifying

the creation of CC applications. However, they cover only a subset of contact center functions, such as

simple call control and interactive voice response (IVR) with automatic speech recognition. We discuss

ways to complement VoiceXML and CCXML in order to cover all necessary contact center functions

required to script end-to-end interactions in a consistent and seamless way. For this purpose we introduce an

XML forms-based framework called XContact comprising the CC platform and applications, multi-script

and multi-browsing, and interaction data processing. We also discuss how routing as a key CC capability

can be scripted/captured within such framework in order to demonstrate the overall approach.

1 INTRODUCTION

Contact centers (CC) play a very important role in

contemporary business. According to some

estimations (Batt et al, 2005, Brown et al, 2005,

Gans et al, 2003) 70% of all business interactions

are handled in contact centers. In the U.S., the

number of all contact center workers is about 4

million or 2.5-3% of the U.S. workforce.

Creating business applications in contemporary

Contact Centers is a very complex task. Indeed,

typical CC applications (Anisimov et al, 1999)

comprise Interactive Voice Response (IVR) scripts,

routing strategies, call control, agent scripting,

reporting, etc. Each of these functions has their

dedicated tools and scripting languages and a CC

application designer is required to be proficient in all

of them. More unfortunately, in most companies

there are pools of experts in each of several quite

distinct disciplines, making it extremely difficult to

design end-to-end interaction management

applications.

The heterogeneous structure of CC applications

is a challenge also because many of the applications,

such as routing strategies, are also strongly platform

dependent. Since most of the leading contact center

applications remain proprietary, it is quite common

that applications developed for a specific contact

center product cannot be easily transferred to

another one.

A proven way of achieving application

uniformity, platform independence, and

simplification of the task of creating business

applications is to employ XML-based standards and

related technologies. XML is increasingly used as a

basis for building applications in different vertical

businesses. Good examples of XML-based standards

for voice processing are the VoiceXML

(VoiceXML, 2004) and Call Control XML

(CCXML, 2005) protocols developed within W3C.

They enable representation of any voice application

as an XML document, and using VoiceXML and

CCXML it is already possible to build simple CC

applications involving only IVR (including

automatic speech recognition capabilities)

processing and simple call control and to represent

them as a single XML document. The main

advantages are obvious: uniformity, platform

independence, and leveraging web technologies.

However, VoiceXML and CCXML do not

address other important aspects of CC applications

such as interaction workflow/service chain

management (the process management task

specialized on customer interaction management),

interaction routing, scripting agent activities,

reporting on agent performance and traffic

management, using customer profiles, conducting

443

Anisimov N., Galvin B. and Ristock H. (2007).

XML BASED FRAMEWORK FOR CONTACT CENTER APPLICATIONS.

In Proceedings of the Third International Conference on Web Information Systems and Technologies - Internet Technology, pages 443-450

DOI: 10.5220/0001288304430450

 SciTePress

outbound campaigns, and interactions that are conducted in media other than voice.

VoiceXML and CCXML are, in fact, good examples

of the strength and the limitations of the common

approach to standards. This approach emphasizes

bottom-up standardization, with each standard

addressing a limited problem space; one typically

solves the problem at hand and closely related

problems when developing a new standard. The

alternative top-down approach would be to design a

purpose-built standard that could accommodate all

of the elements needed for the

entire larger problem domain (in this case, end-

to-end interaction management in a media-

independent way). Such top-down standardization

seems attractive but is probably unwieldy, and any

failure to anticipate every possible contingency leads

inevitably to serious flaws that make such standards

likely to fail (in the sense that they do not achieve

widespread acceptance and multiple

implementations).

We introduce some ways of extending the

VoiceXML and CCXML approach in order to

provide coverage for additional important contact

center functionality. We propose a methodology that

is open to incremental extensions and that presents

basic interaction management concepts such as

platform and application, multi-script and multi-

browsing, and interaction data processing without

attempting a comprehensive top-down standard. The

proposed methodology consists of a general XML-

based interaction scripting framework called

XContact, as well as a protocol for expressing the

local interaction platform specifics (configuration,

rules/state machine and current state) called

XPlatform.

The focusc is on main concepts and principles

rather specific XML languages. The XML notation

used in examples is self explanatory and serves for

illustrative purposes only.

2 CONTACT CENTER

ENVIRONMENT

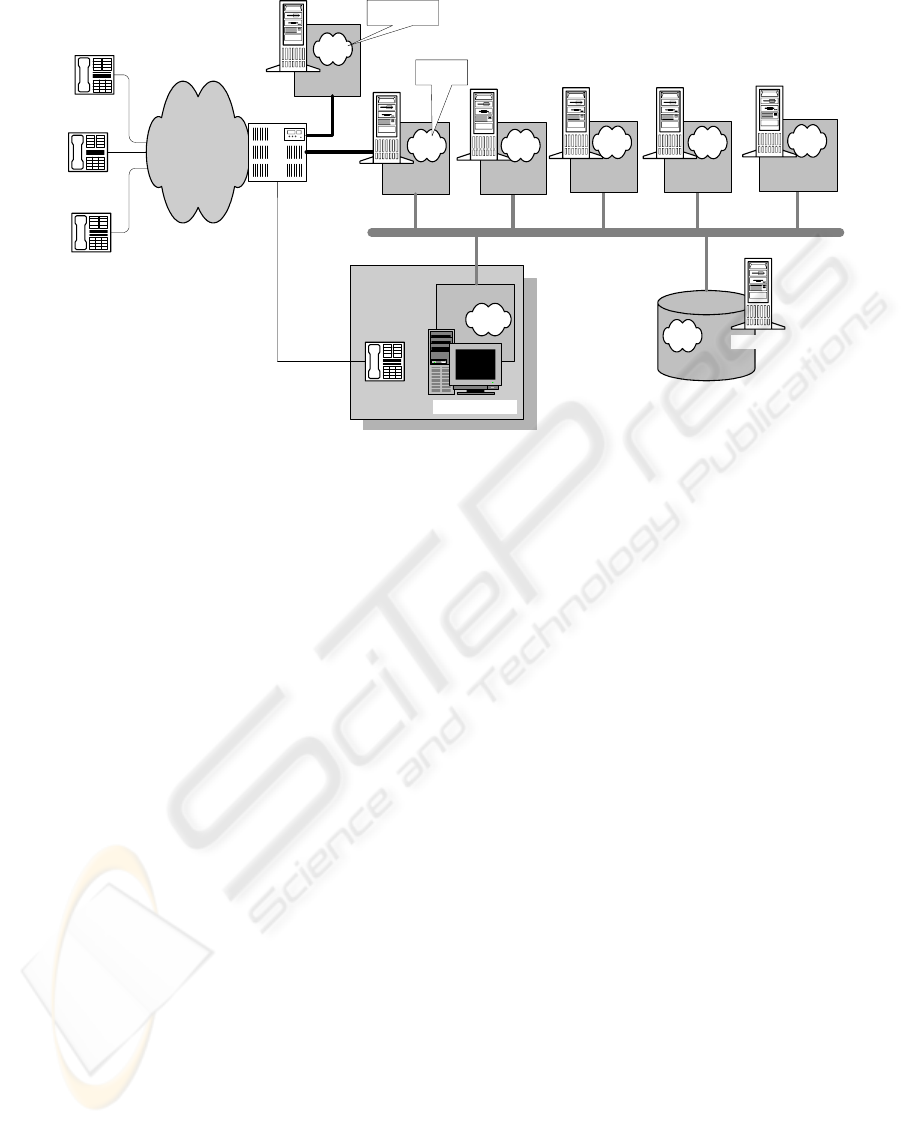

Fig. 1 shows a typical structure of a contact center.

The computing and telephony domains are

connected through Computer Telephony Integration

(CTI) technology (Chow et al, 2000) via CTI-Link

and CTI-Server. The computing domain usually

comprises several application services, each being

responsible for particular functions of contact center

operation, e.g. a routing server to find the most

appropriate resource for inbound calls or an

outbound server for outbound notification and

generation of outbound calls to customers. The

contact center database captures all information

related to customers and customer interactions.

Typical call processing is sometimes fully

automated (self service), but often also requires

providing assistance to the customer by Customer

Service Representatives (CSR). Each CSR is

represented in the contact center environment with a

desktop and a phone connected to the switch.

CTI-Server

Agent's workplace

DT App

Agent’s Desktop

PSTN/VoIP

Customer's

phone

PBX

App

Routing

Server

Outbound

Server

Reporting

Server

Database

DB Server

Customer's

phone

Customer's

phone

LAN

CTI-link

IVR

App

App App

App

Configuration

Server

App

CCXML

VoiceXML

Figure 1: Contact Center environment.

WEBIST 2007 - International Conference on Web Information Systems and Technologies

444

Here is a typical scenario of inbound call

processing: The inbound call is transferred to an

IVR for collecting initial information. Sometimes

the customer is fully served from within the

application provided by the IVR; in other cases the

IVR assists in “call steering” by asking the customer

to specify what their service needs are. Then the call

is transferred to a Router whose job is to select the

most appropriate available CSR. The call is

transferred to this CSR’s phone. At the same time all

collected information – potentially together with

customer’s historical information - is submitted to

the CSR’s desktop, and the CSR starts conversation,

often guided during the conversation by prompts

(displayed on the CSR’s computer screen; this is

called agent scripting).

As discussed above, currently only two

components of the contact center application can be

expressed in terms of standardized XML, i.e. the

other functions require proprietary script languages

and tools.

3 XML-BASED CONTACT

CENTER FRAMEWORK

3.1 XContact and XPlatform

VoiceXML and CCXML were introduced to cover

IVR and telephony call control functionality.

Additional XML-based protocols are desirable to

cover call routing, generation of outbound calls,

agent scripting, multimedia interaction control, etc.

We will denote the set of all of these XML

languages (old and new) as XContact. Applications

written in these languages will be called as XML

scripts.

XContact contains also orchestration capabilities

for building and executing complex applications

composed of individual XML scripts. These

orchestration facilities should include mechanisms

for invocation of XML scripts, exchanging data

between scripts, and other synchronization

mechanisms, see Fig. 2. The XContact architecture

assumes that platform-dependent components are

clearly separated from XContact and its languages.

The term XPlatform is used to denote all

platform-dependent components and data indicating

that it shall also be extendable and expressed in

XML-based notation. The actual XPlatform

specification will usually vary across different

contact center instances, while XContact and

comprising languages do not depend on the actual

platform. However, during execution an application

written in XContact has to be aware of the

underlining platform and its specifics.

In summary XContact can be seen as a set of

concepts, models and XML-based languages for the

creation of complete contact center applications.

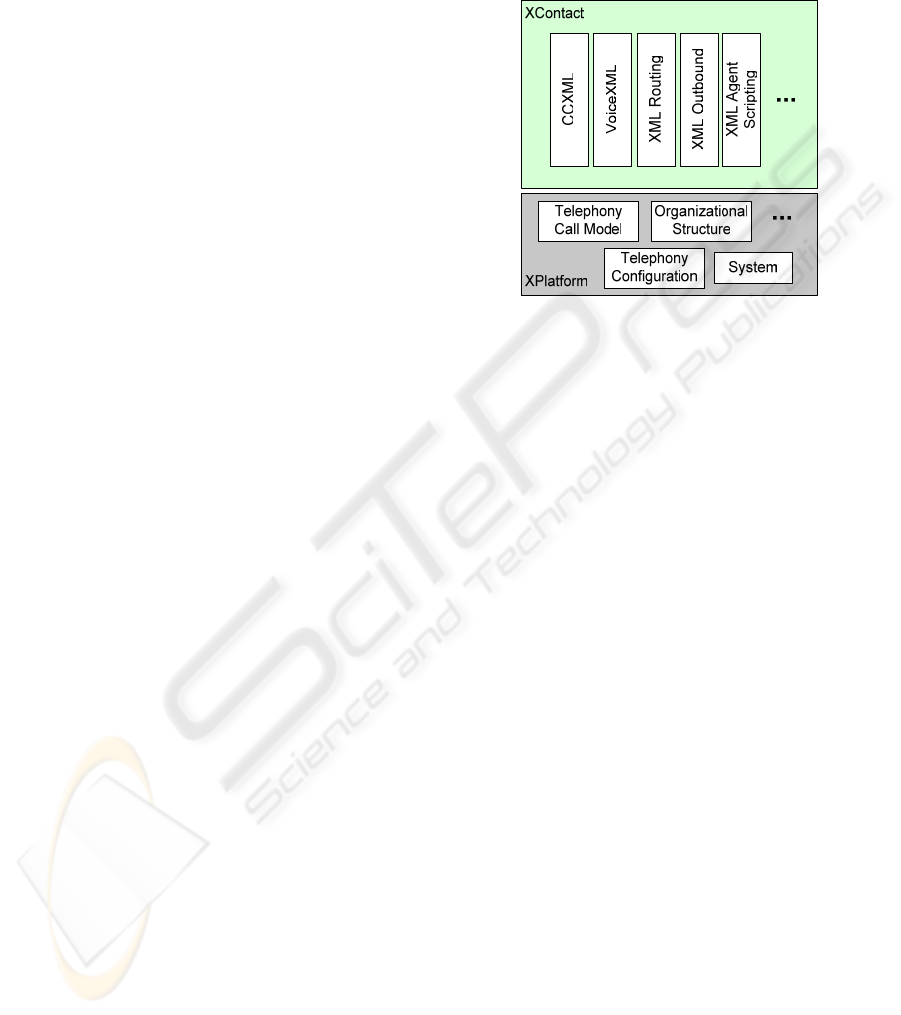

Figure 2: XContact and XPlatform.

3.2 Concept of Platform in

VoiceXML/CCXML

One of the main advantages of VoiceXML and

CCXML is application platform-independence.

Voice applications written in VoiceXML/CCXML

could run on any VoiceXML/CCXML platform

because VoiceXML has been created in a similar

way as HTML, and neither the VoiceXML language

itself nor VoiceXML applications have any

assumption about the platform structure.

However, with CCXML the situation is more

complex. CCXML was designed to provide

telephony call control as a complement to

VoiceXML. CCXML uses a relatively simple call

model that represents an abstraction of call models

such as CSTA (CSTA, 2002), ECTF C.001 (ECTF,

1997), and JAIN (JAIN, 2001). It is assumed that

CCXML applications could run on platforms with

different call models. However, we cannot say that

CCXML is fully platform-independent. Indeed, the

CCXML call model specifies telephony events an

application can receive from the platform. Some

parameters of the events are platform dependent. For

example, parameters such as ANI (Automatic

Number Identification) and DNIS (Dialed Number

Information Service), that are very important for

contact centers applications, depend essentially on

the underlining protocol.

One way to avoid such platform dependencies in

CCXML is to explicitly specify the used call model

as part of the platform. This specification may be

XML BASED FRAMEWORK FOR CONTACT CENTER APPLICATIONS

445

XML-based and contain the specification of at least

all events with parameters. It also may contain a

specification of requests and call model behavior in

form of a state machine. The designer of a CCXML

application shall be aware of the given call model

and shall design the application based on its

specification. Such approach allows one to not be

limited by a specific call model but to use the most

convenient and complete one that is appropriate for

the particular platform elements. For instance, one

can use the Genesys call model for voice

applications intended to be executed on the Genesys

platform - of course the specification of the Genesys

call model has to be available to the application

developer.

For end-to-end contact center applications the

platform relationship is even more complex. Beside

the telephony call model a contact center usually

contains many other components that can hardly be

unified. Examples are the organizational structure of

CC personnel taken into account for finding the

most appropriate CSR, interaction models for other

media like e-mail and chat, etc.

3.3 Platform Structure

A contact center Platform may contain different

parts responsible for operation of the contact center.

Let us consider some important parts of the

platform.

3.3.1 Interaction Platforms

The important parts of an “interaction platform” are

components that are responsible for the management

of “physical” interactions. There may be different

platforms that are related to different media and

different underlining network protocols. The

interaction platform description typically includes

the following parts:

• The interaction platform’s configuration

including description of configured objects

and resources like available communication

ports, directory numbers, devices, etc.

• The current state of the interaction platform

including all active interactions existing

within the platform. We will represent a

collection of active interactions as an XML

document containing a list of interaction

elements with parameters like call legs or

parties, their states, attached data (data that is

tightly coupled to the particular interaction,

such as customer account identification), and

so forth (see Example below).

• A description of the interaction model that

may include the set of events that may be

issued by the interaction platform, the set of

requests and associated parameters that can

be used to control interaction processing, and

the state machine that defines the behavior of

the interaction platform. A designer of an

XContact application should be aware of this

model and his application must be compliant

to the model.

3.3.2

Organizational Structure

The most important and expensive part of every

real-world contact center is its workforce that

comprises CSRs, managers, administrators, etc. The

organization of a workforce in workflow systems is

usually called organizational structure (CSTA,

2002). Each contact center has its own

organizational structure that may be formed of

branches, departments, groups, managers and CSRs.

The designer of a CC application must be aware of

the organizational structure in order to organize

resource management in his application in an

appropriate way.

3.3.3 System Data

The CC platform may maintain and expose to its

applications a wide range of system data. An

example is a time service providing applications

with information about current time and day.

Another example of system data is current values of

service objectives of applications like average

waiting time, abandonment rate, CSR occupancy,

etc. This information can be used, for instance, for

making routing decisions.

4 EXAMPLE: TOY CONTACT

CENTER PLATFORM

For illustration purpose let’s introduce an XML-

based specification of a very simplified Toy Contact

Center Platform (TCCP).

4.1 General Platform Structure

TCCP contains two main elements

<voiceConfiguration> and <organizationalStructure> that

will be described in more detail in the following

sections.

WEBIST 2007 - International Conference on Web Information Systems and Technologies

446

. . . . . . . .

</voiceConfiguration>

. . . . . . . .

</organizationalStructure>

</CCPlatform>

4.2 Voice Configuration Platform

The TCCP voice configuration platform is described

by the following XML document.

</directoryNumbers >

<calls>

</call>

</calls>

</switch>

</voiceConfiguration>

The platform consists of two parts: configuration

of directory number (DN) objects and description of

all current interactions (calls). In the given example

there are four configured DNs: 1120, 1121, 1122,

and 2239. First three of them are regular DNs that

represent CSRs’ phones. The fourth DN is of type

routing point that is associated with a routing

strategy.

At the given time the platform contains only one

active call specified by the element <call>. The call

comprises two legs, one is associated with a

customer and the other one with a routing point DN

with a corresponding routing strategy. The call’s

DNIS number is contained in the <dnis> element.

4.3 Organizational Structure

TCCP has a very simple organizational structure

consisting only of CSRs:

</CSR>

</CSR>

</CSR>

</organizationalStructure>

At the given time the TCCP has three CSRs.

Each CSR has skills represented by the element

<skill>. The first CSR, Mike First, has a skill related

to customer service activity. The second CSR, John

Second, has a skill related to catalogue sale activity.

The third CSR, Petr Wise, is cross-trained and has

both skills. Each CSR has a status representing his

availability, and its value is given by the attribute

“status”. Note that the two first CSRs are in state

“Ready” and can accept new calls. The third CSR is

in state “Busy” and is already engaged in a call.

Each CSR is associated with a directory number

(element <dn>) representing his telephone.

Moreover, each CSR has a statistic describing his

occupancy, i.e. a ratio of busy time to overall work

time within some time interval.

Note that attributes such as occupancy and status

are highly dynamic and can be extracted from a

separate server.

More generally, all data containing in XPlatform

can be instantiated in different servers of the CC.

This applies both to Organizational Structure and

also to Voice Configuration, where e.g. <calls> are

very dynamic.

5 MULTI-SCRIPT AND

MULTI-BROWSER MODEL

Typical real world CC applications consist of a set

of components, each component specifying the

application logic that implements a particular aspect

of CC application behavior. As a rule, these different

components are represented in different ways, using

different XML or proprietary protocols (for

example, self service might be implemented using

VoiceXML for voice and XMPP for IM self

service). In this section we will consider how to

organize multi-scripting in XContact.

5.1 Multi-scripting Example:

VoiceXML/CCXML

Consider a VoiceXML/CCXML voice application

that consists two types of components – CCXML

component(s) describing call control logic and

written in CCXML language and VoiceXML

component(s) describing logic of voice dialog(s) and

written in VoiceXML terms. We should stress that

XML BASED FRAMEWORK FOR CONTACT CENTER APPLICATIONS

447

both VoiceXML and CCXML have much in

common. First, they are built on XML and have

similar notation. Second, they have many common

constructs like tags for working with variables, flow

control mechanisms. However, this will not always

be the case; in some cases, application elements

implemented in very different ways still need to be

orchestrated in order to deliver effective interaction

management (for instance, routing logic using

proprietary routing tools and establishment of a

video session using SIP might need to be closely

coupled).

We will refer to these application components

written in different languages as scripts. Therefore a

VoiceXML/CCXML application is built with the aid

of two types of scripts – VoiceXML script(s) and

CCXML script(s).

During run time different scripts are executed by

different interpreters. For example,

VoiceXML/CCXML applications are executed with

the aid of two interpreters – VoiceXML browser and

CCXML browser. The Fig. 3 illustrates this relation.

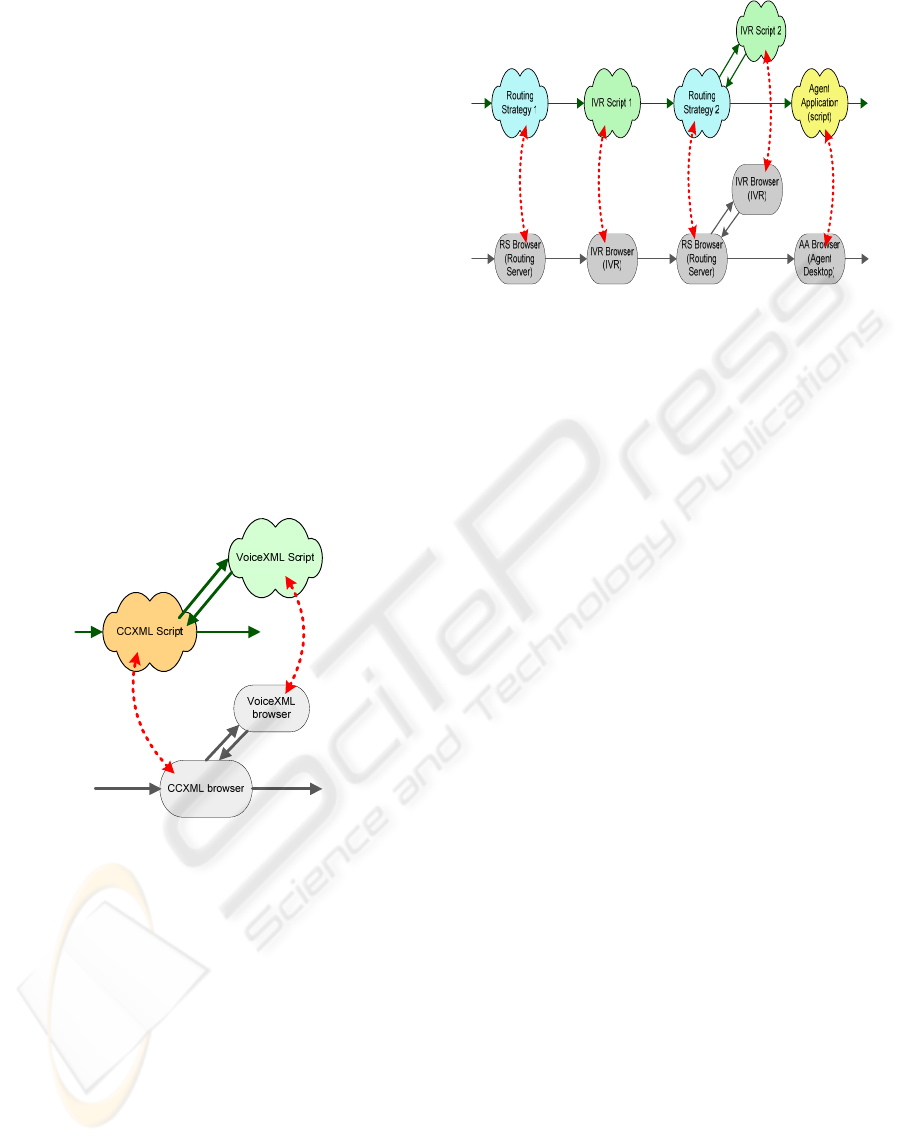

Figure 3: Scripts and browsers in VoiceXML/CCXML.

The invocation of VoiceXML script from

CCXML one is organized by the element

<dialogstart>. When the dialog is ended, the

CCXML script receives a corresponding event

“dialog.exit”. Similarly, the CCXML script can

invoke another CCXMl script using element

<createccxml> whose completion is reported by an

event “ccxml.exit”.

5.2 Multi-scripting in XContact

Another example is a typical inbound voice

application that includes additional components

supporting CSR involvement like routing strategies

and CSR applications.

Figure 4: Scripts and browsers for real-world contact

center.

This voice CC application comprises three types

of scripts – routing strategy, IVR script and CSR

desktop application. When an incoming call enters

the CC, it is placed on a DN associated with Routing

Strategy 1. Based on call attributes (e.g. DNIS) the

call is distributed to an IVR that executes a

corresponding IVR Script. The script controls a

dialog with the customer collecting required

information. Based on these collected data the call is

transferred to Routing Strategy 2 that will find the

most appropriate CSR. During execution the routing

strategy may invoke another IVR script to collect

additional customer information. And finally when

the strategy determines an available CSR, the call is

transferred to his/her telephone. This transfer is

accompanied with initiation of agent’s (CSR)

scripting on his/her desktop assisting in conversation

with the customer.

It is clear that when there are several script

languages and scripts can invoke each other, we

need a more general means for script invocation and

termination. For such purposes we will use new

elements like <startscript> indicating explicitly the

type of script:

<startscript src=”dialog.vxml”

type=”VXML” .../>

The completion of the script will be signaled by

an event “script.exit” with returned parameters.

6 EXAMPLE OF APPLICATION:

ROUTING STRATEGY

CC applications written in XContact languages will

use data maintained in the platform. In this section

we illustrate this using the example of a routing

XML language. In Fig.3 the routing application is

represented in a UML-like diagram.

WEBIST 2007 - International Conference on Web Information Systems and Technologies

448

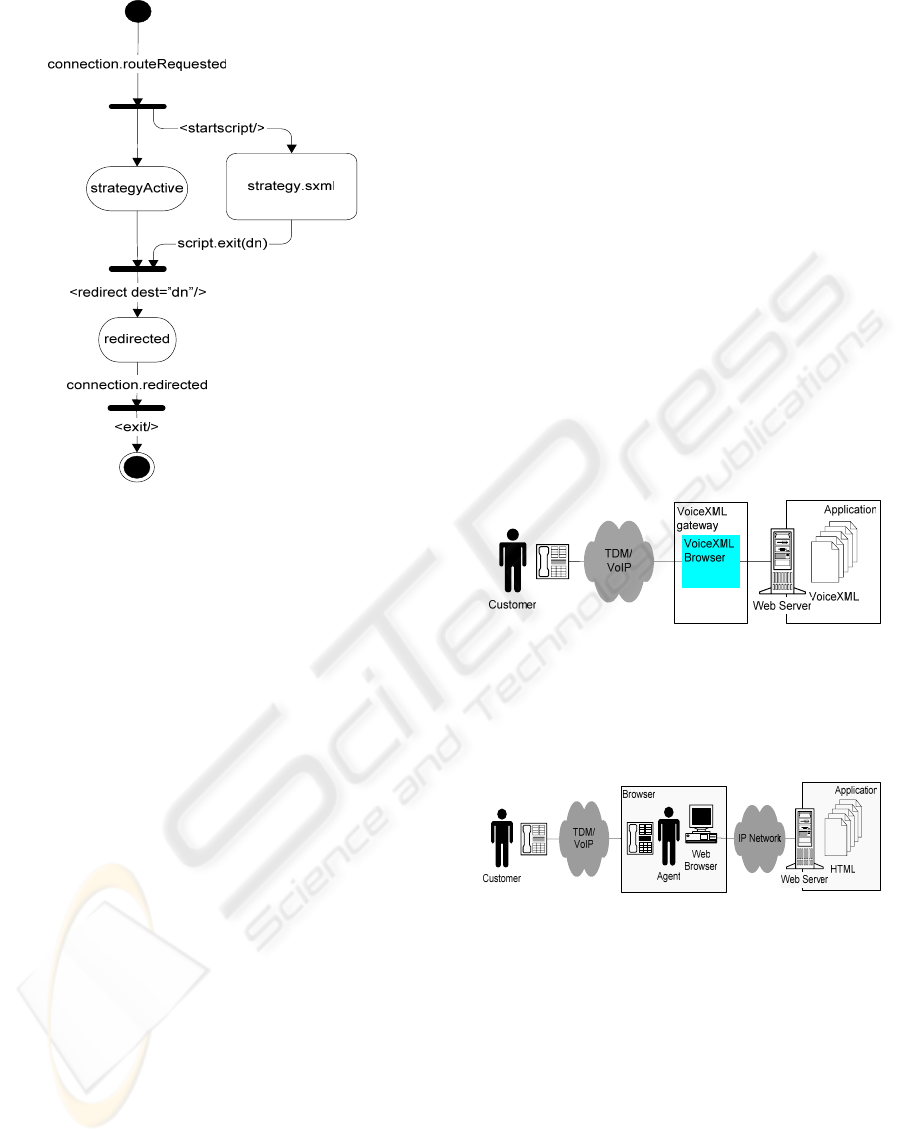

Figure 5: Application with routing.

The following strategy describes the routing of

an interaction between two service types (activities):

Customer Service and Catalogue Sale. It is assumed

that these activities correspond to DNIS numbers

800-123-4567 and 800-765-4321 respectively.

<assign name=”dn” value=

”//CSR[/skill/@name=’CustomerService’]

[@status=’Ready’]

[min(@occupancy)]/@dn”/>

</rule>

<assign name=”dn” value=

”//CSR[/skill/@name=’CatalogSale’]

[@status=’Ready’]

[min(@occupancy)]/@dn”/>

</rule>

</xstrategy>

The strategy consists of two rules, one

corresponding to each activity. The attribute “cond”

selects the appropriate call based on the value of the

attribute “dnis” of calls. Note that all expressions in

the strategy are represented in XPath notation

(XPath, 1999). Applying the strategy to the call in

the platform described above we realize that the call

corresponds to the first rule. Next the strategy

searches for the most appropriate CSR for the call.

The XPath condition for the variable “dn” returns a

DN of the CSR who (i) has skill ‘CustomerService”,

(ii) is in “ready” state, and (iii) has the minimum

occupancy (compared to all available, appropriately

skilled CSRs). Clearly, the third CSR will be

selected. His DN “1122” is returned and the call is

transferred to it using the call control request

<redirect>.

7 RELATION TO W3C WORK

Recommendations VoiceXML and CCXML are

being developed within the W3C voice browser

working group. More general cases with different

modalities are being developed within the W3C

multimodal interaction group.

A VoiceXML environment is represented in

Figure 6. The VoiceXML script is rendered by a

VoiceXML browser controlling spoken dialog with

a customer.

Figure 6: Scripts and browsers in VoiceXML

environment.

Agent involvement in a contact with a customer can also

be considered from web perspective, see Figure 7.

Figure 7: Agent as a voice browser.

One could think of it as the CSR playing the role

of a browser “rendering” agent script dialog

instructions written in HTML. Similar to VoiceXML

an agent script specifies a dialog with a customer but

in different terms. Moreover, CSRs usually use

additional knowledge acquired during training

process and sometime referred to as skills.

We can consider such environment as another

modality or more strictly as another implementation

of voice modality. The main difference here is that a

CSR-browser should be found before starting the

browsing session. Moreover, the CSR should have

appropriate skills and be available (not busy). This

XML BASED FRAMEWORK FOR CONTACT CENTER APPLICATIONS

449

searching logic can be expressed in an XML-based

form as routing strategy, see previous section.

The CSR environment can be considered as a

special case of a W3C Multimodal architecture

(Multimodal, 2006). In this architecture, VoiceXML

and Agent scripts play the role of markup languages

for modality components. CCXML and XML

strategy are markup languages for controller and

interaction management.

One can also use W3C State Chart XML

(SCXML, 2006) as a good markup candidate for

creation of a controller document that could organise

combined use IVR and CSRs in one CC application.

8 CONCLUSION

Within this paper we introduced main concepts that

we believe will be important for a comprehensive

and consistent scripting of all contact center

functions. In particular, the notion of a generalized

XPlatform has been introduced representing the

structure, capabilities and current state of the

underlying real systems which are needed to handle

interactions, and it is complemented by a

standardized XContact specification that allows for

end-to-end scripting of interaction management

rules. A key element of the XContact approach is to

allow usage of existing “bottom-up” protocols such

as VoiceXML, CCXML, XMPP and many others

within an orchestrated application framework that

also provides missing elements such as routing

strategy specification, outbound campaign rules

specification, and so forth. Our future plans include

the incorporation of applicable existing XML

specifications and the development of XML

languages for specific areas of contact centers that

do not currently have coverage, as well as the more

complete articulation of the XContact and

XPlatform protocols.

REFERENCES

Anisimov N. et al. 1999. Formal Model, Language and

Tool for Design Agent's Scenarios in Call Center

Systems, Proceedings of the 32

IEEE Hawaii

International Conference on System Sciences, Hawaii,

USA.

Batt R., Doellgast V., Kwon H. Service Management and

Employment Systems In U.S and Indian Call Centres.

Working paper 05-12. Industrial and Labor Relations

School. Cornell University. July 2005.

Brown, L., Gans, N., Mandelbaum, A., Sakov, A., Zeltyn,

S., Zhao, L. and Haipeng, S. Statistical Analysis of a

Telephone Call Center: A Queueing-Science

Perspective. (2005) Journal of the American

Statistical Association, Vol 100, pp. 36-50.

CCXML. Voice Browser Call Control: Version 1.0. W3C

Working Draft 29 June 2005. See

http://www.w3.org/voice/

CSTA. Services for Computer Supported

Telecommunications Applications (CSTA) Phase III.

Standard ECMA-269. 5th Edition – December 2002.

ECTF. Call Control Model. Enterprise Computer

Telephony Forum (ECTF) C.001. 1997.

Gans N., Koole G., Mandelbaum A. 2003. Telephone Call

Centers: Tutorial, Review and Research Prospects,

Manufacturing and Service Operations Management,

vol.5, no.2, pp. 79–141.

JAIN Call Control, JSR 000021, 2001.

M. zur Muehlen. 2004. Organizational Management in

Workflow Applications – Issues and Perspectives.

Information Technology and Management Journal.

Kluwer Academic Publishers, Vol. 5, No. 3, pp.271-

291.

Multimodal Architecture and Interfaces. W3C Working

Draft, April 14, 2006, http://www.w3.org/2002/mmi/

SCXML: State Chart XML: State Machine Notation for

Control Abstraction, W3C Working Draft 24 January

2006. See http://www.w3.org/voice/

Sheng-Lin Chou, Yi-Bing Lin, 2000. Computer Telephony

Integration and Its Applications, In IEEE

Communications Surveys & Tutorials. vol. 3, no.1,

pp.2-11.

VoiceXML. Voice Extensible Markup Language. Version

2.0. W3C Recommendation 16 March 2004. See

http://www.w3.org/voice/

XPath. XML Path Language, Version 1.0, W3C

Recommendation, 16 November 1999, See

http://www.w3.org/TR/xpath

WEBIST 2007 - International Conference on Web Information Systems and Technologies

450
