TRANSPARENT SCHEDULING OF WEB SERVICES
Dmytro Dyachuk and Ralph Deters
Department of Computer Science, University of Saskatchewan, 110 Science Place, Saskatoon, Canada
Keywords: SOA, Web Services, Scheduling.
Abstract: Web Services are applications that expose functionality to consumers via public interfaces. Since these
interfaces are defined, described and consumed using XML-based standards, Web Services outperform
other middleware approaches (e.g. CORBA, RPC) in terms of platform interoperability and ease of use.
Web Services support the concept of loosely coupled components, which in turn enables the development of
more agile and open systems. However, this flexibility comes at the price of reduced control over the usage
of the services that are exposed via the interfaces. This paper focuses on the transparent scheduling of
inbound requests by introducing a proxy that prevents clients from directly accessing the provider. By
manipulating the order and volume of requests sent to the provider it becomes possible to improve
throughput and mean response time and to ensure consistent performance in overload situation.
1 INTRODUCTION
According to the Four Tenets of Service Orientation
(Box 2004), services are characterized by having
clear boundaries and autonomy. Service Orientation
(SO) also replaces data types as a means to describe
input/output of services by using contracts and
schemas and defines service compatibility by use of
policies.

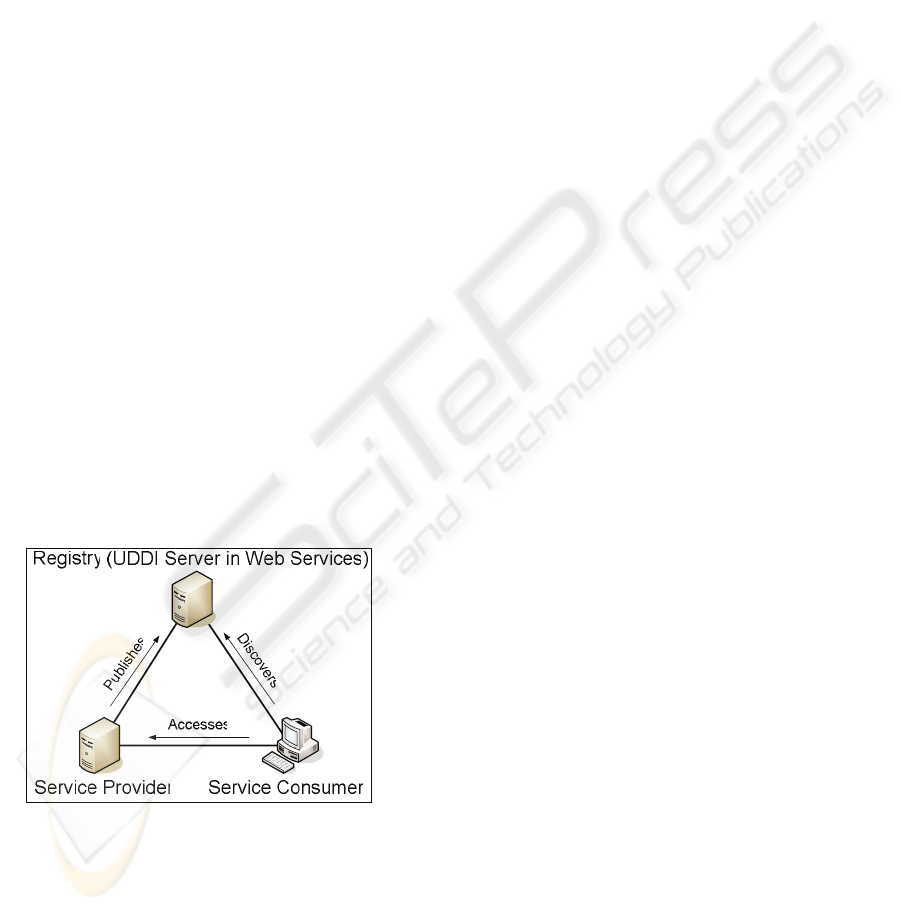

Figure 1: Service-Oriented Architecture.
In a service-oriented system (fig. 1), services are
offered by service providers that register them with
registries (e.g. UDDI). Service consumers (aka
clients) discover at runtime service providers by
simply queering the registries. Upon discovering a
service provider, the consumer obtains from the
provider the meta-data of the service that is then
used to establish a binding to the provider. Since
services are high-level constructs that hide
implementation details, consumers can easily bind to
unknown services across platform and language
barriers, resulting in a system with very dynamic
functional dependencies between its components.
Consequently SO supports very loose coupling
between consumers and providers, allowing for agile
and open systems. Compared to other middleware
approaches such as RPC (e.g. ONC-RPC) and
object-oriented middleware (e.g. CORBA) SO
differs in its lack of access transparency, since there
is a very clear notion between local and remote.
Service-oriented middleware (e.g. Web Services)
enables developers to expose functionality in terms
of services, which can be described in a declarative
manner ensuring interoperable and platform
independence. Using IDE tools (e.g. Visual Studio
2005, Eclipse 2006) and frameworks (e.g. Axis
2006) it is fairly easy for programmers to expose
application interfaces and/or consume existing
services, resulting in an ever-increasing number of
Web Service deployments.
However, the ease with which components (e.g.
legacy systems) can now be exposed and
consequently combined, raises serious concerns in
regards to the dependability of the resulting system.
It is important to remember that providers of
services expose local resources (e.g. legacy
applications) to potentially new and unknown loads.
112
Dyachuk D. and Deters R. (2007).
TRANSPARENT SCHEDULING OF WEB SERVICES.
In Proceedings of the Third International Conference on Web Information Systems and Technologies - Internet Technology, pages 112-119
DOI: 10.5220/0001291001120119
Copyright
c
 SciTePress

This is particularly worrisome since Web Services
platforms tend to implement PS (Processor Sharing)
as the default scheduling policy (Graham 2004)
which can easily lead to server overload situations
that in turn can cause ripple effects throughout a
system (e.g. fault-propagation).
This paper focuses on the use of scheduling as a
means to ensure that the exposed services are
protected from overload situations and that the
throughput and mean response time are optimized.
The remainder of the paper is structured as follows.
Section two presents an overview on server
behaviour and scheduling. Section three presents a
benchmark and an experimental setup of a system
used to evaluate the scheduling of service requests.
This is followed by experimentation and evaluation
sections that discuss the results of the
experimentation. Section six discusses related work.
The paper concludes with a summary and outlook.
2 SERVERS & LOAD
If we assume that service providers do not share
resources with other service providers (e.g. no two
providers expose the same data base), than every
service provider can be modelled as a server.
Figure 2: Behaviour of Server.
If these providers are capable of handling multiple
requests simultaneously, incoming service requests
must be assigned a separate thread. Since each
server has a finite amount of resources and each
consumer request will lead to a temporary reduction
of server-resources, it is interesting to examine the
server’s behaviour under various loads. Studies
(Heiss 1991) show that servers respond in a common
way to loads. If a server is gradually exposed to an
ever-increasing number of service requests it is
possible to observe three distinct stages, under-load,
saturation and over-load. At the beginning the
server experiences a load that is below its capacity
(under-load) and consequently it is not fully utilized.
As the number of requests is increased the
throughput (number of completed jobs per time unit)
increased. As the rate of incoming requests increases
the server experiences its saturation point (peak
load). This saturation marks the point where the
server is fully utilized and operating at its full
capacity. The saturation point marks also the highest
possible throughput. Further increases of the rate at
which the request arrive will now lead to an
overload or thrashing effect. The service capacity is
exceeded and “an increase of the load results in the
decrease of throughput” (Heiss 1991). The main
reasons for a server to experience thrashing are
either resource contention (overload of the physical
devices e.g. CPU, memory, hard drive, etc.) or data
contention (locking).
Since server over-load situations lead to a
decline in throughput it is important to avoid them.
Heiss and Wagner (Heiss 1991) proposed the use of
adaptive load control as the means for preventing
overloads. This is achieved by first determining the
maximum number of parallel requests (e.g.
maximum number of simultaneous consumers) and
then buffering/balking the requests once the
saturation point has been reached.
The impact of this approach can be seen in figure 2.
The darker curve shows the characteristic three
phases a server can experience, under-load,
saturation and over load. Using an admission control
(grey curve), the trashing is avoided due to the
buffering/balking of requests above peak load.
Adding an admission control into an already existing
Web Services system can be achieved by use of the
proxy pattern. As shown in figure 3, adding a proxy
that shields/hides the original provider enables a
transparent admission control.
The role of the proxy is to monitor the rate at
which consumers issue requests. Once the request
rate exceeds the capacity of the provider, a FIFO
queue is used to buffer the excess request. The
transparent admission control is a very effective
approach for handling requests bursts (Heiss 1991,
Elnikety 2004). However a basic FIFO queue
ignores that different requests impact the server in
different way e.g. different resource utilization.
Number jobs of on server
Throughput
with thrashing
without thrashing
under-load over-load
saturation
(peak load)
TRANSPARENT SCHEDULING OF WEB SERVICES
113

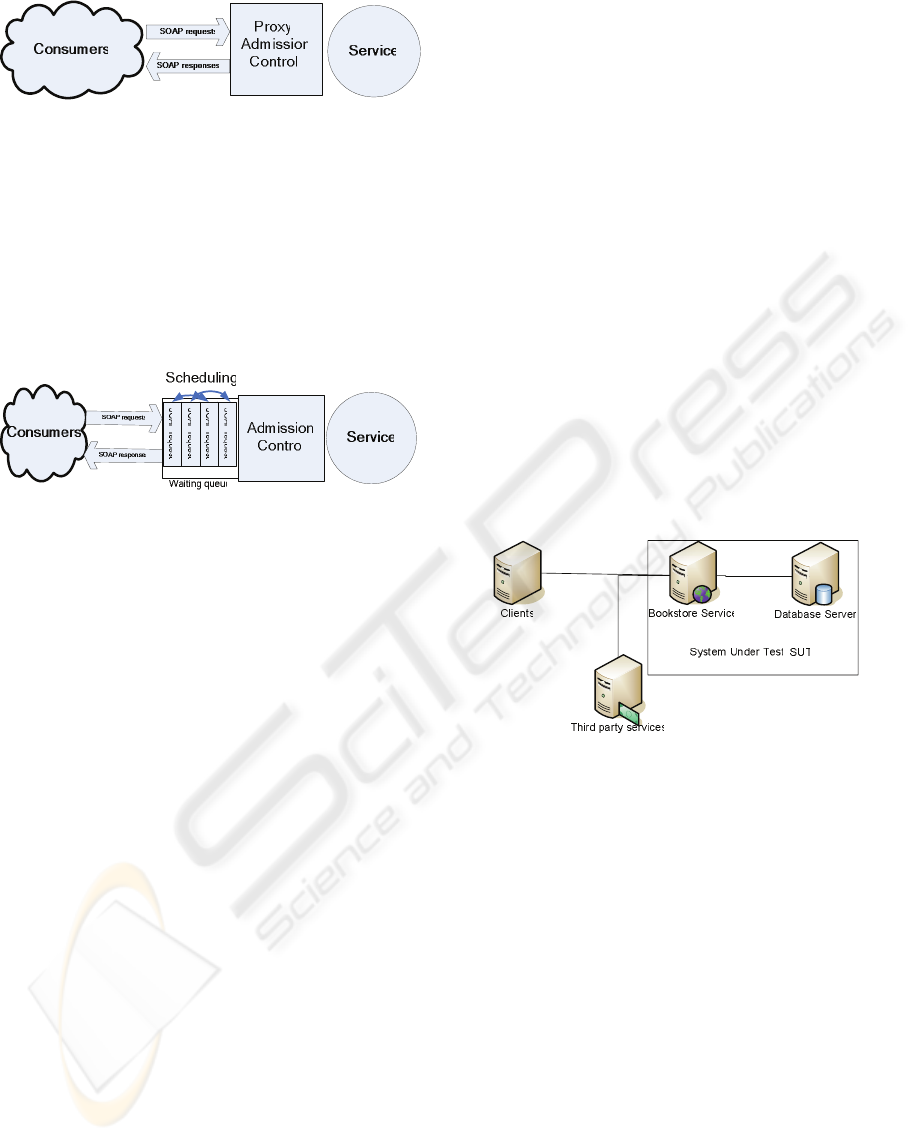

Figure 3: Transparent Admission Control.
Since service-oriented middleware (e.g. Web
Services) tends to favour declarative communication
styles (e.g. SOAP messages), it is fairly easy to
analyze the server bound traffic, determine the
request and estimate the impact each request will
have on the service provider. This in turn leads to
the possibility of scheduling (re-ordering) of service
requests (fig. 4).
Figure 4: Transparent Scheduling.
Scheduling of requests opens a broad spectrum of
possibilities, like maximizing service performance in
terms of interactions per time unit, minimizing
variance of service response times, etc.
This paper focuses on SJF (Shortest Job First)
scheduling as a means for optimizing overall
throughput. SJF (Shortest Job First) is a scheduling
policy which minimizes the response time of light
requests, for the price of the heavier ones. All
incoming service calls are put in a waiting queue and
are executed in the order of their size as shown in
figure four. Smith (Smith 1956) proved that SJF is
the best scheduling policy for maximizing the
throughput if perfect job estimation is available.
In this paper we limit the discussion of
scheduling to SOAP encoded, synchronous RPC
style, stateless Web Services. In addition rather than
using a complex resource model, requests (jobs) will
be characterized by the load they create on the
provider (server). The SJF scheduler is highly
dependent on a correlation value of predicted and
observed job length – the better the correlation the
better the optimality of the schedule. While a
correlation close to one (perfect predictions)
achieves the optimal schedule (Conway 1967), a
correlation close to minus one (always wrong
predictions) results in the worst schedule (instead of
minimizing the response time, it will be maximized).
A correlation of zero (random guess, equal amounts
of correct and wrong predictions) leads to a random
scheduling (Conway 1967).
The SJF scheduler is highly dependent on a
correlation value of predicted and observed job
length – the better the correlation the better the
optimality of the schedule.
3 TPC-APP
To achieve a realistic and domain independent
evaluation of the transparent scheduling, the TPC-
APP benchmark of the Transaction Processing
Performance Council (TPC) was chosen. According
to TPC (TPC 2006) the “TPC Benchmark™ App
(TPC-App) is an application server and web services
benchmark. The workload is performed in a
managed environment that simulates the activities of
a business-to-business transactional application
server operating in a 24x7 environment…..” (TPC-
APP 2006).
Since there were no free test-suites available, a
reimplementation of the benchmarks was
implemented following the TPC specifications.
Figure 5: Topology of TPC-APP.
As shown in figure 5, the TPC-APP scenario
consists of clients, a third-party service, a bookstore
service and a database server. The bookstore
services and the database server are hosted on
different machines (application server & DB server).
TPC-App also introduces a third-party service (e.g.
credit card service) to simulate external parties.
The application server (bookstore service) exposes
eight different methods shown in table one with their
distribution in the client requests (e.g. 50 % of all
client calls are Create Order requests). Two methods
are Writes (Create Order, Change Item), one is
Read/Write (New Customer, Change Payment) and
three are Reads (Order Status, New Products, and
Product Detail). TPC-APP dictates that each of these
methods should be treated as a transaction with
ACID properties.
WEBIST 2007 - International Conference on Web Information Systems and Technologies
114

Table 1: Services.
The database contained all the information operated
by service, like customers, orders, inventory, etc.
The size of the database was 80 Mb. The inventory
table was scaled to 100 000 records, and the table
describing orders and clients was proportional to the
number of virtual clients. In order to reduce proxy
complexity component inserted between clients and
application server, the underlying communication
protocol was changed from the HTTPS to HTTP.
4 EXPERIMENTS
Our TPC-APP implementation uses JSE as the
officially allowed by TPC platform. The application
server is Jakarta Tomcat 5.0.28 running on JSE 1.4.
Tomcat’s default configuration is set to use a load
balancing package. Load balancing was disabled to
ensure a consistent behaviour for the experiments (it
also leads to a 15 ms speedup in average on each
service call). Axis 1.3 served as framework for
implementing the Web Services. All Web Services
were implemented in a synchronous way and use the
default HTTP 1.0 as the transport protocol. MySQL
4.1.12a was selected as the database server and the
Connector J3.1.12 JDBC driver was used to link the
services to the database. The application server,
database server and virtual clients resided on
separate machines of following configuration:
Pentium IV 2.8 GHz, 2Gb of RAM. The third part
services used Pentium 3, 600Mhz with 512 of RAM.
The machines were connected with a 100Mb LAN
and used XP SP 2 as their OS. The XP performance
counters were used to collect the performance data.
As the main metrics we chose throughput and
average response time. The average response time is
the mean value of all the response times of service
during the measurement interval. Throughput is here
defined as the number of successful service
interactions per time unit. The measurement interval
is 30 minutes.
To emulate the behaviour of multiple clients, a
workload generator is used. The settings of the client
session lengths were distributed according a discrete
Beta distribution with shape parameters 1.5 and 3.0.
(TPC-APP 2006). In order to keep the number of
simultaneous clients constant, new clients arrive
after old clients have finished their session.
According to TPC-APP the client’s business
logic is ignored (takes zero time). Every client starts
a new service call immediately after obtaining the
results from the previous ones. The load on the
service provider is a result of the number of
simultaneous clients. HTTP 1.0 is the used transport
protocol (closing the connection after each
interaction). The timeout for the connection is set to
90 seconds.
The clients are simulated by the workload
generator and execute a sequence of requests that is
determined by invoking a random generator at
runtime (the setting represent the distribution shown
in table one). The process of determining calls
sequences has no memory and consequently the
probability of the next operation being invoked does
not depend on the previous call.
Two types of experiments were conducted. The
first experiment is used determine if posteriori
knowledge (runtime statistics) can predict with
sufficient accuracy the behaviour of a job. The
second type of experiments was used to determine
the impact of scheduling.
5 EVALUATION
5.1 Job-Size Estimation
In order to evaluate the sizes of the jobs we divided
all the SOAP requests into classes. SOAP requests
within the same class create approximately same
loads on the service. Using the average response
time of the class it is possible to predict the
behaviour of a request.
Trace studies of the TPC-APP benchmark
workload show that a classification according to the
name of a service operation allows achieving only a
(weak) 0.35 correlation between the estimated and
the actual response times. As can be seen in figure
six, some operations (“Order Status”, “New
Products”) have a high variation of execution time,
while operations, like “Change Payment”, exhibit
more stable behaviour. However, if the data
contained in the SOAP messages is also used for
classification a (strong) 0.72 correlation between the
estimated and the actual response times is achieved
Method Distribution
New Customer 1.00%
Change Payment
Method
5.00 %
Create Order 50.00 %
Order Status 5.00 %
New Products 7.00 %
Product Detail 30.00 %
Change Item 2.00 %
TRANSPARENT SCHEDULING OF WEB SERVICES
115

[fig. 7]. The reason for the strong correlation is an
effect of using a database centric scenario in which
the costs of a service call relate to the number of
updates/writes performed on the database.
Figure 6: Execution time of service methods (16 clients).
Figure 7: Execution time of “Order status” with different
SOAP request complexity (16 clients).
5.2 Admission Control & Scheduling
To obtain the data of a SOAP message is necessary
to perform a partial request parsing. In order to
minimize scheduling overhead and avoid double
parsing we located the proxy component into the
Tomcat framework (proxy resides on the same
machine as app-server).
Figures 9 and 10 show the observed throughput
and response time in relation to used policy {PS,
FIFO, SJF} and number of simultaneous clients.
The first observation is that even with admission
control (FIFO) and SJF, a decline in throughput can
be observed. The decline is a result of the thrashing
due to overload of their parsing parts. The overload
situation the admission control and scheduler
experience and can be easily solved/eased by hosting
these components on a more resource rich host. In
the current setting, the proxy that performs the
scheduling/admission control is residing on a host
that is shared with the application server [fig. 8.].
Figure 8: Topology of the scheduled environment.
Figure 9: Throughput of the service governed by various
scheduling policies.
Figure 10: Response times of the service governed by
various scheduling policies.
The second observation is the significant
performance boost FIFO and SJF achieve in
overload situations. While PS degrades as expected
(at ca. 41 clients) SJF and FIFO begin to degrade
only at around 76 clients.
2
9
6
1
4
0
9
3
4
7
1
5
100.0%
80.0%
60.0%
40.0%
20.0%
0.0%
Cumulative Percent
9
8
7
6
5
4
3
2
1
Complexity
0
1000
2000
3000
4000
5000
6000
7000
8000
9000
1
6
1
1
16
2
1
2
6
3
1
3
6
4
1
4
6
5
1
5
6
6
1
6
6
7
1
7
6
Number of clients
Mean response time, ms
SJF
PS
FIFO
0
10
20
30
40
50
60
70
80
1
6
1
1
1
6
2
1
2
6
3
1
3
6
4
1
4
6
5
1
5
6
6
1
6
6
7
1
7
6
Number of clients
Throughput,iteractions/s
SJF
PS
FIFO
4
6
9
4
0
7
3
4
3
2
6
6
2
0
3
1
4
0
6
3
0
ResponseTime
100.0%
80.0%
60.0%
40.0%
20.0%
0.0%
Cumulative Percent
Product
Detail
Order
Status
New
Products
New
Customer
Create
Order
Change
Payment
Method
Change
Item
Method
WEBIST 2007 - International Conference on Web Information Systems and Technologies
116

Until the load reached its peak values (41 users)
the buffer queue created by the admission control is
mostly empty therefore all scheduling policies
behave in the same manner.
Table 2: Application server loads with 36 clients.
Policy Original FCFS SJF
CPU, %
63 40 37
RAM,
MB
557 557 558
Network
Bytes/sec
271220 261629 73750
Table 3: Database server loads with 36 clients.
Scheduling
policy
Original FCFS SJF
CPU, % 3.44 13.8 14.21
Memory,
Mb
1.45 1.4 1.39
Network,
Kbytes/sec
55.97 19.39 20.90
Reading,
Mb/sec
0.11 0.32 0.34
Writing,Mb
/sec
0.65 0.13 0.13
After the load exceeded its peak value the excess
requests were buffered and the throughput was
preserved. Further load growth created a situation in
which there were more elements in the queue to be
scheduled so SJF and FIFO began to behave
different. At higher loads SJF started outperforming
FIFO by 20% in average. Table two shows that
scheduling did not affect the consumption of the
resources like, memory or network. Meanwhile the
CPU utilization went down from 63% to 37-40%
due a lesser amount of parallel jobs. In general, low
values of CPU utilizations are the result of using
HTTP 1.0 since establishing a new socket causes a
significant delay (up to 1 sec) and does not require
the processor resources. It can also be seen that the
database server’s CPU load and amount of
reads/writes had highest values in case of SJF [table
3]. Thus even these loads were not fully utilizing the
database. The under-utilization of the database can
be explained by the low frequency of database
queries issued by application server. Consequently,
the application server is the bottleneck. In the
current setup scheduling of the service requests
mostly affected the performance of the bottleneck
element – the application server.
Figure 11: “Create Order” Operation.
As a result of scheduling, the application server was
able to produce database queries faster. Thus the
database server utilization (CPU, read/write
operations) increased by 10% [tabl. 3]. Applying
scheduling caused an interesting effect of “resource
load equalisation” in which the usage of overloaded
resources decreased, while the utilization of lesser
used resources increased. Nevertheless, this is an
observed effect that requires research.
Figure. 12.”Change Item” Operation.
It is important to note, that the skew of the response
time distribution was small [fig. 13] and that the
difference between the slowest and the fastest
request reached only the ratio of one to six.
Therefore the possibility of optimizations was lower
and the bigger jobs were penalized only lightly.
0
200
400
600
800
1000
1200
1400
1600
1800
Create Order
PS
FIFO
SJF
0
50
100
150
200
250
300
350
Change Item
PS
FIFO
SJF
TRANSPARENT SCHEDULING OF WEB SERVICES
117

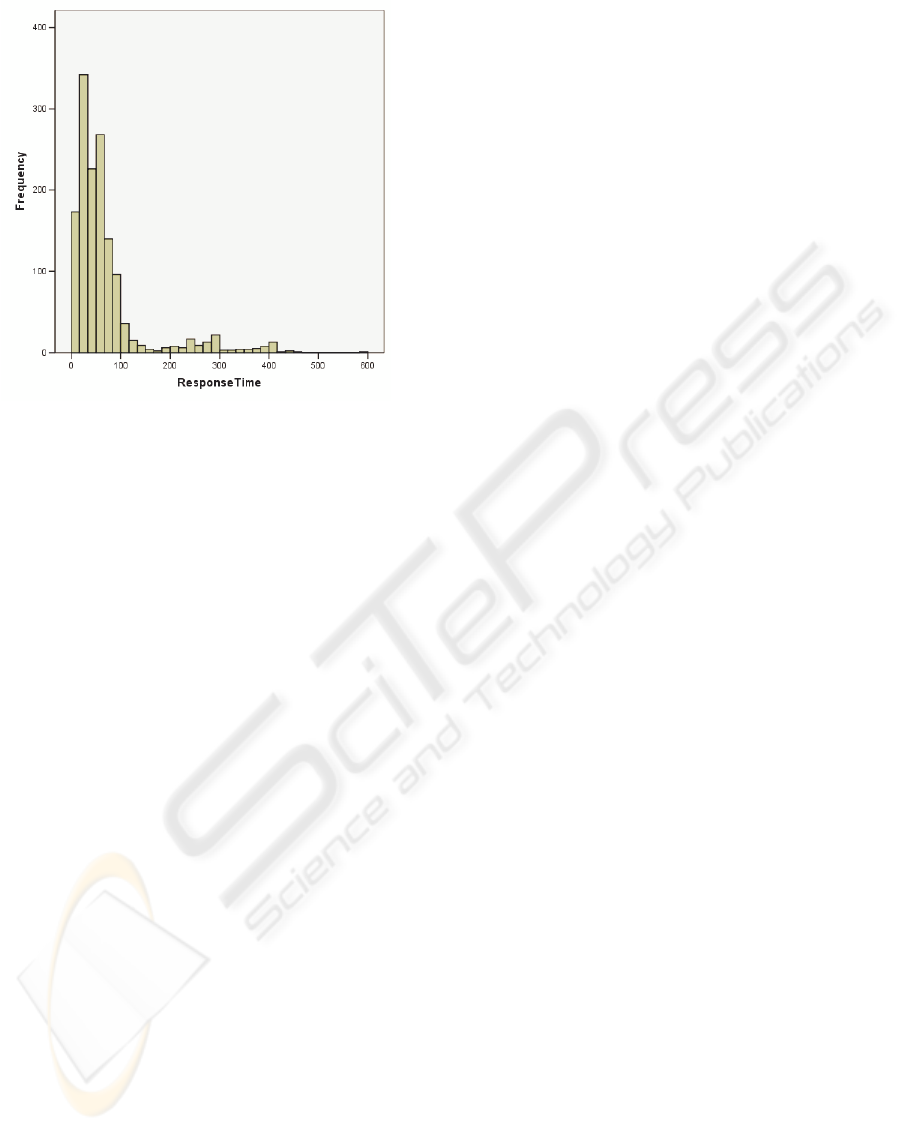

Figure 13: The distribution of the service response times
(without network overhead).
Figures 12 and 13 describe an example of a light and
a heavy request in a medium load case (11 clients).
SJF to FCFS heavy jobs experienced the 2%
increase of the response time, while the response
time of smaller jobs shrunk up to 45%. In any case,
each of these policies significantly outperformed
default PS.
6 RELATED WORK
Elnikety et. al. (Elnikety 2004), present a method for
admission control and request scheduling for multi-
tired e-commerce Web-sites with a dynamic content
in. The authors use a transparent proxy, as the
intermediate scheduling component between
application server and database server. The method
enabled overload protection and preferring
scheduling SJF augmented with aging method.
SJF scheduling has been successfully used for
http requests by Cherkassova in (Cherkassova 1998).
This work proposes the use of Alpha-scheduling to
improving the overall performance. Alpha-
scheduling, is a modified SJF algorithm and
prevents the starvation of big requests, in way
similar to aging methods (Elnikety 2004). The job
size in (Elnikety 2004) is estimated by classifying all
http requests according a name of the requested
servlet.
In the domain of web services admission control
research has focussed on supporting QoS
differentiation (providing different levels of QoS).
Siddaharta et al. (Siddaharta 2003) introduce the
concept of using a Smartware platform as managing
infrastructure for Web Services. The Smartware
platform consists of three core components namely
interceptor, scheduler and dispatcher. The
interceptor intercepts the incoming requests, parses
them and classifies them according to user and client
(device) type. Once classified the requests are
subjected to a scheduling policy the scheduler
determines the order of execution. Finally the
dispatcher routes the request to the service endpoint.
Smartware implements a static scheduling by
assigning priorities to service calls according the
classification of the interceptor. As a main
scheduling means the Smartware authors chose a
randomized probabilistic scheduling policy namely
lottery scheduling (Waldspurger
1994).
Sharma et al (Sharma 2003) achieve QoS
differentiation using predefined business policies.
The authors examined static scheduling, in which
the request class is determined by the application
type, device type and client (user) level. The overall
priority is calculated on the base of component
priorities, for example it can be a sum or a product.
The problem of starvation was eliminated by
applying probabilistic scheduling. However, static
scheduling does not appear to be a capable for
ensuring differentiated throughput in case of
fluctuating loads (Sharma 2003). The authors
suggest augmenting the static scheduling by altering
priorities at runtime using the observed throughput.
The adjustments to the required throughput are done
using a correcting factor that is calculated as a
penalization function of a hyperbolic nature, which
speeds up slow responses and slows down fast
responses in compliance with each request class.
7 CONCLUSION
This paper presents the idea of transparent
scheduling of Web Services requests as a means for
achieving better performance. Using the TPC-APP,
a two-tier B2B application, as a benchmark we
evaluated the performance gains of SJF (Shortest
Job First) compared to FIFO admission control and
standard PS. By simply adding a proxy between
consumer and provider, it was possible to achieve a
transparent scheduling and admission control that
lead to significant performance improvements in
overload cases. In addition, the experimental
evaluation showed that even in the absence of a
priori knowledge, a SJF scheduler that uses observed
runtime behaviour can lead to schedules that
outperform FIFO and PS, making it an attractive
approach for boosting Web Services performance.
The results of the experimentation indicate that
transparent scheduling can be applied to Web
WEBIST 2007 - International Conference on Web Information Systems and Technologies
118

Services as an effective and easy to implement
approach for boosting performance and avoiding
service provider trashing. And while SJF does
penalize larger jobs, this doesn’t seem to exceed 10
% which seems acceptable given the overall gains.
8 FUTURE WORK
While the results of applying scheduling are very
promising it is important to note that the current
work only focused on a very simplified SOA
architecture. Future work in transparent scheduling
of Web Services will overcome this by addressing
the following issues.
8.1 Document-Style
In the current work we focused on RPC-style Web
Services, that exhibit the basic request/response
MEP (Message Exchange Pattern). Document-style
interaction supports more complex MEPs and raises
new question in regards to scheduling.
8.2 Composite Services
Composite Services orchestrate the functionality
provided by the other services thus creating complex
environment with significantly more complex
behaviour. We hope that by applying scheduling to
this environment it should be possible to increase
services dependability, performance, etc.
8.3 Service-Level Agreements (SLA)
SLAs are an increasingly important aspect of SOA.
Scheduling can be used as a means for achieving this
by minimizing penalties and supporting QoS
contracts in critical situations.
ACKNOWLEDGEMENTS
This research has been supported by NSERC grants
and the equipment provider by the Canadian
Foundation for Innovation (CFI).
REFERENCES
Apache, 2006. Available at: http://httpd.apache.org/
Axis, 2006, Available at: http://ws.apache.org/axis/
Box, D., 2004, “Four Tenets of Service Orientation”,
Available at:
http://msdn.microsoft.com/msdnmag/issues/04/01/Indi
go/default.aspx
Christensen, E., Curbera, F., Meredith, G., Weerwarana
S.,, 2006, Available at: http://www.w3.org/TR/wsdl.
Cherkasova, L., “Scheduling strategy to improve response
time for web applications”,1998, in HPCN Europe
,Proceedings of the International Conference and
Exhibition on High-Performance Computing and
Networking. London, UK: Springer-Verlag, pp. 305–
314.
Conway, R., W., et al. 1967.. Theory of scheduling,
Addison-Wesley, Massachusetts, USA, 1967.
Elnikety, S., Nahum, E., Tracey, J., Zwaenpoel, W., ,
2004. “A Method for Transparent Admission Control
and Request Scheduling in E-Commerce Web Sites”.
In Proceedings of the 13th international Conference on
World Wide Web (New York, NY, USA, May 17 - 20,
2004). WWW '04. ACM Press, New York, NY, pp.
276-286.
Extensible Markup Language (XML), Available at:
http://www.w3.org/XML/
Eclipse, 2006. http://www.eclipse.org/
Graham, S., Davis, D., Simoenov, S., Daniels, G.,
Brittenham, P., Nakmura, Y., Fremantle, P., Konig,
D., and Zentner. 2004.C. Building Web Services with
Java. Sams Publishing, Indianapolis, Indiana, USA.
Heiss, H.-U. , Wagner, R., 1991. “Adaptive load control
in transaction processing systems”, In 17th
International Conference on Very Large Databases,
Barcelona, Spain.
Mitra, N., 2006. SOAP version 1.2 part 0. Available at:
http://www.w3c.org/TR/soap12-part0/.
Sharma, A.,, Adarkar, H., Sengupta, S., 2003 “Managing
QoS through prioritization in web services,” WISEW,
vol. 00, pp. 140–148.
Siddhartha, P., Ganesan, R., Sengupta, S., 2003,
“Smartware - a management infrastructure for web
services.” in WSMAI, pp.. 42–49.
Smith,W.,E., 1956. Various optimizers for single-state
production. Naval Research Logistics Quarterly, 1956.
TPC, 2006. Transaction Processing Performance Council,
Available at: http://www.tpc.org/.
TPC-APP, 2006. Available at:
http://www.tpc.org/tpc_app/
Visual Studio, 2005. Available at:
http://msdn.microsoft.com/vstudio/
Waldspurger, A., Weihl, W., E., 1994, “Lottery
scheduling: Flexible proportional-share resource
management,” in Operating Systems Design and
Implementation, pp. 1–11.
W3C, 2006, Available at: http://www.w3.org/.
XML, 2006. Available at; http://www.w3.org/XML/.
XML-RPC, 2006, Available at:
http//www.xmlrpc.com/spec.
TRANSPARENT SCHEDULING OF WEB SERVICES
119
