ESTIMATE VALIDITY REGIONS FOR NEAREST NEIGHBOR

QUERIES *

Xing Gao, Ali R. Hurson

Department of Computer Science and Engineering

Pennsylvania State University,USA

Krishna Kavi

Department of Computer Science and Engineering

University of North Texas,USA

Keywords: Location dependent query, validity region, proxy caching, nearest neighbour.

Abstract: Users’ queries for data or services in a mobile computing environment are highly relevant to their current

locations. A nearest neighbor (NN) query finds the data object closest to the user’s location; and hence, NN

query issued at different locations may lead to different results. The nearest neighbor validity region

(NNVR) is the area where an NN query result remains valid. A cached NN result can be used to answer

semantically equivalent NN queries issued in the same NNVR. Our analysis discovers that NNVRs carry

useful information about neighboring objects’ locations. This paper proposes an algorithm data mining the

hidden information in cached NNVRs to increase the proxy caching performance. The experimental results

and analysis have demonstrated the effectiveness of the proposed algorithm in reducing query response time

and workload on the database server.

1 INTRODUCTION

In a mobile computing environment, mobile users

may issue queries related to their current locations

(Barbara, 1999), e.g., “Find the nearest hospital”.

Such a query is a location dependent query (LDQ)

as its result depends on the user’s current location.

An LDQ may returns different results in different

regions. The validity region (VR) is the region

where an LDQ result remains valid.

If the user issues the same query at a new

location, the query needs to be resubmitted to the

database (DB) server. It leads to unnecessary

network traffic and DB server workload if the

mobile user is still within the VR of a previously

resolved query. The VR aware LDQ caching scheme

is one solution to address this problem. The LDQ

cache stores the most frequently (or recently) issued

LDQs, query results, and their VRs. The cache can

determine if the querying location is within the VR

of a cached result of a semantically equivalent LDQ

as defined in Gao and Hurson (2005) - some queries

can be resolved based on the cache contents.

The most common LDQ is the nearest neighbor

(NN) query, normally in the form of NN

(object_category, x, y), which retrieves the object in

the specified category that is the closest to the user’s

querying location (x, y). The nearest neighbor

validity region (NNVR) is the VR of a NN result,

and it is determined by the locations of the result

object and neighboring non-result objects (Zheng

and Lee 2001).

Because it requires the knowledge of all data

object’s locations to generate VRs, most existing

LDQ caching schemes rely on the DB server to

provide VRs for LDQ results. VR computation

introduces extra storage and processing overhead, so

the DB server may not provide VR service or

provide it only when workload permits. The

uncertainty in VR availability limits the feasibility

of those LDQ caching schemes. Alternatively, Gao

and Hurson (2005) and Gao, Sustersic, & Hurson

(2006) proposed the LDQ proxy caching scheme

* National Science Foundation under the contract IIS-0324835 in part has supported this

work.

129

Gao X., R. Hurson A. and Kavi K. (2007).

ESTIMATE VALIDITY REGIONS FOR NEAREST NEIGHBOR QUERIES.

In Proceedings of the Second International Conference on Software and Data Technologies - Volume ISDM/WsEHST/DC, pages 129-136

DOI: 10.5220/0001323801290136

 SciTePress

that is capable to estimate the VR based on the

observed querying events. When the DB server does

not provide the NNVRs, the proxy cache server

invokes the Right-hand algorithm proposed in Gao

and Hurson (2005) to compute the nearest neighbor

estimated validity region (NNEVR) with 3 or more

querying events known to be within the result

object’s NNVR.

Our analysis revealed that NNVRs imply

neighboring objects’ locations and their partial

NNVRs. This research identifies the value of the

hidden information and proposes an iNN_EVR

algorithm, which generates NNEVR by exploiting

both querying history and the cached content at the

proxy cache server. The experimental results will

demonstrate that iNN_EVR algorithm improves the

proxy cache performance by reducing the query

response time as well as the number of NN queries

processed by the DB server.

The rest of this paper is organized as follows.

Section 2 reviews the existing work related to LDQ

caching and NNVR estimation. Section 3 reveals the

information carried in NNVRs, proposes the

iNN_EVR algorithm, and examines the algorithm

with a running example. Section 4 presents the

simulation model and analyzes the experimental

results. Finally, section 5 concludes this paper and

outlines our future research directions.

2 RELATED WORK

The idea of queries with location constraints was

originally introduced by Imielinski and Badrinath

(1992), and has been further discussed in many other

research works such as Forman and Zahorjan

(1994), Dunham and Kumar (1998), Seydim,

Dunham, & Kumar (2001), Lee, Lee, Xu, et al

(2002). Naturally, mobile users are likely to query

data and services relevant to their current positions.

Barbara (1999) named this class of queries the

location dependent query (LDQ). Seydim, Dunham,

& Kumar (2001) distinguished LDQs from other

queries with location constraints: a query whose

result depends on certain location attributes is a

location aware query (LAQ), while a LDQ is a query

whose result depends on the mobile user’s current

location. Two common types of LDQ are NN

queries and range queries. A NN query retrieves the

data object satisfying the query that is the closest to

the querying location, while a range query retrieves

all satisfying data objects within the specific range

(Guting 1994).

Location dependent data cache also received

much research attention. Ren and Dunham (2000)

proposed a semantic caching scheme for location

dependent results, which stores the query results and

the semantic description of the queries (i.e., the

query selection relationships, selection attributes,

selection conditions, and the bound of locations).

This semantic caching scheme reduces the network

traffic and allows partial query resolution as well as

query resolution during the disconnection. Taking

validity information into the consideration, Zheng,

Xu, & Lee (2002) presented algorithms for cache

invalidation and cache replacement strategies. Hu,

Xu, Wong, et al (2005) presented a proactive

caching approach, which caches both query results

and their index in order to answer different types of

queries.

There are several algorithms for the DB server

to determine NNVRs. Zheng and Lee (2001) built

the static Voronoi diagram (VD) to partition the

search space based on the VR of each data object.

The NN query result is the object whose Voronoi

cell (VC) covers the querying location, and its VC is

the corresponding NNVR. The VD, however, is

expensive to maintain due to database updates, and

it is also inapplicable for the k nearest neighbor (k-

NN) query when k is unknown. Even when k is

known, an order-k VD is very expensive in terms of

computational and storage overhead as pointed out

by Zhang, Zhu, Papadias, et al (2003).

Consequently, Zhang, Zhu, Papadias, et al (2003)

introduced algorithms to calculate NNVRs during

the run time. It avoids the large storage overhead but

introduces extra computing and I/O cost.

In an attempt to obtain the validity region, Gao

and Hurson (2005) proposed a proxy cache scheme

associated with Right_hand algorithm to compute

NNEVRs based on the querying history observed by

the proxy server. This algorithm works for NN

query and other LDQs with convex VRs. To

generate the NNEVR for a NN result, Right_hand

algorithm searches the querying history and finds

the querying locations where the same NN query

returns the identical result. Because all these

querying locations lie in the result’s NNVR and all

NNVRs are convex polygons, Right_hand algorithm

returns the convex hull, minimum convex polygon,

of these querying locations as the NNEVR.

The works thus far discussed have overlooked

useful information in the cached NNVRs that

implies neighboring objects’ locations. Section 3

will identify the hidden information and illustrate

the approaches to improve NN caching performance.

ICSOFT 2007 - International Conference on Software and Data Technologies

130

3 GENERATING NNEVRS

This section data mines the hidden information in

cached NNVRs. A cached NNVR implies the

locations and partial NNVRs of its neighbors. Based

on this discovery, we propose the iNN_EVR

algorithm, which generates NNEVRs by exploring

both querying history and cached content. We

examine the algorithm through a working example

and analyze its characteristics and complexity.

3.1 Analysis of NNVR

The NNVR of an object is its VC formed by

perpendicular bisectors between the object and its

neighbors (Zheng and Lee 2001). An NNVR carries

valuable information about its neighbors: their

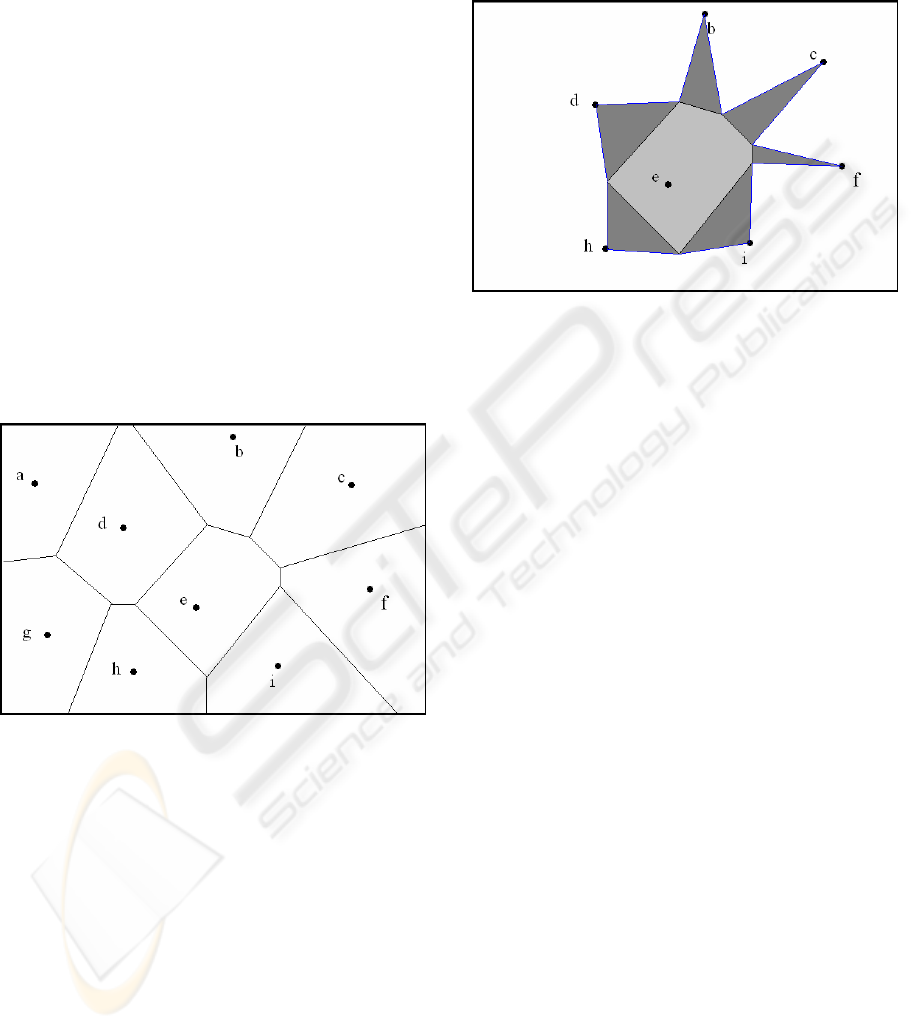

locations and two vertices in their NNVRs. Figure 1

shows a data space with 9 objects (a, b, … i) and the

surrounding polygons as their NNVRs. Take NNVR

for object e, for example, the 6 NNVR edges are the

perpendicular bisectors between object e and its 6

neighbors.

Figure 1: NN results and their validity regions.

An NNVR implies its neighbors’ locations and

their partial NNVRs. There are two types of NNVR

edges: boundary NNVR edges which lie on the data

space boundary and the non-boundary NNVR edges.

Each non-boundary NNVR edge is the

perpendicular bisector between the two neighboring

objects. Therefore, an object and a non-boundary

NNVR edge determine one neighbor’s location,

which is the object’s mirror image point across the

edge. Taking object e’s NNVR in figure 1 for

example, it implies the locations of all 6 neighbors

(b, c, d, f, h, and i).

Two neighboring NNVRs share one edge and

two vertices. The shared edge and the data object

determine a triangle, which is guaranteed to be a

sub-region of the corresponding object’s NNVR.

Figure 2 shows a client cache with NN result e and

its NNVR, illustrated by the polygon around e. It

implies its 6 neighbors’ location as well as their

partial NNVRs.

Figure 2: NN VR and its implication.

The objective of this work is to improve the

Right-hand algorithm, Gao and Hurson (2005), and

enhance the performance of LDQ caching systems.

The Right-hand algorithm requires at least three

querying locations in the same NNVR to generate an

NNEVR. We propose improved nearest neighbor

estimated validity region (iNN_EVR) algorithm that

exploits the hidden information in cached NNVRs to

generate larger NNEVRs with fewer querying

events, thus improving the performance of systems.

3.2 iNN_EVR Algorithm

Before examining the iNN_EVR algorithm

(algorithm 2 in figure 4), we first introduce the

Immediate_Neighbor algorithm (algorithm 1 in

figure 3), which determines whether the result object

shares an NNVR edge with any cached object. If

yes, this algorithm also returns two shared NNVR

vertices, which will be used to generate the NNEVR

for the result object. The iNN_EVR algorithm

generates NNEVR as the convex hull of all locations

known to be within the result object’s NNVR,

including the result object, querying locations

returning the same NN result, and the known

vertices of the result object’s NNVR.

ESTIMATE VALIDITY REGIONS FOR NEAREST NEIGHBOR QUERIES

131

Algorithm: Immediate_Neighbor (R, C

)

Input: R Î The Result Object (x, y)

Î Cached entry with result object O

Output: B Î A Boolean value

V Î Vertices

Procedure:

1. B Í False

2. For each edge E of C

3. If (x, y) is the image point of O

across E

4. B Í True // Find immediate neighbor

5. V Í Vertices of E // Find two shared NNVR

vertices

6. Exit For Loop

7. End If

8. End For

9. Return B, V

Figure 3: Algorithm 1 - Immediate_Neighbor.

Algorithm: iNN_EVR (Q, R, C, H)

Input: Q Î The Query (object_class, x, y)

R Î The Result Object (R

, R

)

C Î The Cached Results

H Î Querying History

Output: P Î NNEVR Polygon

Procedure:

1. Build an empty list L

2. Let B, V be a Boolean and a set of vertices

3. Let HR

be the result object of H

4. Let (HR

, HR

) be the location of HR

5. Let (H

, H

) be the querying location of H

6. For each entry C

in C

7. If C

does not have an NNVR

8. Continue

9. Else //Find NNVR vertices shared with neighbors

10. (B, V) Í Immediate_neighbor(R, C

)

11. If B is True //Add two vertices to list L

12. Add V to L

13. End If

14. End If

15. End For

16. If every vertex v in L appears twice

17. P Í convex hull formed by the entries in L

18. Return P //Return the accurate NNVR

19. End If

20. Add (R

) to L //Result object is always in NNVR

//Find querying locations in same NNVR

21. For each entry H

in H

22. If Q and H

are semantically equivalent and

(HR

, HR

) = (R

)

23. Add (H

, H

) to L

24. Else

25. Continue

26. End If

27. End For

// Generate the NNEVR

28. P Í convex hull formed by the entries in L

29. Return P

Figure 4: Algorithm 2 - iNN_EVR.

Figure 5 is a working example to examine

algorithm 2 and illustrate the generated NNEVR.

The proxy server has object e and its NNVR in its

cache when it receives an NN query issued at Q. As

Q is outside of any cached NNVRs, the proxy cache

cannot resolve the query, so it forwards the query to

the DB server, which returns the result object h

without its NNVR. The proxy cache calls on

iNN_EVR algorithm to generate NNEVR for result

object h. iNN_EVR employs Immediate_Neighbor

algorithm and finds that h and e share an NNVR

edge (E

). Result object h’s NNEVR is the polygon

covering h, Q, and edge E

. In contrast to

iNN_EVR, the original Right-hand algorithm was

not able to generate an NNEVR for query Q under

the aforementioned conditions.

The complexity of Immediate_Neighbor

(algorithm 1) to verify a cached NNVR with m

edges is O (m). The iNN_EVR algorithm consists of

searching for NNVR vertices, searching for

querying locations, and generating the convex hull.

The complexity of finding the hidden NNVR

vertices in a cache with n entries is O (m*n). The

complexity of finding the querying locations in a

querying history of h entries is O (h). After finding

p known locations in the NNVRs, the complexity of

generating the convex hull is O (p*lg p) (Graham

1972). As a result, algorithm 2 has a complexity of

O (m*n + p*lgp + h).

Figure 5: Example of the iNN_EVR algorithm.

3.3 iNN_EVR Finds NNVRs

The iNN_EVR algorithm normally returns an

NNEVR as a sub-region of the actual NNVR.

However, there is a scenario where iNN_EVR

algorithm returns the precise NNVR. Given a new

result object, if all of its immediate neighbors and

their NNVRs are in the cache, the shared NNVR

vertices form the NNVR of the result object. Figure

6 illustrates this scenario in which objects b, i, d, f,

ICSOFT 2007 - International Conference on Software and Data Technologies

132

h, i, and their NNVRs (the gray polygons covering

different objects) are cached. An NN query is issued

at location Q, whose result is not cached. The proxy

server forwards the query to the DB server which

returns result e without its NNVR. To determine e’s

NNEVR, iNN_EVR algorithm discovers that all

vertices are shared by two cached NNVRs, which

indicates that these shared vertices form the accurate

NNVR for result object e.

Figure 6: iNN_EVR finds an accurate NNVR.

The iNN_EVR algorithm has several

advantages over the existing Right_hand algorithm.

First, it exploits the hidden information in cached

NNVRs and obtains NNEVRs with fewer querying

events. Second, it can calculate the actual NNVR of

a result object under special circumstances. Given a

new result object, if all of its immediate neighbors

and their NNVRs are stored in the cache, the shared

NNVR edges form the NNVR for the result object.

Finally, the NNEVRs generated by iNN_EVR

algorithm are relatively larger than those generated

by the Right-hand algorithm. Section 4 presents the

experimental results and shows the performance

improvement obtained by iNN_EVR algorithm with

respect to the query response time and the number of

NN queries processed by the DB server.

4 SIMULATIONS AND

EVALUATIONS

4.1 Simulation Model

We evaluated the performance improvement of the

iNN_EVR algorithm over the Right-hand algorithm

using a proxy caching simulator in CSIM (CSim).

For a fair comparative analysis, we ran three

configurations with similar environmental setup as

that used by Gao, Sustersic, & Hurson (2006). The

first configuration, named “iNN”, employs

iNN_EVR algorithm. The second configuration,

named “RH”, is equipped with the Right-hand

algorithm, Gao and Hurson (2005), to generate

NNEVR. The third configuration, named “NO”,

does not use any EVR algorithm.

The simulator in Gao, Sustersic, & Hurson

(2006) modeled a mid-size town, considering the

demographic information. It partitioned the

simulated area into different regions to reflect the

population density during and outside of working

hours. Mobile users are categorized into different

groups each with different mobility patterns. As

listed in table 1, our simulator uses the same

parameters as Gao, Sustersic, & Hurson (2006) for

DB servers, proxy server cache, client cache, and

network traffic.

Table 1: Major simulation parameters.

Parameters Value

Number of data objects about this city 680

Proxy cache size (NN result entries) 100

Client cache size (NN result entries) 10

Proxy querying history size 500

Network bandwidth, base station (BS) to

DB link (Mbps)

1000

Background network (BS to DB)

utilization

0.4

Client to BS link bandwidth (Kbps) 19.2

BS to client link bandwidth (Kbps) 144

NN query request size (byte) 32

Average NN query result size (byte) 80

Average NNVR descriptor size (byte) 60

Average query rate, daytime (hours) 0.5

Average query rate, night (hours) 0.2

The performance improvement is measured by

two metrics: the relative speedup of NN query

response time and the relative DB server workload

reduction. The DB server workload reduction can be

approximated by the number of queries sent to DB

servers.

NQDB

is the number of NN queries sent to

the DB servers in RH configuration, and NQDB

iNN

represent the number of NN queries sent to the DB

server in iNN configuration. The DB server

workload reduction (R

workload

) is the difference

between NQDB

and NQDB

iNN

divided by

NQDB

(see equation 1). The average query

response time for a RH configuration is termed as

. RT

iNN

represents the average query response

time in iNN configuration. The speedup of NN

query response time (S

response

) is the difference

between RT

and RT

iNN

divided by RT

(see

equation 2).

ESTIMATE VALIDITY REGIONS FOR NEAREST NEIGHBOR QUERIES

133

workload

iNNRH

NQDB

NQDB - NQDB

(Eq. 1)

response

iNNRH

RTRT −

(Eq. 2)

4.2 Evaluations and Analysis

We simulated and compared the performance of

Right-hand and iNN_EVR algorithms under

different scenarios in which the DB server provides

NNVRs with probabilities (0%, 20%, 40%, 60%,

80%, and 100%). Figures 7 and 9 show percentage

of NN queries sent to the DB server and the average

query response time for the aforementioned

configurations, respectively. Figure 8 and 10 depict

the relative workload reduction and relative speed

up of query response time, achieved by iNN

configuration over RH configuration as formulated

in equation 1 and 2.

The NNEVRs in RH and iNN configurations

help to resolve more NN queries at proxy cache

server and thus reduce the query traffic sent to DB

servers. From figure 7, one can conclude that both

RH and iNN configurations significantly reduce the

workload sent to the DB server, especially when

NNVR availability is low. In the scenario where DB

servers do not provide NNVR services, the proxy

caching scheme in NO configuration can only

answer queries issued at the same location as a

cached result. As a result, many NN queries are

forwarded to DB servers. The iNN configuration

employs iNN_EVR algorithm and generates larger

NNEVR than those generated by Right_hand

algorithm (in RH configuration), which explains the

fact that iNN outperforms RH in reducing the

number of NN queries sent to DB servers.

Figure 8 illustrates the improvement achieved

by iNN_EVR algorithm over Right-hand algorithm

with respect to the workload at the DB server. In the

case that the DB server always provides NNVRs,

both algorithms lead to the same performance. When

the DB server never provides NNVRs, iNN_EVR

algorithm achieves a relative workload reduction of

12% over Right-hand algorithm.

100

0 20406080100

VR availability (%)

Queries sent to DB servers (%)

iNN

Figure 7: Number of queries sent to DB servers.

10%

12%

0 20406080100

VR availability (%)

Relative workload reduction

Figure 8: Workload reduction at DB servers.

Figures 9 show the average query response time

observed in three configurations. The NNEVRs

generated in RH and iNN configurations help to

resolve some NN queries using proxy cache and

thus reducing query response time. The fewer NN

queries sent to the DB server, the shorter NN query

response time. Due to this relationship, figure 9

shows the average query response time for the three

aforementioned configurations, which shows a

similar pattern as the curves in figure 7. Both RH

and iNN reduces the query response time and the

improvement is significant when NNVR availability

is low. iNN configuration leads to a shorter query

response time than RH configuration because iNN

resolves more queries at proxy server. Figure 10

illustrates iNN_EVR algorithm’s relative speedup

over Right-hand algorithm with respect to the

response time as formulated in equation 2. When

NNVR is always available, three configurations

behave in the same way, as there is no need to

generate NNEVRs. The relative response time speed

up is 8% when the DB server does not provide VR

services.

ICSOFT 2007 - International Conference on Software and Data Technologies

134

0.02

0.03

0.04

0.05

0.06

0.07

0 20406080100

VR availability (%)

Query response time (s)

iNN

Figure 9: NN query response time.

10%

12%

0 20406080100

VR availability (%)

Speed up of response time

Figure 10: Speed up in LDQ response time.

5 CONCLUSIONS AND FUTURE

WORK

Our analysis revealed that the cached NNVRs can be

data mined to exploit valuable information on their

neighbors’ locations and NNEVRs. We proposed an

algorithm to generate NNEVRs by exploring both

the querying history and the cached content. This

algorithm was evaluated using a detailed simulation

scenario modeled after a real, modern community

and including components that consider actual

population demographics and data objects. The

simulation results showed that the iNN_EVR

algorithm achieved better performance than the

existing algorithm.

The hidden information in cached NNVRs can

help disconnected mobile users to answer queries

issued in proximity of cached NNVRs. Our future

research will seek schemes to resolve more queries

for disconnected users. In addition, we will study the

location-based services with respect to users’

mobility patterns based on the road network.

Furthermore, some mobile users prefer fast response

time and tolerate certain level of inaccuracy on LDQ

results or their VRs. We will study Quality of

Service (QoS) issues in LDQ cache management to

further improve the system performance.

REFERENCES

Barbara, D., 1999. "Mobile Computing and Databases - A

Survey", IEEE Transactions on Knowledge and Data

Engineering, 11(1), pages 108-117.

CSIM product website. http://www.mesquite.com/

Dunham, M., Kumar, V., 1998. "Location Dependent Data

and its Management in Mobile Databases",

Proceedings of the Ninth International Workshop on

Database and Expert Systems Applications, pages

414-419.

Forman G., Zahorjan J., 1994. "The Challenges of Mobile

Computing", IEEE Computer, Volume: 27(4), pages

38-47.

Gao X., Hurson A., 2005. "Location Dependent Query

Proxy", ACM Symposium on Applied Computing,

pages 1020-1024.

Graham, R., 1972. “An Efficient Algorithm for

Determining the Convex Hull of a Finite Planar Set",

Information Processing Letter, 1: 132-133.

Gao X., Sustersic J., and Hurson A., 2006. "Window

Query Processing with Adaptive Proxy Cache",

Mobile Data Management (MDM), p. 39.

Guting R., 1994. "An Introduction to Spatial Database

Systems", Special Issue on Spatial Database Systems

of the VLDB Journal, 3(4), pages 357-399.

Hu H., Xu J., Wong W., Zheng B., Lee D., and Lee W.,

2005. "Proactive Caching for Spatial Queries in

Mobile Environments", IEEE International

Conference on Data Engineering, pages 403-414.

T. Imielinski and B. Badrinath, 1992. "Querying in Highly

Mobile Distributed Environments", International

Conference on Very Large Data Bases (VLDB), pages

41-52.

Lee D., Lee W., Xu J., and Zheng B., 2002. "Data

Management in Location-Dependent Information

Services: Challenges and Issues", IEEE Pervasive

Computing, 1:3, pages 65-72.

Ren Q. and Dunham M., 2000. "Using Semantic Caching

to Manage Location Dependent Data in Mobile

Computing", International Conference on Mobile

Computing and Networking, pages 210-221.

Seydim A., Dunham M., and Kumar V., 2001. "Location

Dependent Query Processing", International

Workshop on Data Engineering for Wireless and

Mobile Access, pages 47-53.

Zheng B. and Lee D., 2001. "Semantic Caching in

Location-dependent Query Processing", Seventh

International Symposium on Spatial and Temporal

Databases, pages 97-116.

ESTIMATE VALIDITY REGIONS FOR NEAREST NEIGHBOR QUERIES

135

Zheng B., Xu J., and Lee D., 2002. "Cache Invalidation

and Replacement Strategies for Location-Dependent

Data in Mobile Environments", IEEE Trans. on

Computers, Special Issue on Database Management

and Mobile Computing, 51(10), pages 1141-1153.

Zhang J., Zhu M., Papadias D., Tao Y., and Lee D., 2003.

"Location-based Spatial Queries", International

Conference on Management of Data (SIGMOD),

pages 443-453.

ICSOFT 2007 - International Conference on Software and Data Technologies

136
