THE MISSING LAYER

Deficiencies in Current Rich Client Architectures, and their Remedies

Brendan Lawlor and Jeanne Stynes

Department of Computing

Cork Institute of Technology

Cork, Ireland

Keywords: Rich client, rich internet application, model view controller, software architecture.

Abstract: There is an architectural deficit in most rich client applications currently

undertaken: In n-tier applications

the presentation layer is represented as a single layer. This fits badly with business layers that are

increasingly organized along Service Oriented Architecture lines. In n-tier systems in general, and SOA

systems in particular, the client’s role is to combine a number of services into a single application. Low-

level patterns, mostly based on MVC, can support the design of individual components, each one

communicating with a particular back end service. No commonly understood pattern is currently evident

that would allow these components to be combined into a loosely coupled application. This paper outlines a

rich client architecture that addresses this gap by adding a client application layer.

1 ADDRESSING DIRECT

COUPLING IN

COMPONENT-BASED

ARCHITECTURES

A common problem in the design of a component-

based rich client application of any complexity is the

absence of any well-defined way of connecting its

constituent components together in a predictable and

maintainable way without coupling those

components directly to each other. The importance

of decoupling lies in the reusability it confers on the

component. Development projects often result in

either (i) relatively decoupled components that are

connected to each other by a large, ad hoc and

difficult to maintain amount of glue code (also know

as the Big Ball of Mud

), or (ii) components that

cooperate in a more systematic way, but as a

consequence come to know a little too much about

each other, and become coupled to the extent that

they are no longer reusable beyond the context of the

application.

Assuming that the Big Ball of Mud is always to

be av

oided, then the main obstacle to a component-

based, rich client architecture is tight coupling

between the components. Objects cannot operate as

components

unless they can function both

independently from and in collaboration with other

components. Current rich client architectures do not

satisfactorily address this seemingly paradoxical

requirement, and permit only a limited decoupling

between components that still results in some direct

coupling. So there remains an architectural deficit in

which developers of rich clients have to work. To

address this problem, this paper outlines an

approach, called Application Model View Controller

(AMVC), that breaks the presentation layer into an

application layer and a component layer.

In enterprise systems, the client code is typically

represe

nted as a single layer – the presentation layer.

(For Internet-based applications a distinction is

made between server-side elements and client-side

elements, but this is a deployment distinction, rather

than an architectural one.) For both desktop and

Internet based rich-clients, this single layer has not

been enough. Single-layer architectures tend to

result in bundles of components, directly coupled to

each other as required by the needs of the

application. Breaking applications down into

components does not in itself reduce the direct

coupling between the resulting components. An

explicit application layer, specifically designed to

prevent direct coupling, is an essential ingredient in

any successful rich-client architecture.

In order to ensure the absence of direct coupling

whi

ch is required to sustain a true component-based

architecture, we need to address the features of

351

Lawlor B. and Stynes J. (2007).

THE MISSING LAYER - Deﬁciencies in Current Rich Client Architectures, and their Remedies.

In Proceedings of the Second International Conference on Software and Data Technologies - SE, pages 351-356

DOI: 10.5220/0001325803510356

 SciTePress

component-based presentation layer architecture that

can lead to direct coupling: events shared between

components, event data shared between components,

and containment relationships between components.

The following sections describe the AMVC

architecture, which removes each of these causes of

coupling between components.

1.1 The AMVC Component

Abstraction

The first step in defining a component-based

architecture is to define the abstraction of the

component itself. The AMVC architecture’s notion

of a component is heavily influenced by the hMVC

iii

(hierarchical Model View Controller) design (and

therefore on PAC of which it is a specialized case

even to the extent of using the same terminology.

But the AMVC component abstraction diverges

from hMVC in a number of ways. AMVC can be

said to be a modification and an extension of hMVC

since the AMVC architecture also incorporates an

extra layer of indirection that hMVC does not

possess. A summary of the precise nature of the

differences between the two architectures is

provided towards the end of this paper, after a fuller

explanation of AMVC has been offered.

An AMVC component is a Model-View-

Controller grouping (Triad) where the controller has

a function beyond the coordination of events

between the model and the view: It also directs

events out of the triad to other triads. Components

are organized into a hierarchy as in hMVC and

controllers act as the point of contact between the

triads. Each component has its own individual

functionality, but in the context of the AMVC

architecture, the component is abstracted as a Triad

that, from an external perspective, is simply capable

of receiving events, emitting events, and entering

into a parent-child relationship with another triad.

Another public aspect of a Triad is the view itself -

this will be described later. We now consider the

way these components are organized into

applications.

1.2 Two Layers – Two Activities

We can identify two separate layers in the

construction of a rich client using AMVC. The

component layer is composed of independent and

functionally specialized Triads. The model elements

of these Triads typically communicate with

particular services in an SOA

, if they have any

server-side functionality at all. The application layer

consists of application-specific configuration

information that links instances from the component

layer - without introducing coupling between these

components. It is this absence of coupling that

defines the AMVC architecture and represents its

main value proposition.

The work of developing a rich client application

can be broken up into two activities that correspond

to the two layers above: component development

and application assembly. In the absence of direct

coupling between the components, applications can

be assembled by combining and re-combining

components in different ways, re-using the same

component types many times within one application,

and achieving different results with each

combination.

To appreciate how this architecture provides for

decoupling between components, it is important to

understand the factors that lead to coupling in the

first place. But in order to do that, we must first look

at the different kinds of events defined by AMVC.

1.2.1 AMVC Event Types

There are two kinds of events defined by AMVC:

Component Events and Application Events,

corresponding to the Application and Component

layers. Within AMVC components, the Model and

View elements typically communicate with each

other by means of Component Events

(implementations allow for views directly calling

model for efficiency and simplicity– though not

vice-versa). Some of these events are exposed

outside the components as emitted events, or

received events, or both.

Note that Component Events should be

distinguished from what we will here call widget

events. The latter are well understood concepts of

GUI programming and communicate low-level

interface-specific events (e.g. 'button A has been

pushed') to components. The component layer

intercepts, interprets and combines these widget

events into Component Events, which represent

reusable business functionality for a specific service

(e.g. 'List the Orders'). Application Events are

described below.

1.2.2 Coupling Due to Event Sharing

Event-passing is a common way for components to

communicate. Although this can often be done in

such a way that avoids the programmatic coupling of

the communicating components, a form of coupling

remains: the name of the event itself. If an event is

passed from one component to another, the

communicating components must have a shared

understanding of what that event means. This

ICSOFT 2007 - International Conference on Software and Data Technologies

352

constitutes a semantic coupling between the

components.

In AMVC, to avoid the coupling that comes with

sharing events between components, Component

Events are never passed from one component to

another. Instead, components communicate with

each other through Application Events. These

Application Events are specific to the way in which

the Components have been recombined and

represent user experience or even steps of a use case

(e.g. List All Orders for the Selected Product).

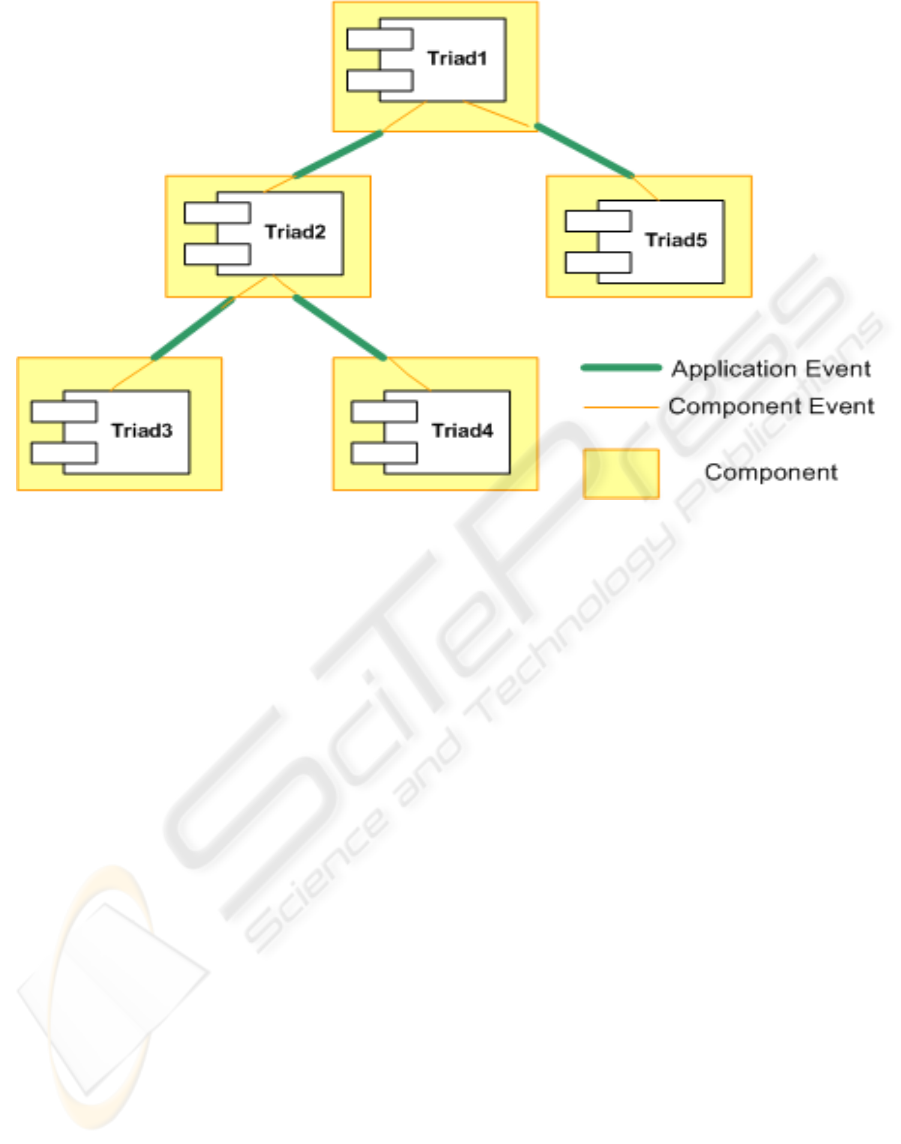

Figure 1 shows how components communicate

with each other through Application Events.

Component Events are ‘translated’ into Application

Events at the interface of the emitting components,

and these Application Events are further translated

into another Component Event at the interface of the

receiving component.

This event indirection removes the first source of

inter-component coupling, namely shared events

between components. It is not just the fact that the

translation is done but where it is done that counts: It

is done in the Application Layer, and therefore

during application assembly. Thus, the components

themselves (that is to say their source code and their

runtime states) are not affected by this translation.

They remain completely independent of what

happens to their events once those events leave the

components’ scope. The information about the

components’ collaboration is created as part of the

entirely separate application layer.

1.2.3 Coupling Due to Event Data

Events not only have names, they often also carry

data, or payload. Complex types being passed from

one component to another, albeit through translated

events as described in the previous section, leads to

coupling. The event payload data types must be

understood by both the sending and the receiving

components, and thus constitute coupling through

shared code. The two components cannot be said to

be independent and reusable.

The AMVC architecture facilitates a translation

between event payloads. To avoid coupling one

component to another through a shared data type,

each component event specifies its own payload

type, and the application layer provides for the

declarative mapping of one into the other as part of

application assembly.

1.2.4 Coupling due to the Containment

Relationship

The third and final coupling force at work in a rich

client application is the containment relationships

that exist: Dialogs have parent Frames, Buttons sit in

Panels, and so on. Normally this relationship is

expressed through code.

Through the triad abstraction in AMVC, this

containment relationship is hidden from the

Component code and expressed only at application

assembly time. Both parent and child triads are

aware only that they may be connected to other

implementations of the triad abstraction, but they do

not know which ones.

1.3 Application Assembly

1.3.1 Design Time

We saw in the previous sections how a component

can be entirely decoupled from any other while still

allowing them to collaborate. This section shows

how that collaboration can be established in a rich

client application purely through declarative

configuration. The consequent potential for increase

in productivity and component reuse demonstrates

the value in achieving this total decoupling.

Application assembly consists of (i) arranging

component instances into a hierarchical

organization, (ii) connecting output events of some

components to input events of others, through their

translation into application events, (iii) translating

event data (payload), where necessary, from that

produced by the emitting component to that

expected by the receiving component.

The hierarchy serves to establish the parent-child

relationships between the views of any two given

components. Note that a triad’s view can be

decomposed into a number of named areas. For

example the view can contain a number of panels

each capable of containing a child view. In this case,

the area names are exposed as part of the public

interface of the triad. When a child relationship is

established with another triad, the relationship

includes the name of the view and this creates a

widget containment relationship between the

parent’s named View area and the child’s view. The

details of the way in which the views combine

depends on the view types, and can be deduced

automatically by the AMVC implementation, or can

be prompted by the AMVC declarative description

THE MISSING LAYER - Deficiencies in Current Rich Client Architectures, and their Remedies

353

Figure 1: Translation of Component Events into Application Events.

of the inter-component relationship (e.g. the

relationship can specify a dialog child).

The hierarchy also establishes lines of

communication between components. Application

Events can move between components across these

parent-child connections. There is no impediment to

routing Application Event between two components

directly (as opposed to using the hierarchy), and this

might make sense in a lot of cases, but the hierarchy

provides a good first option.

Application assembly can be done mechanically

and indeed visually if supported with the right tools.

1.3.2 Runtime

Initialisation of an AMVC application can be

organized in any way that the application developer

sees fit. That said, it makes sense that the process be

started by the propagation of a startup Application

Event to all Triads, through the hierarchy. The

implementation described in the next section

assumes that all triads are instantiated before that

point, but another implementation may allow for a

lazy-loading approach.

This event can be wired to Triad events as part

of the normal application assembly. Each Triad type

can offer its own incoming initialisation event and

prepare itself for operation in whatever way makes

sense for that Triad.

It is worth mentioning that no noticeable

performance penalty should be paid by this

architectural approach, and indeed none has been

noticed in the implementation.

2 AN IMPLEMENTATION OF

AMVC

This section outlines some of the salient points of

the AMVC implementation.

The Proxy design pattern

was employed in the

design of the Controller’s event handling

mechanism. At configuration time, a controller has

no guarantee that it will have been connected to a

View or Model before having its events configured

(in fact these View and Model elements can be

considered optional, so the controller may never be

connected to either). The same goes for the parent

and child Triads that a Controller may eventually be

connected to. To deal with this problem, Proxy

objects take the place of the destination Model,

View or external parent or child Triad Controller at

configuration time. For example, a Model Proxy

‘remembers’ that its event must be directed at the

Model. At runtime, when events actually arrive in

the Controller, all connections to the Model, View

and external Triad Controllers have been made, and

the Proxy objects are used to complete the routing.

Unnecessary programming configuration is

avoided by using coding conventions

vii

. In both

ICSOFT 2007 - International Conference on Software and Data Technologies

354

Model and View, the methods use naming

conventions to ensure that component events are

forwarded to those methods. Java Reflection is used

extensively to handle events. Models or Views that

wish to handle a particular event need only

implement a method whose name indicates the

Component Event name. A layer of GUI

components that use the Triad code but provide

general rich client functionality is included as part of

this AMVC implementation.

Dependency Injection

viii

is another important

design pattern used in this implementation of

AMVC. The power and importance of this pattern in

providing for decoupling has been documented in

many other places, and has led to the development

of a number of frameworks specifically to support

its use. We have used the Spring Framework

in this

particular implementation for a number of reasons,

principal amongst which is its new custom

namespace feature. A key feature of AMVC is the

declarative nature of the application assembly.

Whereas components are composed of both code

and declarative descriptors, the application layer is

entirely declarative. The customisable nature of the

Spring Framework’s XML configuration made it the

ideal way to combine components without coupling

them, while providing a terse but readable

declarative configuration format.

An example of this custom Spring-based format

is provided in Listings 1 and 2 below to give an idea

of the ease with which applications can be

assembled within an AMVC architecture.

<amvc:appEvent id="appLogIn"

name="LogIn"/>

…

<amvc:triad id="appLoginTriad"

type="loginTriad">

<amvc:terminate

appEventRef="appLogIn"

compEventRef="compLogin"/>

<amvc:emitToParent

appEventRef="appLogInSuccess"

compEventRef="loggedInLogin"/>

<amvc:emitToParent

appEventRef="appExit"

compEventRef="cancelledLogin"/>

</amvc:triad>

Listing 1: Declaration of event and login triad.

The above is an example of the declaration of an

application event of id appLogIn followed by the

instanciation of a component of type loginTriad.

This triad instance (a component which provides

basic username and password login functionality) is

declared to capture the appLogIn application event,

translate it into its own internal compLogin event,

and direct it inwards to be processed as a compLogin

event.

Similarly, two of the internal loginTriad events

are emitted as application events – in both cases

being directed upwards to the parent triad. The

declaration of that parent triad, which happens to be

the root or main triad of the application, looks like

this:

<amvc:mainTriad type="mainTriad">

<amvc:terminate

appEventRef="appLogInSuccess"

compEventRef="logInSuccessful">

<amvc:payloadMapper

targetClass="LoginResult">

<amvc:map

sourceField="user"

targetField="username"/>

<amvc:map

sourceField="pw"

targetField="password"/>

</amvc:payloadMapper>

</amvc:terminate>

…

<amvc:dialogChild

ref="appLoginTriad"/>

</amvc:mainTriad>

Listing 2: Declaration of main triad.

The above section of the application assembly

declaration demonstrates a number of important

points.

Firstly, from the terminate element, we can see

that the appLoginSuccess application event (emitted

from the appLoginTriad from the previous listing) is

consumed by the main triad, having first been

translated into the main triad’s own loginSuccessful

event. In this case, the termination and translation of

the event requires a mapping of the event payload.

The event emitted by the login triad includes a

payload instance made up of two fields called user

and pw. The main application triad which terminates

the event expects a payload with two fields called

username and password. AMVC allows for the

declarative mapping of the source payload object

into the target payload object, as outlined in section

1.2.3 above.

A second point is the dialogChild element of the

main triad’s declaration. It is in this way that the

parent child relationship between the main triad and

the login triad is established. The View elements of

the two triads are combined without using code.

Moreover, though the child triad’s View element has

been added here as a dialog, AMVC could just as

THE MISSING LAYER - Deficiencies in Current Rich Client Architectures, and their Remedies

355

easily have added as a panel bounded by the main

triad’s View element.This detail is important in

promoting real component reuse.

Note that these examples have demonstrated

how a declarative Application Layer can weave

together reusable elements of a Component Layer in

such a way as to completely avoid the coupling that

comes from Event Sharing, Event Data and the

Containment Relationship. This approach provides a

template for a divide-and-conquer approach to rich

client application development.

3 COMPARISON WITH

HMVC/PAC

While the Triad of AMVC is based on hMVC, the

way in which AMVC Triads communicate with each

other is new. hMVC/PAC allows event names and

event data generated in one Triad to travel to any

other Triad in the application. AMVC uses the extra

Application Layer to capture and convert both event

names and event data, as part of routing those events

from one Triad to another. Applications following

the AMVC architecture consist therefore of a set of

truly decoupled Triads in one layer, declaratively

bound through event routing and mapping by the

Application Layer.

Put another way, the architectural description of

hMVC stops at the Triad. Because the hMVC Triad

is responsible for its own communication with other

Triads, and because its event names and data must

thus be shared with other Triads, the hMVC Triad

loses it re-usability and component nature. AMVC

architecture describes not only the Triads, but the

Application Layer than connects them without

coupling them.

4 CONCLUSION

An AMVC component encapsulates the entire View

and Model of a business process, and its interface is

specified in term of business events. The approach

taken by AMVC eliminates even indirect coupling

between components and its extra layer allows

components to be easily recombined and reused.

AMVC can be applied to any component-based,

event-driven presentation layer, and so can be used

for desktop clients and Rich Internet Applications

alike.

REFERENCES

Cai, Kapila and Pal (7-21-2000) HMVC: The layered

pattern for developing strong client tiers. Javaworld

(http://www.javaworld.com/javaworld/jw-07-2000/jw-

0721-hmvc_p.html

)

Coutaz, Joëlle (1987). "PAC: an Implementation Model

for Dialog Design

". H-J. Bullinger, B. Shackel (ed.)

Proceedings of the Interact'87 conference, September

1-4, 1987, Stuttgart, Germany: pp. 431-436, North-

Holland.

Fowler (2001) Reducing coupling. In Software IEEE,

Volume: 18, Issue: 4.

http://www.laputan.org/mud/

One idea of what defines a software component can be

got by reading Szyperski and Messerschmitt’s list of

their characteristics: Multiple use; Non-context-

specific; Composable with other components;

Encapsulated; and a unit of independent deployment

and versioning. To the last point, one could add the

word ‘purchase’ – the component can also be seen as

an economic unit of software.

iii

Jason Cai, Ranjit Kapila and Gaurav

Pal, JavaWorld.com, 07/21/00. HMVC: The layered

pattern for developing strong client tiers.

http://en.wikipedia.org/wiki/Presentation_Abstraction_

Control

Service Oriented Architecture:

http://en.wikipedia.org/wiki/Service-

oriented_architecture

http://en.wikipedia.org/wiki/Proxy_pattern

vii

http://blog.decaresystems.ie/index.php/2006/01/13/con

vention-over-configuration/

viii

http://www.martinfowler.com/articles/injection.html

http://www.springframework.org

ICSOFT 2007 - International Conference on Software and Data Technologies

356
