ASSL SPECIFICATION OF RELIABILITY SELF-ASSESSMENT

IN THE AS-TRM

Emil Vassev, Olga Ormandjieva and Joey Paquet

Department of Computer Science and Software Engineering

Concordia University, Montreal, Quebec, H3G 1M8, Canada

Keywords: Specification language, autonomic system, reactive system, reliability self-assessment.

Abstract: This article is an introduction to

our research towards a formal framework for tackling reliability in reactive

autonomic systems with self-monitoring functionality. The Autonomic System Specification Language

(ASSL) is a framework for formally specifying and generating autonomic systems. With ASSL, we can

specify high-level behavior policies, which shows that it is very appropriate language for specifying

reliability models as part of overall system behavior. In this paper, we show how ASSL can be used to

specify reliability self-assessment i n t h e Aut o nomi c Sy st e m T i me d Rea c t i v e Mode l (AS-TRM). T h e

reliability self-assessment is performed at two levels: autonomic element (local) and system (global). It

depends on the configuration of the system and is concerned with the uncertainty analysis of the AS-TRM

as it evolves. An appropriate architecture for supporting reliability self-assessment, along with a

communication mechanism to implement the reactive and autonomic behavior, are specified with ASSL.

1 INTRODUCTION

In order to overcome the increasing complexity of

IT infrastructure and the associated workload

required to maintain such a complex infrastructure,

we need self-adaptive and autonomic computing

systems. Autonomic systems (AS) are not only

inherently complex, but also evolve during

execution. Thus, it is important to monitor the

behavior of such systems and to ensure a high level

of system reliability at runtime.

Research Problem. The co

mputing industry thrives

on the assumption in the marketplace that software

is reliable and correct, but countless examples from

experience over the decades cast doubt on the

validity of this assumption. There is no automated,

general purpose method for building reliable

systems that fully meets system reliability

requirements. This represents a major gap that has

yet to be fully addressed by the software engineering

community. The runtime reliability verification

method proposed in this paper attempts to bridge

this gap through self-monitoring of system reliability

and its assessment measured against the system

policies of interest at runtime. Reliability self-

assessment has to be regulated by policies stating the

required minimum level of reliability for the system

and the constraints on system reliability level

fluctuations at runtime.

Approach. O

ur paper reports on the ongoing work

on built-in reliability self-assessment, which would

allow for the capture of reliability policies, the

modeling of reliability self-assessment and the

implementation of a runtime reliability verification

method in an evolving Autonomic System Timed

Reactive Model (AS-TRM). The vision of the AS-

TRM is to be able to create autonomic distributed

real-time reactive systems on a framework that

leverages their modeling, development, integration

and maintenance. The reliability self-monitoring of

an evolving AS-TRM is rooted in the theory of

Markov chains. The reliability level is an indicator

of the amount of certainty (excess entropy) in the

environment-system’s behavior (Ormandjieva et al.,

2006; Ormandjieva, 2002). This paper extends our

previous work on reliability to complex composite

reliability structures.

One of the main contributions of this paper is the

form

alization of the AS-TRM approach with the

Autonomic System Specification Language (ASSL)

(Vassev, Paquet, 2007) – which is a framework for

formally specifying and generating ASs, such

systems being specified as formal executable models

with an interaction protocol and autonomic

198

Vassev E., Ormandjieva O. and Paquet J. (2007).

ASSL SPECIFICATION OF RELIABILITY SELF-ASSESSMENT IN THE AS-TRM.

In Proceedings of the Second International Conference on Software and Data Technologies - SE, pages 198-206

DOI: 10.5220/0001328601980206

 SciTePress

elements. In our understanding, ASSL facilitates the

achievement of the goal of specifying the reliability

self-assessment in such a framework. Moreover,

ASSL focuses on the service-level objectives and the

AS’s self-management policies, thus making ASSL

suitable for specifying the reliability self-

assessment. The advantages of using ASSL for

modeling AS-TRM systems are that it enables

software assurance and it provides proof of the

correctness of the behavior of such systems.

Moreover, formally derived models can be used as

the basis for code generation.

The rest of this paper is organized as follows:

Section 2 surveys related work. The AS-TRM and

the reliability self-assessment mechanism at both

autonomic component and system levels are

described in Section 3. Section 4 introduces ASSL.

Section 5 presents the formal specifications of

reliability self-assessment in the AS-TRM with

ASSL. Our conclusions and future work directions

are outlined in Section 6.

2 RELATED WORK

IBM Research has developed a framework called

Policy Management for Autonomic Computing

(PMAC) (IBM Tivoli, 2005), which provides a

standard model for the definition of policies and an

environment for the development of software objects

that hold and evaluate policies. PMAC is used for

the development and management of intelligent

autonomic software agents. With PMAC, these

agents have the ability to dynamically change their

behavior, an ability provided through a formal

specification of policies encompassing the scope

under which these policies are applicable. Moreover,

policy specification includes the conditions under

which a policy is in conformity (or has been

violated), a set of resulting actions, goals or

decisions that need to be taken and the ability to

determine the relative value (priority) of multiple

applicable actions, goals or decisions.

In (Goseva-Popstojanova, Kamavaram, 2004), a

methodology was proposed for the uncertainty

analysis of architecture-based software reliability

models suitable for large, complex, component-

based applications which is applicable throughout

the software life cycle. Within this methodology,

two methods for uncertainty analysis have been

developed: the method of moments and Monte Carlo

simulation. The method of moments is used to

quantify the uncertainty in software reliability due to

uncertainty in component reliabilities. The

expressions derived in (Goseva-Popstojanova,

Kamavaram, 2004) are valid for random variables

and do not allow the uncertainty in software

reliability to be studied due to uncertainty in the

operational profile.

In (Dai, 2005), a new model-driven scheme for

autonomic management is presented, based on a

comprehensive survey of reliability models. This

scheme can better allocate resources by using the

reliability models to predict and direct the

distribution of monitoring efforts. If certain services

or components are predicted to have a high degree of

reliability at a particular time, then there is no need

for intensive monitoring during that period.

However, those with low reliability require more

intensive monitoring.

The reliability evaluation method discussed in this

paper differs from previous reliability evaluation

methods in the following ways:

• The most common stochastic queuing model for

the arrival time of the external events, namely a

Poisson distribution, is assumed.

• It is based on the architecture model of an AS

and the extended state diagrams.

The work presented in this paper builds on the

research results on the reliability self-assessment of

autonomic components in the AS-TRM (Vassev et

al., 2006; Ormandjieva et al., 2006).

3 AS-TRM AND RELIABILITY

ASSESSMENT

The AS-TRM (Vassev et al., 2006; Ormandjieva et

al., 2006) differs considerably from related work in

the area of autonomic computing in that it targets the

modeling of both reactiveness and self-managing in

distributed systems. This section provides a

comprehensive conceptual view of the AS-TRM

architecture (see Figure 1), which is intended to

capture and convey the significant decisions that will

serve as a foundation for further design and

implementation. The architectural concepts for ASs

are mainly based on the IBM’s blueprints and the

on-going research into autonomic computing being

conducted at IBM laboratories (IBM, 2006).

3.1 AS-TRM Architecture

The AS-TRM is a three-tier layered model, in which

each upper tier communicates only with the tier

immediately below it (Vassev et al., 2006). The

three-tier structure describes the AS configuration,

autonomic peer groups and grouped reactive

components.

ASSL SPECIFICATION OF RELIABILITY SELF-ASSESSMENT IN THE AS-TRM

199

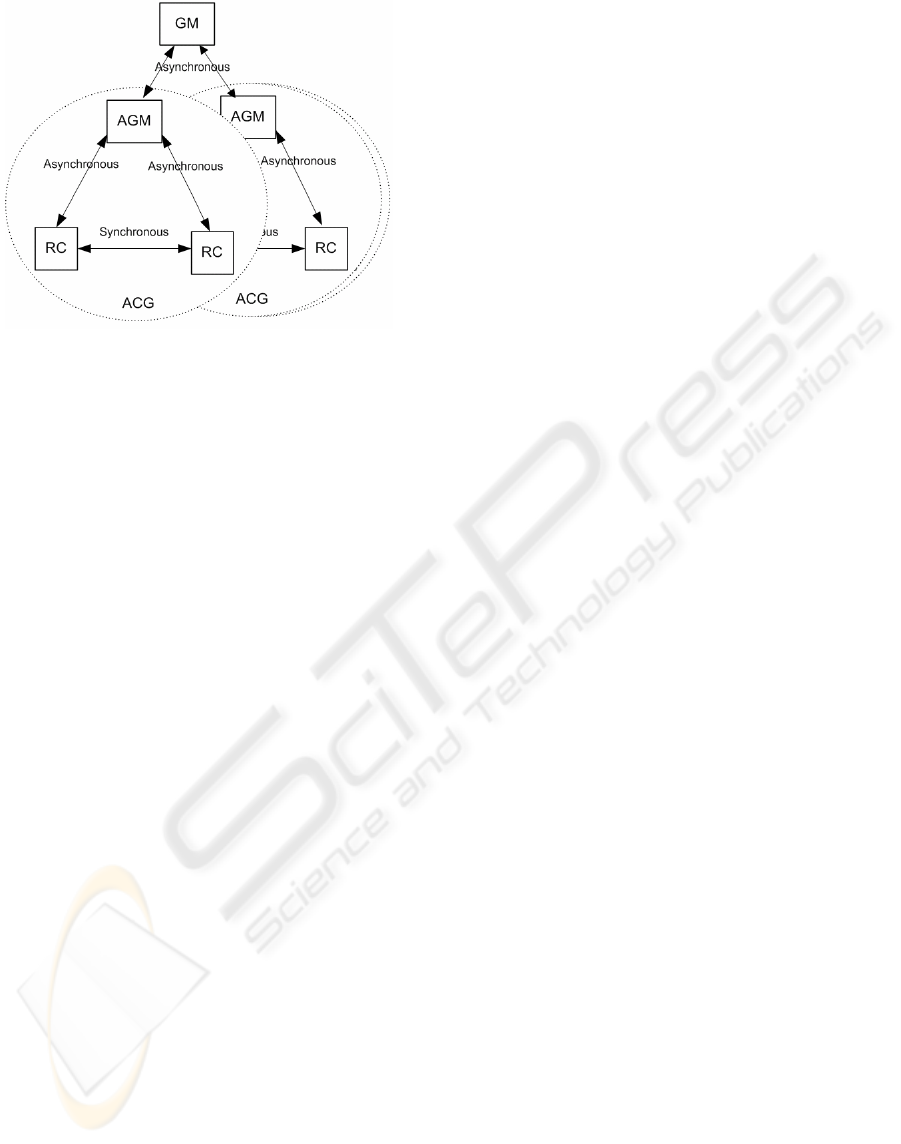

Figure 1: AS-TRM Architecture.

Reactive Component (RC). This tier encapsulates

reactive objects in an AS-TRM reactive component.

A reactive object is modeled as a labeled transition

system. The timing requirements are modeled as

constraints on the transitions, and are specified with

the aid of local clocks initialized as actions

associated with transitions. The synchronous

interaction between the reactive objects allows for

realization of the reactive task. Synchronous

communication axioms govern the interaction

between the reactive objects. Communication

between an RC and its upper tier – the ACG – is

realized through an interface, and is asynchronous.

Autonomic Group of RCs (ACG). The AS-TRM

Component Group is a set of synchronously

communicating RCs cooperating in fulfillment of a

group task. Each ACG can independently

accomplish a complete real-time reactive task. The

self-monitoring behavior at the ACG tier level and

the asynchronous interaction in an ACG are realized

by the ACG’s Autonomic Group Manager (AGM).

Autonomic System (AS). The AS consists of a set

of asynchronously communicating ACGs. The self-

monitoring behavior and the asynchronous

interaction between the AS and the ACGs are

realized by the Global Manager (GM). The

responsibilities of the GM include the continuous

monitoring of the reliability level of the AS required

to the reliability policies of the AS.

Anatomy of the AGM and the GM. The GM is

responsible for the self-configuring, self-healing and

self-optimizing, and self-protecting of the autonomic

group. The responsibilities of the AGM include the

continuous monitoring of the reliability level of the

ACG required by the evolving nature of the group

for self-configuration purposes. Every ACG

communicates with the GM via its AGM, its status

and its measurements. According to the input

received from the ACGs, the GM makes decisions

based on the policies, facts and rules and

communicates instructions to the AGMs.

The reactive behavior is modeled at the RC level.

We model the environmental objects communicating

with the system as reactive objects, and incorporate

them into the RCs fulfilling the corresponding

reactive task. Autonomic functionalities like

reliability self-assessment can be implemented at

group level, using locally maintained policies and

specific characteristics such as timing constraints

and synchronous communication axioms, and at

system level using the knowledge on the global

policies, system characteristics, etc.

3.2 ACG Reliability

In our approach, the reliability level of an ACG is an

indicator of the amount of certainty (excess entropy)

in the environment-system’s behavior (Ormandjieva

et al., 2006; Ormandjieva, 2002). The reliability self-

monitoring of the evolving AS-TRM is based on the

theory of Markov chains.

Traditionally, the use of Markov chains has

required monitoring the states of all RCs. However,

this approach does not scale (there is too much to

monitor) and usually does not work (for most

systems, the probabilities cannot be calculated). In

our approach, reliability is assessed from the

specifications of the reactive objects modeled as

labeled transition systems, reactive components

consisting of synchronously interacting reactive

objects and the AS-TRM architecture, and so those

states do not require monitoring. The specification

information is available in the form of text files and

serves as input to the reliability assessment, which

has to be performed before the evolving system’s

change is actually implemented. Moreover, the

reliability assessment model allows for calculation

of the transition probabilities in the Markov chain

from the extended state machines of the individual

reactive objects and of groups of synchronously

communicating reactive objects. What this means is

that there is no need for statistical data on the

system’s usage. The details of reliability self-

monitoring in autonomic components are given in

(Ormandjieva et al., 2006; Ormandjieva, 2002). One

of the contributions of this paper to reliability

assessment is the definition of reliability for AS,

which is given in Section 3.3.

ICSOFT 2007 - International Conference on Software and Data Technologies

200

3.3 AS Reliability

The reliability levels of the ACGs, reported to the

GM, are used to determine the reliability of the

whole AS based on the configuration of its n ACGs.

There are two interesting limit cases of such a

configuration, namely, parallel structures and serial

structures (Zhang, Nakamura, 2005). We have a

parallel configuration when there is at least one

component necessary to ensure that the entire AS

functions. Assuming the independence of failures of

the corresponding components, reliability is

calculated:

R = 1 -

k=1,n

(1 – R

)

where R

is the reliability of ACG

. In a serial

reliability structure, the functioning of the system is

ensured while all the components are functioning

properly. In this case, reliability is given by the

following formula:

R =

k=1,n

In the complex composite reliability structure, the

above two simple reliability structures can be

adopted to form a composite reliability structure.

The basic composite reliability structures include the

parallel-serial composite reliability structure and the

serial-parallel composite reliability structure (Dai,

2005). The reliability of the system with the parallel-

serial composite reliability structure is defined as

R =

m=1,C

( 1 -

k=1,Cm

(1 – R

))

where C is the number of serial composites and C

is the number of parallel components in the serial

composite m. The reliability of the system with the

serial-parallel composite reliability structure is

R = 1 -

m=1,C

( 1 -

k=1,Cm

)

where C is the number of parallel composites and C

is the number of serial components in the parallel

composite m.

3.4 Reliability Self-Assessment Method

The reliability assessment at the AS level would

allow a request for reconfiguration of the system to

be deployed by the GM if and only if the policies for

reliability level fluctuations hold. The reliability

policy assumed in this paper is the following: “The

reconfiguration shall not lead to a reliability level

below the required minimum.” The reliability self-

assessment tasks during runtime are modeled as a

control loop (IBM, 2006) comprising the following

steps: (i) Monitor: continuously track requests for

evolving changes within the AS-TRM, either from

the environment or from within the system, such as

configuration changes, time constraint changes and

synchronization axiom changes; (ii) Analyze: based

on the requested change received in step (i), predict

the new system reliability from the new reliability of

the ACG and of the new system configuration (see

3.2 and 3.3), and assess the request for change

against the AS reliability policies; (iii) Execute:

based on the results of the analysis performed in step

(ii), accept or deny the request for change.

Advantages. The advantages of the reliability self-

assessment in the AS-TRM include:

• Assessment of reliability from the specifications

of the reactive objects, the RCs and the

architecture of groups, with the result that

complex mechanisms for monitoring the states

of the reactive components are not required.

• The probabilities are calculated from the

extended state machines that specify the

behavior of the reactive objects/components,

and thus do not rely on the statistical data

collected on the system behavior at run time.

• The reliability self-assessment is performed

before a request for change is implemented, thus

ensuring compliance with the policies during

the self-management tasks.

Assumptions. In our system reliability analysis, all

the ACGs are considered to function independently,

and therefore it is assumed that there is

independence of failures of the corresponding

ACGs. This view is also supported by the ASSL

approach to specifying an AS.

4 ASSL

The Autonomic System Specification Language

(ASSL) is a framework that implies a multi-tier

structure for specifying ASs. By its virtue, ASSL is

generic and expressive enough to describe a variety

of ASs (Vassev, Paquet, 2007). The ASSL

framework is defined through formalization tiers.

Over these tiers, ASSL provides a layered structure

for specifying ASs as formal executable models.

ASSL defines an AS with its interaction protocol

and autonomic elements (AE). The ASSL’s tiers and

their sub-tiers describe different aspects of the AS,

like policies, communication interfaces, execution

semantics, actions, etc. All of them ensure that the

system is well-defined and consistent, providing a

“bottom-up” style where the upper tiers are

expressed using the elements described in the lower

ones. The following elements represent the major

tiers and sub tiers in ASSL.

I. Autonomic System (AS)

• AS Service-Level Objectives

• AS Self-Management Policies

• Metrics

ASSL SPECIFICATION OF RELIABILITY SELF-ASSESSMENT IN THE AS-TRM

201

• Architecture

II. AS Interaction Protocol (ASIP)

• Public AS Messages & Negotiation

Protocol

• Public Communication Channels

• Public Communication Functions

III. Autonomic Element (AE)

• AE Service-Level Objectives

• AE Self-Management Policies

• Friends

• AE Interaction Protocol (AEIP)

o Private AE Messages & Negotiation

Protocol

o Private Communication Channels

o Private Communication Functions

o Managed Resource Interface

• Recovery Protocol

• Behavior

• Outcomes

• Actions

• Events

• Metrics

4.1 Autonomic System Tier

The Autonomic System tier specifies an autonomic

system in terms of service-level objectives, self-

management policies, metrics and architecture

(Vassev, Paquet, 2007).

AS Service-Level Objectives. Service-level

objectives (SLO) are a higher-level form of

behavioral specification that establishes objectives –

for example, performance. The ASSL concept

(Vassev, Paquet, 2007) assumes that the AS service-

level objectives (AS SLO) constitute a global task,

the realization of which is to be decomposed into AE

service-level objectives (AE SLO).

AS Self-Management Policies. At this tier, the

ASSL formal model specifies the four self-

management policies of an AS as stated in (IBM,

2006): self-configuring, self-healing, self-optimizing

and self-protecting. In addition, ASSL leaves

available the option of specifying other AS-level

policies that cannot be classified as any of these four

policies.

AS Metrics. ASSL generally classifies metrics as

AS-level metrics and AE-level metrics, together

constituting a set of global metrics – parameters and

observables – that the AEs can control.

AS Architecture. ASSL addresses ASs as multi-

agent systems, where the individual agents are AEs

controlling resources and delivering services

(Tesauro et al., 2004). Each AS agent is an AE. At

this tier, the ASSL framework helps specify the

topology of the AS. The architecture is specified as a

correlation between the AEs or groups of AEs.

4.2 AS Interaction Protocol

To achieve effective interoperation among AEs, we

need the individual AEs to adopt standard

communication interfaces. At this tier, the ASSL

framework specifies the AS-level interaction

protocol (ASIP). The ASSL framework specifies the

AEs as entities communicating over ASIP. ASIP is a

public communication interface, expressed as public

messages exchanged among AEs using public

communication channels and public communication

functions (Vassev, Paquet, 2007).

4.3 Autonomic Element Tier

The ASSL formal model considers AEs to be

analogous to software agents able to manage their

own behavior and their relationships with other

autonomic elements, through which they provide or

consume computational services. At this level of the

framework, ASSL describes the correlation between

low-level system measurements, events, and actions,

and higher-level AE service-level objectives.

5 RELIABILITY

SELF-ASSESSMENT WITH

ASSL

As a formal language, ASSL defines a language-

independent representation for ASs, where they are

described as a set of interacting AEs. ASSL provides

a rich set of structures and elements, including self-

management policy structures (Vassev, Paquet,

2007). In this research, we focus on the specification

of reliability self-assessment, which we consider to

be a self-management policy. The assumptions

underlying the modeling of the tasks required to

fulfill the reliability self-assessment are:

• A reconfiguration plan has been received by the

GM and propagated to all the AGMs.

• The AGMs have completed their

reconfiguration analysis.

The following scenario describes the reliability

self-assessment policy specified with ASSL:

1. Each AGM sends a “reconfiguration analysis

done” message to the GM (see the “Monitor”

step in Section 3.4).

ICSOFT 2007 - International Conference on Software and Data Technologies

202

2. The GM requests, from all the AGMs, their

reliability levels that correspond to the new

configuration.

3. Each AGM sends their reliability level.

4. The GM computes the new reliability level of

the AS and analyzes it.

(Note: For steps 2, 3 and 4 see the “Analyze”

step in Section 3.4).

5. The GM accepts or denies the request for

reconfiguration (see the “Execute” step in

Section 3.4)

5.1 AS Tier

At this tier, we specify a global quality metric, called

SystemReliability, which, as its name implies, is an

indicator of the system reliability. We specify a

range for system reliability between min and max

(see Listing 1). This metric is used by the GM

reliability self-assessment behavior (see 5.3).

Moreover, at this tier, we specify the AS-TRM

architecture model. In our example, we consider an

AS-TRM as consisting of a GM and three AGMs.

As specified (see Listing 1), the AS-TRM has a

centralized architecture. The GM and all the AGMs

are grouped together, in groupGM, where the GM is

the group council node (Vassev, Paquet, 2007), and

AGM1, AGM2 and AGM3 are the member nodes.

The group council is an AE coordinating the work of

the group members. Moreover, we specify a list of

dependencies, to show that the AGMs do not depend

on each other, but on the GM. Listing 1 represents a

partial specification of the AS-TRM’s AS tier.

AS ASTRM {

METRICS {

METRIC SystemReliability {

type = QUALITY;

description = “Measures the reliability of the system.”;

THRESHOLD_CLASS Reliability: double [min, max];

}

ASARCHITECTURE { // centralized system with 3 AGMs

AE_LIST: GM, AGM1, AGM2, AGM3;

DIRECT_DEPENDENCIES {

DEPENDENCY GM: AGM1, AGM2, AGM3;

DEPENDENCY AGM1: GM;

DEPENDENCY AGM2: GM;

DEPENDENCY AGM3: GM; };

TRANSITIVE_DEPENDENCIES {};

GROUPS {

GROUP groupGM {

MEMBERS: AGM1, AGM2, AGM3;

FINAL COUNCIL: GM;

};

} // ASARCHITECTURE

} // ASTRM

Listing 1: AS AS-TRM Partial Specification.

In the AS architecture specification, ASSL

considers only AEs. Therefore, we do not specify

the RCs (see Section 3.1), since they are not AEs,

but rather managed resources which are controlled

by the associated AGM (Vassev, Paquet, 2007).

5.2 ASIP Tier

At this tier, we specify the communication protocol

needed by the GM and AGMs to communicate and

transfer data for the needs of the reliability self-

assessment policy. First, we specify the messages

needed for the reliability self-assessment

specification (see Listing 2):

• analysisDone – used by the AGMs to report to

the GM that they have completed the

reconfiguration analysis.

• requestReliability – used by the GM to request

the reliability level from the AGMs. Moreover,

the same message is used by the AGMs to

return the computed reliability level to the GM.

The reconfiguration itself is not specified here. In

general, it should be triggered by the GM, i.e. the

GM should send a message to all the AGMs

requesting reconfiguration, together with a

reconfiguration plan.

ASIP {

MESSAGES {

FINAL MESSAGE analysisDone {

SENDER: {AGM1, AGM2, AGM3};

RECEIVER: GM;

TYPE: TEXT;

ID: none;

BODY: “analysisDone ”;}

FINAL MESSAGE requestReliability {

SENDER: {GM, AGM1, AGM2, AGM3};

RECEIVER: {GM, AGM1, AGM2, AGM3};

TYPE: TEXT;

ID: none;

BODY: “systemReliability = ?”;}

}

CHANNELS {

CHANNEL configChannel {

ACCEPT: { requestReliability, analysisDone };

ACCESS: SEQUENTIAL;

DIRECTION: BIDIRECTIONAL; }

}

FUNCTIONS {

FUNCTION sendRequestReliability {

requestReliability >> configChannel; }

FUNCTION receiveRequestReliability {

requestReliability << configChannel; }

FUNCTION sendAnalysisDone {

analysisDone >> configChannel; }

FUNCTION receiveAnalysisDone {

analysisDone << configChannel; }

}

} // ASIP

Listing 2: ASIP Partial Specification.

In addition, at this tier, we specify a single

communication channel (see configChannel in

Listing 2) and the functions operating the messages

over that channel, i.e. functions for receiving and

sending the messages requestReliability and

analysisDone from and to the configChannel. It is

important to mention that the ASIP specification is

not complete. In Listing 2, we present only those

messages, channels and functions needed by the

system reliability self-assessment specification.

ASSL SPECIFICATION OF RELIABILITY SELF-ASSESSMENT IN THE AS-TRM

203

5.3 AE Tier - GM Specification

At the AE tier, we specify the AS-TRM’s AEs, i.e.

we specify the GM, AGM1, AGM2 and AGM3. In

Listing 3, we present a part of the GM specification,

which describes the GM’s reliability self-assessment

policy specification. To specify the reliability self-

assessment policy, we use four major elements:

• SystemReliability – an AS metric expressing the

current system reliability level (see Section 5.1);

• RELIABILITY_SELF_ASSESSMENT – a self-

management policy describing in ASSL terms

the reliability self-assessment policy of the GM.

Here, we use a set of fluents and mappings to

specify the policy (Vassev, Paquet, 2007). With

the fluents, we express specific situations in

which the reliability self-assessment policy is

interested, and with the mappings we map those

situations to actions (see Listing 3). A fluent has

a timed duration, for example a state like

“reliability is changing”. When the system gets

into that specific condition, the fluent is

considered to be valid;

• actions – a set of actions that could be

undertaken by the GM in response to certain

conditions, and according to the reliability self-

assessment policy;

• events – a set of events that are triggered by, the

actions, according to the reliability self-

assessment policy.

AE GM { // GM (Global Manager) ASSL specification

AESELF_MANAGEMENT {

OTHER_POLICIES {

RELIABILITY_SELF_ASSESSMENT {

FLUENT inRequestReliability {

INITIATES: isAnalysisDone ;

TERMINATES: isRequestReliabilitySent; }

FLUENT inReceiveReliability {

INITIATES: isRequestReliabilitySent;

TERMINATES: isRequestReliabilityReceived; }

FLUENT inChangeReliability {

INITIATES: isRequestReliabilityReceived;

TERMINATES: isReliabilityChanged; }

MAPPING { // request reliability from all the AGMs

CONDITION: inRequestReliability;

ACTION: ACTIONS.requestReliability;}

MAPPING { // receive reliability from all the AGMs

CONDITION: inReceiveReliability;

ACTION: ACTIONS.receiveReliability;}

MAPPING { // receive reliability from all the AGMs

CONDITION: inChangeReliability;

ACTION: ACTIONS.computeReliability;}

MAPPING { // denies the new configuration

CONDITION: EVENTS.isConfigurationDenied;

ACTION: ACTIONS.configurationDenied;}

} // RELIABILITY_SELF_ASSESSMENT

}

} // AESELF_MANAGEMENT

ACTIONS {

ACTION requestReliability {

GUARDS: isAnalysisDone ;

ENSURES: isRequestReliabilitySent;

DOES {

foreach member in AS.GROUPS.groupGM.MEMBERS {

call: ASIP.FUNCTIONS.sendRequestReliability; }

}

ACTION receiveReliability {

GUARDS: isRequestReliabilitySent;

ENSURES: isRequestReliabilityReceived;

DOES {

foreach member in AS.GROUPS.groupGM.MEMBERS {

call: ASIP.FUNCTIONS.receiveRequestReliability; }

}

ACTION computeReliability {

GUARDS: isRequestReliabilityReceived;

ENSURES: isReliabilityChanged;

DOES {

double product = 1;

foreach member in AS.GROUPS.groupGM.MEMBERS {

product = product * (1 - member. METRICS.AGMReliability); }

set: AS.METRICS.SystemReliability = 1 – product;

}

TRIGGERS: isConfigurationDenied;

}

ACTION configurationDenied {

GUARDS: isConfigurationDenied;

DOES {

foreach member in AS.GROUPS.groupGM.MEMBERS {

call: ASIP.FUNCTIONS.receiveRequestReliability; }

call: IMPL DenyConfiguration;

}

} // ACTIONS

EVENTS { // these events are used in the fluents’ specification

EVENT isRequestReliabilityReceived:

foreach member in AS.GROUPS.groupGM.MEMBERS {

received ASIP.MESSAGES.requestReliability and

ASIP.MESSAGES.requestReliability.ID = msgID and

ASIP.MESSAGES.requestReliability.SENDER = member; }

EVENT isRequestReliabilitySent:

foreach member in AS.GROUPS.groupGM.MEMBERS {

sent ASIP.MESSAGES.requestReliability and

ASIP.MESSAGES.requestReliability.RECEIVER = member; }

EVENT isAnalysisDone :

foreach member in AS.GROUPS.groupGM.MEMBERS {

received ASIP.MESSAGES.analysisDone and

ASIP.MESSAGES.analysisDone.ID = msgID and

ASIP.MESSAGES.analysisDone .SENDER =member; }

EVENT isReliabilityChanged: changed AS.METRICS.SystemReliability;

EVENT isConfigurationDenied: ;

} // EVENTS

} // AE GM

Listing 3: AE GM Partial Specification.

The following elements describe the specification

listed in Listing 3.

inRequestReliability. This fluent takes place when

the GM requests the new reliability levels from the

AGMs. The fluent is initiated by the isAnalysisDone

event, which happens when the GM has received the

analisysDone message from all the AGMs.

Moreover, this fluent terminates when the

isRequestReliabilityEvent happens, i.e. when the

GM has sent the requestReliability message to all

the AGMs. Further, this fluent is mapped to the

requestReliability action, which uses the specified at

the ASIP tier (see 5.2) sendRequestReliability

function to send the message to all the AGMs.

inReceiveReliability. This fluent is triggered when

the requestReliability message has been sent to all

the AGMs (see the isRequestReliabilitySent

specification), and terminates when all the new

reliability levels have been received (see

isRequestReliabilityReceived in Listing 3). This

fluent is mapped to the receiveReliability action.

inChangeReliability. This fluent is triggered when

the requestReliability message has been received

from all the AGMs (see the

ICSOFT 2007 - International Conference on Software and Data Technologies

204

isRequestReliabilityReceived specification), and

terminates when the system reliability level has been

changed (see the isReliabilityChanged

specification). It is mapped to the computeReliability

action, which then applies the formula stated in the

algorithm described in Section 3.3 for computing

system reliability. Further, the new reliability level is

assigned to the AS SystemReliability metric. If the

new reliability level does not conform to the

metric’s range (specified by its threshold class – see

Listing 1), the action denies the new level and

triggers the isConfigurationDenied event.

isConfigurationDenied. This event is mapped to the

configurationDenied action. The latter uses an

IMPL

routine (see the ASSL clause

IMPL in (Vassev,

Paquet, 2007)) to deny the new configuration due to

a lower reliability level. The

IMPL clause states for

“further implementation”, which means that the

ASSL framework will generate an empty routine and

its content should be implemented manually.

5.4 AE Tier – AGM Specification

At this tier, we specify an AE AGM class

(AECLASS in ASSL). This class specifies three

AGM AEs in common: AGM1, AGM2 and AGM3,

which extend the AGM class (see the end of Listing

4). Since the AGMs should monitor their own

reliability level, we specify a quality metric, called

AGMReliability, with a reliability range between min

and max (see Listing 4). This metric is used by the

AGM reliability self-assessment behavior. As in the

GM specification, we specify the reliability self-

assessment policy as a separate structure, called

RELIABILITY_SELF_ASSESSMENT, which is

specified in the OTHER_POLICIES section,

subsection of AESELF_MANAGEMENT.

We specify two fluents with the appropriate

mappings. The first fluent – inChangeReliability -

merges the events isAnalysisDoneSent and

isReliabilityChanged. The former is raised when the

message announcing a successful reconfiguration is

sent to the GM, and the latter is raised when the

reliability level has been changed successfully.

Therefore, we compute the new reliability level right

after sending the reconfiguration analysis message.

Moreover, this fluent is mapped to the

computeReliability action, which uses an

IMPL

routine, called ComputeAGMReliability, to compute

the AGM’s reliability level. This routine is a further

implementation (see the ASSL clause

IMPL) of the

algorithm described in Section 3.2. If the new

reliability level does not conform to the

AGMReliability metric’s range (specified by its

threshold class – see Listing 4), the action denies the

new level and triggers the isConfigurationDenied

event. The specification of this event is similar to the

specification of its homolog in the GM specification.

The second fluent, called inRequestReliability,

merges the isRequestReliabilityReceived and

isRequestReliabilitySent events. The former is raised

when the message requesting reliability evaluation

has been received from the GM, and the latter is

raised when the reliability level has been sent to the

GM. This fluent is mapped to the sendReliability

action (see Listing 4), which does the following:

• sets the receiver of the requestReliability

message to the GM;

• sets the body of the message to the computed

reliability level;

• sends the message to the GM, by using the

specified at the ASIP tier

sendRequestReliability function (see 5.2).

AECLASS AGM { // AE class

AESELF_MANAGEMENT {

OTHER_POLICIES {

RELIABILITY_SELF_ASSESSMENT {

FLUENT inChangeReliability {

INITIATES isAnalysisDoneSent;

TERMINATES: isReliabilityChanged;}

FLUENT inRequestReliability {

INITIATES: isRequestReliabilityReceived;

TERMINATES: isRequestReliabilitySent;}

MAPPING {

CONDITION: inChangeReliability;

ACTION: ACTIONS.computeReliability;}

MAPPING {

CONDITION: inRequestReliability;

ACTION: ACTIONS.sendReliability;}

MAPPING { // denies the new configuration

CONDITION: EVENTS.isConfigurationDenied;

ACTION: ACTIONS.configurationDenied; }

} // RELIABILITY_SELF_ASSESSMENT

}

} // AESELF_MANAGEMENT

ACTIONS {

ACTION computeReliability {

GUARDS: isAnalysisDoneSent;

ENSURES: isReliabilityChanged;

DOES {

set: AGMReliability = IMPL ComputeAGMReliability;

}

TRIGGERS: isConfigurationDenied;

}

ACTION sendReliability {

GUARDS: isRequestReliabilityReceived;

ENSURES: isRequestReliabilitySent;

DOES {

set: ASIP.MESSAGES.requestReliability.RECEIVER = GM;

set: ASIP.MESSAGES.requestReliability.BODY = AGMReliability;

call: ASIP.FUNCTIONS.sendRequestReliability;

}

ACTION configurationDenied {

GUARDS: isConfigurationDenied;

DOES {

call: IMPL DenyAGMConfiguration;

}

} // ACTIONS

EVENTS {

EVENT isAnalysisDoneSent:

sent ASIP.MESSAGES.analysisDone ;

EVENT isRequestReliabilityReceived:

received ASIP.MESSAGES.requestReliability and

ASIP.MESSAGES.requestReliability.ID = msgID and

ASIP.MESSAGES.requestReliability.SENDER = GM;

EVENT isRequestReliabilitySent:

sent ASIP.MESSAGES.requestReliability;

EVENT isReliabilityChanged: changed METRICS.AGMReliability;

EVENT isConfigurationDenied;

} // EVENTS

METRICS {

METRIC AGMReliability {

ASSL SPECIFICATION OF RELIABILITY SELF-ASSESSMENT IN THE AS-TRM

205

type = QUALITY;

description = “Measures the reliability of the AGM.”;

THRESHOLD_CLASS Reliability: double [min, max];

}

} // AECLASS AGM

// specify three similar AGMs by extending the AGM class

AE AGM1 extends AGM {};

AE AGM2 extends AGM {};

AE AGM3 extends AGM {};

Listing 4: AGM Partial Specification.

At the end of AGM class specification, we specify

our three AGMs. They extend the AGM AE class.

6 CONCLUSION AND FUTURE

WORK

One of the most important aspects of ASs is self-

monitoring – a feature requiring a formal mechanism

for self-diagnosis of AS status. In this paper, a

system reliability self-assessment method is

described for the diagnosis of potential reliability

flaws, and consequently safety problems in evolving

reactive ASs. A new formal specification language,

ASSL, for specifying ASs has been applied to

specify the AS-TRM and the reliability self-

assessment. ASSL constitutes a hierarchical

approach to specifying ASs where the low-level tiers

express high-level detail structures of AEs, and the

high-level tiers express a general architectural view

of an AS. This exercise has demonstrated that ASSL

is sufficiently generic and adaptable to

accommodate most of an AS’s aspects, thus

allowing their specification not only at design time,

but also during runtime (Vassev, Paquet, 2007).

Future research is concerned with modeling the

effect of failure types and their assumed

probabilities on the reliability computation. We will

also explore rules for monitoring other non-

functional requirements on system behavior, such as

security, performance and trustability. There is a

need to develop and analyze algorithms and

negotiation protocols for conflicting non-functional

requirements, and to determine what bidding or

negotiation algorithms are the most effective. These

are some of the issues that are expected to be tackled

in the future.

REFERENCES

IBM Corporation, 2006. An architectural blueprint for

autonomic computing, White Paper, 4th Edition.

Vassev, E., Paquet, J., 2007. ASSL - Autonomic System

Specification Language, In Proceedings of the 31st

Annual IEEE/NASA Software Engineering Workshop

(SEW-31), Baltimore, MD, USA.

Vassev, E., Paquet, J., 2007. Towards an Autonomic

Element Architecture for ASSL, In Proceedings of the

29th International Conference on Software

Engineering /

Software Engineering for Adaptive and

Self-managing Systems (ICSE 2007 SEAMS),

Minneapolis, MN, USA.

Goseva-Popstojanova, K., Kamavaram, S., 2004. Software

Reliability Estimation under Uncertainty:

Generalization of the Method of Moments, In

Proceedings of the 8th IEEE International Symposium

on High Assurance Systems Engineering (HASE’04),

pp. 209-218, Tampa, FL, USA.

Dai, Y., 2005. Autonomic Computing and Reliability

Improvement, In Proceedings of the 8th IEEE

International Symposium on Object-Oriented Real-

Time Distributed Computing (ISORC'05), pp. 204-206,

Seattle, WA, USA.

Zhang, T., Nakamura, M., 2005. Reliability-based Optimal

Maintenance Scheduling by Considering Maintenance

Effect to Reduce Cost, Quality and Reliability

Engineering, International, 21:203–220.

Vassev, E., Kuang, H., Ormandjieva, O., Paquet, J., 2006.

Reactive, Distributed and Autonomic Computing

Aspects of AS-TRM, In Proceedings of the 1st

International Conference on Software and Data

Technologies - ICSOFT’06, pp. 196-202, Setubal,

Portugal.

Ormandjieva, O., Kuang, H., Vassev, E., 2006, Reliability

Self-Assessment in Reactive Autonomic Systems:

Autonomic System-Time Reactive Model Approach,

International Transactions on Systems Science and

Applications, Volume 2 (1), pp.99-104.

IBM Tivoli, 2005. Policy Management for Autonomic

Computing – Version 1.2, Tutorial, IBM Corp.

Tesauro, G., Chess, D., Walsh, W., Das, R., Whalley, I.,

Kephart, J., White, S., 2004. A multi-agent systems

approach to autonomic computing, In Proceedings of

Autonomous Agents and Multi-Agent Systems

(AAMAS’04), New-York, NY, USA.

Ormandjieva, O., 2002. Deriving New Measurements for

Real-Time Reactive Systems. Ph.D. Thesis. Computer

Science Department, Concordia University, Montreal,

Canada.

ICSOFT 2007 - International Conference on Software and Data Technologies

206
