INCREASE PERFORMANCE BY COMBINING MODELS OF

ANALYSIS ON REAL DATA

Dumitru Dan Burdescu and Marian Cristian Mihăescu

Software Engineering Department, University of Craiova, Bvd. Decebal, Nr. 107, 200440, Craiova, Dolj, Romania

Keywords: Models of analysis, machine learning, e-Learning.

Abstract: In this paper we investigate several state-of-the-art methods of combining models of analysis. Data is

obtained from an e-Learning platform and is represented by user’s activities like downloading course

materials, taking tests and exams, communicating with professors and secretaries and other. Combining

multiple models of analysis may have as result important information regarding the performance of the e-

Learning platform regarding student’s learning performance or capability of the platform to classify students

according to accumulated knowledge. This information may be valuable in adjusting platform’s structure,

like number or difficulty of questions, to increase performance from presented points of view.

1 INTRODUCTION

An e-Learning platform has been developed and is

currently deployed in a continuous learning

program. The platform may be used by four types of

users: sysadmin, secretary, professor and student.

Secretaries and professors work together to manage

the infrastructure the student will use. Secretaries

manage the professors, disciplines and students.

Professors take care of the assigned disciplines in

terms of course materials, test and exam questions.

Course materials are created in an e-learning format

that is very attractive and asks regularly for student

feedback.

The notion of “user session” was defined as

being a temporally compact sequence of Web

accesses by a user. A new distance measure between

two Web sessions that captures the organization of a

Web site was also defined. The goal of Web mining

is to characterize these sessions. In this light, Web

mining can be viewed as a special case of the more

general problem of knowledge discovery in

databases (Agrawal and Srikant, 1994), (Nasraoui et

al., 1999), and (Mobasher et al., 1996).

The goal of analyzing process is to improve

platform’s performance from two perspectives:

student’s learning proficiency and platform’s

capability of classifying students according to their

accumulated knowledge. Firstly, it wants to evaluate

the learning proficiency of students which mean that

they accumulated knowledge during learning

process. Secondly, it wants to avoid the situation

when a large number of students have only small

grades or only big grades. This situation would mean

that the platform is not able to classify students

according to their accumulated knowledge.

The analysis process has as primary data the

activity performed by users on the platform.

Bagging, boosting and stacking are general

techniques that can be applied to numeric prediction

problems as well as classification tasks (Witten and

Frank, 2000).

There are two main difficulties that may arise in

analysis process. Firstly, available data should be

representative in terms of quantity and quality.

Secondly, the analysis process may create an over-

fitted model. Over-fitting is fitting a model so well

that is picking up irregularities in the data that may

be unique to a particular dataset (Rud, 2001).

2 OVERVIEW OF THE

E-LEARNING PLATFORM

The main goal of the application is to give students

the possibility to download course materials, take

tests or sustain final examinations and communicate

with all involved parties. To accomplish this, four

different roles were defined for the platform:

sysadmin, secretary, professor and student. The

main task of sysadmin users is to manage

secretaries. A sysadmin user may add or delete

secretaries, or change their password. He may also

view the actions performed by all other users of the

platform. All actions performed by users are logged.

255

Dan Burdescu D. and Cristian Mih

aescu M. (2007).

INCREASE PERFORMANCE BY COMBINING MODELS OF ANALYSIS ON REAL DATA.

In Proceedings of the Second International Conference on Software and Data Technologies - PL/DPS/KE/WsMUSE, pages 255-258

DOI: 10.5220/0001331802550258

 SciTePress

In this way the sysadmin may check the activity that

takes place on the application. The logging facility

has some benefits. An audit may be performed for

the application with the logs as witness. Security

breaches may also be discovered.

Secretary users manage sections, professors,

disciplines and students. On any of these a secretary

may perform actions like add, delete or update.

The main task of a professor is to manage the

assigned disciplines while s discipline is made up of

chapters. The professor sets up chapters by

specifying the name and the course document.

The platform offers students the possibility to

download course materials, take tests and exams and

communicate with other involved parties like

professors and secretaries. Students may download

only course materials for the disciplines that belong

to sections where they are enrolled. They can take

tests and exams with constraints that were set up by

the secretary through the year structure facility.

A history of sustained tests is kept for all

students. In fact, the taken test or exam is fully saved

for later use. That is why a student or a professor

may view a taken test or exam as needed. For each

question it is presented what the student has

checked, which was the correct answer, which was

the maximum points that could be obtained from

that question and which was the number of obtained

points. At the end it is presented the final formula

used to compute the grade and the grade itself.

The logging facility that is mainly used by

sysadmin is transparently implemented for all users

(secretaries, professors and students). Whenever one

of them performs an action (e.g. a student starts or

finishes an exam) that action is recorded for later

use.

After five months of deployment, the activity

table contains more than 50,000 records and we

suppose that until the end of the learning cycle there

will be close to 100,000 records. All this logged

activity may also be very helpful in an audit process

of the platform. The records from the activity table

represent the raw data of our analyzing process.

3 METHODS OF COMBINING

MULTIPLE MODELS OF

ANALYSIS

The analysis process uses activity data and employs

different techniques to build classifiers. Estimating

each classifier’s accuracy is important in that it

allows the evaluation of how accurately the classifier

will label future data, that is, data on which the

classifier has not been trained. Among the most used

techniques for estimating classifier accuracy there

are the holdout and k-fold cross-validation methods

(Han, 2001).

The main purpose of the analysis process is to

obtain a classifier with great accuracy. This makes

sure that obtained knowledge is sound and may be

used for improving the performance of the e-

Learning platform. Performance is seen from two

perspectives. One regards the learning proficiency of

students and the other the capability of the platform

to classify students.

Combining the output of multiple models is a

good method for making decisions more reliable.

The most prominent methods for combining models

generated by machine learning are called bagging,

boosting, and stacking. They can all, more often than

not, increase predictive performance over a single

model. However, the combined models share the

disadvantage of being rather hard to analyze: it is not

easy to understand in intuitive terms what factors are

contributing to the improved decisions. Bagging,

boosting and stacking are general techniques that

can be applied to numeric prediction problems as

well as classification tasks. Bagging and boosting

both uses the same method of aggregating different

models together (Witten and Frank, 2000).

In Figure 1 there are presented the bagging and

boosting general techniques for improving classifier

accuracy. Each combines a series of T learned

classifiers, C1, C2, …, CT, with the aim of creating

an improved classifier, C*(Han, 2001).

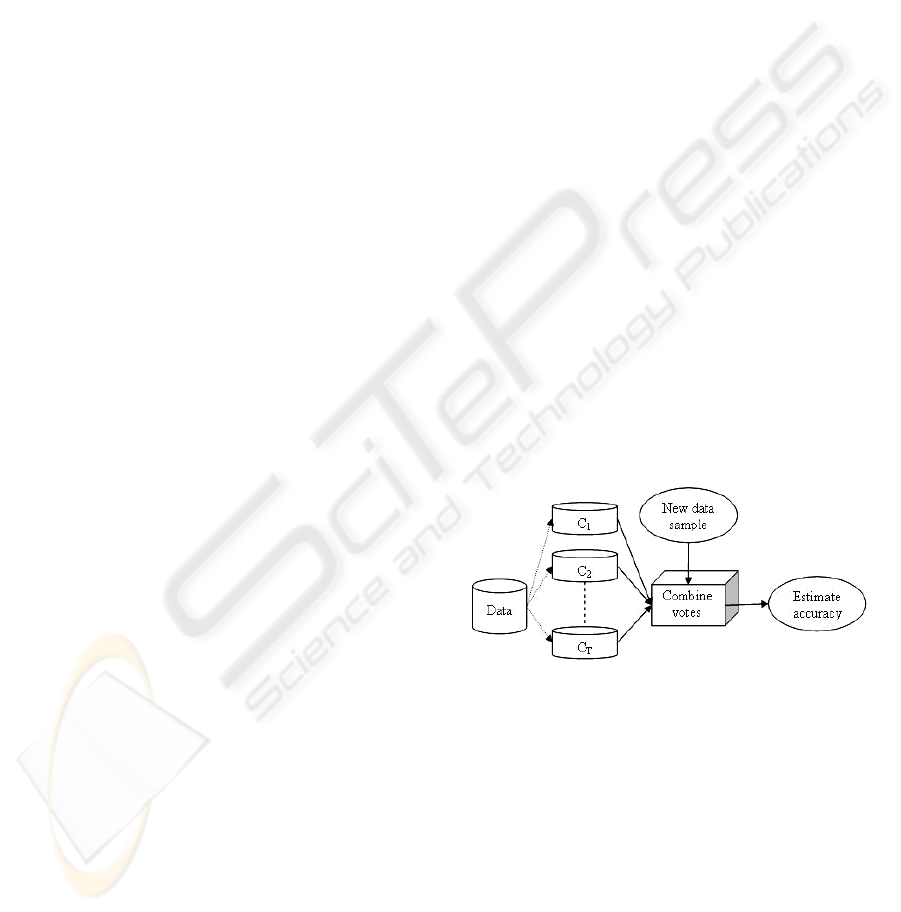

Figure 1: Increasing classifier accuracy: Bagging and

boosting each generate a set of classifiers, C1, C2,…,CT.

Voting strategies are used to combine the class predictions

for a given unknown sample.

In boosting, weights are assigned to each training

sample. A series of classifiers is learned. After a

classifier Ct is learned, the weights are updated to

allow the subsequent classifier, Ct+1 , to “pay more

attention” to the misclassification errors made by Ct.

The final boosted classifier, C*, combines the votes

of each individual classifier, where the weight of

each classifier’s vote is a function of its accuracy.

The boosting algorithm can be extended for the

prediction of continuous values (Witten and Frank,

2000).

ICSOFT 2007 - International Conference on Software and Data Technologies

256

Stacked generalization (Witten and Frank, 2000),

or stacking for short, is a different way of combining

multiple models. It is widely used than bagging and

boosting, partially because it is difficult to analyze

theoretically, and partially because there is no

general accepted best way of doing it. Stacking is

not used to combine models of the same type (e.g. a

set of decision trees).

One of the important questions is: what algorithms

are suitable for level-1 inducer? In principle, any

learning scheme maybe applied. However, since

most of the work is already done by the level-0

learners, the level-1 classifier is basically just an

arbiter, and it makes sense to choose a rather simple

algorithm for this purpose. Simple linear models

have turned out best in practical situations (Wolpert,

1992).

4 EXPERIMENTAL RESULTS

Activity data obtained while running the platform

represents raw data. The analysis process is

conducted by running algorithms implemented in

Weka workbench (www.cs.waikato.ac.nz). This

workbench accepts data that has a specific format

called arff. That is why we developed an of-line

application that gets data from the platform’s

database and creates a file called activity.arff. This

file is used as input in our analyzing process.

The first method of combining models is

bagging. J48 decision trees are used as learning

algorithm. We used three decision trees (C1, C2 and

C3) on a training set of 375 instances. For each of

these trees sampling with replacement was used. C*

learner uses the votes from C1, C2 and C3 learners.

We choose three voters (three iterations) such that

for each instance C* learner should not have any

problems in setting up the class. Time taken to build

the model by bagging algorithm was 0.02 seconds.

Table 1 presents the results of bagging.

The second method of combining models is

boosting. J48 decision trees (C1, C2 and C3) are also

used on the same training set of 375 instances. As in

bagging, it was used sampling with replacement and

we used three learners (three iterations) for the same

reason. Time to build the model by boosting was

0.06 seconds. Table 2 presents the results of

boosting.

The third method of combining models is

stacking. As level-0 learner we have chosen a J48

decision tree, a Naïve Bayes (Cestnik, 1990) learner

and a LMT(Logistic Model Tree) learner. As level-1

learner (or meta classifier) we used a J48 decision

tree learner. Time taken to build the model by

stacking algorithm was 38.08 seconds. Table 3

presents the results of stacking.

Table 1: Results of bagging.

Classifier Algorithm No. of leafs Accuracy

J48 13 88.8%

J48 12 86.3%

J48 13 87.7%

C* J48 12 89.5%

Table 2: Results of boosting.

Classifier Algorithm No. of leafs Accuracy

J48 14 90.8%

J48 12 89.3%

J48 13 91.7%

C* J48 13 92.5%

Table 3. Results of stacking.

Classifier Algorithm No. of leafs Accuracy

J48

13 90.7%

12 89.5%

LMT

14 91.8%

C* J48

14 92.8%

The effectiveness of stacked generalization for

combining three different types of learning

algorithms was demonstrated in (Ting and Witten,

1997) and used by (Breiman, 1996), (LeBlanc and

Tibshirani, 1993).

5 CONCLUSIONS AND FUTURE

WORK

We have designed and implemented the e-Learning

platform. The design of the platform is based on

MVC model that ensures the independence between

the model (represented by MySQL database), the

controller (represented by the business logic of the

platform implemented in Java) and the view. The

platform is currently deployed

(stat257.central.ucv.ro) and used by 400 students

and 15 professors.

There was implemented an embedded

mechanism within the platform that monitors and

records all user’s activity. Data obtained in this

manner represents the raw material for our analysis.

All data is preprocessed by an off-line

application that transforms it into a structured

format, called arff. Once we have obtained the arff

file we may start the analysis.

There are many machine learning algorithms that

may be used. In this paper we focused on techniques

INCREASE PERFORMANCE BY COMBINING MODELS OF ANALYSIS ON REAL DATA

257

that may be applied in order to improve the accuracy

of models obtained by using one algorithm. We used

state-of-the-art methods of combining models of

analysis like bagging, boosting and stacking.

Our dataset consisted of 375 instances

represented by students that were registered as

students within e-Learning platform. For each

student the activity was represented in terms of four

parameters: the number of loggings, the number of

taken tests, the average of taken tests and the

number of sent messages.

Bagging, boosting and stacking techniques were

used with the aim of creating models of data

representation with greater accuracy.

Bagging exploited the instability that is inherent

in learning systems. Combining multiple models

helps when these models are significantly different

from one another and each one treats a reasonable

percentage of the data correctly. Ideally the models

complement one another, each being a specialist in a

part of the domain where the other models don’t

perform very well.

Boosting produced a classifier that was more

accurate than one generated by bagging. However,

unlike bagging, boosting sometimes generates a

classifier that was significantly less accurate than a

single classifier built from the same data. This

indicates that the combined classifier overfit the

data. The time sent for building the model is greater

for boosting that for bagging although the algorithm

complexity is the same. The difference comes from

computational complexity which is greater in

boosting due to the weight introduced as parameter

for each instance.

The best performance regarding accuracy was

obtained by using stacked generalization.

Combination of three different types of learning

algorithms proved to achieve better classification

accuracy than both previous ways of combining

models (bagging and boosting) that used only one

type of learner. The obtained performance was

obtained with a high cost regarding computational

time.

The obtained accuracy is the guarantee that

obtained knowledge from the analysis process is

valid and may be used together with domain

knowledge to improve the performance of the e-

Learning platform.

In future, we plan using the same platform for other

students. It is our primary concern to create analysis

models that are able to classify students according to

their accumulated knowledge. The platform,

represented by the entire infrastructure (disciplines,

course materials, and test and exam questions)

represents an invariant. On the same platform setup,

different methods of analyzing student’s activity

may be employed. Future work will take into

consideration other ways of combining different

models of analysis that have good accuracy and

produce knowledge that may be used to improve our

e-Learning system. Changes that are made at

platform’s infrastructure should be noted very

carefully and analysis process should be repeated in

order to look for correlations. An interesting thing

would be to evaluate the analysis process on data

from other e-Learning systems.

REFERENCES

Olivia Parr Rud, “Data Mining Cookbook – Modeling

Data for Marketing, Risk, and Customer Relationship

Management”, Wiley Computer Publishing, 2001.

Jiawei Han, Micheline Kamber “Data Mining – Concepts

and Techniques” Morgan Kaufmann Publishers, 2001.

Ian H. Witten, Eibe Frank “Data Mining – Practical

Machine Learning Tools and Techniques with Java

Implementations” Morgan Kaufmann Publishers,

2000.

http://www.cs.waikato.ac.nz/ml/weka

R. Agrawal and R. Srikant, “Fast algorithms for mining

association rules,” Proc. of the 20th VLDB

Conference, pp. 487-499, Santiago, Chile, 1994.

Nasraoui O., Joshi A., and Krishnapuram R., “Relational

Clustering Based on a New Robust Estimator with

Application to Web Mining,” Proc. Intl. Conf. North

American Fuzzy Info. Proc. Society (NAFIPS 99),

New York, June 1999.

B. Mobasher, N. Jain, E-H. Han, and J. Srivastava “Web

mining: Pattern discovery from World Wide Web

transactions,” Technical Report 96-050, University of

Minnesota, Sep, 1996.

R. Quinlan. C4.5: Programs for Machine Learning,

Morgan Kaufmann Publishers, San Mateo, CA, 1993.

Schapire, R.E., Y. Freund, P. Bartlet, and W.S. Lee,

“Boosting the margin: A new explanation for the

effectiveness of voting methods”, Proc. Fourteenth

International Conference on Machine Learning,

Nashville, San Francisco, 1997.

Wolpert, D.H., “Stacked generalization”, Neural

Networks, 1992.

http://stat257.central.ucv.ro/

B. Cestnik, “Estimating probabilities: A Crucial Task in

Machine Learning”, Proc. of European Conference on

Artificial Inteligence, 1990.

Ting, K.M. and Witten, I.H., “Stacked generalization:

when does it work?” Proc International Joint

Conference on Artificial Intelligence, pp. 866-871,

Japan, August, 1997.

Leo Breiman, “Stacked regression”, Machine Learning,

Vol. 24, pp. 49-64, 1996.

Michael LeBlanc, Robert Tibshirani, “Combining

Estimates in Regression and Classification”, Technical

Report 9318, Department of Statistics, University of

Toronto, Canada, 1993.

ICSOFT 2007 - International Conference on Software and Data Technologies

258
