INTEGRATING A DISTRIBUTED INSPECTION TOOL WITHIN

AN ARTEFACT MANAGEMENT SYSTEM

Andrea De Lucia, Fausto Fasano, Genoveffa Tortora

Dipartimento di Matematica e Informatica, University of Salerno, Via Ponte Don Melillo, Fisciano (SA), ITALY

Giuseppe Scanniello

Dipartimento di Matematica e Informatica, University of Basilicata, Viale Dell'Ateneo, Macchia Romana, Potenza, ITALY

Keywords: Software Inspection, Synchronous communication, Global Software Engineering, Process Support Systems.

Abstract: We propose a web based inspection tool addressing the problem of software

inspection within a distributed

development environment. This tool implements an inspection method that tries to minimise the

synchronous collaboration among team members using an asynchronous discussion to resolve the conflicts

before the traditional synchronous meeting. The tool also provides automatic merging and conflict

highlighting functionalities to support the reviewers during the pre-meeting refinement phase. Information

about the inspection progress, which can be a valuable support to make inspection process related decisions

is also provided. The inspection tool has been integrated within an artefact management system, thus

allowing the planning, scheduling, and enactment of the inspection within the development process and

integrating the review phase within the overall artefact lifecycle.

1 INTRODUCTION

Software inspection is a widely accepted and

effective practice to discover defects within software

artefacts. The success of inspection is due to early

defect detection, when the cost of defect removal is

less (Macdonald and Miller, 1998).

In a distributed setting, as the global software

engi

neering, geographical distance becomes a

critical factor for the enactment of a traditional

inspection process (Fagan, 1976). Traditional

inspection practices consider the enactment of a

synchronous meeting as essential, while more recent

findings question its utility. Indeed, studies

demonstrating that an asynchronous discussion can

be as effective as a face-to-face meeting have been

proposed (Johnson and Tjahjono, 1998) (Lanubile et

al., 2003) (Macdonald and Miller, 1998)

(Mashayekhi et al., 1994).

In this paper we present an inspection process

and a

Web-based Artefact Inspection Tool (WAIT),

where a preliminary asynchronous discussion is

performed after the preparation phase and before the

synchronous meeting. Concerning the proposed

process we modified the structured inspection

process proposed by Fagan (1976) according to the

results presented in Damian et al. (2006), Johnson

and Tjahjono (1998), and Lanubile et al. (2003). In

particular, we introduce the refinement phase to

prune the conflicts and duplication arising from an

automatic merge of the defect logs after the

detection phase. The tool highlights the conflicts and

guides the involved software engineers in a

refinement of the merged defect log to be discussed

during the meeting. The refinement phase aims at

resolving all the conflicts in the defect log and at

removing the majority of the false defects. Based on

the result of this phase the moderator can decide

whether to perform the synchronous meeting, force a

further analysis of the individual defect logs, or

conclude the inspection and send the defect log to

the author for the Follow Up phase.

This research has been supported by the

roject METAMORPHOS

(MEthods and Tools for migrAting software systeMs towards web and

service Oriented aRchitectures: exPerimental evaluation, usability, and

technology tranSfer), funded by MiUR (Ministero dell’Università e della

Ricerca) under grant PRIN-2006-2006098097.

WAIT has been integrated within ADAMS (De

Lucia et al., 2004) (ADvanced Artefact Management

184

De Lucia A., Fasano F., Tortora G. and Scanniello G. (2007).

INTEGRATING A DISTRIBUTED INSPECTION TOOL WITHIN AN ARTEFACT MANAGEMENT SYSTEM.

In Proceedings of the Second International Conference on Software and Data Technologies - SE, pages 184-189

DOI: 10.5220/0001332901840189

 SciTePress

System), an artefact-based process support system

for the management of human resources, projects,

and software artefacts. The integration of the

inspection process tool within ADAMS aims at

integrating quality management functionalities

within the software process support system, thus

allowing the planning, scheduling, and enactment of

the inspection within the development process and

integrating the review phase within the overall

lifecycle of software artefacts.

The remainder of the paper is organised as

follows: Section 2 discusses the related work while

Section 3 presents an overview of ADAMS. Section

4 illustrates the inspection process and tool while

Section 5 concludes the paper.

2 RELATED WORK

The usefulness and acceptance of software

inspection in academic and industrial settings, have

contributed to the development of several tools

supporting the inspection process. For instance,

ICICLE (Brothers et al., 1990) addresses the

inspections of C and C++ code, making use of

specific knowledge on the programming language to

assist during the defect discovery phase. However,

this approach does not results appropriated to review

software artefacts of different types.

Knight and Meyer (1991) propose InspeQ

(Inspecting software in phases to ensure Quality), a

toolset implementing the phased inspection

technique (Knight and Meyers, 1993). This

technique aims at improving the rigour, efficiency,

and repeatability of the inspection of software

products by examining the artefacts in a series of

small inspections termed phases. Each phase aims at

ascertaining if the artefact possesses some desirable

property. InspeQ does not support distributed

meeting and decision support is not provided.

Scrutiny (Gintell et al., 1993) is a collaborative

and distributed system based on an inspection

process similar to the Fagan model. In particular,

Scrutiny adds the verifier role, to ensure that all the

defects founded during the inspection are addressed

by the author. However, Scrutiny does not provide

support for checklist based inspections and the

meeting support is only synchronous.

CSI (Mashayekhi, 1993) (Collaborative Software

Inspection) adopts the Humphrey’s inspection

process (Humphrey, 1989). CSI supports annotations

by creating hyperlinks between the document and

the reviewers’ annotations. The inspection manager

reviews the annotations and makes them into one

list, which is successively discussed during the

meeting. The discussion phase is synchronous, while

the decision support is not provided.

The Humphrey’s process is also implemented in

AISA (Stein et al., 1997) (Asynchronous Inspection

of Software Artifacts) to inspect graphical

documents. AISA uses a web client to visualise

documents that are prepared as clickable image

maps. The reviewers annotate documents using the

coordinates of the image portion clicked. The only

support provided by the tool is the notification of

inspection completion by means of a message sent to

the inspection team when all reviewers have finished

the collection phase. The drawback is that

annotations are available to all the participants, thus

influencing the inspection members. To overcome

this drawback, InspectA (Murphy and Miller, 1997)

replaces the web publishing approach with e-mail

massages that are sent only when all the detection

phases are completed. In InspectA, the moderator

does not have any progress information of the

detection phase. Thus, the only way to know that a

reviewer has completed the inspection is the

receiving of the email generated at the end of the

phase. This does not support the moderator in case

an inspector has not completed the inspection.

The tool CSRS (Johnson, 1994) (Collaborative

Software Review System) supports different

checklist based inspection processes by using a

process modelling language. CSRS distinguishes

between a private review phase, where individual

review of the artefact is performed and annotations

are hidden to the other inspectors, and a public

review phase, which represents an asynchronous

meeting. Differently from our approach, support for

synchronous meeting to address unresolved conflicts

is not provided. Even ASSIST (Macdonald and

Miller, 1998) (Asynchronous/Synchronous Software

Inspection Support Tool) is designed to support

different inspection processes. To reduce the effort

to inspect a software artefact, ASSIST provides a

checklist browser implementing active checklists,

which records answers, monitors the checklist usage,

and visualises cross-references. Meeting support is

provided by a whiteboard and video and audio tools.

ASSIST also provides a facility to merge multiple

lists of defects using their similarity.

Lanubile et al. (2003) propose a web-based tool,

called IBIS (Internet-Based Inspection System),

which implements a reengineered Fagan’s inspection

process. In particular, the adopted process replaces

the preparation and meeting phases of the Fagan’s

process with three new sequential phases: discovery,

collection, and discrimination. The last of these

INTEGRATING A DISTRIBUTED INSPECTION TOOL WITHIN AN ARTEFACT MANAGEMENT SYSTEM

185

phases can be skipped to save time and coordination

overhead. IBIS presents several similarities with our

approach. The main differences with our approach

rely on the discrimination phase that is based on a

forum with a voting mechanism. Moreover, we

provide the moderator information to support

him/her during the inspection process decisions.

None of these tools are integrated within a

process support system. As a consequence they do

not manage the inspection process within the

software development process, providing

functionalities to link the review phase to the

software artefact life cycle and maintain and easily

recover inspection data during software evolution.

3 ADAMS OVERVIEW

ADAMS is an artefact-based process support

system. It enables the definition of a software

development process in terms of the artefacts to be

produced and the relations among them. To this aim,

ADAMS emphasises the artefact life cycle by

associating software engineers with the different

operations they can perform on each artefact. This

feature, together with the resource permissions

definition and management, represents a first level

of process support and allows the project manager to

focus on practical problems involved in the process

and to avoid getting lost in the complexity of process

modelling. ADAMS also enables process

management in a flexible way, giving managers the

possibility of changing the state of an artefact, the

associated resources and the related permissions.

ADAMS has a web-based architecture and

includes several subsystems. The Artefact

Management Subsystem is the core subsystem of

ADAMS and provides functionalities to manage the

artefacts of a project and concurrent development of

software engineers. This subsystem is used to create,

modify, and delete artefacts, as well as to manage

the artefact lifecycle and versioning. The Resource

Management Subsystem manages human resources

that can be allocated on projects as well as on single

software artefacts. The Traceability Management

Subsystem enables the management of traceability

links between related software artefacts, which can

be also visualised and used for impact analysis

during software evolution. The Cooperative

Development Subsystem provides synchronous

collaborative modelling functionalities, such as

allowing distributed team members to discuss,

model, and modify the same UML diagram. The

Quality Management Subsystem is responsible for

quality assurance within the software project, such

as the inspection process management functionality

described in this paper. Finally, the Event &

Notification Management Subsystem is used by

ADAMS to generate and deliver notifications

concerning the project. To enhance the context

awareness level, notifications are also propagated

across the traceability graph, that is the graph having

artefacts as nodes and traceability links as edges.

4 INSPECTION PROCESS AND

TOOL

The inspection process proposed in this paper is

shown in

Figure 1. The phases Overview,

Refinement, and Inspection Meeting are optional and

are performed considering the software artefact and

the aim of the inspection. The inspection process has

been implemented in WAIT (Web Based Inspection

Tool). In the following, we detail the phases of the

proposed inspection process and describe an

example of application of WAIT on a Java class.

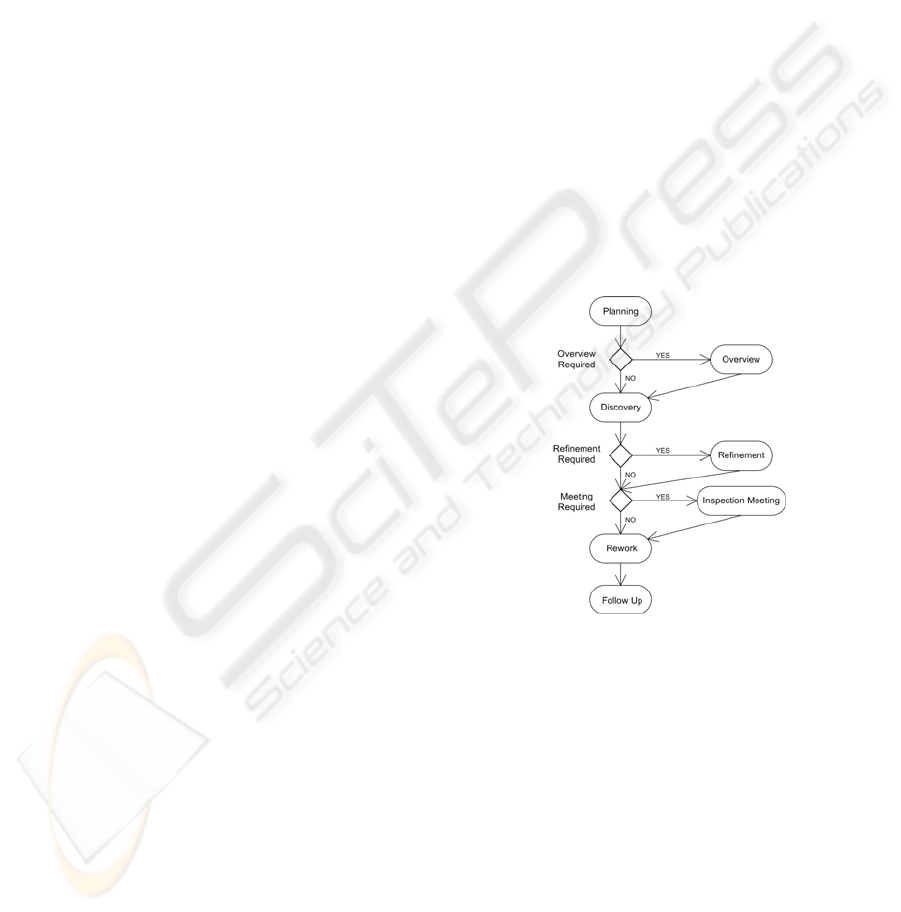

Figure 1: Reengineered Inspection Process.

4.1 Planning

During the Planning phase the quality manager

specifies which artefact version must undergo a

formal review process, defines or selects an existing

checklist, and compose the inspection team. All

these functionalities are accomplished by using the

process support, human resources, and quality

management functionalities of ADAMS. After this

phase all the inspection participants receive a

notification containing the details of the inspection

and a new task appears in their to-do-lists.

In our example, the inspection moderator selects

three members and creates the inspection team. The

quality manager specifies three check items for the

checklist to be used during the inspection of the Java

ICSOFT 2007 - International Conference on Software and Data Technologies

186

class. In particular, the checks address the use of

naming conventions for the identifiers, the code

indentation, and the identifier meaningfulness.

4.2 Overview

In the Overview phase, the artefact author explains

the design and the logic of the software artefact to

the inspectors. To this aim, he/she produces a

document that briefly describes the purpose and the

scope of the artefact to be inspected and then

deploys it in ADAMS. The inspection mailing list

managed by ADAMS is used to notify all the

inspection participants. In our example, this results

in a notification sent to the reviewers containing the

document produced by the artefact’s author, the

schedule of the inspection, and information about

the Java class to be inspected.

4.3 Discovery

During the Discovery phase, the inspectors analyse

the artefact and take note of the candidate defects by

highlighting all the cases where the artefact does not

comply with the control checklist. WAIT supports

the inspector during this phase by recording the

identified defect, its severity, a comment, its location

within the software artefact in terms of page and line

numbers, or picture/table sequential number (see

Figure 2).

Anytime in this phase, the moderator can

visualise the inspector’s defect log, the check items

processed or not processed as well as a preview of

the merged defect logs containing the inspection

output produced by the inspection team. This

information can be used to decide whether to stop

the detection phase and start the next phase.

However, even in case the moderator does not

access this information, ADAMS notifies him/her by

sending an event as soon as all the inspectors have

completed the discovery phase.

In our example, the three inspectors fill in the

defect logs by specifying each line in the Java class

that does not respect a checklist item. In particular,

regarding the first check item (i.e., respect of the

naming conventions), the inspectors discover a

different set of defects, while they agree on three

defects for the second check item (i.e., the code

indentation). None of the inspectors discovers

defects for the third check item (i.e., meaningfulness

of the identifiers). This situation is available to the

inspection moderator. In fact, the tool notifies

him/her about the conflict for the first check item

and reports the number of discovered defects for the

remaining checks.

4.4 Refinement

When the detection phase is completed, the

inspection moderator accesses the defect log,

containing all the defects identified by the

inspectors. In case the inspectors do not agree on the

defects for a checklist item, WAIT highlights it to

the moderator (see

Figure 3), who is allowed to

decide if the refinement phase must be enacted. In

this case, the tool sends an email containing the

conflict list to the inspection members. This email

also aims at notifying that the conflicts can be

analysed in order to get an agreement. The main

goal of this phase is to remove false defects and to

build consensus on the true defects. As suggested by

the empirical study presented by Lanubile et al.

(2003) we consider a defect as a true defect when at

least two reviewers recognise it. In this case WAIT

does not highlight the defect. However, the

minimum number of reviews required to

automatically get an agreement can be customised

according to the inspection process constraints.

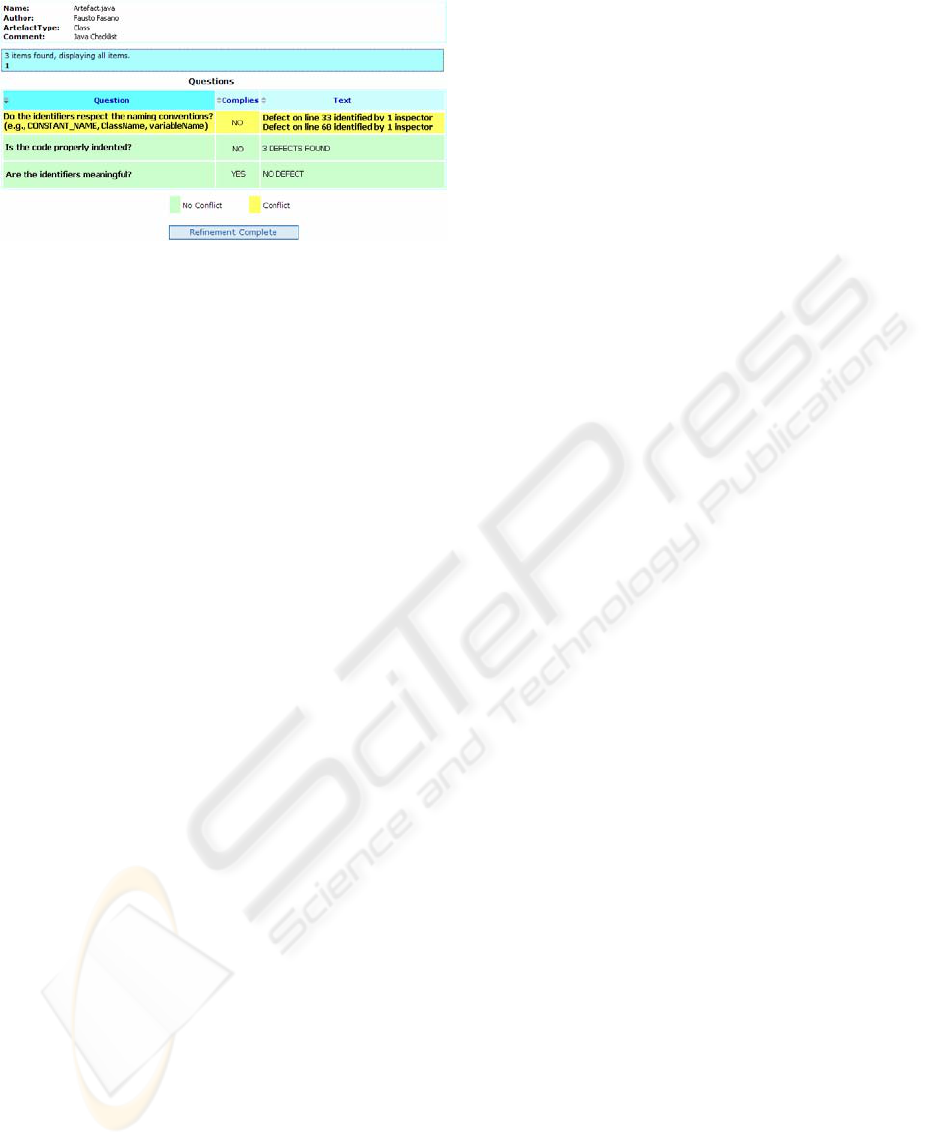

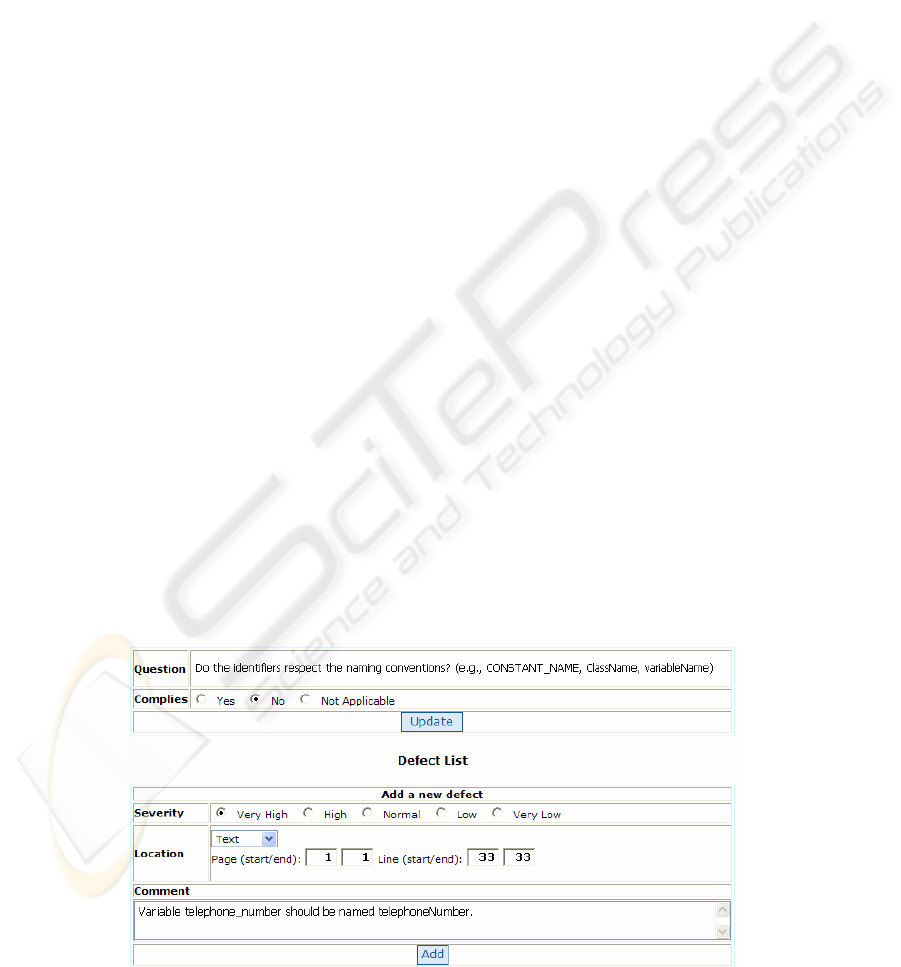

Figure 2: Defect identification.

INTEGRATING A DISTRIBUTED INSPECTION TOOL WITHIN AN ARTEFACT MANAGEMENT SYSTEM

187

Figure 3: Merged defect list (inspector’s view).

During the Refinement phase, the inspector

accesses the merged defect list and selects one of the

defects that caused the conflict. To assist the

inspector during this phase, WAIT highlights the

conflicts using a different colour for the conflicts,

and provides hypertextual links to the defect details.

By accessing the defect details the inspector decides

whether it is an actual defect or a false positive. To

this end, the inspector may decide to further analyse

the considered software artefact. Note that the

merged defect list is shared among the members of

the inspection team. Hence, when a conflict is

solved by an inspector, it is removed even from the

lists of the remaining inspectors. When all the

conflicts for a checklist item are solved, the

corresponding highlighting is removed too. This

phase is not mandatory, so the moderator can decide

to skip it and directly resolves the conflicts on the

identified defects (e.g., low number of defects).

In our example, the inspectors focus on the first

checklist item (naming conventions). However,

despite agreeing on most of the defects, two

conflicts are not solved. To this aim, the inspection

moderator decides to schedule a synchronous

meeting to resolve the conflict.

4.5 Inspection Meeting

The synchronous inspection meeting component is

implemented as a Java Applet and is eventually used

to discuss on unsolved conflicts. When an inspector

accesses the inspection meeting tool (see

Figure 4),

the result of the inspection process of each inspector

is shown as well as the moderator decision.

Inspectors can access the defect logs of the other

inspectors grouped by checklist item. However, only

the column regarding the logged inspector is

editable. The checkbox in the inspector’s column is

used to indicate whether the artefact is compliant

with the checklist item. The tool automatically

deselects this checkbox when defects are discovered.

Communication among the inspectors is further

supported by a chat. Note that the moderator has

also the possibility to fill in his/her own checklist

and conclude the inspection process specifying

whether the artefact can be baselined or not. The

revision passes when all the checklist items are

checked. Whether an agreement is not reached the

moderator response is considered. This phase can be

skipped in case the number of conflicts is directly

manageable by the moderator or the time distance

does not permit a meeting.

In our example, the three inspectors access the

meeting and discuss on the two unsolved conflicts,

classifying them as true defects.

4.6 Rework and Follow up

In case defects have been identified, the author has

to fix them during the Rework phase. Once the

defects have been addressed, the author creates a

new version of the artefact that is validated by the

moderator during the Follow Up phase. As a result a

new baseline of the artefact can be created or a

further re-inspection can be required. It is worth

noting that the system maintains the defect logs for

each of the artefact version. Thus, in case the

artefact undergoes several inspections, it is possible

to access the defect logs for each artefact version.

5 FINAL REMARKS

In this paper we have presented an inspection

process whose aim is to minimise synchronous

collaboration among geographical dispersed

reviewers during the identification of defects in

software artefacts. To this end, we modified the

Fagan’s method with an asynchronous discussion

before performing a meeting. The asynchronous

discussion aims at removing false defects resolving

conflicts on the identified defects. The process has

been then implemented in a Web-based Artefact

Inspection Tool (WAIT), which has been integrated

within a process support system, namely ADAMS

(De Lucia et al., 2004).

In order to assess the usefulness of the proposed

tool and process, we carried out a controlled

experiment (details can be found at

http://www.scienzemfn.unisa.it/scanniello/CExp_2/.

The experiment aimed at comparing the proposed

inspection process and the Fagan’s method in terms

of time required to accomplish the inspection

process as well as the number of identified true and

false defects. The experiment revealed that the

synchronous meeting is generally not necessary as

the number of unsolved conflicts at the end of the

Refinement phase is very low and can be generally

managed by the inspection moderator.

ICSOFT 2007 - International Conference on Software and Data Technologies

188

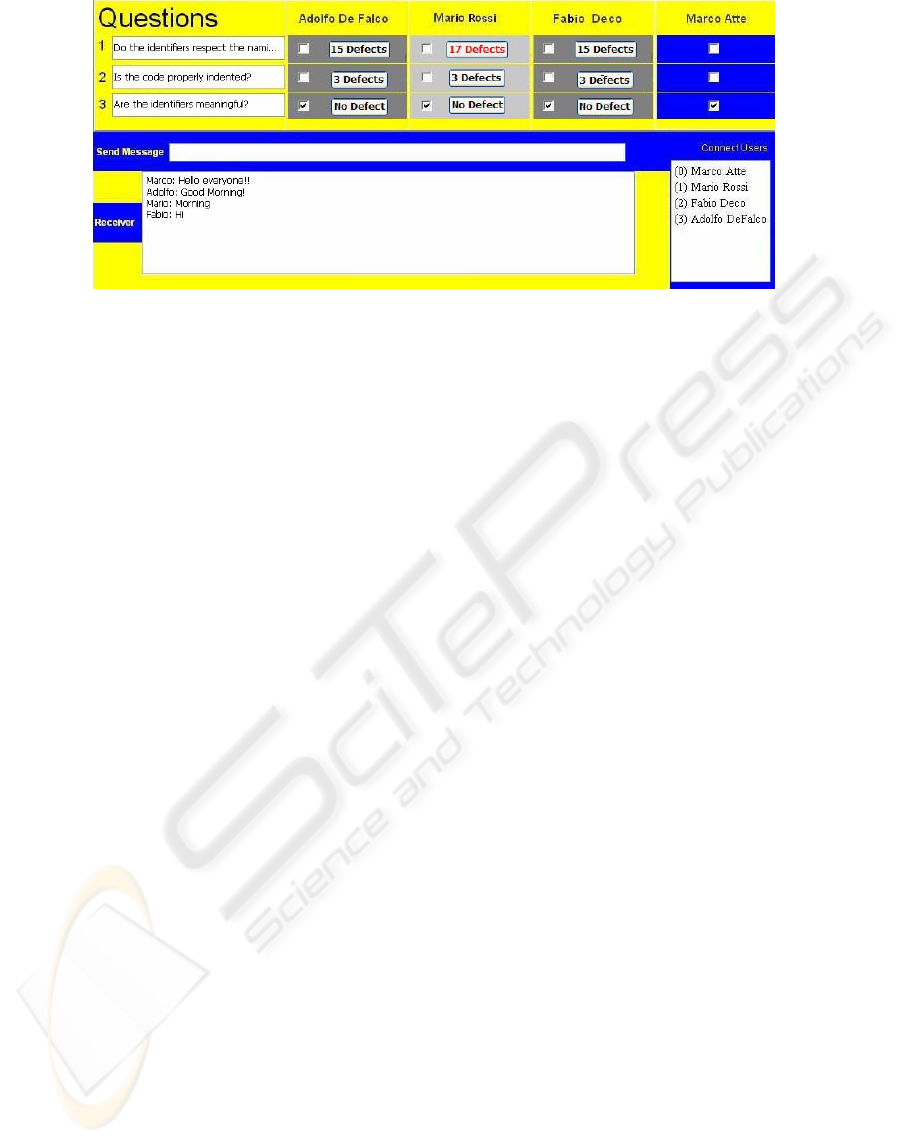

Figure 4: Synchronous meeting.

We also observed that reviewers adopting our

process and tool spent less time to inspect a software

artefact with respect to the Fagan’s method.

Moreover, the inspection teams were able to identify

more true defects and more false positives when our

inspection process and tool were adopted. A larger

number of false defects might be acceptable in a

distributed setting where the effort required to

discard false positives can be repaid by the

possibility to avoid a meeting.

Future work will be devoted to add features to

further simplify the defect localisation within the

software artefact. A second direction should aim at

adding new features to better support optional

synchronous meetings. Moreover, we are

investigating the impact of face-to-face versus tool

mediated synchronous meeting with respect to the

number of true defects and false positive. This can

be useful in case time distance is not an issue, but

moving people might be a problem.

REFERENCES

Brothers L.R., Sembugamoorthy V., and Muller M., 1990.

“ICICLE: Groupware for code inspections”, Proc. of

ACM Conf. on Computer Supported Cooperative

Work, Los Angeles, CA, USA, pp.169-181.

Damian D., Lanubile F., and Mallardo T., 2006. “An

Empirical Study of the Impact of Asynchronous

Discussions on Remote Synchronous Requirements

Meetings”, Lecture Notes in Computer Science, vol.

3922, pp.155-169.

De Lucia A., Fasano F., Francese R., and Tortora G.,

“ADAMS: an Artefact-based Process Support

System”, Proc. of 16th International Conference on

Software Engineering and Knowledge Engineering,

Banff, Alberta, Canada, 2004, pp. 31-36

Fagan M.E., 1976. “Design and Code Inspections to

Reduce Errors in Program Development”, IBM

Systems Journal, vol. 15, no. 3, pp.182-211.

Gintell J.W., Arnold J., Houde M., Kruszelnicki J.,

McKenney R., and Memmi G., 1993. “Scrutiny: a

collaborative inspection and review system”, Proc. of

the 4

European Conf. on Software Engineering,

pp.344-360.

Humphrey W.S., 1989. “Managing the Software Process”,

SEI Series In Software Engineering, Addison-Wesley

Longman Publishing, Boston, MA, USA.

Johnson P.M. and Tjahjono D., 1998. “Does Every

Inspection Really Need a Meeting?”, Empirical

Software Engineering, vol.3, no.1, pp.9-35

Knight J.C., and Meyers E.A., 1991. “Phased inspections

and their implementation”, Software Engineering

Notes, vol. 16, no.3, pp.29-35.

Knight J.C. and Meyers E.A., 1993. “An improved

inspection technique”, Communications of the ACM,

vol.36, no.11, 1993, pp.51-61.

Lanubile F., Mallardo T., and Calefato F., 2003. “Tool

Support for Geographically Dispersed Inspection

Teams”, Software Process: Improvement and

Practice, vol.8, no.4, Wiley InterScience, pp.217-231.

Macdonald F. and Miller J., 1998. “A Comparison of

Tool-Based and Paper-Based Software Inspection”,

Empirical Software Engineering, vol.3, no.3,

pp.233-253

Mashayekhi V., Drake J.M., Tsai W.T., and Reidl J., 1993.

“Distributed, collaborative software inspection”, IEEE

Software, vol.10, no.5, pp.66-75.

Mashayekhi V., Feulner C., and Reidl J., 1994. “CAIS:

collaborative asynchronous inspection of software”,

Proc. of the 2

ACM Symposium on the Foundations

of Software Engineering, ACM Press, pp. 21-34.

Murphy P. and Miller J., 1997. “A process for

asynchronous software inspection”, Proc. of the 8

Int. Workshop on Software Technology and

Engineering Practice, London, UK, pp.96-104.

Stein M., Riedl J., Harner S.J., and Mashayekhi V., 1997.

“A case study of distributed, asynchronous software

inspection”, Proc. of the 19

Int. Conf. on Software

Engineering, Boston, MA, USA, pp.107-117.

INTEGRATING A DISTRIBUTED INSPECTION TOOL WITHIN AN ARTEFACT MANAGEMENT SYSTEM

189
