NEW DESIGN TECHNIQUES FOR ENHANCING FAULT

TOLERANT COTS SOFTWARE WRAPPERS

Luping Chen and John May

Safety Systems Research Centre, University of Bristol, Bristol, BS8 1TR, UK

Keywords: Safety critical system, COTS software, fault tolerance, wrapper.

Abstract: Component-based systems can be built by assembling components developed independently of the systems.

Middleware code that connects the components is usually needed to assemble them into a system. The

ordinary role of the middleware is simple glue code, but there is an opportunity to design it as a safety

wrapper to control the integration of the components to help assure system dependability. This paper

investigates some architectural designs for the safety wrappers using a nuclear protection system example. It

integrates new fault-tolerant techniques based on diagnostic assertions and diverse redundancy into the

middleware designs. This is an attractive option where complete trust in component reliability is impossible

or costly to achieve.

1 INTRODUCTION

Commercial-off-the-shelf (COTS) software based

components are increasingly being included within

complex safety critical systems (

Profeta et al 1996).

Therefore it is vital both to distinguish adequate

software components from inadequate ones as well

as to determine the effect on system dependability of

replacing previous systems with COTS software

based components. Yet the know-how to construct

dependable safety critical applications from

dependable COTS software based components

remains the ‘holy grail’ within the area of

component-based software engineering (Crnkovic

and Larsson 2002).

The component-based software development

process is based on the reuse and integration of high-

level software components and bespoke components

to form a new system (

Brown and Wallnau 1998). A

key issue for such hybrid systems is to show that the

use of the software components (which will be

considered as 'black boxes') does not compromise

the safety, reliability and (perhaps) security of the

overall system, since the reliability of software

components cannot be fully assured prior to

integration (

Voas 1998). Furthermore, even if such

pre-assurance was a theoretical possibility, it would

seldom be available, since the software components

are commonly developed to unknown standards or

standards aimed at general use, which are

insufficient for safety applications (

Profeta et al 1996,

Lindsay et al 2000)

. These difficulties are sometimes

compounded by the inaccessibility of some COTS

code. Where examination of code is not permitted,

traditional assurance techniques (with the exception

of black box testing) cannot be applied to COTS

components post-purchase, to supplement the

supplier’s verification and validation (V&V)

activities. In general it is necessary to use

'middleware', possibly based on standard

infrastructure technologies to integrate the inevitably

disparate components (May 2002). This middleware

can also be used to play the role of a safety wrapper,

and offers an important opportunity to include

component adaptation and monitoring strategies, to

help ensure the overall system's dependability (Shin

and Paniagua 2006). One significant use of these

wrappers is to enable the replacement one COTS

software component of a safety critical system by

another without significantly modifying the wrapper

itself: for example, an upgraded component. The

wrapper in this case ensures correct behavior over

key safety aspects of the components functionality.

This paper develops some design techniques for

enhancing fault tolerant COTS software wrappers.

The underlying concept of software fault tolerance

assumes that any system has unavoidable and

undetectable software faults no matter how

thoroughly the software has been debugged,

277

Chen L. and May J. (2007).

NEW DESIGN TECHNIQUES FOR ENHANCING FAULT TOLERANT COTS SOFTWARE WRAPPERS.

In Proceedings of the Second International Conference on Software and Data Technologies - SE, pages 277-282

DOI: 10.5220/0001340202770282

 SciTePress

modularised, verified and tested. Hence

programming strategies to prevent or recover from

software failures must be included within a complex

safety critical system such that it can provide service

even in the presence of software faults. Current

programming strategies are classified as N-Version

Programming, Recovery Block and Self-Checking

Version Schemes. Some new methods have been

developed for improving software fault tolerance

based on diverse redundancy and diagnostic

assertions (

Napier 2001, Chen et al 2002), and these

designs can be assessed by fault injection

techniques. An approach to assessment using

Perturbation of Interface Parameters (PIP) of COTS

components has been developed to simulate a range

of internal COTS component faults (Chen et al

2004).

Based on the example of using smart sensors as

COTS components within a plant protection system,

this paper considers new diversity and diagnosis

strategies for safety wrapper design in COTS-based

systems, together with methods for assessing their

effectiveness.

2 FAULT-TOLERANCE DESIGNS

2.1 Fault Tolerance by Assertion

The use of assertion/diagnostics is often based on a

rather restricted view of failures. Traditional

approaches to fault detection in software often focus

on specific anticipated problems, usually those that

halt the program execution. However this view is far

from general because anticipated problems are a

small subset of all possible problems. The more

subtle and interesting failures are quite different and

not addressed by these traditional approaches. Such

failures are caused by errors in the design of the

underlying program algorithms - i.e. it is the

proposed solution to the problem that is flawed, not

the implementation of the solution (

Harel 1992).

Failures caused by these algorithmic errors do not

necessarily halt the program execution, they simply

compute an incorrect answer (Napier 2001).

Anticipated problems are easier to detect and

contingencies can be put in place to put it into a safe

state or initiate an appropriate recovery procedure.

Non-halting failures of a COTS component are

much more likely to remain unrevealed and if such

insidious erroneous states are allowed to propagate

from a component into the rest of the system

potentially disastrous consequences can result. A

wider view of fault detection is required which aims

to detect these algorithmic errors in addition to the

traditional anticipated problems.

There is a range of on-line diagnostic techniques

available including data encoding (Napier 2001).

Most approaches to safety wrapper design use a

conventional user-defined executable assertions

(

Napier et al 2000). User-defined assertions can be

either external to the original program, based on

input/output relationships, or applied to check

internal program states. A safety wrapper can be

applied to a particular component using assertions in

one of three ways: Pre-condition assertion, Post-

condition assertion or Point/intermediate assertion.

In general, user-defined executable assertions for

inspecting internal data states may be an integral

part or an external wrapper for the underlying

program. They can be implemented relatively simply

by adding extra lines of code, possibly utilising

special mechanisms provided by the high level

language. Assertions requiring access to program

variables that are not accessible at the components

I/O, are unsuitable for use with COTS software since

these variables are not visible outside the

component. In contrast, external assertions can be

integrated into the middleware of component-based

systems even if a program component needs to be

treated as a black box.

2.2 Fault Tolerance by Diversity

Early ideas for reliability improvement by diversity

design centred on multiple versions of software

fulfilling the same requirement specifications. The

versions are expected to show different (diverse)

failure behaviours, both in terms of the inputs that

cause them to fail and in terms of failure behaviour

when both versions fail at the same time, so that

discrepancies between the two versions flag failures.

Currently, the main strategy for building versions

with such diverse behaviour is to use developers

with different backgrounds or to force diversity by

use of different hardware, languages, compilers etc.

The hope is that the different versions will not

contain the same errors. However, practical

applications of diverse software have shown that

normal design methods can not be assumed to

achieve this goal. Certainly, assuming independent

failures in versions will often be optimistic

(overestimate reliability).

Two kinds of diversity can be considered in

middleware designs:

Structural diversity: An algorithm can be

implemented with different structures.

ICSOFT 2007 - International Conference on Software and Data Technologies

278

Functional diversity: a specification can be fulfilled

by different algorithms.

Structural diversity has to be abandoned as a

technique for achieving diversity between a wrapper

and a COTS component, since the internal software

design in a COTS component may be unknown

(Chen and May 2004). However, structural diversity

can be used in a multi-version approach to wrapper

design. In a multi-wrapper design, the reliability of a

system with a COTS component will depend on the

combined failure coverage of all safety wrappers.

The diversity between wrappers will be an important

factor. There is still a need for diversity between

wrappers and the COTS component; to be effective,

the wrapper should not fail (to trap the COTS

failure) at the same time as the COTS component

fails. This is a black-box issue and can not be

judged/assessed directly. But it seems plausible to

expect that if wrapper A is not diverse with the

COTS component and wrappers A and B are

diverse, then wrapper B will show some diversity

with the COTS component. Thus a potential strength

of a multi-wrapper approach is that the

diversity/reliability improvement issues are judged

on the basis of wrapper design and there is less

emphasis on the COTS design, about which little

may be known.

2.3 Data Diversity

Data diversity generally can be regarded as a special

assertion/diagnostic technique defending against

design faults. The rationale of this technique is that

failures of defective software are usually input

dependent, e.g. the faults contained in the software

can only be triggered by fixed input sequences

(Ammann & Knight 1988). The key technique is to

use re-expression of an original input in ‘retries’ that

use the same software code. In one form of the

technique, the goal of the retry executions is to use

these different inputs to generate outputs that can be

manipulated to re-create the correct output for the

original input. This provides two (or more)

computations of the required output based on

different inputs, so there is a reduced probability of

failure.

Data diversity is a diverse software technique

where different multi-versions use the same code,

but use re-expressions of the input, but it might be

possible to pre-empt this approach and incorporate

some degree of execution flexibility into the design

of software components to simplify the use of the

data diversity concept. In this paper, the data

diversity technique could be used in conjunction

with safety wrappers or in fault tolerance functions

within the component).

3 CASE STUDY PROGRAM

The case study used the protection system for a

power plant from a multi-version software diversity

project known as DARTS (Quirk & Wall 1991). A

single C version of the software was used in the

experiments. The DARTS software was developed

specifically for experimentation, but this was done

under commercial conditions to produce software

representative of that used in practice. The program

monitors various parameters from the plant

environment: neutron pressure (NP), steam drum

pressure (SDP) and steam drum level (SDL), and

sets one of seven output trIp signals together with

several status signals under various circumstances.

Each of the physical parameters is monitored by

triplicated Sensor Devices.

The signals received from the smart sensor can

not be used directly by the protection system. A

middleware module ASSIGN_VALUE has been

designed to transfer the sensor values into proper

formats accepted by the protection system. This

software module also plays an important role as a

safety wrapper, attempting to check the correctness

of the input values from the smart sensors using

consistency checks.

In its role as ‘safety wrapper,’ ASSIGN_VALUE

is a common module monitoring all three physical

parameters NP, SDL and SDP. It receives three

readings for a physical parameter, and checks their

compatibility by observing if the differences

between the values from the three sensors are within

allowed ranges (specified in the system

requirements). Then it will decide how to pass on

the raw input data from the sensors and set the data

statuses.

For example, one assertion/diagnosis function in

ASSIGN_VALUE is to check the three input values

then decide whether:

• All three values are averaged

• Only low and medium values are averaged

• Only high and medium values are averaged

• A valid value can not be assigned

The protection system then computes using the

pre-processed values output from wrapper

ASSIGN_VALUE. ASSIGN_VALUE was used in

a range of experiments measuring diversity and fault

coverage, as follows.

NEW DESIGN TECHNIQUES FOR ENHANCING FAULT TOLERANT COTS SOFTWARE WRAPPERS

279

3.1 Wrappers with Structural Diversity

Two distinct factors influencing software diversity,

structural coupling and fault distribution, were

identified in recent research [Chen et al 2002]. It

was also shown that there is scope to manipulate

these factors in practice to actively improve the

diversity of software versions. Therefore, for

example, if a safety system design were to use

diverse software-based sensors, the implementation

should choose COTS sensors that are, or can be

configured to be, naturally diverse according to

these factors. This has the potential to strengthen

safety cases for systems containing diverse channels.

One important structural factor for diversity

enhancement is to implement ‘orthogonal structures’

in versions e.g. a two-dimensional input-space can

be processed: {For X=1 to N then {For Y=1 to N

then OP1}} or orthogonally {For Y=1 to N then

{For X=1 to N OP2}. This idea has been used to

redesign a new wrapper ASSIGN_VALUE_New.

Then two version-pairs were constructed for the

purpose of assessing diverse designs: A pair with

two versions of the original wrapper (original-

original) and a pair with two versions of the new

wrapper (New-New). The diversity between a

version pair is a measure of the difference between

their failure behaviours when the two versions are

injected with different faults. Using identical

versions with different faults simulates the case

where two versions are developed by different

developers that use the same structure (or at least

largely similar structures since bugs can alter

structure), but containing different bugs.

Four systems were compared using: the original

single wrapper, the new single wrapper, the original-

original wrapper pair and the new-new wrapper pair.

An empirical approach to diversity assessment

was employed in which diversity is measured based

on a sample of injected faults (Chen et al 2002). The

resulting diversity assessment measures the average

behaviour of the software over a range of fault pairs

in two versions. This process was used to assess the

diversity present in multi-safety wrappers. That is, to

measure their degree of independence (avoidance of

common failures) when each safety wrapper

contains one fault, and averaging this measured

diversity over the range of fault pairs used.

To assess the effectiveness of the fault tolerant

designs, the proportion of the faults caught by the

safety wrappers will be used as an index. A safety

wrapper is designed with the requirement to protect

system from failures in a software component, and

the quality of safety wrappers can be directly

measured by fault coverage. The approach is to

simulate a number of failures of the software

component and then to check how many faults can

be detected by the safety wrapper (Panel 2002). This

experiment used a test support tool to simulate 512

failure scenarios of the COTS component. For each

system, the proportion of the 512 failures that was

not trapped by its wrapper(s) was observed (called a

failure probability in the following results).

In summary, the tasks involved are:

1. Observing the system behaviours with different

faults in the multiple wrappers to assess the

diversity of the wrappers

2. Observing the system behaviour with faults in

the software component and wrappers to

estimate the improvement of fault-tolerant

ability due to multiple safety wrappers.

The main burden of these assessments is the

selection and simulation of representative faults in

the COTS component and in the safety wrapper by

means of PIP (perturbation of interface parameters)

and SFI (software fault injection) methods

respectively. Use of SFI to simulate faults inside a

safety wrapper is a normal fault injection approach.

Applying PIP to simulate faults inside the

component has been specially developed to simulate

fault injection where the COTS software must be

treated as a black box (Chen 2002) i.e. where fault

injection is not possible. The safety designs of the

wrapper/s aims to catch all potential failures

propagated from a COTS component. So the PIP

approach needs to simulate all possible types of

anomalies of the interface parameters that could be

generated by the COTS code.

One result was that the new wrapper pair showed

a lower failure probability than the original pair. The

new wrapper design does appear to provide a better

structure for avoiding common failures. The reduced

coupling of the functions has made the faults

distribute uniformly over the structure and over the

input space, affording fewer opportunities for

different faults to be triggered by the same inputs.

Moreover, the use of multiple wrappers can improve

the level of fault tolerance achieved. The results are

summarized in figure 1.

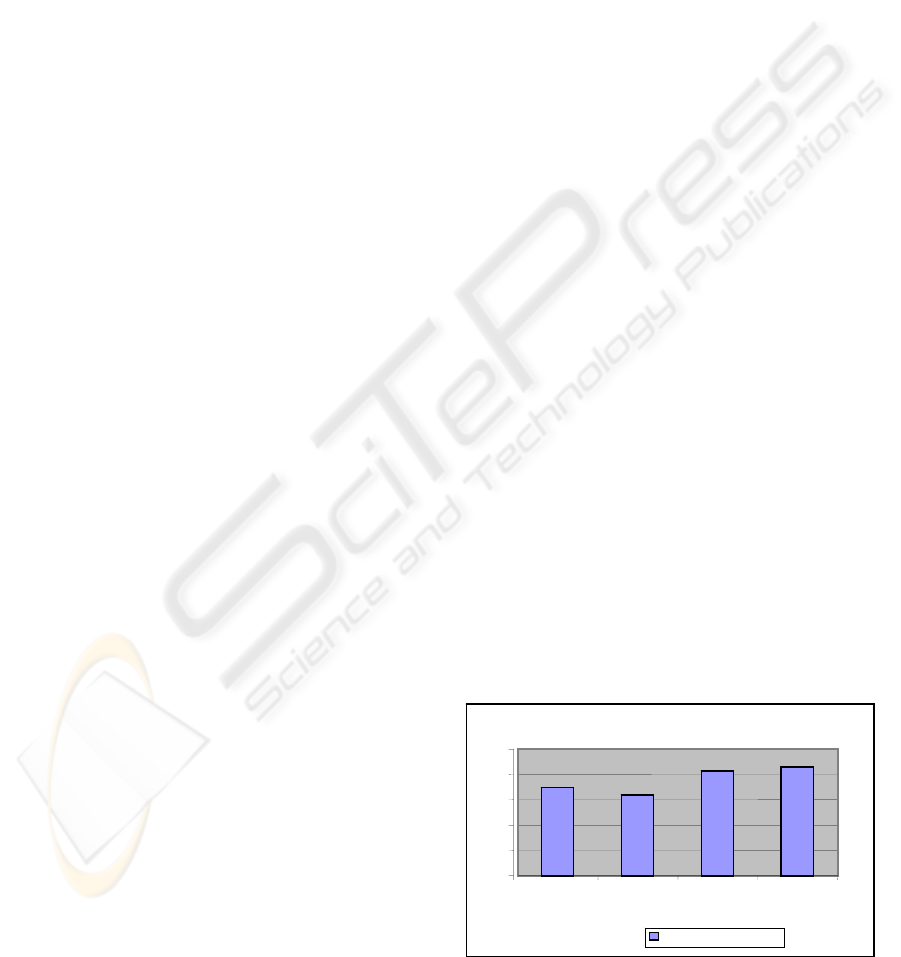

Figure 1: Failure probabilities of different systems.

0.02

0.04

0.06

0.08

0.1

pai

ori

inal

pai

new

sin

ori

inal

sin

new

failure

robabilit

ICSOFT 2007 - International Conference on Software and Data Technologies

280

The systems with multiple wrappers showed

higher fault tolerance than those with a single one.

The system containing the wrapper pair with a

higher diversity showed the best fault tolerance.

3.2 Wrappers with Functional

Diversity

The aim of designing an effective wrapper in this

experiment was to enhance its reliability using

functional diversity.

In a practical design, a safety wrapper may

contain some productive computation functions i.e.

that perform computation of values rather than just

checking relations between values. Therefore in

addition to a structural diversity approach, we can

use functional diversity in the design of multiversion

wrappers. Essentially, the idea is to build a

‘checking style’ wrapper for the initial wrapper —

thus ‘wrapping a wrapper.’ For example, the safety

wrapper ASSIGN_VALUE includes some productive

functions to calculate the average value of three

sensor readings under various conditions. Our

approach is to use different diagnosis strategies in

wrappers to check if the calculation of the average

value is accurate.

In the experiment, a ‘checking style’ wrapper

was built as a redundant assertion. With the original

wrapper, they can compose a two-version wrapper

array. This check style wrapper used reverse

computation to validate the output from the COTS

component or the previous wrapper. The assessment

simply compared the fault coverage of the diverse

wrappers with the original one. We use a subset of

faults (from the fault set in last experiment) to test

the two wrappers. Of these faults, the system shows

diversities on 22.2% of them.

3.3 Wrappers with Data Diversity

Application of data diversity to smart sensors relies

on finding an equivalent re-expression of the input-

output relation of the sensors.

A smart sensor is normally used as a COTS

component. This means that it is difficult to

implement diversity design because little is known

about the code inside the component. On the other

hand, smart sensors are often well suited to data

diversity due to their straightforward dataflow.

The functions of a smart sensor mainly include

Data Acquisition and Signal Processing. The

processor may be also used for data conversion. The

specification of a smart sensor is often to measure a

variable, manipulate it and, in some cases, to take

action based on its value. In many wider applications

involving smart sensors, one does not care about the

raw data, but only about the information derived

from it by the sensor. For example in the DARTS

protection system, the application may not need the

exact temperature or pressure, but is interested in

whether it has exceeded a certain threshold or not.

Instead of sending a continuous stream of

temperature or pressure readings, a smart sensor

would send just one message when the temperature

criteria are met. Thus, only the relevant information

is sent out to the surrounding system.

Similarly to design strategies using functional

diversity, data diversity techniques can be integrated

in the safety wrapper based on origin-point shifting

methods. To process an input variable, smart sensors

mainly use functions such as scaling, trimming, and

filtering. Input values within different ranges and

with different amplitudes of noise have been

specified to be handled by different formulas. The

above discussion suggests a realistic approach to use

of data diversity within a smart sensor i.e. treating it

as a white box. If a smart sensor is a black box, it is

difficult to set up a proper post-condition assertion

without knowledge about its filter, calibration or

linearization functions. But we often know the

function of the smart sensor essentially is

monotonic:

Suppose

f is the function of the smart sensor

such that:

)(inputfoutput

and D is its

defined input domain. Then we have the relation:

∀

inputs

Dyx

∈

, , if y

> then we have

)()( yfxf > .

To improve the safety of a smart sensor being

used in an alarm function, we can design data

diversity by re-expressing the trip points or other

thresholds using device configuration facilities. For

example, we can shift both the input value and trIp

point by a value L at the same time. The shifted

values are used as re-expressed inputs and fed into

the sensor. In our solution, the sensor component

was wrapped with a new checker to judge if the trip

criteria were met based on these shifted values.

Thereafter, an assertion simply compared this result

with original one.

4 CONCLUSIONS

This paper investigates some design strategies to

provide middleware with safety functions to enhance

dependability of systems containing COTS

components. The designs were evaluated using an

empirical method and support tool developed

NEW DESIGN TECHNIQUES FOR ENHANCING FAULT TOLERANT COTS SOFTWARE WRAPPERS

281

systematically for diversity estimation based on fault

injection and failure tracing. A key issue is the

assessment of fault tolerance, on which conclusions

are based. The presented approach used fault

injection. By definition these faults are artificial. The

current understanding of software failure modes is

insufficient to allow the definition of realistic fault

sets - it is not clear what these might be. Therefore

this approach relies on an assumption that

hypothetical fault sets used in this way are

informative.

Diverse wrappers and wrappers embedded with

diagnostic assertions or data diversity have been

demonstrated as providing some level of increased

effectiveness at protecting system from potential

defects inside a COTS component.

The experiments on diversity designs of safety

features in middleware did not distinguish functional

and structural diversity: in terms of performance

they were similar. Anyhow, from these limited

experimental results it would clearly not be possible

to make general claims about the fault detection

capabilities of the different assertion type.

Some tentative conclusions are suggested that

are relevant to practice:

• A ‘wrapper’ can be built from multiple

smaller complementary wrappers which can

be very effective and easy to implement

• Functional diversity is easier to design than

structural diversity in multi wrappers

• The application of check-style wrappers

reduces the scope for faults because they are

usually simpler modules than other kinds of

functional wrappers. It was clear in our

experiments that check-style wrappers can be

considerably more succinct than the code they

check. This is not surprising; it is well known

that checking a function can be a less complex

task than computing it. This effect was

sometimes so pronounced that it was difficult

to select plausible fault modes for injection

into the check-style wrappers.

• A degree of orthogonality between old and

new wrappers was observed, which suggests

that software reliability will be most improved

if both assertion types are used (particularly

for faults with small footprints in the input

space).

• Data diversity would appear to offer an

effective and appropriate way to improve

safety in smart sensors. It remains unexplored

in practice.

ACKNOWLEDGEMENTS

The work presented in this paper comprises aspects

of a study (NewDISPO2-4) performed as part of the

UK Nuclear Safety Research programme, funded

and controlled by the CINIF together with elements

from the SSRC Generic Research Programme

funded by British Energy, Lloyd's Register, and the

Health and Safety Executive.

REFERENCES

Ammann, P.E., Knight, J.C., 1988. Data Diversity: An

Approach to Software Fault Tolerance. IEEE Trans.

on Computers, 37(4): pp. 418-425.

Brown, A., Wallnau, K., 1998. The Current State of

CBSE. IEEE Software, 15(5): pp.37-46.

Chen, L., May, J., Hughes, G., 2002. Assessment of the

Benefit of Redundant Systems, Lecture Notes in

Computer Science, volume 2434, Springer, pp.151-162.

Chen, L., May, J., 2004. Safety Assessment of Systems

Embedded with COTS Components by PIP technique,

Lecture Notes in Informatics 58 GI.

Crnkovic, I., Larsson, M., 2002. Building Reliable

Component-Based Software System, Artech House Books.

Harel, D., 1992. Algorithmics: The Spirit of Computing,

Addison-Wesley.

Lindsay, P., Smith, G., 2000. Safety Assurance of

Commercial-Off-The-Shelf Software, Proc 5th

Australian Workshop on Safety Critical Systems and

Software.

May, J., 2002. Testing the reliability of component-based

safety critical software. Proc. 20th International

System Safety Conference, pp. 214—224.

Napier, J., Chen, L., May, J., Hughes, G., 2000. Fault

Simulating to validate fault-tolerance in Ada.

International Journal of Computer Systems, 15(1):61-67

Napier, J., 2001. Assessing Diagnostics for Fault Tolerant

Software. PhD thesis, Department of Computer

Science, University of Bristol.

Panel Discussion, 2002. How useful is software fault

injection for evaluating the security of COTS

products. Proceedings of the 17

ACSAC, IEEE

Computer Society.

Profeta., J, Andrianos, N., Yu, B., 1996. Safety-Critical

Systems Built with COTS, IEEE Comp. 29(11), pp 46-

54.

Quirk, J., Wall, N., 1991. Customer Functional

Requirements for the Protection System to be used as

the DARTS Example, DARTS consortium deliverable

report DARTS-032-HAR-160190-G supplied under the

HSE programme on Software Reliability.

Shin, M., Paniagua, F., 2006. Self-Management of COTS

Component-Based Systems Using Wrappers, 30th

COMPSAC, pp. 33-36.

Voas, J., 1998. Certifying Off-The Shelf Software

Components, IEE Computer, pp.53-59.

ICSOFT 2007 - International Conference on Software and Data Technologies

282
