MULTI OBJECTIVE ANALYSIS FOR TIMEBOXING MODELS

OF SOFTWARE DEVELOPMENT

Vassilis C. Gerogiannis and Pandelis G. Ipsilandis

Department of Project Management, Technological Education Institute of Larissa, Larissa, Greece

Keywords: Software Project Management, Iterative Development, Timeboxing, Project Scheduling, Linear

Programming, Multi-Objective Optimization.

Abstract: In iterative/incremental software development, software deliverables are built in iterations - each iteration

providing parts of the required software functionality. To better manage and monitor resources, plan and

deliverables, iterations are usually performed during specific time periods, so called “time boxes”. Each

time box is further divided into a sequence of stages and a dedicated development team is assigned to each

stage. Iterations can be performed in parallel to reduce the project completion time by exploiting a

“pipelining” concept, that is, when a team completes the tasks of a stage, it hands over the intermediate

deliverables to the team executing the next stage and then starts executing the same stage in the next

iteration. In this paper, we address the problem of optimizing the schedule of a software project that follows

an iterative, timeboxing process model. A multi objective linear programming technique is introduced to

consider multiple parameters, such as the project duration, the work discontinuities of development teams in

successive iterations and the release (delivery) time of software deliverables. The proposed model can be

used to generate alternative project plans based on the relative importance of these parameters.

1 INTRODUCTION

In iterative and incremental development, software

is built gradually by following a sequence of

iterations, with each of the iterations delivering a

part of the final software system (Larman, 2003). A

common project management technique that has

been associated with iterative/incremental software

processes (e.g., Rational Unified Process - RUP,

Dynamic Systems Development Method - DSDM) is

timeboxing (Hunt, 2003; Stapleton, 2003). In

timeboxing, iterations are performed during specific

time periods, so called “time boxes”. The

timeboxing model is suitable for software

development projects in which delivery times are

crucial and system requirements are stable or, at

least, they can be grouped into classes of features to

be developed during different time boxes/iterations.

The main objective of timeboxing is to deliver

the final software system as quickly as possible and

avoid risks of missing project deadlines (Jalote et

al., 2004). Each time box is divided into a sequence

of stages (e.g., requirements analysis, design,

implementation, testing and deployment) that are

repeated in each time box (Figure 1). A dedicated

team of experts is usually assigned to each stage,

i.e., a team for a stage performs only the activities

for that stage. Iterations in timeboxing can be

performed in parallel to further improve the project

performance and reduce the overall project duration.

Parallelism is achieved by exploiting a “pipelining”

concept from hardware architectures (Hennesy and

Patterson, 2004), that is, when a team completes the

tasks of a stage, it hands over the intermediate

deliverables to another team executing the next stage

and then starts executing the same stage in the next

timeboxed iteration.

However, the application of a timeboxing process

model is often associated with some “inherent”

assumptions/simplifications which require proper

configuration/resource management procedures

(Jalote et al., 2004):

 the number and duration of time boxes are fixed,

 the planned durations of each stage, in each time

box, are approximately equal,

 precedence constraints between stages, in each

iteration, are simple sequential relationships,

145

C. Gerogiannis V. and G. Ipsilandis P. (2007).

MULTI OBJECTIVE ANALYSIS FOR TIMEBOXING MODELS OF SOFTWARE DEVELOPMENT.

In Proceedings of the Second International Conference on Software and Data Technologies - Volume ISDM/WsEHST/DC, pages 145-153

DOI: 10.5220/0001341501450153

 SciTePress

TimeBox1

TimeBox2

TimeBox3

TimeBox4

Requirements Design

Impementation

Testing &

Deployment

Requirements Design

Impementation

Testing &

Deployment

Requirements Design

Impementation

Testing &

Deployment

Software System

Requirements Design

Impementation

Testing &

Deployment

Figure 1: The timeboxing process model.

 requirements, system architecture and

technology are considered as quite stable to be

managed separately into different time

boxes/iterations,

 development teams, performing the same type of

activity at respective stages in different

timeboxed iterations, should be experienced and

“coherent” enough to ensure high resource

utilization and avoid idle times/work

discontinuities in successive iterations.

A serious drawback of timeboxing is that possible

work discontinuities affecting the project velocity

(XP, 2006) cannot be easily handled. For example,

even with a highly experienced team of designers,

execution of activities in the corresponding stage of

a particular time box/iteration cannot be performed

“immediately” after the same (or a different) team

has completed the activities of the design stage in

the previous time box. In reality, due to the different

scope of the design activities (database system

design, user interface design etc.), software projects

require larger amount of resources (e.g., multi-

disciplined designers), thus raising coordination

issues, transition/communication delays and

resource time losses between design stages in

successive iterations. Consequently, there is a

learning curve associated with any team to become

familiar with the features to be implemented at each

stage and the corresponding user requirements

(Hanakawa et al., 1998). Furthermore, in a multi site

software development project (Ebert and De Neve,

2001), members of development teams may be

drawn from several locations, thus introducing

additional communication gaps/coordination delays.

Even when the system architecture is quite fixed

(e.g., in a software project developing a web

application), the set of features to be considered

during the design stage of a specific iteration

depends on the outcomes of the previous

requirements stage and any new requirements

introduced by the end-user. In such cases, the

development of a software project based on a “rigid”

timeboxing approach is getting much more complex

and should be supported with more systematic and

holistic methodologies that address diverse

scheduling decision elements, regarding the overall

project performance.

This paper, contributes to further promote the

applicability of the timeboxing process model in

software projects that require more effective

resource management and planning, by exploring the

multi objective approach in planning and scheduling

decisions. In particular, we propose a multi objective

linear programming (LP) model for scheduling

projects which employ timeboxing (TB projects).

The model includes a list of criteria (such as project

duration, iteration completion/release time of

software increments and work gaps), which are

important for TB project managers in making

decisions regarding the overall project performance.

Thus, the scheduling problem of TB projects is

regarded as a multi criteria decision that can be

formulated by linear programming techniques. Such

a Multi Criteria Decision Analysis (MCDA)

approach is based on a parametric objective function

which, according to the values of its parameters,

aims either at a single criterion optimization or at a

multi-objective optimization, by combining different

criteria into a single cost criterion for the whole

project.

The rest of the paper is organized as follows:

Section 2 describes the background of our approach.

Section 3 presents a formal linear programming

formulation for scheduling TB software projects.

Section 4 presents the application of the model to a

software project example that follows practices of

iterative/timeboxed planning as well as the project

schedule evaluation under individual criteria.

Section 5 presents the project schedule evaluation by

considering multiple criteria; the model utilization to

assist software project managers in selecting among

alternative project schedules is also discussed.

ICSOFT 2007 - International Conference on Software and Data Technologies

146

Finally, conclusions and directions of future research

are discussed in section 6.

2 BACKGROUND

While MCDA approaches have been applied in other

fields of software engineering and software project

management, there is a lack of attention to the

problem of efficiently scheduling iterative software

development, in general, and TB projects, in

particular. For example, in (Lai et al., 2002;

Santhanam and Kyparisis, 1995) MCDA techniques

have been proposed to assist the problem of

selecting a software development project from a set

of projects by considering the cost of the respective

investment; in (Wang and Lin, 2003; Ruhe et al.,

2003) MCDA techniques have been suggested to

select and prioritise software requirements; in

(Stamelos and Tsoukias, 2003) a multi criteria

model has been applied to evaluate the software

quality; while in (Barcus and Montibeller, 2006)

MCDA has been employed to support work

allocation in distributed software development

teams.

With regard to TB project scheduling, Jalote et

al., (2004) examine the cost of unequal stages to the

overall performance and resource utilization of a TB

project. In their paper, the pipelining concept from

hardware architectures is exploited to provide a

process model for TB projects and, consequently, to

determine the overall project duration, in case that

time boxes are decomposed into unequal stages.

Each stage is considered equal to the longest stage;

the frequency of deliverables produced (i.e., the

project velocity), as well as the project duration are

determined by the longest stage. The model

application results in “slack time” for the teams

performing the “slower” stages (i.e., resources

under-utilization). The problem is handled in an ad-

hoc way by reducing the size of teams for the slower

stages. In addition, the suggested approach assumes

a simplified nature for TB projects where: i) the

number/duration of timeboxes/stages is fixed and

pre-specified, ii) there are no transition delays (work

gaps) between stages in successive iterations, and

iii) in each timeboxed iteration, stages proceed at a

sequential manner. Hence, the model does not take

into account multiple decision elements for

scheduling TB projects, such as the project duration,

the completion time of each iteration that determines

the time of the next software release increment,

possible precedence relationships due to

technological constraints between stages, as well as

transition delays/work discontinuities between

stages in successive iterations.

To alleviate the above limitations, in this paper

we try to exploit recent advances of MCDA in other

project management areas which exhibit analogous

characteristics to TB software projects. For example,

many instances of construction engineering projects

consist of a set of activities that are repeated at

different locations/units (Mattila and Abraham,

1998). After an activity is completed in one site, it is

repeated in the next site either at a horizontal

(highway segments, railways bridges, tunnels,

pipelines, sewers etc.) or a vertical flow (high-rise

and multi-story buildings, multi-housing projects,

etc.) These projects are known in the construction

engineering literature as Linear and Repetitive

Projects (LRPs) (Hassanein and Moselhi, 2005).

Scheduling of LRPs, in practice, could involve

multiple control variables than just minimizing the

project duration or achieving resource continuity,

which are the objectives in conventional project

scheduling techniques like PERT/CPM and RSM

(Repetitive Scheduling Method), respectively

(Kallantzis and Lambropoulos, 2004; Yang and

Ioannou, 2004). Alternative project schedules,

comparisons and cost trade-offs are often required to

arrive at an acceptable or optimum project schedule.

In this aspect, the scheduling problem in LRPs has

been recently considered as a multi objective

problem that can be addressed by linear

programming techniques (Hassanein and Moselhi,

2005; Hyari and El-Rayes, 2006; Ipsilandis, 2007).

In the following, a multi objective linear

programming scheduling model, originally defined

for LRPs (Ipsilandis, 2007), is adapted to schedule

software projects which employ timeboxing. The

model has the capacity to provide optimum

schedules, reflecting not only single but multiple

objectives, and assist software project managers in

producing and selecting among alternative schedules

of a TB project.

3 THE MULTI OBJECTIVE

NATURE OF TB PROJECTS

In a TB project, a list of criteria important to the

software project manager in his/her decision making

regarding the overall project performance may

include the following:

 Project duration.

 Resource idle time: in TB projects, work gaps

between stages in successive timeboxed

MULTI OBJECTIVE ANALYSIS FOR TIMEBOXING MODELS OF SOFTWARE DEVELOPMENT

147

iterations cannot be ignored. Although the same

stage is repeated sequentially in different

timeboxes, violating the continuity of the same

stage between successive timeboxes introduces

work gaps and time losses that increase the

overall project cost and duration.

 Iteration completion time: The completion of

each iteration and, consequently, the time of the

next software release increment are affected by

the precedence relationships/technological

constraints between stages and the duration of

each stage. The iteration completion time

identifies a proper choice/milestone (i.e., a

minimum bound) for the duration of the

corresponding time box and, thus, specifies the

iteration deadline. The project manager can then

identify the amount of functionality to be

developed at each iteration, that is, the

functionality that can be “fit” into a time box.

Iterations result in some working software

released to the customer for early feedback or to

the Quality Assurance team. The final iteration

results in the final software product.

 Slack time: Reducing a stage slack time may

result in achieving a high level of work

continuity and resource utilization but, at the

same time, introduces higher risk, regarding the

completion time of iterations and the overall

project duration.

 Number of iterations: A TB project requires a

good estimation of the software features to be

developed and released after each iteration. We

assume that each iteration introduces an

additional fixed cost for the project but, at the

same time, splits the software system into

smaller parts which could improve the overall

cash flow and keep management complexity

under control.

In any TB project, there is a set of M stages and P

project dependency relationships (with or without

time-lag). The project is divided into N separate

iterations in a “linear” way, where, without loss of

generality, the following assumptions hold: i) all

stages are performed in all iterations, ii) a stage

cannot be performed in any iteration before the same

stage is completed in the previous iteration, and iii)

the set of precedence dependencies remain the same

in all iterations (i.e., the same planning method is

followed in all iterations).

Let i = 1,2,…,M denote the project stages and

j = 1,2,…,N denote the project iterations. Scheduling

of a TB project can be formulated as a linear

programming model as follows.

Model Variable and Parameters.

Define:

, the duration of stage i in iteration j,

, f

, the start and finish time respectively of

stage i in iteration j,

, the minimum elapsed time for starting stage

i in iteration j+1, after finishing stage i in iteration j,

, the set of predecessor stages to stage i,

E , the set of all stages without successors,

, the total duration of work-breaks for stage i

because of discontinuities in successive iterations,

, the completion time of iteration j,

, the promised delivery/release time for the

software part produced in iteration j,

, the unit cost of delay in finishing iteration j

after the deadline (timebox),

, the unit cost of work-breaks in stage i.

Constraint definitions.

Define:

Stage duration constraints:

= s

+ d

∀

i=1, 2…M, j=1, 2… N (1)

Project linearity constraints:

ij+1

≥ f

+ l

∀

i=1, 2… M, j=1, 2… N-1 (2)

When l

= 0, the constraint takes the form of the

common finish-to-start relationship.

Technological dependencies:

≥ f

∀

i=1, 2… M, j=1, 2…N, k

∈

(3)

Iteration completion time:

≥ f

∀

j=1,2…N, k

∈

E (4)

is the completion time for iteration j and UC

equal to the project duration.

Resource delays (work-breaks):

)

N-1

ij+1 ij

j=1

= (s f , i = 1,...,M

−∀

∑

i=1

=WB

∑

(5)

Global Objective function.

Depending on the values of the parameters c

and f

the following general objective function:

Minimize

.( ) .

jj ii

j=1 i=1

cUC D fWB−+

∑∑

(6)

can be used accordingly, to achieve different

objectives or for trade-offs between various criteria,

as follows:

Project duration (c

=1, rest of c

and f

equal to 0):

MinimizeUC

(7)

Total work-break time (all f

= 1, all c

= 0):

Minimize WB (8)

Iteration completion time (all f

= 0, c

= 1):

ICSOFT 2007 - International Conference on Software and Data Technologies

148

Minimize

i=1

∑

(9)

Total cost of work-breaks (all c

= 0):

Minimize

i=1

∑

(10)

Delay cost (all f

= 0):

Minimize

.( )

i=1

cUC D−

∑

(11)

Trade-offs between costs of project delays and

resource delays (work-breaks):

Minimize

.( ) .

jj ii

j=1 i=1

cUC D fWB−+

∑∑

(12)

4 CASE-STUDY EXAMPLE

In this section, we demonstrate the type of answers

and analysis that can be supported by the proposed

model through the use of a hypothetical short-term

software project example that follows the principles

of the agile ICONIX process (Rosenberg et al.

2005). In ICONIX, the project processes are use-

case driven, like in RUP, but without a lot of the

project management overhead that the RUP

introduces. The project example follows a minimal

set of 6 stages/steps which are executed in an

iterative/incremental approach. These stages are:

Domain Modelling (stage A), Use-Cases Analysis

(stage B), Requirements Review (stage C),

Preliminary Design & Review (stage D), Detailed

Design & Review (stage F) and Coding & Testing

(stage F).

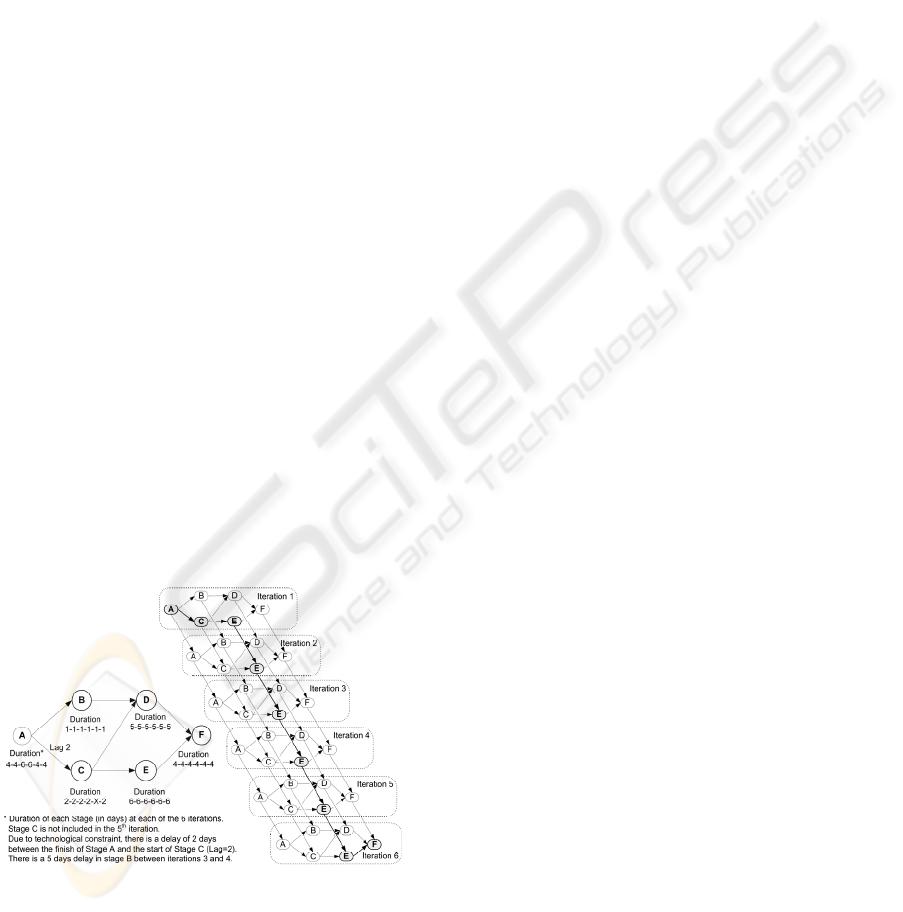

Figure 2: Precedence and PERT network.

Multiple iterations occur between developing the

domain model (stage A) and analyzing the use cases

(stage B). Other iterations exist, as well, as the

development proceeds through the project life cycle.

Although the project does not require a lot of

bookkeeping, in order to over-utilize the small

development teams working at each stage (2-3

experts), all iterations should be somehow

“timeboxed”.

The final software application is

planned to be delivered after 6 iterations, of the 6

discrete stages specified above. A stage-specific

development team executes the activities at the

corresponding stage following the sequence of

iterations. All stage dependencies are finish-to-start

(FS), as shown in the precedence network diagram

on the left of Figure 2 along with the most likely

estimate of the duration of each stage at each of the

6 iterations. The network also depicts precedence

constraints between stages within iterations (e.g.,

Use-Cases Analysis and Requirements Review

stages take place in parallel after Domain Modelling

is completed).

Although the initial objective was to keep project

management complexities as low as possible, the

resulting PERT diagram for all six iterations

portrays a multiplicative complexity for the whole

project (Figure 2). The critical path of the entire

project consists of stages A and C in iteration 1, the

sequence of stage E in all iterations, and stage F in

iteration 6.

4.1 CPM ES & LS Schedules

The schedule produced from the Critical Path Early

Start Method (CPM ES) minimizes the project

duration and, at the same time, the completion time

(the release time for software parts) in all iterations.

In general, obtaining a partial software delivery as

early as possible could affect negatively the software

quality but positively the financial performance of

the project, in cases where customer payments are

contingent upon partial deliveries. In such a case, the

objective must be set to minimizing the completion

time of all or certain iterations (that is to minimize

as much as possible the time boxes of iterations),

even if work continuity is sacrificed. Note that an

iteration completion time denotes a lower bound for

the corresponding time box.

Setting the objective function as in Eq. 9 the LP

solution coincides with the CPM ES schedule which

yields for the project example a duration equal to 48

working days, with iteration completion times and

work-breaks set as shown in Figure 3. In the

corresponding linear scheduling diagram, the

progress of each stage through the project iterations

is represented by a piecewise straight line. The slope

of the line corresponds to the production rate of the

specific stage at each iteration. Horizontal segments

MULTI OBJECTIVE ANALYSIS FOR TIMEBOXING MODELS OF SOFTWARE DEVELOPMENT

149

on the progress line correspond to work-breaks (i.e.,

work interruption) between the execution of the

same stage in successive iterations. Vertical

segments represent specific cases, where a stage is

not included in the corresponding iteration.

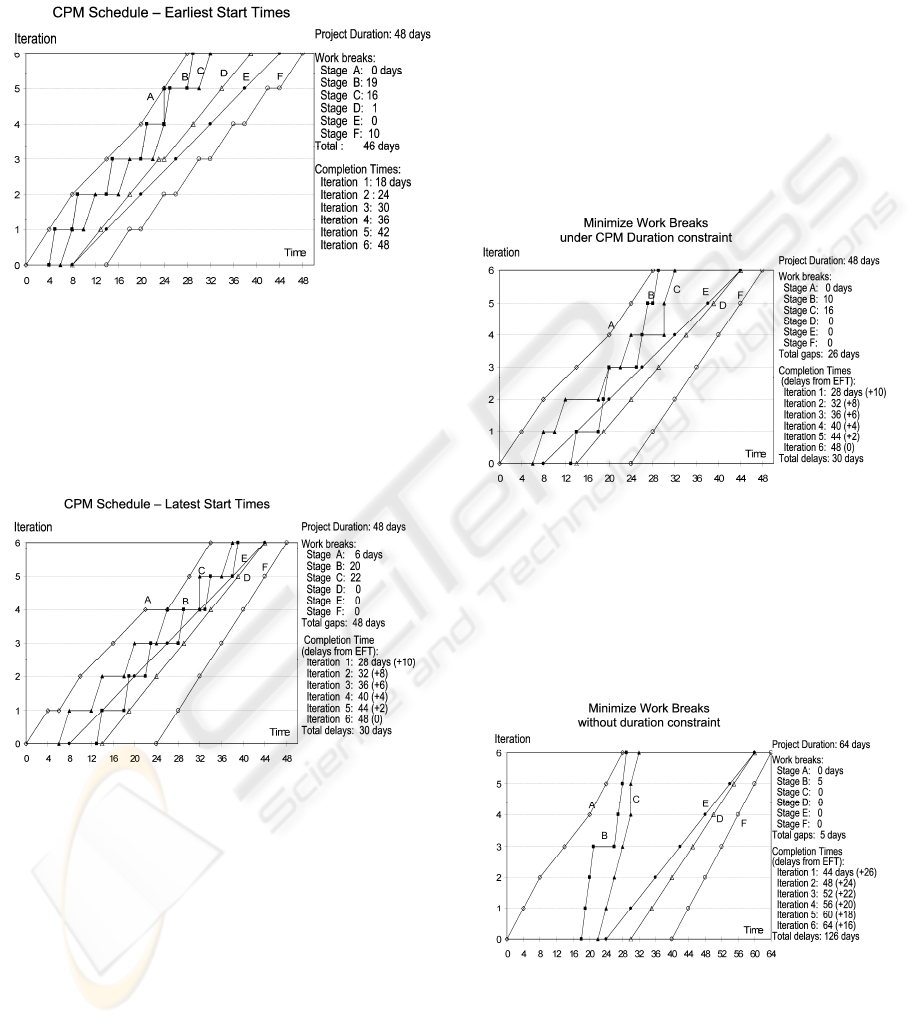

Figure 3: Linear scheduling (CPM - ES).

CPM is insufficient in addressing work

continuity objectives and, consequently, does not

consider utilization levels of development teams.

Work-breaks cannot be eliminated or even reduced

by scheduling stages according to the Latest Start

(LS) time, as it is demonstrated in Figure 4.

Figure 4: Linear Scheduling (CPM - LS).

Pushing stages to their LS time moves work-

breaks from the last project stages to those in the

beginning. In the specific project example, the LS

schedule introduces even more work-breaks, while,

at the same time, produces delays in

intermediate/partial deliveries (i.e., timebox

violations). Additionally, the LS schedule fails to

address planning for agility aspects (Rosenberg et al.

2005), since it consumes all the “slack time” for

teams performing the stages, hence making the

project performance more vulnerable to unexpected

delays/interrupts (e.g., major design errors, changes

in user requirements etc.).

4.2 Minimizing Work-Break Time

Setting the 48 days CPM duration as the constraint

of Eq. 4 (UC

=48), and selecting the objective

function of Eq. 8, the LP model produces a schedule

that minimizes the total resource work-break time,

while maintaining the overall project completion

time as set by the CPM schedule. The resulting

schedule for the project is shown in Figure 5. The

minimum project duration of 48 days can be

achieved with a minimum of 26 days of work-breaks

concentrated at stages B and C. Further reduction of

stages work-break time cannot be achieved without

extending the project duration beyond 48 days.

Figure 5: Minimization of work-breaks under CPM

duration.

If the CPM duration constraint is relaxed, work-

breaks can be further reduced to a minimum of 5

days, causing however a delay in the delivery of the

project, the duration of which is extended from 48 to

64 days, as depicted in Figure 6.

Figure 6: Minimization of work-breaks without duration

constraints.

The work-break at stage C is eliminated, while at

stage B is reduced to 5 days. The completion time of

all iterations is also pulled to 16 days later than in

the previous schedule. A saving of 21 days in work-

ICSOFT 2007 - International Conference on Software and Data Technologies

150

breaks is traded-off with a project delivery delay of

16 days. In the next section, trade-off issues between

work-breaks and software parts delivery/release

times are further investigated by using LP sensitivity

analysis.

5 TRADE-OFF ANALYSIS

All schedules derived under the previous conditions

were based on a single criterion each time.

Alternative schedules optimized with respect the

different evaluation criteria as they are defined in

Eqs. 7-11, can also be easily derived by the LP

model. The objective function defined in Eq. 12

consolidates the criteria of project duration, iteration

completion time/time box duration (release time of

each software part), and work-break into a single

composite criterion. A necessary condition is to

estimate the relative unit cost of each of the above

project parameters.

Work-break costs may vary among different

stages, according to the effort and scarceness of the

resources (team members) involved in each stage.

The same holds true with the cost associated with

delays in completion/delivery time of different

iterations (i.e., the cost of violating timebox

constraints) which can affect the overall cost of the

project, either directly (i.e., delay penalties) or

indirectly (i.e., financial cost due to late cash

receipts or delays in revenue generation). However,

the sensitivity analysis results on the parameters of

the objective function of Eq. 12 can be used to

establish optimum schedules at different levels of

cost relations, with no need to have accurate

estimates of the exact cost, as it is demonstrated in

the following two examples.

5.1 Trade-off between Project

Duration Delay and Work-Breaks

The first example demonstrates a trade-off analysis

between the cost of delays in project completion and

that of work-breaks. Delays are measured in time

units as deviations from the earliest finish date of the

project as it is set by the CPM or from any

predefined delivery date set by the project manager

and/or the final user. It is also assumed that

intermediate delays in completing individual project

iterations do not impose any additional cost to the

project, and that the cost of work-breaks is the same

for all stages. In this case, the objective function

(Eq. 12) of the model is equivalent to:

Minimize c(UC

) + f(WB) or

Minimize c{UC

+( f/c)WB} (13)

where c and f denote the daily cost of project delay

and work-break, respectively.

The results of the sensitivity analysis on the

values of the coefficient f/c of the objective function

in Eq. 13 set optimality ranges, associated with

alternative optimum schedules as shown in Figure 7.

For the specific project example three optimality

ranges are identified: When the work-break unit cost

ranges between zero and up to 50% of the delay cost

(Range I), the optimum scheduling results in project

duration of 48 days (minimum possible) with a

maximum work-break time of 26 days. When the

work-break unit cost ranges between 50% to 100%

of the delay cost (Range II), it is more economical to

let the project duration slip by 5 days in order to gain

a reduction of 16 days in work-breaks. Finally, when

the work-break cost exceeds the lateness cost (Range

III), the optimum schedule is the one that reduces

work-breaks to the minimum of 5 days, which

results in extending the project duration by 16 days.

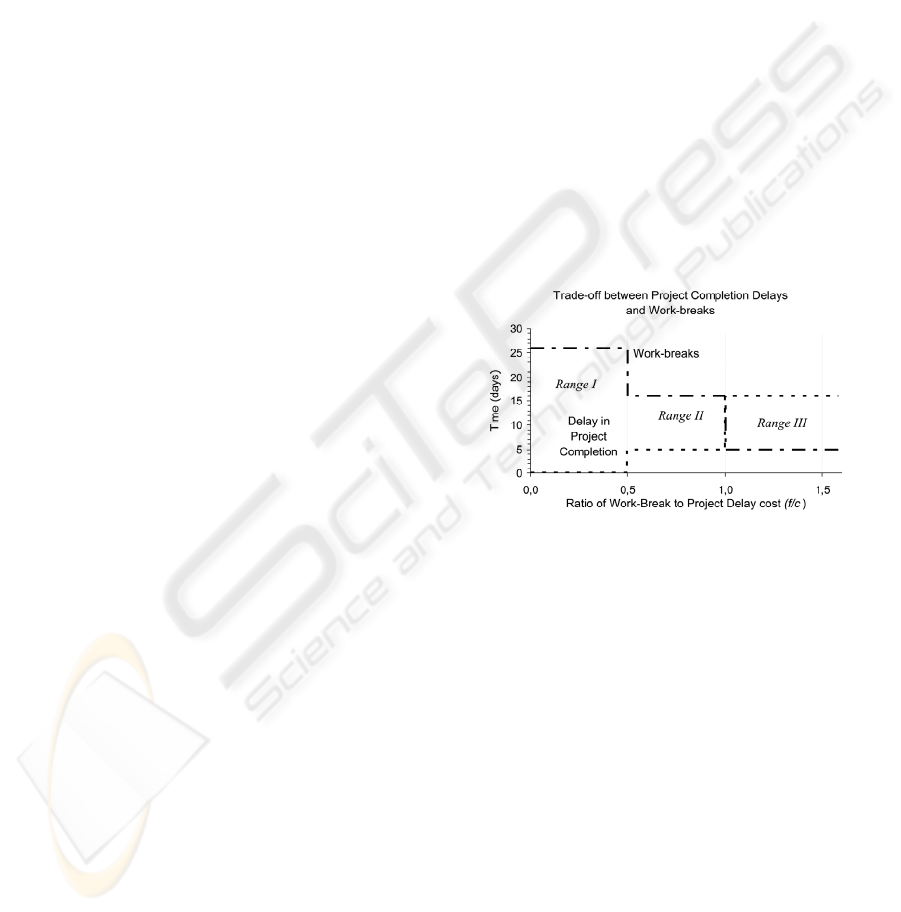

Figure 7: Trade-off between project completion delays and

work-breaks.

5.2 Trade-off between Iteration

Completion Delays

and Work-Breaks

In the second example, we examine the scenario

where a penalty cost is associated with delivery

delays in the completion of individual project

iterations. Delivery delays/time box violations could

be measured as deviations from the earliest finish

dates of the project iterations (Figure 3) or from a

promised time box specified by the project manager

and/or the customer for each software release. The

choice does not affect at all the range analysis that

follow, since the cost coefficients of the objective

function remain unchanged. For simplicity purposes

we assume that the same penalty applies to delays in

any timeboxed iteration. Also, as in the previous

MULTI OBJECTIVE ANALYSIS FOR TIMEBOXING MODELS OF SOFTWARE DEVELOPMENT

151

case, the cost of work-breaks is assumed to be the

same for all stages. In this case, the objective

function (Eq. 12) of the LP model can be written as:

Minimize

.( ) .

jj ii

j=1 i=1

cUC D fWB−+

∑∑

Minimize

(

)

⎧⎫

+−

⎨⎬

⎩⎭

∑∑∑

NMN

jij

j=1 i=1 j=1

cUC WBcD

(14)

Since the second part of Eq.14 is constant, the

analysis to define ranges of optimality is based on

the level of the f/c ratio. The results shown in Figure

8 indicate 10 optimality ranges corresponding to 10

different optimum solutions, according to the

relation of the work-break to the iteration

completion cost. A schedule which minimizes the

work-break time (5 days) is optimum only when the

associated work-break cost is at least 6 times the

cost paid for iteration delays, and it is achieved by

introducing a total of 108 days of delay in the

completion of all iterations. As the relative size of

the work-break to iteration delay cost drops,

alternative solutions that allow for work-breaks may

be more cost efficient.

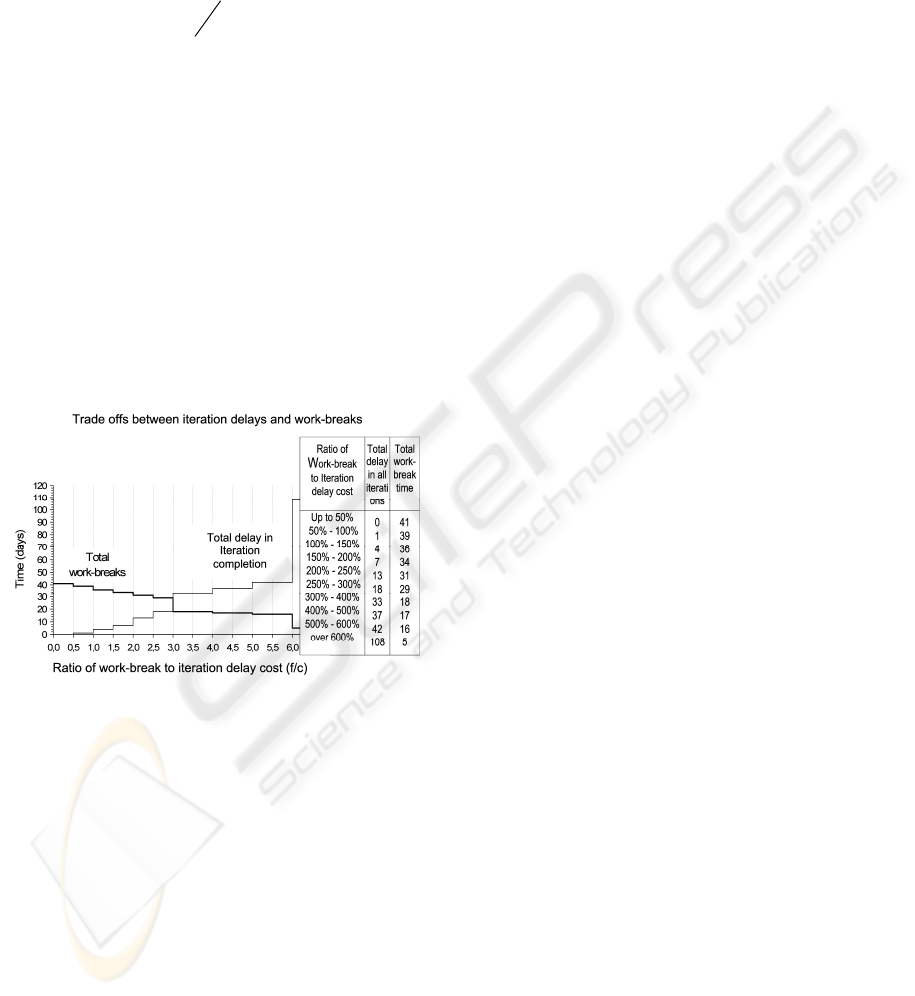

Figure 8: Trade-off between iteration completion delays

and work-breaks.

A notable break point in optimality conditions

occurs at the point where work-break cost is 3 times

the cost of delays. Under this level total delays in the

iterations are kept below 18 days in total (average 3

days per iteration) while above it, delays range from

33 to 108 days (about 5,5 to 18 days per iteration).

Figure 8 gives a graphical representation of the

results. Any distinct segment of a cost coefficient

ratio defined by the sensitivity analysis, corresponds

to an optimal schedule associated with specific

project duration, delays in iteration completion and

work-breaks. The number of alternative optimum

solutions, the trade-off brake points and levels

depend on the constraints of the specific problem

that define the set of all feasible schedules.

6 CONCLUSIONS

Project scheduling in iterative software projects

which employ a timeboxing process model is

generally not a single dimension decision process. A

scheduling decision should take into account more

than a single factor and, most of the times, trade-offs

are required between iteration completion times

(violations of time boxes), project duration and

work-breaks for teams working in the same stages in

successive project iterations. In this paper, we

proposed a multi objective linear programming

model to address these issues and overcome some

simplifications of conventional timeboxing. In the

proposed model, the planning duration of iterations

is not a priori fixed, the durations of each stage in

each respective time box may be not equal,

precedence constraints between stages in each

iteration are not simple sequential relationships, and,

finally, it is possible to consider a wider range of

software projects, where work discontinuities exist

between stages in successive iterations. The model

has the capacity to provide optimum schedules for

iterative projects which follow timeboxing

disciplines, reflecting not only single but multiple

objectives and assists software project managers in

selecting among alternative schedules based on the

relative magnitude of different cost elements. In this

sense, the presented model provides software

managers with the capability to consider alternative

schedules besides those defined by minimum

duration or minimum work-break criterion.

A fully integrated software implementation of

the proposed approach in a model-based

environment that supports the graphical

representation of software development processes

and the process managerial analysis as well

(Gerogiannis et al., 2006) will enhance its

applicability to real-world software projects.

Although the model implementation, as it stands,

can handle the problem formulation of various types

of timing constraints, there are other issues that need

further research. One such issue is the formal

modeling of developers’ learning curves (Hanakawa

et al., 2002) to consider measures of software

productivity and estimates for projects progress.

Another research area that we plan to consider is the

risk level associated with the alternative scheduling

decisions, as it is indicated by the slack time of the

iteration stages and the probability of meeting the

objectives set (software delivery times, work-breaks,

etc.), since unexpected events in one stage or

iteration (e.g., major changes in user requirements)

may affect not only the duration of the project and

ICSOFT 2007 - International Conference on Software and Data Technologies

152

the iteration completion/delivery times but also the

work continuity in project resources. Similarly, the

use of simulation techniques could provide further

insight on the stability of the alternative optimum

solutions defined by the trade-off approach.

ACKNOWLEDGEMENTS

This work was partially funded by the Greek

Ministry of Education under the R&D projects

MISSION-SPM and EYPOLYS, in the context of

the ARCHIMEDES national research programme.

REFERENCES

Barcus, A., Montibeller, G., 2006. Supporting the

Allocation of Software Development Work in

Distributed Teams with Multi-Criteria Decision

Analysis. Omega International Journal of Management

Science, to be published in 2007, available at:

www.sciencedirect.com.

Ebert, C., De Neve, P., 2001. Surviving Global Software

Development. IEEE Software, 18(2), 62-69.

Gerogiannis, V.C., Kakarontzas, G., Stamelos, I., 2006. A

Unified Approach for Software Process

Representation and Analysis. In Proceedings of the 1

ICSOFT International Conference on Software and

Data Technologies, 127-132.

Hanakawa, N., Morisaki, S. & Matsumoto, K., 1998. A

Learning Curve Based Simulation Model for Software

Development. In Proceedings of the 20th International

Conference on Software Engineering, IEEE Comp.

Soc. Press, 350–359.

Hanakawa, N., Matsumoto, K., Torii, K., 2002. A

Knowledge-Based Software Process Simulation

Model. Annals of Software Engineering, 14(1-4), 383-

406.

Hassanein, A., Moselhi, O., 2005. Accelerating Linear

Projects. Construction Management and Economics,

23(4), 377-385.

Hennesy, J.L., Patterson, D.A., 2004. Computer

Organization and Design: the Hardware/Software

Interface. Morgan Kaufmann Publishers, 3

edition.

Hunt, J., 2003. Incremental Software. In Guide to the

Unified Process Featuring UML, Java and Design

Patterns, Springer Prof. Comp., 2

edition, 383-394,

available at: www.springerlink.com

Hyari, K., El-Rayes, K., 2006. Optimal Planning and

Scheduling for Repetitive Construction Projects.

Journal of Management in Engineering, 22(1), 11-19.

Ipsilandis, P.G., 2007. A Multi Objective Linear

Programming Model for Scheduling Linear Repetitive

Projects, Journal of Construction Engineering and

Management, to be published in June 2007.

Jalote, P., Palit, A., Kurien, P., Peethamber, V.T., 2004.

Timeboxing: a Process Model for Iterative Software

Development. Journal of Systems and Software, 70(1-

2), 117-127.

Kallantzis, A., Lambropoulos, S., 2004. Critical Path

Determination by Incorporation of Minimum and

Maximum Time and Distance Constraints into Linear

Scheduling. Engineering, Construction and

Architectural Management, 11(3), 211-222.

Lai, V.S., Wong, B.K., Cheung. W., 2002. Group Decision

Making in a Multiple Criteria Environment: a Case

Using the AHP in Software Selection. European

Journal of Operational Research, 137 (1), 134-144.

Larman, C., 2003. Agile and Iterative Development: A

Manager's Guide. Addison-Wesley, 1

edition.

Mattila, K.G., Abraham, D.M., 1998. Linear Scheduling:

Past Efforts and Future Directions. Engineering,

Construction and Architectural Management, 5(3),

294-303.

Rosenberg, D., Stephens, M., Collins-Cope, M., 2005.

Agile Development with ICONIX Process: People,

Process, and Pragmatism. A-Press.

Ruhe, G., Eberlein, A., Pfahl, D., 2003. Trade-off Analysis

for Requirements Selection. International Journal on

Software Engineering and Knowledge Engineering,

13(4), 345-366.

Santhanam, R., Kyparisis, J., 1995. A Multiple Criteria

Decision Model for Information System Project

Selection. Computers and Operations Research, 22(8),

807-818.

Stamelos, I., Tsoukias, A., 2003. Software Evaluation

Problem Situations. European Journal of Operational

Research, 145 (2), 273-286.

Stapleton, J., 2003. DSDM: Business Focused

Development. Addison-Wesley, 2

edition.

Wang, J., Lin, Y-I., 2003. A Fuzzy Multicriteria Group

Decision Making Approach to Select Configuration

Items for Software Development. Fuzzy Sets and

Systems, 134(3), 343-363.

XP, 2006. Extreme Programming: a Gentle Introduction.

Available at: www.extremeprogramming.org

Yang, I. T., Ioannou, P.G., 2004. Scheduling with Focus

on Practical Concerns in Repetitive Projects.

Construction Management and Economics, 22(6), 619-

630.

MULTI OBJECTIVE ANALYSIS FOR TIMEBOXING MODELS OF SOFTWARE DEVELOPMENT

153
