RE-USING EXPERIENCE IN INFORMATION SYSTEMS
DEVELOPMENT
Paulo Tom
´
e
Department of Computing, Polytecnic of Viseu, Viseu, Portugal
Ernesto Costa
Department of Computing, University of Coimbra, Coimbra, Portugal
Lu
´
ıs Amaral
Department of Information Systems, University of Minho, Guimar
˜
aes, Portugal
Keywords:
Information Systems Development, Case-Based Reasoning, Model development.
Abstract:
Information Systems Development (ISD) is an important organization activity that generally involves the de-
velopment of models. This paper describes a framework, supported by Case-Based-Reasoning (CBR) method,
that enables the use of experience in model development in the context of ISD process.
1 INTRODUCTION
In the ISD process IT professionals develop mod-
els, like data and functional models, that express
their conceptualization of some organizational as-
pects. The quality and development time of these
models depends on the IT professionals experience.
For example, several authors (Batra and Davis, 1992;
Chaiyasut and Shanks, 1994; Venable, 1996) consider
that expert data modellers perform better than novice
data modellers. Besides that, in classical ISD domain
bibliography (Kendall and Kendall, 1992; Downs
et al., 1992) practical examples are used to illustrate
how techniques/modelling tools can be applied.
The use of domain-specific knowledge within a
KB-Case tool, and the ability to reason with and
make use of this knowledge during a design session
improves the efficiency of a tool (Lloyd-Williams,
1994b). This kind of knowledge is used by some
tools, for example (Tauzovich, 1990; Lloyd-Williams,
1994a), although these tools are oriented for specific
types of models and based on rules. The CBR method
has better performance in design tasks than rule-based
systems (Watson, 1997).
This paper shows a framework, based on the CBR
method, that enables the use of acquired experience
to develop models in the ISD. The proposed frame-
work is not oriented for a specific software tool, nor
for a specific modelling language and not even to a
specific model type. In section 2 we briefly review
the main ISD concepts needed to understand our con-
tribution that is described in section 4. In section 3 we
review some CBR concepts. Finally, in section 4 we
show results of the ISMT (a software tool developed
to support the framework) application to a set of data
models.
2 INFORMATION SYSTEMS
DEVELOPMENT
ISD is the fundamental process performed when en-
gaging IT to achieve a specific purpose in a spe-
cific context (Fitzgerald et al., 2002). According to
Fitzgerald et al. (Fitzgerald et al., 2002) ISD involves
much more than simply the deployment of technol-
ogy. The ISD generally involves several types of pro-
cess. There is not a generally accepted process model.
However the activities such as planning, analyzing,
design and implementation are part of the ISD pro-
cess. Each of these activities has a specific purpose
and is generally implemented by making use of meth-
ods, techniques, modelling tools and software tools.
It must be noted that concepts like method, tech-
357
Tomé P., Costa E. and Amaral L. (2007).
RE-USING EXPERIENCE IN INFORMATION SYSTEMS DEVELOPMENT.
In Proceedings of the Second International Conference on Software and Data Technologies - SE, pages 357-362
DOI: 10.5220/0001343803570362
Copyright
c
SciTePress
nique and modelling tool are not used with the same
meaning in the ISD bibliography. In this paper, we
consider the following:
methods - define what must to be done;
techniques - define how it will be done;
modelling tools - are the means used to im-
plement techniques.
But despite this problem, it could be said that in
the last few decades several authors have proposed
methods, techniques and modelling tools that con-
tribute to a better ISD process. Although some au-
thors criticize the use of methods (Baskerville et al.,
1992; Wastell, 1996), it is a fact that IT profession-
als make use of them. These methods and tools can
be proprietary methods or created/adapted by the IT
professional.
To support the application of techniques and mod-
elling tools, some have authors proposed software
tools, generally called CASE tools, which aim to
improve the ISD processes. The first CASE tools
were mainly design tools. In the nineties the first
knowledge-based CASE (KB-CASE) tools were pro-
posed. Generally, these tools are oriented for specific
ISD processes, for example conceptual database mod-
elling (Welzer et al., 1998) and are based on rules.
In CASE tools two types of modelling tools could
be used: graphical and textual. Textual tools ex-
press models through text descriptions. While graph-
ical tools define models through graphics construc-
tors. There are a lot of graphical and textual tools de-
scribed in ISD bibliography. For example, for defin-
ing the data aspect, there is IDEF1X (FIPS, 1993),
Peter Chen notation (Chen, 1976) and UML class di-
agram (UML, 2006) graphical tools. The the BSP
(IBM, 1984) method uses several textual tools.
3 THE CBR METHOD
CBR is a method (Watson, 1999) that tries to solve
new problems based on solutions to similar previ-
ous ones (Kolodner, 1993; Aamodt and Plaza, 1994).
CBR is based on two crucial aspects: the cases and
the process model.
The case is formed by the problem and the solu-
tion (Kolodner, 1993). The objective and the charac-
teristics of the situation are described by the problem.
The solution consists of the solution itself, the solu-
tion evaluation and reasonings. The identification of
cases types constitutes the major step forward in the
development of the CBR system. The set of cases of
the CBR system is called case memory. An important
issue related to cases is the indexing. The index is
a label associated to the case that will allow it to be
remembered.
The process model, called the CBR cycle, begins
with the problem description and ends with the so-
lution. The CBR cycle has two principal models:
4Rs proposed by Aamod & Plaza (Aamodt and Plaza,
1994) and the one proposed by Kolodner (Kolodner,
1993). The CBR cycles generally involve the follow-
ing activities:
case search to find similar cases;
similarity evaluation to measure the level of
similarity between the problem that must be
resolved and the stored ones;
adaptation to adjust one or several solutions
to the current problem;
case retain to store the new resolved prob-
lem.
The case search is based on the problem descrip-
tion. The similarity evaluation is based on similar-
ity functions (Althoff et al., 1995). Consequently, the
new solution is built by adapting old solutions to the
needs of the current problem. The last task of the
CBR cycle is the inclusion of the case in the cases
memory. Given the fact that a new case is added to
the system, it could be said the CBR systems have the
ability to learn.
It is important to mention, that there are a lot of
domains where the CBR methodology has been used
(Kolodner, 1993; Watson, 1996; Mntaras and Plaza,
1997). The CBR application areas consist of, for
example, software development, architectural design,
meal planning and legal reasoning systems.
The problem presented in this paper could be clas-
sified as belonging to the design class of the classi-
fication schema proposed by Althoff (Althoff et al.,
1995). The development of models is a design task
because the model conception is carried out without
any guidelines. There are several CBR systems that
share this property. These are mainly found in the
software development environments where it is pos-
sible to reuse software code. The Rebuilder project
(Rebuilder, 2006) is an example of this. This project
aims to use the CBR methodology in the development
of UML diagrams (Gomes et al., 2003). The Experi-
ence Factory (Althoff et al., 1999) proposes a struc-
ture and a software application that aims to reuse ex-
perience in the context of software development pro-
cesses. Krampe and Lusti (Krampe and Lusti, 1997)
applied CBR in the IS design. The emphasis of this
work was on the use of design specifications. Their
focus is also on software development process.
Regarding these works, it is important to say that
ISMT is not concerned with the software development
ICSOFT 2007 - International Conference on Software and Data Technologies
358
process (i.e code writing). It is meant to help the de-
velopment of data models. However, the use of UML
diagrams could be an aspect that it has in common
with the Rebuilder project. We may consider ISMT
as a tool that contributes to a good Knowledge Man-
agement (KM). The KM leads to rational allocation of
organisational knowledge assets (Althoff and Weber,
2005), and this tool allows us a to maintain a ”experi-
ence base” platform that facilitate ISD projects.
4 THE USE OF EXPERIENCE IN
ISD
The use of experience in ISD increase the quality of
IS and reduces the costs of development. This section
shows a framework that will enable the use of experi-
ence in model developments.

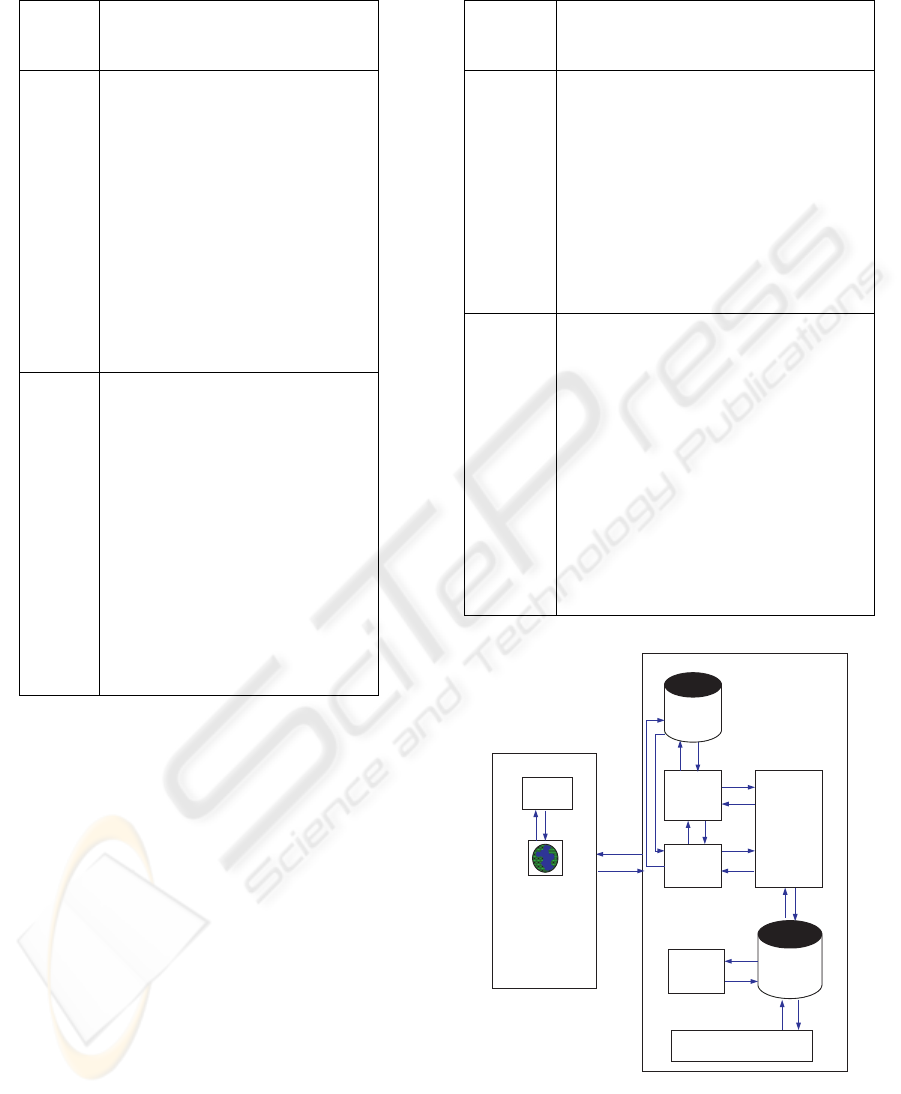

The proposed framework is formed by four main
modules: a Model repository, a Conversation mod-
ule, a Knowledge management module and an Inter-
face module. The Model repository stores models.
The Conversion module deals with the conversion be-
tween notations. The Knowledge management mod-
ule is responsible for the management of the informa-
tion about developed models. The Interface module
implements the interface mechanisms with the soft-
ware modelling tools.
The Model Repository is implemented by the Case
memory of the CBR system. As previously men-
tioned, the Case memory stores cases and general
knowledge domain used by the CBR system. Before
describing the knowledge domain, it is important to
state that it was our intention to implement a system
independent of application domain and also indepen-
dent of the type of modelling tool. Because of this,
the following description is not oriented to a specific
modelling tool.
One part of the knowledge domain is the system
vocabulary (Richter, 1995). The observation of the IT
professionals modelling activity, leads us to conclude
that we should consider two kinds of cases: models
and constructors. The case model is naturally imple-
mented because the IT professionals major goal is the
development of models. But as it is not always possi-
ble to get an entire model, it is useful to extract indi-
vidual constructors.
It was also stated in section 2 that IT profession-
als develop textual or graphic models. As we consid-
ered it important to build an independent system tool,
three types of constructors were implemented: nodes,
arcs and attributes. It could be considered that tex-
tual models are only composed of nodes. For each
constructor type a case is defined.
To define a case we followed Kolodner’s
(Kolodner, 1993) suggestion, where a case consists
of: problem, solution. For the solution part we con-
sidered the XML code that describes the construc-
tor. The problem characteristics were derived from
the formulation of graphic and textual tools through
attribute grammar (Wilhelm and Maurer, 1996). It is
important to note that attribute grammars were used
because some of the modelling tools enable the cap-
ture of semantic aspects. Besides that, it also enables
the description of the structure of the aspect under
analysis. After this step, the system vocabulary is de-
fined as shown in tables 1 and 2.
The set of characteristics listed above, are synthe-
sized and inherited attributes of the formalized mod-
elling tools. For example, Number of nodes and Node
keywords are synthesized attributes. While the Mod-
elling tool, Type of IS and Modelled aspect node char-
acteristics are inherited attributes. It is important to
say that Node properties, Attribute properties and Arc
properties intend to store the specific information of
each constructor.
ISMT was developed under some of the baselines
generally accepted to CBR tools, namely the 4Rs cy-
cle of Aamodt and Plaza (Aamodt and Plaza, 1994)
and some of aspects mentioned by Mantaras et al
(Mantaras et al., 2006) were implemented. Besides
that, it was our aim to develop a tool that could be
case type independent. As shown in tables 1 and 2,
the ISMT tool supports several objectives.
The ISMT structure is illustrated in figure 1. The
ISMT has two main components: the client and the
server. The user uses a browser and a software
modelling tool (like Visio, PowerDesigner or ER-
win). The communication between client and server
is done through the http protocol. The ISMT was im-
plemented with ASPX (Microsoft, 2002) and Oracle
technologies.
The ISMT user can do two main types of tasks:
modelling tasks or configuring new modelling tools.
As already mentioned, the modelling task is the main
aim of IT professionals. The configuration of new
modelling tools is the creation of knowledge domain.
This task will be detailed below.
When the user does the modelling task he intends
to build a model of an organizational aspect. The de-
velopment of the model begins with the definition of
the IS type, modelling tool and the software mod-
elling tool. After that, the user dialogues with the
server to get help in its model development, which
could be the entire model or a specific element, i.e, a
model constructor.
The server component has seven elements: Mod-
1
If is a graphic model.
RE-USING EXPERIENCE IN INFORMATION SYSTEMS DEVELOPMENT
359
Table 1: Case Description.
Case
type
Description
Model Problem:
Objective: Model definition
Characteristics:
Type of IS:
Modelling tool:
Modelled aspect:
Number of nodes:
Nodes keywords:
Number of arcs
1
:
Number of arcs by nodes
1
:
Solution:
Solution: Model XML description
Nodes Problem:
Objective: Node definition
Characteristics:
Type of IS:
Modelling tool:
Modelled aspect:
Node properties:
Keywords:
Number of attributes:
Attributes keywords:
Arcs with
1
:
Solution:
Solution: Node XML description
elling Manager, XML parser, CBR engine, Mod-
elling tool manager, Case Memory, Tools Library and
Knowledge manager.
The Modelling Manager is responsible for all
communication with the user during the modelling
task. This element has two major functionalities: to
accept complete models and process user requests
(model or constructor). The complete models are
transmitted to the XML parser. The user requests
are communicated to the CBR engine and after its re-
sponse the related http code is generated and passed
to the browser.
The XML parser treats model files using the pars-
ing rules of the Tools library. In the starting up phase
complete models are transmitted to the XML parser
to develop the initial Case memory.
The Case Memory component stores cases and
all knowledge domain. This component is imple-
mented through Oracle technology. Two Oracle re-
sources were used: data tables and stored proce-
Table 2: Case Description (Cont.).
Case
type
Description
Attribute Problem:
Objective: Attribute definition
Characteristics:
Modelling tool:
Keywords:
Belong to:
Attribute properties:
Solution:
Solution: Attribute XML description
Arc Problem:
Objective: Arc definition
Characteristics:
Type of IS:
Modelling tool:
Modelled aspect:
Keywords:
Arc properties:
Arc attribute keywords:
Links:
Solution:
Solution: Relationship XML description
CBR Engine
XML
parser
Modeling
Manager
Server
Modeling
Tool
Manager
Case
memory
Knowledge Manager
Browser
Modeling
Tool
Client
Tools
Library
Figure 1: ISMT Structure.
dures/functions. Data tables were used to store the do-
main knowledge, while stored procedures/functions
ICSOFT 2007 - International Conference on Software and Data Technologies
360
were used to implement the system functionalities.
The Case memory is structured through frames
(Minsky, 1974; Minsky, 1975). Richter’s (Richter,
1995) concept of container is implemented in Case
memory to store all types of knowledge. Every frame
has a flag that specifies which type of knowledge it
stores.
As mentioned the Cases are structured according
to the frame mechanism. The data is stored in each
frame case according to the approach attribute/value.
The composed attributes are split into a new frame.
Besides the cases, the Case memory has knowl-
edge related to the metric and adaptation rules. The
metric is stored on the frame that describes the
domain knowledge according to attribute value ap-
proach. The procedures names that implement the
adaptation rules are also stored in the mentioned
frames. These procedures are implemented using
stored procedure of the Oracle engine.
The CBR engine implements the 4Rs cycle
(Aamodt and Plaza, 1994). The Recall phase begins
with a request to the Modelling manager which spec-
ifies a set of problem characteristics. The recall is im-
plemented based on non-structured case memory. The
adaptation is done according to a set of pre-defined
rules. The case evaluation and final adaptation is done
by the system user.
The Modelling tool manager is responsible for the
management of the domain knowledge. Every time
that a new modelling tool is created, it is through this
module that the domain knowledge is specified. Us-
ing this module it is possible to define: the vocabulary,
the weights and the adaptation rules.
Finally, the Knowledge manager intends to man-
age all the stored knowledge related to cases.
5 RESULTS AND CONCLUDING
REMARKS
The system was tested with fifteen IS data mod-
els. The data models belong to different organiza-
tions/domains. Each data model has a different num-
ber of entities, attributes and relationship as described
in rows 1, 2 and 3 of table 3, respectively.
The ISMT was used with two strategies. In the
first strategy the system was launched separately for
each data model (no models in memory). In the sec-
ond strategy the data models are introduced sequen-
tially from M
1
to M
15
.
As we can see in table 4 when the models are
launched sequentially the percentage of adapted cases
increases significantly. For instance the cases rela-
tionship in almost all situations is derived by adapting
Table 3: Situation 1 Results.
Total
of
entities
Total
of
attrib.
Total
of
relat.
Adapted
entities
Adapted
attrib.
Adapted
relat.
M
1
4 6 4 0 66.7 75
M
2
24 86 32 0 24.4 96.9
M
3
17 113 12 5.9 39.8 91.7
M
4
13 44 10 0 52.3 90
M
5
10 48 9 10 22.9 88.9
M
6
6 60 4 0 25 50
M
7
22 102 12 9.1 34.3 91.7
M
8
16 67 13 6.3 32.8 92.3
M
9
7 22 3 28.6 45.5 66.7
M
10
8 74 7 0 28.4 85.7
M
11
4 25 3 0 32 66.7
M
12
4 22 3 0 22.7 66.7
M
13
30 130 44 10 36.2 97.7
M
14
4 13 4 0 23.1 75
M
15
4 53 3 0 58.5 66.7
cases contained in the case memory. By contrast for
entity cases the use of past cases is very low. This can
be justified by the heterogeneity of IS domains. No-
tice also that the order of data models created was not
considered an issue.
Table 4: Situation 2 Results.
Adapted
entities
Adapted
attrib.
Adapted
relat.
M
1
0% 66.7% 75%
M
2
8.3% 26.7% 100%
M
3
5.9% 48.7% 100%
M
4
7.7% 70.5% 100%
M
5
20% 43.8% 100%
M
6
0% 45% 100%
M
7
% 9.1% 41.2% 100%
M
8
12.5% 50.8% 100%
M
9
28.6% 77.3% 100%
M
10
25% 43.2% 100%
M
11
0% 60% 100%
M
12
0% 68.2% 100%
M
13
20% 48.5% 100%
M
14
25% 92.3% 100%
M
15
25% 83% 100%
We have empirically shown that the inclusion of
a CBR methodology providing a memory of past ex-
perience greatly improves the task of data modelling
within ISD. The use of adapted cases benefits the user
once he/she does not need to provide that information
manually to the system. Therefore the ISD can be fo-
cus on the new elements.
RE-USING EXPERIENCE IN INFORMATION SYSTEMS DEVELOPMENT
361
REFERENCES
Aamodt, A. and Plaza, E. (1994). Case-based reasoning:
Foundational issues, methodological variations and
systems approaches. AI-Communications, 7(1):39–
52.
Althoff, K. D., Auriol, E., Barletta, R., and Manago, M.
(1995). A review of industrial case-based reasoning
tools. Technical report, AI Intelligence.
Althoff, K. D., Nick, M., and Tautz, C. (1999). Cbr-peb:
An application implementing reuse concepts of expe-
rience factory for the transfer of cbr system know-
how. In 7th German Workshop on Case-Based Rea-
soning, Wurzburg.
Althoff, K. D. and Weber, R. O. (2005). Knowledge man-
agement in case-based reasoning. The Knowledge En-
gineering Review, 20:305–310.
Baskerville, R., Travis, J., and Truex, D. (1992). Systems
without method: The impact of new technologies on
information systems development projects. The Im-
pact of Computer Supported Technologies on Infor-
mation Systems Development, pages 241–270.
Batra, D. and Davis, J. G. (1992). Conceptual data mod-
elling in database design: Similarities and differences
between expert and novice designers. International
Journal of Man-Machine Studies, 37:83–101.
Chaiyasut, P. and Shanks, G. (1994). Conceptual data mod-
elling process: A study of novice and expert data mod-
ellers. In Halpin, T. and Meersman, R., editors, First
International Conference on Object-Role Modelling,
pages 310–323, Brisbane - Queensland.
Chen, P. P.-S. (1976). The entity-relationship model - to-
ward a unified view of data. ACM Transactions on
Database Systems, 1(1):9–36.
Downs, E., Clare, P., and Coe, I. (1992). Structured Systems
Analysis and Design Method Application and Context.
Prentice Hall, 2ł edition.
FIPS (1993). Integration Definition for Information Model-
ing (IDEF1X). Federal Information Processing Stan-
dards Publications.
Fitzgerald, B., Russo, N., and Stolterman, E. (2002). In-
formation Systems Development: Methods in Action.
McGraw-Hill.
Gomes, P., Pereira, F. C., Paiva, P., Seco, N., Carreiro, P.,
Ferreira, J. L., and Bento, C. (2003). Case-based reuse
of uml diagrams. In Fifteenth International Confer-
ence on Software Engineering and Knowledge Engi-
neering (SEKE’03).
IBM (1984). Business Systems Planning: Information Sys-
tems Planning Guide. IBM Cooperation.
Kendall, K. E. and Kendall, J. E. (1992). Systems Analysis
And Design. Prentice-Hall.
Kolodner, J. (1993). Case-Based Reasoning. Morgan Kauf-
mann Publishers.
Krampe, D. and Lusti, M. (1997). Case-based reasoning for
information systems design. In ICCBR-97.
Lloyd-Williams, M. (1994a). Expert system support for
object-oriented database design. International Jour-
nal of Applied Expert Systems, 1(3).
Lloyd-Williams, M. (1994b). Knowledge-based case tools:
Improving perfomance using domain-specific knowl-
edge. Software Engineering Journal, July 1994:167–
173.
Mantaras, R. L., Mcsherry, D., Bridge, D., Leake, D.,
Smyth, B., Craw, S., Faltings, B., Maher, M. L., Cox,
M. T., Forbus, K., Keane, M., Aamodt, A., and Wat-
son, I. (2006). Retrieval, reuse, revison and retention
in case-based reasoning. The Knowledge Engineering
Review, 20(3):215–240.
Microsoft (2002). www.asp.net.
Minsky, M. (1974). A framework for representing knowl-
edge. Technical report, Massachusetts Institute of
Technology.
Minsky, M. (1975). A framework for representing knowl-
edge. In Winston, P., editor, The Psychology of Com-
puter Vision, pages 211–277. McGraw-Hill. ISBN
0070710481.
Mntaras, R. L. and Plaza, E. (1997). Case-based reasoning:
An overview. AI Comunication, 10(1):21–29.
Rebuilder (2006). rebuilder.uc.pt.
Richter, M. M. (1995). The knowledge contained in simi-
larity measures. ICCBR 95.
Tauzovich, B. (1990). An expert system for conceptual
data modelling. In 8th International Conference on
the Entity-Relationship Approach, Toronto, Canada.
UML (2006). www.uml.org.
Venable, J. R. (1996). Teaching novice conceptual data
modellers to become experts. In Software Engineer-
ing Education and Pratice, Dunedin. IEEE Computer
Society Press.
Wastell, D. G. (1996). The fetish of technique: methodol-
ogy as a social defense. Information Systems Journal,
6:25–40.
Watson, I. (1996). Case-based reasoning tools: an re-
view. In 2nd UK Workshop on Case-Based Reasoning,
pages 71–78, University of Salford. AI-CBR/SGES
Publications.
Watson, I. (1997). Applying Case-Based Reasoning: Tech-
niques for Enterprise Systems. Morgan Kaufmann
Publishers.
Watson, I. (1999). Cbr is a methodology not a technology.
Knowledge Based Systems Journal, 12(5-6).
Welzer, T., Stiglic, B., Druzovec, M., and Takac, I. (1998).
Database reusability in intelligent medical systems.
In Intelligent Systems for Humans in a Cyberworld:
SM’98, volume 4, pages 4075–4079. IEEE.
Wilhelm, R. and Maurer, D. (1996). Compiler Design.
Addison-Wesley.
ICSOFT 2007 - International Conference on Software and Data Technologies
362
