ASYNCHRONOUS REPLICATION CONFLICT

CLASSIFICATION, DETECTION AND RESOLUTION FOR

HETEROGENEOUS DATA GRIDS

Eva Kühn, Angelika Ruhdorfer and Vesna Šešum-Cavic

Vienna University of Technology, Institute of Computer Languages

Space Based Computing Group, 1040 Vienna, Argentinierstraße 8, Austria

Keywords: Asynchronous replication, conflict detection and resolution, relational database, coordination space, data

grid.

Abstract: Data replication is a well-known technique in distributed systems, which offers many advantages such as

higher data availability, load balancing, fault-tolerance, etc. It can serve to implement data grids where large

amounts of data are shared. Besides all advantages, it is necessary to point to the problems, called

replication conflicts that arise due to the replication strategies. In this paper, we present an infrastructure

how to cope with replication of heterogeneous data in general for conflict detection and resolution and we

illustrate its usefulness by means of an industrial business case implementation for the domain of relational

databases and show further extensions for more complex resolution strategies. The implementation deals

with the special case of asynchronous database replication in a peer-to-peer (multi-master) scenario, the

possible conflicts in this particular domain and their classification, the ways of conflict detection, and shows

some possible solution methods.

The work was supported by the Austrian Federal

Ministry for Transport, Innovation, and Technology

under the FIT-IT Semantic Systems project Triple

Space Computing (TSC 809249).

1 INTRODUCTION

Replication is a practical and efficient technique,

commonly used in a distributed environment. The

benefits of replication include: improving data

availability, data access performance and load

balancing, providing fault-tolerance by maintaining

copies of data at different locations, etc. (Budiarto et

al, 2002; Dunlop et al, 2003; Gustavsson and

Andler, 2005). Generally, there are two approaches

of data copying: synchronous and asynchronous

replication (IBM DB2 Universal Database, 2002).

The decision which type of replication scenario is

appropriate to apply depends on the system’s

properties. The problem is that many systems are not

highly available and show inconsistent states,

include an enormously high number of sites and

have not high performance communication links

between the single sites. Such kind of system is a

candidate for asynchronous replication. The main

goal is that all data eventually becomes consistent.

Therefore we propose the following methodology

that can be used for the realization of asynchronous

data replication in general:

• classify all conflicts that mi

ght occur

• develop strategies for conflict prevention

• explain how all conflicts can

be detected

• define strategies for conflicts resolution.

this paper, we will apply these steps to the

special case of relatio

nal database replication. There

are different replication topologies for asynchronous

replication: master-copy, multi-tier, update

anywhere and multi-master (peer-to-peer) (IBM

DB2 Universal Database, 2002). The most complex

215

uhn E., Ruhdorfer A. and

sum-Cavic V. (2007).

ASYNCHRONOUS REPLICATION CONFLICT CLASSIFICATION, DETECTION AND RESOLUTION FOR HETEROGENEOUS DATA GRIDS.

In Proceedings of the Second International Conference on Software and Data Technologies - Volume ISDM/WsEHST/DC, pages 215-219

 SciTePress

topology is peer-to-peer with asynchronous

replication. Each node in a peer-to-peer topology

publishes and subscribes to the same data. All nodes

are equal peers with equal ownership of the data.

The procedures for asynchronous replication are:

Dump and Reload, Snapshot Replication and

Incremental Refresh, where either the changed

tuples are transmitted to the target sites or the

transactions causing the tuples to be changed, are

transferred and applied at the target sites

(transaction-based replication). Examples for

replication facilities of the state of the art in

databases systems can be found in (Garmany and

Freeman, 2003; Oracle 9i, 2002; Chigrik, 2000; IBM

DB2

Universal Database, 2002; IBM DB2 Data

Propagator, 2003).

2 CONFLICT CLASSIFICATION

The following assumptions will be taken into

consideration: asynchronous replication in relational

databases in multi-master scenario (peer-to-peer),

supporting transaction-based replication with

incremental refresh mode. When we talk about the

SQL-operations, it must be clear that only write

operations (INSERT, UPDATE, DELETE) which

change tuples will be considered, because they have

a crucial impact on a successful synchronization. We

consider each SQL-operation of a transaction of

being decomposed into a series of so-called single-

operations. A single-operation is an operation that

involves one tuple only. Two operations of

transactions that are executed on different sites are

called conflicting operations, if they cause a

replication conflict. This might the case if they

operate on the same tuple or if they transform some

tuples which were previously different into the same

tuple. There are many different types of conflicts:

Insert/Insert, Insert/Update, Insert/Delete,

Update/Update, Update/Delete, Delete/Delete. More

detailed information about conflict classification can

be seen in Kühn at al., 2007; Ruhdorfer, 2005.

Example: Let us assume that there are two sites:

A and B, and two operation: op1 and op2. Further,

we assume that op1 is Insert operation and op2 is

also Insert operation. Then op1/op2 means that op1

was executed and committed at site A and op2 was

concurrently executed and committed at site B.

Afterwards op1 is replicated to site B and op2 to site

A and executed there respectively, causing the

conflict that can be described as: tuples are entirely

the same (PRIMARY KEY and all the columns are

the same).

3 CONFLICT PREVENTION

Before we start discussion about conflict detection

and conflict resolution, it is important to know what

techniques/approaches can be used in order to avoid

replication conflicts. Of course it is much better to

avoid conflicts, if this is possible. For example,

modification of the database scheme can help where

unique numbers for each peer site are added to tables

that shall be replicated etc. However, the tradeoff is

a change of existing systems that possibly is not

acceptable. Another example would be to resign full

peer-to-peer replication and to use only one-way

read-only replication etc. Replication conflicts can

also be prevented by assigning the right to update

the data to a single site in one of the following

ownership types: static site ownership model,

dynamic site ownership model (workflow, token

passing), shared ownership model with some

strategies for avoiding specific types of conflicts

(avoiding uniqueness conflicts, avoiding delete

conflicts, avoiding ordering conflicts) (Oracle 9i,

2002; IBM DB2 Redbook, 2002).

4 CONFLICT DETECTION

The process of detecting constraint errors and the

process of detecting whether the same tuple was

modified concurrently by application programs at

more than one peer site during the same replication

cycle in a peer-to-peer replication configuration is

called conflict detection. Commercial databases

address this issue differently (Garmany and

Freeman, 2003; IBM DB2 Universal Database,

2002). We assume that in the full master replication

scenario, the peers communicate directly using a

shared coordination space (Kühn, 2001) which

provides reliable asynchronous, publish/subscribe

based flexible collaboration on shared and

distributed data structure, like the communication

with near-time event notification, the possibility of

reading the same data multiple times and according

to different coordination criteria in a flexible way.

Therefore we decided to use a space instead of

distributed hash tables, publish/subscribe systems or

message queues.Each database (DB) site is called a

peer site. With each DB a gateway process is

associated that interfaces both the DB and the space

and can be located on another site than the DB. For

each table to be replicated, triggers are installed that

track every write SQL-operation and store its single

operations together with the meta-information

ICSOFT 2007 - International Conference on Software and Data Technologies

216

necessary for conflict resolution in a log-table.

Applications need not be changed. The gateway

periodically reads the log-table and publishes the

single operations plus meta-information into a space

container i.e. a space data structure where the other

peers’ gateways subscribe; they apply these

operations to the destination databases in a

transaction. The transaction boundaries are not

violated; but with one publication step more than

one transaction could be published to the space

(called transaction “chunk”). If there is a site failure

the gateway can recover the data from the log-table.

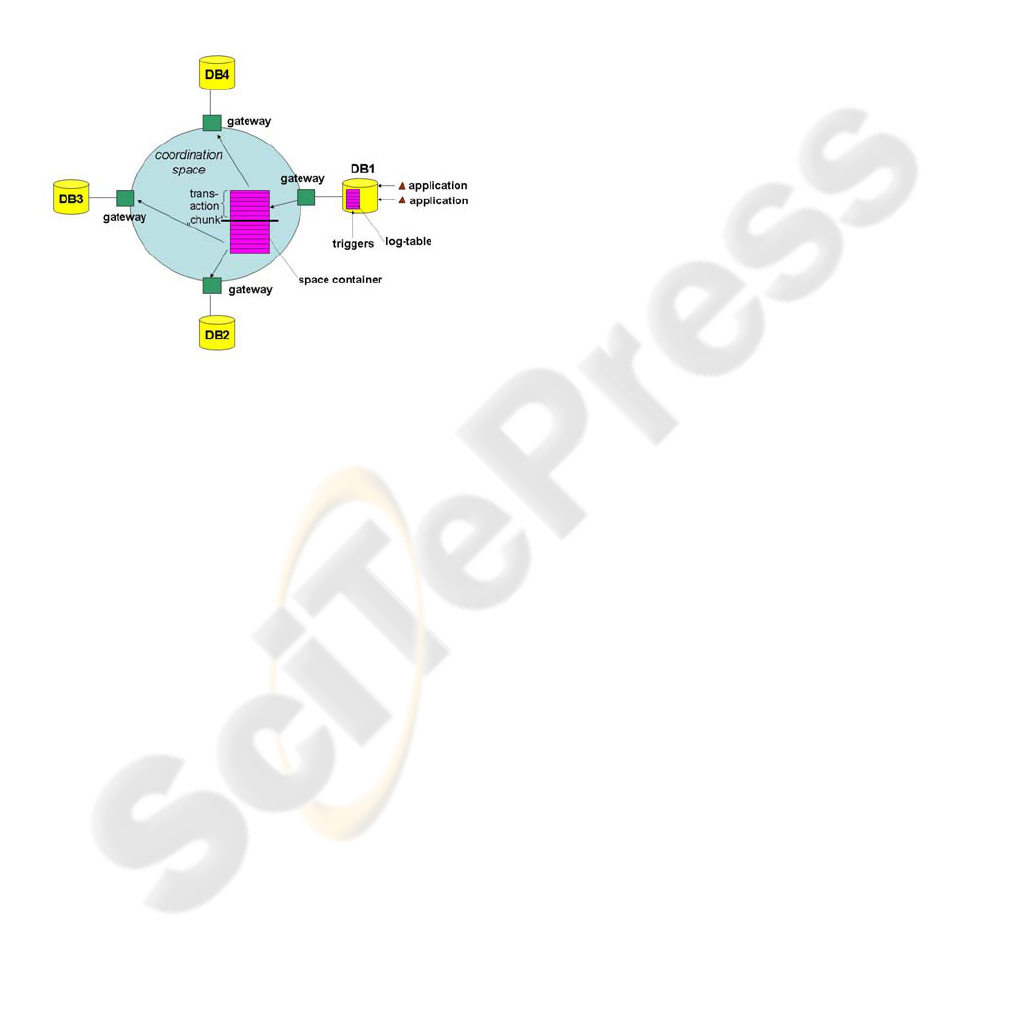

Figure 1: Replication Architecture.

Figure 1 shows only the replication from DB1 to

DB2, DB3 and DB4. The full scenario would be

symmetric. The architecture is based on the

extensible virtual shared memory middleware

XVSM (Kühn at al., 2005) that generalizes Linda

tuple based communication (Gelernter and Carriero,

1992) by introducing shared containers that contain

entries and that can be bounded or unbounded.

Containers can exhibit different coordination types.

XVSM itself supports asynchronous replication and

is used to distribute the single operations of the

relational database transactions from one database

site to one or more target database sites.

What happens when two dependent operations

are executed is shown in (Kühn at al, 2007;

Ruhdorfer, 2005). Many conflicts can be detected so

that the DB returns an error on both sites. However,

there are “bad” cases where the conflict can’t be

detected at both sites. The treatment of these “bad”

cases are explained in (Kühn at al, 2007; Ruhdorfer,

2005). Mainly it foresees the support of all old

values for update changes.

In that scenarios the environment is limited to

two replication sites and at each site a transaction

has only one operation. For this simplified,

theoretically ideal situation we have explained how

to determine whether one of these two transactions

causes a conflict and which operations are involved,

at each site autonomously. But when we talk about a

real IT environment with a lot of different sites and

operations, combined in transaction, it is quite

difficult to detect the replication conflict exactly.

The detection of conflict can be eased if we can

assume the existence of transaction counters and

state vectors. A transaction counter is a unique

number assigned to each transaction. The provision

of counters can be done by (1) using a sequencer in

the database triggers to mark each database

transaction of local applications and (2) using the

same sequencer to generate a new number for each

transaction from a replication site executed by the

gateway and publish this number also to a space

container. Each transaction has a state vector

attached, which holds the current status of the

transaction counters of all sites including the current

site before the transaction is executed. The

determination of the first operation in a remote

transaction that causes a replication conflict is

crucial. After that, the next step is to find all the

other operations involved in the conflict (see next

section).

5 CONFLICT RESOLUTION

The main goal is that all data at all replicated sites

eventually is consistent. Of course, this is still an

open issue to work on and the intention of this

section is to show some strategies and possibilities

that can be applied.

Conflict resolution determines which operations

are the winners and which ones are the losers, and

then takes the right steps in case of a committed

loser operation in order to annul its effect (“undo”

the operation). The different strategies for conflict

resolutions in databases are discussed in (Garmany

and Freeman, 2003; Oracle 9i, 2002). Nevertheless,

the conflict resolution strategies cannot be

generalized – many parameters of the replication

environment should be taken into consideration

(database schema, type of replication scenario,

conflict detection method, and also the semantics of

the data to be replicated). When a conflict is

detected and the loser operations were identified by

the conflict resolution strategy, the appropriate

“undo” operations must be applied. As we have

mentioned in the section 2, the standard operations

for database manipulation – INSERT, DELETE,

UPDATE – were transformed into a canonical form,

ASYNCHRONOUS REPLICATION CONFLICT CLASSIFICATION, DETECTION AND RESOLUTION FOR

HETEROGENEOUS DATA GRIDS

217

i.e. each operation that affects multiple tuples was

split into single operations, affecting only one tuple

each. Also, the old data values were included to

enhance the conflict detection mechanism. In this

way, we deal with “restricted” operations. The

“undo” operation means the realization of

INVERSE-* operations (INVERSE-INSERT,

INVERSE-DELETE, and INVERSE-UPDATE).

Every INVERSE-* operation refers to restricted

operations only; it replaces the original operation

that has already been committed during the previous

transaction and was later marked as loser operation

by the conflict resolution strategy.

In the following we will develop one resolution

strategy for the database replication scenario. If a

conflict occurs, the strategy foresees that this site

can autonomously resolve the conflict by querying

data from the shared space. We assume that the

same conflict resolution strategy is used at each site,

and that each

transaction has a transaction counter

and a state vector. When a transaction is transferred

to a target site for replication, it contains these two

parameters.

Furthermore we require the existence of a global

rule for the determination of winner/loser operations

that assigns priorities between all sites. Very

important aspect is to be able to identify past

operations in transactions not originating from the

same site, and remaining operations in the current

transaction (after the conflicting operation). Let us

first define the notions of anchor-operation and

anchor-chain. The anchor-operation is a replicated

operation conflicting with another operation, and it

belongs to the current transaction, originating from a

remote site. The anchor-chain-operations are

operations associated with an anchor-operation in

that they conflict with the anchor-operation, and

they belong to the current or previous transaction.

This way, in the series of operations of some

transactions, the interdependency between

operations can be established.

When a replicated transaction fails to be

executed at a target site, conflict detection starts with

identification of the anchor-operation and anchor-

chain-operations. For this determination, each

transaction’s operation must be investigated and

analyzed. After the anchor-chain-operations have

been identified, the conflict resolution strategy is

applied as follows:

1) if the anchor-operation is a winner over all

other anchor-chain-operations:

a. for each op

∈ anchor-chain-operations in

buttom-up order do: apply the INVERSE-

* operation to op

b. execute op

c. execute the remaining operations of the

current transaction

2) else (the anchor-operation is a looser):

ignore this operation and execute the

remaining operations of current transaction

6 REALIZATION

An implementation was performed in cooperation

with industry that implemented this peer-to-peer

database replication scenario used by major clients

in Austria (Kühn, 2003). However, instead of the

resolution strategy described in section 5, a simpler

one has been implemented that does not use

transaction counters, state vectors, anchor

operations, nor anchor-chain-operations.

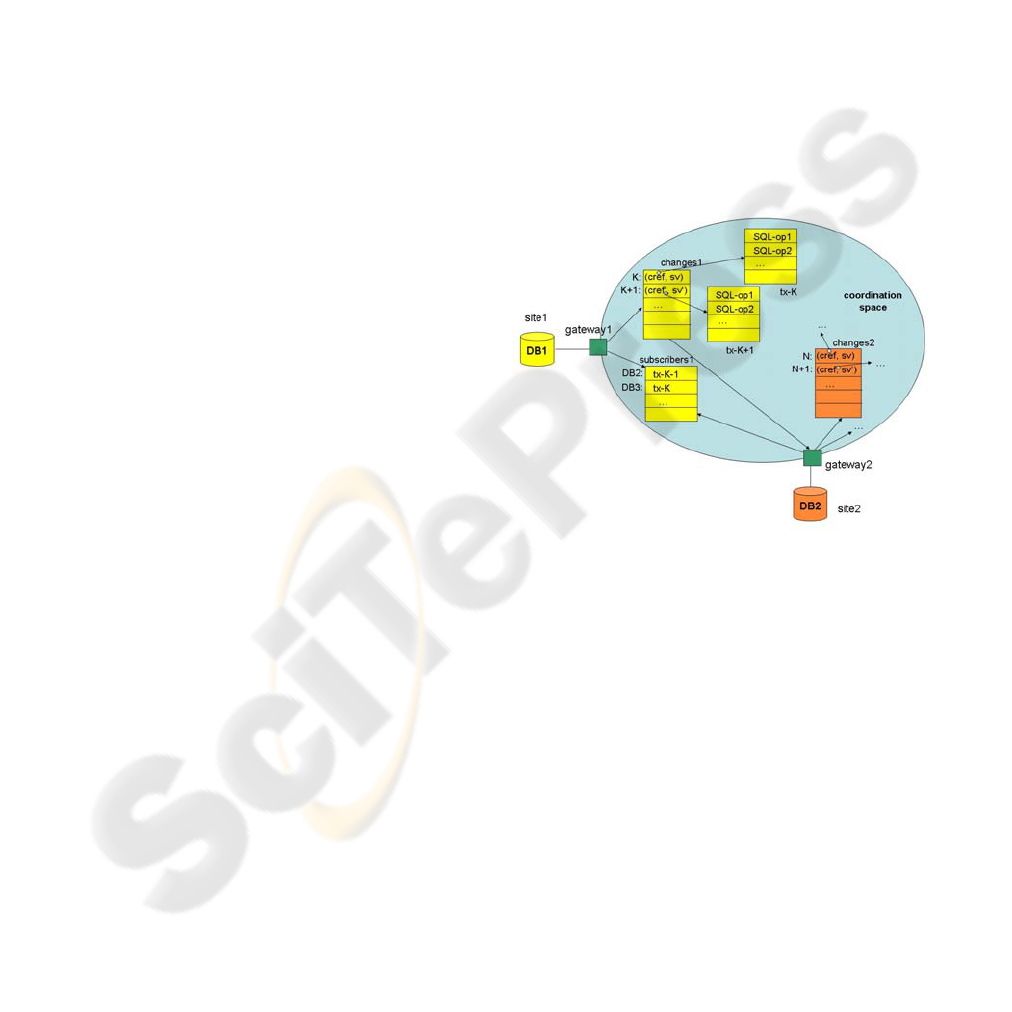

Figure 2: Peer-to-Peer Replication with complex Conflict

Resolution Strategy.

The resolution strategy provides:

• manual conflict resolution, providing the

administrator all old and new values, and

• locally built-in rules at each site S where for any

other site S’ and each possible conflict the

looser/winner relationship is explicitly defined

plus a resolution action.

In Figure 2 we sketch the implementation of the

conflict resolution strategy as proposed in section 5.

Basically, the coordination data structures in the

space for the replication of one table from site1

(DB1) to site2 (DB2) are shown. The full peer-to-

peer replication scenario assumes these for all peer

sites in a symmetric way.

ICSOFT 2007 - International Conference on Software and Data Technologies

218

7 CONCLUSION

Although asynchronous replication offers well-

known advantages in distributed IT systems, many

obstacles appear during their realization. As the

main goal remains that all data at all peer sites must

be consistent at the end, our task is to surpass these

problems. In this paper, we focused on a general

coordination infrastructure for asynchronous data

replication. We showed its application for the

replication of data for relational databases. We

analyzed conflicts that can appear, classified them,

described the ways of appropriate conflict detection

and proposed some methods for conflict resolution.

The proposed solution works for heterogeneous

databases from different vendors.

Our next work will be to extend the coordination

data stored in the space infrastructure by using

semantics. The objective is to make use of an

extension to space based computing called “triple

computing” (Riemer at all, 2006) that provides RDF

data which can be used to share the rules for conflict

resolution.

As conflict resolution for asynchronous

replication in general is still an open research issue,

our future work will deal with finding a generalized

solution for different types of user data, using the

proposed space-based replication pattern that

provides a convenient way to access replication

changes and meta-data for coordination, and

investigate further resolution strategies. This work is

a first step to achieve conflict classification,

detection and resolution onto the abstract level.

ACKNOWLEDGEMENTS

We would like to thank the anonymous reviewers

for their valuable comments.

REFERENCES

Budiarto, Nishio S., Tsukamoto M., 2002,.Data

management issues in mobile and peer-to-peer

environments, Data & Knowledge Engineering 41, pp.

183–204.

Chigrik A., 2000. Setting Up Transactional Replication: A

Step-by-step Guide, Database Journal,

http://www.databasejournal.com/features/mssql/article

.php/1438201

Dunlop N., Indulska J., Raymond K., 2003. Methods for

Conflict Resolution in Policy-Based Management

Systems,

EDOC'03, p.98.

Gelernter D., Carriero N., 1992. Coordination Languages

and Their Significance, Comm.of ACM, 35, pp.97-

107.

Garmany J., Freeman R., 2003. Oracle Replication.

Snapshot, Multi-Master & Materialized Views Scripts,

Rampant TechPress, Kittrell, North Carolina.

Gustavsson S., Andler S.F., 2005. Continuous Consistency

Management in Distributed Real-Time Databases with

Multiple Writers of Replicated Data, IPDPS'05

Workshop 2,

p. 137.

IBM DB2 Universal Database, 2002. Replication Guide

and Reference, Version 8, SC27-1121-00,

http://publib.boulder.ibm.com/cgi-bin/bookmgr/

library

IBM DB2 Redbook, 2002. A Practical Guide to DB2 UDB

Data Replication V8, http://www.redbooks.

ibm.com/redbooks/SG246828.html

IBM DB2 DataPropagator, 2003.

http://www-306.ibm.com/software/data/

integration/replication/

Kühn e., 2001. Virtual Shared Memory for Distributed

Architecture, Nova Science Publishers, 2001.

Kühn e., 2003. The Zero-Delay Data Warehouse:

Mobilizing Heterogeneous Databases, VLDB Conf.

Berlin.

Kühn e., Riemer J., Joskowicz G., 2005. XVSM

(eXtensible Virtual Shared Memory) Architecture and

Application, Technical Report TU-Vienna, E185/1.

Kühn e., Ruhdorfer A., Sesum-Cavic V., 2007.

Classification and Detection of Resolution Conflicts

for Relational Databases, Technical Report TU-

Vienna, E185/1.

Oracle 9i 2002. Advanced Replication Release, 2 (9.2),

Part No.A96567-01,

http://www.lc.leidenuniv.nl/

awcourse/oracle/server.920/a96567/title.htm

Riemer J., Martin-Recuerda F., Ding Y., Murth M.,

Sapkota B., Krummenacher R., Shafiq O., Fensel D.,

Kuehn e., 2006. Triple Space Computing: Adding

Semantics to Space-based Computing,. Proc. 1st Asian

Semantic Web Conf., Beijing, China.

Ruhdorfer A., 2005. Conflict Detection and Conflict

Resolution for Asynchronous Database Replication,

Diploma Thesis, TU-Vienna, E185/1.

ASYNCHRONOUS REPLICATION CONFLICT CLASSIFICATION, DETECTION AND RESOLUTION FOR

HETEROGENEOUS DATA GRIDS

219
