MULTI-RESOLUTION BLOCK MATCHING MOTION ESTIMATION

WITH DEFORMATION HANDLING USING GENETIC

ALGORITHMS FOR OBJECT TRACKING APPLICATIONS

Harish Bhaskar and Helmut Bez

Loughborough University, U.K.

Keywords:

Block motion estimation, afﬁne, deformation handling, genetic algorithms, multi-resolution, object tracking.

Abstract:

Motion Estimation is a popular technique for computing the displacement vectors between objects or attributes

between images captured at subsequent time stamps. Block matching is a well known technique of motion

estimation that has been successfully applied to several applications such as video coding, compression and

object tracking. One of the major limitations of the algorithm is its ability to cope with deformation of objects

or image attributes within the image. In this paper we present a novel scheme for block matching that combines

genetic algorithms with afﬁne transformations to accurate match blocks. The model is adapted into a multi-

resolution framework and is applied to object tracking. A detailed analysis of the model alongside critical

results illustrating its performance on several synthetic and real-time datasets is presented.

1 INTRODUCTION

Motion estimation techniques aim at deducing

displacement vectors for objects or image attributes

between two consecutive frames (A. Gyaourova

and Cheung, 2003). The main idea behind block

matching motion estimation strategies is to divide the

image frame into blocks and match blocks between

successive frames within a search window using

speciﬁc search techniques (A.Barjatya, 2005). It is

clear that the two distinct phases that make up any

block matching method is block partitioning and

block searching. The block partitioning scheme is

concerned with dividing the original image frame

into non-overlapping regions. Block partitioning can

be performed using the ﬁxed size or variable size

methods (C-C.Chang, 2006) (F.J.Ferri and J.Soret,

1998). The block search mechanism is the process

of locating the block in the destination frame that

best matches the block in the anchor frame using a

speciﬁc matching criterion (Turaga and M.Alkanhal,

1998).

Different models have been developed in litera-

ture to accomplish robust motion estimation using

block based techniques. (C-W.Ting and L-M.Po,

2004) propose the use of different search schemes

with ﬁxed and variable block partitioning methods

to accomplish robust estimation. In a similar study

by (M.Wagner and D.Saupe, 2000), a quad-tree

block motion estimation scheme is proposed. Other

methods of variable block matching have also been

proposed, particularly in the form of polygon ap-

proximation, mesh based (Y.Wang and O.Lee, 1996)

and binary trees. Another class of block matching

methods that have recently used for deformation

handling particularly in applications of object track-

ing is the deformable block matching (O.Lee and

Y.Wang, 1995). In a study by (J.H.Velduis and

G.W.Brodland, 1999), deformable block matching

has been adapted for use in tracking cell particles. A

bilinear transformation is used with block matching

to handle deformation. In the context of deformable

models,triangular or mesh based block decomposi-

tion is much popular (Y.Wang and A.Vetro, 1996).

The idea behind these schemes is to partition image

frames using techniques of ﬁnite element analysis,

triangulation (M.Yazdi and A.Zaccarin, 1997), mesh

grid etc. and employ deformable block matching

of vertex points to handle complex motion changes

during motion estimation. In the context of mesh

based methods, a nodal based scheme for block

169

Bhaskar H. and Bez H. (2007).

MULTI-RESOLUTION BLOCK MATCHING MOTION ESTIMATION WITH DEFORMATION HANDLING USING GENETIC ALGORITHMS FOR OBJECT

TRACKING APPLICATIONS.

In Proceedings of the Fourth International Conference on Informatics in Control, Automation and Robotics, pages 169-174

DOI: 10.5220/0001650501690174

 SciTePress

matching is also popular. According to the nodal

scheme, mesh is generated such that nodes lies

across object boundaries and a simple search of

linear motion of these nodal position from the anchor

frame to the destination frame will be able to sufﬁce

deformation (O.Lee and Y.Wang, 1995). In this

paper, we shall highlight a framework that integrates

a vector quantization based block partitioning method

to an genetic algorithm based search scheme with

afﬁne parametrization to accomplish robust, accurate

motion estimation with deformation handling. The

model is built on a multi-resolution platform with

performance feedback.

2 PROPOSED MODEL

The proposed model constitutes of different phases.

The ﬁrst phase is the multi-resolution platform that

the framework is based on. The platform combines

a scale space representation of data with a multi-

resolution level analysis. A multi-resolution model

aims at capturing a wide range of levels of detail of an

image and can in-turn be used to reconstruct any one

of those levels on demand. The distinction between

different layers of an image is determined by the res-

olution. A simple mechanism of tuning the resolution

can add ﬁner details to coarser descriptions providing

a better approximation of the original image. Mathe-

matically, we can represent the above analysis in the

following way. If the resolution is represented using

λ, then the initial level is associated with λ = 0 is 1

and that with any arbitrary resolution λ is

. If f

the image at resolution λ, then at resolution λ+1,

λ+1

= f

+ Γ

(1)

where Γ

is the details at resolution λ. In con-

trast, the scale space representation of data deals with

representing images in such a way that the spatial-

frequency localizations are simultaneously preserved.

This is achieved by decomposing images into a set

of spatial-frequency component images. Scale space

theory, therefore, deals with handling image struc-

tures at different scale such that the original image can

be embedded into a one-parameter family of derived

component images thereby allowing ﬁne-scale struc-

tures to be successively suppressed.Mathematically,

to accomplish the above, a simple operation of con-

volution can be used. However, it is important to

note that the overhead of using the convolution op-

erator is kept low. For any given image I(x, y), its

linear scale space representation is composed of com-

ponents L

(x, y) deﬁned as a convolution operator of

the image I(x, y) and a Gaussian kernel of the form:

(x, y) =

2πϑ

−

2ϑ

(2)

, such that

(x, y) = G

(x, y) ∗ I(x, y) (3)

where ϑ = σ

is the variance of the Gaussian. Per-

formance based feedback automates the selection of

relevant resolution and scale for any particular frame

pair. A brief algorithm describing the process is as

follows.

• Initialize the resolutions λ

[1:q]

to [0, 1, 2, ..., q] and

scales ϑ

[1:q]

to [1, 2, 3, ..., q + 1] for any value of

q (4 chosen for this experiment).

• Select the median of resolutions as the initial start-

ing resolution and scale. The median is 2 in our

experiments and the chosen values of (λ, ϑ) are

(2, 3)

• Input at any time instant t, two successive frame

pairs of a video sequence, (f

, f

t+1

• Re-sample the images f

and f

t+1

into the se-

lected resolution using bi-cubic interpolation

• Convolve the image at selected scale (in matching

positions with the resolution) with a Gaussian ker-

nel to obtain a ﬁltered output (G

∗ f

, G

∗ f

t+1

)

• Perform Motion Estimation of these input images

at this scale-resolution using the motion estima-

tion algorithm speciﬁed in the subsection below

and reconstruct the target frame using the esti-

mated motion parameters.

• Evaluate the performance of the model using

the metrics: PSNR, Entropy and Time as in

(H.Bhaskar and S.Singh, 2006)

• If the frame pair processed is (f

, f

t+1

) at t = 1

then automatically slide up to a higher resolution

and repeat process by incrementing t. Otherwise,

if t > 1 then if P SNR

> P SNR

t−1

then slide

down to lower resolution - scale otherwise slide

up to higher resolution - scale combination.

• Repeat the process for all frame pairs

The second phase of the algorithm deals with

motion estimation. For the purpose of motion

estimation we extend the technique of deformable

block matching that combines the process of block

partitioning, block search and motion modeling. A

vector quantization based block partitioning scheme

is combined with a genetic algorithm based search

method for robust motion estimation (H.Bhaskar

and S.Singh, 2006). We extend the basic model in

such a way that block deformation is handled using a

ICINCO 2007 - International Conference on Informatics in Control, Automation and Robotics

170

combined genetic algorithm afﬁne motion model.

The block partitioning phase remains unchanged

while the genetic algorithm based block search

scheme is altered to include the afﬁne transforma-

tions. In the subsection below, a detailed algorithm of

the modiﬁed block search scheme based on genetic

algorithm and afﬁne transforms is presented.

2.1 Vector Quantization Based Block

Partitioning

The vector quantization scheme for block partitioning

illustrated in (H.Bhaskar and S.Singh, 2006) has been

used in the proposed deformable block matching. It

is important to realize that the image frames f

and

t+1

that is input to this stage of the algorithm refers

to the ﬁltered output of the previous stage. According

to the vector quantization scheme, image frames are

partitioned based on the information content present

within them. The model separates regions of inter-

est based on clustering and places a boundary sep-

arating these regions. For this, the vector quantiza-

tion mechanism uses the gray level feature attributes

for separating different image regions and the center

of mass of different intersection conﬁgurations is em-

ployed to deduce the best partition suitable for the im-

age frames.

2.2 Afﬁne-Genetic Algorithm Motion

Model

The idea behind the genetic algorithm afﬁne motion

model combination is to use the afﬁne transformation

equation on every block during ﬁtness function eval-

uation. The algorithm for the block search scheme is

as follows.

The genetic algorithm based block matching al-

gorithm described below is used to match the

centroid of any block from the partitioned structure

of frame f

to its successive frame f

t+1

at different

angles theta and parameters shear and scale. The

inputs to the genetic algorithm are the block b

and

the centroid (x

, y

) of the block.

• Parameter Initialization: The variable parameters

of the genetic algorithm will be the genes in the

chromosomes. In our experiments they will be

the the pixel displacement value in x and y direc-

tions, the angle theta of the input block, the shear

factor s and scale (r

, r

) are encoded as the chro-

mosome (T

, T

, θ, s, r

, r

). The translation, ro-

tation and scale parameters of the model are ini-

tialized using the phase correlation and log-polar

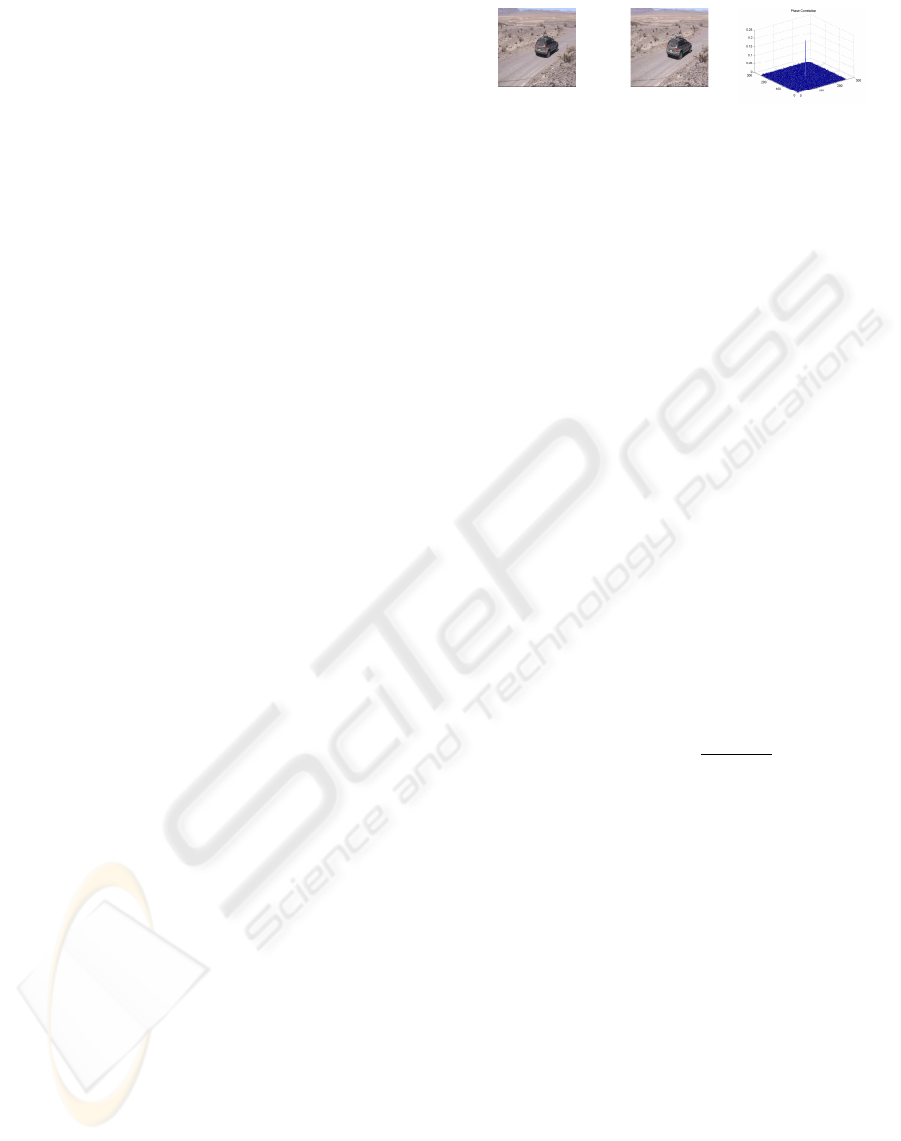

Figure 1: Phase Correlation.

transforms. This speeds up the genetic algorithm

search scheme and also increases the accuracy of

estimation.

– Translation parameters using phase correlation:

The phase correlation technique is a frequency

domain approach to determine the translative

movement between two consecutive images. A

simple algorithm illustrating the process of de-

termining an approximate translative motion

characteristics between two images is as fol-

lows.

∗ Consider the input block b

and its corre-

sponding block at the successive frame b

t+1

∗ Apply a window function to remove edge ef-

fects from the block images

∗ Apply a 2D Fourier transform to the im-

ages and produce F

= Ψ(b

) and F

b+1

Ψ(b

t+1

); where ψ is the Fourier operator.

∗ Compute the complex conjugate of F

t+1

multiply the Fourier transforms element-wise

and normalize to produce a normalized cross

power spectrum N P S using

NP S =

∗

t+1

∗

t+1

(4)

∗ Apply inverse Fourier transform on the nor-

malized power spectrum to obtain P S =

−1

(NP S); where ψ

−1

is the inverse Fourier

operator.

∗ Determine the peak as the the translative co-

ordinates using

(∆x, ∆y) = argmax(P S) (5)

∗ An illustration describing the process of phase

correlation using a sample image is as shown

in Figure 1.

– Rotation and Scale using Log-Polar Trans-

forms: The log-polar transform is a conformal

mapping of points on cartesian plane to points

on the log-polar plane. The transformation can

accommodate an arbitrary rotations and a range

of scale changes. If an block image in the carte-

sian plan is represented using b(x, y), then the

log polar transform of the block image with ori-

gin O at location (x

, y

) is

MULTI-RESOLUTION BLOCK MATCHING MOTION ESTIMATION WITH DEFORMATION HANDLING USING

GENETIC ALGORITHMS FOR OBJECT TRACKING APPLICATIONS

171

Figure 2: Log Polar Transform.

∗

(ψ, φ) = bξ(x, y) (6)

where,

ψ = M log(r + α), α is any constant

r =

(x − x

)

+ (y − y

)

and

φ = tan

−1

y −y

x−x

In order to determine the approximate values

of rotation and scale using the log-polar trans-

forms, we convert the image frames into the log

polar domain and then use phase correlation be-

tween the log-polar images to identify the rota-

tion and scale parameters as in Figure 2.

• Population Initialization: A population P of these

n chromosomes representing (T

, T

, θ, s, r

, r

)

is generated from uniformly distributed random

numbers where,

– 1 ≤ n ≤ limit and limit (100) is the maxi-

mum size of the population that is user deﬁned.

– The values of pre-initialized parameters such as

translational, rotational and scale are generated

within a small range of their initial value.

• To evaluate the ﬁtness E(n) for every chromo-

some n:

– Extract the pixels locations corresponding to

the block from frame f

using the centroid

, y

) and block size information

– Afﬁne Transforming these pixels using the

translation parameters (T

, T

), rotation angle

θ, shear factor s and scale r

, r

using,

′

1 s 0

0 1 0

0 0 1

0 0

0 r

0 0 1

cosθ −sinθ 0

sinθ cosθ 0

0 0 1

1 0 T

0 1 T

0 0 1

– If b

represents the original block under consid-

eration, b

∗

t+1

represents the block identiﬁed at

the destination frame after transformation and

(h, w) the dimensions of the block, then the ﬁt-

ness E can be measured as the mean absolute

difference (MAD).

MAD =

i=1

j=1



(i, j) − b

∗

t+1

(i, j)



(7)

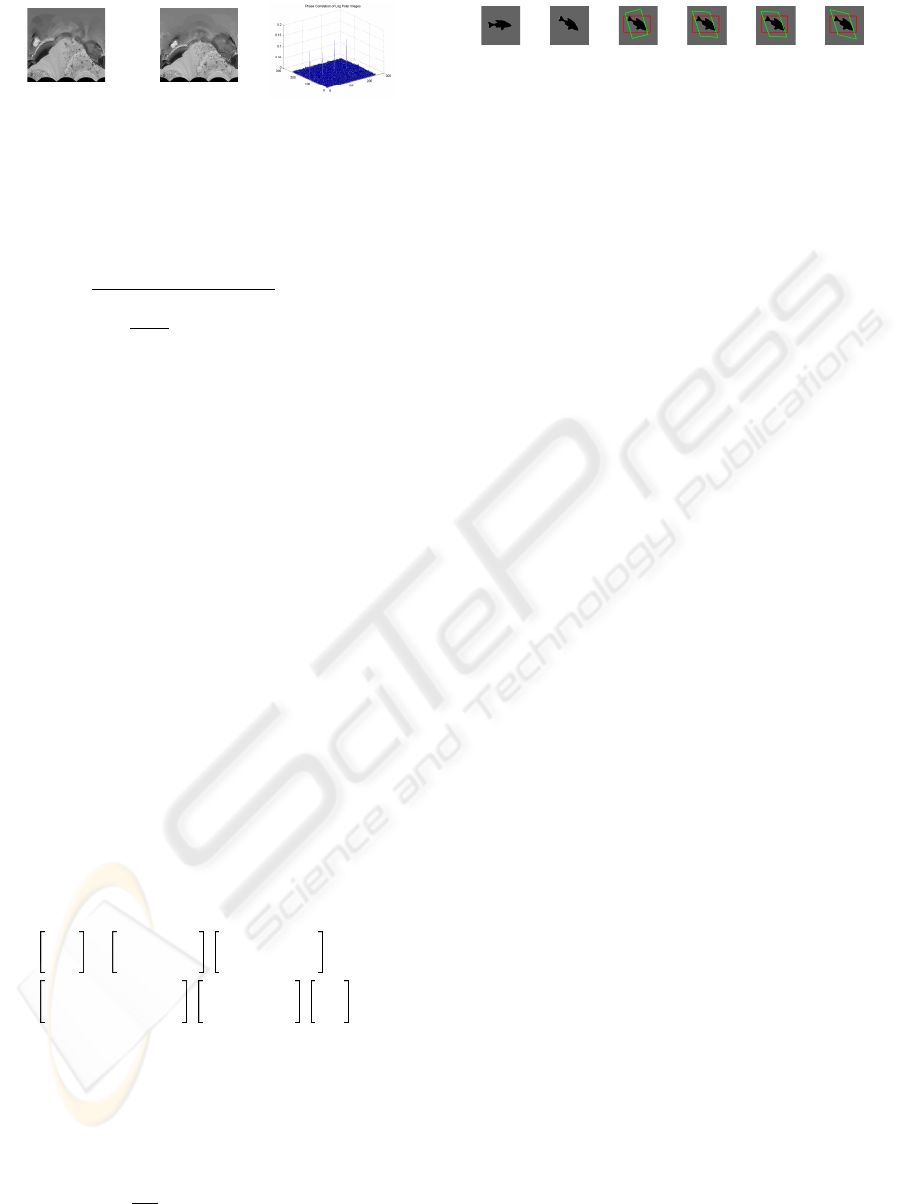

Figure 3: 2D Deformable Block Matching.

• Optimization: Determine the chromosome with

minimum error n

emin

= n where E is mini-

mum. As this represents a pixel in the block,

determine all the neighbors (N H

) of the pixel,

where 1 ≤ k ≤ 8.

– For all k, determine the error of matching as in

Fitness evaluation.

– If E(N H

) < E(n

emin

), then n

emin

= NH

• Selection: Deﬁne selection probabilities to select

chromosomes for mutation or cloning.

• Cross-Over: All chromosomes n

that are cho-

sen for cross-over are taken into the next gener-

ation after swapping one or more random genes

between every successive chromosome.

• Mutation: All Chromosomes n

chosen for mu-

tation are replaced with uniformly distributed ran-

dom values for centroid, angle, shear, scale and

squeeze.

• Termination: Three termination criterion are

speciﬁed in the proposed model. Check if any

condition is satisﬁed, otherwise iterate until ter-

mination.

– Zero Error: If a chromosome returned an error

value zero through ﬁtness evaluation, Or

– Maximum Generations: If the number of gener-

ations (i.e. process loops) exceeds a predeﬁned

threshold, Or

– Stall Generations: If the number of stall gen-

erations (i.e. process loops where there is no

change in the ﬁtness values) exceeds a prede-

ﬁned threshold.

3 RESULTS AND ANALYSIS

Detailed results and analysis of the proposed model is

presented in this section of the paper. On the second

part of this section we demonstrate how the motion

estimation scheme is adapted to object tracking appli-

cations.

ICINCO 2007 - International Conference on Informatics in Control, Automation and Robotics

172

1 2 3 4 5 6

13.5

14.5

15.5

16.5

17.5

Time Compexity Plot

Video Number

Time Taken Per Frame Pair

VBMA with Affine Parametrization

1 2 3 4 5 6

7.5

8.5

9.5

10.5

11.5

Video Number

Time Taken Per Frame Pair

Time Complexity Plot

DVQBMA

1 2 3 4 5 6

29.5

30.5

31.5

32.5

33.5

Video Number

PSNR Values (dB)

Variable Block Matching with Affine Parametrization

1 2 3 4 5 6

30.5

31.5

32.5

33.5

34.5

Video Number

PSNR Values (dB)

PSNR Plot

DVQBMA

1 2 3 4 5 6

0.02

0.04

0.06

0.08

0.1

0.12

0.14

Video Number

Relative Entropy

Variable Block Matching with Affine Parametrization

1 2 3 4 5 6

0.02

0.04

0.06

0.08

0.1

0.12

Video Number

Relative Entropy

Entropy Plot

DVQBMA

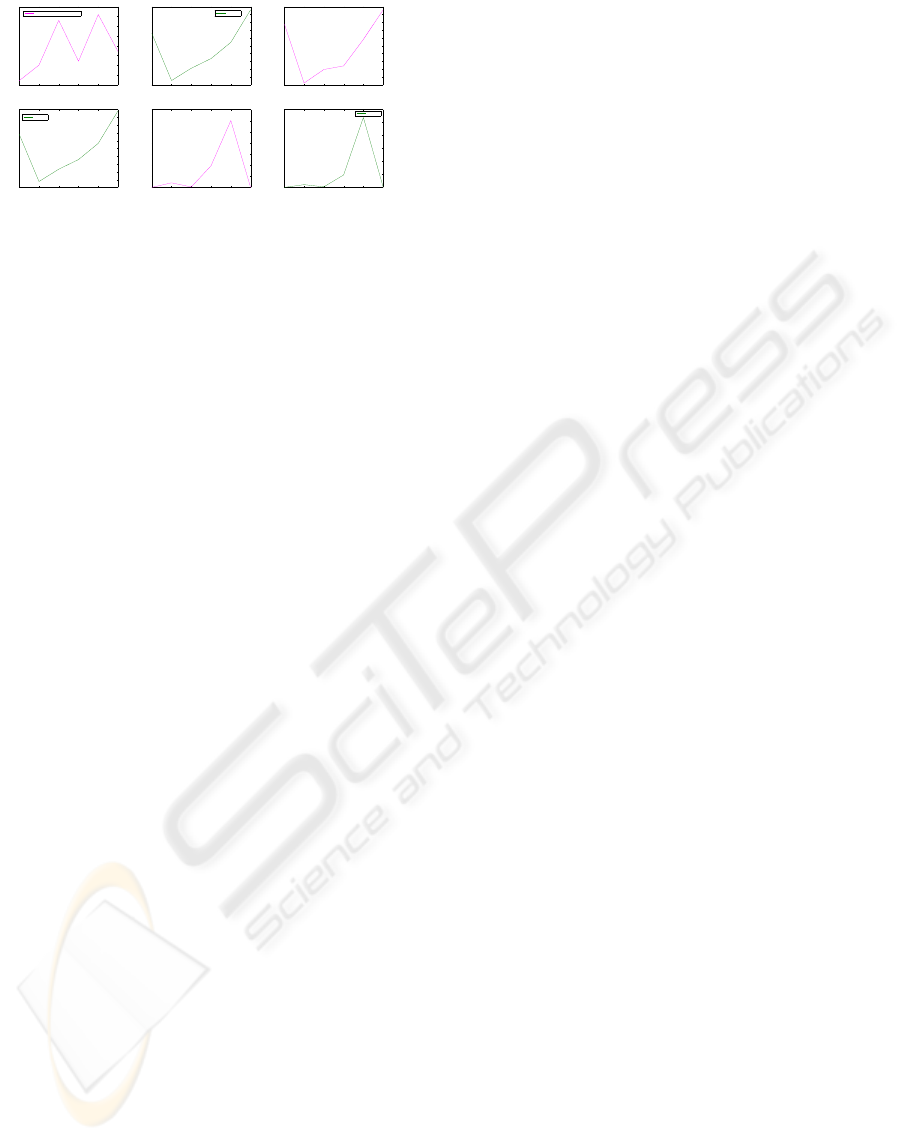

Figure 4: Performance Comparison of Proposed Model to

Baselines.

3.1 Performance Evaluation of Motion

Estimation

In Figure 3 we illustrate the stages of the proposed

block matching scheme. The ﬁrst and the second im-

ages illustrate the original frame and the transformed

frame of a sample synthetic image. Through the

other images we illustrate how the genetic algorithm

is used to identify the optimal motion parameters.

Different conﬁgurations are evolved through increas-

ing generations getting the solution closer to optimal.

The red block represents the objects original position

in the anchor frame and the green boundary speciﬁes

the location of the block during block searching using

genetic algorithm at different generations. To further

afﬁrm the performance of the model on different

real time datasets, we perform experiments of the

model on 6 different video data each containing

around 40 frames. The averaged performances on

each videos are measured using time, relative entropy

and PSNR metrics and compared to the baseline

model in Figure 4. The baseline model uses afﬁne

parametrization with other search schemes on a

variable block partitioned data. We also compare the

proposed model against the original block matching

model that does not handle deformation and a rotation

invariant model.

It is very evident that the averaged time complex-

ity of the proposed motion estimation mechanism that

handles deformation still does not match the require-

ments of real-time. However, with a multi-resolution

optimization approach it might well be possible to im-

prove the time efﬁciency. The results compare well

with the quad-tree block matching mechanism with

afﬁne parametrization. There is a clear advantage in

using the proposed strategy for deformation handling

than an extension to any other variable block parti-

tioning scheme with sub-optimal search. The qual-

ity of motion estimation is recorded and compared in

the graphs. It can be observed that there is clear im-

provement in the quality of motion estimation when

deformation of objects is handled during motion es-

timation. In comparison to the baseline model, there

is clear increase of about 2dB in the PSNR values. A

clear increase in the PSNR values can be noted dur-

ing the progressive improvements in the model from

the basic framework to the rotation invariant model

and ﬁnally to the deformation handling model. This

clearly indicates how useful deformation handling is

during motion estimation. A very similar trend can

also be visualized between different models when

compared against the performance metric of relative

entropy. The reconstructions made from the defor-

mation handling model match closer to the expected

outcome of the image frame. This highlights the ac-

curacy and robustness of the strategy in accomplish-

ing motion estimation. In comparison to the baseline

model there is a clear improvement in the values of

relative entropy.

3.2 Object Tracking Applications

In this section we describe how the motion estima-

tion mechanism above can be adapted to object track-

ing applications and also analyze how the efﬁciency

of motion estimation inﬂuences the quality of object

tracking. We have extended the model for application

in object tracking through simple clustering of fea-

tures characteristics including motion information. To

use the proposed model into object tracking motion

vectors are clustered such that the moving group of

blocks possessing similar motion and feature charac-

teristics will form the object of interest. Trajectories

are plotted using the center of mass location of the

blocks that constitute the objects. We have tested the

approach on a number of different datasets. We have

displayed the results of the model on some of them.

Figure 5 illustrates the motion trajectory (represented

using red dots) of a single/multiple object tracked

over different time stamps. As the model does not

perform object segmentation, produces a number of

small unwanted trajectories that have been removed

through manually entered semantic information. The

semantic information can be of the form of velocity

information of the object in motion, color of the mov-

ing objects etc. We have in our experiments displayed

the motion trajectory of the group of blocks that have

been tracked longest on the image sequences. Gener-

ally in any scene this information corresponds to the

object of interest. The ﬁrst two images are the tra-

jectories of the proposed model and a polygon shape

feature based nearest neighbor tracking scheme pro-

posed in (H.Bhaskar and S.Singh, 2005). As it can be

clearly observed the trajectory of the baseline model

MULTI-RESOLUTION BLOCK MATCHING MOTION ESTIMATION WITH DEFORMATION HANDLING USING

GENETIC ALGORITHMS FOR OBJECT TRACKING APPLICATIONS

173

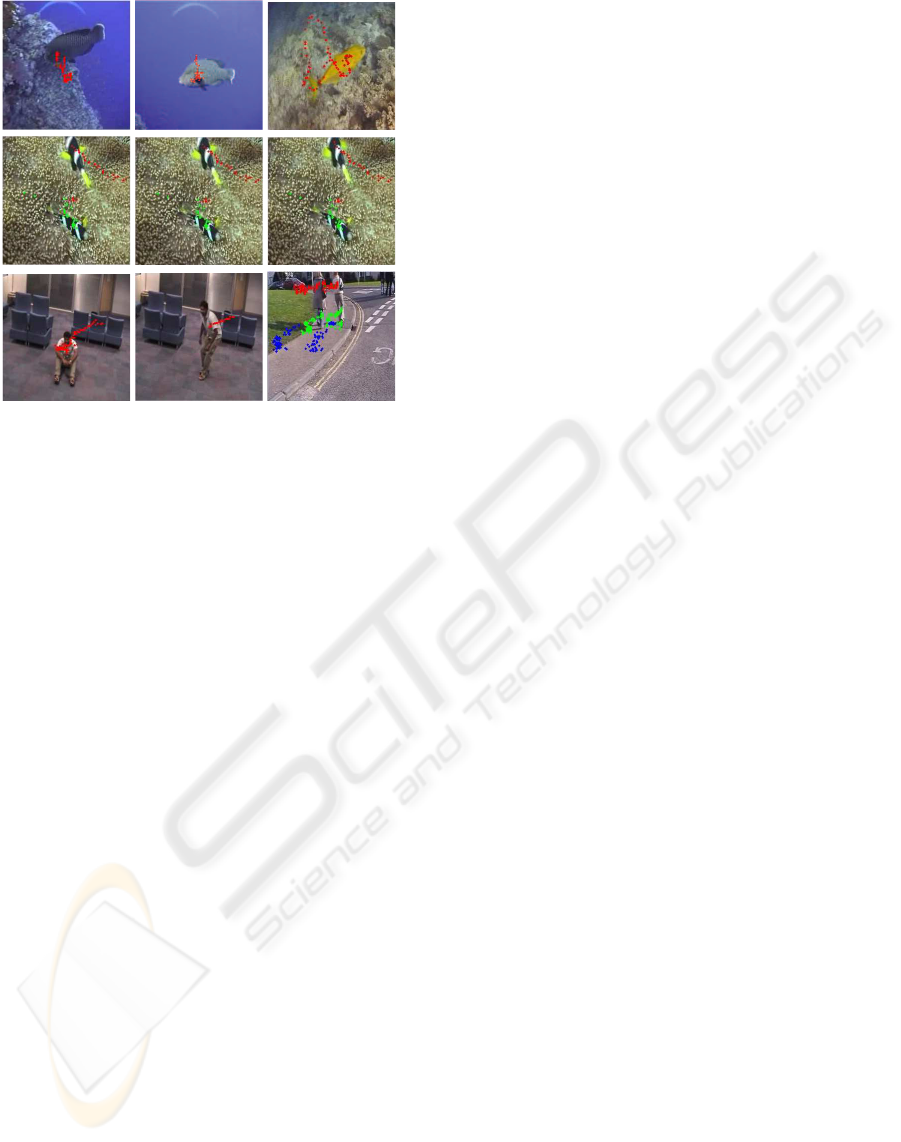

Figure 5: Object Trajectory of Sample Video Sequences.

disintegrates once the object has complex deforma-

tion whereas the proposed scheme continues to handle

deformation reliably for the entire video. The main

reason to this is that the model relies on image seg-

mentation and polygon based shape approximation.

The second group of 3 images illustrate the tracking

of multiple objects in an image sequence. This se-

quence is also an example of a very noisy sequence

with most of its background moving as well. Finally,

examples of human tracking are also illustrated. In

the ﬁrst, we have extracted the trajectory of the body

of the person moving and displayed it. The model ac-

tually produces different trajectories for moving parts

of hands, legs, face etc. as in the next image. The

second image is the output of the shape feature based

baseline model. Again the technique fails to track ob-

jects immediately after a complex deformation is no-

ticed.

4 CONCLUSION

In this paper we presented a novel deformation han-

dling mechanism for block matching based on ge-

netic algorithm that can be extended for use in ob-

ject tracking applications. The model combines the

vector quantization based variable block partitioning

and applies an afﬁne based genetic algorithm match-

ing scheme for block matching. We have also pre-

sented results on several real time datasets to illus-

trate the proof of concept. Analysis of the results on

the model has proved that the model is robust and re-

liable for tracking deformational changes in objects in

video sequences.

REFERENCES

A. Gyaourova, C. K. and Cheung, S.-C. (2003). Block

matching for object tracking. Technical report,

Lawrence Livermore Nation Laboratory.

A.Barjatya (2005). Block matching algorithms for motion

estimation. Technical report.

C-C.Chang, L-L.Chen, T.-S. (2006). Multi-resolution based

motion estimation for object tracking using genetic al-

gorithm. In VIE Conference.

C-W.Ting, W.-H. and L-M.Po (2004). Fast block matching

motion estimation by recent-biased search for multi-

ple reference frames. In International Conference on

Image Processing (ICIP).

F.J.Ferri, J. J. and J.Soret (1998). Variable-size block

matching algorithm for motion estimation using a

perceptual-based splitting criterion. In International

Conference on Pattern Recognition (ICPR), page 286.

H.Bhaskar and S.Singh (2005). Multiple particle tracking in

live cell imaging using green ﬂuorescent protein (gfp)

tagged videos. In International Conference on Ad-

vances in Patter Recognition, pages 792–803.

H.Bhaskar, R. and S.Singh (2006). A novel vector quan-

tization based block matching strategy using genetic

algorithm search. Submitted to Pattern Recognition

Letters.

J.H.Velduis and G.W.Brodland (1999). A deformable

block-matching algorithm for tracking epithelial cells.

In Image and Vision Computing, pages 905–911.

M.Wagner and D.Saupe (2000). Video coding with

quadtrees and adaptive vector quantization. In Pro-

ceedings EUSIPCO.

M.Yazdi and A.Zaccarin (1997). Interframe coding using

deformable triangles of variable size. In International

Conference on Image Processing, page 456.

O.Lee and Y.Wang (1995). Motion compensated predic-

tion using nodal based deformable block matching.

In Visual Communications and Image Representation,

pages 26–34.

Turaga, D. and M.Alkanhal (1998). Search algorithms for

block-matching in motion estimation.

Y.Wang and O.Lee (1996). Use of 2d deformable mesh

structures for video compression, part i - the synthe-

sis problem: Mesh based function approximation and

mapping. In IEEE Trans. Circuits and Systems on

Video Technology, pages 636–646.

Y.Wang, O. and A.Vetro (1996). Use of 2d deformable mesh

structures for video compression, part ii - the analysis

problem and a region-based coder employing an active

mesh representation. In IBID, pages 647–659.

ICINCO 2007 - International Conference on Informatics in Control, Automation and Robotics

174
