MULTIRESOLUTION TEXT DETECTION IN VIDEO FRAMES

Marios Anthimopoulos, Basilis Gatos and Ioannis Pratikakis

Computational Intelligence Laboratory, Institute of Informatics and Telecommunications

National Center for Scientific Research "Demokritos", GR-153 10 Agia Paraskevi, Athens, Greece

Keywords: Text detection, video frames, artificial text, edge-based.

Abstract: This paper proposes an algorithm for detecting artificial text in video frames using edge information. First,

an edge map is created using the Canny edge detector. Then, morphological dilation and opening are used in

order to connect the vertical edges and eliminate false alarms. Bounding boxes are determined for every

non-zero valued connected component, consisting the initial candidate text areas. Finally, an edge projection

analysis is applied, refining the result and splitting text areas in text lines. The whole algorithm is applied in

different resolutions to ensure text detection with size variability. Experimental results prove that the

method is highly effective and efficient for artificial text detection.

1 INTRODUCTION

Nowadays the size of the available digital video

content is increasing rapidly. This fact leads to an

urgent need for fast and effective algorithms for

information retrieval from multimedia content for

applications in video indexing, editing or even video

compression. Text in video and images proves to be

a source of high-level semantics closely related to

the concept of the video. Moreover, artificial text

can provide us with even more powerful information

for television captured video indexing since this kind

of text is added in order to describe the content of

the video or give additional information related to it.

The procedure of retrieving text from video is

usually called “Video OCR” and consists of 3 basic

stages: text detection, text segmentation and

recognition. Text detection is a crucial step towards

the completion of the recognition process. The aim

of this paper is to give an algorithm for the spatial

detection of artificial text in video frames. The

algorithm intends to produce one bounding box for

every text line of the frame. Artificial text presents

some features and characteristics in order to be

readable from humans, like high intensity vertical

edge strokes, colour homogeneity, contrast between

text and background, horizontal alignment, various

geometrical constraints etc. The above features and

constraints are usually used by the text detection

systems for distinguishing text areas from non-text

areas. On the other hand, there are many challenges

that have to be faced like, text embedded in complex

backgrounds, with unknown color, size, font or low

resolution text. Many researchers have proposed

methods based on different architectures, feature

sets, and classifiers. These methods generally can be

classified into two categories: Bottom-up methods

and Top-down methods.

Bottom-up methods segment images into

“character” regions and group them into words.

Lienhart et al. (Lienhart, 1995) regard text regions as

connected components with the same or similar

color and size, and apply motion analysis to enhance

the text extraction results for a video sequence. The

input image is segmented using a split-and-merge

algorithm. Finally, a geometric analysis, including

the width, height, and aspect ratio, is used to filter

out any non-text components. Sobottka et al.

(Sobottka, 1999) use a region growing method in

order to detect homogeneous regions. Beginning

with a start region, pixels are merged if they belong

to the same cluster. Then the regions are grouped to

form text lines assuming that text lines consist of

more than three regions having a small horizontal

distance and a large vertical overlap to each other.

Top-down methods firstly detect text regions in

images and then split them in text lines. These

methods are also divided into two sub-categories:

Heuristic methods and Machine learning methods.

Heuristic methods use heuristic filters in order to

detect text. Malobabic et al.(

Malobabic, 2004) and Xi

(Xi, 2001) et al. propose edge based methods for

detecting text regions. An edge map is calculated

followed by smoothing filters, morphological

operations and geometrical constraints. However the

161

Anthimopoulos M., Gatos B. and Pratikakis I. (2007).

MULTIRESOLUTION TEXT DETECTION IN VIDEO FRAMES.

In Proceedings of the Second International Conference on Computer Vision Theory and Applications - IU/MTSV, pages 161-166

 SciTePress

use of Sobel operator cannot preserve successfully

the contours of the characters. Zhong et al. (Zhong,

2000) use the DCT coefficients of compressed jpeg

or mpeg files in order to distinguish the texture of

textual regions from non-textual regions. Sato et al.

(Sato, 1998) apply a 3x3 horizontal differential filter

to the entire image with appropriate binary

thresholding. If a bounding region which is detected

by the horizontal differential filtering technique

satisfies size, fill factor and horizontal-vertical

aspect ratio constraints, it is selected for recognition

as a text region. Du et al. (Du, 2003) propose a

methodology that uses MPCM (Multistage Pulse

Code Modulation) to locate potential text regions in

colour video images and then applies a sequence of

spatial filters to remove noisy regions, merges text

regions, produces boxes and finally eliminates the

text boxes that produce no OCR output. Crandall et

al. (Crandall, 2003) use the DCT coefficients to

detect text areas. Then connected component

analysis is performed in them followed by an

iterative greedy algorithm which refines the skew,

position and size of the initial bounding boxes.

Machine learning methods use trained, machine

learning techniques in order to detect text. Li et al.

(Li, 2000) propose a method based on neural

networks trained on wavelet features. The NN

classifies the pixels of a sliding window of 16x16

pixels. Wolf et al. (Wolf, 2004) use an SVM trained

on derivative and geometrical features. Yan et al.

(Yan, 2003) use a Back Propagation Artificial

Neural Network trained on Gabor edge features. Ye

et al. (Ye, 2005) use SVM and wavelets. Wu et al.

(Wu, 2005) propose a system of two co-trained

SVM’s on edge and color features. Lienhart et al.

(Lienhart, 2002) propose a method based on neural

network classification using gradient features. Chen

et al. (Chen, 2001) use several heuristics based on

edges to detect text and then refine the results using

a Bayesian Classifier trained on features based on

geometry and projection analysis. Clark et al. (Clark,

2000) presents five statistical measures for training a

NN. Chen et al. (Chen, 2003) use features like

Greyscale spatial derivatives, distance maps,

constant gradient variance and DCT coefficients fed

to an SVM classifier.

The structure of the remaining of our paper is as

follows: Section 2 describes the proposed algorithm

and its different stages, section 3 presents the

evaluation method and the experimental results and

section 4 provides a conclusion.

2 TEXT DETECTION

ALGORITHM

The proposed algorithm (Figure. 2) exploits the fact

that text lines produce strong vertical edges

horizontally aligned and follow specific shape

restrictions. Using edges as the prominent feature of

our system gives us the opportunity to detect

characters with different fonts and colours since

every character present strong edges, despite its font

or color, in order to be readable. An example of

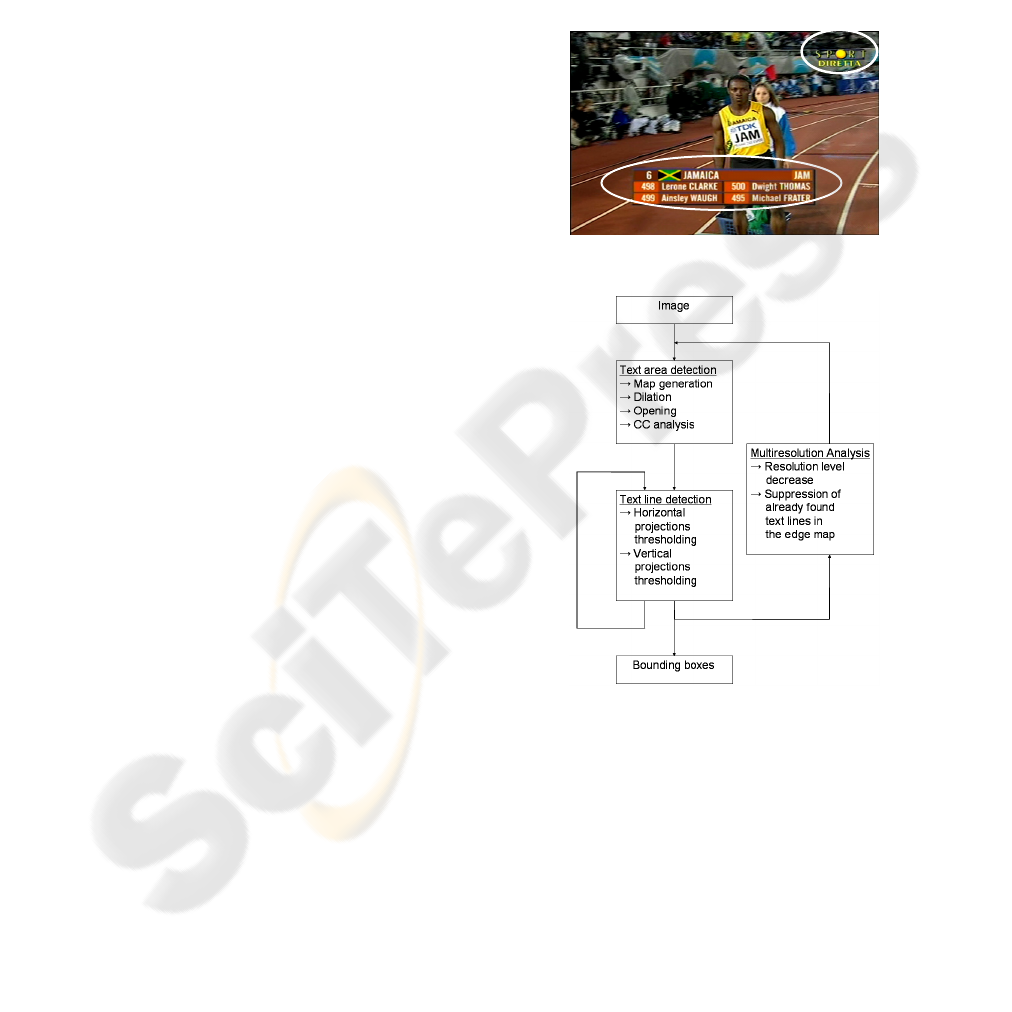

artificial text in a video frame is given in Figure1.

Figure 1: Example of artificial text.

Figure 2: Flowchart of the proposed text detection

algorithm.

2.1 Text Area Detection

As a first step of our methodology we produce the

edge map of the video frame image. Several

methodologies are used in the literature for

computing the edge map of an image (Gonzalez,

1992). For our algorithm we use Canny (Canny,

1986) edge detector applied in greyscale images.

Canny uses Sobel masks in order to find the edge

magnitude of the image, in gray scale, and then uses

non-Maxima suppression and hysteresis

VISAPP 2007 - International Conference on Computer Vision Theory and Applications

162

thresholding. With these two post-processing

operations Canny edge detector manage to remove

non-maxima pixels, preserving the connectivity of

the contours. Ideally the created edge map is a

binarized image with the pixels of contours set to

one (white) and the background equal to zero (black)

(Figure 3a).

After computing the Canny edge map, a dilation

by an element 5x21 is performed to connect the

character contours of every text line (Figure.3b).

Experiments showed that a cross-shaped element has

better results. Then a morphological opening is used,

removing the noise and smoothing the shape of the

candidate text areas (Figure.3c). The element used

here is also cross-shaped with size 11x45. Every

component created by the previous dilation with

height less than 11 or width less than 45 is

suppressed. This means that every edge which could

not connect to a component larger than the element

of the dilation will be lost.

Unfortunately this operation may suppress the

edges of text lines with height less than 12 pixels.

However, this is not so devastating since characters

of this size are either way not recognized in the final

stage of the Video OCR system. Now every

component represents a candidate text area. Finally a

connected component analysis helps us to compute

the initial bounding boxes of the candidate text areas

(Figure.3d).

2.2 Text Line Detection

The previous stage has a high detection rate but

relatively low precision. This means that most of the

text lines are included in the initial text boxes while

at the same time some text boxes may include more

than one text line as well as noise. This noise usually

comes from objects with high intensity edges that

connect to the text lines during the dilation process.

This low precision also comes from detected

bounding boxes which do not contain text but

objects with high vertical edge density. To increase

the precision and reject the false alarms we use a

method based on horizontal and vertical projections.

Firstly, the horizontal edge projection of every

box is computed and lines with projection values

below a threshold are discarded. In this way boxes

with more than one text line are divided and some

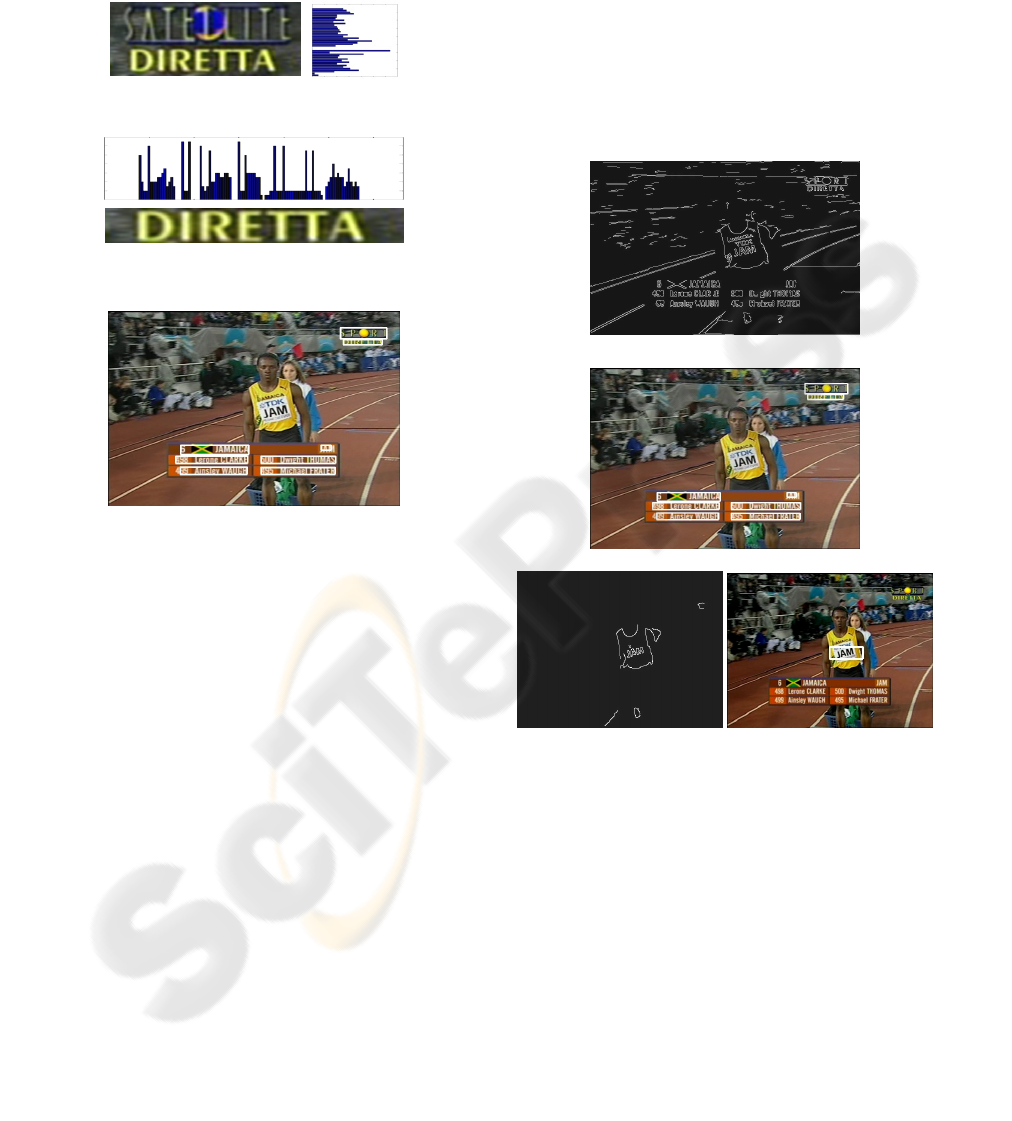

lines with noise are also discarded (Figure. 4).

Besides, boxes which do not contain text are usually

split in a number of boxes with very small height

and discarded by a next stage due to geometrical

constraints.

(a)

(b)

(c)

(d)

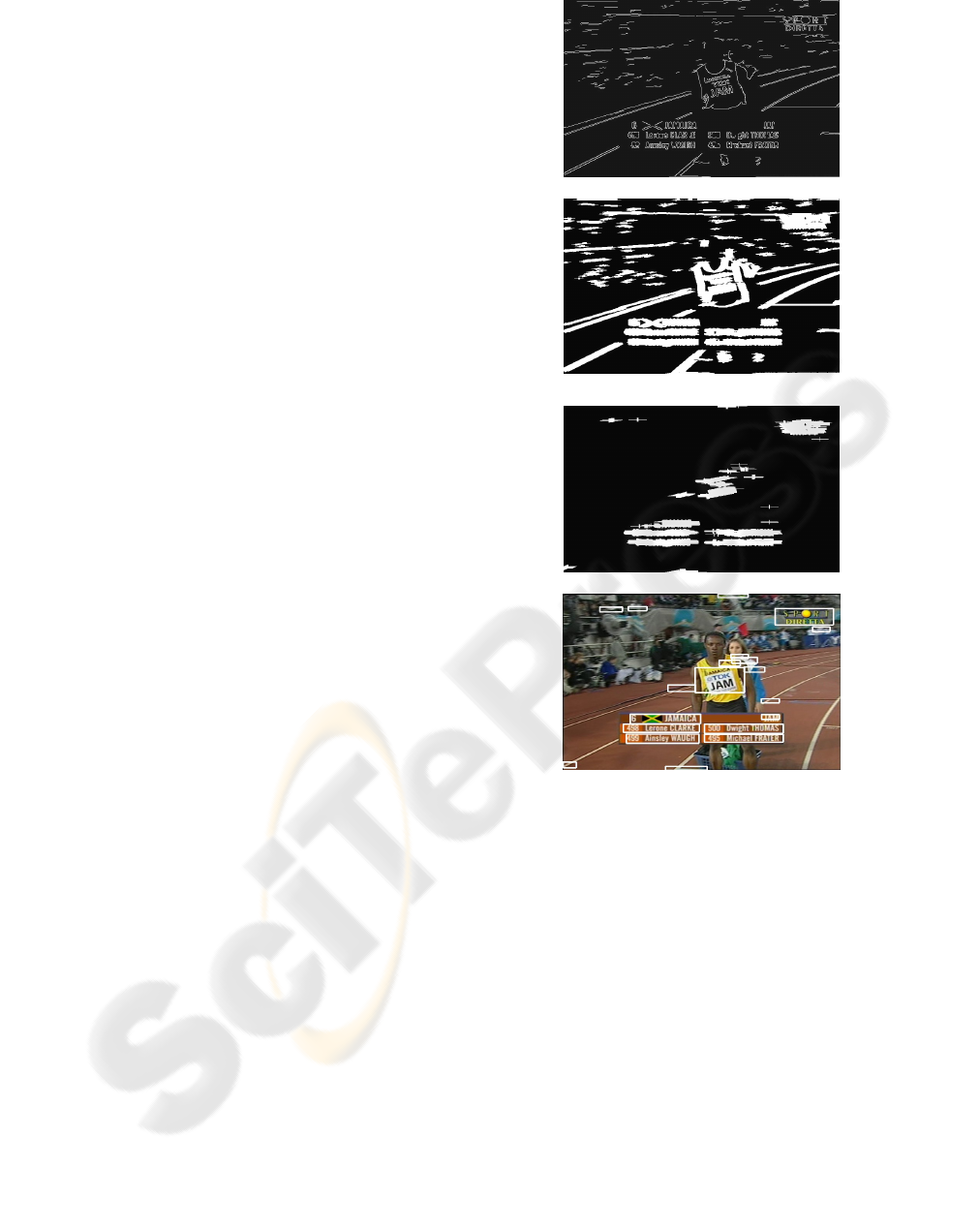

Figure. 3: Text area detection. (a) Edge map, (b) Dilation,

A box is discarded if:

• Height is lower than a threshold (set to 12),

• Height is greater than a threshold (set to 48),

• Ratio width/ height is lower than a threshold

(set to 1.5).

Then, a similar procedure with vertical

projection follows (Figure. 5). This method would

actually break every text line in words or even in

characters. However, this is not an intention of the

algorithm so finally the vertically divided parts are

reconnected if the distance between them is less than

a threshold which depends on the height of the

candidate text line (set to 1.5*height). In this way, a

bounding box will split only if the distance between

two words is larger than the threshold which means

MULTIRESOLUTION TEXT DETECTION IN VIDEO FRAMES

163

that actually belong to different text lines or if a part

of the candidate text line contain only noise. The

whole procedure with horizontal and vertical

projections is repeated three times in order to

segment even the most complicated text areas and

results to the final bounding boxes (Figure. 6).

Figure 4: Example of horizontal projection.

Figure 5: Example of vertical projection.

Figure 6: Bounding boxes after projection analysis.

2.3 Multiresolution Analysis

Using edge features in order to detect text gives to

the method independence from text color and

different fonts. However, this method clearly

depends on the size of the characters. The size of the

elements for the morphological operations and the

geometrical constraints give to the algorithm the

ability to detect text in a specific range of character

sizes. With the values described above the algorithm

is capable of detecting accurately characters with

height from 12 to 48 pixels. To overcome this

problem we adopt a multiresolution approach. The

algorithm described above is applied to the image in

different resolutions and finally the results are fused

to the initial resolution.

This fusion might be quite difficult if we

consider that the same text might be detected in

different resolutions so bounding boxes will overlap.

To avoid that, the algorithm suppresses the edges of

the already recognised characters in a resolution

before the edge map is passed to the next resolution.

For every resolution, except for the initial a blurring

filter is applied so the edges of the background

become weaker compared to the edges of the text

which still remain strong. This filter is not applied to

the first resolution because it would destroy the

contrast of the small characters that already suffer

the blurring caused by video compression. Taking

into account that artificial text in videos usually does

not contain very large characters and from the

experience of related experiments we chose to use

two resolutions for this approach: the initial, and the

one with a scale factor of 0.6. In this way the system

can detect characters with height up to 80 pixels

which was considered to be satisfying.

(a)

(b)

Figure. 7: Multiresolution analysis. (a) Fine resolution, (b)

Result at fine resolution, (c) Coarse resolution, (d) Result

at coarse resolution.

3 EVALUATION METHOD AND

EXPERIMENTAL RESULTS

Designing evaluation methods for text detection is

an aspect that has not be studied extensively. Very

few related works have been published, moreover

this works propose evaluation strategies with very

complicated implementations or demand great effort

for the generation of the ground truth (Hua, 2003),

(Manohar, 2006). In this work we used as evaluation

VISAPP 2007 - International Conference on Computer Vision Theory and Applications

164

indicators the recall and precision rates on a pixel

base. For the computation of these rates we need to

calculate the number of the pixels for the ground

truth bounding boxes, for the bounding boxes of the

detection method and for their intersection. As final

measure we use the F-measure, which is the

harmonic mean of recall and precision. However this

method proved to have several drawbacks which

have to be faced.

The first is that there is not an optimal way to

draw the ground truth bounding boxes. This means

that two boxes may be accurate enough for bounding

a text line although they may not include exactly the

same pixels. To overcome this problem one can

segment the text pixels from the background pixels

and then demand the presence of text pixels in the

output bounding box. However, this would make the

detection evaluation depend on the performance of

text segmentation which is surely not desirable. In

this work, we follow a more simple strategy to solve

this problem. The ground truth bounding boxes are

drawn in a way that the margins between the text

pixels and the edge of the box are equal for all text

lines. Moreover, as last stage of the detection

algorithm all bounding boxes grow by 8 pixels in

width and height, providing a satisfying

approximation of the ground truth.

Another drawback is the fact that this method

actually measures the percentage of detected pixels.

However the goal of the detection algorithm is not to

detect maximal amount of pixels but the maximal

number of characters. In other words, a text line

must have influence to the final evaluation measure

proportional to the number of containing characters

and not to the number of its pixels. Unfortunately,

the number of characters in a box cannot be defined

by the algorithm but it can be approximated by the

ratio width/height of the bounding box, if we assume

that this ratio is invariable for every character and

the spaces between different words in a text line is

proportional to its height. In this way, the recall and

precision rates are given by the equations (1), (2).

Where

is the height of the i

ground truth

bounding box,

EG is its number of pixels,

EGD is

the number of pixels of the intersection that belong

to i

ground truth bounding box,

hd is the height of

the i

detection bounding box,

ED is its number of

pixels,

EDG is the number of pixels of the

intersection that belong to i

detection bounding

box, N is the number of ground truth bounding

boxes and M is the number of detected bounding

boxes.

∑

EDG

Precision

(1)

∑

EGD

Recall

(2)

Where

is the height of the i

ground truth

bounding box,

EG is its number of pixels,

EGD is

the number of pixels of the intersection that belong

to i

ground truth bounding box,

hd is the height of

the i

detection bounding box,

ED is its number of

pixels,

EDG is the number of pixels of the

intersection that belong to i

detection bounding

box, N is the number of ground truth bounding

boxes and M is the number of detected bounding

boxes.

As an overall measure we use the weighted

harmonic mean of precision and recall also referred

as the F-measure (3).

RecallPrecision

Recall*Precision*2

(3)

By using this evaluation method we try to

approximate the rates of character detection through

pixel detection rates.

For testing the algorithm’s performance, 3 sets of

video frames (720x480) have been used, captured

from TRECVID 2005 and 2006 (http://www-

nlpir.nist.gov/projects/trecvid/). For the results of

Table 1, a Pentium 4, 3.2 GHz processor has been

used.

The results of set2 proved to be worse than the

others. This is probably because this set contains

images with very large fonts and also some scene

text.

Table 1: Results of the algorithm.

Set1 Set2 Set3

Number of images 95 83 61

Number of ground

truth boxes

384 272 241

Recall 90.89% 83.4% 91.34%

Precision 83.52% 88.87% 91.06%

F-measure 87.05% 86.04% 91.19%

Time (secs) 37 31 21

Experimental results showed that very large fonts

cannot be detected using only the edge information

of the image because the edge texture of a large font

MULTIRESOLUTION TEXT DETECTION IN VIDEO FRAMES

165

has many similarities with the texture of background

objects. Set3 contains artificial text with small fonts

and Set1 contains text in many different sizes as well

as some scene text.

4 CONCLUSION

In this paper, we present an edge-based algorithm

for artificial text detection in video frames. The

proposed methodology exploits the fact that text

lines produce strong vertical edges horizontally

aligned and follow specific shape restrictions.

Although the algorithm is designed to detect

horizontal artificial text, scene text can also be

detected in some cases. Experimental results

advocate very good performance in a variety of

different video frames. The method is vulnerable in

very complex backgrounds. In our future work, we

plan to exploit the color homogeneity of text.

ACKNOWLEDGEMENTS

This research is carried out within the framework of

the European project BOEMIE

(http://www.boemie.org/). The research in this work

has received research funding from the EU-IST

Sixth Framework Programme.

REFERENCES

Canny J., 1986. A computational approach to edge

detection, IEEE Trans. Pattern Analysis and Machine

Intelligence, 8, 679-698.

Chen D. , H. Bourlard, 2001. and J. -P. Thiran, Text

Identification in Complex Background using SVM,

Proc. of IEEE Conference on Computer Vision and

Pattern Recognition, Vol. 2, pp. 621-626.

Chen Datong, Kim Shearer and Herve Bourlard, 2003.

Extraction of special effects caption text events from

digital video, International Journal of Document

Analysis and Recognition IJDAR(5), No. 2-3, pp. 138-

157

Clark P. and M. Mirmehdi, 2000. Finding Text Regions

Using Localised Measures, Proceedings of the 11th

British Machine Vision Conference.

Crandall David, Sameer Antani, Rangachar Kasturi, 2003.

Extraction of special effects caption text events from

digital video IJDAR(5), No. 2-3, pp. 138-157

Du, Yingzi, Chang, Chein-I Thouin, Paul D., 2003.

Automated system for text detection in individual

video Images, Journal of Electronic Imaging, 12(3),

410 - 422.

Gonzalez R. and R. Woods, 1992. Digital Image

Processing Addison Wesley, pp 414 – 428

Hua Xian-Sheng, Liu Wenyin, HongJiang Zhang, 2004.

An automatic performance evaluation protocol for

video text detection algorithms. IEEE Trans. Circuits

Syst. Video Techn. 14(4), 498-507.

Li Huiping , David Doermann, 2000. A Closed-Loop

Training System for Video Text Detection, Cognitive

and Neural Models for Word Recognition and

Document Processing, World Scientific Press.

Lienhart Rainer and Frank Stuber, 1995. Automatic text

recognition in digital videos, Technical Report /

Department for Mathematics and Computer Science,

University of Mannheim.

Malobabic J, O'Connor N, Murphy N, and Marlow S.,

2004. Automatic Detection and Extraction of Artificial

Text in Video, WIAMIS 2004 - 5th International

Workshop on Image Analysis for Multimedia

Interactive Services, Lisbon, Portugal.

Manohar Vasant, Padmanabhan Soundararajan, Matthew

Boonstra, Harish Raju, Dmitry B. Goldgof, Rangachar

Kasturi, John S. Garofolo, 2006. Performance

Evaluation of Text Detection and Tracking in Video.

Document Analysis Systems, 576-587

Rainer Lienhart and Axel Wernicke, 2002.Localizing and

Segmenting Text in Images and Videos, IEEE

Transactions on Circuits and Systems for Video

Technology, vol. 12, NO. 4

Sato T. , Kanade T. , E. Hughes, and M. Smith , 1998.

Video OCR for Digital News Archives, IEEE

Workshop on Content-Based Access of Image and

Video Databases(CAIVD'98), pp. 52 - 60.

Sobottka K. and Bunke H., 1999. Identification of Text on

Colored Book and Journal Covers, International

Conference on Document Analysis and Recognition,

Bangalore, India, pp. 57-62.

Wolf Christian and Jean-Michel Jolion, 2004. Model

based text detection in images and videos: a learning

approach. Technical Report LIRIS-RR-2004-13

Laboratoire d'Informatique en Images et Systemes

d'Information, INSA de Lyon, France. March 19th.

Wu W., D. Chen and J. Yang, Integrating, 2005. Co-

Training and Recognition for Text Detection,

Proceedings of IEEE International Conference on

Multimedia & Expo 2005 (ICME 2005), pp. 1166 -

1169.

Xi Jie, Xian-Sheng Hua, Xiang-Rong Chen, 2001. Liu

Wenyin, HongJiang Zhang, A Video Text Detection

And Recognition System, IEEE International

Conference on Multimedia and Expo ICME 2001.

Yan Hao, Yi Zhang, Zengguang Hou, Min Tan, 2003.

Automatic Text Detection In Video Frames Based on

Bootstrap Artificial Neural Network and CED. The

11-th International Conference in Central Europe on

Computer Graphics, Visualization and Computer

Vision 2003.

Ye Qixiang, Qingming Huang, Wen Gao, Debin Zhao,

2005. Fast and robust text detection in images and

video frames. Image Vision Computing 23(6): 565-

576.

Zhong Yu, HongJiang Zhang, Anil K. Jain, 2000.

Automatic Caption Localization in Compressed

Video, IEEE Trans. Pattern Analysis Machine

Intelligence, 22(4): 385-392.

VISAPP 2007 - International Conference on Computer Vision Theory and Applications

166
