A Cognitive Robot Architecture Based on 3D Simulator
of Robot and Environment
Antonio Chella
1
and Irene Macaluso
1
1
Dipartimento di Ingegneria Informatica Università di Palermo
viale delle Scienze ed.6, 90128 Palermo, Italy
Abstract. The paper proposes a robot architecture based on a comparison be-
tween the effective robot sensations and the expected sensations generated by a
3D robot/environment simulator. The robot perceptions are generated by the
simulator driven by this comparison process. The architecture is operating in
“Cicerobot” a museum robot offering guided tours at the Archaeological Mu-
seum of Agrigento, Italy.
1 Introduction
An autonomous robot operating in real and unstructured environments has to interact
with a dynamic world populated with objects, people, and in general, other agents:
people and agents may change their position and identity during time, while objects
may be moved or dropped. In order to work properly, the robot should have a
perception of its environment and it should create links between its sensory inputs
and motor actions.
Humphrey [12] makes a clear distinction between sensations and perceptions:
sensations are active responses generated by the body in reaction to external stimuli.
They refers to the subject, they are about “what is happening to me”. Perceptions are
mental representations related to something outside the subject. They are about “what
is happening out there”. Sensations and perceptions are two separate channels; a
possible interaction between the two channels is that the perception channel may be
recoded in terms of sensations, i.e., the mental representation of the vase may be
recoded in terms of sensations and compared with the effective stimuli from the
outside, in order to catch and avoid perceptual errors. This process is similar to the
“echoing back to source” strategy for error detection and correction.
Gärdenfors [6] discusses the role of simulators related to sensations and
perceptions. He claims that sensations are immediate sensory impressions, while
perceptions are built on simulators of the external world. A simulator receives as
input the sensations coming from the external world, it fills the gaps and it may also
add new information in order to generate perceptions. The perception of an object is
therefore more rich and expressive than the corresponding sensations. In Gärdenfors
terms, “perceptions are sensations that are reinforced with simulations”. The role of
Chella A. and Macaluso I. (2007).
A Cognitive Robot Architecture Based on 3D Simulator of Robot and Environment.
In Robot Vision, pages 67-76
DOI: 10.5220/0002066700670076
Copyright
c
SciTePress
simulators in motor control has been extensively analyzed from the neuroscience
point of view, see [23] for a review.
Grush [10,11], proposes several cognitive architectures based on simulators
(“emulators” in Grush terms). The basic architecture is made up by a feedback loop
connecting the controller, the plant to be controlled and a simulator of the plant. The
loop is pseudo-closed in the sense that the feedback signal is not directly generated by
the plant, but by the simulator of the plant, which parallels the plant and it receives as
input the efferent copy of the control signal sent to the plant. In this case, the
sensations are generated by the system as the output of the simulator.
A more advanced architecture proposed by Grush and inspired to the work of
Gerdes and Happee [8] takes into account the basic schema of the Kalman filter. In
this case, the residual correction generated by the difference between the effective
plant output and the emulator output (the sensations) are sent to the plant simulator
via to the Kalman gain. In turns, the simulator send its inner variables as feedback to
the controller. In this case the sensations are output of the simulator process and they
are more or less of the same type of sensory inputs, while the perceptions are the
inner variables of the simulator. The simulator inner variables are therefore more
expressive that rough sensations and they may contain also information not directly
perceived by the system, as the occurring forces in the perceived scene, or the object-
centered parameters and in general the variables used in causal reasoning [7].
Grush [9] discusses the adoption of neural networks to learn the operations of the
simulators, and Oztop et al. [19] propose sophisticated learning techniques of
simulators based on inferences of the theory of mind of others.
An early implementation of a robot architecture based on simulators is due to Mel
[17]. He proposed a simulated robot moving in an environment populated with simple
3D objects. The robot is controlled by a neural network that learns the aspects of the
objects and their relationships with the corresponding motor commands. It becomes
able to simulate and to generate expectations about the expected object views
according to the motor commands, i.e., the robot learns to simulate the external
environment. A successive system proposed by Mel is MURPHY [18] in which a
neural network controls a robot arm. The system is also able to perform off-line
planning of the movements by means of the internal simulator of the environment.
Other early implementation of robots operating with internal simulators of the
external environment are MetaToto [21], and the internalized plan architecture [20].
In both systems, a robot builds an inner model on the environment to be reactively
explored by simulated sensorimotor actions to generate action plans.
An effective robot able to build an internal model of the environment has been
proposed by Holland and Goodman [13]. The system is based on a neural network
that controls a Khepera minirobot that is able to simulate actions and perceptions and
to anticipate perceptual activities is a simplified table environment. Holland [14]
speculates on the relationships between embodiment, internal models and
consciousness.
68
2 Robot Architecture
The robot architecture proposed in this paper is based on an internal simulator of the
robot and the environment world that takes into account the previously discussed
distinction between sensations and perceptions (Fig. 1). The Robot block is the robot
itself and it is equipped with motors and a video camera. It is modeled as a block that
receives in input the motor commands M and it sends in output the robot sensations
S, i.e., the scene acquired by the robot video camera. The Controller block controls
the actuators of the robot and it sends the motor commands M to the robot. The robot
moves according to M and its output is the 2D pixel matrix S corresponding to the
scene image acquired by the robot video camera.

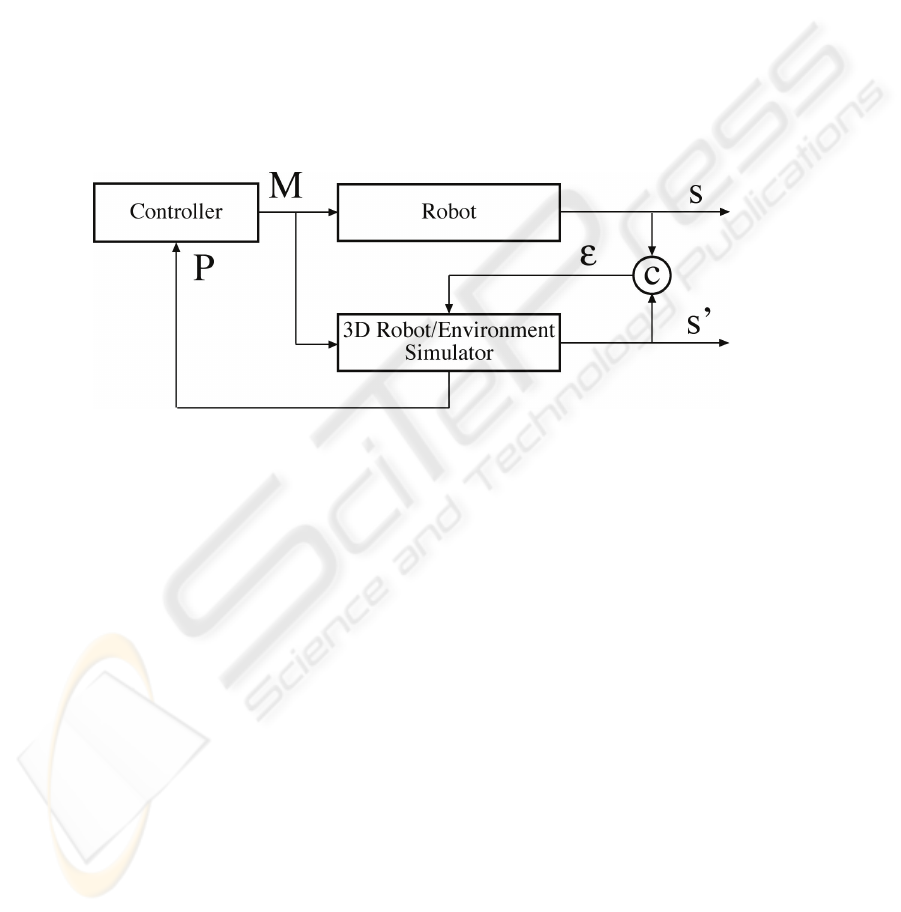

Fig. 1. The robot architecture.
At the same time, an efferent copy of the motor commands is sent to the 3D

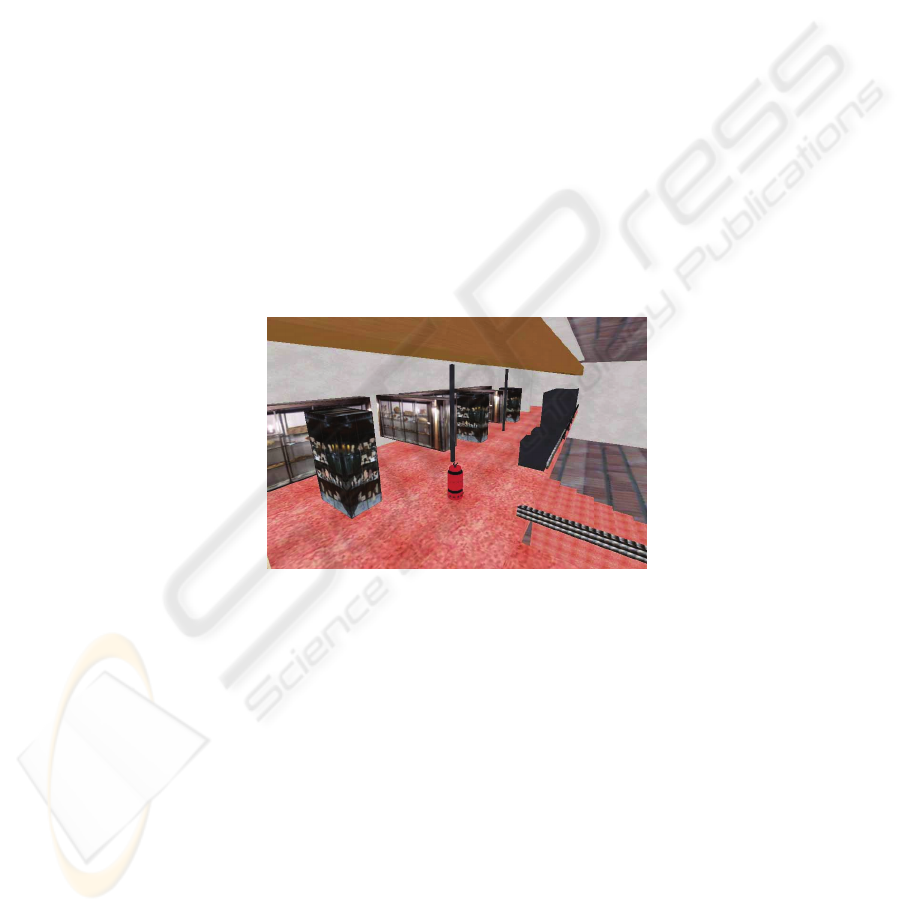

Robot/Environment Simulator. The simulator is a 3D reconstruction of the robot
environment with the robot itself. It is an object-centered representation of the world
in the sense of Marr [16]. The simulator receives as input the controller motor
command M and it simulates the corresponding motion of the robot in the 3D

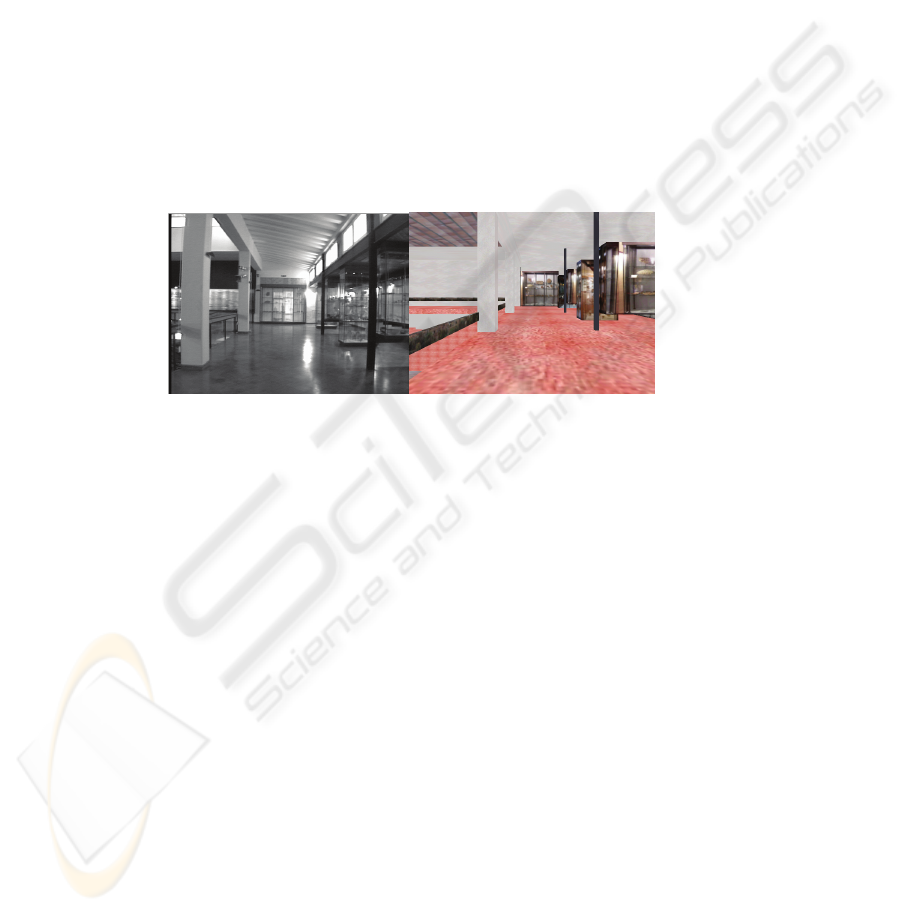

simulated environment. The output S’ of the simulator is the 2D image obtained as a
projection of the simulated scene acquired by the simulated robot. In this sense S is
the effective image scene acquired by the robot and S’ is the expected image scene
acquired by the robot according to the simulator. Both images are viewer-centered, in
Marr’s terms.
The acquired and the expected image scenes are compared by the comparator
block c and the resulting error ε is sent back to the simulator to align the simulated
robot with the real robot. At the same time, the simulator send back all the relevant
3D information P about the robot position and its environment to the controller, in
order to adjust the motor plans, as described below
It should be noted that S and S’ are 2D image scenes; they are modal information
that may be considered sensations as they refer to “what is happening to the robot”,
i.e., they are responses to the robot visual stimuli referred to the robot itself. Instead,
P is amodal information that may be considered the robot perception, as it is a set of
3D information referred to “what is happening out there”.
69
The image matrix S’ is the 2D recoding of 3D perception used by the simulator
correct and align the simulated robot, while P is the amodal interpretation of robot
sensations by means of the 3D simulator. The 2D reconstruction S’ of the scene is
built by the robot as a projection of the 3D entities in the simulator and from the data
coming from robot sensors. This reconstruction constitutes the phenomenal
experience of the robot, i.e., what the robot sees at a given instant. This kind of seeing
is an active process, since it is a reconstruction of the inner percept in ego
coordinates, but it is also driven by the external flow of information. It is the place in
which a global consistency is checked between the internal model and the visual data
coming from the sensors. The robot acquires evidence for what it perceives, and at
the same time it interprets visual information according to its internal model. Any
discrepancy asks for a readjustment of its internal model. Furthermore, through this
2D image, the robot has an immediate representation of the scene as it appears in
front of it, very useful for rapid decision and reactive behaviour.
3 Planning and Imagination
The proposed framework may be extended to allow the robot to deliberate its own
sequences of actions. In this perspective, planning may be performed by taking
advantage from the representations in the 3D Robot/Environment Simulator. Note
that we are not claiming that all kinds of planning must be performed within a
simulator, but the forms of planning that are more directly related to perceptual
information can take great advantage from visual awareness in the described
architecture.
The signal P describes the perception of a situation of the world out there at time t,
i.e., it describes the perception of the current situation of the world. The simulator, by
means of its simulation engine (see below), is able to generate expectations of P at
time t+1, i.e., it is able to simulate the robot action related with motor command M
generated by the controller and the relationship of the action with the external world.
In facts, the preconditions of an action can be simply verified by geometric
inspections in P at time t, while in the STRIPS planner [5] the preconditions are
verified by means of logical inferences on symbolic assertions. Also the effects of an
action are not described by adding or deleting symbolic assertions, as in STRIPS, but
they can be easily described by the situation resulting from the expectations of the
execution of the action itself in the simulator, i.e., by considering the expected
perception P at time t+1.
In the proposed architecture, the recognition in a scene of a certain component of a
situation described by P may elicit the expectation of the other components of the
situation itself. The recognition of a certain situation by means of the perception P at
time t could also elicit the expectation of a subsequent situation and the generation of
the expected perception P at time t+1.
We take into account two main sources of expectations. On the one side,
expectations are generated on the basis of the structural information stored in a
symbolic knowledge base of the simulator. We call linguistic such expectations. As
soon as a situation is perceived which is the precondition of a certain action, then the
70
symbolic description elicit the expectation of the effect situation, i.e., it generates the
expected perception P at time t+1.
On the other side, expectations could also be generated by a purely Hebbian
association between situations. Suppose that the robot has learnt that when it sees
somebody pointing on the right, it must turn in that direction. The system learns to
associate these situations and to perform the related action. We call associative this
kind of expectations.
In order to explain the planning by imagination mechanism, let us suppose that the
robot has perceived the current situation
P
0
e.g., it is in a certain position of a room.
Let us suppose that the robot knows that its goal g is to be in a certain position of
another room with a certain orientation. A set of expected perceptions
P
1
, P
2
,K
{
}
of
situations is generated by means of the interaction of both the linguistic and the
associative modalities described above. Each
P
i
in this set can be recognized to be
the effect of some action related with a motor command
M
j
in a set of possible
motor commands
M
1
, M
2
,K
{}
where each action (and the corresponding motor
command) in the set is compatible with the perception
P
0
of the current situation.

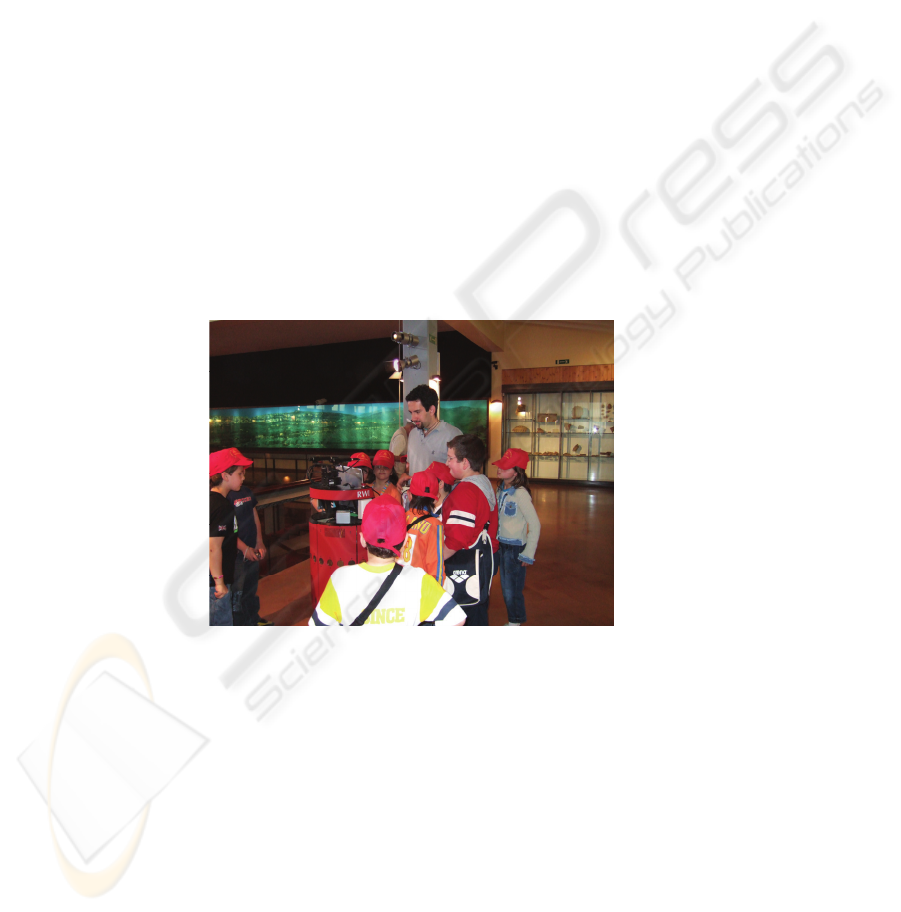

Fig. 2. The robot “Cicerobot” operating at the Archaeological Museum of Agrigento.
The robot chooses a motor command M
j
according to some criteria; e.g., is the
action whose expected effect has the minimum Euclidean distance from the “goal” g,
or, for example, considering the valuation of the expected effect. Once that the action
to be performed has been chosen, the robot can imagine to execute it by simulating its
effects in the 3D simulator then it may update the situation and restart the mechanism
of generation of expectations until the plan is complete and ready to be executed.
On the one side, linguistic expectations are the main source of deliberative robot
plans: the imagination of the effect of an action is driven by the description of the
action in the simulator KB. This mechanism is similar to the selection of actions in
deliberative forward planners. On the other side, associative expectations are at the
71
basis of a more reactive form of planning: in this latter case, perceived situations can
“reactively” recall some expected effect of an action.
Both modalities contribute to the full plan that is imagined by the robot when it
simulates the plan by means of the simulator. When the robot becomes fully aware of
the plan and of its actions, it can generate judgments about its actions and, if
necessary, imagine alternative possibilities.
4 Robot at Work
The proposed architecture has been implemented in “Cicerobot”, an autonomous
robot RWI B21 equipped with sonar, laser rangefinder and a video camera mounted
on a pan tilt. The robot has been employed as a museum tour guide operating at the
Archaeological Museum of Agrigento, Italy offering guided tours in the “Sala Giove”
of the museum (Fig. 2). A first session of experimentations, based on a previous
version of our architecture, has been carried out from January to June 2005 and the
results are described in [4,15]. The second session, based on the architecture
described in this paper, started in March and ended in July 2006.
Fig. 3. The 3D robot/environment simulator.
The task of museum guide is considered a significant case study [3] because it
concerns perception, self perception, planning and human-robot interactions. The task
it is relevant as a test bed for phenomenal consciousness. It can be divided in many
subtasks operating in parallel, and at the same time at the best of the robot
capabilities. Moreover, the museum is a dynamic and unpredictable environment.
Referring to the architecture in Fig. 1, the controller includes a standard behavior-
based architecture (see, e.g., [1]) equipped with all the standard reactive behaviors as
the static and dynamic obstacle avoidance, the search of free space, the path
following and so on.
Fig. 3 shows the 3D robot/environment simulator. As previously described, the
task of the block is to generate the expectations of the interactions between the robot
and the environment; it should be noted that the robot also simulates itself in its
environment.
72
In order to keep aligned the simulator with the external environment, the simulator
engine is equipped with a stochastic algorithm known as particle filter (see, e.g.,
[22]). In brief, the simulator hypothesize a cloud of expected possible positions of the
robot. For each expected position, the corresponding expected image scene S’ is
generated, as in Fig. 4 (right). The comparator then generates the error measure ε
between the expected and the effective image scene S (Fig. 4 left). The error ε
weights the expected position under consideration; in a subsequent step, only the
winning expected positions that received the higher weigh are taken, while the other
ones are dropped. Fig. 5 (left) shows the initial distribution of expected robot position
and Fig. 5 (right) shows the small cluster of winning positions.
Now the simulator receives the new motor command M related with the chosen
action as described before, and, starting from the winning hypotheses, it generates a
new set of hypothesized robot positions. The filter iterates between these two steps
until convergence, i.e., until the winning positions converge to a single moving point.
Fig. 4. The 2D image output of the robot video camera (left) and the corresponding image
generated by the simulator (right).
Fig. 4 shows the 2D image S as output of the robot video camera (left) and the
corresponding image S’ generated by the simulator (right) by re-projecting in 2D the
3D information from the current point of view of the robot.
The comparator block c compares the two images of Fig. 4 by using elastic
templates matching [2]. In the current implementation, features are long vertical
edges extracted from the camera image. Spatial relations between edges’ midpoints
are used to locate each edge in the simulated image and compute the relative
distortion between the expected and the effective scene. The relative distortion is a
measure of the error ε related to the differences between the expected image scene
and the effective scene. As previously stated, this error is sent back to the simulator in
order to correct the robot position in the 3D simulator.
73

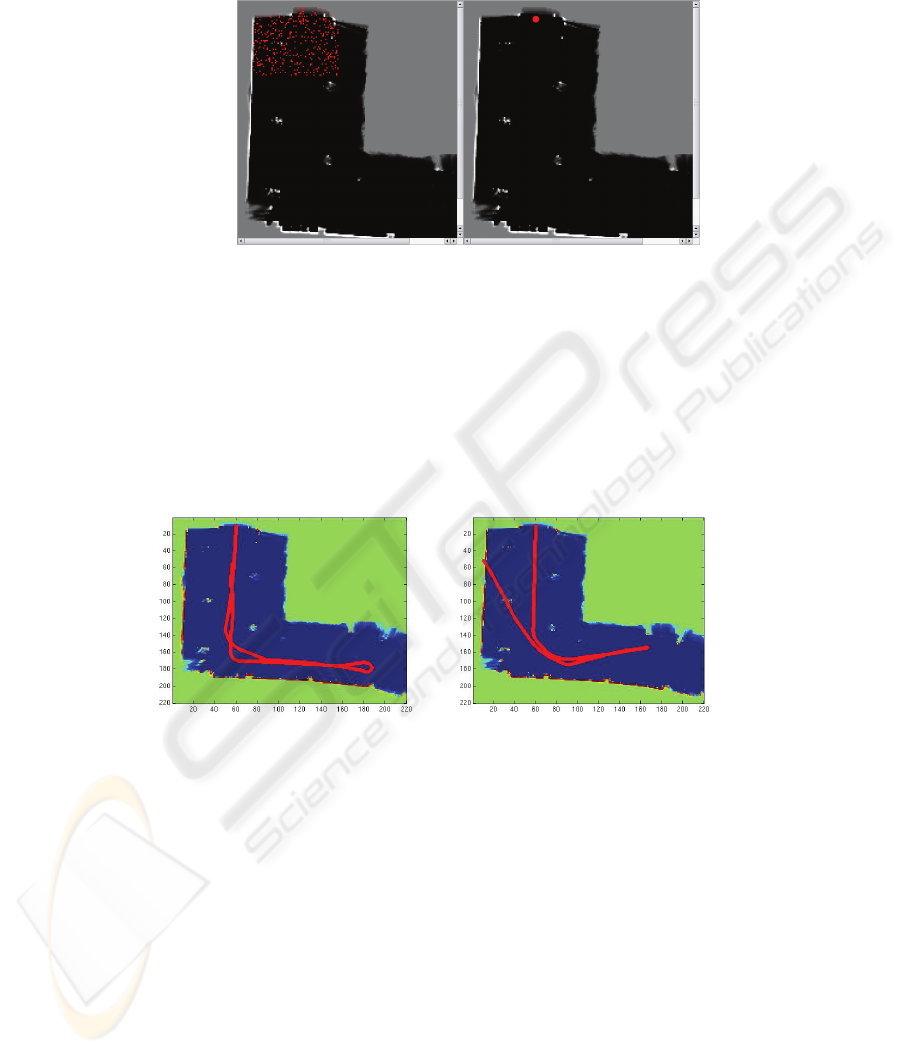

Fig. 5. The operation of the particle filter. The initial distribution of expected robot positions
(left), and the cluster of winning expected positions (right).
5 Experimental Results
In order to test the proposed architecture we compared the operations of the robot
equipped with the described system with the operations of the robot driven by the
odometric information only.
Fig. 6. The operation of the robot equipped with the described architecture (left) and with the
reactive controller and the odometric feedback only (right).
Fig. 6 (left) shows the operation of the robot during the tour guide. To compare the
operation of the robot, we tested the robot by considering the operation of a reactive
robot equipped with the odometric sensor data; results are shown in Fig 6 (right).
Fig. 7 shows the difference of the two trajectories versus time. It should be noticed
that at the very beginning the two tours are quite the same, while early in the robot
operations, the trajectory related with the odometric data only tends to diverge.
During the second part of the tour, when the two robots turn right in order to follow
the corridor and to come back to base home, the two trajectories became again quite
similar (the valley at nearly 1200) and then they diverge again.
74

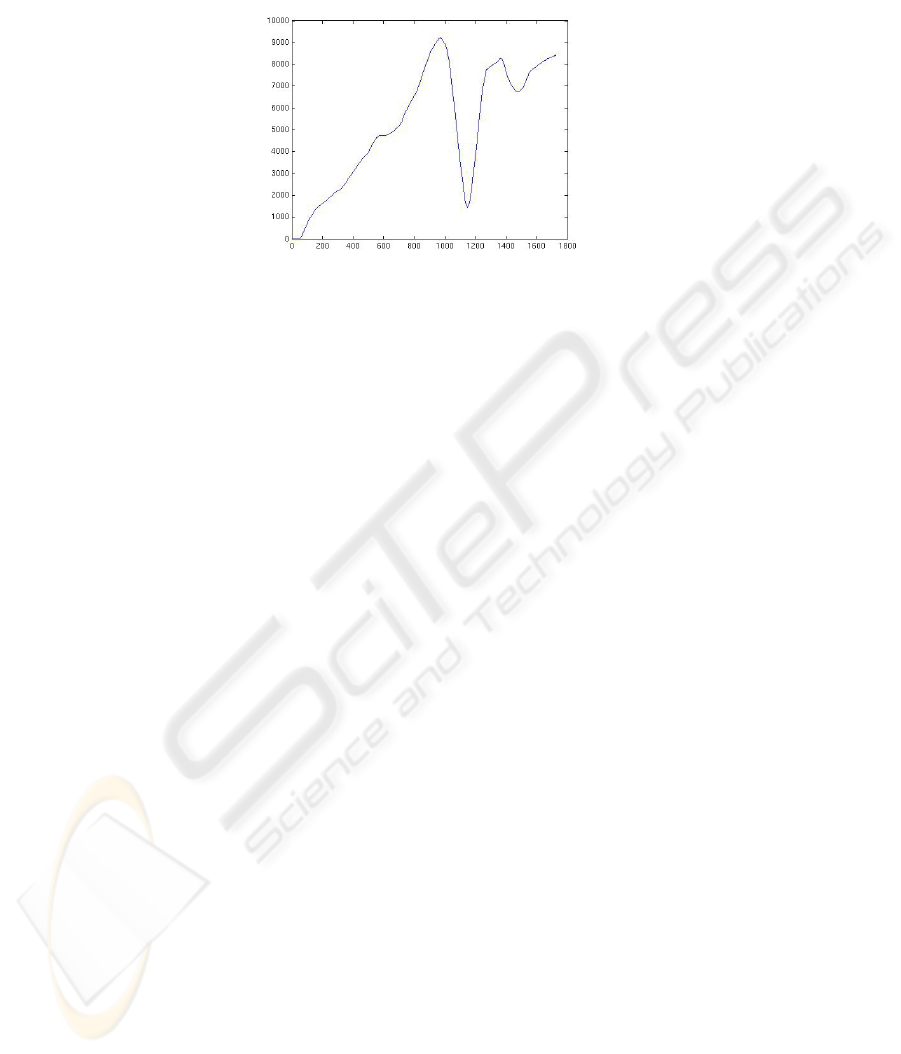

Fig. 7. The figure shows the difference during the tour guide between the two trajectories
versus time.
It should be noted that the proposed architecture based on the described account let
the robot to operate more precisely and in a more satisfactory way. In facts, the
described sensations and perceptions mechanism let the robot to be aware of its
position and of its perceived scene. The robot is therefore able to eventually adjust
and correct its own subsequent motion actions. Moreover, the robot is able to imagine
its future actions and it is therefore able to choose the best motion actions according
to the current perceived situation.
Acknowledgements
Authors would like to thank Salvatore Gaglio, Peter Gärdenfors and Riccardo
Manzotti for discussions about the proposed architecture. The director and the staff of
the Archaeological Museum of Agrigento kindly supported the Cicerobot project.
Edoardo Ardizzone, Massimo Cossentino, Antonio Gentile, Rosario Gradino, Ignazio
Infantino, Marilia Liotta, Daniele Peri, Lorenzo Riano, Riccardo Rizzo, Giuseppe
Scardino contributed in several ways to the implementation and tests of the proposed
architecture.
References
1. R.C. Arkin: Behavior-based robotics. MIT Press, Cambridge, MA, 1998.
2. C. Balkenius, L. Kopp: Elastic template matching as a basis for visual landmark recogni-
tion and spatial navigation, in Proc. of AISB 1997 workshop on Spatial reasoning in mobile
robots and animals, Manchester: Manchester University, UK.
3. W. Burgard, A.B. Cremers, D. Fox, D. Hähnel, G. Lakemeyer, D. Schulz, W. Steiner, S.
Thrun: Experiences with an interactive museum tour-guide robot, Artificial Intelligence,
114, pp. 3–55, 1999
75
4. A. Chella, M. Frixione, S. Gaglio: Planning by imagination in Cicerobot, a robot for mu-
seum tours, in: Proc. of AISB 2005 Symposium on Next Generation Approaches to Ma-
chine Consciousness, pp. 40-49, University of Hertfordshire, Hatfield, UK.
5. R.E. Fikes and N.J. Nilsson: STRIPS: a new approach to the application of theorem prov-
ing to problem solving, Artificial Intelligence, 2, pp. 189-208, 1971.
6. P. Gärdenfors: How Homo Became Sapiens. Oxford, Oxford University Press, 2003.
7. P. Gärdenfors: Emulators as sources of hidden cognitive variables, Behavioral and Brain
Sciences, 27, 3, p. 403, 2004.
8. V.G.J. Gerdes and R. Happee: The use of an internal representation in fast goal-directed
movements: a modeling approach, Biological Cybernetics, 70, pp. 513-524, 1994.
9. R. Grush: Emulation and cognition. Doctoral dissertation, Department of Cognitive Science
and Philosophy. University of California, San Diego, 1995.
10. R. Grush: Wahrnehmung, Vorstellung und die sensomotorische Schleife. (English transla-
tion: Perception, imagery, and the sensorimotor loop), in: F. Esken and H.-D. Heckmann
(eds.): Bewußtsein und Repräsentation, Verlag Ferdinand Schöningh.
11. R. Grush: The emulator theory of representation: Motor control, imagery and perception,
Behavioral and Brain Sciences, 27, 3, pp. 377-442, 2004.
12. N. Humphrey: A History of the Mind. New York, Simon & Schuster, 1992.
13. O. Holland and R. Goodman: Robots with internal models – A route to machine conscious-
ness? Journal of Consciousness Studies, 10, 4-5, pp. 77-109, 2003.
14. O. Holland: The future of embodied artificial intelligence: Machine consciousness?, in: F.
Iida et al. (eds.): Embodied artificial intelligence. LNAI 3139, Berlin Heidelberg, Springer-
Verlag, pp. 37-53, 2004.
15. I. Macaluso, E. Ardizzone, A. Chella, M. Cossentino, A. Gentile, R. Gradino, I. Infantino,
M. Liotta, R. Rizzo and G. Scardino: Experiences with Cicerobot, A museum guide
cognitive robot, in: S. Bandini and S. Manzoni (eds.): AI*IA 2005, LNAI 3673, Berlin
Heidelberg, Springer-Verlag, pp. 474-482, 2005.
16. D. Marr: Vision. W.H. Freeman, New York, 1982.
17. B.W. Mel: A connectionist learning model for 3-dimensional mental rotation, zoom and
pan, in: Proc. of the 8th Ann. Conf. of the Cognitive Science Soc., pp. 562-571, 1986.
18. B.W. Mel: Connectionist robot motion planning: A neurally-inspired approach to visually-
guided reaching. Cambridge, MA, Academic Press, 1990.
19. E. Oztop, D. Wolpert, M. Kawato: Mental state inference using visual control parameters,
Cognitive Brain Research, 22, pp. 129-151, 2005.
20. D.W. Payton: Internalized plans: A representation for action resources, Robotics and
Autonomous Systems, 6, pp. 89-103, 1990.
21. L.A. Stein: Imagination and situated cognition, MIT AI Memo No. 1277, 1991.
22. S. Thrun, W. Burgard, D. Fox: Probabilistic Robotics. MIT Press, Cambridge, MA, 2005.
23. D.M. Wolpert and Z. Ghahramani: Computational principles of movement neuroscience,
Nature neuroscience supplement, 3, pp.1212-1217, 2000.
76
