Stereo Vision for Obstacle Detection: A Region-Based
Approach
P. Foggia
2
, A. Limongiello
1
and M. Vento
1
1
Dip. di Ingegneria dell’Informazione ed Ingegneria Elettrica
Università di Salerno, Via Ponte don Melillo, I84084 Fisciano (SA), Italy
2
Dip. di Informatica e Sistemistica
Università di Napoli, Via Claudio 21, I80125, Napoli, Italy
Abstract. We propose a new approach to stereo matching for obstacle detection
in the autonomous navigation framework. An accurate but slow reconstruction
of the 3D scene is not needed; rather, it is more important to have a fast local-
ization of the obstacles to avoid them. All the methods in the literature, based
on a pixel stereo matching, are ineffective in realistic contexts because they are
either computationally too expensive, or unable to deal with the presence of
uniform patterns, or of perturbations between the left and right images. Our
idea is to face the stereo matching problem as a matching between homologous
regions. Our method is strongly robust in a realistic environment, requires little
parameter tuning, and is adequately fast, as experimentally demonstrated in a
comparison with the best algorithms in the literature.
1 Introduction
During the last years, the Computer Vision community has shown an increasing in-
terest in applications like Automated Guided Vehicles (AGV) or Autonomous Mobile
Robots (AMR). In the literature many approaches have been proposed for Visual
Navigation of a mobile platform [1],[2]. A very challenging task is the so-called ob-
stacle detection. Many authors have expressed their conviction that a robotic vision
system should aim at reproducing the human vision system, and so should be based
on stereo vision. The greatest advantage of stereo vision with respect to other tech-
niques (e.g. optical flow, or model-based) is that it produces a full description of the
scene, can detect motionless and moving obstacles (without defining a complex ob-
stacle model), and is less sensitive to the environmental changes (the major disadvan-
tage of optical-flow techniques). The stereo vision provides a “3D-like” representa-
tion of the scene, producing information about objects in the environment that may
obstacle the motion. A pair of images acquired from a stereo camera implicitly con-
tains depth information about the scene: this is the main assumption of stereo vision.
The main difficulty is to establish a correspondence between points of the two images
representing the same point of the scene; this process is called disparity matching.
Foggia P., Limongiello A. and Vento M. (2007).
Stereo Vision for Obstacle Detection: A Region-Based Approach.
In Robot Vision, pages 36-45
DOI: 10.5220/0002067900360045
Copyright
c
SciTePress
The set of displacements between matched pixels is usually indicated as disparity
map. All the approaches, in the literature, are based on this pixel correspondence. We
propose an extension of that concept, namely we define a disparity value for a whole
region of the scene starting from the two homologous views of it in the stereo pair.
The main reason of this extension is that a pixel-matching approach is redundant for
AMR and AVG applications. In fact, in this framework, it is not very important to
have a good reconstruction of the surfaces, but it is more important to identify ade-
quately the space occupied by each object in the scene, even by just assigning to it a
single disparity information. Moreover the pixel-based approaches are lacking in
robustness in some realistic frameworks, especially for video acquired from a mobile
platform. Our method estimates the average depth of the whole region by an integral
measure, and so has fewer problems with uniform regions than other methods have.
The estimate of the position of the regions is sufficiently accurate for navigation and
it is fast enough for real time processing.
This paper is organized as follows: Section 2 presents the state of art for stereo
matching problem; Section 3 is devoted to show the rationale of our method; Section
4 shows the algorithm. Finally, in Section 5 there is a discussion of experimental
results on a standard stereo image database and also on our stereo video sequences.
Conclusions are drawn in Section 6.
2 Related Works
We will present a brief description of the most important methods for stereo match-
ing; for more details, there is a good taxonomy proposed by Scharstein and Szeliski
[3], and a survey on stereo vision for mobile robots by Zhang [4]. There are two ma-
jor types of techniques, in the literature, for disparity matching: the area-based and
feature-based techniques. Moreover, the area-based algorithms can be classified in
local and global approaches. The local area-based algorithms [5],[6],[7] provide a
correspondence for each pixel of the stereo pair. They assume that each pixel is sur-
rounded by a window of pixels having similar disparity; these windows are matched
using correlation or a similar technique. They produce a dense disparity map (i.e. a
map providing a disparity for each pixel), more detailed than it is needed for AMR
aims. Furthermore, they can be quite unreliable, not only in homogeneous regions,
but also in textured regions for an inappropriately chosen window size. On the other
side, the global area-based approaches (that also yield a dense map) try to propagate
disparity information from a pixel to its neighbours [8],[9], or they define and mini-
mize some energy function over the whole disparity map [10],[11],[12]. They have a
better performance in homogeneous regions, but they frequently have parameters
which are difficult to set, and are highly time-consuming. The feature-based ap-
proaches [13],[14],[15] detect and match only “feature” pixels (as corner, edges, etc.).
These methods produce accurate and efficient results, but compute sparse disparity
maps (disparity is available only in correspondence to the feature points). AMR ap-
plications require more details, such as some information about the size of the ob-
jects; also a rough shape of the objects is needed for guiding a robot in the environ-
ment or for basic recognition tasks (e.g. in industrial applications, or for platooning of
37
robots). All the proposed methods, as already said, look for a pixel matching in the
stereo pair. Therefore, some constraints have been introduced, since the first works
on the stereopsis by Marr and Poggio [8],[13] in order to guarantee good results. The
stereo pair is supposed to be acquired from a sophisticated system, so that the inten-
sity distributions of the two images are as similar as possible. Moreover, a pre-
processing phase is needed, before the correspondence finding step, to compensate
the hardware setup (calibration phase), or to assume an horizontal epipolar line (epi-
polar rectification). Unfortunately, in realistic applications of mobile platforms these
constraints are not easy to guarantee. The two images of the stereo pair could have a
different intensity distribution, the motion of the mobile platform on a rough ground
could produce mechanical vibrations of the cameras, and consequently local or global
perturbations between the two images.
3 The Rationale
In this paper we propose an extension of the disparity concept. The main idea is to
determinate a unique disparity value for a whole region of the scene and not for a
pixel. In fact, even if we can suppose a unique correspondence between each pixel in
the left and right images from an optical point of view, in some cases we can not have
enough information to find this correspondence looking just at a single pixel. Let us
consider three kinds of situations:
Pixels inside homogeneous areas. The features-based algorithms are unable to find
an appropriate feature in case of textureless region. The local area-based techniques
must define a big correlation area in order to pick enough information for the match-
ing. Finally, the global area-based methods produce a propagation of the error de-
pending on the energy minimization.
Local and global perturbation of the stereo pair depending on the vibration of
the mobile platform. The motion of the robot produces mechanical vibrations of the
cameras with a consequent loss of the horizontal epipolar line constraint, which is
assumed from all the methods in the literature.
A different intensity distribution between the left and right image. In a realistic
framework the stereo pair could suffer from perspective or photometric distortions.
Moreover, the two cameras could have different acquiring parameters, i.e. focus, or
exposure, etc. In ideal conditions all the pixels belonging to the same depth level have
two intensity patterns between the left and right image with a unique horizontal dis-
placement. In real condition the two intensity patterns are no longer a simple horizon-
tal translation, consequently a pixel matching could be unsuitable.
A region-based algorithm is proposed to face up the limitations of the pixel stereo
matching approaches. The corresponding entity is no longer the pixel, but a region;
the matching of regions provide a lowering of resolution, but an increasing of robust-
ness in a realistic environment. In fact, a uniform area is considered as a unique seg-
ment for the matching, so that the local and global perturbations of the stereo pair less
influence the solution. Finally, the proposed algorithm (see next section) define a
matching function, which is able to mitigate the lack of homogeneity between the left
38
and right image. Therefore, a good tread-off, between an efficient solution (to guaran-
tee an autonomous navigation) and the robustness in a realistic framework, is investi-
gated. Moreover, the real-time requirement is guaranteed.
4 The Algorithm
We determinate the disparity value for the whole region as the horizontal displace-
ment between the regions. The detection of the homologous regions is, of course, a
difficult problem. In fact, a same segmentation method, separately applied on the left
and right image, should divide in different parts the same region of the scene, or
should produce border errors, undermining a correct detection of the disparity for the
whole region. In our algorithm a segmentation of the left image (reference image) is
performed and each segment is overlapped on the sensed image (right image). The
disparity value of the region is the horizontal displacement, corresponding to the
minimization of a best fitting function between the two regions.

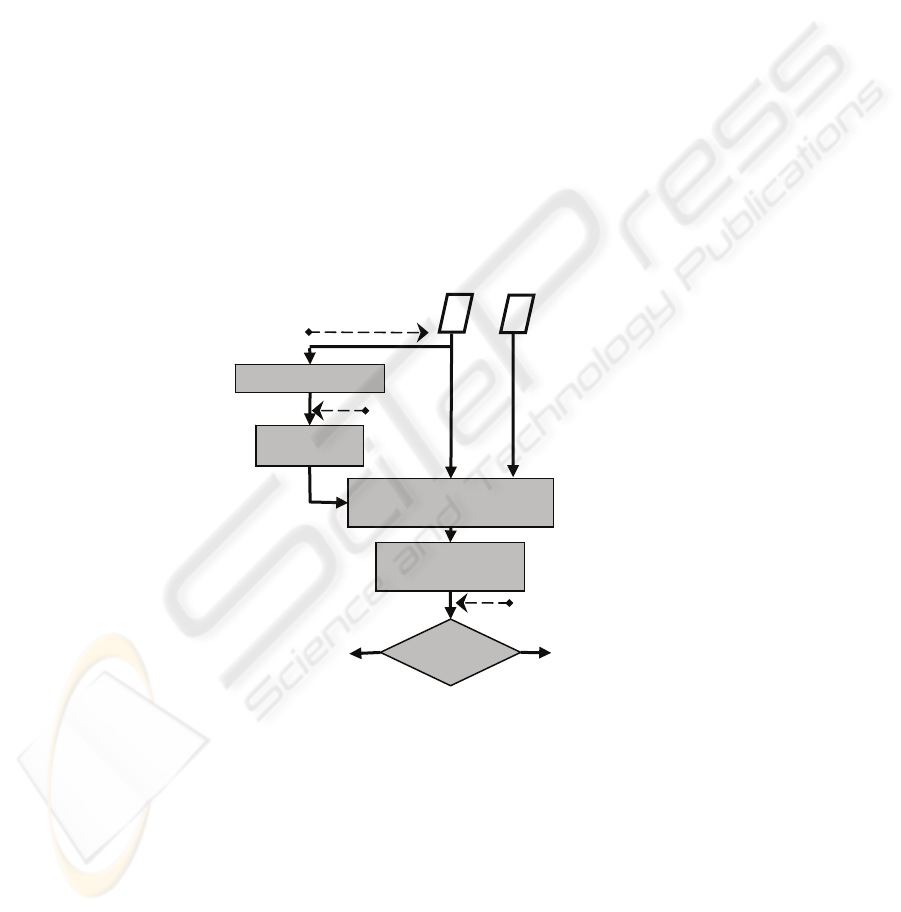

Fig. 1. A schema for our algorithm of region-based stereo matching.
This integral measurement of the disparity can mitigate some null integral border
errors, as segmentation, digitalization, and photometric errors. An approximation can
be obtained for the border errors from perspective distortion, that is not right with
null integral. It should be noted that a region is not an object; objects are decomposed
into several regions, so the overall shape of the object is however reconstructed. As
shown in Fig. 1 the algorithm is composed of four steps:
Segmentation of the reference image. Several segmentation methods (mean shift,
pyramid, multi-threshold) have been tested. The algorithm has a similar behavior
towards all the methods, taking care not to under segment the image. In fact, an under
Reference Image
Sensed Image
Disparity computation
for each R
i
Segmentation
Region
Detection
goal constraints
R
i
Performance
Evaluation p(R
i
)
goal constraints (
σ
p
)
accepted region
dis
p
(
R
i
)
P(R
i
)σ
p
rejected region
scene and observer con-
straints
YESNO
39
segmentation could merge regions belonging to different depth level. The over seg-
mentation has not a big influence in our method, because the best fitting function is
enough accurate.
Region Detection. A connected component analysis is performed to detect connected
segments. Looking at the experimental results, a 4-connected analysis has been
enough for our aim. This step is also devoted to select a subset of regions among all.
The selection is made using some constraints on the goal (goal constraints). Namely,
a minimal knowledge about the obstacle (i.e. the maximum size of an obstacle is an
upper-bound for the maximum size of a region; color information if any) or the de-
sired resolution of the result. In this way, the computation time can be reduced.
Disparity Computation. Each segment from Region Detection step is used as a se-
lection mask on the left and right image in order to select the homologous regions.
The selection of the right region is displaced from 0 to the maximum value of dispar-
ity. The disparity is the horizontal displacement corresponding to the best fitting of
the homologous regions. Formally, let E
L
(x,y) and E
R
(x,y) be the intensity value for
each pixel (x,y) on the left and right image. Let G
L
(x,y) and G
R
(x,y) be the gradient
map of the left and right images. Finally, let R
i
be the generic segment from step 2,
the following equations are defined:
()( ) () () ()
ddddRd
grad
i
col
ii
dd
ii
εβεαεε
+==
max
0
minarg)(
(1)
The best fitting function uses color and gradient information in order to consider the
intensity distribution of pixels inside each region and also texture information. The
values for the weights
α
and
β
are experimentally found.
() ()
()
()
(
)
=
i
Ryx
R
iR
L
iL
i
col
i
dydxEyxE
R
d
),(
)(,,
1
μμε
() ()
()
() ( )
=
==
i
Ryx
RL
i
grad
i
i
Ryx
R
i
R
i
i
Ryx
L
i
L
i
ydxGyxG
R
d
ydxE
R
dyxE
R
),(
),(),(
,,
1
,
1
)(,
1
ε
μμ
(2)
The best fitting color function,
(
)
d
col
i
ε
, is normalized on the mean color (
L
i
μ
,
R
i
μ
) of
the region R
i
on the left and right image. In this way a good matching is found also in
case of a not homogeneous distribution of intensity between the left and right image.
Performance Evaluation. The previous step provides also a performance index for
the matching, p(R
i
). For each region the minimum value of the fitting function has
been used as matching error, ε(R
i
), and the reliability index is:
()
()
() ()()
dRwhere
Rp
R
Rp
i
dd
i
i
i
R
i
i
εε
ε
max
0
min:
)(max
1)(
==
(3)
A region is rejected if the performance index is lower than an imposed tolerance
40
(p(R)<σ
p
). This is an other goal constraint because we can choose a reliability level
depending on the requested efficacy of the solution.
Vision is an under constrained problem and therefore that it is necessary to find new
constraints in order to make the problem solvable. Our method can be classified as a
systemic approach [17], in fact we consider constraints coming from the scene, from
the goal and from the observer (as shown in Fig. 1). In particular, with regard to
scene constraints, we assume a strong continuity constraint for each selected region,
and the compatibility and the uniqueness constraints are applied on the whole region
and not longer on each pixel. Moreover, the observer (mobile platform) moves slowly
so that only little vibrations of the cameras are possible. Finally, the obstacle detec-
tion task (our goal) is scalable in time and performance: a robot, having more time,
can carry out a finer investigation of the environment, asking to the system a better
solution.
5 Experimental Results
In the literature, tests are usually performed with standard databases composed of
static images, well-calibrated and acquired in uniform lighting. The Middlebury web
site by Scharstein and Szeliski [18] is a good reference for some stereo images and to
compare some stereovision algorithms. In this section we want to show our qualita-
tive results and discuss some errors of the best algorithms in the literature, when ap-
plied to real cases. Nowadays, in AMR and AGV applications it is not defined a
quantitative measurement for performance evaluation. In [16] it is proposed a quanti-
tative performance evaluation for disparity map, but in case of reconstruction aims.
For this reason we also propose a quantitative method to compare stereo algorithms
when the goal is the obstacle detection and no longer the 3D reconstruction of the
scene. The following Fig. 2 shows our result on the Tsukuba DB and a comparison
with other approaches. We have selected: squared differences (SSD) and graph cuts
(GC) [18] (a local and global area-based algorithm respectively). The experiments
have been performed on a notebook Intel P4 1.5 GHz, 512 Mb RAM, and we have
considered a resolution of 384x288 pixel. We have used the following parameters and
constraints:
Table 1. Parameters and constraints.
Description Value
Scene and observer constraints Respected
Numbers of ranges for segmentation 20
Goal constraint for region detection Not used
[α , β] for disparity computation
[0.4, 0.6]
Threshold for performance evaluation (σ
p
)
0.8
41
The goal constraint for region detection is not used in order to not compromise the
comparison with the pixel-based approaches (that can’t use such constraint). The
parameters are obtained by experimental evidences.

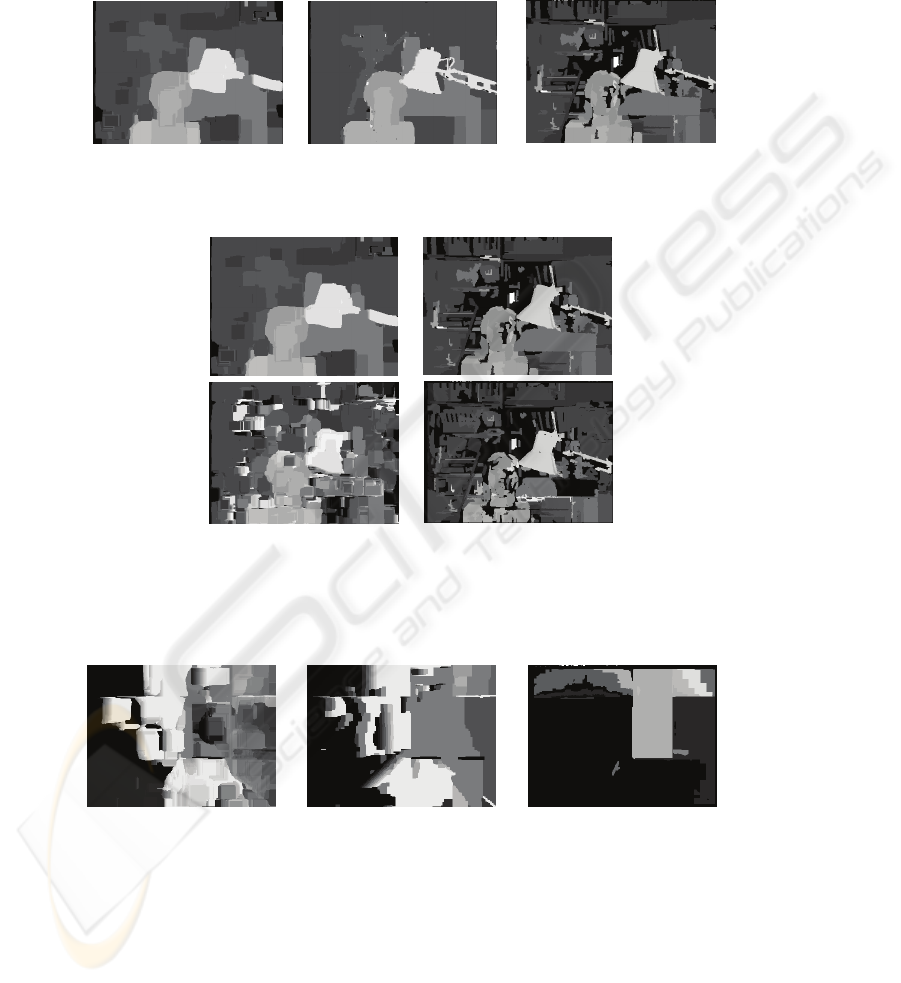

Fig. 2. A comparison with other approaches.
Fig. 3. SSD and Our approach after a vertical translation of 2 pixels.
In Fig. 3 it is clear the robustness of our approach in relation to the loss of the hori-
zontal epipolar constraint.
Fig. 4. Results on our stereo pair: it is characterized by only one homogeneous object.
The presence of texture-less regions causes serious problems to the best algorithms of
the literature as shown in Fig. 4. In order to consider a quantitative comparison of the
algorithms for obstacle detection aim, we define a simple module that detects the
obstacles from the disparity map. Each 4-connected region with the same disparity
value is identified with a bounding box and its distance from the observer. We select
the obstacles as the connected regions that belong to a chosen range of distances, in
SS
D
:
Tim
e
< 1
G
ra
p
h
Cu
t
:
Tim
e
50
sec
O
O
U
U
R
R
:
:
T
T
i
i
m
m
e
e
0
0
.
.
7
7
s
s
e
e
c
c
SS
D
:
Tim
e
< 1
sec
O
O
U
U
R
R
:
:
T
T
i
i
m
m
e
e
1
1
.
.
1
1
4
4
GraphCut:Time70sec
After
After
Before
Before
SSD: Time < 1
O
O
U
U
R
R
:
:
T
T
i
i
m
m
e
e
1
1
.
.
1
1
4
4
42
fact an obstacle is an object so close to the mobile platform to forbid the navigation.
Two performance index are defined in order to valuate: the capability of the algo-
rithm to identify adequately the space occupied by each obstacle (occupancy per-
formance); the correctness of depth computation for each obstacle (distance perform-
ance). For each frame of the video sequence acquired from the platform, let R
G
be the
real obstacle regions (Ground Truth), let R
D
be the obstacle regions detected by the
algorithm, and let R
I
be the subset of regions correctly detected as obstacles by the
algorithm (R
I
= R
G
R
D
). The occupancy performance is evaluated with the meas-
ures of precision and recall:
D
I
G
I
R
R
precision
R
R
recall ==
(4)
The distance performance is evaluated with a relative distance error (rde):
rde = |detected distance – real distance|
real distance
(5)
The distance of an obstacle is related to its disparity value following the relation:
distance
disparity
lenghtfocalbaseline
k
mpx
=
/
(6)
where
k
px/m
is the conversion factor from pixel to meter. It should be noted that for
each real obstacle (
Ground Truth) could be more than one overlapped obstacle re-
gions detected by the algorithm. The detected distance is supposed to be a weighted
mean distance of all the overlapped regions. The weights are set up to the sizes of
each overlapping area. We report some results obtained on a realistic video acquired
from our mobile platform. The video sequence (100 frames) is characterized by cam-
era vibration, light changing, uniform obstacles (see Fig. 5).

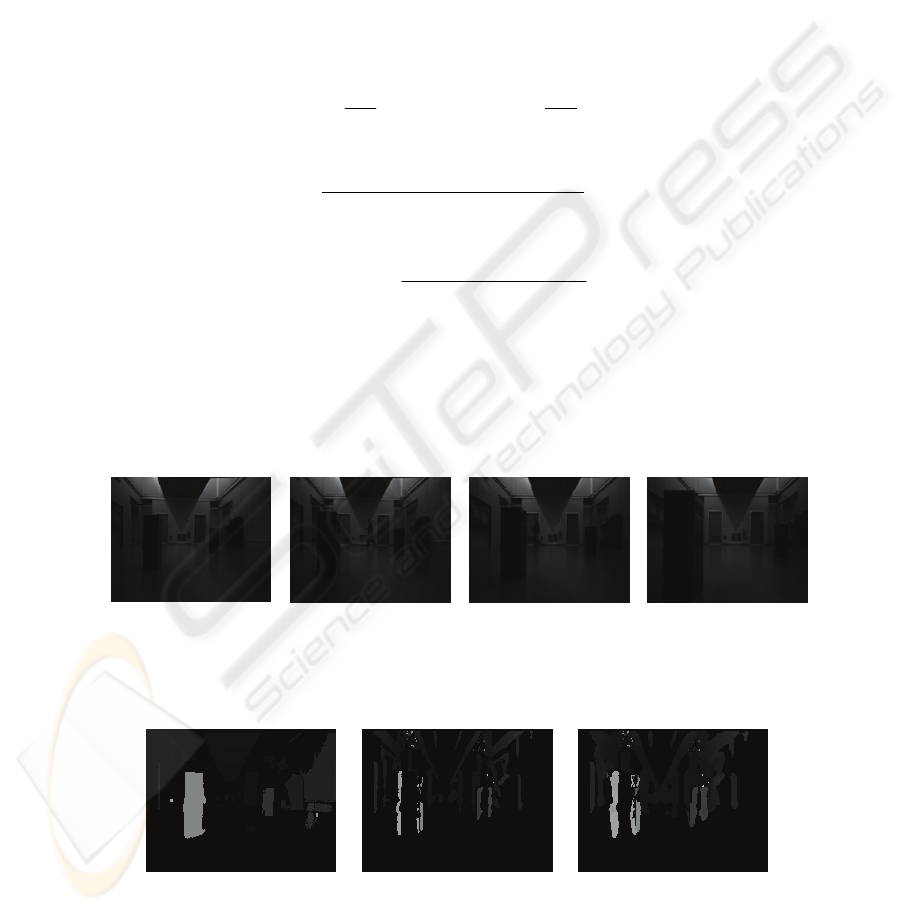

Fig. 5. Some frames of the video sequence.
The proposed method is compared with the Small Vision System (SVS) by Konolige
[20,21], that is the most popular system in off-the-shelf systems. We consider two
different version of that algorithm:
SSD and SSD multi-scale.
Fig. 6. Disparity Map Results: On the left side our method, on the center side the SSD, and on
the right side the SSD multi-scale.
43
Table 2. Precision and Recall.
algorithm recall precision
our method 0.910500462 0.635458231
SSD 0.208928846 0.477767
SSD multi-scale 0.469375385 0.348905692
Table 3. Relative Distance Error.
algorithm relative distance error
our method 0.108793103
SSD 0.191169769
SSD multi-scale 0.180161282
The results in the previous tables show that our method is much better than the other
two, especially for the occupancy performance. In fact, as it is clear from Fig. 7 and
Fig. 8, our approach can better overlap the space occupied by the real obstacles, as
like the SSD multi-scale algorithm has big opening areas inside the obstacles.

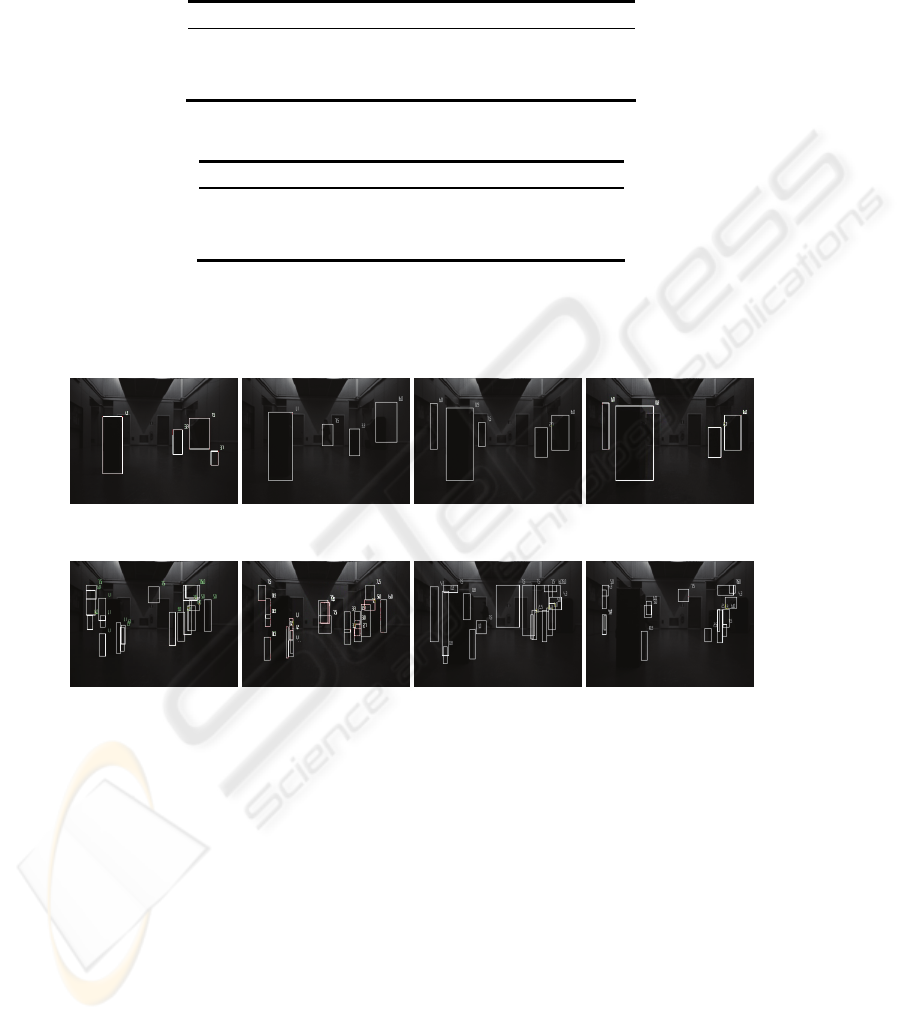

Fig. 7. Some results of our obstacle detection algorithm.
Fig. 8. Some results of obstacle detection from SSD multi-scale stereo algorithm.
6 Conclusions
We have presented a stereo matching algorithm that is especially oriented towards
AMR and AGV applications, providing a fast and robust detection of object positions
instead of a detailed but slow reconstruction of the 3D scene. The algorithm has been
experimentally validated showing an encouraging performance when compared to the
most commonly used matching algorithms, especially on real-world images. The
bigger problem is uniform areas, and here clearly correlation-based stereo does not
work, giving only the edges of the regions. Future works are oriented to combine
region-matching with conventional correlation stereo and to develop a temporal co-
herence of the solution in the video sequence.
44
References
1. DeSouza, G. N. , Kak, A. C.: Vision for Mobile Robot Navigation: A Survey. IEEE Transac-
tions on Pattern Analysis and Machine Intelligence, vol. 24, no. 2, pp. 237-267 (2002).
2. Kastrinaki, V., Zervakis, M., Kalaitzakis, K.: A survey of video processing techniques for
traffic applications. Image and Vision Computing, vol. 21, pp. 359–381 (2003).
3. Scharstein, D., Szeliski, R.: A Taxonomy and Evaluation of Dense Two-Frame Stereo Cor-
respondence Algorithms. International Journal of Computer Vision, vol. 47, no. 1, pp. 7-42
(2002).
4. Zhang, C.: A Survey on Stereo Vision for Mobile Robots. Technical report, Dept. of Electri-
cal and Computer Engineering, Carnegie Mellon University, Pittsburgh, PA, 15213, USA
(2002).
5. Kanade, T., Okutomi, M.: A stereo matching algorithm with an adaptive window: Theory
and experiment. IEEE Transaction on Pattern Analysis and Machine Intelligence, vol. 16,
no. 9, pp. 920-932 (1994).
6. Fusiello, A., Roberto, V.: Efficient stereo with multiple windowing. Proceedings of IEEE
Conference on Computer Vision and Pattern Recognition, pp 858–863, Puerto Rico (1997).
7. Veksler, O.: Stereo matching by compact windows via minimum ratio cycle. Proceedings of
the International Conference on Computer Vision, vol. I, pp. 540–547, Vancouver, Canada
(2001).
8. Marr, D., Poggio, T.A.: Cooperative computation of stereo disparity. Science, vol. 194, no.
4262, pp. 283–287 (1976).
9. Zitnick, C.L., Kanade, T.: A cooperative algorithm for stereo matching and occlusion detec-
tion. IEEE Transaction on Pattern Analysis and Machine Intelligence, vol. 22, no. 7, pp.
675–684 (2000).
10. Geiger, D., Ladendorf, B., Yuille, A.: Occlusions and binocular stereo. International Jour-
nal of Computer Vision, vol. 14, pp. 211–226 (1995).
11. Roy, S.: Stereo without epipolar lines: A maximum-flow formulation. International Journal
of Computer Vision, vol. 34, no. 2/3, pp. 1–15 (1999).
12. Boykov, Y., Veksler, O., Zabih, R.: Fast approximate energy minimization via graph cuts.
IEEE Transaction on Pattern Analysis and Machine Intelligence, vol. 23, no. 11, pp. 1222–
1239 (2001).
13. Marr, D., Poggio, T.A.: A computational theory of human stereo vision. RoyalP, vol. B, no.
204, pp. 301–328 (1979).
14. Grimson, W.E.L.: A computer implementation of a theory of human stereo vision. Royal,
vol. B, no. 292, pp. 217–253 (1981).
15. Candocia, F., Adjouadi, M.: A similarity measure for stereo feature matching. IEEE Trans-
action on Image Processing, vol. 6, pp. 1460-1464 (1997).
16. Scharstein, D., Szeliski, R.: High-accuracy stereo depth maps using structured light. Pro-
ceedings of IEEE Computer Society Conference on Computer Vision and Pattern Recogni-
tion, vol. 1, pp. 195-202, Madison, WI (2003).
17. Jolion, J.M.: Computer Vision Methodologies. CVGIP: Image Understanding, vol. 59, no.
1, pp. 53–71 (1994).
18. http://cat.middlebury.edu/stereo/
19. http://www.videredesign.com/
20. Konolige, K.: Web site. http://www.ai.sri. com/software/SVS (2006).
21. Konolige, K.: Small vision systems: hardware and implementation. Intl. Symp. On Robot-
ics Research, pages 111–116 (1997).
45
