Person Following through Appearance Models and

Stereo Vision Using a Mobile Robot

Daniele Calisi, Luca Iocchi and Riccardo Leone

Dipartimento di Informatica e Sistemistica

University ”La Sapienza”, Roma, Italy

Abstract. Following a person is an important task for mobile service and domes-

tic robots in applications in which human-robot interaction is a primary require-

ment. In this paper we present an approach that integrates appearance models and

stereo vision for efﬁcient people tracking in domestic environments. Stereo vision

helps in obtaining a very good segmentation of the scene to detect a person during

the automatic model acquisition phase, and to determine the position of the target

person in the environment. A navigation module and a high level person follow-

ing behavior are responsible for performing the task in dynamic and cluttered

environments. Experimental results are provided to demonstrate the effectiveness

of the proposed approach.

1 Introduction

Following a person is an important task for mobile service and domestic robots in ap-

plications in which human-robot interaction is a primary requirement. Consequently,

many works have been presented in the literature for people tracking and following

from a mobile platform. Most of these works use vision as the main sensor for detect-

ing, tracking and localizing people in the environment. Face detection (e.g., [8,4]), skin

color detection (e.g., [8, 11]), and color histograms (e.g., [12]) are the most common

methods that have been considered. Stereo vision has also been used to better deter-

mine the location of the person with respect to the robot. In particular, stereo vision has

been used in [5] to build a ﬂoor plan occupancy map as background model, that is used

to determine moving objects in the scene, while tracking is obtained by Kalman Filter-

ing; independent motion estimation from disparity images is computed in [1] to detect

a moving target from a moving platform; and integration of stereo matching with face

detection and skin color detection is presented in [8]. Besides vision, some approaches

using measures from laser range ﬁnders to detect people legs have been also proposed

[14,15] as well as integration of LRF and vision [4]. In addition, the works in [14, 15]

are mostly focussed to the problem of tracking multiple people, presenting approaches

based on Particle Filters. Finally, active sensors (such as RFID, or light-emitting de-

vices) can be used for this task, but this requires the person to wear such devices and it

may be not suitable in some applications.

Regardless the amount of work in this ﬁeld, a complete reliable solution that can

be used in general conditions is not currently available. Face detection and skin color

Calisi D., Iocchi L. and Leone R. (2007).

Person Following through Appearance Models and Stereo Vision Using a Mobile Robot.

In Robot Vision, pages 46-56

DOI: 10.5220/0002069800460056

 SciTePress

detection are only available when the person is oriented towards the robot, and this

is not common for a person following task. Approaches based on color histograms

often require a priori knowledge (or somewhat manual pre-calibration) about the person

and are sensitive to other colors present in the environment. Moreover, the use of a

single camera makes it difﬁcult to evaluate the location of a person in the environment,

especially in presence of other objects between the robot and the person. Using range

information provided by stereo overcomes some of the previous difﬁculties, but it may

have problems with cluttered environments. Finally, approaches using LRF to detect

people legs can be easily confused by other elements in the environment (such as tables

and chairs) and only if the robot is correctly localized in a known map and such objects

are static, these false observations can be ﬁltered out.

In this paper we focus on a reference scenario, that is quite challenging for many

of the works presented above. A person must be followed by the robot in a domestic

environment. We assume the robot to have a map of the environment, so to localize

itself, but we also consider the presence of other people moving around and objects

not represented in the map that can also stay between the robot and the person. No a

priori knowledge about the person to be followed is available, and the person will move

in a natural way in the environment (this implies for example that his/her face will be

rarely visible). Finally, we assume that the task is started with nobody in the ﬁeld of

view of the sensors of the robot (in particular, of the camera) and that the ﬁrst person

entering the scene is the one that the robot will have to follow. This scenario is partially

borrowed from the RoboCup@Home competitions

The contribution of this paper is presenting an integrated approach for person mod-

elling, tracking and following that is based on building appearance models of the person

to be tracked, using them for detecting the target person, and then using stereo vision

computationfor 3D modellingof the scene and person location. The advantagesin using

such an integrated approach are in the combination of two important features: person

recognition and tracking based on appearance models, 3D localization and tracking of

the person based on stereo vision. In fact, appearance models can reliably detect and

track people in the image space, but have problems in determining their position in the

environment for driving a robot navigation process. On the other hand, stereo vision

based people tracking, as well as other 2D geometric-only approaches, present some

limits when multiple people are close in the environment or when objects in the envi-

ronments (e.g., chairs, tables) have geometric properties similar to people.

The approach presented in this paper uses appearance models to ﬁlter perception, in

order to detect in the image space those pixels that belong to the target person and then

uses stereo vision analysis for determining ground position of the person and to drive

the robot navigation process. The integrated approach is therefore suitable in presence

of multiple people and in cluttered environments. More speciﬁcally, the proposed ap-

proach works in two phases: i) in the ﬁrst phase we assume the robot is still and only

the target person is in the ﬁeld of view of the stereo camera, during this time the model

of the person is automatically acquired; ii) in the second phase the acquired model is

used for image segmentation and stereo computation is used to determine the location

of the target person in the environment, while the robot follows him/her.

http://www.robocupathome.org/

Notice that, in the scenario presented above, it is not really necessary to track multi-

ple people, but it is sufﬁcient to track one target person to be followed, while consider-

ing other people as obstacles to be avoided during navigation. Although it is in principle

possible to apply one of the methods for tracking multiple people, it seems more conve-

nient to implement a speciﬁc solution that do not solve explicitly a multi-target tracking

problem, but just a multi-hypothesis single person tracking problem.

One major drawback of the system is that it is not able to distinguish people wearing

clothes similar to the target person or it may be confused in presence of other objects

of similar colors of the target person. Although a ﬁlter considering the global position

of the observations allows for ﬁltering out observations that are too close or behind the

walls in the map, there may still be cases in which false positives affect the performance

of the robot. Besides this issue, that is common to color based recognition approaches,

our method works reasonably well in the reference scenario described above.

We have implemented the described approach on top of a Pioneer robot equipped

with a stereo vision camera and a laser range ﬁnder. The laser range ﬁnder is used only

for localization and obstacle detection, while the stereo camera is used only for people

modelling, detection and tracking. Experimental results both in a simulated environ-

ment and in a real domestic-like environment provide evidence of the effectiveness of

the proposed method.

The paper is organized as follows. In Section 2 we describe appearance model ac-

quisition, and in Section 3 person detection and tracking. Implementation details and

experiments are described in Section 4, and conclusions are drawn in Section 5.

2 Image Segmentation and Appearance Model Acquisition

As already mentioned, the method presented in this paper is executed in two phases.

The ﬁrst phase consists in the acquisition of an appearance model of the person that

will be followed by the robotic platform and it is executed with the robot still and under

the assumption that only the target person will appear in front of the robot.

Under these assumptions, this process corresponds to people localization and track-

ing process with a ﬁxed stereo camera (PLT), as described in [3,10]. The PLT system

has been thus used for the ﬁrst phase, providing for segmenting the image by distin-

guishing the foreground person from the background, by background subtraction con-

sidering both intensity and disparity (see [3] for details).

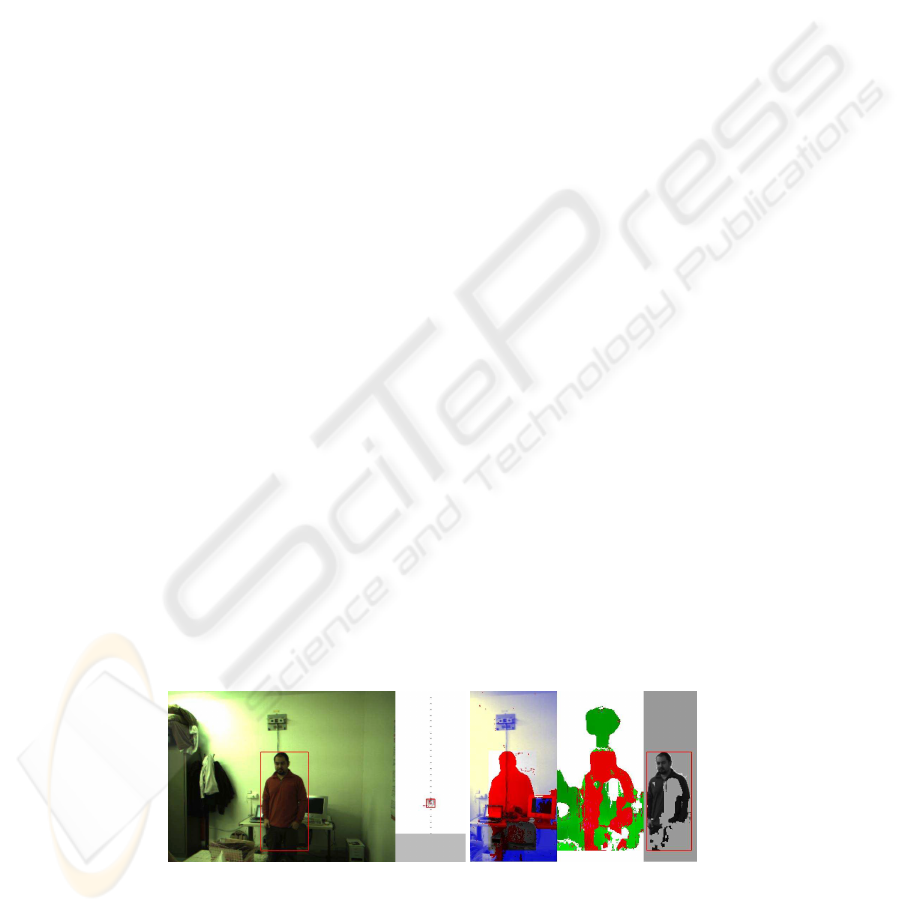

Fig.1. Examples of segmentation provided by the stereo tracker.

Figure 1 shows an example of such a process: on the left side the person detected in

the scene and his location projected on the plan-view, on the right side the two compo-

nents of intensity and disparity segmentation, and the extracted foreground.

More speciﬁcally, for each tracked person in the scene, the PLT system provides a

set of data Ω = {ω

, ..., ω

} from the time t

in which the person is ﬁrst detected to

current time t. The value ω

= {(X

, Y

, Z

, R

, G

, B

)|i ∈ P} is the set of XYZ-

RGB data (i.e. 3D location and color) for each pixel i that is classiﬁed as belonging to

a person P. The reference system is chosen in order to have the plane XY coincident

with the ground ﬂoor.

From the segmentation provided by the PLT module, we can build an appearance

model for the person to be tracked. Many existing appearance models have been pro-

posed in the literature. For example, [9] propose a Texture Temporal Template in which

the color information over time for every pixel of the silhouette is used to build the

person model. A probabilistic approach is described in [16], while in [7] the model is

extended in order to be robust to changing lighting conditions.

Among all these models, we choose to model the appearance of a person with two

uni-dimensionalcolor distributions. Our choice has been mainly motivated by efﬁciency

reasons, since during the second phase of our method the appearance model must be

used as a ﬁlter for the image pixels at every frame and thus such a ﬁlter must be im-

plemented in real-time. Moreover, 3D information about the pixel location is important

to ﬁlter out pixels whose height from the ground is below 1 meter, thus focussing only

on the upper part (torso) of the person. This decreases probability of integrating in the

model false readings (i.e., colors not belonging to the person). Other models can be

taken in consideration, as long as a real-time ﬁlter is available for the second phase.

More speciﬁcally, the appearance model is composed by two distributions A =

(), D

()i, where D

(h) and D

(v) are uni-dimensional color distributions re-

spectively in the H component and in the V component of the HSV color space, and are

deﬁned by

(h) =

τ =t

|ω

(h)

τ =t

|ω

(v) =

τ =t

|ω

(v)

τ =t

|ω

where ω

(h)

(ω

(v)

) is the subset of ω

containing only those pixels whose component

H = h (respectively, V = v).

Examples of color distributions for three people used in the experiments are given

in Figure 2. When the target person wears a uniform color, the above distributions are

very peaked and the values in the color distributions can also be seen as the probability

that a pixel of a given color belongs to the target person. In case of multiple colors in the

person appearance, the above color distributions do not represent anymore probability

distributions over the color space of pixels belonging to the target person. If a person

wears k principal colors, then k color distributions should be built one for each principal

color, by appropriately clustering these data, and then a logical disjunction among these

distributions is applied during the ﬁltering phase.

In our approach we use a representation based on a single color distribution, thus

assuming that people wears uniform colors. This is very common in practice and works

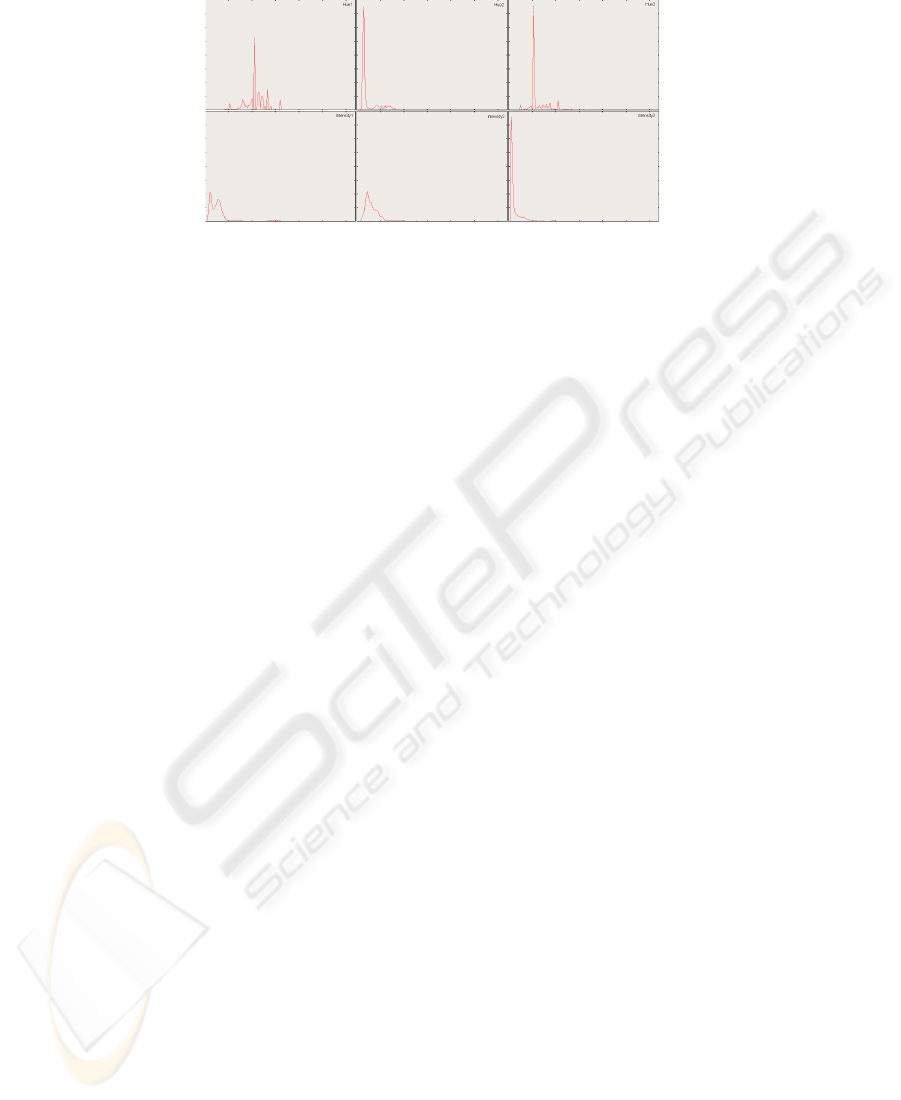

Fig.2. Appearance models from three people.

well also because we consider only pixels that are above 1 m from the ground. When

this assumption is not veriﬁed, i.e. in case of people wearing clothes that do not have

a principal color (e.g., multi-colored shirts), the color distribution has multi modes and

tend to be less peaky, therefore it is more likely to have false positives in the ﬁltering

phase.

Moreover, observe that hue is not deﬁned when saturation is zero and generally

not relevant for low saturated colors, as well as value is not relevant for well satu-

rated colors. This is taken into consideration in the ﬁltering phase (see next section), by

weigthing the use of the two distributions with the saturation of each color pixel.

It is also interesting to observe that an important feature of the PLT system is to pro-

vide a very good segmentation of the image, since the combination of intensity and dis-

parity allows for coping with typical problems of background subtraction techniques,

such as shadows, reﬂections, ghosts, etc. Consequently, the contamination of the ap-

pearance model given by pixels that do not belong to the person is very limited.

After a predeﬁned time the appearance model A of the target person is stored in

memory and the second phase can start. Usually, only a few seconds are needed for

the ﬁrst phase. In our experiments, we used 5 seconds with empty scene for fast back-

ground modelling, and 10 seconds with the person in the ﬁeld of view of the camera

for appearance model acquisition. Since the PLT system runs at about 10 frames per

second, we use about 50 frames for background modelling and 100 frames for person

modelling.

3 Person Recognition and Tracking

During the second phase of our process the robot exploits the appearance model of the

target person to detect him/her in the scene, to compute its relative location, and to

follow him/her. The second phase is composed by four steps: 1) the appearance model

is used as a ﬁlter on the current image to detect those pixels that are consistent with the

model (i.e., candidate to belong to the target person); 2) stereo computation is applied

on these pixels and a plan-view is generated from 3D data about these pixels; 3) plan

view is processed to detect connected components (world blobs); 4) world blobs are

tracked over time and periodically sent to the navigation module.

It is interesting to observe here that the steps 2 to 4 are again taken by the PLT

system [3, 10]; in fact, only the segmentation process of the original PLT system must

be replaced when cameras are mounted on a mobile platform, since it is not possible

anymore to rely it on a background model. Therefore we replace in PLT the segmen-

tation based on background subtraction with a ﬁltering based on the appearance model

determined in the ﬁrst phase.

3.1 Image Filtering Based on Appearance Model

The appearance model A = hD

(), D

()i is used to determine a set of foreground

pixels F, as follows

F = {i ∈ I|s(i)D

(h(i)) + (1 − s(i))D

(v(i)) > δ}

where for each pixel i in the current image I, we select it as a foreground pixel if

and only if the value s(i)D

(h(i)) + (1 − s(i)D

(v(i)) is above a given threshold δ.

In the above expression h(i), s(i), v(i) are the values of the HSV components of the

pixel i and the value of s(i) is used as a weight factor between the two distributions

(h(i)) and D

(v(i)). This is motivated by the fact that for high saturated colors the

contribution of the H component is more relevant, while for low saturated ones, the V

component is more signiﬁcant.

Notice that this is a pixel-based operation that can be implemented in a very efﬁcient

way using look-up tables.

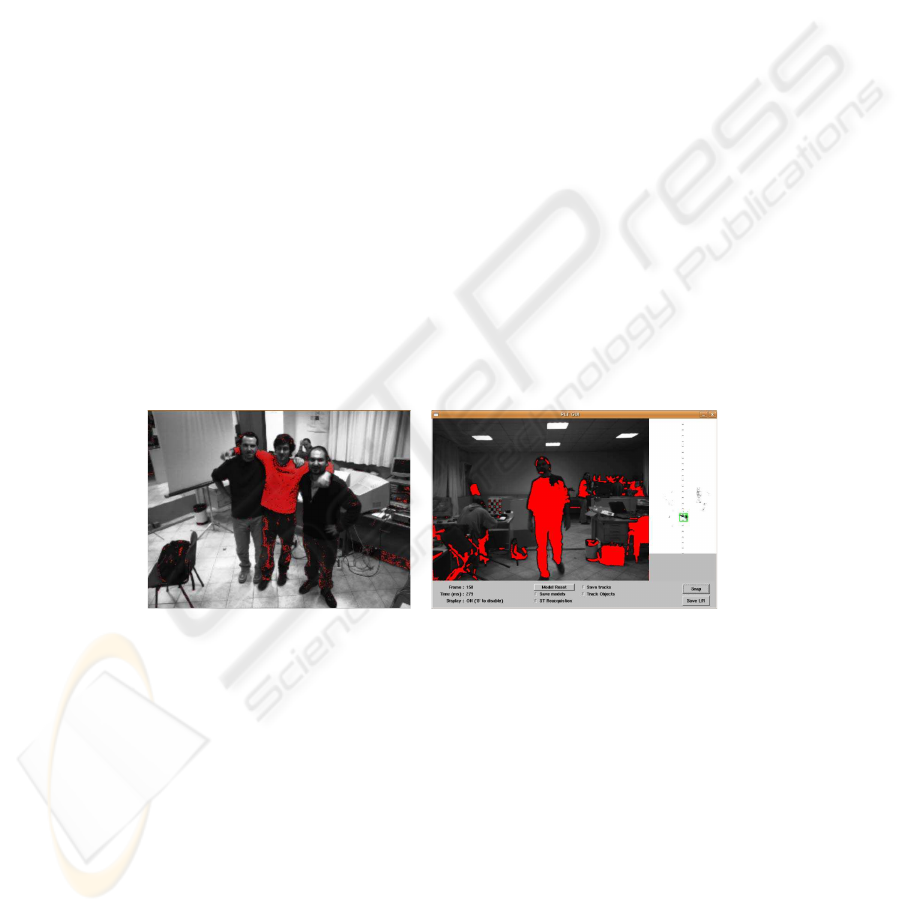

Fig.3. Examples of color based ﬁltering.

Examples of image segmentation based on color ﬁltering is shown in Figure 3. The

threshold δ can be set either manually from empirical tests or automatically with an

adaptive procedure. In this second case, it is sufﬁcient to determine, at the end of the

ﬁrst phase described in the previous section, the value of δ that minimizes false positives

and false negatives, where false positives are counted as the number of pixels that will

be detected as foreground and do not belong to the person and false negatives are those

pixels that belong to the person but whose expression is not above the threshold. In our

implementation, at the end of the ﬁrst phase we determine the threshold δ by starting

with a low value and incrementing it until the number of false positives increase above

a given amount from its initial value.

3.2 Plan View Analysis and Tracking

After image segmentation, a plan view analysis is performed as described in [3]. This

step maps foreground points to a plan view and detects world blobs by connected com-

ponent analysis, in order to remove segmentation noise due to similar colors. An ex-

ample of such analysis is given in Figure 3 right side. The person being tracked has

very dark clothes so many pixels not belonging to the person are detected by the color

based image ﬁlter. However, plan-view analysis allows for detecting only one world

blob corresponding to the person (as shown in the rightmost diagram).

This mechanism substantially increases the capability of the system to deal with

noise due to the presence in the environment of colors similar to those belonging to

target person. Moreover, blobs in plan view are also analyzed to assign a score to the

observation. This score is deﬁned as the sum of weights of the cells belonging to each

world blob, and the weight for each cell in the plan view is given by the maximum

height (i.e., Z) of pixels projected in the cell. World blobs with higher score are more

likely to come from the target person, while world blobs with lower score are likely to

be false positives.

World blobs are tracked using a multiple target tracker that is implemented with

a set of Kalman Filters. Data association is based on minimum distances between ob-

servations and tracks, but it also takes into account geometric ﬁltering and world blob

scores. The former is used to ﬁlter observations that are too close or behind the walls in

the environment, allowing for avoiding false positives due to parts of the environment

with similar color than the target person. The latter is used by preferring high score

targets in presence of many of them.

4 Implementation and Experiments

The system described in this paper has been implemented and experimented on a mobile

robot acting in the simulated domestic environment. This section presents implementa-

tion details and some experimental results.

Self-Localization. Since the map of the environment is known, laser range ﬁnder based

Monte Carlo Localization has been implemented (details can be found in [2]).

Navigation and obstacle avoindance. The navigation subsystem follows a two-level

approach: the higher lever is a global path-planner [6] that uses as input the whole map

to ﬁnd a feasible global path, the lower level is an obstacle avoidance module that takes

as input the current sensor readings and steers the robot towards the goal, avoiding the

obstacles (similar to [13]).

Behaviour speciﬁcation. The Person Following behavior has been described by a Petri

Net Plan (PNP), which is is a formalism for describing high-level activities of agents

successfully applied on mobile robots [17]. In this plan the person is followed until

he/she is detected by the system. When the robot is within 1 meter from the person,

it stops while keeping on tracking him/her (possibly rotating on itself). If the person

gets lost, the robot keeps on going to the last position where the person was seen and

then begins a seek action until it ﬁnds the tracked person again. This seek action simply

consists in turning on place towards the direction where the person has been seen the

last time. The task fails if after a complete 360 degrees rotation the robot cannot ﬁnd

the person (thus no search is implemented here).

Experimental results that are divided in three groups. First, we have evaluated the

vision module and in particular the ability of correctly modelling different people and

of recognizing a target person among many people. Second, we have evaluated the per-

son following behaviour in a simulated environment

, with a simpliﬁed vision process.

Finally, we have experimented the entire system on the mobile robot.

4.1 Experiments on the Vision Module

The ﬁrst set of experiments have been performed in order to estimate the validity of the

color based appearance model that has been used in our system. In this experiment only

the vision part of the system was active: i.e., appearance model acquisition and person

detection. To this end, we have built 5 models from 5 different people in our lab, and

then recorded 5 other videos from the same people. We have run the system 5 × 5 times,

considering all the possible combinations of videos of people and models.

The result of this preliminary test was that all the people have been correctly de-

tected by their own models, thus no false negatives have been registered. More speciﬁ-

cally, the system was able to correctly detect each person in the video using the model

previously acquired for the same person. Among the other 20 runs, the number of false

positives has been 7. These corresponds to situations in which a person was detected

by the system using the model of another person. This high rate of false positives was

mainly due to the presence of two people having similar clothes. If we remove one of

them from this set we obtain only 3 false positives.

For the incorrect cases, we have extended the experiment recording a video with

two people: the one the was incorrectly determined and the one corresponding to the

used model. In all the cases the target person got the best score, with respect to the other

one. Therefore, the robot is able to correctly follow the target person, even in presence

of other people with similar colors, as long as the target person remains in the ﬁeld of

view of the stereo sensor.

4.2 Experiments of the Entire System on the Robot

The experiments on the real robot conﬁrm the effectiveness of the developed system.

In this section we report the results of three experiments, in the environment shown in

not reported here for lack of space.

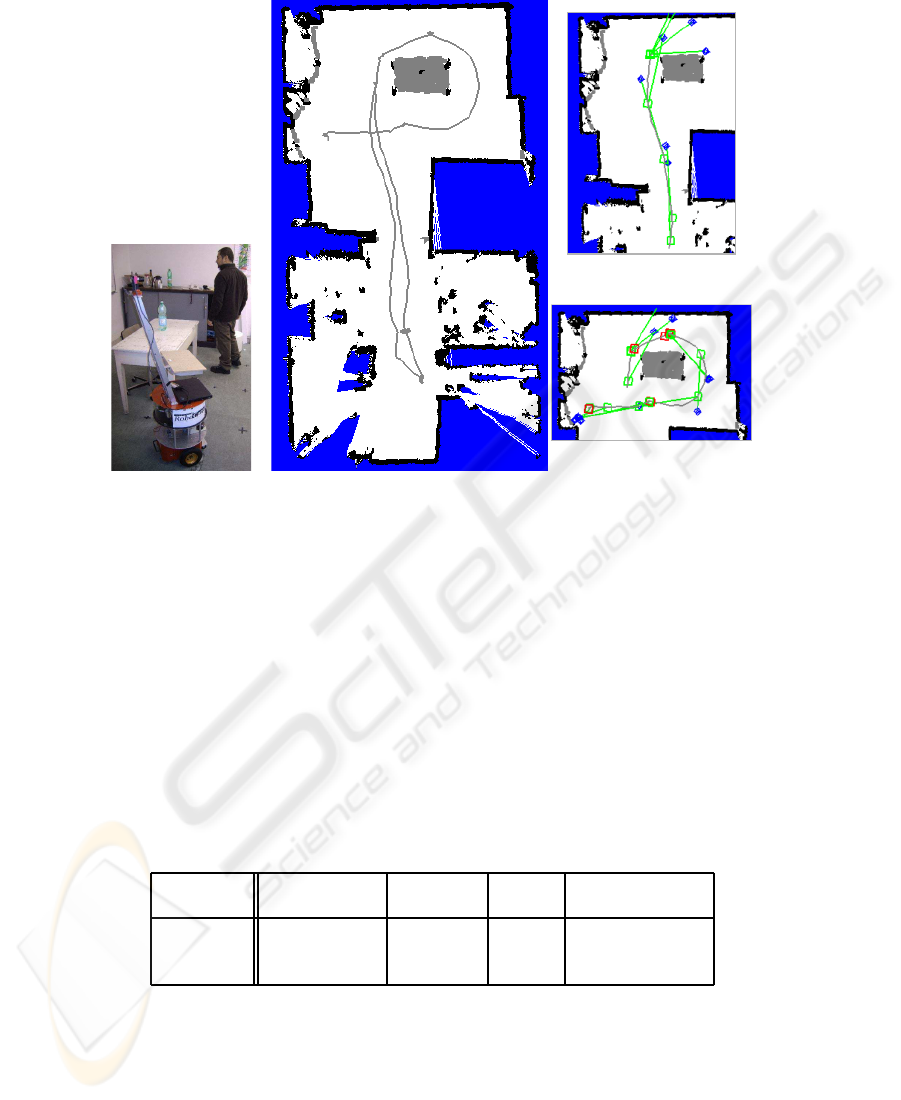

Fig.4. The real environment used in the experiment and the path of the robot and some snapshots.

Figure 4. During experiments 2 and 3 a second person was moving in the environment

and the robot was successfully able to avoid him. No contacts between the robot and

people or objects in the environment have been registered during the experiments.

In Figure 4, we show a snapshot of the environment and of the robot, the entire

map with the path covered by the robot during one of the experiments (Experiment 2

in Table 1), and some details of the person following behaviour (little squares are the

robot positions, while the connected diamonds are the person’s position detected in that

time slot).

Table 1. Tests in real scenario.

Experiment Distance covered Time elapsed Seek time

Avg. speed

(when not seeking)

Experiment 1 24.38 m 290.41 s 165.35 s 0.19 m/s

Experiment 2 18.17 m 212.98 s 131.21 s 0.22 m/s

Experiment 3 20.02 m 206.20 s 122.81 s 0.24 m/s

In Table 1 we show the results of the experiments in the real scenario, with total

covered distance and total execution time. In the experiments the maximum robot speed

was limited to 0.3 m/s, which is the normal operation speed for this kind of robot in such

an environment. The second and third columns show respectively the total length of the

path and the total execution time. The fourth column shows the time elapsed during

seek actions (so when the robot is not moving), and the ﬁfth column average speed of

the robot while it was moving (excluded seek time).

The performed exeriments have conﬁrmed the effectiveness of the method in such

an environment.

5 Conclusions and Future Work

In this paper we have presented an approach to person following from a mobile robot

equipped with a stereo camera, using automatic apperance model acquisition and stereo

vision based tracking. The implemented system works well in environments with un-

known objects and other moving people, and do not require a priori calibration on the

person to be tracked, using instead an automatic fast training step. The main limitation

of the approach is given by the color based model, that fails to correctly detect a person

when there are other objects or people using similar colors. As future work, we intend

to perform more extensive experiments to compare and evaluate different color based

appearance models that can be used for this task.

References

1. M. Agrawal, K. Konolige, and L. Iocchi. Real-time detection of independent motion using

stereo. In Proc. of IEEE Workshop on Motion, 2005.

2. S. Bahadori, A. Censi, A. Farinelli, G. Grisetti, L. Iocchi, D. Nardi, and G. D. Tipaldi. Particle

based approaches for mobile robot navigation. Proc. of the second RoboCare Workshop,

Roma, Italy, 2005.

3. S. Bahadori, L. Iocchi, G. R. Leone, D. Nardi, and L. Scozzafava. Real-time people lo-

calization and tracking through ﬁxed stereo vision. In Proc. of Industrial and Engineering

Applications of Artiﬁcial Intelligence and Expert Systems (IEA/AIE), pages 44–54, 2005.

4. N. Bellotto and H. Hu. Multisensor integration for human-robot interaction. The IEEE

Journal of Intelligent Cybernetic Systems, 1, July 2005.

5. D. Beymer and K. Konolige. Real-time tracking of multiple people using stereo. In Proc. of

IEEE Frame Rate Workshop, 1999.

6. D. Calisi, A. Farinelli, L. Iocchi, and D. Nardi. Autonomous navigation and exploration in a

rescue environment. In Proc. of the 2nd European Conference on Mobile Robotics (ECMR),

pages 110–115, Edizioni Simple s.r.l., Macerata, Italy, September 2005.

7. R. Cucchiara, C. Grana, G. Tardini, and R. Vezzani. Probabilistic people tracking for occlu-

sion handling. In Proc. of 17th Int. Conf. on Pattern Recognition (ICPR’04), 2004.

8. T. Darrell, G. Gordon, M. Harville, and J. Woodﬁll. Integrated person tracking using stereo,

color, and pattern detection. International Journal of Computer Vision, 37(2):175–185, 2000.

9. I. Haritaoglu, D. Harwood, and L. S. Davis. W4: Real-time surveillance of people and their

activities. IEEE Transactions on Pattern Analysis and Machine Intelligence, 22(8), 2000.

10. L. Iocchi and R. C. Bolles. Integrating plan-view tracking and color-based person models for

multiple people tracking. In Proc. of IEEE International Conference on Image Processing

(ICIP’05), 2005.

11. M. Kleinehagenbrock, S. Lang, J. Fritsch, F. L¨omker, G.A. Fink, and G. Sagerer. Person

tracking with a mobile robot based on multi-modal anchoring. In Proc. of IEEE Int. Work-

shop on Robot and Human Interactive Communication (ROMAN), 2002.

12. H. Kwon, Y. Yoon, J. B. Park, and A. C. Kak. Person tracking with a mobile robot using two

uncalibrated independently moving cameras. In Proc. of of IEEE Int. Conf. on Robotics and

Automation (ICRA), 2005.

13. J. Minguez and L. Montano. Nearness diagram (nd) navigation: Collision avoidance in trou-

blesome scenarios. IEEE Transactions on Robotics and Automations, 20(1):45–59, 2004.

14. M. Montemerlo, S. Thrun, and W. Whittaker. Conditional particle ﬁlters for simultaneous

mobile robot localization and people-tracking. In Proc. of IEEE International Conference

on Robotics and Automation (ICRA), 2002.

15. D. Schulz, W. Burgard, D. Fox, and A. B. Cremers. People tracking with a mobile robot using

sample-based joint probabilistic data association ﬁlters. International Journal of Robotics

Research (IJRR), 2003.

16. A. W. Senior. Tracking with probabilistic appearance models. In Proc, of ECCVworkshop on

Performance Evaluation of Tracking and Surveillance Systems (PETS), pages 48–55, 2002.

17. V. A. Ziparo and L. Iocchi. Petri net plans. In Proc. of Fourth International Workshop on

Modelling of Objects, Components, and Agents (MOCA), Turku, Finland, 2006.
