A MIDDLEWARE INFRASTRUCTURE FOR MOBILE SERVICES

BASED ON AN ENTERPRISE SERVICE BUS

Mobile Service Provisioning as SOA-Integration Problem

Michael Decker and Rebecca Bulander

Institute AIFB, University of Karlsruhe, Englerstr. 11, 76128 Karlsruhe, Germany

Keywords: Mobile and wireless Computing/Services, Service Oriented Architecture, Enterprise Service Bus.

Abstract: A middleware platform especially designed for the provisioning of data services for handheld computers

using wireless data communication (e.g. smartphones, PDAs) has to offer a variety of different features.

Some of these features have to be provided by external parties, e.g. billing or content syndication. The inte-

gration of all these features while satisfying mobile-specific challenges is a demanding task. In the article at

hand we thus describe a middleware platform for mobile services which follows the idea of an Enterprise

Service Bus (ESB). An ESB is a communication backbone for a Service Oriented Architecture (SOA) based

on asynchronous communication with integration capabilities like transformation or intelligent routing. Be-

cause of its specific characteristics an ESB is an appropriate fundament for mobile service provisioning.

1 INTRODUCTION

In the last ten years we witnessed the extraordinary

success of the wired internet. So far this success

couldn’t be repeated in the wireless world despite

the high penetration rates of mobile devices and the

availability of wireless data communication pro-

vided by cellular networks (e.g. GPRS, EDGE,

UMTS).

One of the reasons for the lack of success of mo-

bile data services is that the large variety of services

which drove the wired internet to success isn’t avail-

able in the wireless world. This originates from the

fact that offering a data service for mobile devices is

much more difficult than offering a service in the

wired internet: there is a much bigger heterogeneity

with regard to mobile devices’ capabilities, e.g. what

kind of data formats they can process or the quality

of the displays. Due to the limited size of mobile

devices they have only small displays and data input

is cumbersome; that’s why it is necessary to make

use of context information like current location, time

or profile information to support the user when in-

teracting with the mobile device. Features like de-

tecting the device's position, sending push messages

(SMS/MMS), identifying the user or the kind of de-

vice used and charging fees (billing) can only be

supplied by the respective mobile network operators

(MNO). But MNOs won't grant access to these func-

tions to everyone. Because of these hurdles only

large firms with telecommunication know-how are

able to offer mobile data services nowadays.

In literature many descriptions of technical solu-

tions like frameworks or middleware for making it

easier to develop and operate mobile services can be

found. The novel approach of the middleware pre-

sented in the paper at hand is that the provisioning of

mobile services will be considered as integration

problem within a Service Oriented Architecture

(SOA). The basic idea of SOA is to loosely couple

the components of a distributed system (Keen et al.,

2004; 37ff; Kaye, 2003): some components of the

system provide functionalities called “services” and

other components consume these services. The ser-

vice provider publishes an interface description for

each service offered. The most prominent approach

for the realization of SOA is the use of web services.

But SOA is also a management concept which pos-

tulates not to try to build monolithic business appli-

cations but a distributed system whose components

offer reusable services which can be easily plugged

together to implement the IT-support for business

processes.

To integrate all the services required for the pro-

visioning of mobile services we resort to the concept

of a so called Enterprise Service Bus (ESB). An

ESB is a special middleware for SOA that is based

122

Decker M. and Bulander R. (2007).

A MIDDLEWARE INFRASTRUCTURE FOR MOBILE SERVICES BASED ON AN ENTERPRISE SERVICE BUS - Mobile Service Provisioning as

SOA-Integration Problem.

In Proceedings of the Second International Conference on e-Business, pages 122-129

DOI: 10.5220/0002112501220129

 SciTePress

on asynchronous messaging. We argue that the fea-

tures provided by an ESB help to fulfil essential re-

quirements for a “mobile middleware”. Afterwards

we describe an ESB-based architecture for mobile

service provisioning which we are currently realiz-

ing.

This article mainly deals with architectural con-

siderations and does not address the problem of ser-

vice discovery, namely how end users can find ap-

propriate services based on contextual information

or semantic techniques. There are other groups

working on these subjects (e.g. Chakraborty, 2001;

Hamdy & König-Ries, 2006).

The remainder of this article is structured as fol-

lows: in the second chapter we introduce our com-

prehension of some basic concepts required for the

understanding of this article; afterwards we discuss

the advantages of messaging oriented middleware

for gluing together the infrastructure required for

mobile services. In chapter three we describe fea-

tures that should be provided by a middleware plat-

form for mobile services. Chapter four describes a

mobile-specific ESB which is exemplified by an

example given in chapter five. We conclude with a

brief discussion of related work in chapter six and

give a summary and outlook in chapter seven.

2 BASIC CONCEPTS

2.1 Platforms for Mobile Services

In figure 1 we depict a simple reference model for

mobile service platforms: we make the assumption

that there is some kind of client software on the mo-

bile device, e.g. thin client (only rendering function,

e.g. web-browser for XHTML/WML/

cHTML-based services), rich client (browser capa-

ble of some business logic like validation of user

entries), medium client (major part of business logic

but only data caching) or fat client (autonomous data

management). This assumption is a weak one since

even the reception of SMS messages requires some

kind of client software embedded in the mobile de-

vice’s firmware. The other three parties involved in

the provisioning of mobile services are stationary:

Service providers: They use the middleware to

offer the actual services (end-user services), e.g. a

location-aware newsticker.

Third party providers: Their services may be

required by the end-user service providers. Third

party services are “raw” and are not intended to be

directly accessed by end users, e.g. a service to

query weather data in machine-readable form.

Middleware: Middleware is software that medi-

ates between the different software-components in a

distributed system. The paper at hand deals mainly

with architectural considerations of this component

and which features it should provide and integrate.

Client on

Mobile

Device

Middleware

Service-

Provider

Air interface &

MNO core network

Service-

Provider

Service-

Provider

3rd-Party-

Provider

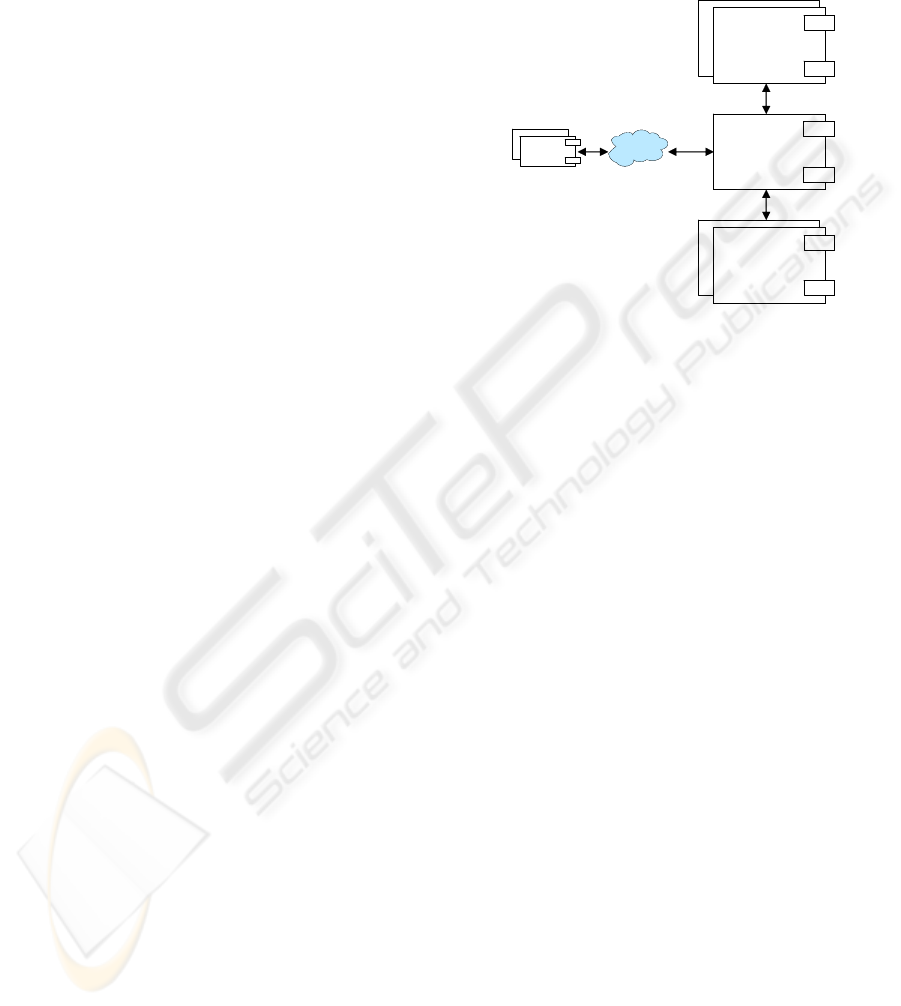

Figure 1: Reference model for mobile service provision-

ing.

Services provided by the middleware itself are called

internal services; services provided by third parties

or services for end-users are external services. All

communication between the mobile device and the

service provider is routed over the middleware.

2.2 Messaging Oriented Middleware

One can distinguish two fundamental paradigms to

implement interaction with a remote service: syn-

chronous and asynchronous communication. Using

synchronous communication a request is sent to the

remote service which tries to send back a response

as soon as possible. This might be a convenient way

from a developer’s point of view since it mimics the

way local methods/functions/procedures are invoked

in a programming language but is not always ade-

quate for the realization of a SOA: The caller has to

wait (block) till the response arrives. If the server

fails to deliver a response within a certain time span

(e.g. temporary failure of wireless communication,

high load of requests) this may even impair the call-

ing process.

The asynchronous approach of messaging ori-

ented middleware (MOM) is different: using this

communication model a producer formulates a so

called message which is a self-containing collection

of arbitrary data and passes it to the MOM along

with a specification of a queue (point-to-point mes-

saging) or a topic (publish-subscribe messaging).

For point-to-point-messaging each message can only

be read by exactly one consumer, for publish-

A MIDDLEWARE INFRASTRUCTURE FOR MOBILE SERVICES BASED ON AN ENTERPRISE SERVICE BUS -

Mobile Service Provisioning as SOA-Integration Problem

123

subscribe each message can be consumed by an arbi-

trary number of consumers.

Asynchronous messaging is an adequate fundament

for a middleware for mobile services because it has

the following features:

Push capability: A service can proactively de-

liver information to a consumer without being di-

rectly requested (polled) to do so. This enables the

implementation of push services at user level, that

means services that can proactively delivery (maybe

time critical) information.

Scalability: By looking at the current penetration

rates of mobile devices it is obvious to conclude that

the market for mobile services is a mass market. A

middleware for mobile services thus should be able

to handle large amounts of service requests. MOM

makes it easy to fulfil this requirement: for services

with high load levels one can simply add another

service provider that helps to process the messages

in the respective queue.

Information syndication: The publish-subscribe

mechanism is well suited for the distribution of one

piece of information (message) to a lot of different

consumers; this problem with regard to mobile mid-

dleware has to be solved for the syndication of con-

tent or public context information. The content pro-

vider’s server hasn’t to be a strong machine because

the MOM takes the burden of distributing the infor-

mation to a potentially big number of consumers.

Reliability: Asynchronous communication helps

to make the system more reliable: if a service pro-

vider or a (wireless) network connection fails the

MOM stores the messages and retries to deliver

them some time later.

Loose coupling: MOM constitutes a way to

loosely couple the different parties involved in a

SOA. This is important because the participating

service providers will often change.

There are various vendors offering MOM products

based on proprietary standards. In the Java-World

the Java Messaging Service (JMS) defines a stan-

dardized API for MOM and several implementations

are available, e.g. OpenJMS or JORAM.

2.3 Enterprise Service Bus

The term “Enterprise Service Bus” (ESB) was origi-

nally introduced by a consulting firm but meanwhile

it is used for a certain kind of integration software

based on MOM (Chappel, 2004; Keen et al., 2004;

74ff). With the Java Business Integration specifica-

tion (JBI, see Java Specification Request No. 208)

there is a standardization attempt for ESBs in the

Java world.

In first generation SOA implementations con-

sumer and providers of services communicate in a

peer-to-peer fashion but this leads to a “brittle” sys-

tem, because when one provider fails or has to be

replaced all other components depending on him

have to be altered. In second generation SOA ap-

proaches an ESB is used as hub between service

consumers and providers. The ESB is not just a hub

but it also provides features necessary for integration

of different services in the sense of a SOA. The

minimum functions an ESB has to provide are trans-

formation of messages, intelligent routing (e.g.

based on its contents a message is sent to a certain

service provider) and adapters to connect services

via different protocols like web services, Corba,

RMI, SMTP/POP3, FTP or even proprietary proto-

cols. Additional features are authentication or or-

chestration of services.

Technically an ESB consists of federated MOM-

servers which share configuration and control. There

are internal services (e.g. transformation, routing,

and authentication) and the external services of the

SOA which are connected using the adapters. From

the MOM’s point of view internal as well as external

services are so called endpoints.

It is also possible to incrementally extend an

ESB by adding segments. For the case of an ESB as

“mobile middleware” this might be interesting if a

company wants to operate mobile services that are

only accessible by employees, e.g. access to group-

ware or ERP for mobile sales force.

2.4 Document-Style versus RPC-Style

Synchronous middleware communication typically

(but not necessarily) employs R

emote Procedure

alls (RPC): the caller’s request is targeted at a cer-

tain address/procedure name and contains optional

parameters; the response may contain return values.

RPC-style might be sufficient for simple communi-

cation between a service consumer and a service

provider but has the following drawbacks:

• If the required communication pattern in a dis-

tributed system can not be mapped to simple

“request-response” RPC-style is not appropri-

ate; this is the case when three or more entities

have to collaborate.

ICE-B 2007 - International Conference on e-Business

124

• When an entity receives a RPC request it has to

find out to which session the request belongs to.

• One cannot use the full versatility of XML

while using RPC.

Therefore asynchronous middleware typically makes

use of document-style messaging (Kaye, 2003): in

this mode the data is passed in form of self-

contained messages between the collaborating enti-

ties. Each entity only looks at the parts of the mes-

sage that it needs for its duty and has only to under-

stand these.

3 FEATURES

In this chapter we describe the features that a mid-

dleware for mobile services should provide and

sketch how they are supported by the ESB. Not all

of these features are required for each service. We

categorize these features into two main groups (fig-

ure 2): those which can be provided by the middle-

ware itself (internal services, operated in the same

administrative domain like the ESB) and those

which have to be provided by external parties (ex-

ternal services). The internal services can be further

divided into security-related and non-security re-

lated; for the external services we can distinguish

end-user services and third-party services.

3.1 External Services

The most important type of external services to be

integrated by the ESB are the actual end-user ser-

vices of course, e.g. a firm that wants to offer a loca-

tion-based information service. For the provisioning

of these services it might be necessary to resort to

external services provided by 3

-parties. These 3

party services aren’t directly used by the end users

but are needed as “building-blocks” for the actual

end-user services. One group of such 3

-party ser-

vices are services that have to do with functionalities

controlled by the MNO. We call these services

“MNO services”. Examples are:

Billing means to pay for a telecommunication-

related service over a telephone bill.

Remote Locating: When mobile devices are not

equipped with a self locating module (e.g. GPS-

receiver) it may be necessary to resort to remote

locating techniques (e.g. CellID, TDOA

) offered by

external providers. These techniques offer sufficient

precision for many (but not all) thinkable services,

e.g. localized news or weather forecast.

Querying Device’s Profile: The MNO knows

about some of the characteristics of the mobile de-

vice, e.g. display size and supported data formats.

Call control: The article at hand is about data

services but some data services might need the abil-

ity to initiate voice telephony sessions (e.g. “call that

hotel”-button in a location-aware hotel-finder ser-

vice).

There are standardized gateways and APIs (e.g.

OSA Parlay(X), see www.parlay.org) which are in-

tended to enable MNOs to offer access to such func-

tionalities to independent service providers but

CellID: the location of the mobile device is determined by the

coordinates of the base station used; TDOA: T

ime Difference

f Arrival, location of device is determined by runtime differ-

ence of radio signal between several base stations.

Figure 2: Features required for mobile services provisioning.

Internal

External

Features of mobile Middleware

Security Non-Security

Integration of

End User Services

(Remote locating,

Billing, etc.)

MNO services

Content/Context

for syndication

LBS related Transport

Adapter/Gateway

Load-Balancing

Store &

Forward

Cloaking

Non LBS related Non-Transport

Data format

conversion

Orchestration

Mix Zones

Dummy

Generation

Authentication

Anonymization/

Pseudonymization

Transcoding

Spam

Prevention

Context-aware

Routing

Coordinates

conversion

Malware

Detection

A MIDDLEWARE INFRASTRUCTURE FOR MOBILE SERVICES BASED ON AN ENTERPRISE SERVICE BUS -

Mobile Service Provisioning as SOA-Integration Problem

125

MNOs can’t or don’t want to negotiate with the

large number of service providers interested in offer-

ing mobile services.

Content/Context syndication: The ESB also in-

tegrates third party services that offer content for

syndication; this content is used by the client ser-

vices to enrich their services, e.g. news or weather

data. If the content is machine-understandable (e.g.

temperature in a certain city) it can be used to realize

context-aware services. According to our compre-

hension Context (in the sense of mobile computing)

is information that can be used to support the user

when interacting with a mobile device or service.

One way to support a user in this sense is to display

only data deemed as relevant by evaluating context

information, e.g. a location-aware tourist guide

shouldn’t recommend a visit to the nearest swim-

ming pool when it is raining all day long.

3.2 Security Related Features

We first discuss the following security features that

are not mobile specific:

Authentication: The ESB has to ensure that

every message it transports originates indeed from

the party that is stated inside the message. To realize

this each endpoint connecting to an external service

has to require authentication from the service pro-

vider before accepting or delivering messages

to/from that endpoint.

Anonymization/Pseudonymization: For many

services it isn’t necessary that the service provider

knows the identity of the end user or can correlate

different request, e.g. for general information ser-

vices. To implement this feature the transformation

capability of the ESB can be used: the ID-token in

the request-message is encrypted before forwarding

the message to external parties and decrypted just

before the ESB has to find out to whom he has to

dispatch the message. In contrast to anonymization

for pseudonymization the ciphertext of a given ID

has to be the same between several requests so the

service provider can recognize users by the pseudo-

nym.

Spam prevention: “Spam” denotes unsolicited

push-messages. Because users carry their mobile

device with them most of the day we can realize

many useful proactive services dealing with time-

critical information like reminders or alerts (e.g.

stock quotes, new messages, failure of a technical

facility, inventory level) using push messages. But

an unsolicited push-message would be much more

annoying on a mobile device than on an ordinary

desktop computer. So there is the great fear that the

spam wave known from the email-system spills over

to mobile services. Therefore the ESB should help to

avoid spam: it could provide a spam filter like those

for emails (e.g. Bayesian filtering) and check a push-

message before delivery; if the message indicates

evidence of being unsolicited (e.g. by looking for

ominous words) it would be blocked. Since filters

are an essential component of ESBs the integration

of such a feature is trivial but these kinds of filters

are prone to produce false positives and thus rele-

vant messages could get lost. Therefore it’s prefer-

able that the ESB adds a special token to a request

message before forwarding it to the service provider.

The service provider has to include this token if he

wants to publish a push message to the end user over

the ESB. The ESB will only dispatch a push mes-

sage to an end user if a valid spam token is included.

Malware filter: The term “malware” subsumes

software that is intended to cause harm to a com-

puter system, e.g. viruses, worms, Trojan horses or

spy ware. Meanwhile malware targeted especially at

mobile devices was discovered, e.g. Cabir,

Pbstealer.A or Brador. Therefore we use the ESB’s

filtering capability to check messages for such mali-

cious content before they are delivered to the end

user.

There are also security requirements that are specific

to mobile services that make use of location aware-

ness. An external service provider receiving a re-

quest could find out about the identity of the origina-

tor by analysing the included location information:

e.g. it might be the location of a private estate so he

could infer that the requestor is the owner of that

estate; it might also be possible to correlate requests

from different sessions that came from the same

place or involved the same spatial-temporal se-

quence (Bettini et al., 2005). In many countries there

are a lot of cameras to supervise public places (and

some of them are even equipped with face recogni-

tion capability); if we learned that Alice was at a

certain place and at the same time a service request

containing the coordinates of that place was received

by a service provider we can uncover the pseudo-

nym used by Alice (observation attack). In literature

several approaches to ensure location privacy can be

found and these can be integrated by the ESB:

Cloaking means to deliberately reduce the preci-

sion of the location information. (Gedik & Liu,

2005).

Mix zone: If a user is within a defined mix zone

the ESB won’t forward any location information and

will assign a new pseudonym so a service provider

ICE-B 2007 - International Conference on e-Business

126

will lose the user’s trace (Beresford & Stajano,

2003).

Dummy request: There is also the idea of gen-

erating dummy requests with changing locations to

confuse a potential attacker (Kido et al., 2005).

3.3 Non-security Related Internal

Features

We identified the following features an ESB can

provide by itself that don’t have to do with security

issues. The first group of such features has to do

with the transportation of messages to or from an

endpoint:

Adapter/Gateways: The external parties to be

integrated may use different protocols and data for-

mats. ESBs are an advancement of integration bro-

kers and therefore the endpoints can host adapters or

gateways to communicate with external parties using

various protocols and data formats.

Load-Balancing: The ESB can use its routing

capability to realize some kind of load balancing if

for a certain service there are a lot of requests and

there are several physical external service providers.

Since the market for mobile consumer services is a

mass market (more than one billion cellular phones

worldwide) this is an essential feature.

Store & Forward: A typical problem of mobile

services is that one has to assume temporary connec-

tion dropouts or switched off devices. This require-

ment is covered by the underlying MOM’s store &

forward capability.

Context aware routing: Depending on the

user’s current context it might be reasonable to route

a service request to a different service provider. One

example is a user interested in special offers for

clothes: if he is in city X the ESB can forward the

request to a service provider offering such a service

for city X. Another example of context aware rout-

ing are service providers offering event guides tar-

geting at different age groups; the ESB can forward

the request to the most appropriate service provider

based on knowledge of profile information.

The non-transportation related features are the fol-

lowing:

Orchestration: For each service request the ESB

has to know which internal and external services in

which order he has to invoke. Example: the first

request in a session might require the message

routed through a remote locating service for obtain-

ing the requestor’s location. Therefore the ESB

should possess a simple workflow module as inter-

nal service which can decide to which endpoint a

given message has to be routed next; this workflow

module should be stateless (all state information is

included in the message) so we can easily operate

more than one instance if a lot of requests have to be

handled.

Transcoding: Because of the great heterogeneity

of mobile devices it might be necessary to transcode

the content of a message before delivering it to the

end user, e.g. to reduce size and/or colour depth of

images or to transcode documents formulated in

generic markup languages to specific formats like

cHTML or XHTML-MP. This transcoding can be

easily realized as filter feature within an ESB.

Coordinate conversion: there are many differ-

ent ways to express the location of a user’s device,

e.g. Cell-ID, latitude/longitude with Bessel or

WGS84 ellipsoid, Cartesian or ellipsoidal coordinate

systems. Therefore services for coordinate conver-

sion are required.

4 AN ESB AS MIDDLEWARE FOR

MOBILE SERVICES

As argued in chapter two an ESB has many charac-

teristics that make it a good choice as communica-

tion backbone for a mobile service infrastructure and

all the features mentioned in chapter three can be

easily integrated. In this chapter we therefore sketch

an ESB-based infrastructure for the provisioning of

mobile services (see figure 3).

To connect internal or external services with the

ESB one has to make use of a logical endpoint. A

logical endpoint may contain a service container

with an internal service like pseudonymization or a

connector to communicate with an external service.

The client component on the mobile devices in-

teracts over gateway endpoints with the ESB: this

might be an endpoint for a medium or fat client ap-

plication using web services or another way of

communication with the ESB. For thin client ser-

vices the gateway has to act as web server receiving

requests from a mobile browser application and

sending responses in form of markup documents

(e.g. XHTML-MP, WML). There are also gateways

to send push messages, e.g. SMS/MMS or TCP/IP

push channel.

An ESB uses MOM with document-style mes-

saging as communication backbone: for each logical

endpoint there is one queue for incoming messages.

When a service component has to send a message to

another logical endpoint or finished the processing

of a messaging it puts the result message in the

A MIDDLEWARE INFRASTRUCTURE FOR MOBILE SERVICES BASED ON AN ENTERPRISE SERVICE BUS -

Mobile Service Provisioning as SOA-Integration Problem

127

queue for the workflow module which will decide to

which abstract endpoint the message has to be for-

warded. If there is information that has to be distrib-

uted to a lot of endpoints (e.g. content syndication) a

public/subscribe topic is used. For communication

between internal services the messages shouldn’t be

serialized to XML since serializing and de-

serializing is an expensive operation.

5 EXAMPLE SERVICE

To exemplify the concept of the ESB-based infra-

structure we consider “location based news deliv-

ery” as example service: we assume a client compo-

nent on the mobile devices that sends an SOAP-

message to the ESB’s gateway to start a subscription

concerning bargain offers. Before the ESB can for-

ward this request to the respective service provider it

has to be routed through several other internal ser-

vices:

• The message has to be validated and authenti-

cated.

• The user has to be billed.

• Relevant information from the user profile (e.g.

age, preferred language) and the position ob-

tained from a remote locating provider have to

be added to the message.

• The User-ID has to be replaced by a unique

pseudonym.

• To prevent spamming an internal service adds

some “spam tokens” to the message.

Now the message can be dispatched to the external

provider which offers the service for the region

where the user currently roams. If this provider some

time later gets aware of an interesting offer matching

the user’s profile he formulates a message including

one of the spam tokens and submits it to the ESB.

The ESB again has to route this message through

some of its services before it can be delivered to the

end user’s device eventually:

• The presence of a valid spam token has to be

checked otherwise the message will be dis-

carded.

• The content of the message has to be transcoded

according to the device’s capabilities, e.g. size

of images.

• The pseudonym has to be resolved so that the

ESB can find out to whom the message has to

be dispatched.

• For thin client services it might be necessary to

convert the message to an appropriate markup

language, e.g. WML, cHTML or XHTML-MP.

6 RELATED WORK

There is some work that deals with SOA in mobile

computing: Duda, Aleksy & Butter (2005) discuss

how discovery, extraction, choice and invocation of

services can be distributed between fixed and mobile

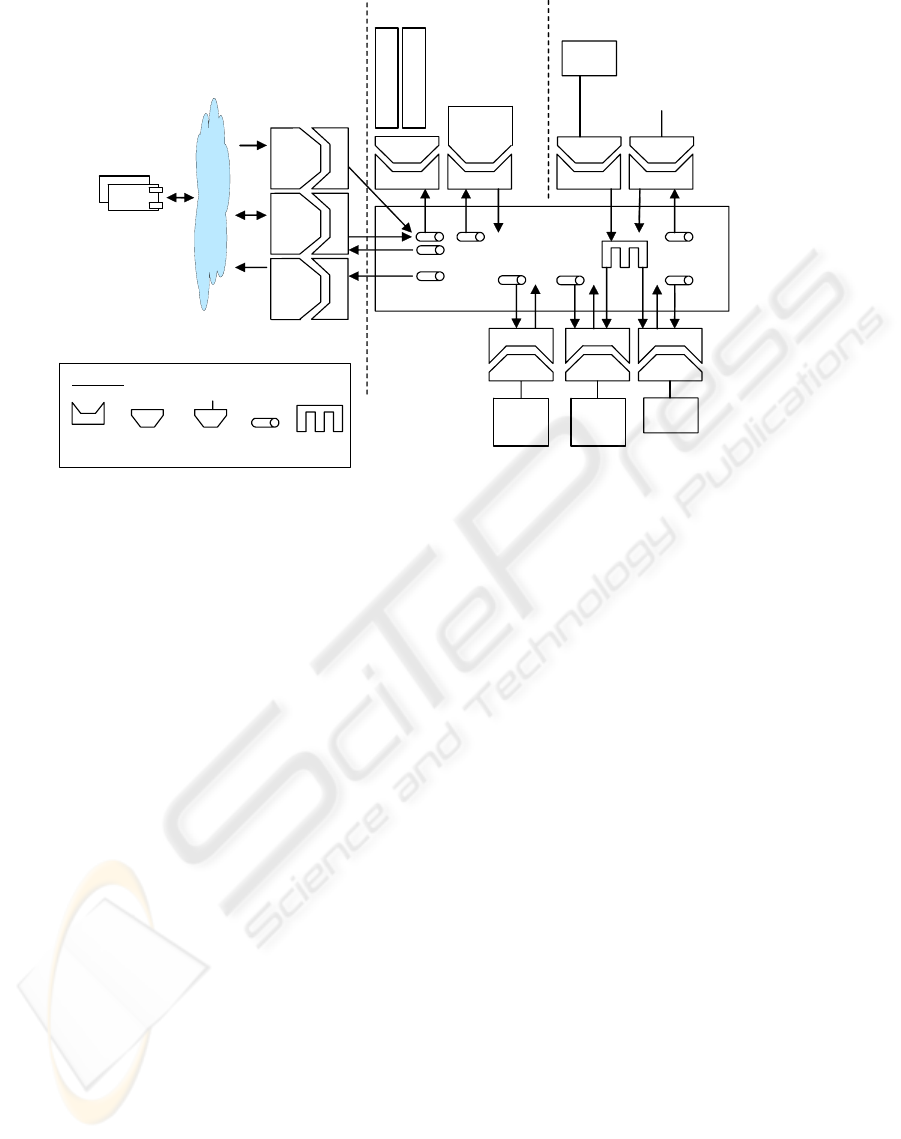

Figure 3: Enterprise Service Bus for mobile services.

Trans-

coding

…

Webservice,

Proprietary

Protocol, etc.

Internal services External Services

(3rd Party)

Legend:

…

End-user

services

Workflow Service 1

ESB

…

Push-

Gate-

way

Client on

Mobile

Terminal

Sync

Gate-

way

Async

Gate-

way

…

Logical

endpoint

Queue

Topic

Content

Provider

…

Service

Container

…

Connector

Provider

Service 1

City B

Workflow Service 2

Billing,

Remote locating

(TDOA/CellID),

etc

Cloaking, spam-

prevention, data

format conversion,

etc.

Provider

Service 2

Provider

Service 1

City A

Air interface &

Core network

ICE-B 2007 - International Conference on e-Business

128

components when integrating mobile devices into a

SOA. Others publications address the problem of

how to discover appropriate services in mobile sce-

narios or the peer-to-peer-style collaboration of mo-

bile devices (see the overview article by Hamdy &

König-Ries, 2006). However, as far as we know

there is no work dedicated especially to the backend

integration problem of a “mobile SOA”.

Since the most prominent implementation ap-

proach for SOA is the use of web services there are

articles which propose solutions how to consume

web services with mobile devices despite their lim-

ited resources, e.g. Sanchez-Nielsen et al. (2006).

Adacal & Bener (2006) discuss several approaches

to tackle performance issues that typically occur

when accessing web services with mobile devices

because web services make extensive use of XML

and XML is notorious for being bloated. Their solu-

tion approach is based on the use of software agents;

other approaches include the use of proxies or com-

pressed XML.

The appropriateness of using asynchronous mid-

dleware for mobile services is a well-accepted no-

tion; there is even a JMS-implementation for mobile

devices (see www.jtom.de). But in our approach we

don’t assume that mobile devices necessarily con-

sume/produce the middleware’s asynchronous mes-

sages directly; rather we concentrate on asynchro-

nous message exchange between the backend ser-

vices required for mobile service provisioning.

There are many hosting solutions for mobile ser-

vice provisioning: ASPF (Karlich et al., 2004) and

WASP (Koolwaaij & Strating, 2003) provide many

features but they don’t describe a particular integra-

tion approach.

7 SUMMARY AND OUTLOOK

We argued that building a comprehensive middle-

ware platform for mobile service provisioning leads

to an integration problem: a lot of different external

and internal services have to work together. To

“glue” all these services together in a flexible or

loosely coupled way we proposed a middleware in-

frastructure in the form of an Enterprise Service Bus

(ESB). An ESB is a sophisticated communication

backbone based on asynchronous messaging to con-

nect the participants in a Service Oriented Architec-

ture. It was explained why an ESB is an appropriate

choice for the implementation of a middleware for

mobile services. Afterwards we sketched an infra-

structure for the provisioning of mobile services

based on an ESB.

We are currently engaged in the implementation

of a proof-of-concept prototype of the ESB pre-

sented in this paper using J2EE-technologies.

REFERENCES

Adacal, M. & Bener, A., 2006. Mobile Web Services: A

new Agent-Based Framework. IEEE Internet Comput-

ing. 10(3), 58-65.

Beresford, A., & Stajano, F., 2003. Location Privacy in

Pervasive Computing. Pervasive Computing. IEEE,

2(1), 46-55.

Bettini, C., Wang, X.S., & Jojodia, S., 2005. Protecting

Privacy against Location-Based Personal Identifica-

tion. In Proceedings of the Conference on Secure Data

Management (SDM ’05), Trondheim, Norway, 185-

199.

Chakraborty, D., Perich, F., Avancha, S., Joshi, A., 2001.

DReggie: Semantic Service Discovery for M-

Commerce-Applications. In Workshop on Reliable

and Secure Applications in Mobile Environment. New

Orleans, LA, USA.

Chappell, D. A., 2004. Enterprise Service Bus. O’Reilly

Media, Sebastopol, CA, USA.

Duda, I., Aleksy, M. & Butter, T., 2005. Architectures For

Mobile Device Integration into Service-Oriented Ar-

chitectures. In Proceedings of the International Con-

ference on Mobile Business (ICMB '05), IEEE, Syd-

ney, Australia.

Gedik, B., & Liu, L., 2005. A Customizable k-Anonymity

Model for Protecting Location Privacy. In Proceed-

ings of the 25th International IEEE Conference on

Distributed Computing Systems (ICDCS ‘05), Colum-

bus, Ohio, USA, 620-629.

Hamdy, M., & König-Ries, B., 2006. Service-Orientation

in Mobile Computing: An Overview. In Proceedings

of the MDM ’06, IEEE, Washington, D.C., USA.

Karlich, S., et al., 2004. A Self-Adaptive Service Provi-

sioning Framework for 3G+/4G Mobile Applications.

Wireless Communications, IEEE, October 2004, 48-

56.

Kaye, D., 2003. Loosely Coupled — The Missing Pieces of

Web Services. RDS Press, California, USA.

Keen, M. et al., 2004. Implementing an SOA Using an

Enterprise Service Bus. IBM Redbooks, 2004.

Kido, H., Yanagisawa, Y., & Satoh, T., 2005. An Anony-

mous Communication Technique using Dummies for

Location-based Services. In Proceedings of the IEEE

International conference on Pervasive Service 2005

(ICPS ’05), Santorini, Greece, 88-97.

Koolwaaij, J., & Strating, P., 2003. Service Frameworks

for Mobile Context-aware Applications. Proceedings

of the Conference on e-Challenges, Bologna, Italy.

Sanchez-Nielsen, E., Martin-Ruiz, S. & Rodriguez-

Pedrianes, J., 2006. Service-Oriented Architecture to

Mobile Phones. In Proceedings of the International

Conference on E-Business (ICE-B 2006), INSTICC

Press, Setúbal, Portugal, 57-62.

A MIDDLEWARE INFRASTRUCTURE FOR MOBILE SERVICES BASED ON AN ENTERPRISE SERVICE BUS -

Mobile Service Provisioning as SOA-Integration Problem

129
