DOCUMENT MANAGEMENT FOR

COLLABORATIVE E-BUSINESS:

INTEGRATING EBXML ENVIRONMENT AND LEGACY DMS

Alessio Bechini, Andrea Tomasi and Jacopo Viotto

Dipartimento di Ingegneria dell'Informazione: Elettronica, Informatica, Telecomunicazioni

University of Pisa, Via Diotisalvi 2, 56122 Pisa, Italy

Keywords: Document Management Systems, ebXML, Interoperability, Web Services.

Abstract: It is widely known that e-business capabilities are a key requirement for a large number of modern

enterprises. New B2B technologies can enable companies all around the world to collaborate in more

effective and efficient ways, better satisfying the needs of their customers. The ebXML specifications are

the standard solution to achieve this kind of interoperability, but they are not as widespread as traditional

legacy systems yet. Enterprises typically store their knowledge inside Document Management Systems

(DMS), which come in different technologies and handle system-specific metadata models. In this paper, we

propose an architecture that enables enterprises to take advantage of the power and flexibility of the ebXML

approach to metadata management; this is achieved without affecting in-place working systems, and with no

need for a complete repository reconstruction.

1 EBXML AS A SUPPORT FOR

BUSINESS INTERACTIONS

ebXML (Electronic Business using eXtensible

Markup Language) is a suite of XML-based

specifications emerging as the de-facto standard for

e-business. It provides “a standard method to

exchange business messages, conduct trading

relationships, communicate data in common terms

and define and register business processes”

(ebXML). For example, ebXML can be proficiently

used as the principal building block within

information systems to support supply chain

traceability (Bechini et al., 2005 and 2007).

The ebXML Registry specifications (ebRIM,

ebRS) play a crucial role within the standard. An

ebXML Registry is defined as “an information

system that securely manages any content type and

the standardized metadata that describes it”, thus

enabling the sharing of content and related metadata

across organizational entities. Being theFmited

number of companies natively store documents and

enterprise knowledge according to the ebXML

standard, since it is a fairly recent technology; the

race for e-business capability has hampered the

adoption of one acknowledged standard solution for

document management, thus yielding significant

interoperability problems. Much (if not all) of the

generated information is present inside one or more

traditional Document Management Systems (DMS),

each implemented upon a different technology and

following a proprietary metadata model.

Ideally, interoperability could be achieved

moving all enterprise knowledge into an ebXML

Registry. In practice, this is hardly ever feasible, due

to the strong bindings between the DMS and the rest

of the company information system. We propose an

architecture to boost up the functionality of in-place

DMSs, taking advantage of the power and flexibility

of ebXML. The original DMSs, left unchanged, are

coupled with an ebXML Registry, used to mirror

their metadata. All metadata-related operations

(especially searches) can thus be enabled to leverage

the ebXML Registry, overcoming the typical

restrictions of the back-end legacy module. A direct

access to the original DMS is performed only in case

an actual document would be involved in the query.

Whenever required by a specific application within

the upper information system, an additional distinct

component can be asked to coordinate the access to

the underlying systems, and enforce metadata

consistency.

Bechini A., Tomasi A. and Viotto J. (2007).

DOCUMENT MANAGEMENT FOR COLLABORATIVE E-BUSINESS: INTEGRATING EBXML ENVIRONMENT AND LEGACY DMS.

In Proceedings of the Second International Conference on e-Business, pages 78-83

DOI: 10.5220/0002112700780083

 SciTePress

2 INTEROPERABLE DMS

A common requirement for a DMS is the ability to

easily integrate with external systems, in order to

provide access to enterprise knowledge from a wide

variety of platforms. In spite of this, DMSs typically

support a small number of applications, and little or

no effort is made towards generalized

interoperability. As a partial solution, some systems

provide APIs to enable administrators to code

adapter applications.

Recently, the adoption of Service Oriented

Architecture (SOA) contributed to modify this

scenario: the latest versions of the most popular

DMSs provide support for Web services to ease

system integration and extension (FileNet,

Documentum, Vignette). Web services run on the

server side and wrap API calls to offer system access

by means of standard Web technologies.

Unfortunately, the claimed support often simply

relates to a framework to help develop custom

services: administrators still need to study the

system’s details and write the service code

accordingly. This is a tedious and error-prone

process, and it should be avoided as much as

possible. Moreover, no standard way is defined for

the implementation of such Web services, hence

third-party software need to comply with different

interfaces, depending on the actual DMS in use.

SOA support in DMSs should definitely be

improved, in order to keep up with the current

technology trend: “by 2010, 80 percent of

application software revenue growth, including

licenses and subscription fees, will come from

products based on SOA.” (Gartner, 2005).

2.1 A Proposal

The proposed solution can be roughly described as a

Web service extension to integrate DMS interfaces.

The overall system basically takes advantage of

DMS-specific APIs, combines them into logically

distinct functions, and exposes them as Web

services. In this perspective, each specific DMS

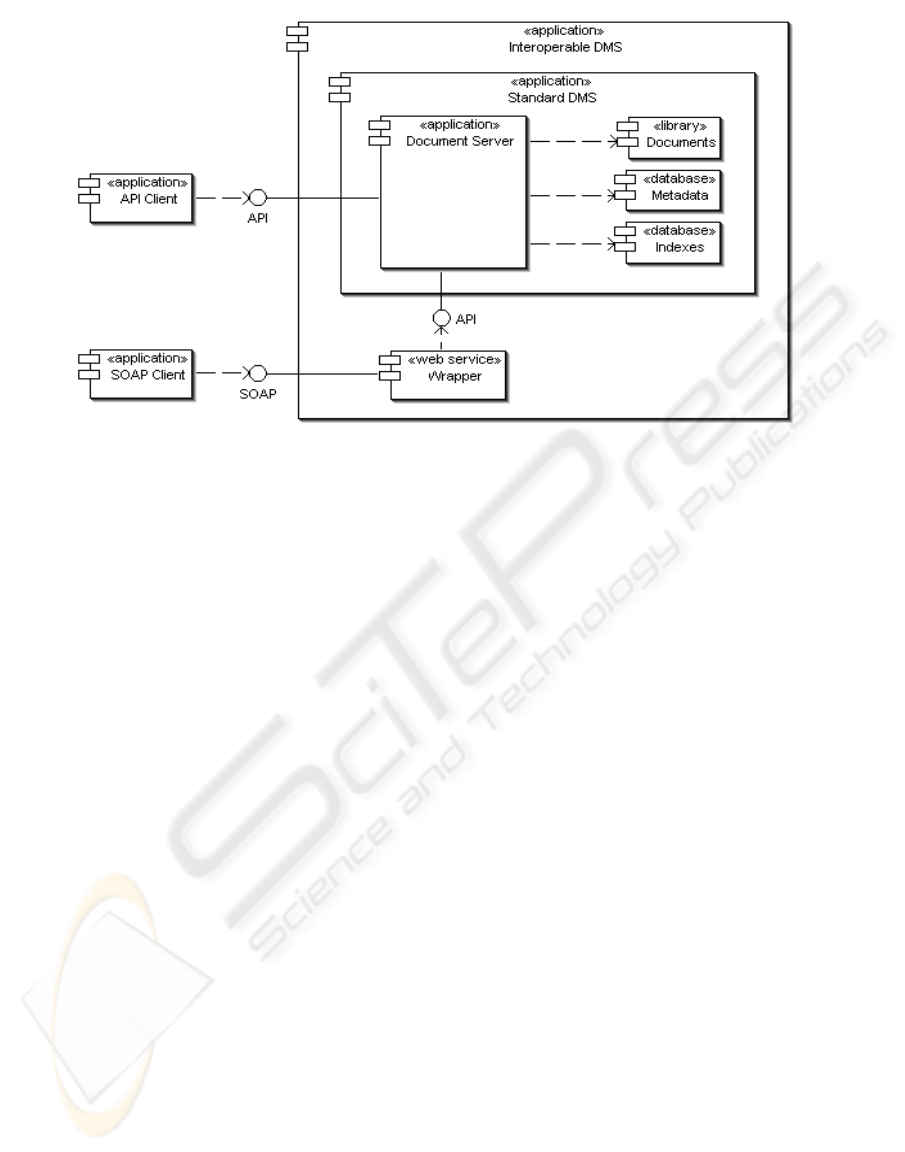

requires its own specific wrapper software. Figure 1

shows the architecture of a traditional DMS,

composed with our extension to obtain an

interoperable DMS. As it can be seen, our system

acts as an additional access point to the DMS,

leaving the original system intact. This kind of

enrichment in the access point number let clients

free to keep on working through the native interface,

whenever it is either mandatory or convenient.

Clients using the new interface, instead, will be able

to communicate with the DMS via SOAP messages,

regardless of technology issues and implementation

details.

2.2 DMS Interface for Interoperability

In order to achieve true independence from the

actual DMS in use, we need to set up a general-

purpose interface, able to accommodate typical

needs for document management systems.

Figure 1: Interoperable DMS.

DOCUMENT MANAGEMENT FOR COLLABORATIVE E-BUSINESS:INTEGRATING EBXML ENVIRONMENT

AND LEGACY DMS

Unfortunately, no standard interface of this kind has

been clearly stated so far, and no standard access

method to the DMS document base still exists,

despite the fact that typical operations performed

over this kind of systems are fairly general.

Therefore, our prime concern is to outline a set of

core operations that every DMS is required to

support, and then standardize the way they are

accessed.

We restricted our choice to fundamental services,

leaving out any platform-specific feature. This is an

explicit design choice: most applications interface to

a DMS in terms of simple queries (mainly document

upload/download and metadata or content-based

searches), whereas advanced features are rarely used

and are not guaranteed to be available in all

environments. We didn’t take into account

administration functions, such as user creation, role

definition and so on, due to the absence of a standard

treatment for access control and user management.

However, this might be a significant functionality to

add in future versions.

We finally came out with the following list; since

these operations are at the heart of document

management itself, they are the most commonly

used by end-users and the most widely supported by

existing systems. Table 1 shows the corresponding

function signatures in our test implementation.

Authentication - Obviously, some sort of

authentication is needed to access the system. The

simplest and most common way to identify a user is

asking for a username/password pair. If successful,

the login function returns a unique session identifier,

which will be needed for every subsequent

operation; this identifier encodes user rights and

roles, thus allowing access control.

Document/version creation - Creating a brand

new document implies uploading the file and

creating (and filling) a new entry inside the database

to store its metadata. The creation of a new version

for an existing document is almost the same process,

but slightly more information is needed to identify

parent document and version number.

Table 1: Functions overview. The Profile structure represents a minimal subset of supported metadata (system specific).

The ProfileField structure represents a name/value pair for arbitrary metadata fields.

Function Description

public string doLogin(string library, string

user, string password)

public Profile[] search(string dst, string lib,

string docnum, string author, string name,

string type, string[] words)

public Profile[] advancedSearch(string dst,

string lib, string form, ProfileField[] sc,

string[] words, string[] rp, ProfileField[] ord)

Perform full-text and metadata search. The

advanced version allows a variable number

of name/value pairs in input (the

ProfileField structure array). Search criteria

can be freely mixed.

public byte[] getDocument(string dst, string

lib, string docnum, string ver, string subver)

Document check-out.

public string putDocument(string dst, string

lib, string docname, string author, string

typist, string type, string app, byte[] data)

public string advancedPutDocument(string dst,

string lib, string form, ProfileField[] fields,

byte[] data)

public void putVersion(string dst, string lib,

string docnum, string ver, string author, string

typist, string comment, byte[] data)

public void replaceVersion(string dst, string

lib, string docnum, string ver, string subver,

byte[] data)

Document check-in. The first two functions

create a new document. This implies the

creation and filling of a new metadata

entry, together with actual file transfer.

The third function creates a new

version, filling the comment and author

fields in version metadata (almost a

standard). The last one replaces an existing

version.

public void deleteDocument(string dst, string

lib, string docnum, bool delProf)

public void deleteVersion(string dst, string

lib, string docnum, string ver, string subver)

Document deletion (including all

versions) and version deletion (including all

subversions).

public void updateProfile(string dst, string

lib, string docnum, string docname, string

author, string typist, string type, string app)

public void advancedUpdateProfile(string dst,

string lib, string form, string docnum,

ProfileField[] fields)

Metadata editing, and advanced version.

ICE-B 2007 - International Conference on e-Business

Document/version editing - Since file editing

can’t be performed in-place, it requires document

download (check-out), local editing, and upload of

the modified copy (check-in); this typically leads to

the creation of a new version, but version

replacement is possible as well. Metadata may be

directly edited with ad-hoc functions, but it most

often changes as part of a file updating process.

Document/version deletion - Deleting one

version determines the erasure of all its subversions;

deleting an entire document results in the erasure of

all its versions. In either case, the deletion includes

both physical files and database entries.

Metadata/fulltext search - Users rarely need a

specific document, and hardly ever know the exact

id; instead, they often look for documents talking

about some topic, or containing a few given words.

Hence, DMSs support searches over both metadata

and file content.

3 SYSTEM ARCHITECTURE

According to our architecture, newly installed and

in-place components are arranged in three sub-

systems (Figure 2):

 An interoperable DMS, containing both

documents and related metadata. It is entirely

based upon the DMS originally in use inside

the enterprise, with the added value of our

interoperability component. In the general

case, there could be many different systems,

each with multiple instances.

 An ebXML Registry, used to store a copy of

DMS metadata in an ebXML-compliant

fashion. Exploiting its capabilities, we can

manage legacy metadata using the same

advanced features available for documents

natively stored in ebXML repositories.

 A controller application intended to coordinate

access to the above-mentioned systems.

Access to DMSs is performed through the

interface we described, while the ebXML

Registry already offers standard Web services.

Since there is no direct link between the ebXML

Registry and enterprise repositories, every

interaction is mediated by the controller. This is

necessary to maintain the independence of each

individual component: as far as the single sub-

system is concerned, no knowledge about the

external world is required. It is up to the controller to

compose the simple interaction functions provided

by each interface into a globally meaningful and

consistent operation. In particular, such software

level should provide also a semantic mapping among

different metadata items on distinct DMS, or maybe

a mapping towards some kind of commonly

established ontology.

4 METADATA MANAGEMENT

Metadata play a crucial role in the exploitation of

functionalities exposed by a typical DMS. In order

to be properly managed and to efficiently contribute

to information delivery goals, each document must

be properly characterized by specifying its

coordinates within an adequately rich metadata

space. In the archive management and digital

libraries community, a standardization effort has led

to the definition of a basic set of metadata to be dealt

with for each stored/referenced document (Dublin

Core); moreover, communication protocols for

metadata harvesting have been built up within the

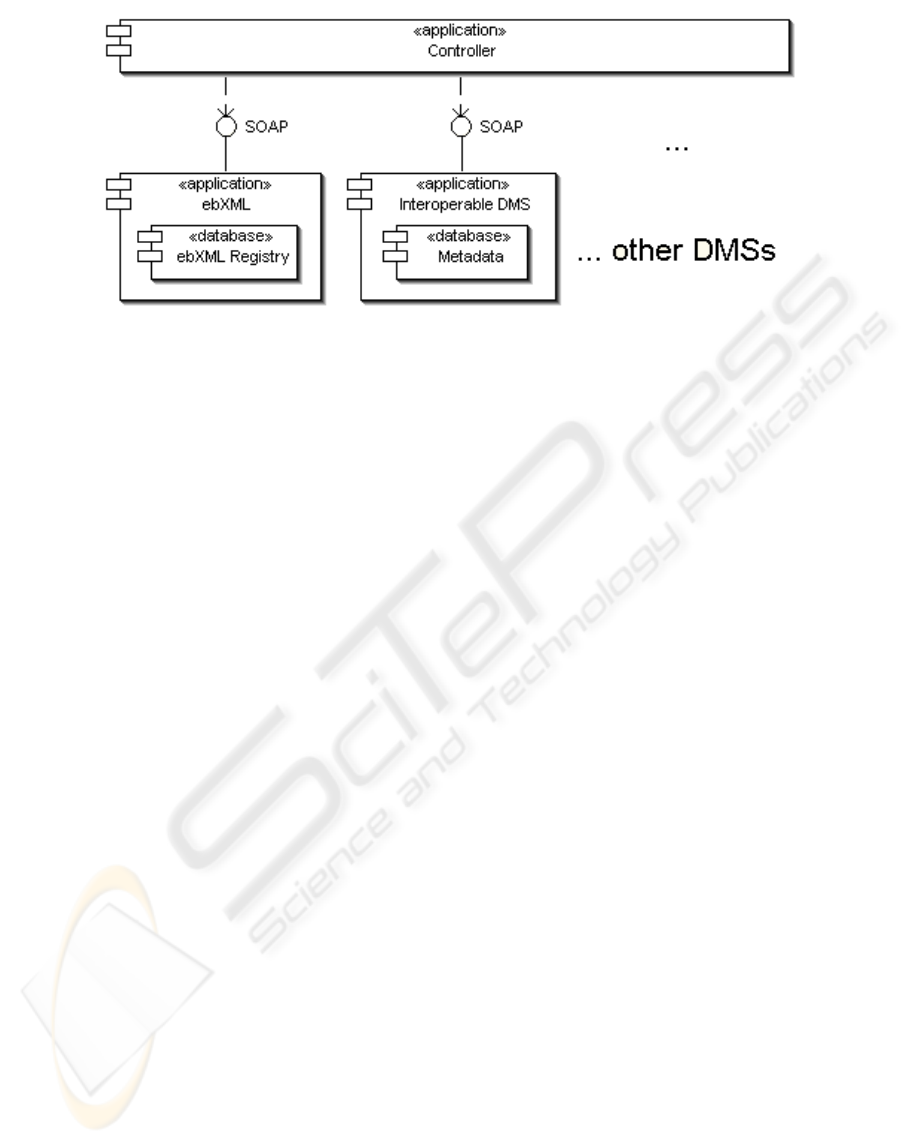

Figure 2: Overall architecture; an ebXML Registry and several legacy DMSs connected to a controller application.

DOCUMENT MANAGEMENT FOR COLLABORATIVE E-BUSINESS:INTEGRATING EBXML ENVIRONMENT

AND LEGACY DMS

Open Archive Initiative (OAI), taking into account

Dublin Core metadata set. Despite this

standardization attempt, Dublin Core has not been

adopted by the large majority of DMSs, mainly due

to its focus on informative documents, instead of

business-related ones. It is worth noticing that

problems about semantic mapping among different

metadata items (or towards a commonly established

ontology) arise also in related application fields, e.g.

cultural heritage digital libraries (Bechini et al.,

2004) and niches search engines (Petinot et al.,

2003): in these contexts, it is often reasonable to

employ a mediator scheme approach, possibly

referring to Dublin Core as a common metadata set.

In the framework of a SOA application, each

DMS can be regarded as a completely autonomous

entity, and no assumption can be made on its own

capabilities in supporting any kind of standard

metadata set. Instead, flexibility/extensibility in

metadata management can be the crucial feature to

enable DMS interoperability at this particular level.

Such a feature is typical of an ebXML repository,

which can thus be proficiently coupled to other

similar legacy modules. For instance, in ebXML

repositories custom metadata categories can be

easily added, as a simple mechanism to group up

sets of related attributes.

With no common set of metadata to be taken as

reference, we can think of explicitly working with

different metadata sets in a coordinated way. The

coordination mechanism, according to the SOA

approach, has to be implemented in the software

layer that accesses the single services at the different

DMS interfaces. This approach to metadata

management deeply affects the interface structure of

any service involved with metadata. In fact, the

service signature must be general enough to allow

passing a list of name/value pairs to describe

multiple metadata items. On the other hand, the

service must be implemented to parse the list and to

behave accordingly to what pairs are actually

meaningful on the specific DMS platform. In the

sample application cited in the next section we have

applied a slightly different variant of this approach,

choosing to develop each service function in two

different flavors: with a static signature, and with a

variable set of parameters. The first one is useful to

access system-specific metadata, whereas the other

can manage any kind of metadata, passed in as

name/value pairs.

5 IMPLEMENTED MODULES

We built up a sample implementation of our

architecture using popular software modules for the

three components. As for the ebXML part, we took

into consideration freebXML (freebXML).

Moreover, our partner Pivot Consulting s.r.l.

provided us with Hummingbird DM, a well-known

commercial DMS: we managed to make it an

interoperable DMS implementing the Web service

wrapper we described as a standard interface. For

the controller role we developed a demonstrative

Web application, in order to allow user interaction

(this should be changed in an automated scenario).

6 RELATED WORKS

SoDOCM (Russo et al., 2006) is an example of

federated information system for document

management. The declared goal of the project is to

provide an application that can transparently manage

multiple heterogeneous DMSs, while retaining their

autonomy. It is based on the mediator architecture, a

well-known concept developed for database

interoperability, and follows the service-oriented

computing paradigm.

With the AquaLogic Data Services Platform

(Carey, 2006) the authors propose a declarative

approach for accessing data, as opposed to the

standard procedural way. The system is intended to

integrate heterogeneous data sources in order to

support composite applications. This is achieved

using XML and XQuery technologies, and

introducing the concept of data service. A core

functionality is the automatic translation between

XQuery and various SQL dialects.

LEBONED (Oldenettel et al., 2003) is a

metadata architecture that allows the integration of

external knowledge sources into a Learning

Management System. The example presented in the

paper operates with the eVerlage digital library,

which provides a Web service interface to import

documents and related metadata.

OAI compliance and metadata re-modeling are a

central issue of the eBizSearch engine (Petinot et al.,

2003). In this paper, the authors describe how they

managed to enable OAI access to the CiteSeer

digital library; the proposed solution consists in

mirroring the original library and extending this

external database to meet OAI specifications.

Synchronization between the two systems is

performed periodically.

ICE-B 2007 - International Conference on e-Business

7 CONCLUSIONS AND FUTURE

WORKS

Integrating different content management systems

within a real-world, modern enterprise presents

several interoperability issues, both on the access

methods and the metadata models. Despite of the

existence of a widely accepted standard, the ebXML

specifications, most companies still operate upon

legacy systems and pay little attention to

interoperable infrastructures. In this paper, we

presented an architectural solution for the integration

of traditional DMSs with a standard ebXML

Registry, allowing advanced metadata management

over preexisting legacy systems, while keeping the

old information system up and running. As a side

achievement, we defined a universal interface for

Web service-based access to a generic DMS, which

can be used independently from our architecture.

The proposed solution is focused on architectural

issues, yet leaving out a few aspects located at the

application level and regarding metadata

consistency. The first one is the initial integration:

the ebXML Registry will need to be synchronized

with the DMS in order to replicate the metadata

inside it. Afterwards, consistency must also be

ensured for every write operation; hence, some kind

of transaction mechanism should be implemented to

allow atomic modifications of the repository and

commit/rollback functionalities. Our future work

will also involve a more thorough analysis of

administration functions, which are excluded from

the current version of the DMS interface.

ACKNOWLEDGEMENTS

We wish to thank Pivot Consulting s.r.l. (Navacchio,

PI), for the support provided throughout the entire

project.

REFERENCES

Gartner Inc., Gartner's Positions on the Five Hottest IT

Topics and Trends in 2005, http://www.gartner.com/

DisplayDocument?doc_cd=125868

FileNet Corporation, 2007, IBM Filenet P8 Platform,

http://www.filenet.com/English/Products/Datasheets/p

8brochure.pdf

EMC Corporation, 2003, Developing Web Services with

Documentum, http://www.software.emc.com/

collateral/content_management/documentum_family/

wp_tech_web_svcs.pdf

Vignette Corporation, 2005, Vignette Portal and Vignette

Builder, http://www.vignette.com/dafiles/docs/

Downloads/ WP0409_VRDCompliance.pdf

Blair, D.C., 2006, The Data-Document Distinction

Revisited, ACM SIGMIS Database for Advances in

Information Systems - Winter 2006 (Vol. 37, No. 1)

Carey, M., 2006, Data delivery in a service-oriented

world: the BEA aquaLogic data services platform, in

Proc. of the 2006 ACM SIGMOD international

conference on Management of data

Russo, L., and Chung, 2006, S., A Service Mediator Based

Information System: Service-Oriented Federated

Multiple Document Management, 10th IEEE

International Enterprise Distributed Object

Computing Conference Workshops (EDOCW'06)

Oldenettel, F., Malachinski, M., and Reil, D., 2003,

Integrating Digital Libraries into Learning

Environments: The LEBONED Approach,

Proceedings of the 2003 IEEE Joint Conference on

Digital Libraries

Organization for the Advancement of Structured

Information Standards, http://www.oasis-open.org

OASIS, 2005, ebXML Registry Information Model

specification version 3.0, http://docs.oasis-

open.org/regrep/regrep-rim/v3.0/regrep-rim-3.0-os.pdf

OASIS, 2005, ebXML Registry Services specification

version 3.0, http://docs.oasis-open.org/regrep/regrep-

rs/v3.0/regrep-rs-3.0-os.pdf

Electronic Business using eXtensible Markup Language,

http://www.ebxml.org/

United Nations Centre for Trade Facilitation and

Electronic Business, http://www.unece.org/cefact/

Open Archive Initiative, http://www.openarchives.org/

Petinot, Y., et al. 2003. eBizSearch: an OAI-Compliant

Digital Library for eBusiness. In Proc. of JCDL 2003,

IEEE CS Press, 199-209

Bechini, A., Tomasi, A., and Ceccarelli, G. The Ecumene

Experience to Data Integration in Cultural Heritage

Web Information Systems. In Proc. of CAiSE

Workshops (1) 2004: 49-59

Bechini, A., Cimino, M.G.C.A., Marcelloni, F., and

Tomasi A., 2007, Patterns and technologies for

enabling supply chain traceability through

collaborative e-business. Information & Software

Technology, Elsevier (2007),

doi:10.1016/j.infsof.2007.02.017

Bechini, A., Cimino, M.G.C.A., and Tomasi A., 2005,

Using ebXML for Supply Chain Traceability - Pitfalls,

Solutions and Experiences, in Proc. of 5th IFIP I3E

Conf., Springer, Oct. 2005, pp. 497-511

DOCUMENT MANAGEMENT FOR COLLABORATIVE E-BUSINESS:INTEGRATING EBXML ENVIRONMENT

AND LEGACY DMS
