MOBILE SECRET KEY DISTRIBUTION
WITH NETWORK CODING
Paulo F. Oliveira, Rui A. Costa and Jo
˜
ao Barros
Instituto de Telecomunicac¸
˜
oes
Departamento de Ci
ˆ
encia de Computadores, Faculdade de Ci
ˆ
encias da Universidade do Porto
Rua Campo Alegre, 1021/1055, 4169-007 Porto, Portugal
Keywords:
Sensor networks, secret key distribution, network coding, one-time pad.
Abstract:
We consider the problem of secret key distribution in a sensor network with multiple scattered sensor nodes
and a mobile device that can be used to bootstrap the network. Our main contribution is a practical scheme that
relies on network coding to provide a robust and low-complexity solution for sharing secret keys among sensor
nodes. In spite of its role as a key enabler for this approach, the mobile node only has access to encrypted
version of the keys. In contrast with probabilistic key pre-distribution schemes our method assures secure
connectivity with probability one, requiring only a modest amount of memory initially each sensor node
stores only one key per secured link.
1 INTRODUCTION
Among the many security challenges posed by wire-
less sensor networks (WSNs), i.e. self-organizing col-
lections of sensing devices with processing and com-
munication capabilities, the generation and distribu-
tion of private keys for authentication and confiden-
tiality in pairwise or group communication is ar-
guably one of the most fundamental problems.
Currently available proposals can be divided into
at least three basic types of secret key distribution
schemes (Du et al., 2005): (a) trusted third party, (b)
public-key infrastructure and (c) key pre-distribution.
Trusted party schemes, e.g. SPINS (Perrig et al.,
2002), assume that a base station provides the sensor
nodes with secret keys that are encrypted with one in-
dividual key per sensor node. Although public-key in-
frastructure schemes have been implemented success-
fully in some sensor networks (Malan et al., 2004),
their demands in terms of processing and communi-
cation overhead are arguably too high, in particular
with respect to the power constraints imposed on this
type of devices. Key pre-distribution thus emerges as
a strong candidate, mainly because it requires consid-
This work was partly supported by the Fundac¸
˜
ao para
a Ci
ˆ
encia e Tecnologia (Portuguese Foundation for Science
and Technology) under grant POSC/EIA/62199/2004.
erably less resources. The concept is elaborated in
(Eschenauer and Gligor, 2002), where a random pool
of keys P is selected from the key space prior to sen-
sor node deployment. Then, each node receives a key
ring, consisting of randomly chosen k keys from P. A
secure link is said to exist between two neighboring
sensor nodes, if they share a key with which commu-
nication may be initiated. A random graph analysis
in (Eschenauer and Gligor, 2002) shows that shared-
key connectivity can be achieved almost surely, pro-
vided that each sensor node is loaded with 250 keys
drawn out of a pool of roughly 100.000 sequences.
Using a different scheme with pre-installed key
rings, LEAP (Zhu et al., 2003) erases the network key
immediately after the pairwise keys are established.
Since nodes in that situation can no longer establish
pairwise keys, this protocol is only suitable for static
WSNs.
In the spirit of the Resurrecting Duckling
paradigm in ubiquitous computing (Stajano and An-
derson, 1999; Stajano, 2002), we consider the sce-
nario in which a mobile node, e.g. a handheld de-
vice or a laptop computer, is used to activate the net-
work and help establish secure connections between
the sensor nodes. We shall show that by exploiting the
benefits of network coding (Fragouli et al., 2006; Deb
et al., 2005), as illustrated in Fig. 1, it is possible to
171
F. Oliveira P., A. Costa R. and Barros J. (2007).
MOBILE SECRET KEY DISTRIBUTION WITH NETWORK CODING.
In Proceedings of the Second International Conference on Security and Cryptography, pages 171-174
DOI: 10.5220/0002126801710174
Copyright
c
SciTePress
SA B
a ba b
a
b

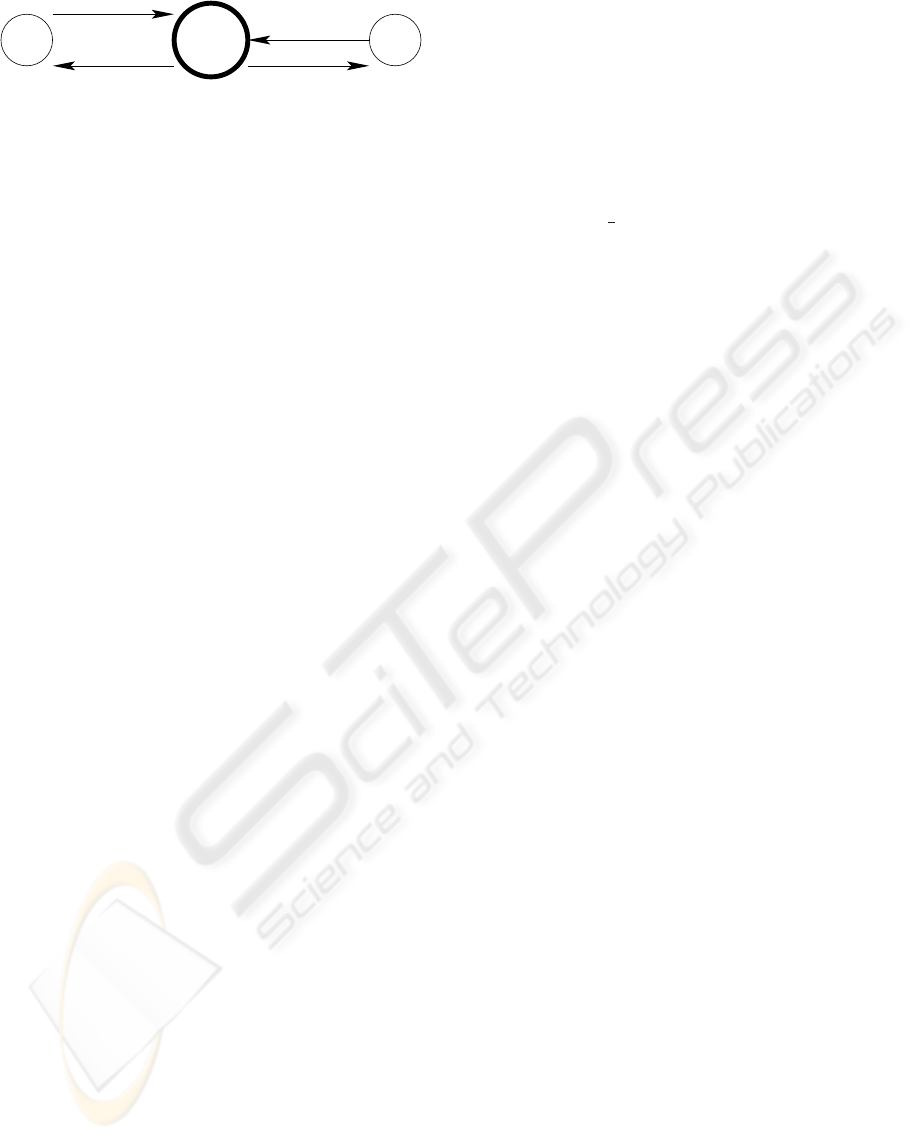

Figure 1: A typical wireless network coding example. To
exchange messages a and b, nodes A and B must route their
packets through node S. Clearly, a traditional scheme would
require four transmissions. However, if S is allowed to per-
form network coding with simple XOR operations, a b
can be sent in one single broadcast transmission (instead
one transmission with a followed by another one with b).
By combining the received data with the stored message, A
which possesses a can recover b and B can recover a using
b. Thus, network coding saves one transmission.
design power-efficient key distribution schemes that
are not probabilistic, while ensuring that the afore-
mentioned mobile node does not constitute a single
point of attack its capture does not compromise
the whole network.
Our main contribution is a practical secret key dis-
tribution scheme with efficient use of resources
in addition to a small number of transmissions and
low-complexity processing (mainly XOR operations),
each node is only required to pre-store a small num-
ber of keys (as many as its expected number of links).
Another feature of our approach is a “blind” key dis-
tribution — although the mobile node only has access
to encrypted versions of the secret keys, it is capable
of using network coding to ensure that each pair of
sensor nodes receives enough data to agree on a pair
of secret keys.
The rest of the paper is organized as follows. Sec-
tion 2 provides a detailed description of our secret key
distribution scheme. Section 3 then elaborates the at-
tacker model and proves that the mobile node is in-
deed ignorant about the pre-stored keys. The paper
concludes with Section 4.
2 MOBILE SECRET KEY
DISTRIBUTION
2.1 Key Distribution Scheme
Suppose that sensor nodes A and B want to establish
a secure link via a mobile node S. Although A and B
own different keys that are unknown to S, the latter
is capable of providing A and B with enough infor-
mation for them to recover each other’s keys based
on their own pre-stored keys. The basic scheme for
multiple nodes, which is illustrated in Fig. 2, can be
summarized in the following tasks:
(i) Prior to sensor node deployment:
Generate a large pool
P of statistically in-
dependent keys K
i
and their identifiers i
{0,...,|
P | 1}; for simplicity, each global key
identifier i is assumed to result from the con-
catenation of a node identifier n and a local key
identifier j (e.g. |n| = 24 bit and | j| = 8 bit);
Produce a one-time pad R, i.e. a binary se-
quence of size equal to the key size and con-
sisting of bits drawn randomly according to a
Bernoulli (
1
2
) distribution;
Store in the memory of S a list with all iden-
tifiers i and an encrypted version of the corre-
sponding key K
i
R (it shall be argued in Sec-
tion 3 that in this case it is perfectly safe to use
the same one-time pad R for all the keys, be-
cause they are drawn uniformly at random);
Let C |
P | be the expected number of links
that each node intends to use during its lifetime;
load C keys into the memory of each sensor;
each sensor node knows both its own identifier
n and the local key identifiers j.
(ii) After sensor node deployment:
1. The sensor nodes perform standard neighbor-
hood discovery by broadcasting their identifiers
n and storing in a list L
n
the identifiers an-
nounced by their neighbors;
2. S broadcasts HELLO messages that are re-
ceived by any sensor node within wireless
transmission range. Each sensor node sends a
reply message containing {n,L
n
};
3. Upon receiving {n(A), L
n(A)
} from a node A
and {n(B),L
n(B)
} from a node B, the mobile
node S checks whether n(A) L
n(B)
and n(B)
L
n(A)
. If this is the case, S performs a simple
table look-up and runs a XOR network cod-
ing operation over the corresponding protected
keys, i.e. K
i(A)
R K
i(B)
R. Since R
cancels out, S sends back {n(A) j(A), n(B)
j(B),K
n(A) j(A)
K
n(B) j(B)
}, where (n(·)
j(·)) denotes the concatenation of node and lo-
cal key identifiers; the local key identifier j (for
each node) is initially set at 0 and increases with
the number of established links;
4. Based on the received XOR combination
K
n(A) j(A)
K
n(B) j(B)
, A and B can eas-
ily recover each other’s key by perform-
ing an XOR operation using the lowest lo-
cal key identifier that corresponds to an un-
used key (A knows K
n(A) j(A)
and computes
K
n(A) j(A)
K
n(A) j(A)
K
n(B) j(B)
, thus obtain-
ing K
n(B) j(B)
; B proceeds similarly).
Thus, each pair of nodes shares a pair of keys
which is kept secret from S.
SECRYPT 2007 - International Conference on Security and Cryptography
172
A B C D
SA B
C
D
5
6
4
2
1
3
4
8
8
7
1
msg sender receiver content
1 S A,B,C,D HELLO
2 B S {n(B),[n(A),n(C)]}
3 C S {n(C), [n(B), n(D)]}
4 S B,C {n(B) j(B), n(C) j(C), K
n(B) j(B)
K
n(C) j(C)
}
5 A S {n(A),[n(B)]}
6 S A,B {n(A) j(A),n(B) ( j(B) + 1),K
n(A) j(A)
K
n(B)( j(B)+1)
}
7 D S {n(D),[n(C)]}
8 S C,D {n(C) ( j(C) +1),n(D) j(D), K
n(C)( j(C)+1)
K
n(D) j(D)
}

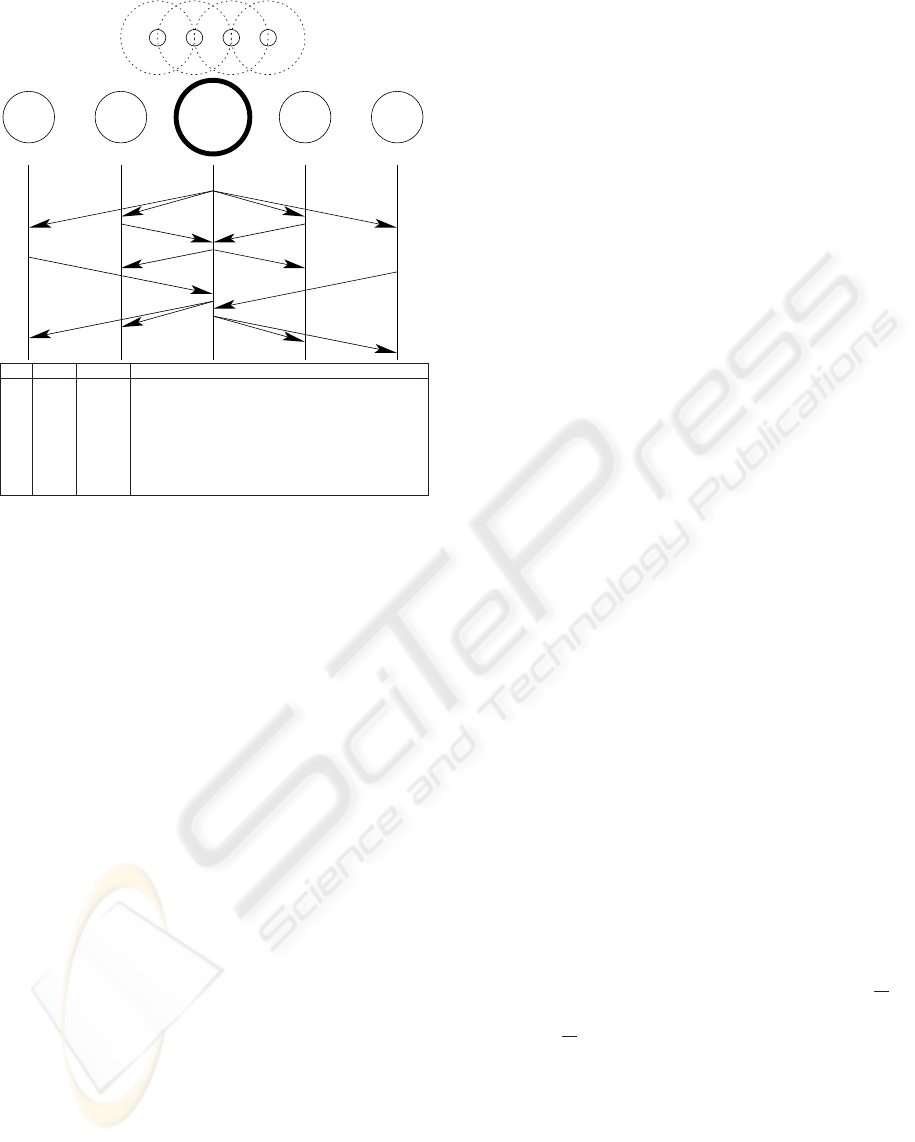

Figure 2: Example of the general key distribution scheme
for the topology shown above. Sensor nodes A, B, C and
D want to exchange keys with their neighbors via a mobile
node S. Initially, the nodes exchange their identifiers and
wait for an HELLO message from S (transmission 1). After
this step, each node sends a key request message to the mo-
bile node (transmissions 2,3,5,7) and waits for the latter to
send back a key reply message (transmissions 4,6,8).
2.2 Usage of Keys
There are several ways to make use of the established
pair of keys. One alternative to the solution in which
each node encrypts messages with its own pre-stored
key and decrypts received messages with the neigh-
bor’s key, is to combine the two keys into a single key
through a boolean operation (e.g. or, and). Another
solution would be to encrypt the messages in a dou-
ble cypher using both keys, but this option requires
higher processing capability.
Perhaps the most effective option would be for the
nodes to use the two shared keys (one in each direc-
tion) to agree on a session key (e.g., node A generates
a random value a, encrypts it using one of the shared
keys and sends it to node B, which generates a ran-
dom value b and sends it back to A, encrypted with
the other key). The main advantage is that the sensor
nodes can secure their communications using the con-
catenation of the exchanged random values (ordered
by the key identifiers by which they were encrypted),
resulting in a shared key with double the size and a
considerable improvement in terms of security. Natu-
rally, the availability of suitable random number gen-
erators is a relevant issue to be taken under consider-
ation.
3 SECURITY PERFORMANCE
EVALUATION
3.1 Attacker Model
We assume two types of threats in our scheme: (1)
a passive attacker that listens to all the traffic over
the wireless medium and (2) an active attacker who is
able to inject bogus data in the network. We assume
that the attacker can gain access to the memory of the
mobile node or to the memory of a limited number of
sensor nodes, but never to both. We consider that the
adversary computational resources are limited (poly-
nomial in the security parameter).
The first type of attacker does not constitute a
threat because the keys cannot be decoded from the
XOR messages in the ether. The second type of attack
can be detected by the legitimate nodes, who ignore
any messages that are corrupted by an invalid key.
3.2 One-Time Pad Security
The keys stored in the mobile node are protected by
a one-time pad. It is well-known that the one-time
pad can be proven to be perfectly secure for any mes-
sage statistics if the key is (a) truly random, (b) never
reused and (c) kept secret. In our case, the messages
correspond to keys drawn from a uniform distribution
and, consequently, the requirement that the one-time
pad is never re-used can be dropped, as stated in the
following theorem.
Theorem 3.1 The knowledge of {K
1
R, K
2
R,...,K
m
R} does not increase the information that
the attacker has about any key, i.e., i {1,...,m},
P(K
i
= x|K
1
R = y
1
,...,K
m
R = y
m
) = P(K
i
= x).
Sketch of proof First, notice that P(K
i
= x) =
1
2
n
.
We shall prove that P(K
i
= x|K
1
R = y
1
,...,K
m
R = y
m
) =
1
2
n
,i {1, ..., m}, which yields the result.
P(K
i
= x|K
1
R = y
1
,..., K
m
R = y
m
)
= P(K
i
= x|K
1
K
i
= y
1
y
i
,..., K
m
K
i
= y
m
y
i
),
where the event K
i
K
i
= y
i
y
i
is not present, be-
cause it is redundant. Let z
j
= y
j
y
i
, for 1 j m
and j 6= i. Let A denote the event {K
i
= x} and B de-
note the event {K
1
K
i
= z
1
,...,K
m
K
i
= z
m
}. Then,
P(K
i
= x|K
1
K
i
= z
1
,...,K
m
K
i
= z
m
) = P(A|B).
MOBILE SECRET KEY DISTRIBUTION WITH NETWORK CODING
173
We already have seen that P(A) = P(K
i
= x) =
1/2
n
. We have that:
P(B|A) = P(K
1
K
i
= z
1
,...,K
m
K
i
= z
m
|K
i
= x)
=
m
j=1
P(K
j
= z
j
x) =
1
2
n(m1)
P(B) = P(K
1
K
i
= z
1
,...,K
m
K
i
= Z
m
)
=
m
j=1
P(K
j
K
i
= z
j
) =
1
2
n(m1)
Therefore, we have that P(A|B) =
1
2
n(m1)
·
1
2
n
1
2
n(m1)
.
3.3 Memory Requirements
We recall that each node n has C keys K
i
in memory,
each one identified by |i| = |n| + | j| bits, where | · | de-
notes the size of the argument. To store the protocol
data, each node requires |n| + C (| j| + |K
i
|) bits of
memory space and the mobile node needs 2
|i|
(|i| +
|K
i
|) = |
P | (log
2
(|P |) + |K
i
|) bits. For example, if
we assign n = 24 there is space for 16.777.216 differ-
ent node identifiers. For j = 8, each sensor node can
obtain 256 keys (e.g. if each node initially has C = 20
keys in its memory, there is space for 246 extra keys).
Table 1 illustrates the required resources, which we
deem very reasonable under current technology.
Table 1: Required memory for each sensor node (SN) and
required memory for the mobile node (MN), for fixed values
of n = 24, j = 8 and C = 20.
|K
i
| Size on SN Size on MN
128 bit 343 Bytes 80.0 GB
64 bit 183 Bytes 48.0 GB
32 bit 103 Bytes 32.0 GB
We omit the details of our implementation on
TelosB motes due to lack of space.
4 CONCLUSIONS
We presented a secret key distribution scheme for
large sensor networks. Unlike (Eschenauer and
Gligor, 2002) and (Du et al., 2005), this is not a prob-
abilistic scheme, i.e. any two nodes that can reach
each other can communicate securely with probabil-
ity one, using a small number of pre-stored keys and
without the need for establishing path-keys albeit at
the expense of a mobile node for bootstrapping. Since
our protocol and its extensions can easily accommo-
date for additional nodes, new keys and secured links,
we deem the proposed network coding approach to be
well suited for dynamic sensor networks with strin-
gent memory and processing restrictions. Extensions
for group keys, extra keys request and revocation can
be implemented and will be reported elsewhere.
Although our use of network coding was limited
to XOR operations, more powerful schemes are likely
to result from using linear combinations of the stored
keys. Investigating the potential of random linear net-
work coding (Lima et al., 2007) in the context of se-
cret key distribution is one of the main objectives of
our ongoing work.
REFERENCES
Deb, S., Effros, M., Ho, T., Karger, D., Koetter, R., Lun, D.,
Medard, M., and Ratnakar, N. (2005). Network cod-
ing for wireless applications: A brief tutorial. Proc. of
IWWAN, London, UK, May.
Du, W., Deng, J., Han, Y. S., Varshney, P. K., Katz, J.,
and Khalili, A. (2005). A pairwise key predistribution
scheme for wireless sensor networks. ACM Trans. Inf.
Syst. Secur., 8(2):228–258.
Eschenauer, L. and Gligor, V. D. (2002). A key-
management scheme for distributed sensor networks.
In CCS ’02: Proceedings of the 9th ACM conference
on Computer and communications security, pages 41–
47, New York, NY, USA. ACM Press.
Fragouli, C., Boudec, J.-Y. L., and Widmer, J. (2006). Net-
work coding: an instant primer. SIGCOMM Comput.
Commun. Rev., 36(1):63–68.
Lima, L., M
´
edard, M., and Barros, J. (2007). Random Lin-
ear Network Coding: A Free Cipher? In Proc. of the
IEEE International Symposium on Information The-
ory (ISIT).
Malan, D., Welsh, M., and Smith, M. (2004). A public-
key infrastructure for key distribution in tinyos based
on elliptic curve cryptography. In First IEEE Interna-
tional Conference on Sensor and Ad Hoc Communi-
cations and Network, Santa Clara, California.
Perrig, A., Szewczyk, R., Tygar, J. D., Wen, V., and Culler,
D. E. (2002). SPINS: Security protocols for sensor
networks. Wireless Networks, 8(5):521–534.
Stajano, F. (2002). Security for Ubiquitous Computing.
John Wiley and Sons.
Stajano, F. and Anderson, R. J. (1999). The resurrect-
ing duckling: Security issues for ad-hoc wireless net-
works. In Christianson, B., Crispo, B., Malcolm, J. A.,
and Roe, M., editors, Security Protocols Workshop,
volume 1796 of Lecture Notes in Computer Science,
pages 172–194. Springer.
Zhu, S., Setia, S., and Jajodia, S. (2003). LEAP: efficient
security mechanisms for large-scale distributed sensor
networks. In CCS ’03: Proceedings of the 10th ACM
conference on Computer and communications secu-
rity, pages 62–72, New York, NY, USA. ACM Press.
SECRYPT 2007 - International Conference on Security and Cryptography
174
