INTEGRATED RIGHT MANAGEMENT FOR HOME CONTENT

A SIM based Right Management Solution for Home Networks

György Kálmán and Josef Noll

UniK, University Graduate Center, Kjeller, Norway

Keywords:

Seamless, authentication, smartcard, cryptography, rights management, SIM, home networks, content man-

agement.

Abstract:

With continous internet access, the user behavior is changing. Now, users are creating and sharing their

content over the network. With content sharing, the need for protection arises. Currently, no ﬁne grained

security solution exists, which provides such functionality for users.

Easy and transparent user authentication and access control is of key importance. In this paper, we suggest

a solution, where devices on the home network and in PANs may use a common right management infras-

tructure. Key of our recommendation is the mobile phone, which can act as a trusted key management and

distribution unit for the user.

In this paper, a solution is shown for easy access right management, a tamper resistant central unit is recom-

mended and a service example is shown.

1 INTRODUCTION

Social life over the net is becoming more important,

enforcing the need to share information with different

user groups. A user may want to share pictures with

his friends and family, with society or just with one

person(Rahman and Noll, 2006).

Currently, no easy to use right management solu-

tion exist, which was designed for the end user mar-

ket. To use the new services offered by Web 2.0 sites,

the users need a solution, which enables easy and se-

cure content sharing, possibly without third parties.

The extensive use of web services is narrowing the

border between the traditional home network area and

the external services. User content was traditionally

stored in the home network, but now, with the help

of various media sharing solutions, it is moving to-

wards external servers. Also the home network in-

frastructure is getting more complex, which raises the

basic concern of access security. Lack of technical

knowledge leads to vulnerable home networks, where

the security of the content solely relies on the sharing

method used, hence the home environment is becom-

ing a more hostile, like the external network outside

the local router.

Because of the complexity and the lack of secu-

rity measures, the home network is more vulnera-

ble, then it was before. The fundamental problem

is, that usually a security system is either secure or

easy to use and manage. A pleasant user authenti-

cation solution is required to ensure good user ex-

perience. For some purposes, it would be bene-

ﬁcial to use seamless authentication, like it is im-

plemented for certain Wireless Application Protocol

(WAP) services in the mobile networks(Noll et al.,

2006a). There are numerous solutions for key dis-

tribution and management, but most of them are not

optimized for the special circumstances in a home en-

vironment. These are in particular, the mobility of

devices, energy constraints(Potlapally et al., 2006),

computational power and trustworthiness(TCG Mo-

bile Phone Working Group, 2005).

A solution could be to have a simple control de-

vice, with good cryptographic functions and key man-

agement capabilities. Because of the special require-

ments of the home network, a smartcard based au-

thentication method is recommended. The smartcard

is able to provide cryptographic functions with tamper

resistant hardware, and provides also a certain level

of protection against trojans. The smartcard is able

to generate encryption keys, checking signatures and

also provides secure key storage.

In this paper, the concept of a home right manage-

ment system is shown, the use of the mobile phone

as an authenticator is shown and as a key distribution

example, an out-of-band Near Field Communication

(NFC) admittance system is shown.

107

Kálmán G. and Noll J. (2007).

INTEGRATED RIGHT MANAGEMENT FOR HOME CONTENT - A SIM based Right Management Solution for Home Networks.

In Proceedings of the Second International Conference on Security and Cryptography, pages 107-111

DOI: 10.5220/0002127801070111

 SciTePress

2 OPERATION OF HOME

NETWORKS

The use of wireless technologies in home networks

is dominant. But, most users are not aware of the

possible threats and problems associated with their

wireless home network. A secure authentication sys-

tem would help reducing some of the risks. Wire-

less access points are often not secured, or use the

compromised Wired Equivalent Privacy (WEP) pro-

tocol(Borisov et al., ). Industrial grade solutions ad-

dress security for wireless networks through the IEEE

802.11x standard for authentication or IEEE 802.11i.

The use and management of these technologies re-

quires high competence, which is not usual in the

home area.

Because of the security problems associated with

medium access in home networks, it has a big proba-

bility, that an intruder will get access to the network.

In addition of the access control, current operating

systems provide the possibility of using some kind of

access restriction, for example either based on ﬁle or

share basis. This can provide an additional line of de-

fence.

On the Local Area Network (LAN), most of the

content is accessible without additional authentica-

tion. If a guest arrives, the user grants access to his

home network to show some content over the termi-

nal of the guest. While access to the network for

internet access might be acceptable, granting access

also opens possibilities for content access. Getting an

external user into the home network means to loose

control over which content the guest can access, and

be vulnerable to malicious attacks from the visitors

devices. This can be also done by trojans, which are

malicious even if the guest is unaware of its presence.

This paper proposes a solution in the form of a

right management infrastructure for home networks.

This service enables access right deﬁnition on user

content. With rights associated, content access is not

deﬁned by the current place or network of the user,

but on the credentials, which are owned by him.

With such an infrastructure, the user can grant net-

work access to a guest without compromising his own

content stored on the network. Also, if the medium

access protection fails, this solution operates as a sec-

ond line of defence. The problem is, that with such a

system, all devices have to support this service. With

more and more entertainment devices connected, this

is a hard problem.

Entertainment devices usually have limited com-

puting capability, thus they might be supported

through a speciﬁc network device which is able to

carry out complex cryptographic operations and ex-

change the generated information with other parties

using a secure and easy method. A solution to com-

putational problems and trusted devices could be to

deploy smartcard based authentication in the home

environment(Pujolle et al., 2003).

In (Popescu et al., 2006) a rights management so-

lution is proposed, which is based on device domains.

These domains can be formed from the devices in the

LAN, and also can have members from external net-

works. Mobility can be addressed with secured trans-

port protocols to provide secure and easy access to

home content from the Internet side. This proposal

lacks a device, which can be used for easy and secure

key generation. In (Pujolle et al., 2003) a smartcard

based solution is shown for WLAN authentication.

Because of the expenses associated with deploy-

ing a smartcard infrastructure, we propose to have

only one smartcard in the system, which can exchange

the corresponding keys with the other terminals via a

contactless interface.

3 AUTHENTICATION AND KEY

MANAGEMENT

To keep the advantage of a tamper resistant cryptog-

raphy device, and ensure low cost, we propose to use

the mobile phone’s SIM to calculate and the phone

hardware to distribute keys for devices.

Currently, vast majority of the potential users al-

ready have SIM cards in their pockets. The phone

is becoming a permanent part of the user’s personal

area. In many cases the handset is already part of the

user’s identity, because of it’s services, look and im-

portant role in social connections. Because of it’s im-

portance, they are taking care of it, since it holds a

great deal of social and personal information.

According to (ETSI, 2005) it could be possible to

use the SIM as a fully featured smartcard as the SIM is

capable of storing keys and providing cryptographic

functions for third party services, not only for mobile

providers.

Setting up a secure network may be problematic,

since keys have to be transmitted and devices have to

authenticate themselves. This may be done by using

out-of-band key delivery methods (like using an USB

stick or in an SMS via the mobile network). Even if

the user is able to do this process, convenience con-

siderations might cause him to neglect security. Also,

currently, the user may decide to grant access or not,

but inside the network it is extremely rare to use some

kind of additional access restriction. This means, that

either no access is given or the guest can access prac-

tically all network resources.

SECRYPT 2007 - International Conference on Security and Cryptography

108

To solve the problem of convenient key distribu-

tion, we propose to use NFC technology to transmit

encryption keys between devices. A NFC reader adds

only a small cost overhead to devices, does not need

to be powered continuously and provides contactless

transfers for very limited ranges.

Through the mobile phone, the user has full con-

trol over the identiﬁcation process either based on the

location e.g. putting the phone close to the reader or

on knowledge e.g. typing in a PIN when requested by

the remote service.

The master key pair of the phone represents the

root of trust in the proposed system. The keys can

be placed to the SIM either by the mobile provider or

other, veriﬁable source, to ensure correct user iden-

tity association if authenticity veriﬁcation is required.

Commercial uses will require a trusted third party in

the system, but for private use, a shared, web of trust

solution is more feasible. With such a service, the

users could prove each others identity without the use

of an expensive external service.

Alternatively, the user could also distribute keys

for his friends off line, for example via the NFC inter-

face during visits.

4 A SERVICE SCENARIO

Adam is at home, and Balazs is visiting him. He is a

friend of Adam. He is at Adam, last weekend they had

a hiking trip together. Both of them made several pic-

tures, Balazs recorded short videos and Adam made a

short text attached to the GPS tracklog. They want to

make a webpage, which contains all the content and

make it available for their friends.

The ﬁrst step is allowing access for Balazs to the

home network of Adam. Adam gives him the WPA

key of the network and also enables his MAC in the

router. The required information is sent via the NFC

interface between his mobile phone and Balazs’s lap-

top, so Adam has only to touch Balazs’s laptop with

his phone.

After, Adam creates a webpage on his home

server. In the background, the system allocates space

and grants the appropriate rights to Balazs. Both are

uploading the content. When they ﬁnish with the page

generation, they want to allow access for their friends.

Of course, just read-only except for the forum, where

veriﬁed users can leave messages.

They use a common group key, which is known

to their friends. Using this key, a remote user can

identify himself as a friend of Adam or Balazs and

then access the content.

Figure 1: Admittance Service with NFC.

5 KEY EXCHANGE WITH AN

NFC PHONE

Realisation of our suggested rights management so-

lution depends mainly on the capability of distribut-

ing keys. The architecture suggested in this paper

consists of a home server, a mobile device and var-

ious media players. The home server is responsible

for content adaptation and encryption, based on keys

generated from the master key of the mobile phone’s

SIM card. Thus we address two ways of distributing

keys, through (i) the mobile network or (ii)the NFC

interface.

A generic solution demonstrating the key ex-

change in NFC and mobile networks was provided

by the authors (Noll et al., 2006b). The service is an

SMS initiated admittance, and generates access keys

distributed through binary short messages (SMS) and

NFC. The provider of access (user) initiates an SMS

to the service centre, which generates a binary SMS

providing the access key to the mobile phone of the

person requesting access (guest). The guest’s mobile

phone can then use NFC to achieve access to a prop-

erty.

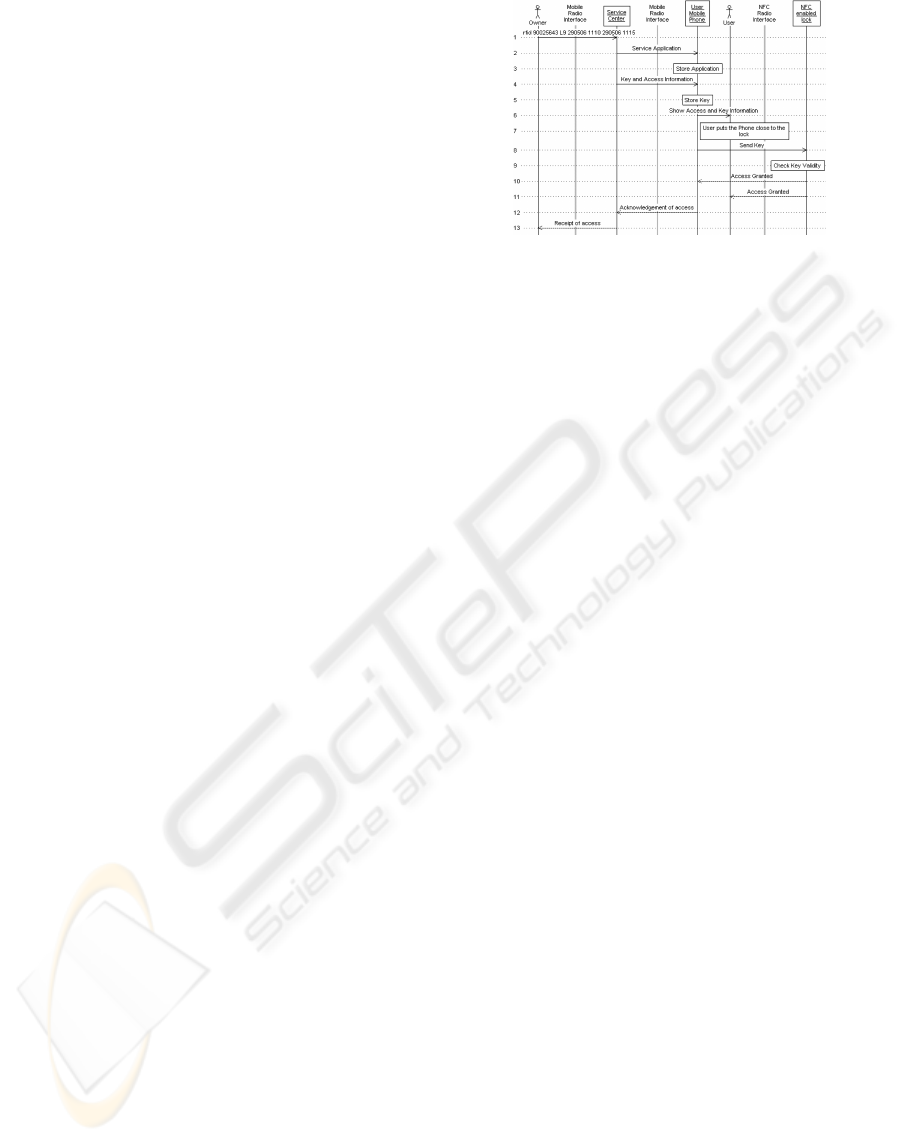

The functional diagram is presented in ﬁg. 1,

and is realized as follows: The user is authenticated

through the mobile network and a key sent to the guest

is stored in the SmartMX card of the phones used for

this prototype. The key is transmitted from the card

over NFC to the door-lock, when it is put close to the

reader.

This prototype provides the basic mechanisms

needed for rights management of the home content.

The device domain manager takes the task of service

initiation, requesting a key for decryption of home

content. The mobile phone will generate the key, and

send it back to the device domain manager or alterna-

tively leave it on the mobile phone, from where it is

used through NFC to decrypt home content.

INTEGRATED RIGHT MANAGEMENT FOR HOME CONTENT - A SIM based Right Management Solution for Home

Networks

109

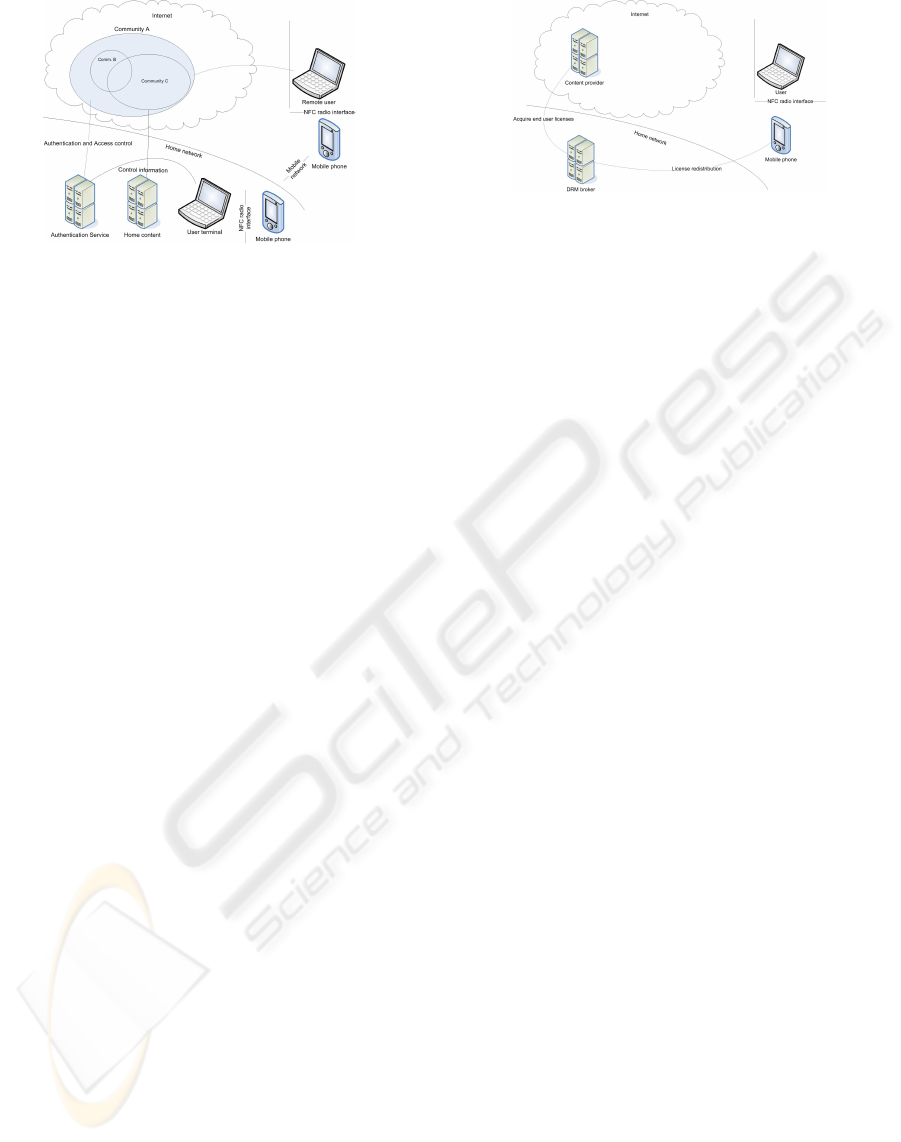

Figure 2: Home network with Access Control and out-of-

band key distribution.

6 SERVICE ARCHITECTURE

To enable safe remote access, interaction is needed

between the nodes in the network. The phone needs

to generate the appropriate keys and deliver it to the

other units, local servers needs to provide authentica-

tion and the required cryptographic functions to en-

sure the operation of the network.

With the SIM’s cryptographic functions, it can act

as the central trusted cryptographic unit.

The constraints, the system has to face are

• no secure clocks in the system,

• no cryptographic hardware is available in the de-

vices,

• key management must be efﬁcient even for large

number of content items and users.

If the user wants to add a new device to the do-

main, he can generate the access key for the user on

the mobile phone and give it to the guest. After, the

guest can use this key to identify himself to the net-

work and access content. The user can easily com-

pose the appropriate access rights to every piece of

content stored in the network and use the identity rep-

resented by the key.

We recommend the use of NFC interface for dis-

tributing keys out-of-band. With this short range

transfer method it is possible to allow the phone to ne-

gotiate or generate an authentication and encryption

key for the user device, and send it to the mobile de-

vice, where no expensive cryptographic methods are

needed.

The loss of the mobile phone does not compro-

mise the system’s security, since the SIM can be dis-

abled remotely (if the intruder wants to generate a new

key, they have to connect to the network). After get-

ting a replacement, the existing keys of the domain

will be revoked and the user has to distribute them

again.

Figure 3: Right object distribution with NFC enabled

phone.

Usability of the proposed system depends mainly

on the easiness and security of key distribution. In the

demo system we use either NFC technology to deliver

keys to local devices or the mobile network for remote

users.

Local key delivery can be accomplished with

NFC, because it has very limited range and is con-

venient for the users, just to put the phone close to the

device they want to exchange a key with.

The local services can use their old access meth-

ods, with the help of an abstraction layer, the system

can look up the appropriate rights to the content.

7 EVALUATION

With the mobile phone, the users already have a de-

vice, which is capable of providing strong encryption

services. With the help of the SIM, the user would

be able to generate own right objects, which could be

distributet either out-of-band, with NFC or through

the mobile network. This enables easy content shar-

ing with other users and groups.

8 CONCLUSION

Currently security in the home network is becoming

a key problem. To ensure safe and convenient con-

tent management and sharing, new solutions have to

emerge. One of this could be a system proposed by

this paper, where the user can use contactless tech-

nology to deliver authentication keys to friends and

securely share content over the internet.

With the SIM, the user already has a tamper re-

sistant device, which, at one time, can even protect

himself from trojans and malicious users. By extend-

ing the functionalities of the SIM, it could be easily

the key device for the future home cryptographic in-

frastructure.

SECRYPT 2007 - International Conference on Security and Cryptography

110

REFERENCES

Borisov, N., Goldberg, I., and Wagner, D. Intercepting mo-

bile communications: The insecurity of 802.11.

ETSI (2005). TS 102 350 V7.0.0 smart cards, identity ﬁles

and procedures on a uicc. In ETSI Technical Speciﬁ-

cation.

TCG Mobile Phone Working Group (2005). Use case sce-

narios v2.7.

Noll, J., Calvet, J. L., and Kálmán, G. (2006a). License

transfer mechanisms through seamless sim authenti-

cation. In Proceedings of Winsys 2006, Lisbon.

Noll, J., Calvet, J. L., and Myksvoll, K. (2006b). Admit-

tance service through mobile phone short messages.

In Proceedings of ICWMC 2006, Bucharest.

Popescu, B. C., Crispo, B., Tanenbaum, A. S., and Kam-

perman, F. L. (2006). A drm security architecture for

home networks. In Proceedings of the 4th ACM work-

shop on Digital rights management.

Potlapally, N., Ravi, S., Raghunathan, A., and Jha, N.

(2006). A study of the energy consumption charac-

teristics of cryptographic algorithms and security pro-

tocols. In Mobile Computing, IEEE Transactions on.

Pujolle, G., Urien, P., and Loutrel, M. (2003). A smart-

card for authentication in wlans. In Proceedings of

the 2003 IFIP/ACM Latin America conference on To-

wards a Latin American agenda for network research.

Rahman, C. M. M. and Noll, J. (2006). Service interaction

through role based identity. In Proceedings of WWRF

17.

INTEGRATED RIGHT MANAGEMENT FOR HOME CONTENT - A SIM based Right Management Solution for Home

Networks

111
