ENHANCING LSB STEGANOGRAPHY AGAINST

STEGANALYSIS ATTACKS USING COMBINATIONAL LSBS

Yahya Belghuzooz and Ali Al-Qayedi

Etisalat University College, U.A.E

Keywords: LSB Steganography, Steganalysis.

Abstract: This paper describes an enhanced approach for hiding sec

ret messages in the spatial domain of digital cover

images such that the resulting stego-images are robust to steganalysis attacks. Firstly, different methods of

hiding in the Least Significant Bits (LSBs) are comparatively discussed including the Sequential and the

Random algorithms. Then our approach is illustrated which uses a combination of LSBs to store large

amounts of secret information while maintaining robustness against detection by steganalysis attacks. The

results achieved are commensurate to those obtained using widely available stego tools.

1 INTRODUCTION

Steganography, or the art of covert communication,

has exhibited a considerable focus over the past few

years following the claim that it could be heavily

utilised for secret hidden communication between

criminals. Consequently, steganalysis, a field that is

concerned with how to detect the presence of secret

messages and possibly reveal its content has become

an important topic on its own.

A common approach to steganography involves

ding secret information within the Least Significant

Bits (LSBs) of a cover image. However, LSB

steganography is a spatial domain hiding technique

which is known to be relatively weak compared to

other transform domain hiding techniques (Westfeld

and Pfitzmann, 2000), (Cole and Krutz, 2003),

(Katzenbeisser and Petitcolas, 2000), (Provos and

Honeyman, 2003) .

Using a single or a few LSBs in the hiding

process can be

invisible in visual terms; however, it

provides a limited space for hiding secret information

and is also easily guessable. On the other hand, using

more LSBs can accommodate larger information but

can result in clear visual and statistical discrepancies

between the cover image and the stego-image, hence

revealing the presence of a hidden secret for

steganalysis algorithms.

In this paper we present a novel approach that

enhances t

he robustness of LSB steganography

against steganalysis attacks by using a combination

of sequentially or randomly selected LSBs. Our

approach enables storing large amounts of secret

information while maintaining secrecy of its presence

in the stego-image.

The remaining sections of this paper are

orga

nised as follows: Sections 2 and 3 describe the

commonly used spatial domain LSB stegonagraphy

and steganalysis methods. Section 4 gives an

overview of the proposed approach. Results with

discussion are shown in section 5. Finally concluding

remarks with recommendations for future work are

given in section 6.

2 LSB STEGANOGRAPHY IN

THE SPATIAL DOMAIN OF

IMAGES

There are many techniques for embedding secrets in

the spatial domain of cover images most of which are

weak methods to the extent that the secret message

can be fully retrieved rather than just detecting its

presence using steganalysis attacks.

One of the methods is hiding a signature in the

header of the image using an application like

FortKnox 3.55 (FortKnox, 2007) which may lead to

destroying the resulting image.

Another method is hiding the secret message at

the end of the image (or fusion within the image)

which can be easily broken. Many systems are using

241

Belghuzooz Y. and Al-Qayedi A. (2007).

ENHANCING LSB STEGANOGRAPHY AGAINST STEGANALYSIS ATTACKS USING COMBINATIONAL LSBS.

In Proceedings of the Second International Conference on Signal Processing and Multimedia Applications, pages 237-242

DOI: 10.5220/0002133602370242

 SciTePress

this technique, a few examples are: Camouflage

(Camouflage, 2007) , JpegX (JpegX, 2007) , Safe &

Quick Hide Files (Safe, 2007) and Data Stash

(DataStash, 2007).

The other main steganography embedding

methods are discussed next according to their order

of robustness against statistical steganalysis attacks.

2.1 LSB Sequential Embedding

In this process every byte of the image represents a

color value which can be changed by 1 without

leaving a trace in the output image. Thus the LSB of

the image at position 2

is used (Cole and Krutz,

2003) (Katzenbeisser and Petitcolas, 2000), (Provos

and Honeyman, 2003). The secret message is

distributed sequentially on the LSB of each byte of

the image.

The main limitation of this approach is that the

secret message may change the LSB by a probability

of 0.5, thus in the steganalysis process this can be

utilized by checking the pairs which has 0.5

distribution of 1’s and 0’s. Where a pair is considered

as any two bytes in which the 7 MSB are the same,

for example 0101 1010 and 0101 1011 represent a

pair.

2.2 LSB Random Embedding

This approach is somewhat similar to the previous

one except that the LSB embedding is done randomly

instead of being sequential. This technique is more

robust to steganalysis attacks compared to the

sequential technique because of distributing the

secret message across the image without affecting the

statistical property of the contiguous color values.

However; if the secret message uses all the

available LSBs in the cover image then the

embedding process can be easily detected by the

steganalysis operations since all the LSBs were

modified which is similar to the sequential method

(Katzenbeisser and Petitcolas, 2000), (Lenti, 2000),

(Johnson and Jajodia, 1998).

Any randomly selected LSB should not be reused

again in the embedding process otherwise it will be

overwritten. In our proposed system in section 4 we

describe a swapping process that is developed to

obtain an unrepeated sequence of LSBs.

2.3 Changing Pairs

Changing pairs can be considered as one of the

hardest LSB embedding methods to detect by

steganalysis. It is relatively better than the random

method because it randomizes the embedding process

without modifying the bit that will be used in the

embedding process.

This process increments or decrements the color

value by an odd value (mainly 1 or 3) which may

result in changing the whole 8 bits used to represent a

color value but the actual colour value (intensity) is

only incremented or decremented by a small amount

such that the difference is not easily noticeable by the

human eye (Soukal and Goljan, 2005) .

For example, if the color value is 127 (0111 1111

in binary) and the secret bit is 0, then in the normal

LSB embedding the result will be 0111 1110 which

is 126 but the pair 0111 111 was not changed,

however when using the changing pair method if the

selection was to increment then 127 will become 128

which is 1000 0000, so the LSB still contains the

secret bit which is 0 but at the same time the pair has

been changed from 0111 111 to 1000 000 which

clearly makes a difference in statistical terms for the

steganalysis.

The Changing Pairs algorithm can be summarized as

follows:

1. Read all Bytes of the Image.

2. Select one byte randomly using a key.

3. Decide whether the LSB of that byte is to be

changed by comparing the LSB with the secret

bit.

4. If yes, flip a coin to decide whether to increment

or to decrement by an odd value.

5. Repeat processes 1, 2, 3 and 4 until the end of

the secret message.

6. Write all bytes to the output Image.

3 SPATIAL-DOMAIN

STEGANALYSIS

Even though stego-images can rarely be spotted by

the naked eye, they usually leave behind some traces

or statistical hints that they have been modified. It is

that discrepancy which an analysis tool may be able

to detect. Since some techniques and their effects are

commonly known, a statistical analysis of an image

can be performed to check for the presence of a

hidden message.

There are two main types of steganalysis

methods: the visual steganalysis and the statistical

steganalysis. These tests can be applied on a given

image to check if a secret message is embedded in it

or not.

SIGMAP 2007 - International Conference on Signal Processing and Multimedia Applications

242

3.1 Detection using Visual Steganalysis

Some images have the same pattern in the LSB and if

that pattern is changed by embedding a secret

message, which is simply a random noise, then the

original pattern will become random. To detect that

kind of stego-images; an enhancement of the LSB

and a visualization of it can be done. If there is a

secret message that was embedded sequentially then

it can be seen as a strip of random LSBs (Westfeld

and Pfitzmann, 2000).

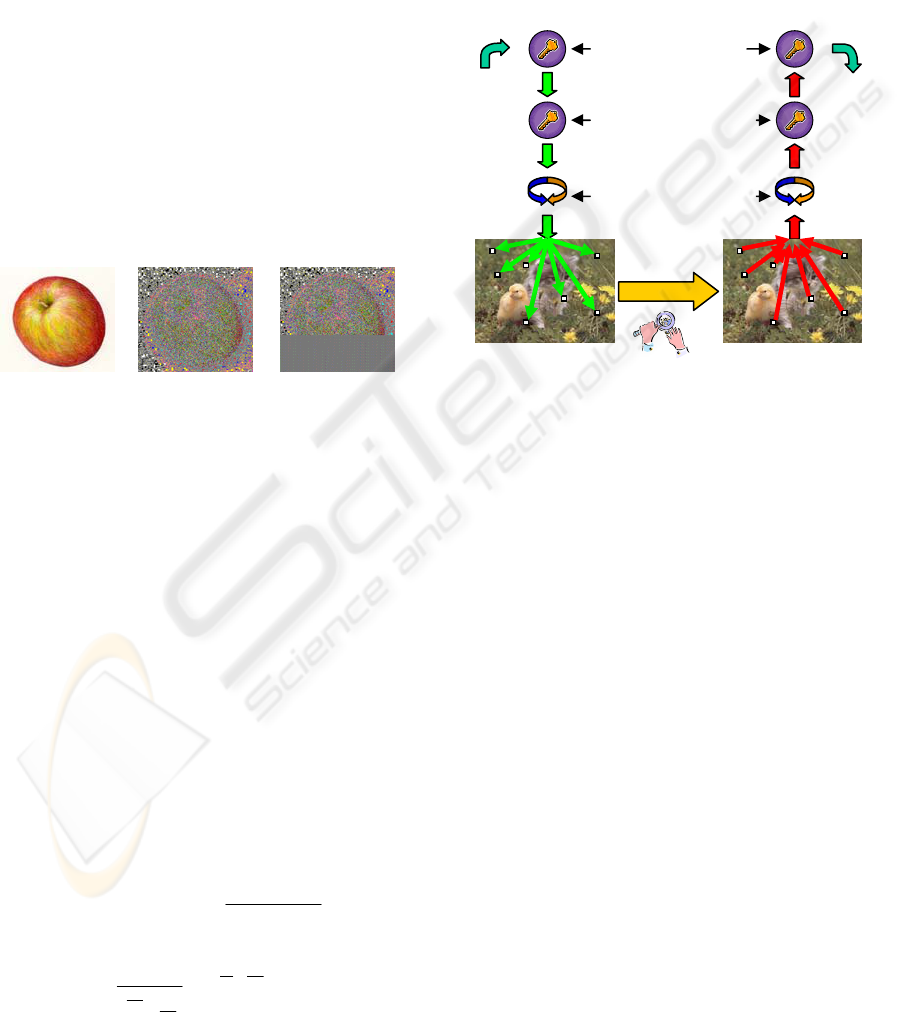

Figures 1 (a), (b), and (c) illustrate this effect by

showing the visual difference in steganalysis terms

between the original cover image and the resulting

stego-image after embedding the secret message

sequentially.

This process of steganalysis is not applicable for

randomly embedded stego-images or for images that

already have a randomly patterned LSBs like an

image with a colorful background instead of the one

shown in Figure 1 (a).

(a)

(b)

(c)

Figure 1: (a) Cover Image (b) Steganalysis of Cover Image

3.2 Statistical Steganalysis

This type of steganalysis uses statistical properties of

the stego-image. One type of steganalysis is the Chi-

Square test which checks the number of occurrences

of pairs in the secret message as shown in (1) and (2)

(Westfeld and Pfitzmann, 2000). The chi-square

attack is a steganalysis method developed to

recognize some types of steganographic embedding

in the LSBs of an image’s pixel values. When the

chi-square attack is applied to an image, it produces a

graph of the probability of steganographic

embedding vs. the sample size of the image tested.

By examining this graph an analyst can determine

whether or not an image contains steganographic

embedding.

∑

−

)'(

(1)

()

∫

−

−−

−

−=

dxxep

(2)

Where:

is the observed population in the i

bit and n'

is the expected population in the i

bit.

p is the probability of the chi-square statistics

when the distributions of n

and n'

are equal.

4 SYSTEM OVERVIEW

Figure 2: The behavior model of the system.

In our system, as shown in Figure 2, we use LSB

randomization and swapping to avoid overwriting a

previously selected LSB. This is achieved as follows:

1. Predefine a sequence of unrepeated random

numbers.

2. Generate another random sequence that is

equal in size to the sequence generated in 1.

3. Swap between the numbers of the

unrepeated sequence using the random

number generated in step 2 as an index to

the selected candidate from the unrepeated

sequence.

4. Repeat steps 1 to 3 until all secret message

bits are filled into the cover image LSBs.

The system enables embedding secret messages

in 24-bit BMP images. It allows the user to control

the use of a combined number of LSBs from the

Red, Green and Blue color values to highlight the

difference of using combinational LSBs compared to

the previously discussed steganalysis methods.

Our system is not intended for secret

communication over low bandwidth channels since it

is not practical to use a 24-bit cover image as a

Encryption key

Randomizing key

Swapping process

Insecure Channel

Message

Cover Image

Stego-Image

ENHANCING LSB STEGANOGRAPHY AGAINST STEGANALYSIS ATTACKS USING COMBINATIONAL LSBs

243

carrier to transmit it over a limited bandwidth

channel. Also the use of a lossy compression such as

JPEG can destroy the LSBs containing the secret

message. Thus, the system can be used for secure

communication of high quality imaging applications

such as medical imaging.

Also the system could be modified to handle a set

of small GIF images that can be used as carriers for

the secret message. For example, in a Web gallery

where a single secret message could be distributed

over a set of GIF images. This would result into an

extra storage capacity for the secret message and at

the same time an increase in the systems robustness

against steganalysis attacks.

5 RESULTS AND DISCUSION

The chi-square steganalysis test is applied on the

stego-images generated by all the steganographic

methods described before using 1 LSB from each

color value. Figure 3 represents the stego-image

generated using 1 LSB sequential embedding of a 60

KB secret message into a 24-bit BMP cover image of

(896 by 674) pixels.

It can be seen from Figure 4 that the probability

of embedded secret is high, thus the chi-square

successfully detected the presence of a secret

message, whereas Figure 5 shows the chi-square of

the original cover image with a zero probability due

to the absence of a hidden secret. Figures 6, 7 and 8

respectively show the chi-square of the previous

experiment but now using the Random method, then

using a public domain steganography tool called S-

Tools (S-Tools, 2007), and finally using the changing

pair method.

As can be seen in Figures 6 and 7, the chi-square

is not effective in detecting the size of the secret

message but it can detect a small portion of the

embedding that has taken place at the beginning of

the image. A similar result was observed with the S-

Tools chi-square graph in Figure 7, but with a lower

probability.

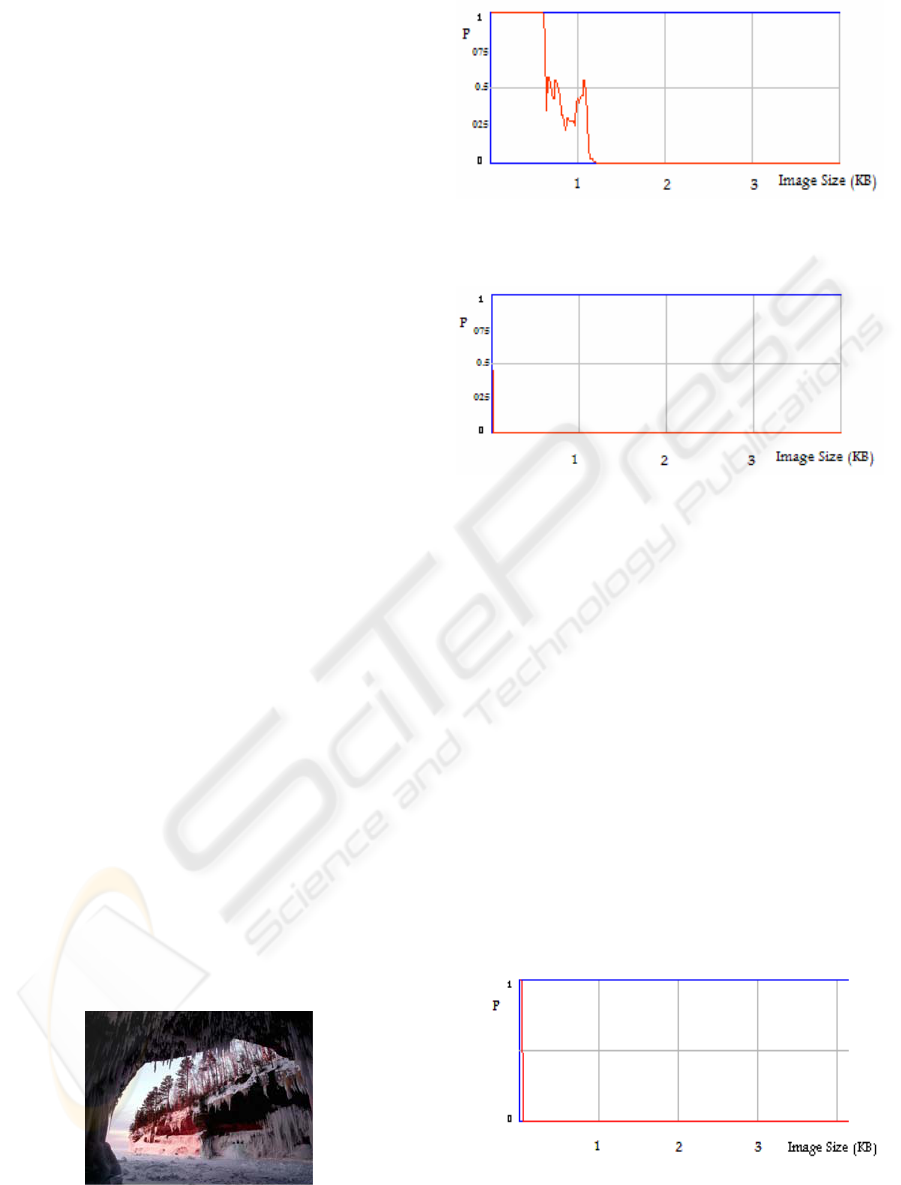

Figure 3: Stego-image by 1 LSB sequential method.

Figure 4: Chi-square of stego-image by the 1 LSB

sequential.

Figure 5: Chi-square of the cover image.

In Figure 8 the chi-square could not detect the

presence of the secret hidden with the changing pair

method since it changes the pair to another pair that

results in a totally deferent statistics. In this case, the

result of the chi-square is similar to that of the

original cover image.

The system was then used to generate a

combination of 3 LSBs from Red, 3 LSBs from

Green and 2 LSBs from Blue. The results of Figure

12 and 13 show an improvement in the stego-images

against steganalysis detection because some pairs

were changed in the embedding process.

Figures 4 and 9 clearly show an improvement in

the robustness of the stego-image generated by the

combination LSBs method over the single LSB

sequential method. A similar conclusion can also be

deduced from Figures 6 and 10 for the random

methods.

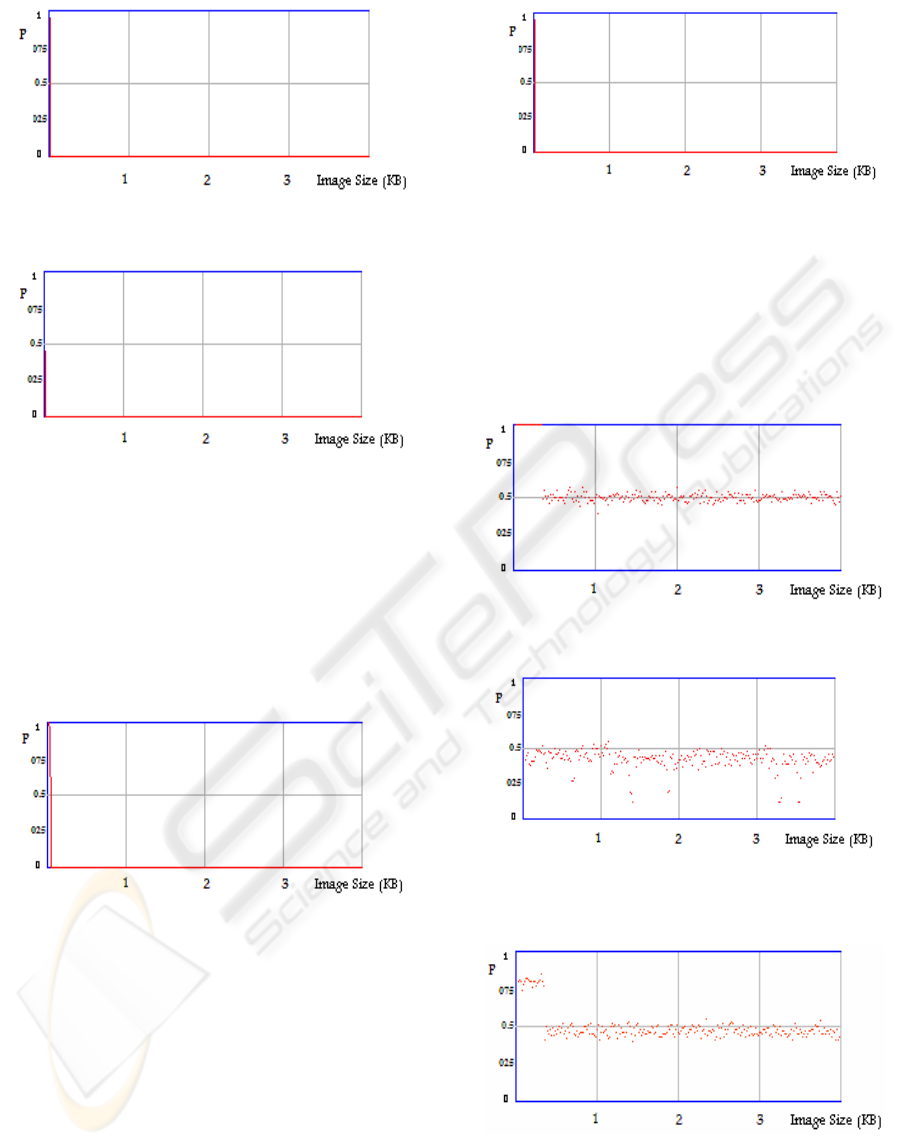

Figure 6: Chi-square of stego-image by 1 LSB random

method.

SIGMAP 2007 - International Conference on Signal Processing and Multimedia Applications

244

Figure 7: Chi-square of the S-Tools stego-image.

Figure 8: Chi-square of stego-image by changing pair

method.

The changing pair method is still better in terms

of steganalysis but it is limited to 1 LSB only which

reduces the capacity of the carrier for the secret

message. On the other hand, the combination

method, especially the random one, provides 3 times

the capacity of the changing pair method, and is not

easily detectable by steganalysis.

Figure 9: Chi-square generated using 3, 3, 2 LSBs

combinational sequential method.

Figure 11 shows the average value of the LSBs of

the cover image starting at 1 and then dropping to 0.5

which indicates that the image at the start contains no

random distribution of 1s and 0s in the LSBs but then

the distribution becomes random which is common

in some patterned images.

Figure 10: Chi-squa re of stego-image by 3, 3, 2 LSBs

random method.

In Figures 11 to 15 the sequential method forces

the average value to become close to 0.5. The

random and the S-Tools average numbers are less

than 1 but still not close to 0.5. In the pair method

however, the average LSB is still at 1, which is

indicating an embedded secret.

Figure 11: Average LSB value of the cover-image.

Figure 12: Average LSB value of the stego-image

generated by the 1 LSB sequential method.

Figure 13: Average values of stego-image generated by the

1 LSB random method.

ENHANCING LSB STEGANOGRAPHY AGAINST STEGANALYSIS ATTACKS USING COMBINATIONAL LSBs

245

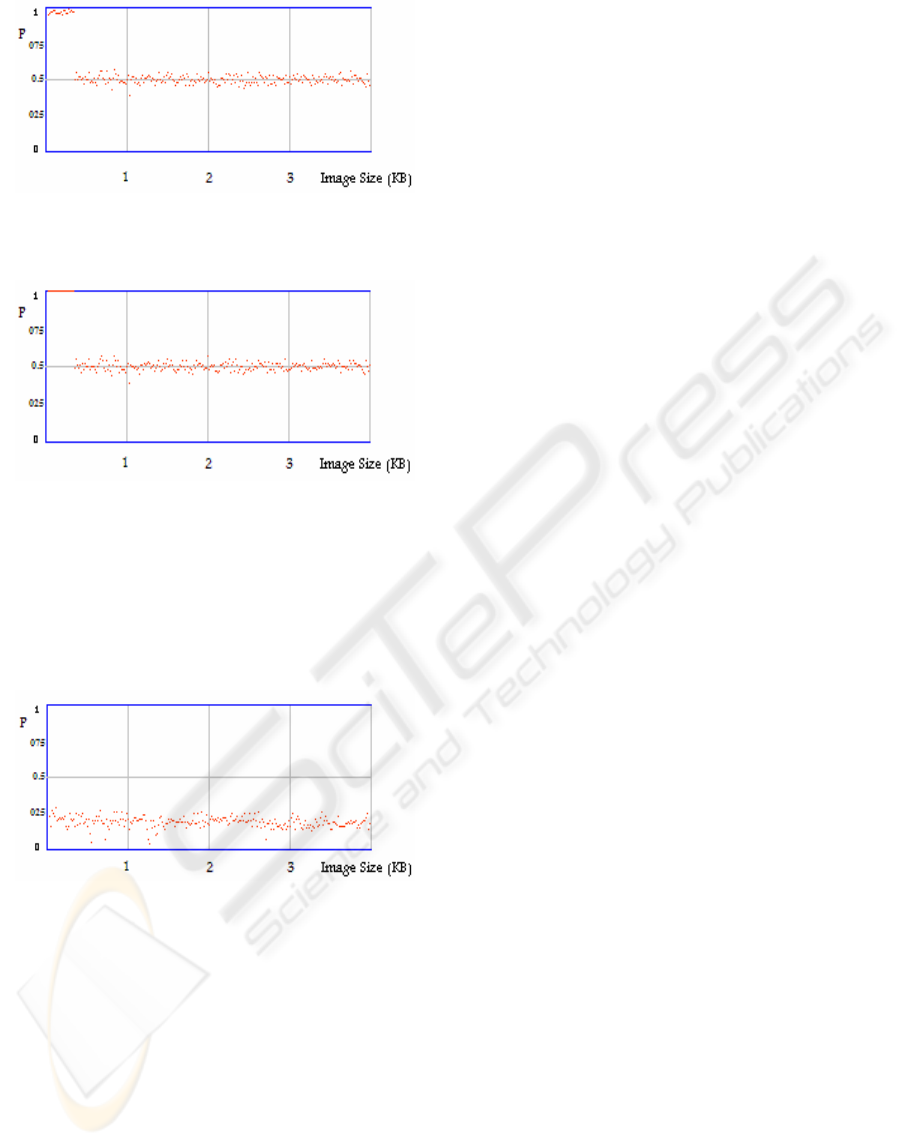

Figure 14: Average values of stego-image generated by S-

Tools.

Figure 15: Average values of stego-image generated by the

pair method.

Figure 16 shows that the average values

generated using 3, 3, 2 LSBs combinational

sequential method drop below 0.5, this is an

advantage over the pair method as it improves

robustness against steganalysis.

Figure 16: Average values generated by the 3, 3, 2 LSBs

combinational sequential method.

6 CONCLUSION

In this paper we have presented a steganographic

system that uses a combination of LSBs to improve

the storage capacity of the stego-image and to

increase its robustness against steganalysis attacks.

The chi-square and the average value LSB results

obtained from our combinational algorithm are

significantly better than those achieved with the

sequential and random 1 LSB, S-Tools and changing

pair methods.

REFERENCES

Westfeld, A. and Pfitzmann, A. (2000) Attacks on

Steganographic Systems, Lecture Notes in Computer

Science, vol.1768, Springer-Verlag, Berlin, pp. 61−75.

Cole, E. and Krutz, R. (2003) Hiding in Plain Sight:

Steganography and the Art of Covert Communication,

Wiley, John & Sons.

Katzenbeisser S. and Petitcolas, F. (2000) Information

Hiding Techniques for Steganography and Digital

Watermarking, Artech House.

Provos, N. and Honeyman, P. (2003) Hide and Seek: An

Introduction to Steganography, IEEE security &

privacy 1:33, 32-44, IEEE Computer Society .

FortKnox (2007), Online, Available:

http://www.softpedia.com/get/Security/Firewall/FortK

nox-Personal-Firewall.shtml , 31 May 2007

Camouflage (2007), Online, Available:

http://camouflage.unfiction.com/, 31 May 2007.

JpegX (2007), Online, Available:

http://nerdlogic.org/jpegx/ , 31 May 2007

Safe (2007), Safe & Quick Hide, Online, Available:

http://www.freedownloadscenter.com/Utilities/File_E

ncryption_Utilities/Safe_Quick_Hide_File_and_Folde

r.html [31 May 2007]

DataStash (2007), Online, Available:

http://www.skyjuicesoftware.com/software/ds_info.ht

ml, 31 May 2007

Lenti, J. (2000) Stegangraphic Methods, PERIODICA

POLYTECHNICA,VOL. 44, NO. 3–4, PP. 249–258.

Johnson, N. and Jajodia, S. (1998) Steganography: Seeing

the Unseen, IEEE Computer, vol. 31, no. 2, pp. 26-34.

Soukal, D. and Goljan, M (2005) Maximum Likelihood

Estimation of Secret Message Length Embedded

Using +-K Steganography in Spatial Domain, Proc.

SPIE Electronic Imaging San Jose, CA, January 16-

20, pp. 595-606.

S-Tools (2007), Online, Available:

http://www.snapfiles.com/get/stools.html, 31 May 07

SIGMAP 2007 - International Conference on Signal Processing and Multimedia Applications

246
