IMS SECURED CONTENT DELIVERY OVER PEER-TO-PEER

NETWORKS

Jens Fiedler, Thomas Magedanz and Alejandro Menendez

Fraunhofer Institute for Open Communications Systems - FOKUS, Kaiserin-Augusta Allee 31, Berlin, Germany

Keywords:

IMS, Peer-to-peer, P2P, DRM.

Abstract:

Effective content distribution, which is safe against denial of service attacks, is one of the greatest challenges

for the content and service providers. Peer-to-peer technologies are known to be unaffected by such attacks,

but lack any control by content owners or copyright holders. The work presented in this Paper combines the

effective and reliable content availability, known from P2P, with the capabilities of IMS, which is used for

access control, charging and service discovery. Commercial use cases are discussed for content consumption

and provisioning.

1 INTRODUCTION

In todays internet, a large variety of services is of-

fered by various parties. Most of the observed traf-

ﬁc arises from peer-to-peer (P2P) applications, like

KaZaA (KaZaA, 2006), SIPShare (SIPshare, 2006) or

BitTorrent (Cohen, 2003), and increases constantly.

The acceptance of P2P services come from the two

facts, that content is free of charge and no central

instance exists, which could control access. Con-

tent is shared between users, not offered by central

points of service. P2P has proven that it is a reli-

able, highly scalable technology, something that ven-

dors wish for their own content distribution, if just the

content would be secured. Therefore, a way to secure

content in a P2P environment has to be found, which

takes the benﬁts from P2P content distribution, but

guarantees that only authorized users/customers can

access the content in terms of the purchased rights on

it.

The proposed approach, which is presented in

this paper, combines three elementary technologies

from todays computer science and research in net-

work communication. Namely P2P, Digital Rights

Management (DRM) and the IP Multimedia Subsys-

tem (IMS) (3GPP, 2006c), speciﬁed by the 3GPP

(3GPP, 2006a), to realize a safe, but efﬁcient and con-

trollable way to deliver content, manage licenses and

unburden ﬁle servers.

Section 2 will give an impression of chances aris-

ing from the combination of these. In section 3 the

state of the art technologies are described, that this

work is based on. The proposed architecture is de-

scribed in detail in section 4. Section 5 discusses two

common use cases, while section 6 and 7 summarize

the work and give an outlook for future work.

2 MOTIVATION

In P2P technologies, an independent content distribu-

tion system is available. Reliability of services and

the high availability of contents are the experienced

beneﬁts from this technology in the existing appli-

cations. BitTorrent is already used by commercial

vendors to distribute content to their customers, as it

unburdens ﬁle servers, from which users would nor-

mally download their content. Currently, content dis-

tribution in P2P networks lacks any control by content

creators, providers or copyright holders.

On the other hand appropriate DRM technologies

for protecting content and controlling access by au-

thorized customers to it, like (Microsoft, 2006)(Digi-

Cont, 2006) or (Object-Lab, 2006), exist and are

widely discussed (Safenet, 2006)(DRM-Watch, 2006)

Fiedler J., Magedanz T. and Menendez A. (2007).

IMS SECURED CONTENT DELIVERY OVER PEER-TO-PEER NETWORKS.

In Proceedings of the Second International Conference on Signal Processing and Multimedia Applications, pages 5-12

DOI: 10.5220/0002137600050012

 SciTePress

Table 1: Technology Assignments.

Challenge Technology

Effective content distribution Peer-to-peer

File server unburdening Peer-to-peer

Secure content DRM

legal usage DRM

Access control IMS

Charging IMS

Service enabling IMS

Licenses, which are shipped separately from the en-

crypted content, are used to make it accessible to the

customer by the terms of the license agreement, i.e.

the purchased rigths on it.

IMS is known as a secure signalling infrastructure for

multimedia control. Therefore, IMS is the ideal con-

vergence point to combine P2P content distribution

with DRM driven content licensing. Content can be

encrypted and only authorized users will be able to

decrypt it. Licenses, cryptographic keys and their dis-

tribution can be managed by the IMS.

Violation of the copyright holders rigths has always

been one of the greatest problems in P2P systems.

Approaches for integrating IPR management into

P2P have been performed (Rosenblatt, 2003)(Pfeiffer

et al., 2006). Looking at the value chain indicates a

landscape consisting of the following players.

Content Providers represent the legal owner of con-

tent and therefore the party which is interested in

a secure and legal distribution. It does usually not

care, how the content reaches its customers. Con-

tent Providers expect to receive billing information

regarding the use of their content.

Content Consumers want to receive content and be

enabled to experience it (hear, watch, store, etc. it).

They expect it to be available when they demand it

and they usually do not care whether the content has

to be secured by some means.

Service Providers give the requested services (s.a.)

to both, content providers and consumers. They have

to take care of securing the content, make sure it is

available, enable the legal consumer to use the con-

tent and forward charging information.

Taking all this together, it is clear, that the answer

to those challenges is a combination of the already

mentioned technologies. Table 1 shows the assign-

ments for each technology.

3 RELATED WORK

3.1 BitTorrent

BitTorrent (BT) is a P2P ﬁle transfer protocol. BT

was designed with the aim to distribute huge ﬁles in

a cheap and fast manner, means to unburden the up-

loader. The experienced performance of if (Pouwelse

et al., 2005) and its open source nature make it inter-

esting for developers. The ﬁrst node which has the

initial copy of the ﬁle is called seeder. Itself and the

other peers, which are interested in the same ﬁle are

called swarm. The ﬁle which is going to be distributed

is split into pieces and the seeder uploads different

pieces to different peers in the swarm. Thus the ﬁrst

copy is split over the swarm, but none of the peers (ex-

cept the seeder) have a full copy of it. In the following

steps, the peers in the swarm can interchange missing

pieces to complete their copy of the ﬁle. This hap-

pens without any further interaction with the seeder,

but the seeder can help with the upload by acting as

normal peer in the swarm. New peers entering the

swarm can download pieces potentially from all the

peers simultanously, therefore not burdening one sin-

gle data source for the full ﬁle, but multiple for small

pieces. This mechanism is depicted in ﬁgure 1.

Before a peer can enter the swarm, it must locate the

Figure 1: BitTorrent piece distribution.

other peers. For this the tracker and the torrent ﬁle

exist.

The torrent ﬁle identiﬁes the shared ﬁle, name, size,

and hash values for each piece, which allow a down-

loader to verify the consistency of each piece that it

downloaded. It also holds the URL of a tracker, which

must be contacted to enter the swarm.

The tracker is the relevant network resource, which

knows about the members of a swarm. A new node

enters the swarm by contacting the obtained tracker,

which adds the new node to the list of peers. This is

SIGMAP 2007 - International Conference on Signal Processing and Multimedia Applications

then given to the node, which can now contact other

nodes in the swarm for pieces.

The torrent ﬁle and the tracker make BT a semi-

decentralized P2P system, as those are necessary for

content location. This fact makes BT a very inter-

esting technology for combining centralized architec-

tures with fully decentralized architectures.

3.2 OpenIPMP

OpenIPMP is an open-source project developed by

Mutable (Object-Lab, 2006). The ﬁrst version con-

sisted of user-authenticating DRM technology for the

MPEG-4 (MPEG, 2006) codec that used MPEG-4

IPMP (Intellectual Property Management and Protec-

tion), a way of binding rights metadata to content and

supported the ODRL (ODRL, 2006) and MPEG REL

rights expression languages (RELs). The new version

2.0 (released in 2006) consists of core plugins for en-

crypting and protecting media content offering com-

patibility with the following speciﬁcations.

• ISMA (ISMA, 2006) with AES (Advanced En-

cryption Standard) (Daemen and Rijmen, 1999)

• OMA (OMA, 2006) DRM with AES

• OpenIPMP with AES and Blowﬁsh (Schneier,

1994)

In order to communicate protection details to the

DRM server, their SDK implements two messag-

ing systems, OpenIPMP messaging system (used by

ISMA and OpenIPMP DRM) and OMA messag-

ing system as deﬁned by OMA DRM. MPEG-4 and

MPEG-2 format protection standards are supported as

well. Working with MPEG, ISMA and other organi-

zations, OpenIPMP provides a practical vision of the

state of the art with respect to open standards based

DRM technology by developing its reference imple-

mentation.

3.3 IMS

The IMS is deﬁned by the 3GPP industry forum for

3G mobile phone systems in UMTS networks. IMS

ﬁrst appeared in the release 5 when SIP (Rosenberg

et al., 2002) was added as the signalling protocol for

establishing multimedia sessions. The IMS makes

use of protocols deﬁned by the Internet Engineer-

ing Task Force (IETF). 3GPP collaborates with the

IETF adapting Internet protocols to IMS and with the

OMA standardizing service enablers on top of IMS.

IMS was originally conceived to bring Internet ser-

vices to mobile users adding important features not

usually present on the Internet: Quality of Service

(QoS), charging, security and integration of different

services. The IMS takes care of QoS provision when

users establish a session. It also helps operators to ap-

ply different and ﬂexible charging schemes to the user

when they establish multimedia sessions. The IMS

deﬁnes standard interfaces to be used by services de-

velopers and enables seamless integration of services,

personalizing and enriching the user’s experience. It

is out of the scope of this work to cover all aspects

of the signalling and media plane of the IMS, for that

reason this overview will be centred on the most rel-

evant aspects of IMS and those which will be useful

for understanding the development of the ﬁnal appli-

cation.

The IMS deﬁnes functions, linked by standardized

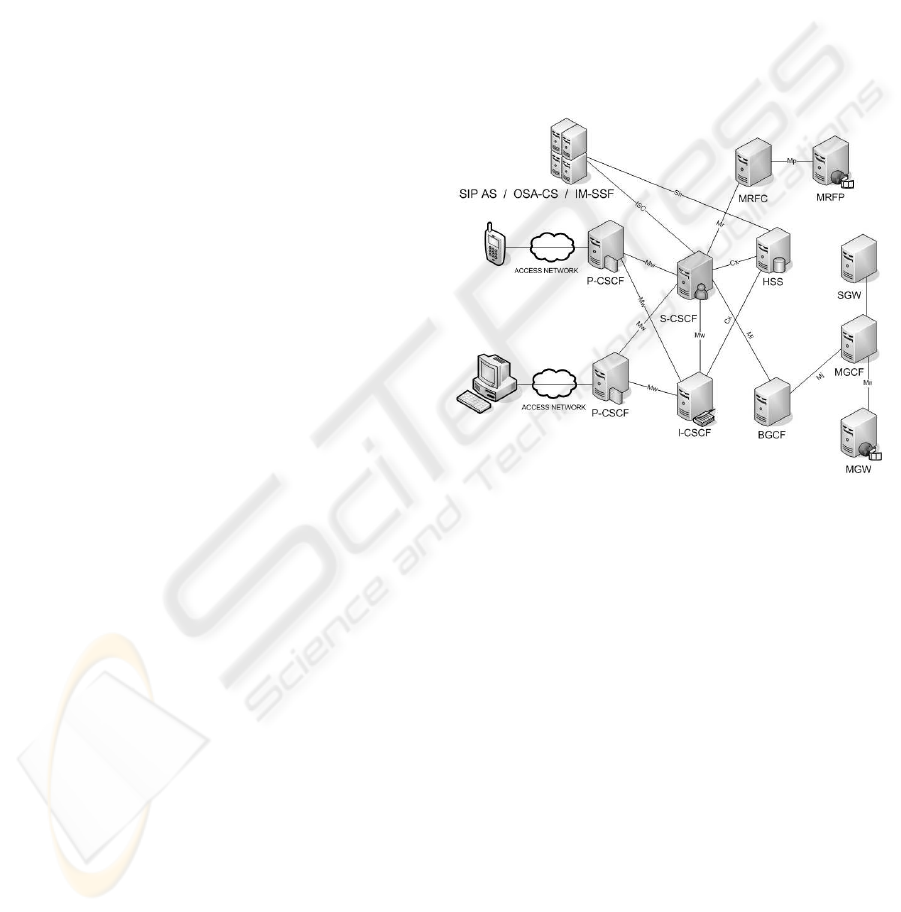

Figure 2: IMS architecture.

interfaces. Functions can be implemented as a sin-

gle node but could also be grouped into one node or

split into more. Figure 2 depicts the architecture of

the IMS and relations (reference points) between se-

lected IMS components. IMS supports different types

of devices and access technologies, therefore the user

terminal can also be a mobile device or personal com-

puter using i.e. an ADSL connection.

The P-CSCF acts as the point of connection between

the IMS terminal and the IMS network. All the re-

quests destined for the IMS terminal or originated at

the IMS terminal are going to traverse the P-CSCF.

During the process of registration one of the P-CSCFs

of the IMS network is allocated to the IMS termi-

nal and does not change for the duration of the reg-

istration. Being the outbound/inbound proxy server,

the P-CSCF has to meet some security requirements.

For that reason, it establishes two IPsec security as-

sociations with the IMS terminal. Furthermore, the

P-CSCF asserts the identity of the user to the rest

of the nodes, so that the other nodes do not need to

IMS SECURED CONTENT DELIVERY OVER PEER-TO-PEER NETWORKS

authenticate user’s identity again. The P-CSCF per-

forms also compression and decompression of SIP

messages, when the messages between the terminal

and the P-CSCF are sent over a narrowband channel.

In addition, the P-CSCF veriﬁes the correctness of

SIP requests sent by the IMS terminal. The Policy De-

cision Function (PDF) may form part of the P-CSCF.

The PDF (not depicted) manages QoS over the media

plane and authorizes media plane resources as well.

I-CSCF: In order to ﬁnd the next SIP hop for a cer-

tain message, the SIP server obtains the address of

an I-CSCF of the destination domain. Its address is

available in the DNS records of the domain. The I-

CSCF works as proxy server routing the SIP request

to the appropriate destination (normally an S-CSCF).

To ﬁnd out the address of the next hop (e.g. the S-

CSCF allocated to the user) the I-CSCF retrieves user

location information from the HSS (and SLF if nec-

essary) using Diameter over the Cx interface.

The S-CSCF is the central element of the signal-

ing plane. The S-CSCF is a SIP server that acts

as registrar and performs session control as well. It

maintains a binding between the user location (e.g.,

the IP address of the terminal in use) and the user’s

SIP address of record (also known as a Public User

Identity). Therefore, all the SIP signalling, that the

IMS terminal sends or receives, traverses the allo-

cated S-CSCF. Because all the signalling trafﬁc tra-

verses the allocated S-CSCF, it is capable of perform-

ing various control session tasks. It inspects every SIP

message and determines whether the SIP signalling

should visit one or more ASs, which might provide

a service to the user. It keeps users from perform-

ing unauthorized operations, enforcing the policy of

the network operator. It provides routing services,

e.g., the user dials a number instead of a SIP URI

and the number needs to be translated into a SIP URI.

The S-CSCF needs to obtain user-related information

from the HSS, consequently, it implements a Diame-

ter interface to it. If a user wants to access the IMS,

the S-CSCF downloads authentication vectors from

the HSS to authenticate this user. Moreover, the S-

CSCF also downloads the user proﬁle from the HSS,

which includes the service proﬁle. The service proﬁle

lets the S-CSCF know when a SIP message should be

routed through one or more Application Servers. Fi-

nally, when a S-CSCF is allocated to a certain user

(for the duration of the registration) the HSS is in-

formed by that S-CSCF.

The Home Subscriber Server (HSS) is an evolu-

tion of the Home Location Register (HLR) present in

GSM networks. All the user-related subscription data

required to establish multimedia sessions is stored in

this central repository. The most signiﬁcant items of

information include location information, security in-

formation (authentication and authorization informa-

tion), user proﬁle information (e.g. the services the

user is subscribed to), and the S-CSCF allocated to

the user.

The Application Server (AS) hosts and executes ser-

vices interfacing the S-CSCF using SIP and option-

ally the HSS. The AS can operate in SIP proxy mode,

SIP User Agent (UA) mode, or SIP Back to Back UA

(B2BUA) mode. SIP AS (Application Server): this

is the native Application Server that hosts and exe-

cutes IP Multimedia Services based on IP. This type

of server will be used to develop the ﬁnal application

as it is expected that new IMS services will be de-

veloped in this way. The OSA-SCS (Open Service

Access- Service Capability Server) provides an inter-

face to the OSA framework application server. On

one side the AS is interfacing the S-CSCF and on the

other there is an interface between the OSA AS and

the OSA Application Programming Interface. The IP

Multimedia Switching Function (IM-SSF) enables to

reuse CAMEL (Customized Applications for Mobile

network Enhanced Logic) services developed origi-

nally for GSM in IMS.

4 ARCHITECTURE

This section presents the proposed hybrid architecture

for the content delivery service within IMS. The con-

tent is distributed using the BitTorrent protocol, which

has proven to be robust and very scalable. The ﬁles

shared within the swarms are encrypted, which means

that they can be shared among the peers without al-

most any risk of unauthorized use. The DRM solu-

tion chosen for the architecture is OpenIPMP from

Mutable, which is an open source DRM solution that

includes a DRM server. Figure 3 depicts the proposed

architecture for the content delivery service. The big

arrow between the content access plane and the con-

tent distribution plane represents the interaction be-

tween both planes. Entities belonging to the con-

tent distribution plane (IMS/P2P clients) do interact

with components from the content access plane (e.g.

Trackers or DRM Application Servers). The IMS sig-

naling plane provides the typical features for user and

service management, which are user authentication,

charging, routing sip messages and storing the user

proﬁle. The content distribution plane is composed

by peers forming torrent swarms. They communicate

with each other using the bitTorrent peer-wire proto-

col. Downloading ﬁles is performed within this plane

without using any central media server. Finally, the

content access plane provides the necessary elements

SIGMAP 2007 - International Conference on Signal Processing and Multimedia Applications

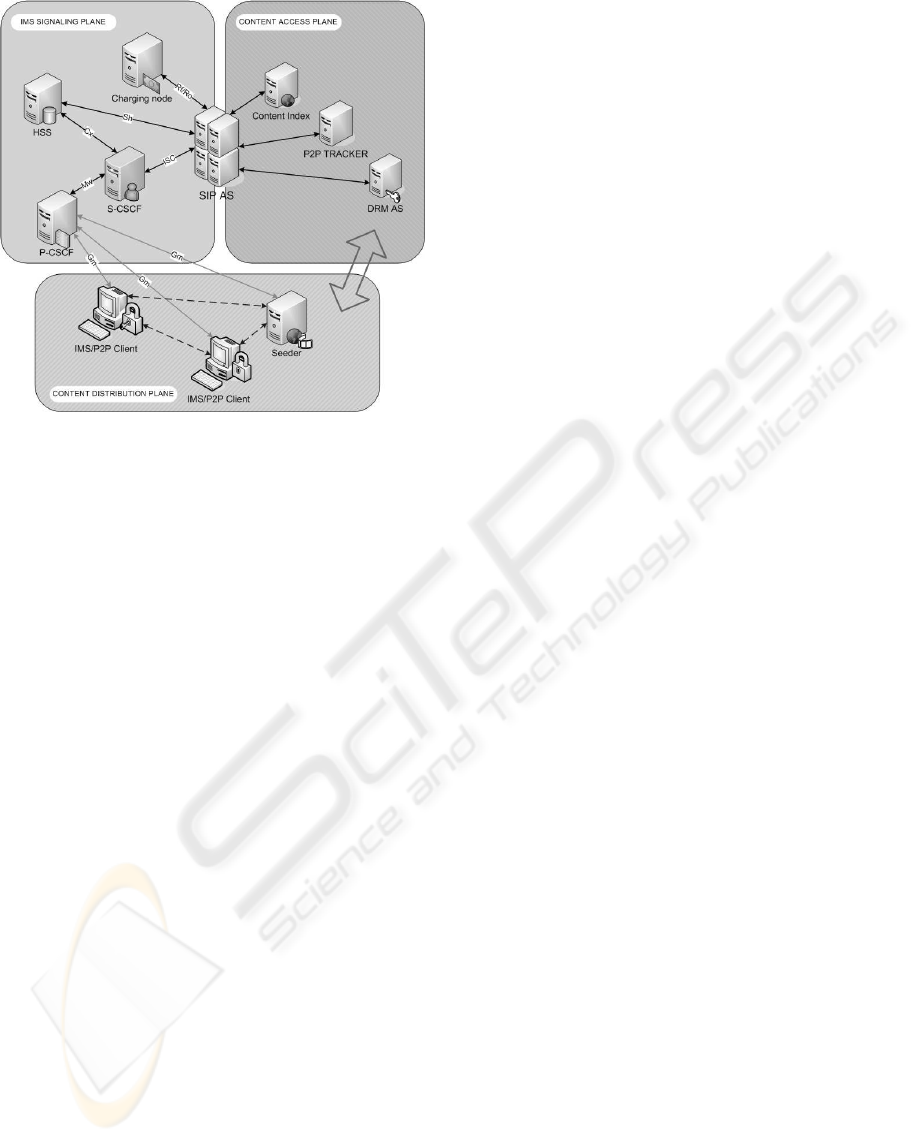

Figure 3: Proposed architecture.

to get access to the content, which are the content in-

dex for ﬁnding the content, the tracker for ﬁnding the

peers to download the content from and the DRM AS

to obtain the licenses for the content.

4.1 Components

The IMS Core functions (HSS and the CSCFs) do

not need to provide any extra functionality to make

the service work properly. However, the HSS should

tiﬁes globally the service, for the SIP AS and update

the Initial Filter Criteria for each user’s proﬁle if that

user is subscribed to the content delivery service. This

allows the S-CSCF to route the service requests to the

corresponding AS by applying the initial ﬁlter crite-

ria, obtained from the HSS.

The SIP AS is the central element of the architecture.

It coordinates the process of acquiring content and of

publishing some new content as well. It receives SIP

requests forwarded from the S-CSCF. These requests

include information about the digital asset that is go-

ing to be acquired or published. The SIP AS conﬁrms

the identity of the sender before it performs any ac-

tion by checking the

P-asserted-identity

header

and informs the corresponding charging node. If the

transaction was successful the SIP AS is ready to go

on processing the request. In the case of acquiring

some content, the SIP AS will retrieve a reference

pointing to the torrent ﬁle for that content. The re-

quest includes a Digital Object Identiﬁer (DOI) that

is used by the AS to query a database and obtain the

torrent ﬁle reference. The SIP AS will send back a re-

sponse including this reference so that the client may

start downloading the ﬁle. When a commercial trans-

action has been successful, the SIP AS is also respon-

sible for authorizing rights over the content. Using

web services the SIP AS connects to the DRM AS

and authorizes certain rights (e.g. being able to play

the content for 24 hours) over the content for a certain

user. In the case of publishing new content, the SIP

AS stores all necessary information obtained from the

publisher in the corresponding content access nodes.

The SIP AS chooses a tracker to track the ﬁle, chooses

a location for the torrent ﬁle and updates the content

index with information about the new released con-

tent identiﬁed by its DOI.

The SIP AS has been implemented in Java as a SIP

Servlet (Servlet, 2005).

The content index function represents a web server

that stores information about each digital asset. Its

web pages contain sip URIs that trigger IMS clients

to send requests to the SIP AS. These URIs contain

all the necessary information to perform a purchase.

The content index entries are updated by the SIP AS

when new content is released.

The tracker offers peer discovery for each peer con-

nected to it. Apart from peer discovery, the tracker

collects statistics about the state of the swarm that are

available for the SIP AS (e.g. the AS could use the

statistics to assign a tracker for some new content that

is less loaded). Some BitTorrent clients provide track-

erless alternatives for the peer lookup service such

as DHTs (Distributed Hash Tables), which would be

considered, but having a tracker present allows more

control over the swarm and makes collectingstatistics

easier too.

The DRM AS chosen for this architecture is the

OpenIPMP DRM server from Mutable. This open

source DRM server allows content registration as-

signing a DOI for each new digital content item and

stores as well the content key used to encrypt each

digital asset. As explained before, the SIP AS is capa-

ble of authorizing a user to enjoy some content by us-

ing the DRM server web services. In addition, when

the user tries to reproduce an encrypted ﬁle using

the DRM-enabled player for the ﬁrst time, the player

connects to the DRM server for license acquisition.

Again this transaction is performed using the DRM

server web services. If reproduction rights were pre-

viously authorized, the player receives the license and

stores it in a secure keystore for further use.

IMS/P2P Client: The client side of the architecture

is composed of an IMS client, a BitTorrent client,

the DRM-enabled encoder and player which interact

among each other. The IMS client component man-

ages the communication with the IMS (signalling).

IMS SECURED CONTENT DELIVERY OVER PEER-TO-PEER NETWORKS

The BitTorrent client manages the up- and download

of encrypted content ﬁles in pieces. The DRM en-

coder and player communicates with the DRM AS to

obtain a license and en- and decrypts content, depend-

ing on its role as content provider or consumer.

Seeder: The seeder refers to a peer that has a com-

plete copy of the content ﬁle and offers it for up-

load. The number and performance of seeders avail-

able within a swarm is fundamental. When a new con-

tent item is being published, the content owner will

act as initial seeder. The content owner’s client will

start uploading the ﬁle using BitTorrent to the con-

necting peers.

5 USE CASES

In this section, two commercial use cases are dis-

cussed, which show the architectures features for con-

tent consumption and customer sided content pro-

visioning. Signalling follows the normal IMS Call

Setup procedure (3GPP, 2006b).

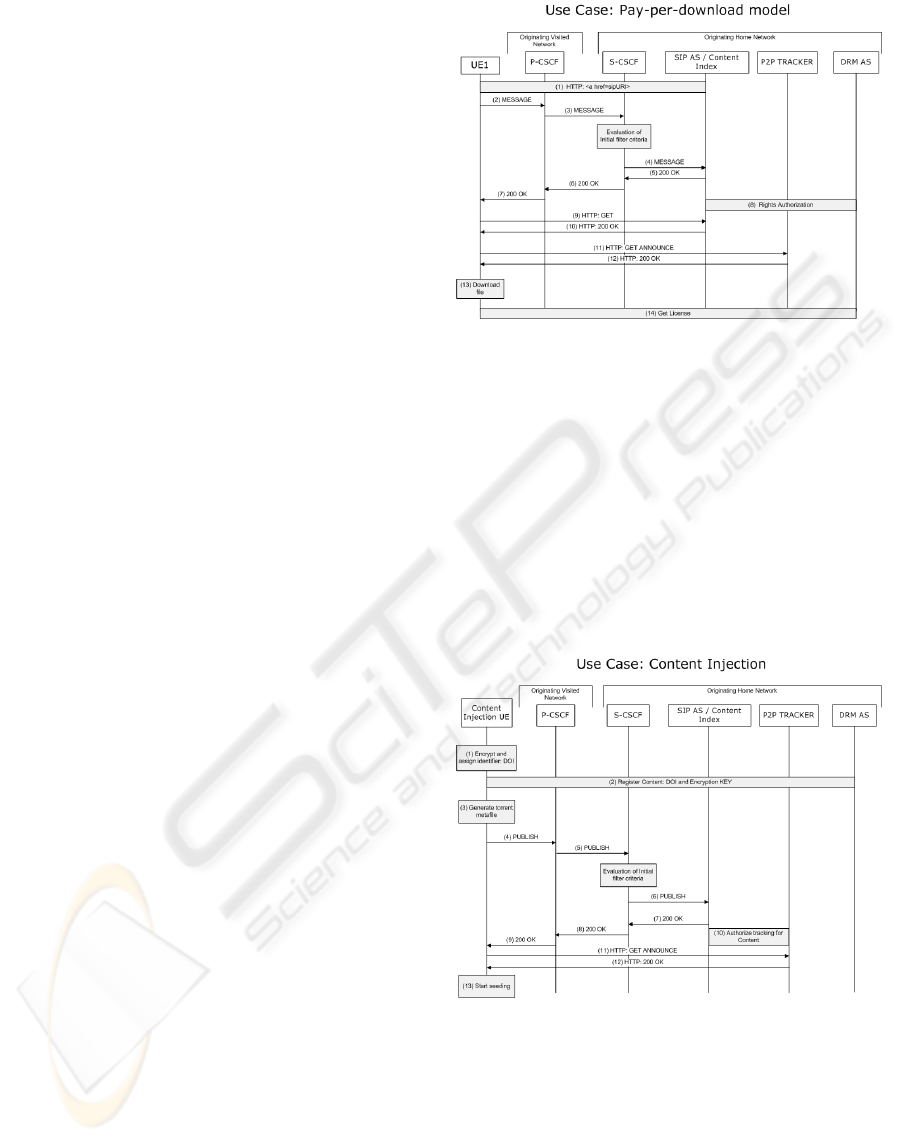

5.1 Pay per Download

The ﬁrst use case is the well known scenario, where

a user wants to enjoy some content and he is charged

for it. He discovers the content (e.g. a movie) over

some external mechanism (e.g. a web site). Also the

SIP event notiﬁcation framework could let the con-

sumer subscribe to content lists (e.g. a TV series, or

genre lists, etc.). The content is identiﬁed to him by

a SIP URI. His client initiates a SIP

MESSAGE

trans-

action which reaches the SIP AS, related to the con-

tent, after passing the assigned S-CSCF, which has

checked the users proﬁle for this content. The SIP AS

informs the DRM AS to provide a license for the re-

questing user. The user’s client will then download

the torrent ﬁle from the content index, whose URL it

received in the response from the

MESSAGE

request to

the SIP AS, and query the tracker for the IP addresses

of the peers in the swarm. From now on, download of

the encrypted content can start. The prepared license

is then obtained from the DRM AS and can be used

to decrypt the content according to the terms od the

shipped license. Figure 4 illustraets the message ﬂow

for this scenario.

5.2 Content Injection

Users can also be put in the role of content providers.

Therefor a method exists which allows users to

share their content and appear as professional con-

tent providers. For this the content ﬁle is ﬁrst en-

Figure 4: Signaling: Pay per Download.

crypted and a DOI is generated, which gets registered

along with the encryption key to the DRM AS. The

encrypted content is stored only at the side of the user,

and is not uploaded to any IMS component. The hash

values for the torrent ﬁle are generated and a

PUBLISH

transaction to the SIP AS is initiated in order to up-

load the torrent ﬁle. The SIP AS prepares a tracker

with the torrent ﬁle. After the transation is complete,

the client, joins the swarm and can start seeding, as

soon as downloaders appear in it.

Figure 5: Signaling: Content Injection.

6 SUMMARY

In this paper, an architecture has been presented,

which integrates well known service control technolo-

gies (IMS) with an accepted Peer-to-peer content dis-

tribution method, which is secured by DRM licensing.

SIGMAP 2007 - International Conference on Signal Processing and Multimedia Applications

The architecture uses the well known IMS, BitTor-

rent and OpenIPMP technologies to achieve a secure

way to utilize the power of P2P content distribution.

IMS controls access, charging and security for con-

tent as it controls the DRM Application server as well

as the trackers for the torrents. Content can simply

be removed from the network by disabling the related

tracker.

Two typical use cases have been shown, depicting the

various ways that this approach can satisfy the needs

of content creators, providers, customers and service

providers. People can act as end user content creator,

provider or customer. The service providers can serve

as mediator between the interests of content creators

and consumers by taking care of the value chain. The

term of ”service” can be interpreted not only for con-

suming content, but also for the possibility to provide

content. Therefore, content creators and consumers

are both service consumers.

7 FUTURE WORK

This paper presented a secure method to distribute

static content from content providers to authorized

users over a peer-to-peer network. The proposed ar-

chitecture could be applied to home servers, i.e. ser-

vice nodes in users homes, extending the existing ter-

mination nodes (DSL/Cable modems/routers, etc). In

such a scenario, the P2P technology would be hidden

from the user and integrated in the service provider’s

network. Content may be provided by customers,

which act as seeders for their ﬁles. In order to unbur-

den a users client from uploading, it is considerable to

provide (e.g. as a premium service) additional seeder

machines, which are run by its service provider. Such

a user could upload its content to the service providers

infrastructure, where it is then distributed in the same

manner, but without involving the content providers

client anymore. Initial upload can be traditional FTP

or also BitTorrent with only the users client as seeder

and some service provider machines as only peers in

the swarm. This could be achieved by muting the

tracker, which will be enabled, as soon as the client

has ﬁnished the upload.

An obvious problem is the ability of customers to

circumvent the DRM system by re-publishing down-

loaded content. Publishing requests should only be

accepted from trusted accounts or supporting tech-

nologies should be used to ﬁlter content that in-

fringes copyright such as watermarking or digital ﬁn-

gerprints.

Ongoing work will focus on the evaluation and

testing of the proposed architecture for security and

scalability. The outcome of this is expected to re-

veal the usability for large scale scenarios with a large

variety of different content and a varying number of

customers. Also an estimation about the number and

expected average load of the initial media servers is a

desired outcome of this. Evaluation will take place in

the FOKUS - OpenIMS Playground (Knuettel et al.,

2005) running the open source IMS core (Vingarzan

et al., 2006)

Another topic is to extend the architecture to

streaming media, like video, for digital TV broad-

casting, using a Peer-to-peer network as stream mul-

tiplicator for end users. For streaming applications,

Quality of Service (QoS) (3GPP, 2005) is going to be

much more important than for static content. This in-

troduces new challenges to Peer-to-peer technologies,

as they do not include any QoS model yet. Streaming

media also introduces new trick functions (e.g. fast-

forward, timeshift, etc.) which will have impact on

the media distribution.

REFERENCES

3GPP (2005). Quality of service (qos) concept and archi-

tecture. TS 23.107.

3GPP (2006a). The 3rd generation partnership project

(3gpp). http://www.3gpp.org/.

3GPP (2006b). Ip multimedia (im) session handling; im call

model. TS.23.218, Stage 2; v7.3.1.

3GPP (2006c). Ip multimedia subsystem (ims). TS 23.228.

Cohen, B. (2003). Incentives build robustness in bittorrent.

Daemen, J. and Rijmen, V. (1999). Aes proposal: Rijndael.

http://www.nist.gov/.

DigiCont (2006). Secure digital container ag.

http://www.digicont.ch/c

index.html.

DRM-Watch (2006). Analysis of digital rights management

technology. http://www.drmwatch.com/.

ISMA (2006). Internet streaming media alliance home

page. http://www.isma.tv/.

KaZaA (2006). Home page. http://www.kazaa.com/.

Knuettel, K., Witaszek, D., and Magedanz, T. (2005). The

ims playground @fokus - an open testbed for genera-

tion network multimedia services.

Microsoft (2006). Windows media drm.

http://www.microsoft.com/windows/windowsmedia/

forpros/drm/default.mspx.

MPEG (2006). Moving picture experts group (mpeg).

http://www.chiariglione.org/mpeg/.

Object-Lab (2006). Open ipmp.

http://objectlab.com/clients/openipmp/index.htm.

ODRL (2006). The open digital rights language initiative.

http://odrl.net.

IMS SECURED CONTENT DELIVERY OVER PEER-TO-PEER NETWORKS

OMA (2006). The open mobile alliance.

http://www.openmobilealliance.org/.

Pfeiffer, T., Savage, P., Brazil, J., and Downes, B. (2006).

Vidshare: A management platform for peer-to-peer

multimedia asset distribution across heterogeneous

access networks with intellectual property manage-

ment.

Pouwelse, J., Garbacki, P., Epema, D., and Sips, H. (2005).

he bittorrent p2p ﬁle sharing system: Measurements

and analysis.

Rosenberg, J., Schulzrinne, H., Camarillo, G., Johnston, A.,

Peterson, J., Sparks, R., Handley, M., and Schooler, E.

(2002). Sip: Session initiation protocol. RFC 3261.

Rosenblatt, B. (2003). Integrating drm with peer-to-peer

networks. enabling the future of online content busi-

ness models. http://www.giantstepsmts.com.

Safenet (2006). Recommendations for drm us-

age. white paper, http://mktg.safenet-

inc.com/mk/get/DRM

Usage WP.

Schneier, B. (1994). Description of a new variable-length

key, 64-bit block cipher (blowﬁsh).

Servlet (2005). Sip servlet 1.0.

http://www.jcp.org/en/jsr/detail?id=116.

SIPshare (2006). Sipshare: Sip beyond voice and video.

http://www.research.earthlink.net/p2p.

Vingarzan, D., Weik, P., and Magedanz, T. (2006). In-

troducing the fokus open source ims core system for

multi access multimedia service environments.

SIGMAP 2007 - International Conference on Signal Processing and Multimedia Applications
