KNOWLEDGE ENGINEERING FOR AFFECTIVE BI-MODAL

HUMAN-COMPUTER INTERACTION

Efthymios Alepis, Maria Virvou

Department of Informatics, University of Piraeus, 80 Karaoli & Dimitriou St., 18534, Piraeus, Greece

Katerina Kabassi

Department of Ecology and the Environment, Technological Educational Institute of the Ionian Islands

2 Kalvou Sq., 29100 Zakynthos, Greece

Keywords: Human-Machine Interface, e-learning, knowledge engineering, multi-criteria decision making theories.

Abstract: This paper presents knowledge engineering for a system that incorporates user stereotypes as well as a multi

criteria decision making theory for affective interaction. The system bases its inferences about students’

emotions on user input evidence from the keyboard and the microphone. Evidence form these two modes is

combined by a user modelling component underlying the user interface. The user modelling component

reasons about users’ actions and voice input and makes inferences in relation to their possible emotional

states. The mechanism that integrates the inferences form the two modes has been based on the results of

two empirical studies that were conducted in the context of requirements analysis of the system. The

evaluation of the developed system showed significant improvements in the recognition of the emotional

states of users.

1 INTRODUCTION

The unprecedented growth in HCI has led to a

redefinition of requirements for effective user

interfaces. A key component for these requirements

is the ability of systems to address affect (Hudlicka,

2003). This is especially the case for computer-

based educational applications that are targeted to

students who are in the process of learning. Learning

is a complex cognitive process and it is argued that

how people feel may play an important role on their

cognitive processes as well (Goleman, 1995). At the

same time, many researchers acknowledge that

affect has been overlooked by the computer

community in general (Picard & Klein, 2002).

Picard (Picard, 2003) argues that people’s

expression of emotion is so idiosyncratic and

variable, that there is little hope of accurately

recognising an individual’s emotional state from the

available data. Therefore, many researchers have

pointed out that there is a need of combining

evidence from many modes of interaction so that a

computer system can generate as valid hypotheses as

possible about users’ emotions (e.g. Oviatt, 2003,

Pantic & Rothkrantz, 2003). However, for the time

being, very little research has been reported in the

literature towards this direction.

In this paper, we present the knowledge

engineering process for combining two modes of

interaction, namely keyboard and microphone, for

the development of an affective educational

application. The educational application is called

Edu-Affe-Mikey and is an affective educational

software application targeted to first-year medical

students.

The main characteristic of the system is that it

combines evidence from the two modes mentioned

above in order to identify the users’ emotions. The

results of the two modes are combined through a

multi-criteria decision making method. More

specifically, the system uses Simple Additive

Weighting (SAW) (Fishburn 1967, Hwang & Yoon

1981) for evaluating different emotions, taking into

account the input of the two different modes and

selects the one that seems more likely to have been

felt by the user. In this respect, emotion recognition

is based on several criteria that a human tutor would

222

Alepis E., Virvou M. and Kabassi K. (2007).

KNOWLEDGE ENGINEERING FOR AFFECTIVE BI-MODAL HUMAN-COMPUTER INTERACTION.

In Proceedings of the Second International Conference on Signal Processing and Multimedia Applications, pages 218-225

DOI: 10.5220/0002138302180225

 SciTePress

have used in order to perform emotion recognition

of his/her students during the teaching course.

The values of the criteria used in our novel

approach that is described in this paper, are acquired

by user stereotypes. For this purpose, user

stereotypes have been constructed with respect to the

different emotional states of users that these users

are likely to have experienced in typical situations

during the educational process and their interaction

with the educational software. Examples of such

situations are when a student makes an error while

answering an exam question or when a user reads

about a new topic within the educational application

etc.

The user stereotypes have been resulted from an

empirical study that we conducted among 50 users.

The empirical study aimed at finding out common

user reactions of the target group of the application

that express user feelings while they interact with

educational software.

The main body of this paper is organized as

follows: In section 2 we present and discuss related

work. In the next section we describe the overall

educational application and in sections 4 and 5 we

present briefly the experimental studies for

requirements analysis. Section 6 describes the

application of the multi-criteria decision making

method in the context of the educational application.

In section 7 we present and discuss the results of the

evaluation of the multi-criteria model. Finally, in

section 8 we give the conclusions drawn from this

work.

2 RELATED WORK

2.1 Stereotypes

Stereotypes constitute a popular user modeling

technique for drawing inferences about users

belonging to different groups and were first

introduced by Rich (Rich, 1983). Stereotype-based

reasoning takes an initial impression of the user and

uses this to build a user model based on default

assumptions (Kay, 2000). Therefore, Kobsa et al.

(Kobsa et al, 2001) describe a stereotype as

consisting of two main components: A set of

activation conditions (triggers) for applying the

stereotype to a user and a body, which contains

information that is typically true of users to whom

the stereotype applies. The information that a

stereotype contains is further used by a system in

order to personalise interaction.

The need of incorporating stereotypes concerning

users’ characteristics in modern multi-modal

application interfaces is important; individuals can

more effectively understand universal emotions

expressed by members of a cultural group to which

they have greater exposure (Elfenbein & Ambady,

2003).

The importance of user stereotypes is

acknowledged by other researchers as well in the

area of emotion recognition. For example, in

(Moriyama & Ozawa 2001) is suggested that the

incorporation of stereotypes in emotion-recognition

systems improves the systems’ accuracy. Despite

this importance, in 2001 there were only a few

studies based on emotion stereotypes but the interest

in such approaches was rapidly growing (Moriyama

et al, 2001).

2.2 Simple Additive Weighting

The Simple Additive Weighting (SAW) (Fishburn,

1967, Hwang & Yoon, 1981) method is among the

best known and most widely used decision making

method. SAW consists of two basic steps:

1. Scale the values of the n criteria to make

them comparable. There are cases where the

values of some criteria take their values in

[0,1] whereas there are others that take their

values in [0,1000]. Such values are not easily

comparable. A solution to this problem is

given by transforming the values of criteria in

such a way that they are in the same interval.

If the values of the criteria are already scaled

up this step is omitted.

2. Sum up the values of the n criteria for each

alternative. As soon as the weights and the

values of the n criteria have been defined, the

value of a multi-criteria function is calculated

for each alternative as a linear combination of

the values of the n criteria.

The SAW approach consists of translating a decision

problem into the optimisation of some multi-criteria

utility function

U defined on

. The decision

maker estimates the value of function

)(

XU for

every alternative X

and selects the one with the

highest value. The multi-criteria utility function

can be calculated in the SAW method as a linear

combination of the values of the n criteria:

xwXU

∑

)(

(1)

where X

is one alternative and x

is the value of the i

criterion for the X

alternative.

KNOWLEDGE ENGINEERING FOR AFFECTIVE BI-MODAL HUMAN-COMPUTER INTERACTION

223

3 REQUIREMENTS ANALYSIS

Requirements specification and analysis resulted

from two different empirical studies. The first

empirical study participated 50 potential users of the

educational system and it revealed the basic

requirements for affective bi-modal interaction. The

second empirical study, on the other hand,

participated 16 expert users and the information

collected were used for defining the criteria for

determining the emotional states of users. These

criteria would be used in the next phases of the

software life-cycle for applying the multi-criteria

decision making model.

3.1 Determining Requirements for

Affective Bi-modal Interaction

In order to find out how users express their emotions

through a bi-modal interface that combines voice

recognition and input from keyboard we have

conducted an empirical study. This empirical study

involved 50 users (male and female), of the age

range 17-19 and at the novice level of computer

experience. The particular users were selected

because such a profile describes the majority of first

year medical students in a Greek university which

the educational application is targeted to. They are

usually between the age of 17 and 19 and usually

have only limited computing experience, since the

background knowledge required for medical studies

does not include advanced computer skills.

In the first phase of the empirical study these

users were given questionnaires concerning their

emotional reactions to several situations of computer

use in terms of their actions using the keyboard and

what they say. Participants were asked to determine

what their possible reactions would be when they are

at certain emotional states during their interaction.

Our aim was to recognise the possible changes in the

users’ behaviour and then to associate these changes

with emotional states like anger, happiness,

boredom, etc.

After collecting and processing the information

of the empirical study we came up with results that

led to the design of the affective module of the

educational application. For this purpose, some

common positive and negative feelings were

identified.

The results of the empirical study were also used

for designing the user stereotypes. In our study user

stereotypes where built first by categorizing users by

their age, their educational level and by their

computer knowledge level. The reason why this was

done was that people’s behaviour while doing

something may be affected by several factors

concerning their personality, age, experience, etc.

Indeed, the empirical study revealed many cases of

differences among users. For example, experienced

computer users may be less frustrated than novice

users. Younger computer users are usually more

expressive than older users while interacting with an

animated agent and we may expect to have more

data from audio mode than by the use of a keyboard.

The same case is when a user is less experienced in

using a computer than a user with a high computer

knowledge level. In all these cases stereotypes were

constructed to indicate which specific characteristics

in a user’s behaviour should be taken more to

account in order make more accurate assumptions

about the users’ emotional state.

The empirical study also revealed that the users

would also appreciate if the system adapted its

interaction to the users’ e-motional state. Therefore,

the system could use the evidence of the emotional

state of a user collected by a bi-modal interface in

order to re-feed the system, adapt the agent’s

behaviour to the particular user interacting with the

system and as a result make the system more

accurate and friendly.

3.2 Determining Multiple Criteria

Decision making theories provide precise

mathematical methods for combining criteria in

order to make decisions but do not define the

criteria. Therefore, in order to locate the criteria that

human experts take into account while providing

individualised advice, we conducted a second

empirical study.

The empirical study should involve a satisfactory

number of human experts, who will act as the human

decision makers and are reviewed about the criteria

that they take into account when providing

individualised advice. Therefore, in the experiment

conducted for the application of the multi-criteria

theory in the e-learning system, 16 human experts

were selected in order to participate in the empirical

study. All the human experts possessed a first and/or

higher degree in Computer Science.

The participants of the empirical study were

asked which input action from the keyboard and the

microphone would help them find out what the

emotions of the users were. From the input actions

that appeared in the experiment, only those proposed

by the majority of the human experts were selected.

In particular considering the keyboard we have: a)

user types normally b) user types quickly (speed

SIGMAP 2007 - International Conference on Signal Processing and Multimedia Applications

224

higher than the usual speed of the particular user) c)

user types slowly (speed lower than the usual speed

of the particular user) d) user uses the backspace key

often e) user hits unrelated keys on the keyboard f)

user does not use the keyboard.

Considering the users’ basic input actions

through the microphone we have 7 cases: a) user

speaks using strong language b) users uses

exclamations c) user speaks with a high voice

volume (higher than the average recorded level) d)

user speaks with a low voice volume (low than the

average recorded level) e) user speaks in a normal

voice volume f) user speaks words from a specific

list of words showing an emotion g) user does not

say anything.

Concerning the combination of the two modes in

terms of emotion recognition we came to the

conclusion that the two modes are complementary to

each other to a high extent. In many cases the human

experts stated that they can generate a hypothesis

about the emotional state of the user with a higher

degree of certainty if they take into account evidence

from the combination of the two modes rather than

one mode. Happiness has positive effects and anger

and boredom have negative effects that may be

measured and processed properly in order to give

information used for a human-computer affective

interaction. For example, when the rate of typing

backspace of a user increases, this may mean that

the user makes more mistakes due to a negative

feeling. However this hypothesis can be reinforced

by evidence from speech if the user says something

bad that expresses negative feelings.

4 OVERVIEW OF THE SYSTEM

In this section, we describe the overall functionality

and emotion recognition features of our system,

Edu-Affe-Mikey. The architecture of Edu-Affe-

Mikey consists of the main educational application

with the presentation of theory and tests, a

programmable human-like animated agent, a

monitoring user modelling component and a

database.

While using the educational application from a

desktop computer, students are being taught a

particular medical course. The information is given

in text form while at the same time the animated

agent reads it out loud using a speech engine. The

student can choose a specific part of the human body

and all the available information is retrieved from

the systems’ database. In particular, the main

application is installed either on a public computer

where all students have access, or alternatively each

student may have a copy on his/her own personal

computer. An example of using the main application

is illustrated in figure 1. The animated agent is

present in these modes to make the interaction more

human-like.

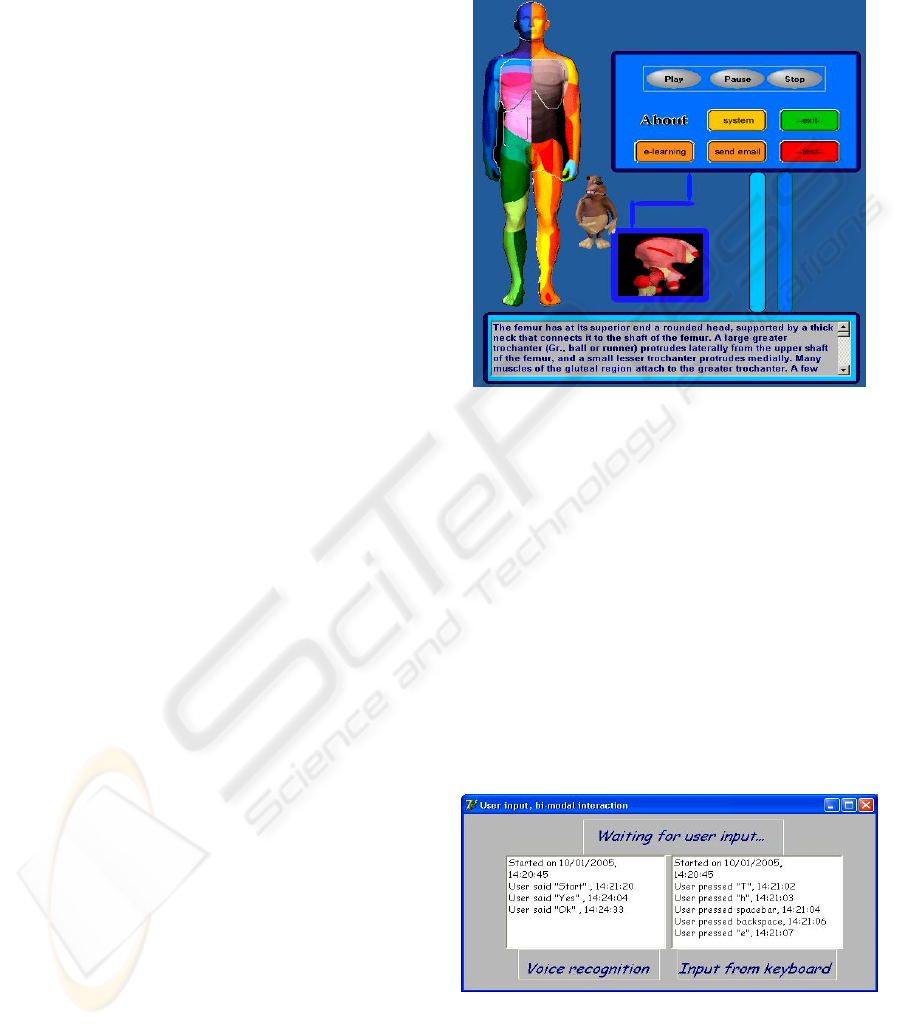

Figure 1: A screen-shot of theory presentation in Edu-

Affe-Mikey educational application.

While the users interact with the main

educational application and for the needs of emotion

recognition a monitoring component records the

actions of users from the keyboard and the

microphone. These actions are then processed in

conjunction with the multi-criteria model and

interpreted in terms of emotions. The basic function

of the monitoring component is to capture all the

data inserted by the user either orally or by using the

keyboard and the mouse of the computer. The data is

recorded to a database and the results are returned to

the basic application the user interacts with. Figure 2

illustrates the “monitoring” component that records

the user’s input and the exact time of each event.

Figure 2: Snapshot of operation of the user modeling

component.

Instructors have also the ability to manipulate the

agents’ behaviour with regard to the agents’ on

screen movements and gestures, as well as speech

KNOWLEDGE ENGINEERING FOR AFFECTIVE BI-MODAL HUMAN-COMPUTER INTERACTION

225

attributes such as speed, volume and pitch.

Instructors may programmatically interfere to the

agent’s behaviour and the agent’s reactions

regarding the agents’ approval or disapproval of a

user’s specific actions. This adaptation aims at

enhancing the “affectiveness” of the whole

interaction. Therefore, the system is enriched with

an agent capable to express emotions and, as a

result, enforces the user’s temper to interact with

more noticeable evidence in his/her behaviour.

Figure 3 illustrates a form where an instructor

may change speech attributes.

Figure 3: Setting parameters for the voice of the tutoring

character.

Figure 4: Programming the behaviour of animated agents

depending on particular students’ actions.

Within this context the instructor may create and

store for future use many kinds of voice tones such

as happy tone, angry tone, whisper and many others

depending on the need of a specific affective agent-

user interaction. In some cases a user’s actions may

be rewarded with a positive message by the agent

accompanied by a smile and a happy tone in the

agent’s voice, while in other cases a more austere

behaviour may be desirable for educational needs.

Figure 4 illustrates how an instructor may set

possible actions for the agent in specific interactive

situations while a user takes a test.

5 APPLICATION OF THE

MULTI-CRITERIA MODEL

The input actions that were identified by the human

experts during the second experimental study during

requirements specification and analysis provided

information for the emotional states that may occur

while a user interacts with an educational system.

These input actions are considered as criteria for

evaluating all different emotions and selecting the

one that seems more prevailing. More specifically,

each emotion is evaluated first using only the criteria

(input actions) from the keyboard and then only the

criteria (input actions) from the microphone. In

cases where both modals (keyboard and

microphone) indicate the same emotion then the

probability that this emotion has occurred is

increased significantly. Otherwise, the mean of the

values that have occurred by the evaluation of each

emotion is calculated and the one with the higher

mean is selected.

For the evaluation of each alternative emotion the

system uses SAW for a particular category of users.

This particular category comprises of the young

(under the age of 19) and novice users (in computer

skills). The likelihood for a specific emotion

(happiness, sadness, anger, surprise, neutral and

disgust) to have occurred by a specific action is

calculated using the formula below:

where

(Formula 1)

(Formula 2)

2111

emem

44133122111111

11111

kwkwkwkwem

kekekekee

44133122111121

11111

mwmwmwmwem

memememee

661551

kwkw

keke

771661551

111

mwmwmw

mememe

SIGMAP 2007 - International Conference on Signal Processing and Multimedia Applications

226

em is the probability that an emotion has

occurred based on the keyboard actions and

is the probability that refers to an emotional state

using the users’ input from the microphone. These

probabilities result from the application of the

decision making model of SAW and are presented in

formulae 1 and 2 respectively.

em and

em take their values in [0,1].

In formula 1 the k’s from k1 to k6 refer to the six

basic input actions that correspond to the keyboard.

In formula 2 the m’s from m1 to m7 refer to the

seven basic input actions that correspond to the

microphone. These variables are Boolean. In each

moment the system takes data from the bi-modal

interface and translates them in terms of keyboard

and microphone actions. If an action has occurred

the corresponding criterion takes the value 1,

otherwise its value is set to 0. The w’s represent the

weights. These weights correspond to a specific

emotion and to a specific input action and are

acquired by the stereotype database. More

specifically, the weights are acquired by the

stereotypes about the emotions.

In order to identify the emotion of the user

interacting with the system, the mean of the values

that have occurred using formulae 1 and 2 for that

emotion is estimated. The system compares the

values from all the different emotions and

determines whether an emotion is taking effect

during the interaction. As an example we give the

two formulae with their weights for the two modes

of interaction that correspond to the emotion of

happiness when a user (under the age of 19) gives

the correct answer in a test of our educational

application. In case of

em considering the

keyboard we have:

In this formula, which corresponds to the

emotion of happiness, we can observe that the higher

weight values correspond to the normal and quickly

way of typing. Slow typing, often use of the

backspace key and use of unrelated keys are actions

with lower values of stereotypic weights. Absence of

typing is unlikely to take place. Concerning the

second mode (microphone) we have:

In the second formula, which also corresponds to

the emotion of happiness, we can see that the highest

weight corresponds to m6 which refers to the

‘speaking of a word from a specific list of words

showing an emotion’ action. The empirical study

gave us strong evidence for a specific list of words.

In the case of words that express happiness, these

words are more likely to occur in a situation where a

novice young user gives a correct answer to the

system. Quite high are also the weights for variables

m2 and m3 that correspond to the use of

exclamations by the user and to the raising of the

user’s voice volume. In our example the user may do

something orally or by using the keyboard or by a

combination of the two modes. The absence or

presence of an action in both modes will give the

Boolean values to the variables k1…k6 and m1…m7.

A possible situation where a user would use both

the keyboard and the microphone could be the

following: The specific user knows the correct

answer and types in a speed higher than the normal

speed of writing. The system confirms that the

answer is correct and the user says a word like

‘bravo’ that is included in the specific list of the

system for the emotion of happiness. The user also

speaks in a higher voice volume. In that case the

variables k1, m3 and m6 take the value 1 and all the

others are zeroed. The above formulas then give us

4.01*4.0

and

45.01*3.01*15.0

In the same way the system then calculates the

corresponding values for all the other emotions

using other formulae. For each basic action in the

educational application and for each emotion the

corresponding formula have different weights

deriving from the stereotypical analysis of the

empirical study. In our example in the final

comparison of the values for the six basic emotions

the system will accept the emotion of happiness as

the most probable to occur.

6 EVALUATION OF THE MULTI-

CRITERIA MODEL

In section 5 we have described how the system

incorporates the multi-criteria decision making

theory SAW and uses stereotypic models derived

from empirical studies in order to make a multi-

criteria decision about the emotions that occur

during the educational human-computer interaction.

Each mode uses user stereotypes with specific

weights for each input action and produces values

for each one of the six basic emotions in our study.

Correspondingly, each mode produces hypotheses

for the six basic emotions and classifies them by

their probabilities of occurrence. The final

conclusion on the user’s emotion is based on the

conjunction of evidence from the two modes using

SAW.

65432111

005.005.01.04.04.0

kkkkkkem

+++++=

765432121

15.03.014.002.015.018.006.0

mmmmmmmem

++=

KNOWLEDGE ENGINEERING FOR AFFECTIVE BI-MODAL HUMAN-COMPUTER INTERACTION

227

The 50 medical students that were involved in

the first phase of the empirical study in section 3.1

were also used in the second phase of the empirical

study for the evaluation of the multi-criteria emotion

recognition system. In this section we present and

compare results of successful emotion recognition in

audio mode, keyboard mode and the two modes

combined. For the purposes of our study the whole

interaction of all users with the educational

application was video recorded. Then the videos

collected were presented to the users that

participated the experiment in order to perform

emotion recognition for themselves with regard to

the six emotional states, namely happiness, sadness,

surprise, anger, disgust and the neutral emotional

state. The students as observers were asked to justify

the recognition of an emotion by indicating the

criteria that s/he had used in terms of the audio mode

and keyboard actions. Whenever a participant

recognized an emotional state, the emotion was

marked and stored as data in the system’s database.

Finally, after the completion of the empirical study,

the data were compared with the systems’

corresponding hypothesis in each case an emotion

was detected.

Table 1 illustrates the percentages of successful

emotion recognition of each mode after the

incorporation of stereotypic weights and the

combination through the multi-criteria approach.

Provided the correct corresponding emotions for

each situation and by each user we were able to

come up with conclusions about the efficacy of our

systems’ emotion recognition ability. Indeed, the

results presented in table 1 indicate that the

incorporation of user stereotypes as well as the

application of the multi-criteria model lead our

system to noticeable improvements in its ability to

recognize emotional states of users successfully.

Table 1: Recognition of emotions using stereotypes and

SAW theory.

Using Stereotypes and SAW

Emotions

Multi-criteria bi-

modal recognition

Neutral

46%

Happiness

64%

Sadness

70%

Surprise

45%

Anger

70%

Disgust

58%

7 CONCLUSIONS

In this paper we have described an affective

educational application that recognizes students’

emotions based on their words and actions that are

identified by the microphone and the keyboard,

respectively. The system uses an innovative

approach that combines evidence from the two

modes of interaction based on user stereotypes and a

multi-criteria decision making theory.

For requirements analysis and the effective

application of the particular approach two different

experimental studies have been conducted. The

experimental studies involved real end users as well

as human experts. In this way the application of the

multi-criteria model in the design of the system was

more accurate as it was based on facts from real

users’ reasoning process.

Finally, the approach for emotion recognition

was evaluated. More specifically, some users

interacted with the educational application and their

interaction was video recorded. The videos were

then presented to the same users, who were asked to

comment on their emotion. The emotions the users

identified were compared to the emotions identified

by the system. This comparison revealed that the

system could adequately identify the users’ emotion.

However, its hypotheses were more accurate when

there was a combination of the evidence from two

different modes using the multi-criteria decision

making theory.

In future work we plan to improve our system by

the incorporation of stereotypes concerning users of

several ages, educational backgrounds and computer

knowledge levels. Moreover, there is ongoing

research work in progress that exploits a third mode

of interaction, visual this time (Stathopoulou &

Tsihrintzis, 2005), to add information to the

system’s database and complement the inferences of

the user modelling component about users’

emotions. The third mode is going to be integrated

to our system by adding cameras and also providing

the appropriate software, as for a future work.

ACKNOWLEDGEMENTS

Support for this work was provided by the General

Secretariat of Research and Technology, Greece,

under the auspices of the PENED-2003 program.

SIGMAP 2007 - International Conference on Signal Processing and Multimedia Applications

228

REFERENCES

Elfenbein, H.A., Ambady, N., 2003. When Familiarity

Breeds Accuracy. Cultural Exposure and Facial

Emotion Recognition, Journal of Personality and

Social Psychology, Vol. 85, No. 2, pp. 276–290.

Fishburn, P.C., 1967. Additive Utilities with Incomplete

Product Set: Applications to Priorities and

Assignments, Operations Research.

Goleman, D., 1995. Emotional Intelligence, Bantam

Books, New York .

Hudlicka, E., 2003. To feel or not to feel: The role of

affect in human-computer interaction. International

Journal of Human-Computer Studies, Elsevier

Science, London, pp. 1-32.

Hwang, C.L., Yoon, K., 1981. Multiple Attribute Decision

Making: Methods and Applications. Lecture Notes in

Economics and Mathematical Systems 186, Springer,

Berlin/Heidelberg/New York.

Kay, J., 2000. Stereotypes, student models and

scrutability. In: G. Gauthier, C. Frasson and K.

VanLehn (eds.): Proceedings of the Fifth International

Conference on Intelligent Tutoring Systems, Lecture

Notes in Computer Science, Springer-Verlag, Berlin,

Heidelberg, Vol. 1839, pp. 19-30.

Kobsa, A., Koenemann, J., Pohl, W., 2001. Personalized

hypermedia presentation techniques for improving on-

line customer relationships. The Knowledge

Engineering Review, vol. 16, pp. 111-115.

Moriyama, T., Ozawa, S., 2001. Measurement of Human

Vocal Emotion Using Fuzzy Control. Systems and

Computers in Japan, Vol. 32, No. 4.

Moriyama, Τ., Saito, Η., Ozawa, S., 2001. Evaluation of

the Relation between Emotional Concepts and

Emotional Parameters in Speech. Systems and

Computers in Japan, Vol. 32, No. 3.

Oviatt, S., 2003. User-modeling and evaluation of

multimodal interfaces. Proceedings of the IEEE,

Institute of Electrical and Electronics Engineers, pp.

1457-1468.

Pantic, M., Rothkrantz, L.J.M., 2003. Toward an affect-

sensitive multimodal human-cumputer interaction.

Vol. 91, Proceedings of the IEEE, Institute of

Electrical and Electronics Engineers, pp. 1370-1390.

Picard, R.W., 2003. Affective Computing: Challenges. Int.

Journal of Human-Computer Studies, Vol. 59, Issues

1-2, pp. 55-64.

Picard, R.W., Klein, J., 2002. Computers that recognise

and respond to user emotion: theoretical and practical

implications. Interacting with Computers 14, pp. 141-

169.

Rich, E., 1983. Users are individuals: individualizing user

models. International Journal of Man-Machine Studies

18, pp. 199-214.

Stathopoulou, I.O., Tsihrintzis, G.A., 2005. Detection and

Expression Classification System for Face Images

(FADECS), IEEE Workshop on Signal Processing

Systems, Athens, Greece.

KNOWLEDGE ENGINEERING FOR AFFECTIVE BI-MODAL HUMAN-COMPUTER INTERACTION

229
