PATTERN-BASED COLLABORATION IN AD-HOC TEAMS

THROUGH MESSAGE ANNOTATION

Daniel Schall, Robert Gombotz and Schahram Dustdar

Distributed Systems Group, Institute of Information Systems

Vienna University of Technology, Argentinierstrasse 8, 1040 Wien, Austria

Keywords: Collaboration Patterns, Message Annotation, Coordination Support, Interaction Patterns.

Abstract: In this paper we present a specification for annotating messages to enable computer-supported message

processing, addressing, and analysis. The benefits of annotating messages according to our XML based

specification are two-fold: Firstly, it allows computer support during collaboration by enabling automated

message addressing (i.e., determining who should get a message) and message management (e.g., managing

your messages according to activities, projects, and tasks). Secondly, it enables post-collaboration analysis

of messages and mining of message logs for patterns and for workflow models. We provide a proof of

concept by presenting how annotated messages may support and facilitate collaboration that happens

according to certain collaboration patterns. In addition to the patterns we have already introduced in our

previous work, we present more patterns such as Monitors that emphasize the applicability of computer

supported message handling.

1 INTRODUCTION

In our previous work we have made the case for

human interaction patterns in collaborative working

environments. A lot of communication in human

collaboration is message based.

The problem when trying to mine message logs

for pattern or workflow information is that in many

cases raw messages can (a posteriori) not be mapped

to a context or an activity in an automatic way. We

believe that the mining of a message’s content for

such information (i.e., through text mining

technologies) has not yet matured to a stage where it

can provide results that satisfy our needs in terms of

quality and reliability.

The shortcomings of automatic message

interpretation in terms of context and activity also

become apparent when attempting to provide

computer support for message management in terms

of relevance and prioritization (e.g., who should

receive a message and with what level of urgency).

Message-based collaboration highly relies on the

user being responsible for reading, interpreting, and

processing messages while very little support is

provided by messaging technologies. We witness

this every day when masses of spam messages are

delivered to our inboxes along with those messages

that are actually relevant to us. And within the

relevant messages there is little to no support for

ranking or ordering messages according to urgency,

relevance, or context.

2 COLLABORATION PATTERNS

The research conducted in our group aims at

developing a pattern language describing the

structure, dynamics, and the interaction flows

observed in human collaboration. In our earlier work

we have presented three initial patterns found in

software engineering and applied them to the

domain of CWE (Collaborative Working

Environments). (Dustdar and Hoffmann, 2006),

(Gombotz et al., 2006). These patterns were the

Broker, the Proxy, and the Master/Slave pattern

which in human collaboration can be interpreted as

receptionist, a secretary, and boss/assistant,

respectively. As an example, Figure 1 depicts a

Master/Slave pattern. An Initiator I starts an

interaction by sending a request to the Receiver R

(the Master in this pattern). R delegates sub-tasks to

Schall D., Gombotz R. and Dustdar S. (2007).

PATTERN-BASED COLLABORATION IN AD-HOC TEAMS THROUGH MESSAGE ANNOTATION.

In Proceedings of the Ninth International Conference on Enterprise Information Systems - SAIC, pages 84-91

DOI: 10.5220/0002353600840091

 SciTePress

the Contributors C. Note that the interaction

between R and C may not be visible to I.

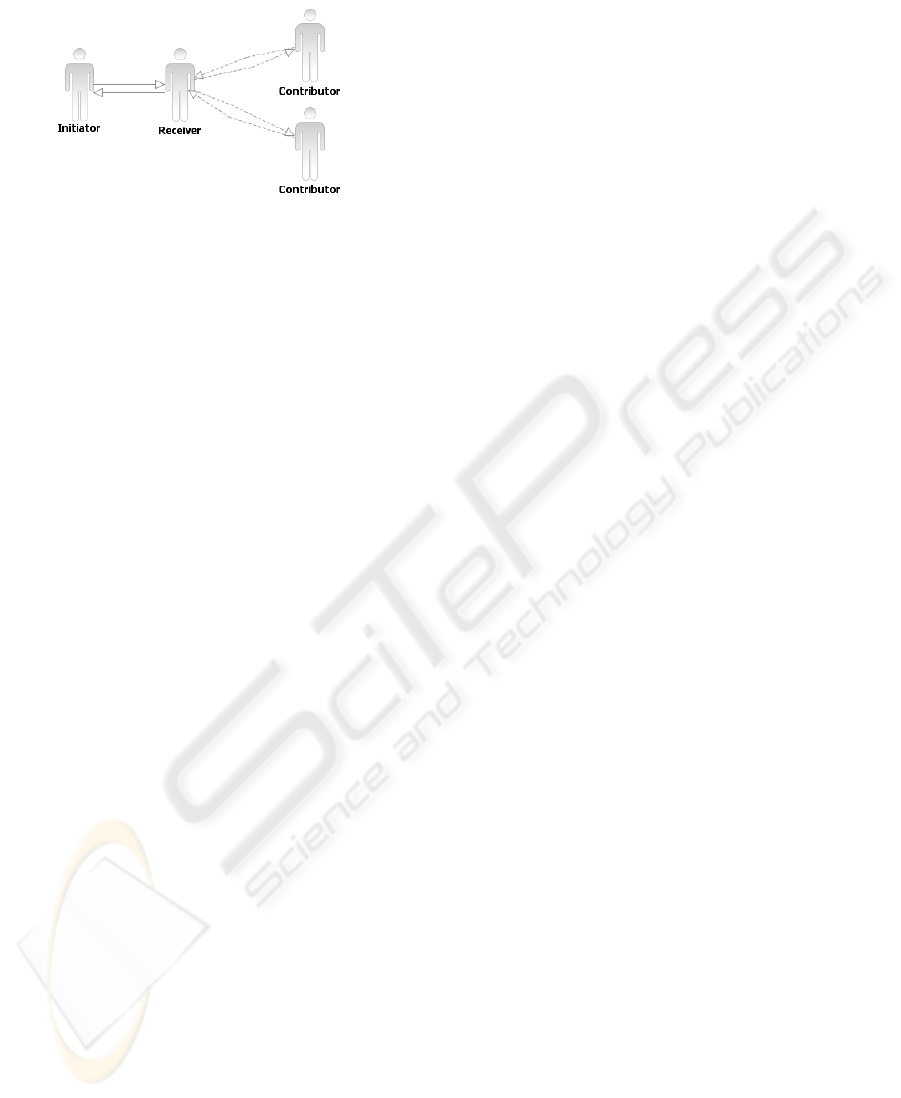

Figure 1: Delegation of sub-tasks (Master/Slave style).

In the following subsections we introduce a new

pattern in human collaboration which we termed

Monitor. The pattern is then further refined into four

subtypes based on the monitor’s involvement and

role in a collaboration.

2.1 Monitor Pattern

Monitoring is omnipresent in collaborative

environments and may even happen subconsciously.

It is done for different reasons and is achieved

through different methods which are discussed in

more detail along with the corresponding subtypes

of a Monitor in the following subsections.

We define a Monitor as an actor watching or

observing a given object of interest. In the domain

of human collaboration that monitored object may

be another actor, a group of actors and their

interactions, or a certain task or activity. For

example, a boss may monitor a subordinate and a

group leader may monitor other group members and

their interactions.

2.2 Subtypes of Monitor Pattern

Besides the different types of observed objects listed

in the previous subsection, Monitors can be

classified by the motivation underlying their action

and by the methods they have at hand to monitor

their object. We differentiate between four types of

monitoring based on the motivation underlying the

monitoring activity.

Informational Monitoring: The actor monitors an

object he is not directly related to or affiliated with.

His motivation for monitoring is not obvious to

others. An example is a team member monitoring

the activities of a more experienced colleague in

order to learn from him.

Observational Monitoring: A dependency between

the actor and the object he monitors is given. This

dependency is the motivation for monitoring since

he may be influenced by or may have to react to

certain events related to the monitored object. An

example is a team member monitoring a task which

his own task depends on, for example, his own task

relies on input generated by the other task.

Supervisional Monitoring: The Monitor is

responsible for or has authority over the object he

monitors. He has the right (or the obligation) to

intervene when necessary. An example drawn from

another pattern is a master monitoring the activity of

his slaves to ensure correct execution of the (sub)

tasks he assigned to them.

Coordinational Monitoring: The Monitor is

responsible for coordination of a team (or parts

thereof) and for efficient allocation of resources. He

is not interested in the details of an activity, but only

in information regarding an object’s status, for

example, availability of a person, or progress of a

task.

2.2.1 Student, or Studying Monitor

Definition: A Studying Monitor has no direct

relationship or dependency to the monitored object

and his monitoring activity is not driven by an

external necessity.

Characteristics: Studying Monitors may remain

undetected by the object that is being monitored.

Typically, a Studying Monitor does not directly

interact with the corresponding object, nor does he

request active reporting from it.

Methods of Monitoring: Since the Studying

Monitor is not affiliated with what he monitors his

methods of monitoring are limited. Typically, all

monitoring activities will have to be initiated by

himself and the information he may acquire may be

limited as well. Monitoring must not be intrusive,

and any direct access to the monitored object is

granted on a purely “voluntary” basis.

2.2.2 Dependant, or Dependent Monitor

Definition: A Dependent Monitor (DM) observes

objects that have an impact on himself or the tasks

he is involved in.

PATTERN-BASED COLLABORATION IN AD-HOC TEAMS THROUGH MESSAGE ANNOTATION

Characteristics: The Dependant Monitor is best

characterized by his ability to interact with his

monitored object while not having any authority

over it and thereby not being able to interfere with

the object’s activities.

Methods of Monitoring: Due to the explicit

dependency of the Monitor and the object of

interest, Dependent Monitors are granted certain

rights and opportunities to guarantee them sufficient

information. For example, Dependent Monitors may

be allowed not only to monitor publicly available

information, but may also be given the opportunity

to directly address, for example, actors involved in

the monitored task, when further information is

needed.

If provided by the object, DMs may be permitted

to subscribe for notifications that a given object

issues to dependent entities. In case of critical

dependencies, a DM may even have the right to

demand such notifications.

2.2.3 Supervisor, or Supervising Monitor

Description: A Supervisor is responsible for or has

the authority over the object he monitors. He also

has the right to manipulate the object, for example,

issue orders to a person, or influence the execution

of a task.

Characteristics: The Supervisor’s responsibility for

a given object implies both the right and the duty for

active intervention whenever necessary. A

Supervisor is the only subtype of a Monitor with the

right and opportunity to directly manipulate the

object.

Also, a Supervisor may have to be available to

objects he monitors when they request guidance.

Therefore, he may have to provide support upon

request.

Methods of Monitoring: Along with a Supervisor’s

control over the monitored object comes the right to

enforce active reporting by the object of interest in

whichever way considered to be suitable by the

Supervisor. This may include notifications regarding

relevant events, status or progress reports in desired

intervals, or even personal reports to him by a

monitored actor.

2.2.4 Coordinator, or Coordinating Monitor

Description: A Coordinator monitors the status of

objects in order to coordinate activities and to enable

efficient allocation of resources.

Characteristics: A Coordinator is not interested in

the actual “content” of activities, e.g., the content of

documents resulting from collaborative activities,

but only in the status of objects. Significant status

information could be availability of actors, e.g.,

“available” or “unavailable for 2 more hours”, and

progress of tasks, e.g., “90% completed”, or

“estimated completion in 3 days”.

Methods of Monitoring: Considering the

importance of effective and efficient coordination in

human collaboration, a Coordinator should typically

not be denied any information he considers to be

relevant. Therefore, Coordinators would be granted

rights regarding information they have access to.

Also, for example, in time critical situations the

monitored object may do more frequent reporting to

the Coordinator.

3 MESSAGE ANALYSIS

As we stated in the introduction, today’s most

widely used messaging protocols provide very little

support to the user in terms of message addressing,

message management, and message prioritization.

In the following discussion we present a simple,

yet effective way of annotating messages with

machine readable information to facilitate computer-

supported collaboration using basic messaging

technologies. The tags which are embedded in

messages are specified in XML and can therefore

even be considered to be human-readable, even

though this factor did not play an important role in

the design.

The information contained in these tags may be

used at two stages:

 Ongoing collaborations: Applications include

semi-automatic message addressing and

message management, for example, ordering

of messages by activity, archiving of

messages relating to completed tasks, and

message prioritization.

 Post-collaboration: Tags allow for message

archiving, and improve message analysis

opportunities, possibly as far as extracting

patterns and workflow information.

ICEIS 2007 - International Conference on Enterprise Information Systems

Annotations should allow the mapping of messages

to an activity context, which in turn may relate to a

task, a project, and thereby a team. Consider a

hierarchically organized project as depicted in

Figure 2.

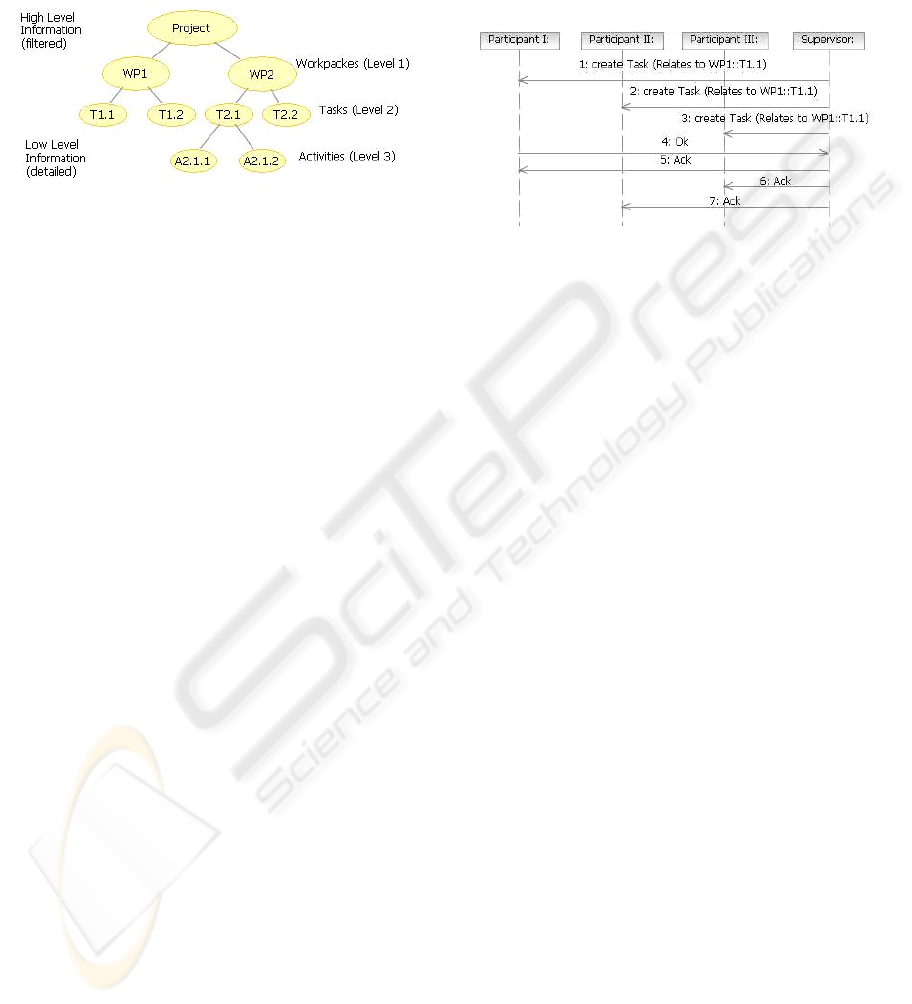

Figure 2: Granular levels of detail in project topology.

As displayed by Figure 2, the root of the hierarchical

tree is the Project. It provides the container for

logical workpackages and furthermore actual tasks

which are being executed by team members to

contribute to collaborative activities. Workpackages

and tasks include properties such as start time, end

time, deadlines and milestones, expected duration,

outcome (e.g., artifacts), and resources. To work

effectively in teams, coordination of team members

and progress tracking is required. Measures at

different levels of detail optimize collaboration and

minimize risks that may arise. For example, at level

2 in Figure 2 we measure task progress, deviations,

and possibly identify deadlocks.

Our work in the area of message based systems

aims at structuring ad-hoc collaboration by applying

a flexible topology to manage information, which

allows users to create projects, to associate a number

of tasks to projects, to define a responsible person or

leader for a particular task, to assign members or

contributors to tasks, and to associate a set of

artifacts to tasks.

Exemplary messages relating to information

management, including XML notation, are “create

project”

<create-project />, “create task“

<create-task />, “update status“ <update-

status><task-id /></update-status>,

“request approval“ <request-approval><task-

id /><artifact-id /></ request-

approval>

. Read-only requests include, for

example, “query status“

<query-status><task-

id /></query-status>.

In the following subsections we elaborate on

collaboration and communication (or the protocol)

patterns and define an XML based method to

coordinate collaboration in ad-hoc teams that

communicate in peer-to-peer mode.

3.1 Communication Patterns

A communication pattern describes the structured

and periodic exchange of messages. The sequence

diagram in Figure 3 shows a simple “create task”

pattern.

Figure 3: Create new task.

The Supervisor assigns a new work item to

Participant I, II, and III by sending a “create task”

message (messages, in short m, 1-3). Figure 3

depicts the case where Participant I holds the task

leader role. Therefore, Participant I accepts and

confirms the assignment by responding with “Ok”.

Finally, the Supervisor acknowledges that “create

task” was successful (“Ack” to each Participant, m

5-7). As a result of this interaction, a new task (i.e.,

task named T1.1 with logical association to

workpackages WP1) is created, assigned, and saved

to the persistent store (e.g., XML data saved in the

local file system – no central database server is

required).

A task typically produces some output in the

form of artifacts such as documents or reports.

These artifacts are associated to or referenced by a

particular task. In our example the task leader,

Participant I, coordinates the work among

contributors (Participant II and III). A final approval

or review, however, may be required by the

Supervisor. Figure 4 illustrates an approval pattern.

Participant I sends a “request approval” message,

containing the “relates to” element that refers to

specific activities or tasks, in our example T1.1

scoped by WP1, to the Supervisor (m 1). The

“relates to” element helps us to inspect the context

of the message and to associate messages to

activities and tasks. Additionally, we can determine

the causal dependencies between messages and

organize them in a structured way. For example,

messages relating to a specific task or workpackage

can be represented in form of a message tree.

PATTERN-BASED COLLABORATION IN AD-HOC TEAMS THROUGH MESSAGE ANNOTATION

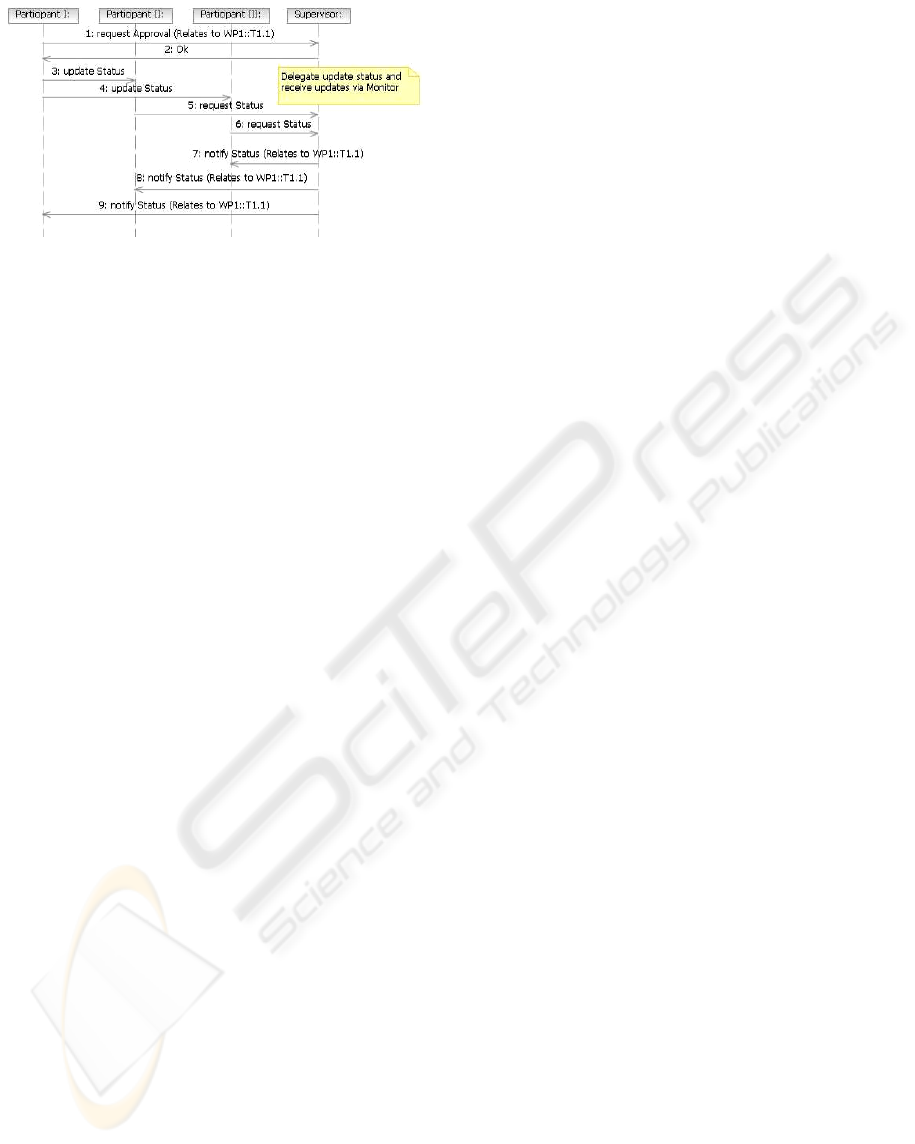

Figure 4: Request approval from Monitor.

The Supervisor approves T1.1, thereby

authorizing associated or relevant artifacts, by

returning “Ok” (m 2). Please note, the semantic

meaning of “Ok” in this context is to confirm the

request – “request approval”, which may in fact

contain an “accept” or “reject”. For simplicity we

abbreviated the approval message as “Ok”, however,

it should be seen as “Ok (Relates to WP1::T1.1)”.

In Figure 4, we assume that the approval was

only sent to Participant I as a “private” message.

Upon receiving the approval, Participant I

distributes an “update status” message (m 3-4),

which can be regarded as a command or delegate to

receive updates. In other words, it can be seen as an

invalidate-status command (by sending “update

status”), which results in “request status” messages

to be sent (m 5-6).

The approval pattern in our example is denoted

by following properties:

 The “request approval” message is sent by the

leading participant (task leader).

 Approval is given by the supervising Monitor.

 Final status information (e.g., status of

WP1::T1.1) has to be obtained from an

authorized entity, in our case the Supervisor.

Following the approval pattern, Participant II and III

query the Supervisor for updated status information

(m 5-6). The Supervisor, in turn, notifies all

Participants regarding T1.1 updates (m 7-9).

4 INTERACTIONS THROUGH

Our pattern based approach to coordination

problems in collaboration, specifically in ad-hoc

collaboration, by means of message annotations in

form of embedded XML tags, can be applied to any

message oriented system that has basic features such

as addressing, a text based protocol, and the ability

to store messages. Instant Messaging (IM) and

Email are two prominent examples for such systems

and are widely used in collaboration. Email is the

most extensively used technology in asynchronous

(ad-hoc) collaboration because of its flexibility and

its ability to interoperate with any other email

client/program across organizational boundaries and

company firewalls.

However, flexibility comes at a price. There is a

tradeoff between versatile collaboration and

structured or even rigid collaboration flows

(Dustdar, 2004). We validate our proposed concepts

by applying them to email-based collaboration. In

the next sections we provide a high-level

specification of our message annotation framework.

4.1 Message Annotations

Create New Project: Users have the ability to

create a new project, in order to initiate a new

collaboration, by providing information such as

project name, description, start, end, resources, etc.

User can make this information available (i.e.,

announcement that a new project exists) by sending

a message to a predefined distribution list, similar to

a multicast “invite” message. Whoever is interested

from that list in joining the project creates a

response which relates to the announced project.

The other option is to specify members explicitly by

selecting them from a list.

A fragment of the corresponding XML

representation (XML tag) that is embedded (along

with exemplary data) in an email message:

<create-project>

<id>project123</id>

<name>Class data mining</name>

<team>

</member>

</team

</create-project>

All members receive the message. A client

application discovers the machine processible

information, i.e., XML tag

<create-project>, in

the message and prompts for information regarding

the project and whether or not the user wishes to

participate. If the user confirms, a message is being

generated and automatically sent to all other

members. An exemplary confirmation message:

<join-project>

ICEIS 2007 - International Conference on Enterprise Information Systems

<id>project123</id>

</project>

</member>

<join-project>

A new folder can be created automatically in the

users email message repository (logical or physical)

to structure all project related messages and

activities. Upon receiving the incoming message

regarding the addition of a new team member

(message holding tag information

<join

project>), project related information that is saved

on the other participants’ clients in a local store is

being updated automatically and reflected in the user

interfaces by means of event notification. From this

point on, the project is saved in a persistent store

and members can associate messages to the project.

Every member has the ability to a) create tasks, b)

update status information, c) request status

information, d) send information and artifacts to

members (however, as opposed to standard email, in

a structured way where embedded artifacts,

resources, etc. correspond to tasks and to an activity

context), and furthermore, which is not further

elaborated in this paper, e) initiate and schedule

meetings, and f) request group decisions (distributed

decision making support).

Create Task: A new task is created by providing

the user with the ability to choose a project from the

local store. Once a project is selected, the user

selects the recipients of the task and may assign

predefined roles to members such as a)

Leader/Owner, b) Member, or c) Monitor.

A message is sent to the respective participants,

holding different roles (Leader and Members) and a

carbon copy (CC) to Monitors, containing:

<create-task>

</create-task>

Upon receiving this message, users need to confirm

(e.g., “Do you want to add task T to this project and

accept your role?”). A logical folder for messages

relating to that task is created under the

corresponding project folder.

Update Task Status: Task members can send

messages regarding task progress using “update task

status” messages. The corresponding XML

annotation for “update status” along with

(implementation dependent) possible values:

<update-status><task-id />

<progress>50%</progress> (or “on

time”, “delayed”, “completed”)

</update-status>

As task status updates are received, the persistent

store is updated on each participant’s client.

Request Task Status: The team can exchange and

request task status information messages. This

feature is provided by “query status” that lets users

select from projects or teams and depending on

project selection pick specific tasks. As we show at

a later point in more detail, the message may be

distributed based on roles and collaboration patterns,

for example, by requesting status information from

other peers or by requesting status information only

from authorized entities such as Monitors (e.g.,

Supervisors). An exemplary “query status” message:

<query-status>

<task-id />

<last-update>TimeStamp</last-update>

<confidence>60%</confidence>(or

“low”, “medium”, “high”)

</query-status>

Approval: Our framework provides the ability to

issue a “request approval”, as illustrated in Figure 4,

which relates to a task or an associated artifact. A

message is sent to the person who should give the

approval containing:

<request-approval>

<task-id />

<task-leader />

<progress />(e.g., “completed”)

<artifact-id />

</request-approval>

The corresponding response message would be:

<task-id />

<approved /> (e.g., accept, reject,

pending, deferred)

<approved-by />

</approval>

An approver may accept or reject a task or the actual

outcome of a task in form of artifacts or set the

approval status to “pending”. Furthermore, it is

possible that the approver delegates the decision to

another entity or Monitor. In this case, a custom

XML tag with an element

<relates-to>, that

refers to the delegated approver, may be generated.

PATTERN-BASED COLLABORATION IN AD-HOC TEAMS THROUGH MESSAGE ANNOTATION

Retrieve Project Status: The ability to retrieve a

project’s status information is a vital part of our

system. Previous elements such as “create task” or

“update task” enable users to manage information

and messages in a structured way – suitable for

coordinated collaboration (e.g., see “request

approval” use case). Retrieve project status aims at

providing a high level overview of activities and

tasks that are going on in a particular project (e.g.,

as illustrated in the project tree in Figure 2). It

allows the users to get summaries of the overall

status (e.g., management summaries) – at a glance –

and also allows new team members to quickly get

started in an ongoing project (bringing new team

members up to speed by generating custom reports

and project summaries). In particular, it allows the

generation of a report of the current project status,

including team members, tasks and their status.

Summaries can be displayed as simple reports

including history of contributions such as file

changes, and also reports suitable for new team

members by getting all relevant information that

other members have stored on their systems. This

could even include the most recent version of all

artifacts such as files related to the project. An

exemplary XML report could comprise the

following elements:

<project-status>

<project-info /> (e.g., id, name,

workpackages, etc.)

<team-info /> (e.g., active members,

monitors)

<task-info /> (e.g., not yet

started, completed, pending)

4.2 Collaboration Use Case

A slightly more complex interaction scenario is

depicted by Figure 5. Participant I updates status

information, related to T1.1 (m 1-2), which in turn

triggers an “update status” initiated by Participant II

(m 3). In this case Participant II is monitored by a

Person-Dependent Monitor. In principle, we

distinguish between monitoring a person and

monitoring a task/activity. Next, we see a protocol

specific pattern that relies on roles or even specific

assignments in the form of tasks. Participant I sends

an “update status” message to his/her Supervisor. A

handshake mechanism in form of “ACK” and “OK”

messages is applied to guarantee delivery of status

information (m 4-6).

As a next sequence in Figure 5 we see “request

status” information. The supervisor pulls status

information regarding T1.1 from the task leader (m

7), i.e., Participant I, asynchronously. In turn, the

leader requests status information from each

participant (m 8-9) to ensure consistency of status

information and provides consolidated information

in form of an “update status” message to the

Supervisor (m 10).

ICEIS 2007 - International Conference on Enterprise Information Systems

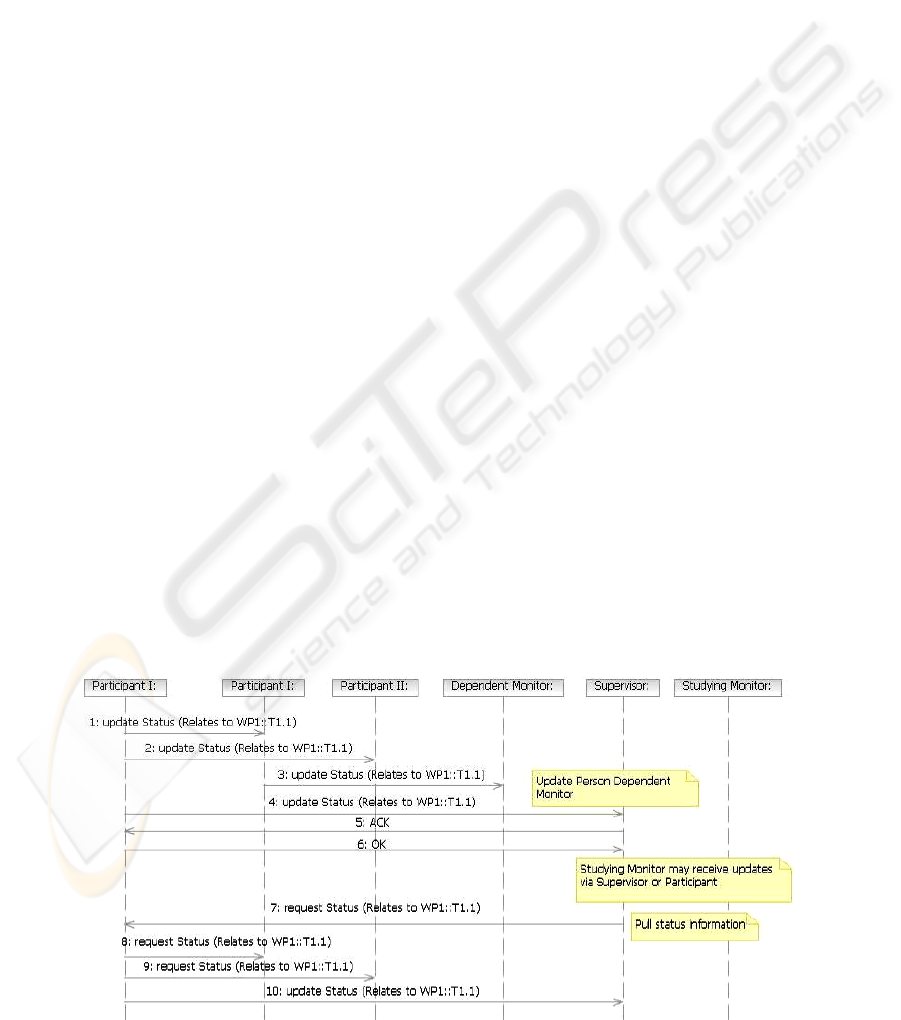

Figure 5: Updating task information interacting with multiple Monitors.

5 RELATED WORK

In our previous work we have introduced patterns

from the software engineering domain, i.e., Proxy,

Broker, and Master/Slave (Gamma et al., 1994), as a

metaphor for human collaboration patterns. (Dustdar

and Hoffman, 2006). These patterns can be utilized

to make collaboration more efficient and also to

establish team awareness. (Gombotz et al., 2006).

As the number of messages sent in collaboration

grows, it becomes increasingly challenging to

process them. Additional socially salient information

may be needed to bring important emails to the

user’s attention. (Neustaedter et al., 2005), (Petrie,

2006). Data obtained from field studies suggest that

email activities may be categorized in: flow, triage,

task management, archive, and retrieve. (Venolia et

al., 2001). Email archives and traces of

communication and coordination activities can be

utilized to perform post-collaboration analysis and

extract relations in human collaboration. Social

networks can be used to visualize these relations and

dependencies in a graph representation. (van der

Aalst et al., 2005).

6 CONCLUSIONS

We presented an extensible XML based framework

that allows users to exchange collaborative

messages and information in a structured way.

Annotations in messages can be used to organize

messages (semi-) automatically based on activity

contexts. Reports and summaries can be generated

automatically in order to understand the high level

status of a project or to assist team members that are

joining the team or have been absent for some time

to better understand past activities and current

status. The presented XML tags, which are

embedded in messages, can be used for post

processing and message analysis to identify and

extract patterns and possibly workflow information.

Our pattern based collaboration framework is

fully distributed and does not rely on any central

server. However, if teams become large and

collaboration lasts for a long period of time, a server

that saves XML annotations and coordinates

activities based on patterns may be employed.

Although presented in the context of email, methods

and principles of our framework may be applied to

any messaging-based system.

ACKNOWLEDGEMENTS

Part of this work was supported by the EU STREP

Project inContext (FP6-034718).

REFERENCES

Van der Aalst, W.M.P., Reijers, H. A., Song, M., 2005.

Discovering Social Networks from Event Logs.

Computer Supported Cooperative Work 14(6), 549-

593.

Dustdar, S., 2004. Caramba - A Process-Aware

Collaboration System Supporting Ad Hoc and

Collaborative Processes in Virtual Teams. Distributed

and Parallel Databases, 15(1), 45-66. Kluwer

Academic Publishers.

Dustdar, S., Hoffmann, T., van der Aalst, W.M.P., 2005.

Mining of ad-hoc business processes with TeamLog.

Data and Knowledge Engineering, 55(2), 129-158,

Elsevier.

Dustdar, S., Hoffmann, T., 2006. Interaction Pattern

Detection in Process Oriented Information Systems.

Data and Knowledge Engineering. Elsevier.

Gamma, E., Helm, R., Johnson, R., Vlissides, J., 1994.

Design Patterns – Elements of Reusable Object-

Oriented Software. Addison-Wesley.

Gombotz, R., Schall, D., Dorn, C., Dustdar, S., 2006.

Relevance-Based Context Sharing through Interaction

Patterns. The 2nd International Conference on

Collaborative Computing. IEEE Press.

Neustaedter C., Bernheim Brush A.J., Smith, M. A., 2005.

Beyond "From" and "Received": Exploring the

Dynamics of Email Triage. CHI 2005.

Petrie, C., 2006. Semantic Attention Management. IEEE

Internet Computing, 10(5), 93-96, Sept/Oct, 2006.

Schümmer, T., 2005. A Pattern Approach for End-User

Centered Development Groupware Development.

EUL Verlag.

Venolia, G.D., Dabbish, L., Cadiz JJ, Gupta A., 2001.

Supporting Email Workflow. MSR-TR-2001-88.

PATTERN-BASED COLLABORATION IN AD-HOC TEAMS THROUGH MESSAGE ANNOTATION
