NAMED ENTITY RECOGNITION IN BIOMEDICAL LITERATURE

USING TWO-LAYER SUPPORT VECTOR MACHINES

Feng Liu, Yifei Chen

Computational Modeling Lab, Vrije Universiteit Brussel, Pleinlaan 2, 1050 Brussels, Belgium

Bernard Manderick

Computational Modeling Lab, Vrije Universiteit Brussel, Pleinlaan 2, 1050 Brussels, Belgium

Keywords:

Named entity recognition, gene/protein names identiﬁcation, support vector machine, two-layer structure,

boundary check.

Abstract:

In this paper, we propose a named entity recognition system for biomedical literature using two-layer support

vector machines. In addition, we employ a post-processing module called a boundary check module to elim-

inate some boundary errors, which can lead to improved system performance. Our system doesn’t make use

of any external lexical resources and hence it is a fairly simple system. Furthermore, with carefully designed

features and introducing a second layer, our system can recognize named entities in biomedical literature with

fairly high accuracy, which can achieve the precision of 83.5%, recall of 80.8% and balanced F

β=1

score of

82.1%, an approximate state of the art performance for the moment.

1 INTRODUCTION

In recent years, there is a growing interest in genome

research. Hence the amount of biomedical literature

published daily is increasing exponentially. For ex-

ample, MEDLINE(MEDLINE, 1966), the primary re-

search database in biomedical domain, is an online

bibliographic source of citations and abstracts dating

from 1966 till present and now contains more than 14

million abstracts. Therefore, extracting information

from the biomedical literature manually is not real-

istic any more and an urgent demand for automated

information extraction system in biomedical domain

has emerged.

The focus of this paper is on named entity recog-

nition (NER) in biomedicine. Named entities in

biomedicine include names of genes, proteins, gene

products, organisms, etc. NER is an important ﬁrst

step for information extraction in biomedical litera-

ture. Without precise recognition of these named en-

tities, it is impossible to extract the relations, infor-

mation and knowledge from the literature. However,

due to the complex biomedical nomenclature, NER in

biomedicine is often much more difﬁcult than that in

newswire domain. For example, named entities can

be full names (such as “fatty acid synthase”) or ab-

breviations (such as “FAS”). Even worse, sometimes

abbreviations are not acronyms. Moreover, a given

named entity can have several aliases (e.g., a gene for

nerve growth factor receptor has at least 10 different

names). In order to handle these difﬁculties, many

different approaches have been applied in the past few

years, Support Vector Machines (SVMs) (Mitsumori

et al., 2005; Takeuchi and Collier, 2003), Hidden

Markov Models (HMMs) (Zhou et al., 2005; Morgan

et al., 2004) and rule-based systems (Tamames, 2005;

Tanabe and Wilbur, 2002). In general, there are 2 di-

visions for NER systems in biomedicine.

• Closed: The system is only trained on the training

data without any external lexicon.

• Open: The system can make use of external lexi-

cal resources.

Usually open systems are more complicated than

closed ones because open systems need incorporate

external lexicons. Moreover, it is not trivial to uti-

lize the lexicons properly, which heavily depends on

how to constitute the lexicons and how to design the

lexicon matching strategies. Some papers (Kinoshita

et al., 2005; Zhou et al., 2005) reported that adding the

lexicons could improve the performance while other

papers (Song et al., 2004; Tsuruoka and Tsujii, 2003)

Liu F., Chen Y. and Manderick B. (2007).

NAMED ENTITY RECOGNITION IN BIOMEDICAL LITERATURE USING TWO-LAYER SUPPORT VECTOR MACHINES.

In Proceedings of the Ninth International Conference on Enterprise Information Systems - AIDSS, pages 39-45

DOI: 10.5220/0002357300390045

 SciTePress

claimed that the performance even decreased after in-

corporating the lexicons.

Here we propose a closed system for recognizing

named entities from biomedical literature using two-

layer support vector machines without utilizing any

external lexicon. Our system is efﬁcient due to its

simplicity and also effective because it can achieve

over 80% balanced F

β=1

score, an approximate state

of the art performance currently. We will discuss it in

detail in Section 2.

2 METHOD

2.1 Overview

Figure 1 shows our named entity recognition system.

We employ two SVMs to build a two-layer NER sys-

tem. The ﬁrst layer is from text to entity, which takes

original text as input and recognizes named entities

from text. Then the second layer is from entity to en-

tity, which takes named entities from the ﬁrst layer as

input, makes some corrections and outputs the ﬁnal

recognition.

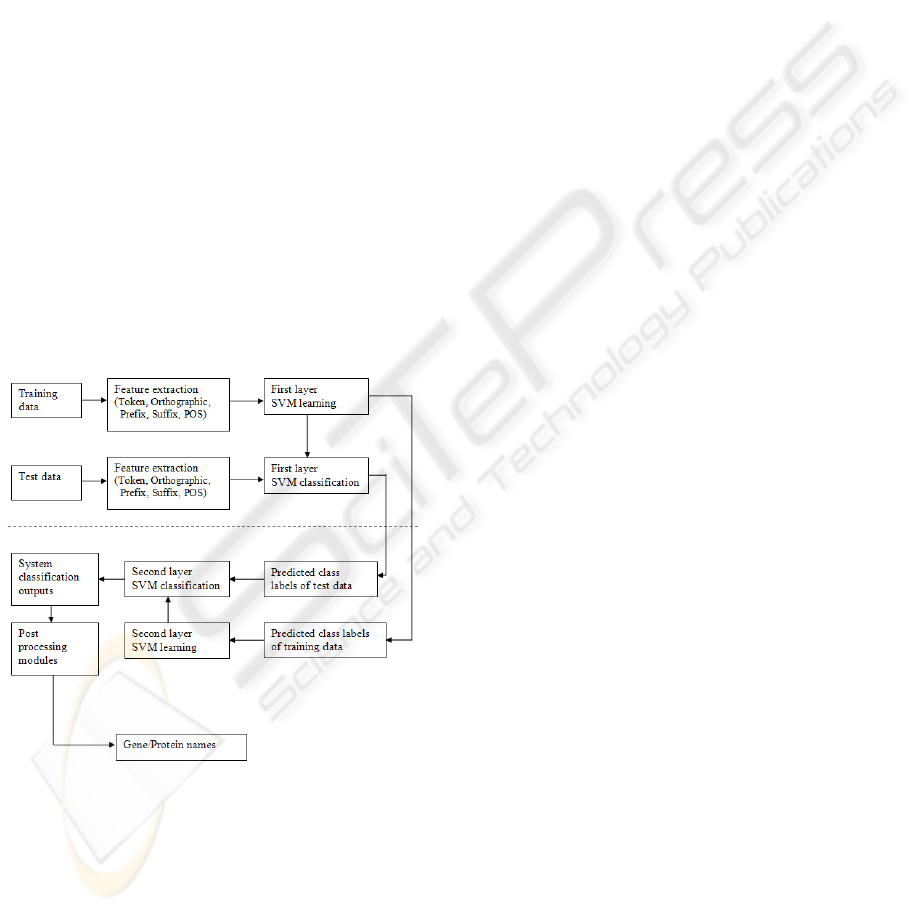

Figure 1: System Description.

2.2 Support Vector Machines

SVM (Vapnik, 1995) is a powerful machine learning

method, which was introduced by Vladimir Vapnik

and his colleagues in 1995. In SVM learning, the data

is mapped non-linearly from the original input space

X to a high-dimensional feature space F. Due to the

non-linear mapping to F, the complex non-linear de-

cision boundary in X becomes the simple linear deci-

sion boundary in F. Moreover, by introducing the ker-

nel function K, the mapping to F can stay implicit and

we can avoid working in the high-dimensional space

F; i.e., inner products in F can be directly calculated

by K taking vectors from the input space X and with-

out having to know the exact form of the mapping,

hence the implicit mapping and computational ben-

eﬁt. Finally, the decision boundary is deﬁned com-

pletely by inner products between vectors in F and

calculated through the kernel function K. Therefore,

in SVM learning, the most important design decision

is the choice of kernel function K.

In this paper we choose the toolbox LIBSVM

(Chang and Lin, 2001), a Jave/C++ library for SVM

learning, to implement our system. And we adopt the

following polynomial kernel as the kernel function:

X × X → R : K(

−→

) = (

−→

+ coef)

with coef = 0 and d = 2

2.3 Data Representation

The data used in our experiments is taken from the

training data of BioCreAtIvE II challenge (BioCre-

AtIvE, 2006), which consist of 15000 sentences de-

rived from MEDLINE abstracts that have been man-

ually annotated for names of genes/proteins and their

related entities.

The ﬁrst pre-processing step is tokenization. Un-

like NER systems in newswire domain, here we can’t

remove punctuation to make processing straightfor-

ward because many gene/protein names contain hy-

phens, parentheses, brackets and other type of punc-

tuation. Hence we split the sentences based on spaces

and punctuation. For example, an sentence “the

M-phase-inducing Cdc2/Cdc13 cyclin-dependent ki-

nase” is tokenized into the following tokens: “the”,

“M”, “-”, “phase”, “-”, “inducing”, “Cdc2”, “/”,

“Cdc13”, “cyclin”, “-”, “dependent”, “kinase”.

Then the second pre-processing step is assigning

the class label for each token. We use the traditional

BIO representation as follows.

• B: current token is the beginning of a named entity

• I: current token is inside a named entity

• O: current token is outside a named entity

Consider that “Cdc2/Cdc13 cyclin-dependent ki-

nase” is a named entity. Therefore after pre-

processing, the above sentence becomes “O the”, “O

M”, “O -”, “Ophase”, “O -”, “O inducing”, “B Cdc2”,

“I /”, “I Cdc13”, “I cyclin”, “I -”, “I dependent”, “I ki-

nase”.

ICEIS 2007 - International Conference on Enterprise Information Systems

2.4 Feature Extraction

In the ﬁrst layer, the following features are extracted

to represent each token.

• Token: token itself.

• Orthographic feature: Table 1 shows all the 22 or-

thographic features used in our system.

• POS: Part-of-speech of the current token. POS

can determine the syntactic functions of words

in text, which are very helpful for NER sys-

tems. However, POS taggers developed for

newswire domain don’t perform well when ap-

plied to biomedical literature. Hence we use the

MedPost tagger (Smith et al., 2004) in our system.

MedPost was trained on the MEDLINE corpus so

that it can achieve over 97% accuracy on MED-

LINE citations.

• Preﬁx: bi-, tri- and quad-preﬁx of the current to-

ken. For instance, the bi-, tri- and quad-preﬁx

of the token “transaminase” are “tr”, “tra” and

“tran”, respectively.

• Sufﬁx: bi-, tri- and quad-sufﬁx of the current to-

ken. Similarly, the bi-, tri- and quad-sufﬁx of

“transaminase” are “se”, “ase” and “nase”, re-

spectively.

Table 1: Orthographic features.

Feature Example

DigitNumber 12

GreekAlphabet gamma

SingleCapital T

InitialCapital Rho, Cdk

AllCapitals SCK

AllLowers kinin

Hyphen -

Backslash /

LeftBracket [

RightBracket ]

Colon :

SemiColon ;

Percent %

LeftParenthesis (

RightParenthesis )

Comma ,

Period .

Article the, a, an

Conjunction and, or

RomanNumber I, IV, X

LowerMixCapital lacZ

AlphabetMixDigit dig2

Other $, ?

Therefore each token can be represented by the

above 9 features. Furthermore, by sliding windows,

i.e., taking into account a few tokens before and after

the current token, we can retrieve the relevant infor-

mation from the neighboring tokens surrounding the

current token.

In the second layer, we only use one feature, the

predicted class labels from the ﬁrst layer, and also

make use of sliding windows.

2.5 Post Processing

In order to improve the performance further, we em-

ploy a post-processing module called a boundary

check module, which can recover the following kinds

of boundary errors.

• Boundary errors caused by our BIO represen-

tation: By identifying the label B, the system

can determine the beginning of the named entity.

However, sometimes the system fails to recognize

the label B. So we develop some rules to recover

the label B based on the neighboring tokens. For

example, a sample phrase “maternal alpha feto-

proteins” is recognized into “O maternal”, “I al-

pha” and “I fetoproteins”. According to the labels

of “alpha” and “fetoproteins”, the label of “mater-

nal” is reassigned to “B”.

• Boundary errors due to punctuation: -, +, /, ., etc.

For instance, a phrase “c-myc protein” is recog-

nized into “O c”, “B -”, “I myc” and “I protein”.

In order to recover the integrity, the labels of “c”

and “-” need to be changed into “B” and “I”, re-

spectively.

• Boundary errors due to missing trigger words:

Depending on the annotation guidelines of

BioCreAtIvE challenge, some words need to con-

sidered as part of names, e.g., receptor, enhancer,

promoter, mutant, etc. Hence, for example, if

only “FSH” in “FSH receptor” is recognized as

a named entity, we will add “receptor” into it.

3 RESULTS

The ﬁnal system is trained on the whole data (15000

sentences). We preform a 5-fold cross validation us-

ing 80% of the data as training data and the remaining

as test data. For the parameter selection, we try a wide

range of SVM cost parameterC from 2

−10

to 2

. And

in order to get the most suitable window size in slid-

ing windows, [−le ft, right] window ranges, [−3, 3],

[−2, 2], [−1, 1] and [0, 0] are carried out.

NAMED ENTITY RECOGNITION IN BIOMEDICAL LITERATURE USING TWO-LAYER SUPPORT VECTOR

MACHINES

NER systems are often evaluated by means of the

precision, recall and balanced F

β=1

score, which are

deﬁned as follows. “TP”, “FP” and “FN” are the

numbers of true positives, false positives and false

negatives.

Precison =

TP+ FP

Recall =

TP+ FN

β=1

(β

+ 1) · Recall · Precision

· Recall + Precision

Next, we will present our results and compare

them to other methods that have been applied on the

mostly similar data set, which are shown in Table 2 as

follows.

Table 2: Evaluation results of our system compared with

other systems.

Method Precision Recall F

β=1

Our system

0.835 0.808 0.821

Two-layers SVMs

PosBIOTM-Ner 0.800 0.685 0.738

YamCha 0.825 0.742 0.781

Rule-based tagger 0.843 0.718 0.775

HMM-based tagger 0.803 0.814 0.809

PowerBioNE 0.820 0.832 0.826

Our best result is obtained when C = 1 and

[−le ft, right] window size is [−2, 2]. The results of

PosBIOTM-Ner, Yamcha, Rule-based tagger, HMM-

based tagger and PowerBioNE are taken from (Song

et al., 2004), (Mitsumori et al., 2005), (Tamames,

2005), (Kinoshita et al., 2005) and (Zhou et al., 2005)

respectively.

PosBIOTM-Ner and Yamcha are both based on

SVM algorithm and BIO representation, the same

as our system. PosBIOTM-Ner makes use of edit-

distance as a signiﬁcant contributing feature for SVM

while Yamcha uses an external lexicon composed of

SWISS-PROT and TrEMBL data. From Table 2, it

can be easily seen that our system based on two-layer

SVMs can outperform these two systems, i.e., F

β=1

score is 8.3% higher than PosBIOTM-Ner and 4%

higher than Yamcha. Also our system can achieve

better performance than Rule-based and HMM-based

taggers.

Notice that our system performs a little worse

than PowerBioNE. We’ve achieved 1.5% higher pre-

cision but 2.4% lower recall, which leads to 0.5%

lower F

β=1

score. This is not surprising for us be-

cause PowerBioNE is a complex system, which is

an ensemble of classiﬁers in which three classiﬁers,

one SVM and two discriminative HMMs, are com-

bined using a simple majority voting strategy. In addi-

tion, PowerBioNE incorporates three post-processing

modules to improve the performance further. In the

paper (Zhou et al., 2005), they report that SVM clas-

siﬁer can get higher precision while HMM classiﬁer

can obtain higher recall. We think that is why our

system has lower recall than PowerBioNE. However,

considering the simplicity of our approach, our sys-

tem is still comparable to PowerBioNE.

In a word, our system can outperform most of

above systems and achieve an approximate state of

the art result, though it is relatively simple and doesn’t

utilize any external lexical resources.

4 DISCUSSION

In the following sections, we start by discussing our

system in detail from different kinds of aspects. Then

we will give a comprehensive error analysis.

4.1 Contributions of Different Features

The effects of each feature in the ﬁrst layer in our sys-

tem are shown in Table 3. The row of “token(base)”

shows the result when only the token feature is used

in the SVM learning. The other rows show the re-

sults when the token feature plus one other feature are

used in the learning, i.e.,“+orthographic” means the

token plus the orthographic feature; “+POS” means

the token feature plus the MedPost POS feature; “+bi-

preﬁx/sufﬁx” means the token feature plus the bi-

preﬁx and bi-sufﬁx features, etc.

Table 3: Contributions of each feature after added into the

base feature.

Precision Recall F

β=1

token (base) 0.714 0.491 0.581

+orthographic 0.729 0.709 0.719

+MedPost POS 0.717 0.541 0.616

+bi-preﬁx/sufﬁx 0.760 0.615 0.680

+tri-preﬁx/sufﬁx 0.750 0.571 0.648

+quad-preﬁx/sufﬁx 0.728 0.530 0.613

From Table 3, it shows that the orthographic fea-

ture and the bi-preﬁx/sufﬁx feature are critical for

our system, which improve F

β=1

score by 13.8% and

9.9% compared with the base. Moreover, most of the

features in Table 3 can’t affect the precision so much

while they mostly have great effects on the recall.

Then, as mentioned above, we use MedPost for

POS tagging, which was trained on the MEDLINE

ICEIS 2007 - International Conference on Enterprise Information Systems

Table 4: Effects of different POS taggers.

POS tagger Precision Recall F

β=1

MedPost 0.770 0.783 0.777

TreeTagger 0.764 0.774 0.769

corpus. To demonstrate the effects of using differ-

ent POS taggers in our system, we replace MedPost

with TreeTagger (Schmid, 1994), which was trained

on newswire articles, to retrain our system. The re-

sults are shown in Table 4. It can be seen that MedPost

performs slightly better than TreeTagger but the dif-

ference is too small to be signiﬁcant. Together with

the results from Table 3, we can conclude that the

POS feature can’t affect our system very much.

4.2 Contributions of the Second Layer

Introducing a second layer isn’t unusual. A similar

approach has been applied successfully in protein sec-

ondary structure prediction (Rost, 2003).

Our system performs prediction in two layers,

where the ﬁrst layer is a text to entity step and the

second layer is a entity to entity step, i.e., the named

entities that are predicted in the ﬁrst layer are fed to a

new classiﬁer in the second layer. Table 5 shows the

detailed results of various layers in our system.

Table 5: Contributions of various layers in our system.

Precision Recall F

β=1

the ﬁrst layer 0.770 0.783 0.777

the second layer 0.811 0.792 0.801

From Table 5, it is clear that the precision, recall

and F

β=1

score are increased by 4.1%, 0.9% and 2.4%

respectively, which means that the second layer can

improve the performance of our system greatly. We

think the reason is that based on the prior prediction

from the ﬁrst layer and making use of sliding win-

dows, our system can output more reﬁned named en-

tities according to the prior prediction together with

its neighbors.

4.3 Effect of Post Processing

We carry out a boundary check post-processing mod-

ule to make sure the integrity of the named entities.

Table 6 shows the performance of the boundary check

module.

In NER systems, boundary errors of named enti-

ties are very critical because they can increase both

false positive errors and false negative errors. We

can elaborate it by the following example. Suppose

Table 6: Performance of the boundary check module.

Precision Recall F

β=1

before

0.811 0.792 0.801

boundary check

after

0.835 0.808 0.821

boundary check

that a sample phrase “NF-kappa Bp50” is recognized

wrongly to “O NF”, “B -”, “I kappa” and “I Bp50”,

which leads to both a false positive error (“-kappa

Bp50” isn’t a gene/protein name) and a false neg-

ative error (“NF-kappa Bp50” isn’t recognized cor-

rectly). Therefore, it is essential to introduce a bound-

ary check module in our system.

From Table 6, it is clear that the precision, re-

call and F

β=1

score are increased by 2.4%, 1.6% and

2.0%, respectively. This means that the boundary

check module can effectively correct some boundary

errors and consequently improve the performance of

our system further.

4.4 Error Analysis

Finally, we conduct an error analysis to ﬁnd out where

our system can be improved in the future. We catego-

rize all the errors into 5 classes.

• boundary errors only occur on the left side, which

are those errors with the correct right boundary

but the incorrect left boundary.

• boundary errors only occur on the right side,

which are those errors with the correct left bound-

ary but the incorrect right boundary.

• boundary errors occur on both sides, which are

those errors with both the wrong right boundary

and the wrong left boundary.

• non-boundary false positive errors are those errors

which are wrongly recognized into named entities

and don’t contain any boundary errors.

• non-boundary false negative errors are those er-

rors which are missed being identiﬁed to named

entities and don’t contain any boundary errors.

Figures 2 and 3 show the distribution of the above

5 kinds of errors before and after a boundary check

module, respectively.

Boundary errors may be the easiest ones to solve

because at least our system has correctly recognized

part of the named entities, which can give useful clues

to correct the errors. Through comparing Figures 2

and 3, the boundary check module indeed can reduce

some boundary errors, about 2% less on average. But

NAMED ENTITY RECOGNITION IN BIOMEDICAL LITERATURE USING TWO-LAYER SUPPORT VECTOR

MACHINES

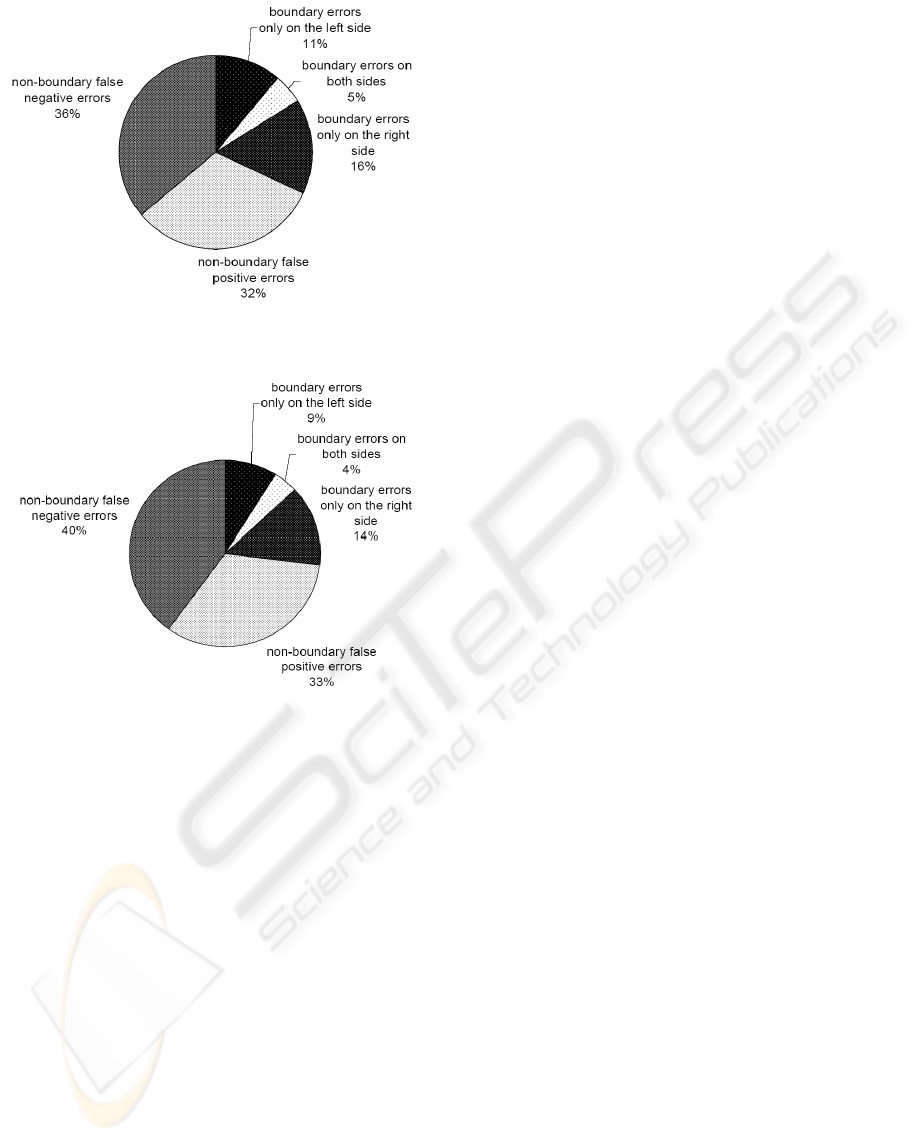

Figure 2: Proportions of different classes of errors before a

boundary check module.

Figure 3: Proportions of different classes of errors after a

boundary check module.

we need optimize this module further since there are

still 27% boundary errors left in our system.

The remaining 73% errors are composed of false

positive errors (33%), which often occur when a noun

phrase is a generic term (“mRNA”, “gene”) or mixed

with digits and capitals (“W85”), and false negative

errors (40%), which often occur when our system has

little related information and context clues.

5 CONCLUSION

In this paper, we ﬁrst propose a named entity recog-

nition system for biomedical literature using two-

layer support vector machines and then present a post-

processing module called a boundary check module

to improve the performance further. The results show

that with carefully designed features and introducing

a second layer, our system can recognize named enti-

ties with fairly high accuracy, even without using ex-

ternal lexicons.

In the future, we will consider more modules to re-

solve the abbreviations, the aliases, etc. Furthermore,

we will explore appropriate approaches to make use

of external knowledge resources, e.g., lexicons, full

MEDLINE abstracts and web searches.

ACKNOWLEDGEMENTS

The ﬁrst author Feng Liu is funded by a doctoral grant

of the Vrije Universiteit Brussel (VUB) and the sec-

ond author Yifei Chen is funded by a doctoral grant of

the Fonds voor Wetenschappelijk Onderzoek (FWO).

REFERENCES

BioCreAtIvE (2006). The second biocreative - critical as-

sessment for information extraction in biology chal-

lenge. http://biocreative.sourceforge.net.

Chang, C.-C. and Lin, C.-J. (2001). LIBSVM: a library

for support vector machines. Software available at

http://www.csie.ntu.edu.tw/ cjlin/libsvm.

Kinoshita, S., Cohen, K. B., Ogren, P. V., and Hunter, L.

(2005). Biocreative task 1a: entity identiﬁcation with

a stochastic tagger. BMC Bioinformatics, 6(Suppl

1):S4.

MEDLINE (1966). http://www.nlm.ih.gov.

Mitsumori, T., Fation, S., Murata, M., Doi, K., and Doi,

H. (2005). Gene/protein name recognition based on

support vector machine using dictionary as features.

BMC Bioinformatics, 6(Suppl 1):S8.

Morgan, A. A., Hirschman, L., Colosimo, M., Yeh, A. S.,

and Colombe, J. B. (2004). Gene name identiﬁcation

and normalization using a model organism database.

Journal of Biomedical Informatics, 37(6):396–410.

Rost, B. (2003). Rising accuracy of protein secondary struc-

ture prediction. Protein structure determination, anal-

ysis, and modeling for drug discovery, pages 207–249.

Schmid, H. (1994). Probabilistic part-of-speech tagging us-

ing decision trees. In International Conference on

New Methods in Language Processing, Manchester,

UK.

Smith, L., Rindﬂesch, T., and Wilburn, W. J. (2004). Med-

post: a part-of-speech tagger for biomedical text.

BIOINFORMATICS, 20(14):2320–2321.

Song, Y., Yi, E., Kim, E., and Lee, G. G. (2004). Posbiotm-

ner: A machine learning approach for bio-named en-

tity recognition. In Proceedings of BioCreAtIvE Work-

shop, Granada, Spain.

Takeuchi, K. and Collier, N. (2003). Bio-medical entity ex-

traction using support vector machine. In Proceedings

of the ACL-03 Workshop on Natual Language Pro-

cessing in Biomedicine, pages 57–64.

ICEIS 2007 - International Conference on Enterprise Information Systems

Tamames, J. (2005). Text detective: a rule-based system for

gene annotation in biomedical texts. BMC Bioinfor-

matics, 6(Suppl 1):S10.

Tanabe, L. and Wilbur, W. J. (2002). Tagging gene and

protein names in biomedical text. Bioinformatics,

18(8):1124–1132.

Tsuruoka, Y. and Tsujii, J. (2003). Boosting precision and

recall of dictionary-based protein name recognition.

In Proceedings of the ACL 2003 Workshop on NLP in

Biomedicine, pages 41–48.

Vapnik, V. (1995). The nature of statistical learning theory.

Springer-Verlog, New York.

Zhou, G., Shen, D., Zhang, J., Su, J., and Tan, S. (2005).

Recognition of protein/gene names from text using an

ensemble of classiﬁers. BMC Bioinformatics, 6(Suppl

1):S7.

NAMED ENTITY RECOGNITION IN BIOMEDICAL LITERATURE USING TWO-LAYER SUPPORT VECTOR

MACHINES
