INDUCTION OF DATA QUALITY PROTOCOLS
INTO BUSINESS PROCESS MANAGEMENT
Shazia Sadiq
1
, Maria Orlowska
1
and Wasim Sadiq
2
1
School of Information Technology and Electrical Engineering
The University of Queensland, St Lucia, QLD 4072, Brisbane, Australia
2
SAP Research Centre, 133 Mary Street, QLD 4000, Brisbane, Australia
Keywords: Business Process Management, Enterprise Application Integration, Data Quality, Master Data Management.
Abstract: Success of large projects may be compromised due to lack of governance and control of data quality. The
criticality of this problem has increased manifold in the current business environment heavily dependent on
external data, where such data may pollute enterprise databases. At the same time, it is well recognized that
an organization’s business processes provide the backbone for business operations through constituent
enterprise applications and services. As such business process management systems are often the first point
of contact for dirty data. It is on the basis of this role that we propose that BPM technologies can and should
be viewed as a vehicle for data quality enforcement. In this paper, we target a specific data quality problem,
namely data mismatch. We propose to address this problem by explicitly inducting requisite data quality
protocols in to the business process management system.
1 INTRODUCTION
The issue of data quality is as old as data itself.
However it is now exposed at a much more strategic
level e.g. through data warehouses (DW) and
business intelligence (BI) systems (Butler Group,
2006), increasing manifold the stakes involved.
Corporations routinely operate and make strategic
decisions based on remarkably inaccurate or
incomplete data.
Reliance on inconsistent, incorrect or incomplete
data exposes organizations to unacceptable business
risk. Poor quality data jeopardizes the performance
and efficiency of the most sophisticated operational
systems, and undermines the value of DW and BI
systems on which organizations rely to make key
decisions.
The problem of data quality continues to be
widely recognized. Literature provides evidence of
the uptake of these recommendations at a
management level. (Redman, 1996). However, for
the digital era it is critical that these governance
protocols have a translation into the technology
frameworks. Research works, as well as product
developments, endeavour to provide reliable data
quality control methods, see e.g. DataFlux, SAP
MDM, Trillium Software.
The last decade is marked with unprecedented
progress and advances in business process
automation. Underpinning business process
management (BPM) technologies is the ability to
control and streamline the flow of data across
disparate applications. BPM has provided significant
advances through unification of data flow and
formats at the process level, and thereby eliminated
many standard errors.
Although BPM provides the ability to improve
data quality by controlling data flow of process
relevant data, this implicit advantage only covers the
quality issue to a limited extent. We argue that
business process management should explicitly
undertake the inclusion of data quality protocols,
particularly in the presence of external data sources
where semantic differences are the norm. Business
processes (with their constituent applications and
services) are the creators of data within the
enterprise. By interjecting explicit steps for data
quality management, we not only catch the issue at
the source, but also enable organizations to
capitalize on BPM technology infrastructure to meet
their data quality requirements.
In this paper, we advocate an approach that
explicitly includes data quality protocols within the
realm of business process management. Following
473
Sadiq S., Orlowska M. and Sadiq W. (2007).
INDUCTION OF DATA QUALITY PROTOCOLS INTO BUSINESS PROCESS MANAGEMENT.
In Proceedings of the Ninth International Conference on Enterprise Information Systems - DISI, pages 473-476
DOI: 10.5220/0002363504730476
Copyright
c
SciTePress
sections respectively provide necessary background
on data quality methods and process data, followed
by a discussion on the proposed approach.
2 RELATED WORK ON DATA
QUALITY METHODS
Data Quality has been studied from several aspects.
In this paper we are targeting specifically the data
mismatch problem, where incomplete or inconsistent
data enters enterprise databases and subsequently
leads to serious consequences for business reporting.
This data may be created internally (e.g. errors in
data entry) or may arrive from external sources (e.g.
through message exchange).
Data mismatch (compared data is semantically
equivalent but native representation of values is
different), by contrast to schemata mismatch (Rahm
& Bernstein, 2001), is frequently observed in
practice; such as different abbreviation conventions,
different standards for data representation, different
units and coding, etc., Significant work has been
done on string matching and similarity detection e.g.
(Gravano et al, 2003), (Koudas et al., 2004).
However, the problem goes beyond textual
comparisons, and without data cleaning,
representational consistency and redundancy
removal, applications may be generating
syntactically correct computation on data, but not
reflecting reality.
Most BPM engines provide a message gateway
for interaction with external applications and/or
API’s to invoke internal applications, hence making
them the first point of contact for dirty or
mismatched data. It is on the basis of this role that
we propose that BPM technologies can and should
be viewed as a vehicle for data quality enforcement.
3 UNDERSTANDING PROCESS
DATA
Essentially, data requirements include anything that
an activity requires to initiate, continue or be
completed. The practical approach is that process
designers and associated domain experts provide
activity specific data requirements, and to some
extent the flow of data in an activity’s immediate
neighbourhood. Accordingly, data requirements are
captured in terms of individual activities.
The process model (P) is defined through a
directed graph consisting of Nodes (N) and Flows
(F). Nodes are classified into tasks (T) and
coordinators (C), where C T, C T = φ. We
define Process Data (P-Data) as a set of data items
{v
1
, v
2
, … v
k
} for a process P, where.
n N, V
i
n
is a set of data items that n consumes,
n T, V
o
n
is a set of data items that n produces,
where V
i
, V
o
P-Data
Only nodes of type T (task) have an associated
output set of variables, this is because nodes of type
C (coordinator) require only to read data and make
control flow decision based on that data.
In order to enrich the understanding of a process
data model, we discuss briefly a number of
properties of process data (Sadiq et al., 2004).
Typical types of data used by process activities
includes: R
i
:Reference. data that is used for the
identification of the instance or case
etc,.O
i
:Operational. such as customer address,
student visa status, size of dwelling etc.,D
i
:Decision.
needed by choice coordinators, and C
i
:Contextual.
Contextual data is typically of a complex structure,
and may or may not be pre-defined. Example of
contextual data is quotation for a fax machine,
student transcript, building covenants etc.
In any activity based data model, there will be
flow of data between activities of the process.
However, not all data is available through internal
process activities. There is a need to at least
distinguish between the internal and external
sources of data.
An Internal source or destination implies a
read/write from the Process Data Store. Process
data store is a complex data structure which contains
values assigned to process data items as well as a
history of read/write transactions performed on the
data items. Use of process data store is widely
adopted in business process execution systems.
3.1 Process Data Errors
Process data (flow) may encounter a number of
problems during process execution:
Redundant Data: Occurs when a designer
specifies data item/s v
k
in the output schema
Output(n) of an activity, but this data is not required
in the input schema Input(n) of any succeeding
activity..
Lost Data: Occurs when the same data item v
k
has been specified as the output of two (or more)
activities that may be executed in parallel .
Missing Data: Occurs when a data item v
k
has
been specified in the input schema Input(n) for an
activity but the source of the data item is
unknown/unspecified.
ICEIS 2007 - International Conference on Enterprise Information Systems
474
Misdirected Data: Occurs when data flow
direction conflicts with control flow in the same
process model.
Redundant, lost, missing and misdirected data
are relatively easy to identify and verification
algorithms at design time can help remove these
errors.
Insufficient Data: Occurs if the data specified is
sufficient to successfully complete an activity. There
is a range of contextual and semantic issues with
regard to data completeness which are beyond the
scope of this paper.
Incompatible Data: The case of structural
mismatch may arise when the structure of the data
produced by the source is incompatible with the
structure required by the activity, or more precisely
by the application(s) invoked by the activity.
Stale Data: An activity retrieves a data item v
k
from an application or human participant and stores
that item and its value in the process data store,
which may be utilised later in the process by another
activity. The problem is if during that idle time (after
the item has been retrieved and before being read)
the data item value is updated externally to the
process.
Inconsistent Data: An activity retrieves a data
item v
k
during application invocation (or from an
external sources through a message gateway).
However the value retrieved is not consistent with
some established value set. For example country
value retrieved is “America” however representation
in the value set is “USA”.
The last two problems of Stale Data and
Inconsistent Data fall under the scope of the data
mismatch problem discussed in section 2. Both
problems can compromise the quality of enterprise
data through entry and/or processing of “dirty”
(stale/inconsistent) data. The strategy to address
these data quality problems using BPM
infrastructure is presented in the next section.
4 PROCESS DATA
MANAGEMENT
Our approach is based on the widely used notion of
process data store. Basically the process data store
maintains process relevant application data (i.e. all
input and output data which are identified as having
an internal source/destination).
In order to tackle the problems of stale and
inconsistent data, we propose to extend the basic
process data management model of the BPMS. Our
basic assumption in this undertaking is that problems
related to formatting differences.
The problem of stale data identifies a need for a
refresh strategy to be established so that stale data is
not routed to associated applications which may
pollute enterprise databases further. The problem of
inconsistent data identifies a need for a semantic
lookup. Thus any data from external sources must be
made consistent with established value sets within
the organization, before it is utilized by other
process activities and consequently enterprise
applications.

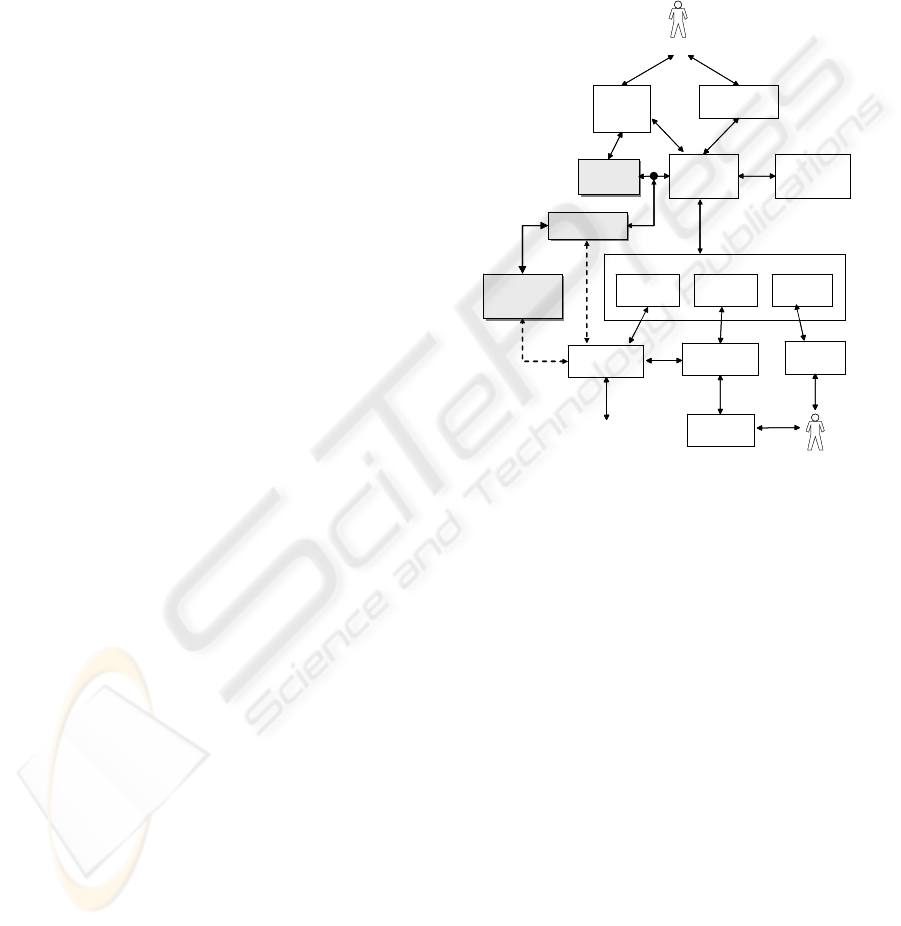

Figure 1: Extended BPMS Reference Architecture.
Both problems indicate an evident need for a
trusted corporate master data resource that must be
consulted before external data is internalized by the
BPMS. Master data is available in various forms and
functionalities in enterprise software solutions (see
e.g. SAP Netweaver MDM). We believe that the
explicit interconnect of master data with the BPMS
will provide significant benefits in terms of (process)
data control and quality.
Figure 1 shows a generic BPMS reference
architecture, extended by a new component, namely
the Business Process/Data Quality Monitor
(BP/DQM). We assume that BP/DQM provides a
gateway to corporate master data.
4.1 Data Quality Protocol
In terms of the functionality of BP/DQM, it is
basically intended to implement a tailored data
quality protocol:
1 - Data Profiling - Process Data (P-Data)
which is a union of all inputs and outputs from
Process
Modeling
Tool
Process
Data Store
Process
Enactment
Engine
Administration
Tools
Viewing,
Monitoring,
and Analysis
Participant Manager
Worklist
Handler
Event
Handler
Application
Handler
User
Worklist
Application
Components
Process User
Business Analyst
User
Dialogs
Collaboration
Partners
Messaging
Infrastructure
External
Data
Internal
Data
BP/DQM
Corporate
Master
Data
Validation
of Stale and
Inconsistent
Data
Process
Modeling
Tool
Process
Modeling
Tool
Process
Data Store
Process
Data Store
Process
Enactment
Engine
Process
Enactment
Engine
Administration
Tools
Administration
Tools
Viewing,
Monitoring,
and Analysis
Viewing,
Monitoring,
and Analysis
Participant ManagerParticipant Manager
Worklist
Handler
Worklist
Handler
Event
Handler
Event
Handler
Application
Handler
Application
Handler
User
Worklist
User
Worklist
Application
Components
Application
Components
Process UserProcess User
Business AnalystBusiness Analyst
User
Dialogs
User
Dialogs
Collaboration
Partners
Collaboration
Partners
Messaging
Infrastructure
Messaging
Infrastructure
External
Data
Internal
Data
BP/DQM
Corporate
Master
Data
Validation
of Stale and
Inconsistent
Data
INDUCTION OF DATA QUALITY PROTOCOLS INTO BUSINESS PROCESS MANAGEMENT
475
process activities, i.e. P-Data = V
i
n
V
o
n
may not
be maintained in the process data store in its
entirety, since only process data items v P-Data,
for which either Source(v) = {Internal} or
Destination(v) = {Internal} will be maintained.
Ideally, each data item belonging to this subset of
internal data, but especially for data items also
belonging to reference and operational data sets (i.e.
R
i
n
O
i
n
R
o
n
O
o
n
), there is a need to profile
them against the corporate master data. We refer to
this subclass of data as Quality Sensitive Data
(QSD).
Profiling basically entails a mapping of all items
of QSD to corporate master data items. Thus
profiling will not only enable the organization to
identify quality sensitive data relevant to the
process, but also assist in ensuring that corporate
master data repositories are not negligent of such
process critical data. The task of profiling identifies
a need for tool support within the BP/DQM
component that enables the mapping to be
undertaken.
2 - Data Linking - Establishing the link between
the master data and various enterprise data sources is
a critical step in the overall data quality protocol.
Ability to prepare master data from disparate
systems within the enterprise, into a centralized
repository is already available to some extent, see
e.g. SAP NetWeaver Master Data Management .
3 - Data Refresh - Potentially, any data item
read from the process data store may be stale.
Although serious impact of reading stale data may
be limited to QSD. Thus the read operation of the
process data store initiated by the process enactment
system (see Figure 1), must trigger a refresh from
the corporate master data through BP/DQM.
Profiling and linking of QSD will reduce the
problem to a simple search, read and upload. In the
absence of profiling/linking steps, the difficulty to
find the latest version of the QSD within enterprise
application databases is rather evident.
4 - Data Unification - Unification is arguably
the most difficult part of this protocol. Potentially
write/update of any item in QSD can introduce
inconsistency. As a result, the BP/DQM must trigger
a semantic lookup in the corporate master data in
order to provide a unified view of process data.
However, such a lookup must determine if a
particular data value is being represented differently
in the corporate master data, and if so, what is the
preferred value. For example, “High Density WP
‘33”, “Wide Panel 33’ HD”, “HDWP33” may all
represent the same entity. Research results on text
similarity (Gravano et al, 2003), may be used in this
regard to a limited extent. Building synonym listings
(Koudas et al., 2004) as part of corporate master data
may assist further, but in most cases human
intervention may be required to determine semantic
equivalence of two data values.
5 CONCLUSIONS
The induction of data quality protocols should take
place within business process management systems,
as business processes typically provide the first point
of contact for enterprise applications through which
enterprise data is created and maintained. We have
undertaken a detailed analysis of process relevant
data, outlining its properties as well as typical errors.
The enhanced understanding of process data through
this analysis has led to the development of an
extended BPMS reference architecture that proposes
an additional component, namely the BP/Data
Quality Monitor (BP/DQM).
The scope of this paper covers a basic discussion
on BP/DQM functionality. The proposed protocol
needs to be developed at a finer level in order to
fully demonstrate the capability (and limitations) of
the proposed BP/DQM. In particular, the semantic
lookup required for data unification (addressing the
problem of inconsistent data), holds many
challenges. This aspect of the problem is the current
focus of our work.
REFERENCES
Butler Group. 2006. Data Quality and Integrity –
Ensuring Compliance and Best use for organizational
data assets. Feb 2006.
L. Gravano, P. G. Ipeirotis, N. Koudas, D. Srivastava.
2003. Text joins for data cleansing and integration in
an rdbms., in: Proceedings of the 19th International
Conference on Data Engineering, IEEE Computer
Society, 2003
N. Koudas, A. Marathe, D. Srivastava. 2004. Flexible
string matching against large databases in practice., in:
Proceedings of the Thirtieth International Conference
on Very Large Data Bases, Morgan Kaufmann, 2004.
Frank Leymann, D. Roller. 2000. Production Workflow:
Concepts and Techniques. Sydney, Prentice-Hall of
Australia Pty. Limited.
E. Rahm, P. A. Bernstein. 2001. A survey of approaches to
automatic schema matching, The VLDB Journal 10 (4)
(2001) 334–350.
Thomas Redman. 1996. Data Quality for the Information
Age.Artech House 1996.
Shazia Sadiq, Maria Orlowska, Wasim Sadiq, Cameron
Foulger. 2004. Data Flow and Validation in Workflow
Modelling. The Fifteenth Australasian Database
Conference Dunedin, New Zealand, January 18 -- 22,
2004.
ICEIS 2007 - International Conference on Enterprise Information Systems
476
