A VIRTUALIZATION APPROACH

FOR REUSING MIDDLEWARE ADAPTERS

Ralf Wagner

University of Stuttgart, IPVS, Germany

Bernhard Mitschang

University of Stuttgart, IPVS, Germany

Keywords:

Middleware, adapter, reuse, virtualization, integration.

Abstract:

Middleware systems use adapters to integrate remote systems and to provide uniform access to them. Different

middleware platforms use different adapter technologies, e.g. the J2EE platform uses J2EE connectors and

federated database systems based on the SQL standard use SQL wrappers. However, a middleware platform

cannot use adapters of a different middleware platform, e.g. a J2EE application server cannot use an SQL

wrapper. Even if an SQL wrapper exists for a remote system that is to be integrated by a J2EE application

server, a separate J2EE connector for that remote system has to be written.

Tasks like that occur over and over again and require to invest additional resources where existing IT infras-

tructure should be reused. Therefore, we propose an approach that allows to reuse existing adapters. Reusing

adapters is achieved by means of a virtualization tier that can handle adapters of different types and that pro-

vides uniform access to them. This enables middleware platforms to use each others adapters and thereby

avoids the costly task of writing new adapters.

1 INTRODUCTION

Middleware systems are commonly used in IT infras-

tructures. They integrate diverse remote systems and

allow applications to uniformly access them. Remote

systems are integrated by means of adapters that are

plugged into the middleware and that natively access

the remote systems. Generally, there is a number

of different middleware platforms and adapter tech-

nologies. They comprise commercial off-the-shelf

(COTS) products as well as research prototypes or in-

house integration platforms.

Well-known examples of COTS products are

IBM WebSphere Message Broker, Microsoft Biztalk

or SAP Netweaver. Often they support industry

standards such as the J2EE connector architecture

(Sun, 2003), SQL Management of External Data

(SQL/MED) (ISO, 2003) or the Web Services Archi-

tecture (Booth et al., 2004). Well-known examples of

research prototypes are TSIMMIS (Chawathe et al.,

1994), Information Manifold (Levy, 1998) or Garlic

(Roth and Schwarz, 1997).

A company’s tasks and processes change over

time and thus its IT systems have to be reengineered

to adapt to these changes. This reengineering task

is complex and requires to modify, extend or differ-

ently arrange and interconnect applications, middle-

ware systems, database system and other back-end

systems.

1.1 Example Scenario

Imagine the following example of a typical integra-

tion scenario as shown in Figure 1: a J2EE-based

decision support system is calculating some enter-

prise information. It already uses two remote sys-

tems, a customer relationship management system

(CRM system) and a database system of a human re-

sources application (HR DBS). The enterprise appli-

cation now has to be extended (dark shaded boxes)

to additionally comprise information available from

a product management system (PDM system), which

is already integrated into a federated DBS by means

of a PDM SQL wrapper. Analogously, we now need

a PDM J2EE connector to integrate the PDM system

into the J2EE application server and to use it with the

Wagner R. and Mitschang B. (2007).

A VIRTUALIZATION APPROACH FOR REUSING MIDDLEWARE ADAPTERS.

In Proceedings of the Ninth International Conference on Enterprise Information Systems - DISI, pages 78-85

DOI: 10.5220/0002365600780085

 SciTePress

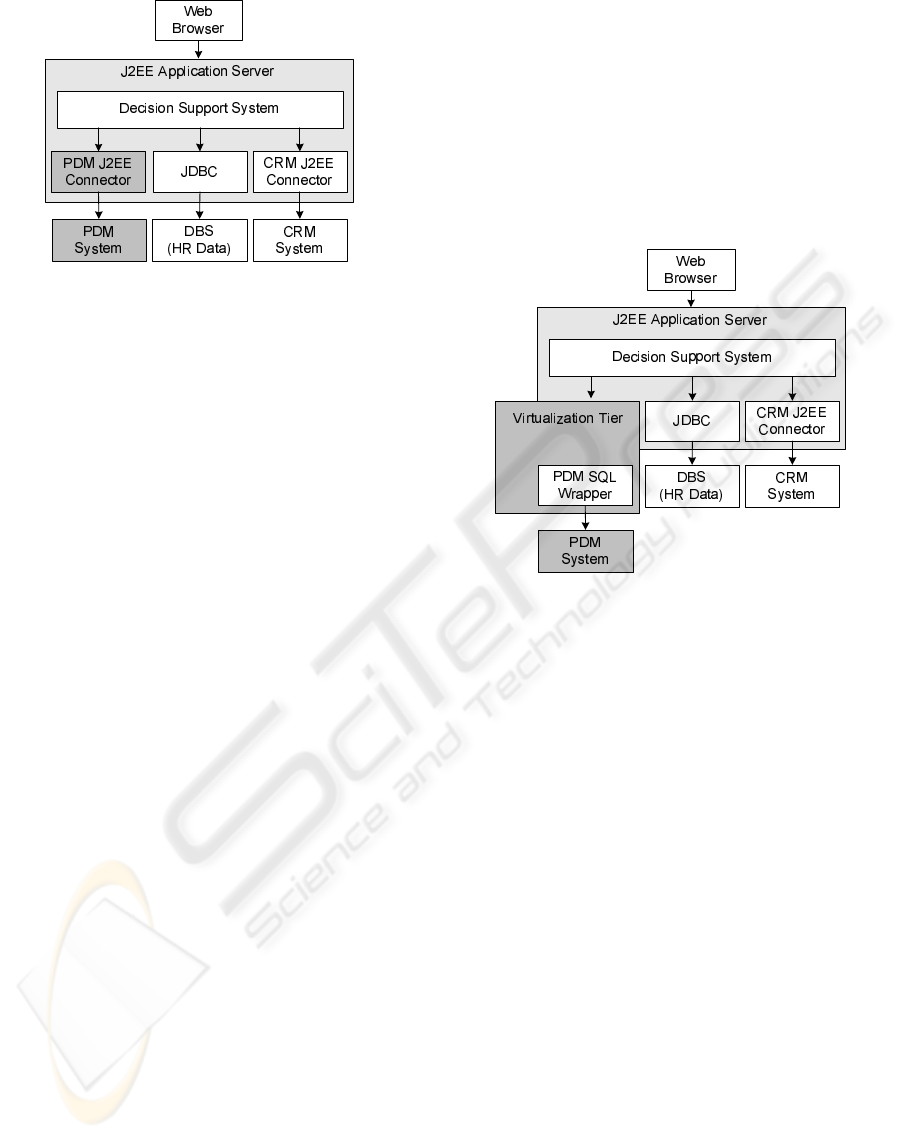

Figure 1: Integration Example: J2EE-Based Enterprise Ap-

plication.

decision support system.

The problem is that there is quite a number of pos-

sible combinations of middleware systems, adapters

and remote systems and thus it is very likely that there

is no PDM J2EE connector available, but that we have

to write a new one.

1.2 Proposed Solution

However, writing a new adapter usually is an expen-

sive, lengthy and error-prone task since it requires

substantial knowledge about the middleware, the re-

mote system to be integrated, and the adapter tech-

nology to be used for this integration task. The mid-

dleware comprises a processing model, a data model,

a programming model, an error model, quality of ser-

vice requirements, etc., which the adapter program-

mer has to know about and has to deal with. The

remote system usually owns a different processing

model, data model, programming model, etc., which

the adapter programmer also has to deal with. Fi-

nally, the adapter technology provides a programming

framework that allows to bridge between the middle-

ware and the remote system requiring further knowl-

edge and programming skills for writing an adapter.

In contrast, an existing adapter of course already

passed these tasks. Moreover, it has already been

tested and maintained in productive use and now

works properly. Thus, it would be beneﬁcial to avoid

writing a new adapter and to use an existing adapter

instead. In our example, we would like to reuse the

PDM SQL wrapper instead of writing a new PDM

J2EE connector. The problem is that different adapter

technologies usually are not compatible, i.e. we can-

not use the PDM SQL wrapper with the J2EE appli-

cation server.

What we need is a mechanism that allows to reuse

adapters in different integration scenarios and with

different middleware platforms. Therefore, we pro-

pose a virtualization tier that uses adapters as their

respective middleware platforms would do, but that

additionally virtualizes them, i.e. allows to uniformly

handle and access the adapters. In Figure 2, the PDM

SQL wrapper is deployed into the virtualization tier.

Now, the J2EE application server can access the PDM

system by reusing the PDM SQL wrapper via the vir-

tualization tier. Hence, there is no need for writing a

new PDM J2EE connector.

Figure 2: Solution of the Integration Example Using the

Virtualization Tier.

Note that the proposed solution cannot just be re-

placed by adapters that are wrapping other adapters,

e.g. a J2EE connector wrapping the PDM SQL wrap-

per. The reason is that wrapping an adapter would

require to provide a complete adapter execution en-

vironment, which clearly is middleware functional-

ity since the middleware is executing and handling

adapters. Therefore, an “adapter” wrapping another

adapter would be more a middleware than an adapter.

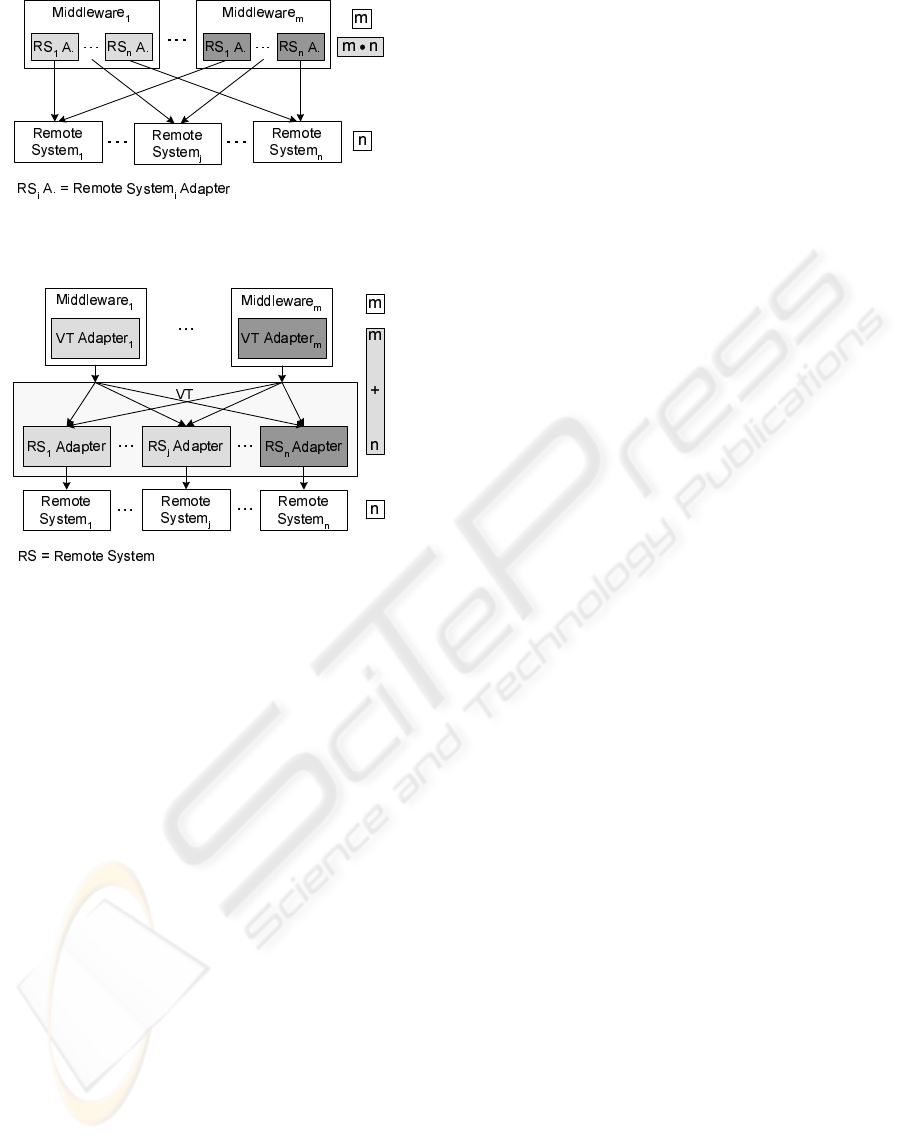

Finally, the most important point when consider-

ing adapters for wrapping other adapters is that for m

middleware platforms on the one hand and n adapters

with corresponding remote systems on the other hand

we would potentially need n ∗ m adapters that are

wrapping the n remote system adapters. This means

that each of the m middleware platforms would poten-

tially need n platform-speciﬁc adapters for wrapping

the n remote system adapters.

In contrast, our virtualization approach reduces

the n∗ m complexity to n+ m due to the uniform ac-

cess that enables a remote system adapter to be used

by many middleware platforms. A more comprehen-

sive comparison of the different realization alterna-

tives is discussed in Section 3.2.

In summary, our contribution provides a virtual-

ization approach that allows to reuse adapters by uni-

A VIRTUALIZATION APPROACH FOR REUSING MIDDLEWARE ADAPTERS

formly handling and accessing them. Thereby, the

n ∗ m complexity of required adapters for n remote

systems and m middleware platforms is reduced to

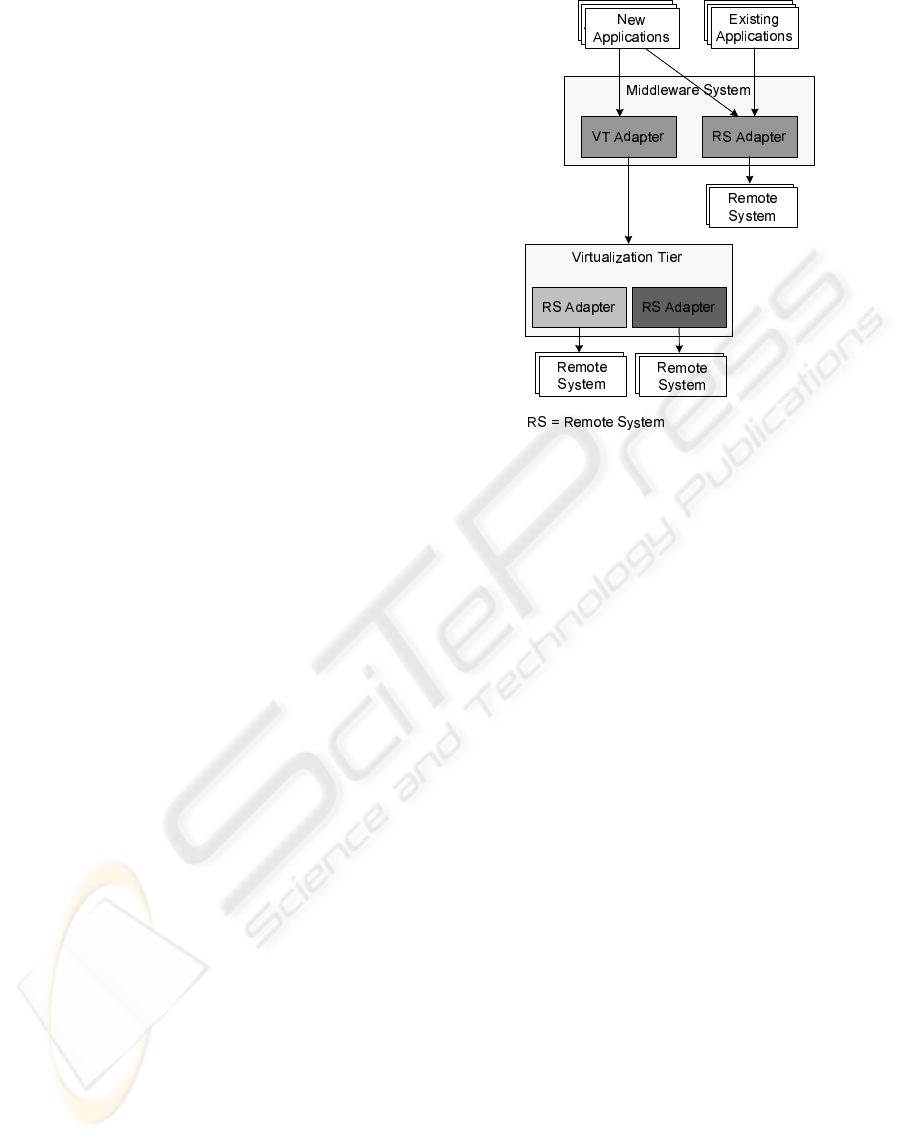

n+ m. The approach is non-invasive, i.e. existing ap-

plications and processes of a middleware system are

not affected by this integration enhancement. They

still work as usual. Finally, the approach provides for

a more ﬂexible IT infrastructure that can be more eas-

ily adapted to future changes.

In the next section we show the architecture of the

virtualization tier and its components. We describe

how requests are processed by the virtualization tier

and how the deployment of adapters works. Section 3

evaluates the characteristics of the virtualization tier

that are necessary to make our approach practically

applicable. Section 4 discusses related work and Sec-

tion 5 concludes the paper.

2 VIRTUALIZATION TIER

The architecture of the virtualization tier (VT) is

shown in Figure 3. The VT employs adapter man-

agers that allow to deploy adapters of a speciﬁc type,

respectively, into the VT and that are responsible for

using adapters to access remote systems. For exam-

ple, a J2EE connector manager would be responsible

for deploying and using J2EE connectors in the VT,

and an SQL wrapper manager would be responsible

for deploying and using SQL wrappers.

The VT uniformly represents data and operations

of remote systems as objects that consist of attributes

and methods. Access to a VT object results in access

to the proper adapter manager that is responsible for

using the proper adapter to access the remote data and

the remote operations associated with this VT object.

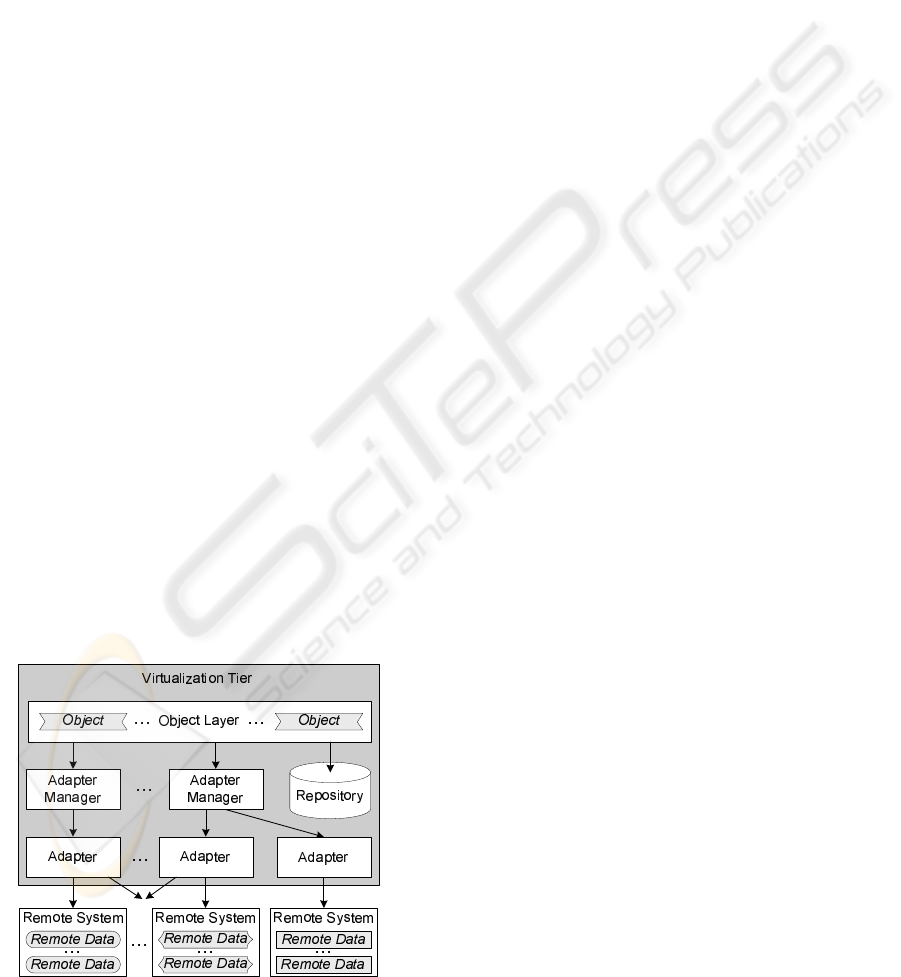

Figure 3: Architecture of the Virtualization Tier.

The object model of the VT has to support the

needs of the different adapter technologies, i.e. it

has to be able to represent data and operations and it

has to be able to execute operations and access single

data items as well as whole data sets, preferably in a

set-oriented, declarative way. Therefore, we used the

ODMG object model (Cattell et al., 2000) to realize

the VT object model and we also used the associated

set-oriented, declarative object query language (OQL)

to realize the VT access language. This allows to rep-

resent remote operations as VT object methods and

it allows to represent set-oriented queries for remote

systems, e.g. SQL queries, as OQL queries in the VT.

A VT object is deﬁned by means of an object con-

ﬁguration consisting of four conﬁguration chapters:

• The Object Deﬁnition Chapter deﬁnes the at-

tributes and methods of a VT object according

to the ODMG object deﬁnition language (ODL)

(Cattell et al., 2000).

• The Object Information Chapter deﬁnes any in-

formation concerning the correlation of a VT ob-

ject and the associated remote data and remote op-

erations, e.g. which API operation to call or which

database table to access in the remote system.

• The Adapter Information Chapter deﬁnes any in-

formation about an adapter. The information is

used by the associated adapter manager to deploy

and access the adapter properly, e.g. where to ﬁnd

the adapter libraries or which parameters to apply

to the adapter.

• The System Information Chapter deﬁnes any in-

formation about a remote system. The informa-

tion is used by an adapter to properly access the

remote system, e.g. authentication information or

connection management information.

Conﬁguration chapters are stored in the VT repos-

itory. They are retrieved from the repository during

runtime and are used in the execution of OQL re-

quests, which is shown in the next section.

2.1 Processing VT Requests

The VT offers an API that allows to submit OQL re-

quests to the VT and to access VT objects. If a VT

object is accessed via an OQL request, the VT deter-

mines the proper VT object conﬁguration and checks

the attributes and methods of the VT object used in

the OQL request. If the request is valid, the VT

loads the adapter manager associated with the adapter

that is responsible for resolving the requested VT ob-

ject. Then, the VT hands over the request to the

adapter manager, which in turn loads the correspond-

ing adapter and issues an adapter technology-speciﬁc

ICEIS 2007 - International Conference on Enterprise Information Systems

request to the adapter. The adapter ﬁnally accesses the

data or executes the operations in the remote system.

Figure 4 shows how the VT-based solution of the

integration example in Figure 2 looks like. The deci-

sion support system uses a VT J2EE connector to ac-

cess VT object VTScrew, which is representing infor-

mation about screws stored in the PDM system (see

Section 3.1 for a discussion of the VT J2EE connec-

tor).

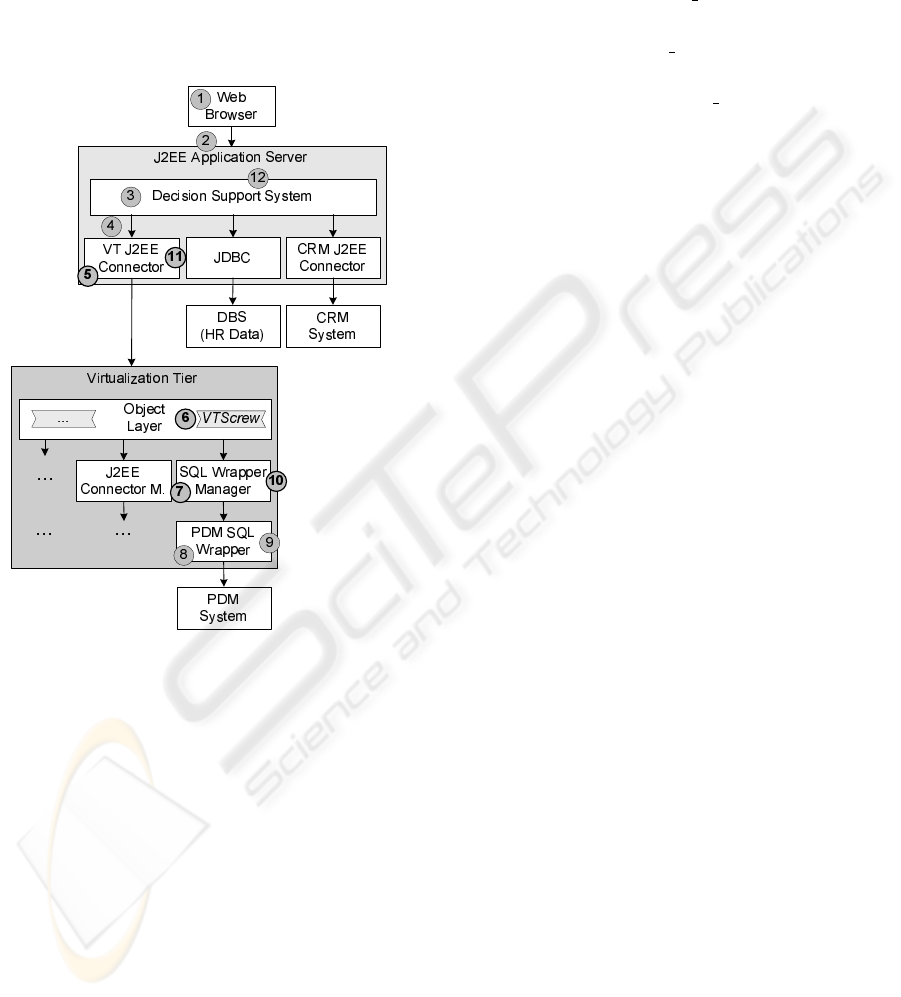

Figure 4: Access to a Remote System by means of the VT.

The beneﬁt of this solution is that the PDM SQL

wrapper can be completely reused whereas the con-

ventional solution shown in Figure 1 requires to write

a new PDM J2EE connector. In the following we give

an example of how the decision support system could

access the VT and the PDM system (cf. Figure 4):

1. A user opens a web browser and logs in to the

decision support system via a web page.

2. The user wants to access some information about

the screws in an air-conditioning machine unit,

e.g. material and manufacturer, and submits a cor-

responding HTML form request to the enterprise

application.

3. The enterprise application calls an EJB method to

resolve the screw information

4. The EJB in turn issues an interaction request to

the VT J2EE connector. Connector interactions

are the means by which J2EE connectors are ac-

cessed. An interaction object represents a request

with input parameters and output parameters. The

EJB issues an interaction with the following pa-

rameters:

• Input parameter access

op and value getVTOb-

ject for the access operation.

• Input parameter obj

name and value VTScrew

for the VT object to access.

• Input parameter attr restr and value

cunit=”air-cond unit” for further object

restrictions, i.e. the unit containing the screws

must be an air-conditioning unit.

• Output parameter screws, which is containing a

list of identiﬁed screws as Java objects.

5. The VT J2EE connector translates the interaction

request into the OQL request

exists x in VTScrew:

x.cunit = "air-cond unit"

and submits it to the VT.

6. The VT checks the repository for the VT object

conﬁguration of VTScrew and then identiﬁes the

SQL wrapper manager as the responsible adapter

manager.

7. The VT hands over the OQL request to the SQL

wrapper manager, which in turn translates the

OQL request into an SQL query accessing the for-

eign table containing the desired screw informa-

tion:

SELECT *

FROM SCREWS

WHERE CUNIT = ’air-cond unit’

8. The PDM SQL wrapper receives the SQL query

and translates it into the corresponding PDM sys-

tem API call

showUnitData("screw", "air-cond unit")

9. The PDM system returns the requested screw in-

formation to the PDM SQL wrapper, which trans-

forms it into SQL data, i.e a table, as the result of

the SQL query in 7.

10. The SQL wrapper manager transforms the SQL

data into VT object instances according to the

VTScrew object deﬁnition chapter as requested in

5 and returns them to the VT.

11. The VT transfers the VT object instances to the

calling VT J2EE connector, which transforms

them into Java objects conforming to the screws

output parameter of the connector interaction in

A VIRTUALIZATION APPROACH FOR REUSING MIDDLEWARE ADAPTERS

12. The EJB processes the screw objects and the en-

terprise application creates a suitable HTML re-

sponse document answering the initial user re-

quest.

Other adapter managers work analogously to the

SQL wrapper manager that is submitting an SQL

query to an SQL wrapper. For example, a J2EE con-

nector manager would transform an OQL request into

a connector interaction with suitable input parameters

and output parameters and would execute the inter-

action on the proper J2EE connector, and a message

broker manager would transform an OQL request into

a business object request and issue it to a message bro-

ker adapter.

Steps 5, 6, 7, 10 and 11 (bold numbers in Figure

4) are introduced by the VT approach. The other steps

have to be performed in a conventional integration so-

lution as well; hence, the EJB in step 4 would access

a PDM J2EE connector instead of the VT J2EE con-

nector and the PDM J2EE connector would access the

PDM system analogous to steps 8 and 9.

2.2 Deployment Process

The skills required to deﬁne VT objects and to de-

ploy adapters into the VT comprise knowledge about

the VT and the VT object model as well as knowl-

edge about the different involved adapter technolo-

gies. Clearly, the complexity of the whole integra-

tion task must be reduced to make the VT practically

manageable. Therefore, the goal is to divide the de-

ployment process into two steps performed by differ-

ent persons (as depicted in Figure 5): adapters are de-

ployed in the ﬁrst step (1) and suitable VT objects are

deﬁned in the second step (2).

Deploying an adapter into the VT requires the

same deployment information as if the adapter is de-

ployed into its original middleware. A deployer that

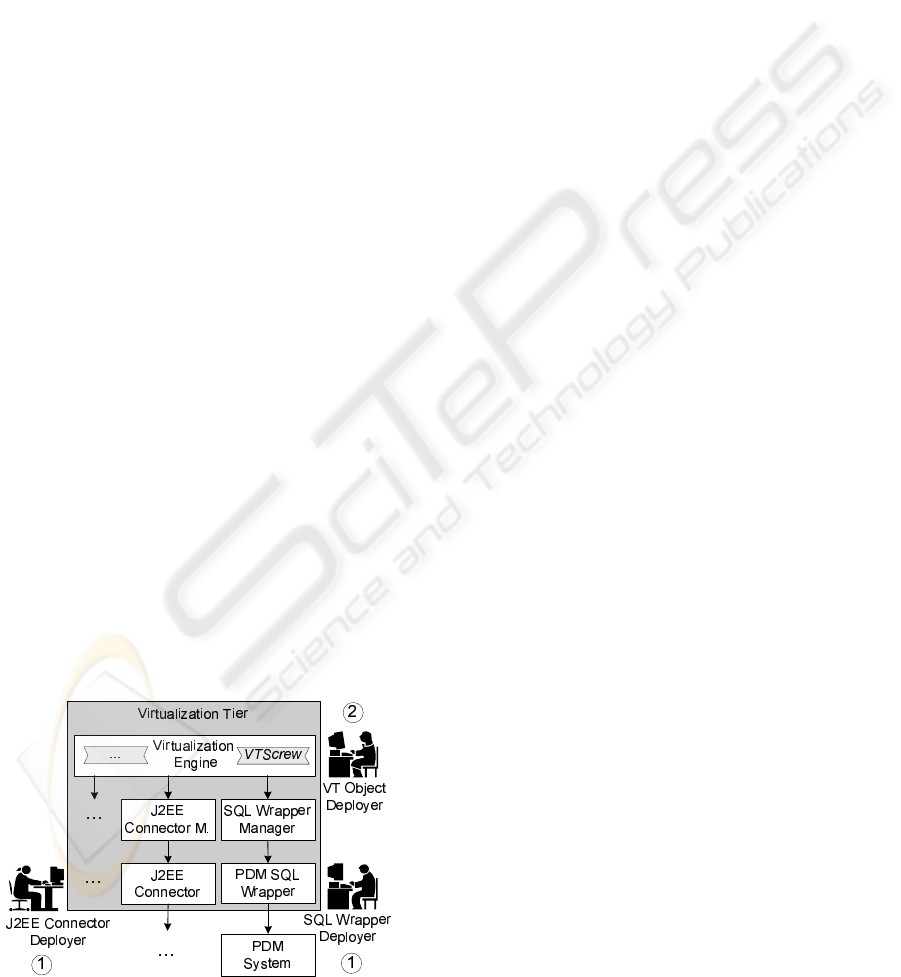

Figure 5: Two-Step Deployment Process.

is responsible for deploying adapters into a middle-

ware (short: adapter deployer; e.g. a J2EE connector

deployer or an SQL wrapper deployer) has to be fa-

miliar with the middleware, i.e. he knows how to de-

ploy adapters and how to deﬁne middleware-speciﬁc

data and operations that are representing data and op-

erations in the integrated remote systems.

Therefore, the ﬁrst step of the deployment process

is performed by the corresponding adapter deployer.

The adapter deployer deploys an adapter into the VT

(adapter information chapter), correlates a remote

system with the adapter (system information chapter)

and speciﬁes suitable middleware-speciﬁc data deﬁ-

nitions and operation deﬁnitions (object information

chapter).

For example, if a J2EE connector has to be reused,

the responsible J2EE administrator acts as a J2EE

connector deployer in the VT scenario. He deter-

mines deployment properties of the J2EE connector

and of the remote system to access, and he speciﬁes

interaction information for executing interactions on

the J2EE connector. Or if an SQL wrapper has to be

reused, the responsible federated database system ad-

ministrator acts as an SQL wrapper deployer in the

VT scenario. He prepares SQL statements for deﬁn-

ing an SQL wrapper, an SQL server and some foreign

tables.

The only difference between an adapter deploy-

ment in the VT and an adapter deployment in the re-

spective middleware is that the adapter deployer uses

the VT deployment GUI for deﬁning conﬁguration

chapters instead of the middleware-speciﬁc adapter

deployment facility.

A deployer of objects in the VT (short: VT ob-

ject deployer) performs the second step of the deploy-

ment process, which requires to deﬁne VT objects by

means of object deﬁnition chapters. He correlates

the VT object deﬁnitions with middleware-speciﬁc

data deﬁnitions and operation deﬁnitions speciﬁed by

adapter deployers during the ﬁrst step.

The VT object deployer does not have to deﬁne

the VT objects from scratch since adapter managers

comprise functionality that derives default VT object

deﬁnitions corresponding to the middleware-speciﬁc

data deﬁnitions and operation deﬁnitions created dur-

ing the ﬁrst step of the deployment process. The VT

object deployer uses the generated default VT object

deﬁnitions as the starting point and only has to cus-

tomize them for proper usage in the VT.

In this way, the deployment process in the VT is

signiﬁcantly alleviated and becomes practically man-

ageable: The adapter deployer is doing his job as

usual. He is only concerned with the middleware-

speciﬁc part of the VT deployment, i.e. adapter de-

ICEIS 2007 - International Conference on Enterprise Information Systems

ployment and deﬁnition of the middleware-speciﬁc

data and operations, but he does not need further

knowledge about the VT. The VT object deployer is

only concerned with the VT-speciﬁc part, i.e. deﬁni-

tion of VT objects, but does not need to know about

the adapter-speciﬁc deployment tasks.

3 EVALUATION

There are two further points to be considered when

the VT approach has to become practically applica-

ble. First, does the VT affect existing integration pro-

cesses or middleware infrastructures? And second,

what does it cost to provide the VT and its compo-

nents? Finally, we discuss how the VT provides in-

creased ﬂexibility for IT infrastructures.

3.1 Applicability of the VT

An important aspect of the VT approach is that ex-

isting middleware systems do not have to be mod-

iﬁed and that the operation of existing applications

and processes is not affected. The VT enhances mid-

dleware systems in a non-invasive manner offering an

additional means of accessing remote systems. The

enhancement is achieved by using a middleware’s na-

tive adapter technology to access the VT, i.e. a VT

adapter. For example, the J2EE application server in

Figure 4 uses a VT J2EE connector to access the VT.

Figure 6 abstractly shows how existing and new

middleware applications coexist. On the one hand,

existing applications only use adapters of the middle-

ware that are directly accessing remote systems. On

the other hand, new applications can additionally in-

clude the VT in their processing.

Another point is that the VT requires a suitable

adapter manager to deploy and use adapters of a cer-

tain type, e.g. an SQL wrapper manager is required to

deploy and use SQL wrappers in the VT, a J2EE con-

nector manager is required to deploy and use J2EE

connectors, etc. If an adapter not yet supported by the

VT is to be reused, a suitable adapter manager for that

adapter type must be written. Writing a new adapter

manager is at least as costly as writing a new adapter.

But if it is necessary to write several new adapters

to integrate some remote systems and if this can be

avoided by reusing one or more adapters with the new

adapter manager, it is worth writing this adapter man-

ager. Writing the adapter manager has to be done only

once, but allows to use any adapter of that type in the

VT.

Similar considerations hold for middleware plat-

forms that want to access the VT since such a mid-

Figure 6: Enhancing Middleware Systems in a Non-

Invasive Manner (Abstract View).

dleware platform requires a suitable adapter to enable

VT access, i.e. a VT adapter. For example, a J2EE ap-

plication server requires a VT J2EE connector to ac-

cess the VT and a federated DBS requires a VT SQL

wrapper. If such an adapter is not available for a mid-

dleware platform, it must be written. But if it is neces-

sary to write a couple of new adapters for that middle-

ware platform to integrate some remote systems and

if this can be avoided by reusing existing adapters in

the VT, it is worth writing the VT adapter. Writing

the VT adapter has to be done only once, but allows

the middleware platform to use any adapter that is de-

ployed in the VT.

3.2 Increased Flexibility

An additional beneﬁt of the VT approach is that it

increases the ﬂexibility of an IT infrastructure since

future changes and requirements concerning such in-

tegration tasks can be solved with the VT again. The

more middleware systems in an IT infrastructure use

the VT and the more adapters are deployed into the

VT, the more likely is it that a desired combination

of middleware and remote system is already available

and that it can be used without writing a new adapter.

Abstractly seen, the VT can be considered as a

middleware multiplexer that allows a middleware sys-

tem to access any adapter that is deployed in the VT.

If m middleware systems have to access n remote sys-

tems without using the VT, we would potentially need

n∗ m adapters as shown in Figure 7. If we use the VT,

A VIRTUALIZATION APPROACH FOR REUSING MIDDLEWARE ADAPTERS

Figure 7: Conventional Integration Approach: Potentially

m∗ n Adapters Required.

Figure 8: Virtualization Tier: Multiplexer Characteristic;

only m+ n Adapters Required.

this complexity is reduced to m+ n adapters as shown

in Figure 8 (m adapters for accessing the VT and n

adapters for accessing the remote systems).

In other words: a conventional integration ap-

proach relying on a speciﬁc middleware system and

a speciﬁc adapter technology needs a speciﬁc adapter

to integrate a remote system whereas the VT allows

to use the same middleware system, but any adapter

that is available for that remote system.

4 RELATED WORK

The problem of incompatible adapter technologies is

inherently given with the usage of different middle-

ware platforms and different integration technologies.

To the extent of our knowledge systematic reuse of

adapters is not possible so far. However, the need for

ﬂexibly dealing with adapters is a general requirement

and therefore there has already been done substantial

work on how to ease writing adapters.

Adapter technologies usually come with adapter

frameworks, which at least provide commonly used

adapter functionality as code libraries. For example,

the WebSphere Business Integration Adapters (IBM,

2004) divide an adapter into two parts. The so-called

connector framework that contains the functionality

common to every adapter, e.g. communicating with

the integration broker. And the so-called application-

speciﬁc component that contains the functionality that

is different for each adapter, e.g. calling the respective

remote system API.

More sophisticated adapter technologies comprise

complex system-internal interactions between mid-

dleware and adapter, e.g. see (Booth et al., 2004;

ISO, 2003; Sun, 2003). For example, J2EE connec-

tors (Sun, 2003) rely on functionality residing in the

application server. The application server provides

functionality, e.g. transaction management or con-

nection handling, that is commonly available to every

connector by means of so-called system contracts.

Advanced approaches aim at providing a high-

level speciﬁcation of an adapter’s functionality so

that the desired adapter code is generated or exist-

ing adapter libraries are suitably parameterized, e.g.

see (Ashish and Knoblock, 1997; Baru et al., 1999;

Gruser et al., 1998; Hammer et al., 1997; Liu et al.,

2000; Raposo et al., 2002). For example, the TSIM-

MIS project (Hammer et al., 1997) puts common parts

of a wrapper implementation into a common library

used by any TSIMMIS wrapper. The library is pa-

rameterized for each wrapper by high-level, declara-

tive rules that determine what queries can be executed

by the wrapped remote system, what the answers look

like and how the transformation between the queries

and the data in TSIMMIS on the one hand and the

remote queries and remote data on the other hand is

performed.

Adapter frameworks and adapter generation ap-

proaches inherently can handle only that parts of an

adapter that are common to all adapters or that are

at least similar for a group of adapters. However, the

heterogeneity of remote systems would require gener-

ation approaches to ﬂexibly deal with different access

paradigms, request processing styles, data structures,

data models, programming languages, APIs, etc. But

this complex task cannot be solved just by parameter-

izing a library or by specifying a set of declarative,

high-level rules to generate the necessary code.

Adapter generation only works if the targeted re-

mote systems are restricted to a speciﬁc type so that

most characteristics and properties are known in ad-

vance and can be considered in common libraries, rule

sets or high-level scripting languages. For example,

the generation approaches in (Ashish and Knoblock,

1997; Gruser et al., 1998; Liu et al., 2000; Raposo

et al., 2002) are targeted at web information sources,

i.e. primarily HTML pages. Other approaches such

as in (Baru et al., 1999; Hammer et al., 1997; Pan

ICEIS 2007 - International Conference on Enterprise Information Systems

et al., 2000) support more than one remote system

type based on semi-automatic adapter generation pro-

cedures, but each remote system type inherently re-

quires a separate adapter library, i.e. a different

adapter.

The recent evolution of universal metadata-driven

generation approaches such as OMG’s model-driven

architecture (MDA) (Miller and Mukerji, 2003) could

lead to techniques applicable to the generation of

adapters, too. But there are no results for this kind

of problem so far nor do we see any progress for that

in the next time.

In contrast, our virtualization approach provides

a practical solution for dynamically reusing adapters

without affecting existing applications and without

modifying existing middleware systems.

5 CONCLUSION

The use of different middleware platforms and differ-

ent adapter technologies leads to repeating program-

ming efforts, i.e. writing adapters. Writing a new

adapter is a costly task. Therefore, we proposed a

virtualization approach for reusing existing adapters.

The VT virtualizes adapters by uniformly handling

and accessing them and thereby reduces the current

complexity of n ∗ m adapters for m middleware plat-

forms and n remote systems to n+ m.

There are crucial points that decide about the ap-

plicability of the VT approach. The ﬁrst is the reduc-

tion of the deployment process complexity by divid-

ing the deployment process into two steps performed

by separate deployers. Adapter deployers are con-

cerned with their respective adapter technology only,

and the knowledge about the different adapter tech-

nologies that is required by a VT object deployer is

reduced to a minimum.

The other point is that the VT can be smoothly

used with existing IT infrastructures: their opera-

tion is not affected by the VT. Additionally, the VT

approach provides for more ﬂexibility in integration

tasks. It leverages existing IT resources the better the

more middleware systems use the VT and the more

adapters are reused by the VT.

Currently, we are ﬁnishing our prototype and pre-

pare for extensive experiments to support our ap-

proach in kinds of quantitative results, which is the

last cornerstone of the VT evaluation. The experi-

ments will include different ways of realizing adapter

managers and they will consider different adapters,

adapter types and remote systems as well as different

workloads.

REFERENCES

Ashish, N. and Knoblock, C. A. (1997). Semi-Automatic

Wrapper Generation for Internet Information Sources.

In COOPIS ’97.

Baru, C., Gupta, A., Lud

ascher, B., Marciano, R., Papakon-

stantinou, Y., Velikhov, P., and Chu, V. (1999). XML-

Based Information Mediation with MIX. In SIGMOD

’99.

Booth, D., Haas, H., McCabe, F., Newcomer, E., Cham-

pion, M., Ferris, C., and Orchard, D., editors (2004).

Web Services Architecture. World Wide Web Consor-

tium. W3C Working Group Note.

Cattell, R. G. G., Barry, D. K., Berler, M., Eastman, J., Jor-

dan, D., Russell, C., Schadow, O., Stanienda, T., and

Velez, F., editors (2000). The Object Data Standard:

ODMG 3.0. Morgan Kaufmann.

Chawathe, S., Garcia-Molina, H., Hammer, J., Ireland, K.,

Papakonstantinou, Y., Ullman, J. D., and Widom, J.

(1994). The TSIMMIS Project: Integration of Hetero-

geneous Information Sources. In 16th Meeting of the

Information Processing Society of Japan.

Gruser, J.-R., Raschid, L., Vidal, M. E., and Bright, L.

(1998). Wrapper Generation for Web Accessible Data

Sources. In COOPIS ’98.

Hammer, J., Garcia-Molina, H., Nestorov, S., Yerneni, R.,

Breunig, M., and Vassalos, V. (1997). Template-Based

Wrappers in the TSIMMIS System. In SIGMOD ’97.

IBM (2004). A Technical Introduction to Adapters. In-

ternational Business Machines Corporation. WBIA

Adapter Framework, V2.4.

ISO (2003). Information technology – Database languages

– SQL – Part 9: Management of External Data

(SQL/MED). International Organization for Standard-

ization, 2nd edition. ISO/IEC 9075-9:2003 Published

Standard.

Levy, A. Y. (1998). The Information Manifold Approach to

Data Integration. IEEE Intelligent Systems, 13(5).

Liu, L., Pu, C., and Han, W. (2000). XWRAP: An XML-

Enabled Wrapper Construction System for Web Infor-

mation Sources. In ICDE ’00.

Miller, J. and Mukerji, J., editors (2003). MDA Guide Ver-

sion 1.0.1. Object Management Group Inc.

Pan, A., Raposo, J.,

Alvarez, M., Montoto, P., Orjales, V.,

Ardao, J. H. L., Molano, A., and Vi

na,

A. (2000). The

Denodo Data Integration Platform. In VLDB ’00.

Raposo, J., Pan, A.,

Alvarez, M., Hidalgo, J., and Vi

na,

(2002). The Wargo System: Semi-Automatic Wrap-

per Generation in Presence of Complex Data Access

Modes. In DEXA ’02.

Roth, M. T. and Schwarz, P. M. (1997). Don’t Scrap It,

Wrap It! A Wrapper Architecture for Legacy Data

Sources. In VLDB ’97.

Sun (2003). J2EE Connector Architecture Speciﬁcation,

Version 1.5. Sun Microsystems Inc. Final Release.

A VIRTUALIZATION APPROACH FOR REUSING MIDDLEWARE ADAPTERS
