NEURALTB WEB SYSTEM

Support to the Smear Negative Pulmonary Tuberculosis Diagnosis

Carmen Maidantchik, José Manoel de Seixas, Afrânio Kritski, Fernanda C. de Q Mello

Rony T. V. Braga, Pedro H. S. Antunes

Federal University of Rio de Janeiro, Cidade Universitária, C.P. 68504, 21945-970, Rio de Janeiro, Brazil

João Baptista de Oliveira e Souza Filho

Federal University of Rio de Janeiro, Cidade Universitária, C.P. 68504, 21945-970, Rio de Janeiro, Brazil

Graduated Dept., Celso Suckow Technological Education Center, Av. Maracanã 229, 20271-110, Rio de Janeiro, Brazil

Keywords: Decision support systems, neural networks, web technology, SNPT diagnosis.

Abstract: The World Health Organization estimates that one third of the world population is infected by

mycobacterium tuberculosis. Tuberculosis (TB) affects mainly poor health places in developing countries.

Therefore, it became mandatory to develop more efficient, fast, and inexpensive analysis methods. This

paper presents a decision support system that uses neural networks to sustain TB diagnosis. The output is

the probability that a patient has or not the illness and an assigned risk group. The NeuralTB system

encapsulates the knowledge needed for efficient anamnesis interview integrated to demographic and threat

factors typically known for tuberculosis diagnosis. It was developed with the Web technology and data were

described with a markup language to enable an efficient communication and information exchange among

experts. Data collected during the whole process can be used to identify possible new factors or symptoms,

since the infection transmission may evolve. This information can also support tuberculosis control

governmental entities to define effective actions to protect the health and safety of the population.

1 INTRODUCTION

Although effective antimicrobial therapies and

suitable diagnosis tests are already available, the

number of tuberculosis cases increases each year. In

particularly, the smear negative pulmonary cases

(SNPT) are hardly diagnosed. The World Health

Organization (WHO) estimates that one third of the

world population is infected by mycobacterium

tuberculosis (WHO 2002). So, there are

approximately already 2 billion infected persons.

Every year, 8 to 9 million new cases appear and 1.7

million individuals die. Therefore tuberculosis (TB)

is still a serious public health problem worldwide.

The rapid growth of the disease is related to

several factors, particularly the HIV epidemic, the

increase of social differences in many countries, and

the deterioration of health services mainly among

poverty population. These problems occur more

frequently in urban areas due to migrations that have

been happening over the last decades. Additionally,

the TB vaccine is not very effective.

Diagnostic tests either fail to identify at least half

of cases or are accurate but expensive, and it is often

difficult for patients to complete the necessary six-

month course of treatment, which contributes to new

drug-resistant strains of the disease. Currently, the

pulmonary tuberculosis diagnosis is still based on

bacilloscopy directly from the sputum smear, which

lacks sensitivity (around 50%). Besides that, this

method has no utility in the diagnosis of extra-

pulmonary TB. On the other hand, the

mycobacterium tuberculosis culture that presents a

higher sensitivity (80%) requires 4 to 6 weeks for

the result. Such long period for the confirmation of

the infection delays the beginning of the treatment

and allows the contagion among other people. The

smear-negative transmission rate of mycobacterium

tuberculosis corresponds to 17% among exposed

individuals (Sarmiento et al, 2003). Moreover, in

deprived countries, only some control programmes

permit culture performance in their primary-care

diagnostic (Santos et at, 2006). Consequently, fast

and accurate diagnosis of SNPT could provide lower

198

Maidantchik C., Manoel de Seixas J., Kritski A., C. de Q Mello F., T. V. Braga R., H. S. Antunes P. and Baptista de Oliveira e Souza Filho J. (2007).

NEURALTB WEB SYSTEM - Support to the Smear Negative Pulmonary Tuberculosis Diagnosis.

In Proceedings of the Ninth International Conference on Enterprise Information Systems - AIDSS, pages 198-203

DOI: 10.5220/0002366401980203

 SciTePress

morbidity and mortality, and case detection at a less

contagious grade.

The culture result for the mycobacterium

tuberculosis can be obtained by automated

diagnoses methods, commercialized in the health

care area. Besides being expensive, those methods

have not been validated in different epidemic

situations. Their use in routine conditions is

restricted to reference or research laboratories

(Perkins and Kritski, 2002). New diagnosis tests as

well as the use of statistical models to support the

SNPT analysis constitute a real challenge. To predict

the patient probability on having TB researchers

employ neural network (El-Solh et al., 1999) or

multivariate logistic regression and classification

tree (Mello, 2001). Santos (2003) uses neural

networks and classification trees to identify patients

with clinical-radiological suspicion of SNPT. When

formulated in a systematic way and implemented

with high qualified data, statistical models can be

representative of the clinical problem under

evaluation and could be useful for physicians in their

clinical routine, as well as for public health policy

administration (Castelo et al., 2004).

This paper presents the NeuralTB Web system

that aims at supporting the SNPT diagnosis in health

care units of limited resource areas. The system

comprises artificial neural networks as a model for

diagnosing the infection. The software was

developed using the Web technology and offers

user-friendly and intuitive interfaces for symptoms

registering, patient monitoring, and result retrieval.

The data stored in each health care unit are easily

merged in a central database.

This paper is organized as follows. Section 2

describes the artificial neural network diagnosis

model and the data set in study. Section 3 presents

the NeuralTB Web system and Section 4 explains

implementation details. Conclusions and future work

are described in Sections 5.

2 THE DIAGNOSIS MODEL

In order to avoid TB becoming a pandemic that

would cause serious illness in people and spread

quickly throughout populations, the fight against the

disease includes discovering new tools for

prevention, diagnosis support, and treatment.

Software engineering and the Internet have an

important role in the battle against infirmities that

are quickly spread among different countries.

Computing programs register diseases, symptoms,

and locations where infected people live. Internet

sites communicate new drugs, treatments, and risk

factors related to maladies, allowing an exchange of

expertise. Searchable indexes provide access to

medical directories and research programs.

We propose a decision support system that

health and medical professionals may use to sustain

the diagnosis of SNPT under routine conditions in

the hospitals and health care units. It should be

clearly stated that the purpose of the system is not to

replace physicians. The proposed model suggests

that mathematical modeling for classifying SNPT

cases could be an useful tool for optimizing the

utilization of expensive tests, and to avoid costs of

unnecessary anti-TB treatment. The diagnosis

corresponds to an ongoing process that requires

accurate investigation and, therefore, the system

output should be analyzed together with

interviewing, inspection, auscultation, and

examination of the laboratory results.

One concern of the project was to develop a tool

that would be suitable for areas of limited resources.

Therefore, the requirements of low cost, easy access,

and user-friendliness were considered. Since the

target disease is geographically spread among

different places, our group decided to implement the

system using the Web technology.

SNPT experts defined a set of symptoms that

would determine whether a patient would have or

not the disease. Based on this an artificial neural

network model was developed. The network output

corresponds to the probability that a patient have or

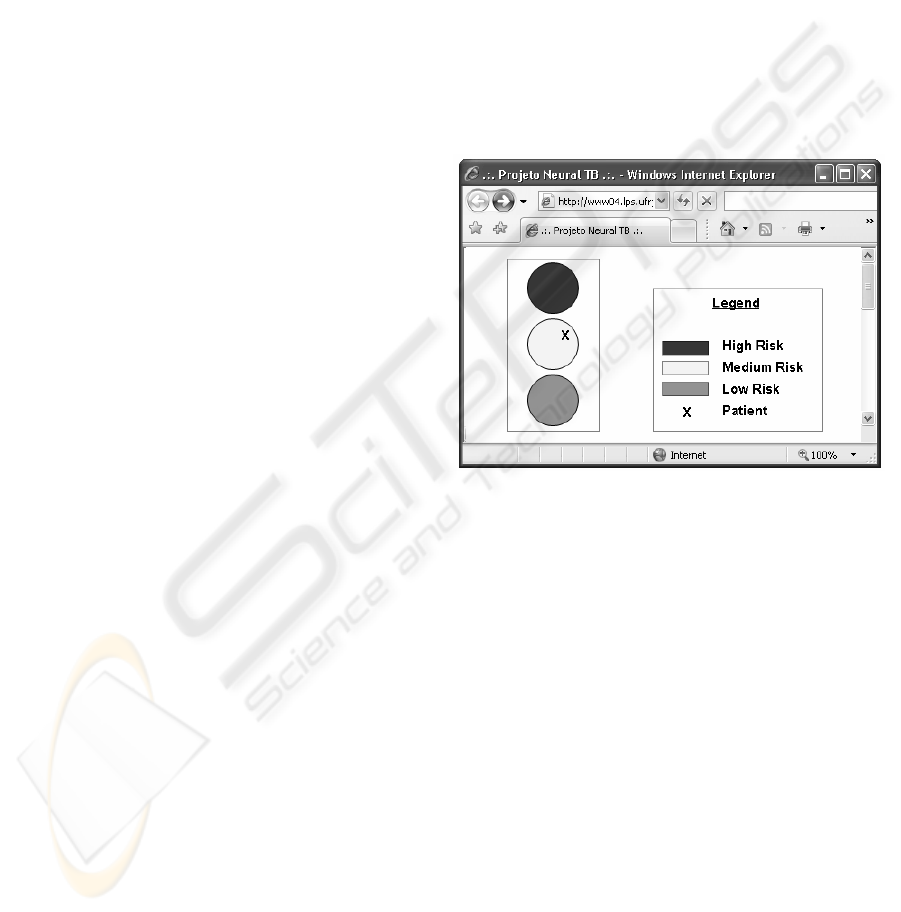

not SNPT and the risk group (low, medium, high

level risk) for which the patient would belong to.

The developed Web system registers the input

information, executes the neural networks code,

stores the result, monitors the patients data, and

manages data files. TB experts supported the project

development process, validating each step to

guarantee that the resulting system would achieve

the project goals.

2.1 Data Set for Modelling

In order to determine the set of symptoms and

characteristics that would indicate the infection, 136

patients agreed to participate. They were referred to

the University Hospital of Federal University of Rio

de Janeiro, from March, 2001 to September, 2002,

with clinical-radiological suspicion of SNPT.

The input data set corresponds to information

from anamnesis interview integrated to demographic

and risk factors typically known for tuberculosis

diagnosis. Forty three per cent of the patients

actually showed TB in activity. Initially, clinical

variables were considered: age, coughs, spit, sweat,

fever, weight loss, chest pain, shiver, dyspnea,

diabetes, alcoholism, and others.

NEURALTB WEB SYSTEM: Support to the Smear Negative Pulmonary Tuberculosis Diagnosis

199

2.2 The Artificial Neural Network

The artificial neural network model is fed from data

collected from the questionnaires filled by patients

in the health care units. The dichotomy variables

were codified as -1 and 1, representing the absence

or the presence of a symptom, respectively. Three

categories were allowed for qualitative variables: -1

(lack of an indication), 1 (presence of the symptom),

and 0 (ignored). In model development, relevance of

variables was also addressed, which allowed more

compact network designs. Starting from 26

variables, the relevance analysis (Seixas et al,. 1996)

showed that models could be developed considering

12 or just 8 variables. Such variable suppression was

also validated by TB experts.

With respect to network topology, a fully-

connected multilayer feedforward architecture

trained with backpropagation algorithm was

designed. Input nodes varied, according to data

compaction scheme, from 26 to 8. The network has

a single output neuron, and training targets were

defined as 1 (active TB) and -1 (otherwise). The

number of neurons in the single hidden layer also

varied according to model complexity, from 3 to 4

neurons. The hyperbolic tangent is the activation

function for all neurons.

The risk group assignment was obtained by

means of a modified- ART clustering procedure

(Vassali et al., 2002). Risk group assignment was

certified by TB experts as symptoms identified in

each risk group are also considered by the TB

experts in a detailed exam.

Due to restrictive statistics of the database, cross

validation (

Kohavi, 1995) was used for defining both

training (network design) and testing (performance

evaluation) tests. For each cross validation test, the

training set comprised 80% of the patients and the

remaining 20%, formed the test set. Performance

was evaluated in terms of sensitivity and specificity

for the testing set. Considering twelve input

variables, it was possible to obtain both high

sensitivity (100%) and specificity (80%).

3 THE NEURALTB WEB SYSTEM

Within this project, our group aims at providing an

open and secure platform that supports an efficient

and fast distribution of collaborative applications.

An untied architecture allows the integration with

other systems, dynamic processes, and

heterogeneous data repositories. The computing

solution must also provide a good connectivity to

any data placed anywhere. These requirements

guarantee the accessibility of the system either in

health care units or hospitals, independently of their

location. The software group used interoperable

technologies for the system development.

Initially, a system version that could work over

the Internet was developed. The health care units

would only need to have a browser and an Internet

connection. All data and processing would be

respectively stored and performed in a central

server. For the units that do not have Internet access,

a local version is used. The neural network program

is also locally executed and the result is placed

together with the patient data. The information that

is stored in the computer of all health care units is

periodically transferred to a central server that

collects the data into a main repository.

The local version does not require an Internet

access for its execution. However, it is more

laborious to update and maintain the system due to

its geographical distribution. On the other hand, a

version that works over the Internet avoids

compatibility problems since an unique version runs

in the server. It also facilitates the data transfer from

the health care units to the central repository.

Within the system, there are three user

categories: administrator, attendant, and physician.

Administrators can insert new users, modify user

attributes, and perform actions related to data files,

and system installation. Attendants may include and

edit patient personal data and his/her symptoms.

Physicians perform actions on patient data and are

the only ones to have access to the network output.

3.1 Input Data Form

In order to fill the questionnaire, attendants are

taught to analyse individual’s physical condition, to

give further information about each question, and to

explain the importance of providing the correct

answer. Therefore, in order to facilitate the data

input into the system, a hypertext form was

designed. The form is composed by text fields to

include the patient name and date of birth. Other

items allow the selection of only one option among

three available alternatives (lack of an indication,

presence of the symptom, and the patient do not

know the answer). In case of relationships among

items, the choice of an option automatically obliges

the selection of the respective option in another item.

For example, if hemoptysis (coughing up blood) is

chosen as an existing symptom than the existence of

cough has also to be selected.

Two kinds of support needed during the

questionnaire filling were implemented. The first

group is related with typing errors, data mismatch,

and correlations between items. As an example,

empty data is not accepted. Concerning the date of

ICEIS 2007 - International Conference on Enterprise Information Systems

200

birth, the system automatically validates the days

and months, bissextile years, etc. Then, the system

calculates the patient age that can be confirmed right

away. In case of errors, an alert window comes out

informing the mistake.

The second group of help appear as an alert

window with further information about the item,

explaining how to make a question, and how one can

interpret the answer. The specification of this type of

support required the extraction of the knowledge

used during an anamnesis interview. Hendriks and

Vriens (1999) and Probst et al (1999) suggest a basic

set of fundamental activities to systematically

manage knowledge: identify important knowledge

that can be used; capture and store useful knowledge

in a repository; maintain knowledge in the storage

area through update or removal of outdated

information.

Subsequent to the inclusion of a new patient, the

system automatically executes the neural network

program and stores the output together with the

information that was entered through the form. Later

on, physicians may analyze the result together with

other clinic and laboratorial information.

3.2 Patient Monitoring

In order to recover data from the system repository,

the user may define one or more attributes, such as

cough, sputum, fever, etc and associate with a

specific value. The attributes operate as filters that

trigger the patients which data fits the query. The

“+” option allows the definition of other conditions

in the query, i.e., the inquiry can combine several

attributes using logical operators (and, or). One

condition within a query can be removed by

selecting the “-” option.

In case the option “Search for” is selected

without specifying values to an attribute, all patients

and respective data are presented, ordered by name,

in a table format. The attribute names are placed in

the heading of the table. The system also provides a

facility through which a physician can set the patient

as already analyzed. Therefore, it is also possible to

search for patients which data were not investigated

yet, supporting the information management.

3.3 Probabilities and Risk Groups

When the neural network is fed from a new patient

data, it provides as an output the classification

probability of the patient to have or not the TB. In

case of TB identification, the system also provides

the risk group to which the patient belongs.

In case the neural network classifies the patient

as having the TB, the output will be presented as the

sentence “the patient has P% of having the TB”,

where “P%” represents the probability for active TB

according to the artificial neural model. On the other

hand, in case the neural network classifies the

patient as not having TB, the output will be

presented as the sentence “the patient has P% of not

having the TB”, where “P%” represents the

probability for no active TB, according to model.

The risk groups are presented in a graphical way

like a car traffic light using a universal color code. A

patient fits in only one of the three risk groups that

are drawn as circles painted with red, yellow, and

green colors to symbolize, respectively low,

medium, and high risk, as presented in Figure 1. The

patient is represented in the figure as the “x” letter

and the closer he/she is to the center, higher is the

probability that the patient belongs to the group.

Figure 1: Risk group representation (in grey scale).

3.4 File Management

The NeuralTB Web system was designed to operate

in geographically distributed environments.

Therefore, the information obtained during the

anamnesis interview together with the neural

network output is stored in an archive. The files

from different units are transferred to a central

repository were all patient information are inserted

into a database. In case of changes in the patient

data, the system manages the records to be copied or

sent again in order to update the main database. For

security reasons, NeuralTB also provides a backup

functionality.

The central repository stores the name of the

health care units, associating the patients data with

the units where their information was collected.

Further information about the units region, such as

geographical relation of health conditions to socio-

economic status and poverty rates, may be specified,

structured and integrated into the database.

NEURALTB WEB SYSTEM: Support to the Smear Negative Pulmonary Tuberculosis Diagnosis

201

Medical and health professionals of TB research

groups can access the central repository to extract

information that can help on the development of new

disease analysis methods and the identification of

new demographic and risk factors that can be used

later for the tuberculosis diagnosis.

4 THE IMPLEMENTATION

The data representation format is an important

aspect that was considered to efficiently manage the

whole information. Markup languages, as XML, can

be used to describe knowledge structures and to

support institutional memory development

(Rabarijaona et al, 2000, Cook, 2000). XML may

provide a standard structure to communicate and

interchange data and knowledge among diverse

systems. The language allows the creation of

multiple visions of the same item and also provides

an easy mechanism to capture, store, present and

recover information. Considering these benefits, we

developed an XML-based approach to describe the

different types of information manipulated during

the whole process of the SNPT diagnosis.

The group identified three stages where data had

to be properly represented: during the anamnesis

interview, for describing the patient data, and to

extract statistical information within research

activities. TB specialists warned that risk factors, the

questions made to the patients, and relationships

among the stored records may vary according to

locations or other factors, such as multidrug

resistance (MDR) that is one of the main causes of

ineffective treatment of new TB cases. Therefore,

the use of XML facilitates the maintenance of the

knowledge represented in the three stages. The tags

identify the current data and new tags can be easily

defined. The language also allows the definition of

associations among diverse types of information.

In order to assure the compatibility between the

data structure and the system functionalities, the

NeuralTB interface and operations were conceived

and designed in a way to guarantee its correct

execution independently on both the way

information is organized and the kind of records that

are manipulated. This requirement is achieved by

creating the interface with the system operations in

the moment the application is executed. The

interface reads the XML and presents all commands

associated with the tags. So, in case one record type

is excluded, the system will do not perform any

operation related to this information. On the other

hand, in case a new record type is included, it is

mandatory to define both the tag that identifies the

data and the corresponding operation.

Another advantage of using XML is that it

facilitates the integration among data that comes

from different health care units and hospitals.

Markup languages make easy the combination of

heterogeneous records. The use of XML also allows

uniform systems interoperability and offers efficient

mechanisms for information recovery.

The system was designed in modules to facilitate

its integration with other applications. The interface

between the system and the neural networks

program is also defined through a XML file. This

archive describes the name of the application, the

neural network weight vector to be used, and the

output. This approach facilitates when users want to

execute a different neural networks program or

update the weight vector.

4.1 Computing Requirements

The NeuralTB Web System runs over the Apache

HTTP Server for both UNIX and Windows XP

operating systems. The system provides a shell

executable of setup programs that automatically

install a directory structure and respective files in the

computer of the health care unit or hospital. The

hardware requirements are: PC computers with USB

driver for file transfer (in case of local version) or an

Internet connection, and with 128 MB, or

preferentially, 256 MB RAM memory.

The system operations were implemented as CGI

(Common Gateway Interface) programs, using the C

language. The Javascript language is used to write

functions embedded in HTML pages and interact

with the Document Object Model (DOM) of the

page to perform tasks not possible in HTML alone.

The Cascading Style Sheets (CSS) language is used

to style the web pages written in HTML and format

the XML documents.

In order to draw the risk group representation,

the GD graphics library was used. GD is an open

source code library for the dynamic creation of

images, allowing programmers to easily generate

PNG, JPEG, GIF (among other images formats),

from many different programming languages (C,

Perl, and PHP).

The central repository was implemented using

MySQL, an open source relational database

management system (RDBMS) that uses Structured

Query Language (SQL).

5 CONCLUSIONS

Decision support systems can be considered as

useful elements for helping physicians on the

tuberculosis diagnosis. The application can be used

ICEIS 2007 - International Conference on Enterprise Information Systems

202

as a learning tool since it gathers information,

defined by experts, that is needed for the

tuberculosis diagnosis.

The NeuralTB system can be easily installed in

hospitals or health care units and can also be

executed in portable computers that are carried to

different regions. The approach to incorporate the

knowledge into the system, allowing an easy

maintenance of the information, guarantees the

lifetime of the proposal.

Currently the NeuralTB system is being installed

in health care units in the Rio de Janeiro, the number

one city for TB cases in Brazil. This effort will

facilitate the implantation of a network to integrate

diverse professionals and specialists in tuberculosis.

During the system operation we will be able to

validate the impact of this initiative.

As next steps, we intend to integrate the

NeuralTB input data form with other questionnaire

items used during an anamnesis interview. Actually,

the proposal is to integrate the input form with the

system that is used in the hospital reception. As a

result, the attendance will use a single environment

to register all data related to patients. Another

enhancement is to develop queries in the central

database to extract the information that comes from

the various health care units. The knowledge of

which information should be extracted can also be

modelled and incorporated into the repository. Data

quality metrics (Chapman, 2005) will also be

applied to ensure network information quality. This

is quite important as network performance relies on

the accuracy of questionnaire answers. The

continuous update of the neural model with

incoming new data is also being developed. This

involves stability studies and the monitoring of TB

main features, trying to track disease evolvement in

time and geographically.

We expect that the accomplishments of this

project bring social benefits, allow a better

integration of the information technology in the

diagnosis domain, and provide an infrastructure to

enable an efficient communication and information

exchange among tuberculosis experts.

ACKNOWLEDGEMENTS

The authors thank the Tuberculosis Research Unit,

Faculty of Medicine, Federal University of Rio de

Janeiro, for making available the data used in this

work and CAPES, CNPq, and FAPERJ for

financially supporting this project.

REFERENCES

Castelo A., Kritski A.L., Werneck A., Lemos A.C.,

Ruffino Netto A., et al., 2004. Brazilian Directives for

Tuberculosis. J Brás Pneumo, 30 (supl 1). 1- 86. In

Portuguese.

Chapman, A., 2005. Principles of Data Quality, Report,

Global Biodiversity Information Facility.

Cook, J., 2000. XML Sets Stage for Efficient Knowledge

Management, IT professional, v.2, n.3, 55-57.

El-Solh, A.A., Hsiao, C.-B., Goodnough, S., Serghani, J.,

Grant, B.J.B., 1999. Predicting Active Pulmonary

Tuberculosis using an Artificial Neural Network.

Chest, 116, 968–973.

Hendriks, P., Vriens, D. 1999. Knowledge-Based Systems

and Knowledge Management: Friends or Foes?.

Information & Management, v.35, n.2 (Feb), 113-125.

Kohavi, R., 1995. A study of cross-validation and

bootstrap for accuracy estimation and model selection.

In International Joint Conference on Artificial

Intelligence.

Mello, F.C.Q., 2001. Smear Negative Pulmonary

Tuberculosis Predicting Models, Ph.D. Thesis,

Medicine Faculty, Federal University of Rio de

Janeiro, Brazil. In Portuguese.

Perkins, M.D.., Kritski, A.L., 2002. Perspectives.

Diagnostic Testing in the Control of Tuberculosis. In:

Bull WHO, 80 (6), 512-513.

Probst, G., Raub, S., Romhardt, K. 1999. Managing

Knowledge: Building Blocks for Success, 368 pp,

ISBN: 0-471-99768-4.

Rabarijaona, A., Dieng, R., Olivier, C., Quaddari, R. 2000.

Building and Searching an XML-Based Corporate

Memory, IEEE Intelligent Systems, v.15, n.3 (May),

56-63.

Sarmiento, O., Weigle, K., Alexander, J., Weber, D.J.,

Miller, W., 2003. Assessment by Meta-Analysis of

PCR for Diagnosis of Smearnegative Pulmonary

Tuberculosis, Journal of Clinical Microbiology, 41,

3233-3240.

Santos, A.M. 2003. Neural Networks and Classification

Trees Applied to Smear Negative Pulmonary

Tuberculosis Diagnosis, Ph.D. Thesis, COPPE/ UFRJ,

Rio de Janeiro, Brazil. In Portuguese.

Santos, A.M., Pereira, B.B., Seixas, J.M., Mello, F.C.Q.,

Kristski, A.L., 2006. Neural Networks: an Application

for Predicting Smear Negative Pulmonary

Tuberculosis. In: Balakrishnan, N.; Auget, J.L.;

Mesbah, M.; Molenberghs, G. (org.). In: Advances in

Statistical Methods for The Health Sciences. 279-292.

Seixas, J.M., Calôba, L.P., Delpino, I., 1996. Relevance

Criteria for Variable Selection in Classifier Design. In:

International Conference on Engineering Applications

of Neural Networks, 451-454.

Vassali, M.R., Seixas, J.M., Calôba, L.P., 2002. A Neural

Particle Discriminator Based on a Modified Art

Architecture. In: IEEE International Symposium on

Circuits and Systems, v. II., 121-124.

World Health Organization (WHO), 2002. Stop TB annual

report 2001.

NEURALTB WEB SYSTEM: Support to the Smear Negative Pulmonary Tuberculosis Diagnosis

203
