CHANGE MANAGEMENT IN DATA INTEGRATION SYSTEMS

Rahee Ghurbhurn, Philippe Beaune

Génie Industriel et Informatique, Ecole des Mines de St Etienne

158 cours Fauriel 42000 St Etienne, France

Hugues Solignac

STMicroelectronics, zi Peynier Rousset 13790 Rousset

Keywords: Data Integration, Change management, Multiagent Systems, Ontology.

Abstract: In this paper, we present a flexible architecture allowing applications and functional users to access

heterogeneous distributed data sources. Our proposition is based on a multi-agent architecture and a domain

knowledge model. The objective of such an architecture is to introduce some flexibility in the information

systems architecture. This flexibility can be in terms of the ease to add or remove existing/new applications

but also the ease to retrieve knowledge without having to know the underlying data sources structures. We

propose to model the domain knowledge with the help of one or several ontologies and to use a multi-agent

architecture maintain such a representation and to perform data retrieval tasks. The proposed architecture

acts as a single point of entry to existing data sources. We therefore hide the heterogeneity allowing users

and applications to retrieve data without being hindered by changes in these data sources.

1 INTRODUCTION

Due to economic globalisation, organizations now

evolve in a highly competitive environment where

having the right information at the right time is the

key of success. In the 90s, companies have invested

massively in information systems so as to be able to

store and analyse data through the use of data

warehouses. The result was one or more information

systems for each department. To derive higher value

added from the stored data, departments started to

share the information found in their systems.

Organization wide data sharing was rationalized

through the use of Enterprise Application Integration

solutions. From a point to point architecture we

obtained an organized global architecture composed

of heterogeneous applications communicating

through message buses. The problem is that in an

economy where the key word is flexibility the

information system rationalization created a rigid

architecture.

Indeed, the tight coupling of applications and

data sources makes it difficult to adapt them to

technological, organizational or economical

changes. Application or data source evolution are

difficult to realize as it impact the whole system.

Moreover, users having access to several data

sources owned by different departments may find it

difficult to identify the appropriate data for their

analysis. Indeed, domain concepts may be found in

several data sources but their semantic may differ

from a domain to another. In some cases it may be

interesting to use data collected by another

department to make an analysis more complete.

Our proposal consists in modelling different user

domain knowledge and associating them to their

corresponding data found in heterogeneous

distributed data sources. The user domain

knowledge is expressed in the form of one or several

ontologies (Gruber, 1993) that can be shared across

the organization or between several organizations.

To take into consideration the changing aspect of an

organization’s environment and the distributed

nature of data sources, the knowledge representation

is manipulated and maintained by a Multi-agent

system (MAS)(Nwana, 1996; Sycara et al., 1996).

In this paper, we are going to consider our

motivations and existing approaches in section 2.

Section 3 deals with our proposition in terms of

knowledge representation and in terms of MAS

268

Ghurbhurn R., Beaune P. and Solignac H. (2007).

CHANGE MANAGEMENT IN DATA INTEGRATION SYSTEMS.

In Proceedings of the Ninth International Conference on Enterprise Information Systems - DISI, pages 268-273

DOI: 10.5220/0002376102680273

 SciTePress

architecture. Lastly section 4 presents a brief

conclusion and some perspectives.

2 MOTIVATIONS AND EXISTING

APPROACHES

Our work is being carried out in an industrial

environment composed of several independent

heterogeneous and distributed data sources. These

data sources are accessed by several applications for

production analysis, production planning and follow

up, decisional and reporting activities. Some

applications are old legacy applications with direct

access to the data sources other communicate

through message buses and other by means of flat

files. These applications and data sources belong to

different services and are therefore independent.

This implies that the data sources can be modified at

any time, by a service, without any notification to

the others.

Our objective is to design and implement a

mechanism that allow functional user to explore the

existing knowledge found in different data sources

and retrieve the associated data without having to

know the underlying data sources’ structures. This

data exploration and retrieval should be possible

even if changes have been operated on the data

sources. Moreover, we also consider the fact that if

the data sources are changed the applications

accessing them are also impacted. We propose to

isolate these applications from this type of changes

by creating a single point of entry common to all

data sources.

The problem of integrating distributed data

sources has been addressed by several research

communities namely the database, artificial

intelligence and the knowledge representation

community. Several solutions have been proposed.

Federated databases (Busse, 1999) consist in

defining a canonical schema to map the data sources

logical schemas. Federated data sources create a

tightly coupled global information system and it is

therefore difficult to make each components of the

system evolve without impacting the global

structure.

Multi-database query languages allows data

sources to be loosely integrated as there is no global

schema, but the main problem is that the semantic

heterogeneity is not dealt with by the system but by

the users. Indeed the user has to know the physical

and logical characteristics of each data sources to be

able to take into account the data heterogeneity.

There are several implementations of multi-database

query languages namely MSQL (Litwin et al.,

1989), SchemaSQL (Lakshmanan et al., 2001) and

FRAQL (Sattler and Saake, 2000). These languages

are all SQL extensions.

Data integration through mediation (Wiederhold,

1992; Levy, 1999) consists in defining for each data

source a local schema describing the content of these

data sources. These local schemas are then mapped

to a global schema that describes the relationship

between the content of the local schemas. The

mapping between the local and the global schema

can be specified by either the global-as-view or the

local-as-view approach. This approach allows

loosely coupled data integration in the sense that the

data sources remain independent but it creates a tight

coupling between the local and global schemas.

Indeed when ever a data source changes the

mappings have to be updated and this may prove to

be a tedious task. Some projects based on the

mediator approach are SIMS (Arens et al., 1993),

TSIMMIS (Chawathe et al., 1994),

Infosleuth(Bayardo et al., 1997). Recently two new

approaches global-local as view and both-as-view

have been proposed by (Friedman, 1999) and

(McBrien and Poulovassilis, 2003) respectively.

These approaches aim at combining the advantages

of global-as-view and local-as-view. That is

combining the ease of transforming queries and the

ease of adding new data sources.

Ontology driven integration consists in defining

a local ontology for each data sources and link them

either by defining a global ontology containing

concepts that subsumes the local concepts or by

defining inter-ontology mappings. Ontology driven

integration presents the same inconvenient as the

mediation approach. There is a tight coupling

between the local schemas and the global schema.

Moreover, it may be difficult to reconcile different

ontologies to establish inter-ontology mappings. The

main projects base on ontology driven integration

are OBSERVER (Mena et al., 2000) and KRAFT

(Peerce et al., 2000).

All the above mentioned approaches use

database views to enable data integration via a

global schema. According to us these solutions are

difficult to deploy in an environment where the data

sources are autonomous. By autonomous we mean

that each company or service administers its own

data sources and can therefore modify their structure

without any notification. Moreover, database view

administration may be a complex task if the

modelled domain evolves rapidly. Indeed changes in

the domain may require the deletion of attributes or

CHANGE MANAGEMENT IN DATA INTEGRATION SYSTEMS

269

relations in the data sources invalidating the views

used for data integration (Bellahsene, 2002, Amy et

al, 2002).

Another point is that the above mentioned

approaches do not provide any backup mechanism to

allow for query answering if one data source is

offline. Indeed to the best of our knowledge we did

not find any mechanism that redirect query to

backup data sources if one them fails.

Lastly, these solutions have been built for human

use and do not take into account the fact that some

planning or decisional applications need to access

these data. In fact when ever a data source is

modified, it impacts not only the users but also the

applications using the data source. The applications

have to be updated either by updating the queries the

application uses or by updating the source code for

legacy applications.

3 PROPOSITION

Our proposition consists in expressing the content of

the data sources in terms of users’ domain

knowledge. This knowledge representation takes the

form of one or several ontologies, each representing

a different domain, expressed in OWL DL. The

ontology does not only express the relation between

concepts that are present in the data sources but also

their localization. That allow us to reuse a same data

source in different domain ontologies. These

relationships are used to replace views and are used

to reformulated user queries. In the following we are

going to explain our knowledge modelling and why

do we need a MAS to maintain it.

3.1 Knowledge Modelling

As we said previously, our knowledge representation

concern domain knowledge. The main reason is that

modelling domain knowledge offers greater stability

as compared to data source logical models.

Moreover, logical schema presents several

mechanisms used for data storage and retrieval

optimization and therefore not embodying any

domain knowledge that may interest functional

users.

Thus we are going to describe concepts like

“integrated circuit”, “equipment”, “production

engineer” and for each of them, their associated

properties. For example, an equipment can have as

properties, a serial number, a localization, a date of

purchase, a production load and so on. After having

identified the concepts and their properties, their

semantic is specified by defining the appropriate

relationships between each concept.

In this form, the ontology allows users to browse

through the knowledge contained in the data sources

but it does not allow them to retrieve any associated

data. We therefore have to add some description

about their localization. For the time being, we

consider only databases but our model can easily be

extended to the description of any other data source

like XML files or object databases.

To have a complete description of a concept, we

consider that properties can be expressed as a

function of one or several data source attributes

found in the same or different data sources. For

example, a production engineer and an equipment

maintenance engineer will be interested in different

aspects of an equipment. But both of them would be

interested in indicators coming from another domain

like the production load (production domain) or the

maintenance actions performed on an equipment

(maintenance domain). Indeed the maintenance

engineer may use the production load indicator to

plan and determine future maintenance actions. The

production engineer will perhaps want to know the

recent maintenance action performed in case high

production loss. The problem is that this information

may not be found in the same data source. For these

reasons we associate to a property one or more data

sources. Our proposal is not based on views, the

queries over the data sources are formed at runtime

based on the selected concepts and properties. The

figure below is a UML representation of the basic

concepts of our ontology.

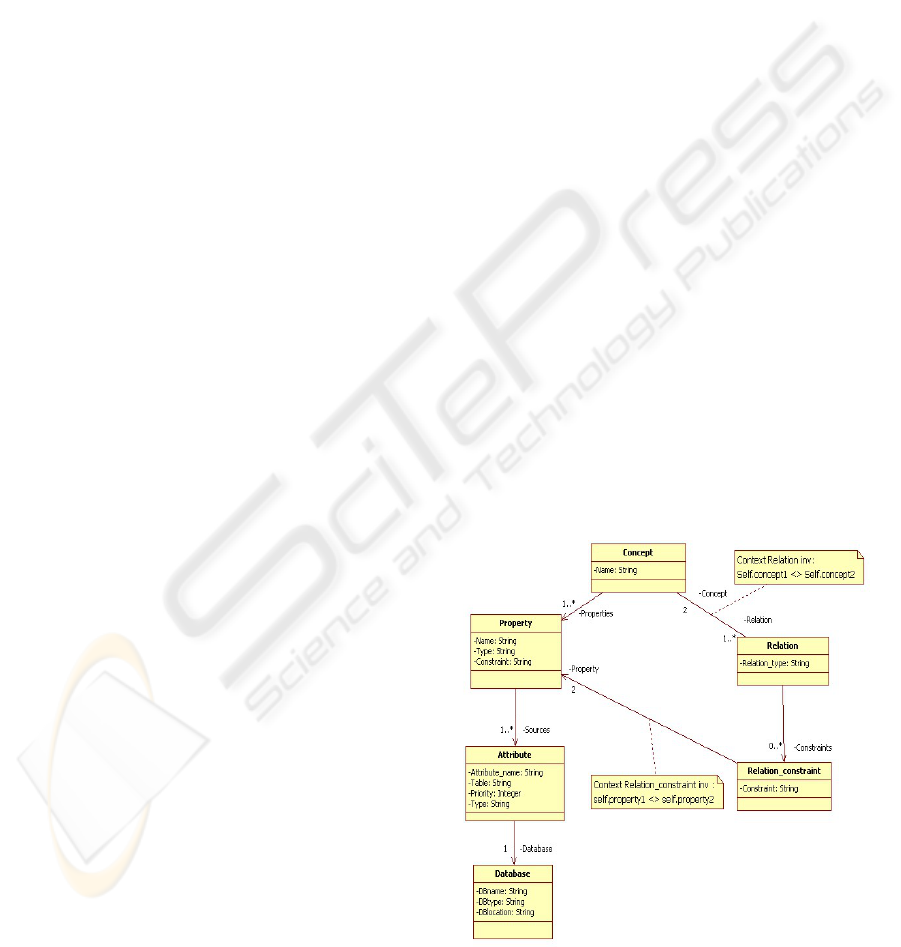

Figure 1: Ontology model.

ICEIS 2007 - International Conference on Enterprise Information Systems

270

Figure 1. represents the UML model

corresponding to the structure of our ontology. A

concept is composed of properties and relations.

Each property can have one or more attributes

referencing the corresponding data found in the data

sources. Relations define the type of relationship

existing between two concepts.

Having linked the knowledge representation to

the data sources, users can now browse through the

knowledge contained in the data sources and ask the

system to retrieve the desired data. But before being

able to present the retrieve data to the users, we have

to firstly convert the queries expressed in terms of

domain knowledge into queries understandable by

the data sources. Domain queries are composed of

concepts, properties and constraints on selected

concepts and properties. The query transformation

mechanism is explained in section 3.2.2. Secondly,

we have to check for the data structure consistency

and harmonize them. Another issue is the coherence

of the ontology with the data sources. As we said

earlier, we assume that the data sources are

independent and can be modified at any time. In this

case, we must be able to detect the data source

changes, evaluate the impact on the ontology, make

the necessary updates and deal with queries that

have been issued just before the data source change.

In the next section, we propose to address all

these issues through a MAS. The latter will have as

main objective to convert queries expressed in terms

of domain knowledge into queries understandable by

data sources, retrieve the corresponding data, and

harmonize them before presenting them to the users.

The MAS must also be able to detect any change in

the database structure, evaluate its impact on the

ontology and take corrective measures to keep the

representation coherent and deal with issued queries.

3.2 Multi-agent Architecture

In the past years, MAS have been used in a variety

of applications like distributed computations,

simulation, computer games, information gathering,

data mining, production and supply chain planning.

The use of MAS paradigm is motivated by the

various interesting properties it presents.

Software agents are autonomous, this property

allows them to act on behalf of the user. They can

contain some level of intelligence, which is either

hard coded through fixed rules or acquired using

learning engines. This so-called intelligence allow

them to interact and adapt to changes in their

environment.

Agents are able to communicate with users, other

systems and other agents as required.

Communication is an important characteristic, in the

sense that it allows several agents, having no

complete information, to cooperate and execute

complex tasks or achieve complex objectives.

The motivations behind the use of MAS as a

potential solution to our distributed and

heterogeneous data retrieval problem are based on

organisational and architectural aspects.

Organisational aspects include the facts that MAS

can easily auto-adapt to changing environment and

re-synchronise the elements composing the system.

Architectural aspects concern the robustness and

flexibility in terms of administration or operation.

That is MAS can be partly administered or updated

without having to switch the whole system offline.

The MAS architecture that we propose has three

basic functions; ontology construction assistance,

information retrieval and ontology coherence

maintenance.

3.2.1 MAS and Ontology Construction

Assistance

The data sources being distributed, we decided to

affect a resource agent to each data source. After

having identified the concepts of a user domain and

their corresponding attributes in the data sources, the

system administrator can ask the agents to retrieve

the corresponding meta-data to instantiate our

“database” and “sources” concept in our ontology.

The association of the domain concept to the sources

is done manually by the administrator. The

administrator must also define the links that exists

between different data sources. These links will be

used when converting ontological queries into SQL

queries and when fusing the result sets

corresponding to the queries. The instantiation and

mapping is done through the use of an ontology

agent.

3.2.2 MAS and Information Retrieval

The information retrieval mechanism, that we

propose, does not use views for query reformulation

and checks for the availability of the data sources

before retrieving data. If the data source is not

available the mechanism is able to determine the

accessibility of the data sources participating in the

query and retranslate the user query based on backup

data sources.

Once the ontology built, it allows functional users to

formulate queries in terms of domain knowledge to

retrieve data without having to know the data

CHANGE MANAGEMENT IN DATA INTEGRATION SYSTEMS

271

sources’ underlying structures. The main problem is

that these domain knowledge queries are not

understood by the data sources. The ontology agent

translates domain knowledge queries into queries

understandable by data sources by using the

information found in the ontology. The steps in our

query conversion mechanism are:

 From the selected concepts and properties find

the corresponding data source attributes

 From the relevant attributes find the relevant

data sources and data sources’ tables

 Compose the queries for each data source

 From the relevant sources find the applicable

links between them, from the ontology and

automatically include the necessary attributes

and tables in the appropriate queries (defined

in the previous step)

 Query the data sources

As we previously said, we stored information

regarding the data sources for each data source

attribute added to the ontology. From this

information we can find out to which table of which

data source the attribute belongs. This information

allows us to fill the SELECT and FROM part of an

SQL query. Concerning the WHERE part and more

precisely the join clauses, it can be built from a

directed graph.

This graph is built by using the meta-information

regarding the attributes forming the SELECT part of

the query. The nodes of the graph represent the data

source tables forming the WHERE clause of the

query. The join clauses are determined by finding a

path from one node to another. If several paths are

found we choose the one that minimises the join

cost.

An ontological query can be broken into several

SQL queries concerning several data sources. The

links, between the data sources, defined by the

administrator are used to automatically include

additional attributes and tables to the queries

obtained in the previous step.

The queries are addressed to their respective data

sources. On receiving the queries each resource

agent checks their consistency, that is if the elements

composing the queries are found in the data source.

If an inconsistency is found, the resource agent

notifies the ontology agent who asks the other

resource agent to cancel the data source querying

and restarts the query reformulation steps but this

time using backup attributes found in the ontology.

If the data sources are successfully queried, the

result is sent to the users via the task agent

responsible of data harmonization. If the data source

querying is unsuccessful then an alert is sent to the

administrator and a notification sent to the user.

As with any data repository, query response time

must be as short as possible. To reduce the query

response time, we defined a conversion matrix

composed of all the properties contained in our

ontology and their corresponding attributes found in

the data sources. Their equivalence is specified by a

“1” at the intersection of the row and a column

respectively. Therefore whenever a query translation

has to be performed, no inference is made on the

ontology; instead the conversion matrix is used,

speeding up the translation.

As compared to approaches based on views the

query transformation is done at runtime and

therefore only existing attributes and online data

sources are selected. Moreover the burden of views

administration and maintenance is considerably

reduced. Indeed, the only views created are views

generally created by each local data source

administrator to speed up query answering. These

views can therefore be administered locally without

any impact on the global data integration system.

3.2.3 MAS and Ontology Coherence

As we mentioned in section 2, we consider that the

applications and the data sources are independent

and can therefore be modified at any time by the

system administrator. This poses serious problems as

regards to the coherence of our ontologies with the

data sources. Indeed, if the system administrator

removes some attributes, tables or even a data base

without any notification the users will not be

informed and will continue to send queries,

containing the removed attributes, to the data

sources.

We propose to use the resource agents to monitor

data sources and automatically detect any change,

operated by the administrators, in the data sources’

structures. When a change occurs, a notification is

sent to the ontology agent. Using the conversion

matrix, the latter is able to identify the impacted

concepts and evaluate the impact on the ontology.

The impact is measured by determining the number

of relations that the impacted concept has. After

having determined the impact of the changes on the

ontology, the ontology agent can either, in case of

attributes deletion, prevent the users from selecting

the properties of the concepts that have changed or

inform the system administrator that new data have

been added to the data sources. The administrator

can then decide if the new data should be associated

to a concept or not.

ICEIS 2007 - International Conference on Enterprise Information Systems

272

Moreover, our proposition must also deal with

queries that have been issued by user unaware of the

changes. In this case, the system tries to return a

partial answer and an explanation for the partial

result.

4 CONCLUSION

We presented in this paper our current work on a

MAS for information systems semantic

interoperability. The aims of such an architecture is,

firstly, to be able to explore and share knowledge

present in heterogeneous distributed data sources

within and between organization. Secondly isolate

users and applications from changes in the data

sources while allowing them to retrieve any data

from any data sources at any time. We have partly

implemented our MAS architecture and developed a

small ontology describing the knowledge contained

in three data sources. Some future perspectives

would be to develop an database annotation

mechanism that allows our agents to automatically

add new data sources to the ontology

REFERENCES

Gruber, T.R, 1993. Toward principles for the design of

ontologies used for knowledge sharing. In Formal

Ontology in Conceptual Analysis and Knowledge

Representation, Kluwer Academic Publishers. The

Netherlands.

Nwana, H.S. 1996, Software Agents: An Overview. In

Knowledge Engineering Review, vol. 11, pages 205-

244

Sycara, K., Pannu, A., Williamson, M., Zeng, D. and

Decker, K. 1996, Distributed Intelligent Agents. In

Intelligent Systems and their Applications, vol. 11,

pages 36-46. IEEE Expert.

Busse, S., Kutsche, R., Leser, U. and Weber, H., 1999,

Federated Information Systems: Concepts,

Terminology and Architectures, In Technische

Universitat Berlin., Technical Report .

Litwin, W., Abdellatif, A., Zeroual, A., Nicolas, B., and

Vigier, P. 1989, MSQL: a multidatabase language. In

Information sciences, vol. 49, pages 59-101. Elsevier

Science

Lakshmanan, L.V.S., Sadri, F. and Subramanian, S.N.,

2001 SchemaSQL: An extension to SQL for

multidatabase interoperability. In ACM Transactions

on Database Systems, vol. 26, pages 476-519. ACM

Press

Sattler, K., Conrad, S. and Saake, G. 2000. Adding

Conflict Resolution Features to a Query Language for

Database Federations. In Proc. 3nd Int. Workshop on

Engineering Federated Information Systems Akadem.

Verlagsgesellschaft

Wiederhold, G. 1992. Mediators in the Architecture of

Future Information Systems. In Computer, vol. 25,

pages 38-49, IEEE Computer Society Press

Levy, A. 1999. Combining Artificial Intelligence and

Databases for Data Integration. In Lecture Notes in

Computer Science. Springer.

Arens, Y., Chee, C.Y., Hsu, C. and Knoblock, C.A. 1993

Retrieving and Integrating Data from Multiple

Information Sources. In International Journal of

Cooperative Information Systems.

Chawathe, S., Garcia-Molina, H., Hammer, J., Ireland, K.,

Papakonstantinou, Y., Ullman, J.D. and Widom, J.,

1994. The TSIMMIS Project: Integration of

heterogeneous information sources. In Proceedings

10th Anniversary Meeting of the Information

Processing Society of Japan

Bayardo, R. J., Bohrer, W., Brice, R., Cichocki, A.,

Fowler, J., Helal, A., Kashyap, V., Ksiezyk, T.,

Martin, G., Nodine, M., Rashid, M., Rusinkiewicz, M.,

Shea, R., Unnikrishnan, C., Unruh, A., Woelk, D.,

1997. InfoSleuth: agent-based semantic integration of

information in open and dynamic environments. In

SIGMOD '97: Proceedings of the 1997 ACM

SIGMOD international conference on Management of

data.

Mena, E., Illarramendi, A., Kashyap V. and Sheth, A.P,

2000 OBSERVER: An Approach for Query

Processing in Global Information Systems Based on

Interoperation Across Pre-Existing Ontologies. In

Distributed and Parallel Databases, vol. 8, pages 223-

271. Springer

Preece, A.D., Hui, K., Gray, W.A., Marti, P., Bench-

Capon T.J.M., Jones, D.M., and Cui, Z. 1999 The

KRAFT architecture for knowledge fusion and

transformation. In Expert Systems, Springer, Berlin

Bellahsene, Z. 2002. Schema evolution in data

warehouses. Knowledge Information System vol. 4,

pages 283-304

Lee, A. J., Nica, A., and Rundensteiner, E. A. 2002. The

EVE Approach: View Synchronization in Dynamic

Distributed Environments. IEEE Transactions on

Knowledge and Data Engineering, vol 14, issue 5,

pages 931-954

Miller, L., Seaborne, A. and Reggiori, A., 2002 Three

Implementations of SquishQL, a Simple RDF Query

Language. In ISWC '02: Proceedings of the First

International Semantic Web Conference on The

Semantic Web.

McBrien, P. and Poulovassilis, A., 2003, Data integration

by bi-directional schema transformation rules. In 19th

International Conference on Data Engineering.

Friedman, M. and Levy A. and Millstein T. 1999,

Navigational plans for data integration. In Proceedings

of the sixteenth national conference on Artificial

intelligence and the eleventh Innovative applications

of artificial intelligence conference innovative

applications of artificial intelligence, American

Association for Artificial Intelligence.

CHANGE MANAGEMENT IN DATA INTEGRATION SYSTEMS

273
