THE JUMP PROJECT: PRACTICAL USE OF SEMANTIC WEB

TECHNOLOGIES IN EPSS SYSTEMS

Giovanni Semeraro, Ignazio Palmisano, Nicola Abbattista

Dipartimento di Informatica, Universit

a degli Studi di Bari, Via Orabona 4, 70126 Bari, Italy

Silverio Petruzzellis

Cezanne Software S.p.A. - Via Amendola 172/C, I70126, Bari, Italy

Keywords:

Semantic Web, Interoperability, SPARQL.

Abstract:

The JUMP project aims at bringing together the knowledge stored in different information systems in order

to satisfy knowledge and training needs in knowledge-intensive organisations. EPSS systems are meant to

support a user in taking decisions, leveraging different information sources that are available. The JUMP

framework is designed to offer multiple ways for the user to request information from a knowledge and doc-

ument base itself as the result of the integration of indipendent systems. In order to simplify communication

and maximize knowledge sharing and standardization of languages and protocols, Semantic Web languages

and technologies are used throughout the framework to represent, exchange and query the knowledge stored

in each part of the framework.

1 INTRODUCTION

The JUMP project

aims at developing an EPSS

(Electronic Performance Support System) capable of

intelligent delivery of contextualized and personal-

ized information to knowledge workers acting in their

day-to-day working environment on non-routinary

tasks.

While generic queries can be easily fulﬁlled by

means of standard information retrieval tools like

Google, very often the same power is difﬁcult to be

achieved when the goal of those searches are infor-

mation stored in various company databases, man-

aged by different applications, all running within the

company intranet. It is the case of users knowledge-

able w.r.t. the IT infrastructure and that already have

the background knowledge necessary to achieve most

of the task they are involved in, but not being expert

of all the domains in which the task to be achieved

spans. Tasks of this kind are neither generally cod-

iﬁed in corporate procedures nor completely new to

the worker. Above all, those tasks are by no means

JUst-in-tiMe Performance support system for dynamic

organizations, co-funded by POR Puglia 2000-2006 - Mis.

3.13, Sostegno agli Investimenti in Ricerca Industriale,

Sviluppo Precompetitivo e Trasferimento Tecnologico

solvable, in terms of information retrieval, by a stan-

dard Internet search. No brute-force approach like

Google desktop search can solve the problem in this

case and, even if it could, the result would never take

into account the connections existing between the var-

ious sources. The goal of an EPSS aiming at sup-

porting information needs spanning through multiple

knowledge bases, namely all the available informa-

tion systems in the company, be them formalized or

not, including binary documents such as video or au-

dio streams, is to act as an agent gluing together the

different sources by means of semantic connections,

and providing the user with contextualized and per-

sonalized information tied to the task being accom-

plished and to his/her characteristics. On the basis of

an accurate and formalized description of the user’s

features and of those of the software tool he/she is us-

ing, as well as the textual information describing the

task being accomplished, like for example the text of

an e-mail just received, the EPSS should select rel-

evant material from the KBs, ranking them accord-

ing to the user proﬁle, and provide them in a list to

the user who will eventually give his/her feedback re-

lated to the validity of the information provided. The

JUMP system has been designed to achieve this goal

by means of a centralized recommendation system

428

Semeraro G., Palmisano I., Abbattista N. and Petruzzellis S. (2007).

THE JUMP PROJECT: PRACTICAL USE OF SEMANTIC WEB TECHNOLOGIES IN EPSS SYSTEMS.

In Proceedings of the Ninth International Conference on Enterprise Information Systems - AIDSS, pages 428-431

DOI: 10.5220/0002383304280431

 SciTePress

that takes advantage of a common ontology describ-

ing the various knowledge bases.

2 DESIGN & IMPLEMENTATION

The system general architecture is depicted in Figure

1, where the central system (JUMP-EPSS) acts as a

hub of many independent external systems. The in-

volved systems in the current implementation are a

Document Management system, an ERP, a Learning

Management system and a HRM system, but the de-

sign of the platform is such that new systems can be

easily added to the platform as they become available.

2.1 Modularized Design

The basic design idea of the JUMP project is to make

the various portions of the framework as loosely cou-

pled as possible, since one of the requirements of the

framework is the ability to seamlessly add new infor-

mation sources or external systems, each one based on

different technologies, programming languages and

knowledge representation metaphors. This has lead

to adopting standard languages and protocols when

designing the interfaces each of the systems partici-

pating in JUMP has to implement.

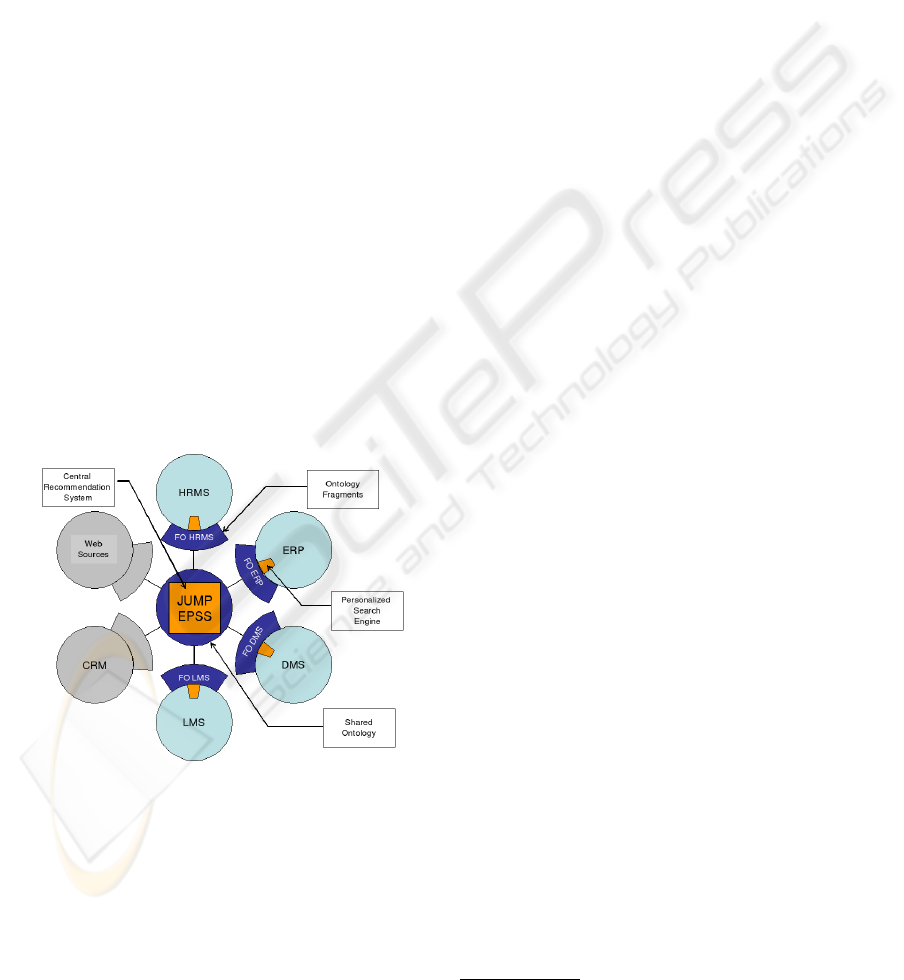

Figure 1: Sketch of the JUMP system architecture.

The communication level between JUMP and the

ancillary systems is designed to exchange both meta-

data about relevant items stored in the subsystems

and the items themselves. While the items consid-

ered here (which are the results JUMP can present

to the user) are generic binary objects ranging from

email addresses to audio/video streams, the metadata

about them are expressed through Semantic Web tech-

nologies; to make this possible, some OWL

ontolo-

gies about the items have been created, in order to

structure speciﬁc domain knowledge and instantiate

resources to describe the stored items.

2.2 Ontologies in the Jump Project

An ontology, following Gruber’s widely accepted def-

inition (Gruber, 1993), is a shared formalization of a

conceptualization, which means that to deﬁne an on-

tology it is necessary to choose a formalism, to use

this formalism to encode the conceptualization that

the applications are going to use, and to make this

conceptualization shared, i.e. ensure that the ontol-

ogy is used consistently by all the systems involved.

OWL was used as the representation language for

the JUMP project and Description Logics (Baader

et al., 2003) was consequently adopted as the under-

lying formalism.

2.2.1 Ontology Fragment Creation

Separate ontology fragments have been handcrafted

using the Prot

e editor

in order to represent the

most important concepts inside each of the involved

systems. By “most important” we mean here the

concepts each system domain expert considered of

paramount importance when representing the system

internal knowledge, so that external queries could be

answered by using the ontology fragment. Ontologies

have been then designed bottom-up in order to reﬂect

the semantics of the underlying databases and coded

functional processes as much as possible, but not aim-

ing at a total ontological replication of the knowledge

bases.

One of the reasons for that is the necessity to ﬁnd

the right tradeoff between the effort spent in design-

ing the ontologies and the advantages coming from

their usage; for this reason, the line has been drawn

so that all the relations and concepts that are relevant

when querying the system could be expressed through

ontologies, therefore excluding all those concepts and

relations that are only used for implementation pur-

poses or are not likely to be used in a search.

2.2.2 Ontology Fragment Integration

After developing the single Ontology Fragments - OF,

they have been divided into system speciﬁc ontolo-

gies and “upper” ontologies; these upper ontologies

are the part of the OFs that the JUMP system should

http://www.w3.org/2004/OWL/

http://protege.stanford.edu

THE JUMP PROJECT: PRACTICAL USE OF SEMANTIC WEB TECHNOLOGIES IN EPSS SYSTEMS

429

use when formulating queries for the subsystems. The

Shared Ontology (SO) is therefore the union of all the

upper OFs plus all the relations and concepts that are

speciﬁc to the JUMP system; since some concepts are

repeated across systems, the creation of the SO is the

point in which alignment techniques have to be used

in order to simplify and generalize the query writing

phase of the search.

The JUMP component has therefore to interface

with a generic service, sketched in Figure 2, knowing

which subset of concepts and relations are understood

by the service, and has to query it in order to discover

which items that could be relevant for the user the ser-

vice can return.

Figure 2: Sketch of a subsystem architecture.

2.3 Communication Protocols

Being each service based on an existing system that

can potentially use any technology or programming

paradigm, our design choice was to model services

as Web Services or HTTP services, depending on the

speciﬁc necessity. More in detail, we identiﬁed two

possible requests to a service:

• Find all relevant metadata for a request, i.e. an-

swer a SPARQL query, using the system speciﬁc

ontology where possible in order to reﬁne the

query

• Return a speciﬁed item upon request (items can

be binary objects in any format)

The ﬁrst request, in practice, can be answered

through the implementation of the SPARQL Pro-

tocol

(which amounts to the ability to answer a

SPARQL query through an HTTP or SOAP request),

while the second request can be easily ﬁlﬁlled through

the use of a simple HTTP service, that will answer

to a GET operation with suitable arguments; the rea-

son to use HTTP instead of a Web Service interface is

that, as already said, the items to be presented can be

http://www.w3.org/TR/rdf-sparql-query/

generic textual or binary objects, in some cases quite

large in size (w.r.t the E-Learning system, the size of

a resource, say a video tutorial for example, can reach

hundreds of megabytes), and therefore the additional

overload of SOAP serialization can be a serious per-

formance bottleneck, not providing any actual advan-

tage over the HTTP solution.

The internal architecture of an ancillary system is

responsibility of the single developer; however, the

JUMP project aims at integrating the four abovemen-

tioned systems in the platform proposing and sharing

a common architectural design. This architecture is

sketched in Figure 2.

The RDFCore component represented in the sub-

system architecture is a RDF storage system built on

top of the Jena Toolkit; it offers a SPARQL Protocol

implementation that, depending on the speciﬁc sub-

system architecture, can be directly used to imple-

ment the subsystem interface to the JUMP framework

or can be used to simplify data access. The solution

is described in more detail in (Stoermer et al., 2006).

2.4 Dataﬂow Design Metaphor

The architecture described here is based on the

metaphor of data pipes: by reusing an idea presented

in (Palmisano et al., 2006), we model the answer to

the input query as a data ﬂow coming out of the con-

junction of many data streams, each one originating

into a Store and corresponding to a URI in the query

Dataset. Since it is possible that different parts of

the query refer to different portions of the knowledge

base (i.e. some variables of the SPARQL query can

be fully binded in a subset of the dataset), we wrap

the query execution in a component called Query An-

alyzer, which has responsibility to split or rewrite the

query through the different portions of the knowledge

base, which are then queried independently.

The knowledge necessary to redirect a pattern to

a speciﬁc portion of the dataset must be available for

the Query Analyzer component, in order to rewrite

the query for each speciﬁc Locator that will feed the

results. This information can be represented as a list

of URIs associated to each section of the knowledge

base, where each URI corresponds to one of the pred-

icates of the statements contained in that section of

the knowledge base, or to the types of the individu-

als described therein; moreover, it is possible to do

the same thing with a set of namespaces instead of

full URIs, but this implies that different namespaces

are to be used for different sections of the knowledge

base; to prevent clashing, it is possible to just think

of joining two pipes with the same set of namespaces

or URIs (or where one has a superset of the other),

ICEIS 2007 - International Conference on Enterprise Information Systems

430

however this diminishes the effectiveness of the opti-

mizations presented so far. It is therefore important

to choose the partitioning of the knowledge base in

order to simplify these issues.

3 PROTOTYPE

The JUMP project is an ongoing project; so far, a pro-

totype implementing what presented in this paper has

been developed as an internal proof of concept to ver-

ify that interfacing systems through the JUMP frame-

work is feasible and useful even outside the project

scope itself (one of the side effects of the explicit

knowledge representation, in fact, is the ability of the

systems to implement interfaces to other frameworks,

e.g. frameworks based on HR-XML

standard for

Human Resource management systems).

Other features currently under development in the

prototype are related to the different possible inter-

faces that the user can exploit in order to query the

system. In particular, the possible interactions that

have been depicted so far include support to Microsoft

IBF (Information Bridge Framework) smart tags (in

PUSH mode, i.e. without the user explicitly request-

ing services), and SMS and email support (in PULL

mode, i.e. as answer to a user explicit request). Since

the user is likely to be a fairly experienced computer

user and not a computer programmer, the query is ex-

pected to be a simple text query, not different from a

normal query that could be issued against a standard

query engine such as Google

or Yahoo

. However,

we are exploring the possibility of offering the user a

more expressive language, e.g. giving the ability to

specify the class of results to which he/she is inter-

ested, like in:

Deliverable(FP 6 EU Project)

which carries the extra information that the resource

we are looking for, besides being related to the key-

words European Project 6th Framework Programme,

belongs to the class Deliverable or one of its sub-

classes.

4 CONCLUSIONS

In this paper we presented the design and initial im-

plementation steps of a framework for knowledge

and document sharing between different systems,

http://www.hr-xml.org/

www.google.com

www.yahoo.com

aimed at satisfying user information needs on the base

of his/her current task and background knowledge,

through the use of Sematic Web technologies. We

also presented some design issues and the solutions

we adopted to overcome the problems found so far.

An initial prototype and some current and future de-

velopments of the design were also presented.

ACKNOWLEDGEMENTS

This work has been co-funded by Regione Puglia,

Italy, through the research funding program named

POR Puglia 2000-2006 - Mis. 3.13, Sostegno agli In-

vestimenti in Ricerca Industriale, Sviluppo Precom-

petitivo e Trasferimento Tecnologico.

REFERENCES

Baader, F., Calvanese, D., McGuinness, D., Nardi, D., and

Patel-Schneider, P., editors (2003). The Description

Logic Handbook. Cambridge University Press.

Gruber, T. R. (1993). A translation approach to portable

ontology speciﬁcations. In Knowledge Engineering,

5(2), page 199220. Academic Press.

Palmisano, I., Redavid, D., Iannone, L., Semeraro, G.,

Degemmis, M., Lops, P., and Licchelli, O. (2006). A

RDF-Based Framework for User Proﬁle Creation and

Management. In Gabrys, B., Howlett, R. J., and Jain,

L. C., editors, Knowledge-Based Intelligent Informa-

tion and Engineering Systems, volume 4253 of Lec-

ture Notes in Artiﬁcial Intelligence, pages 606–613.

Springer.

Stoermer, H., Palmisano, I., Redavid, D., Iannone, L., Bou-

quet, P., and Semeraro, G. (2006). Contextualiza-

tion of a RDF Knowledge Base in the VIKEF Project.

In Proceedings of the 9th International Conference

on Asian Digital Libraries, Shiran Kaikan (Kyoto,

Japan), 27-30 November (to appear), Lecture Notes

in Computer Science. Springer Berlin / Heidelberg.

THE JUMP PROJECT: PRACTICAL USE OF SEMANTIC WEB TECHNOLOGIES IN EPSS SYSTEMS

431
