APPLYING HYBRID RECOMMENDATION POLICIES

THROUGH AGENT-INVOKED WEB SERVICES IN E-MARKETS

Alexis Lazanas, Nikos Karacapilidis and Vagelis Katsoulis

Industrial Management Lab, MEAD, University of Patras, 26504 Rio Patras, Greece

Keywords: Hybrid recommender Systems, web services, knowledge-based recommendation, intelligent agents.

Abstract: Diverse recommendation techniques have been already proposed and encapsulated into several e-business

systems aiming to perform a more accurate evaluation of the existing alternatives and accordingly augment

the assistance provided to the users involved. Extending previous work, this paper focuses on the

development of an agent-invoked web service that will be responsible for the coordination of the system’s

recommendation module. The specific service will be invoked through a correspondent software agent that

has been already implemented in our system’s platform and will perform the tasks of recommendation

policy synthesis, as well as the formulation of the appropriate knowledge rules.

1 INTRODUCTION

Recommendation systems accommodate users’

preferences for the purpose of providing them with

suggestions for purchasing or evaluating elements.

Various techniques have been proposed for the

creation of recommendations, such as collaborative

filtering, knowledge-based and others. These

techniques can be combined in hybrid

recommendation systems in order to improve their

performance.

This paper reports on research conducted in the

area of hybrid recommendation systems and

proposes a new approach that combines the

knowledge-based with the collaborative filtering

recommendation technique for the creation of

recommendations in transactions taking place via the

FTMarket platform. More specifically, this paper

extends our previous work on the exploitation of

software agent technology in transportation

management (Lazanas et al., 2005). We have

addressed analysis, design and implementation

issues raised during the development of an

innovative agent-mediated electronic marketplace,

which is able to efficiently handle transportation

transactions of various types. Agents of the proposed

system represent and act for any user involved in a

transportation scenario, such as customers who look

for efficient ways to ship their products and

transport companies that may - fully or partially -

carry out such requests, while they cooperate and get

the related information in real-time mode. Our

overall approach is based on flexible models that

achieve efficient communication among all parties

involved, coordinate the overall process, construct

possible alternative solutions and perform the

required decision-making. In addition, the

supporting web-based system is able to handle the

complexity that is inherent in such environments,

which is mainly due to the frequent need of finding

“modular” transportation solutions (Karacapilidis et

al., 2006).

This paper focuses on the features and

functionalities of a new module integrated in the

above system, namely the recommendation module,

which aims at enhancing the quality of the

associated decisions (Lazanas et al., 2006).

Recommender systems have been described as

systems that produce individualized

recommendations as output or have the effect of

guiding the user in a personalized way, in

environments where the amount of on-line

information vastly outstrips any individual’s

capability to survey it (Burke, 2002). Alternative

techniques have been also proposed in the literature

in order to handle the above issues (O’Mahony et

al., 2002; Sarwar et al., 2000). Having thoroughly

considered their pros and cons, our approach follows

a hybrid recommendation technique.

To consumers of Web Services, agents can form

a powerful means of indirection by masking the

161

Lazanas A., Karacapilidis N. and Katsoulis V. (2007).

APPLYING HYBRID RECOMMENDATION POLICIES THROUGH AGENT-INVOKED WEB SERVICES IN E-MARKETS.

In Proceedings of the Ninth International Conference on Enterprise Information Systems - SAIC, pages 161-166

DOI: 10.5220/0002393401610166

 SciTePress

Web Service for purposes such as redirection,

aggregation, integration, or even to provide

recommendations, as in our case. From this

perspective, the architecture proposed in this paper

demonstrates a pattern of enabling Web Service

clients to invoke application services exposed by

agents. In this instance, the type of agent service

made available is naturally restricted due to the

limited expressivity or typical service invocation

calls initiated by Web Service clients (Cho et al.,

2002). The intrinsic implication here is that

applications are now able to seamlessly bridge (in a

bidirectional way) the agent and Web Service

domains.

2 RELATED WORK

2.1 Hybrid Recommender Systems

Hybrid recommender systems combine two or more

recommendation techniques to gain better

performance with fewer of the drawbacks of any

individual one. Most commonly, collaborative

filtering is combined with some other technique in

an attempt to avoid the “ramp-up” problem.

Hybridization in recommender systems can alleviate

some of the problems associated with collaborative

filtering and other recommendation techniques.

Knowledge-based recommendation attempts to

suggest objects based on inferences about a user’s

needs and preferences. In some sense, all

recommendation techniques could be described as

doing some kind of inference. Knowledge-based

approaches are distinguished in that they have

functional knowledge: they have knowledge about

how a particular item meets a particular user need,

and can therefore reason about the relationship

between a need and a possible recommendation. The

user profile can be any knowledge structure that

supports this inference. In the simplest case, as in

Google, it may simply be the query that the user has

formulated. In others, it may be a more detailed

representation of the user’s needs.

Entree and several other recently developed

systems employ techniques from case-based

reasoning for knowledge-based recommendation.

Schafer, Konstan and Riedl call knowledge-based

recommendation the ‘Editor’s choice’ method

(Schafer et al., 2000). The knowledge used by a

knowledge-based recommender can also take many

forms. Google uses information about the links

between web pages to infer popularity and

authoritative value. Entree uses knowledge of

cuisines to infer similarity between restaurants.

Utility-based approaches calculate a utility value for

objects to be recommended, and in principle, such

calculations could be based on functional

knowledge. However, existing systems do not use

such inference, requiring users to do their own

mapping between their needs and the features of

products, either in the form of preference functions

for each feature in the case of Tete-á-Tete or answers

to a detailed questionnaire in the case of

PersonaLogic.

2.2 Agents and Web Services

Typical agent architectures have many of the

features of Web Services. Agent architectures

provide “yellow” and “white pages” directories,

where agents advertise their distinct functionalities

and other agents search to locate the agents so they

can request those functionalities (Klusch and Sycara,

2001). However, agents extend Web Services in

several important ways:

• A Web Service knows only about itself, but not

about its users, clients, or customers (Wang

et al., 2004). Agents are often self-aware at a

meta-level, and through learning and model

building gain awareness of other agents and

their capabilities, as interactions among the

agents occur..

• Web Services, unlike agents, are not designed

to use and reconcile ontologies. If a service’s

client and provider happen to use different

ontologies, the result of invoking the Web

Service would be incomprehensible to the

client.

• Agents are inherently communicative, whereas

Web Services are passive until invoked.

Agents can provide alerts and updates when

new information becomes available. Current

standards and protocols make no provision

for even subscribing to a service to receive

periodic updates.

• A Web Service, as currently defined and used,

is not autonomous. Autonomy is a

characteristic of agents, and it is also a

characteristic of many Internet-based

applications.

• Agents are cooperative, and by forming teams

and coalitions can provide higher-level and

more comprehensive services. Current

standards for Web Services do not provide

the means for composing functionalities.

ICEIS 2007 - International Conference on Enterprise Information Systems

162

3 OUR APPROACH

3.1 Recommendation’s Module

Overview

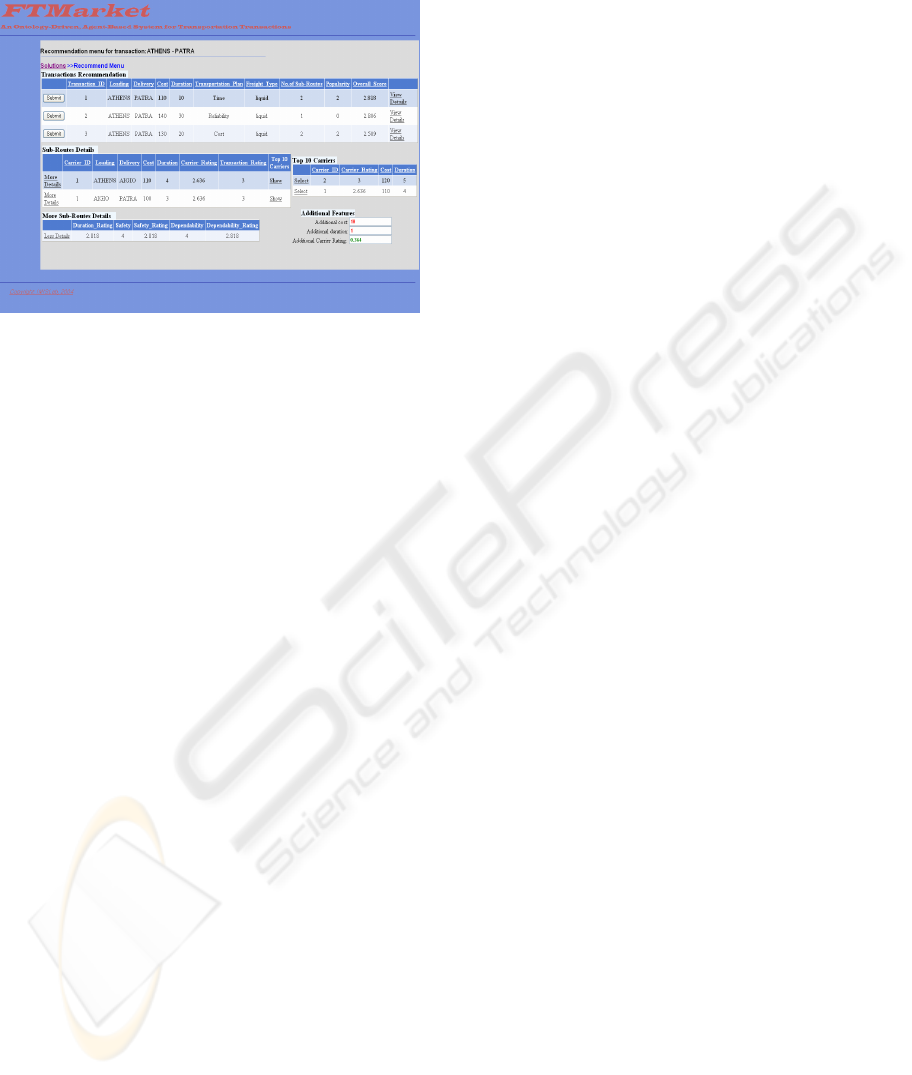

Our system retrieves all possible transportation

routes that can be constructed for a given transaction

request. These routes are presented to the user

through an appropriate designed webpage. This

webpage gives to the user the opportunity either to

select one of the proposed routes (in this case he will

be asked to complete the transaction), or to be

redirected to an evaluation webpage where he can

access the whole number of routes and the

evaluation will be based on specific criteria. The

evaluation takes place in a transactions and

popularity rating web page and is based on various

criteria, such as:

• Cost, Duration, Safety and Reliability;

• Average scores on the above carriers’

elements that will be used;

• Average scores on the above sub-routes’

elements that will be used;

• The number of times that a specific route has

been selected by other customers;

• Customer’s preferences;

• Number of sub-routes (assuming that

transloadings are associated to a negative

factor).

A final score is extracted for each route with the

help of a mathematical formula which includes

weight factors for the above criteria. At the

beginning, the system renders the five best routes

according to the final score without any further

details. Though, the user is given the opportunity, if

he wishes, to see the subroutes and the particular

score details. The user can also compare a sub-route

with an alternative which is provided by one of the

ten best carriers. In this case, if a user chooses one of

the alternatives, apart from the selected carriers the

difference in the cost, time and score of the carrier is

presented. When the user selects the desired

itinerary, he is transferred to the transaction

confirmation page.

Having executed the optimal routes retrieval

algorithm (Lazanas et al., 2006; Crauser et al.,

1998), the user is prompted by the system to press

the Recommendation command button, in order to

be transferred to the itineraries’ evaluation webpage,

where results are presented. Furthermore, this

triggers the execution of the itineraries evaluation

algorithm (executed in the website’s server). The

recommendation process is based on an evaluation

algorithm, which applies to both the carrier and the

itinerary participating in a proposed solution. More

specifically, for every solution that the optimal route

algorithm has retrieved for the requested transaction,

we analyze the sub routes; for each of them, we

calculate the average score that the carrier has

received for its reliability during the transaction, as

well as the average score that the specific route has

for the duration of the transaction. During the

calculation of the above average grades, the scores

that each carrier or each route has received are

multiplied by the user’s reliability factor (through

the User_Reliability table which is upgraded every

time that a user evaluates a route). This is performed

in order to add a level of significance into a reliable

user’s opinion compared with a less reliable one.

This certain reliability is calculated by the number of

times that a user has rated an itinerary and not by the

fact that his evaluation was considered strict or not.

Additional to the above duration reliability

evaluation, there is a similar procedure for the safety

and the general carrier’s reliability during the

transaction. So, taking into consideration the

priorities (preferences) that the user has indicated

(cost, safety, duration, reliability), we calculate the

average of the carrier and the route under

consideration (relying on the sum of the particular

elements multiplied by gravity factors depending on

the priorities of the user).

Both the average of the specific criteria

(duration, reliability, safety, general reliability) and

the general average are stored in the database, in the

fields which correspond to the specific sub route.

When this procedure is completed for all the sub-

routes of the selected itinerary, the average of all the

scores which were stored for each sub route is

calculated in order to get the overall score for the

carriers and the sub-routes, which will be used for

the complete itinerary. The final score of the

itinerary is the sum of the overall grade for the

carriers and the overall grade for the subroutes,

normalized by a percentage of the sum according to

the overall cost and the number of transloadings for

the specific itinerary. The overall and the particular

grades are stored in tables corresponding to the

current itinerary. When this procedure is performed

for all itineraries, the user gets transferred to the

popularity calculation webpage, where it is

calculated whether each of the above itineraries has

been completed and its correspondent frequency.

Aim of this procedure is to observe if a specific

itinerary is particularly popular for the selected

transaction. The popularity of each route is an

element which is presented later to the user, in order

APPLYING HYBRID RECOMMENDATION POLICIES THROUGH AGENT-INVOKED WEB SERVICES IN

E-MARKETS

163

not to affect his final decision (see the web page

illustrated in Figure 1).

Figure 1: The recommendation module.

As shown, the five optimal itineraries for the

transaction are presented, according to the final

grade assigned to each one of them. Suppose that in

this specific case the user is interested in a

transaction from Athens to Patras. At the beginning,

the page contains a single table with the retrieved

itineraries and some of their basic features such as

cost, duration, number of transloadings, popularity

of the itinerary and its final grade. By pressing the

Submit button, the user gets transferred directly to

the transaction confirmation page. Apart from the

initial table, the user is given the possibility to see

particular details of the specific itinerary if he

wishes. By pressing the View Details button, a

second table appears which includes the subroutes’

elements of the selected itinerary and some overall

grades for each sub-route. By pressing the More

Details button, the user is given the possibility to see

analytical details for each sub-route, like grades of

the duration’s, safety and general reliability. The

user is also given the ability to compare the

candidate carrier of the sub-route he chose with the

ten best transporters that exist for the particular sub-

route by pressing the Show button of the Top10

Carriers field (a common top-n practice in

collaborative filtering). Finally, the user is given the

possibility, by pressing the Select button on the table

which includes the ten best carriers, to compare the

carrier of the selected sub-route, with one of the ten

best carriers which are displayed beside. The

comparison is being performed according to the cost

and the time of the sub-route as criteria, as well as

the overall score of the carriers. This comparison is

presented under the name Additional Features.

When the compared carrier excels the existent one

(the one that the user has temporally selected), its

elements are displayed green, while its elements are

displayed red in the opposite case.

4 RECOMMENDATION POLICY

4.1 Mathematical Score Model

In this subsection, we present the mathematical

model and the calculation procedure of the

itineraries’ overall score (Overall_Score) through

the recommendation production from the system.

The Overall_Score receives values in the range from

0 (minimum) to 5 (maximum) and is the criterion on

which we base our suggestions to the users of our

system, in order to assist them selecting the optimal

itinerary. From the evaluation of the subroutes and

the carriers involved, the Overall_Score takes an

initial value. After that, in the initial value the cost

of each route and the number of its transloadings is

counted, thus obtaining the final value. The score

model for assigning the Overall_Score value is:

()

{[ *( ( * ) ( * )) / 2]

Overall_Score = 1

[*( ( * ) ( * ))/2]

[ *( ( * ) ( * )) / 2]/[( ) * ]}

a average ct ur average tt ur

b average cs ur average ts ur

c average cr ur average tr ur a b c i

ct Carrier RatingTime

cs Carrier Rating Safety

cr Carri

+++

∑

_.Re

_Re

er Rating iability

tt Transaction Rating Time

ts Transaction Rating Safety

tr Transaction Rating liability

ur User liability

With the variable average () we refer to the average

of the registrations (they are included in the data

base), of the variable which are in the parenthesis (i

represents the number of subroutes of each

itinerary). The variables a, b, c, d are weight factors

and are related with the preferences of the user (cost,

time, safety, reliability). Weight factor d is used later

for the introduction of cost in the Overall_Score.

The variables a, b, c, d assign their values by using a

simple “case statement” which is presented in the

pseudo-code below:

switch (Transportation_Plan)

{

case Time: aÅ2;

case Safety: bÅ2;

case Reliability: cÅ2;

case Cost: dÅ2;

}

ICEIS 2007 - International Conference on Enterprise Information Systems

164

At this point, in the Overall_Score the

normalized cost of the route and the number of

transloadings are included. As normalized cost, we

define the cost of the itinerary that we are

examining, divided by the minimum cost of the

itinerary. Furthermore, the number of transloadings

is being penalized (a great number of transloadings

could evoke damage in the product and increase the

transaction’s overall time).

5 AGENTS AND WEB SERVICES

5.1 Using Agents to Invoke Web

Services

Web Services are often characterized as message-

based. Interaction via message exchange means that

instead of a client invoking functionality exposed as

a Web Service, it sends a request to the Web Service

to have the functionality invoked (Greenwood and

Calisti, 2004). Or in other words, the thing that a

Web Service exposes is the functionality of

receiving a message. Instead of a

“GetRecommendationQuote” (GRQ) port type, for

example, a Web Service would expose a

“ReceiveMessage” port type, to which messages

requesting recommendation quotes are to be sent.

This has the advantage of correctly describing the

system’s control boundaries. For example, if a

system exposes a process GRQ service that implies

that it is the customer who causes the GRQ to be

processed. Of course, the system inserts some sort of

control point into the code that gets invoked, while

the system makes the decision of whether to really

process the RFQ (e.g., by producing a

recommendations’ quote and sending it back), or

whether to refuse the customer’s request.

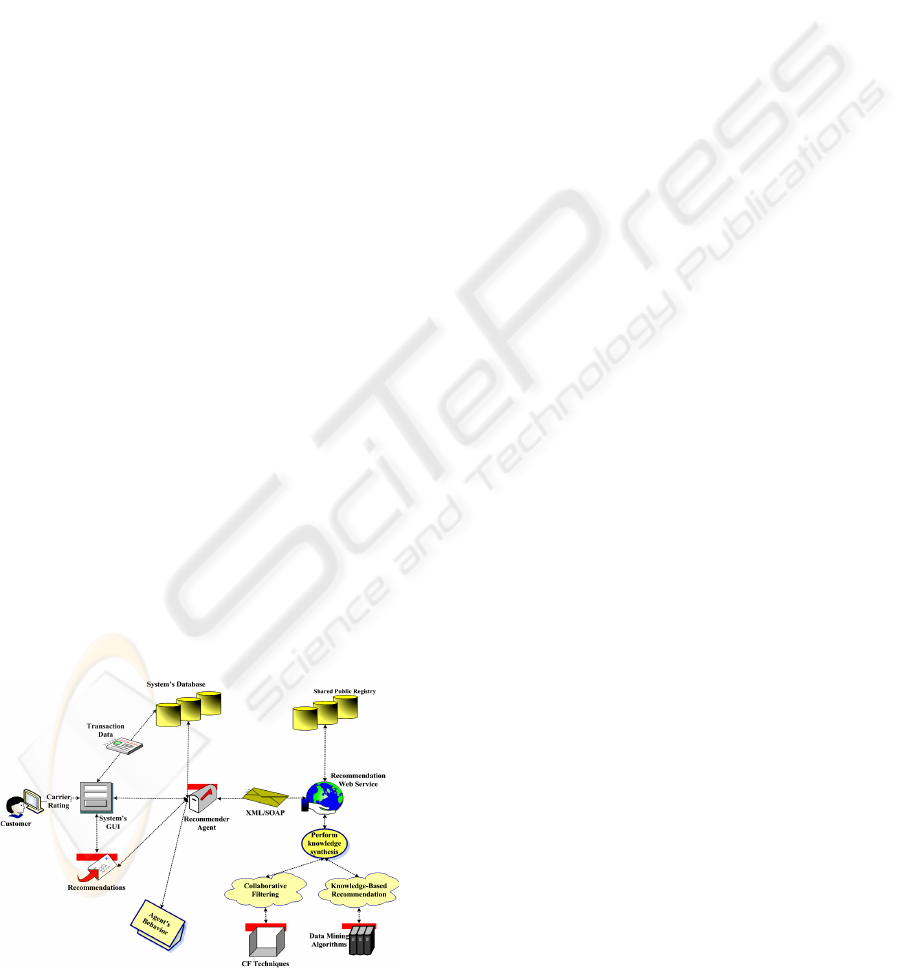

Figure 2: The recommendation module architecture.

We adopted a generic message interchange

policy, which means that delivery of message

content is independent of its format. Inputs to port

types that can receive messages are sufficiently

flexible that any content can be delivered in them. In

effect, the “ReceiveMessage” port types should take

arbitrary XML documents as input, regardless of

their schema. In generic messaging, arbitrary

message content may be exchanged by two

interacting parties, even in cases where the recipient

of a message is unable to recognize its meaning,

make decisions about it, or even, perhaps, parse it.

There are two fundamental reasons for this:

• Proper assignment of function.

Constraining the set of messages that may

be sent or received is like programming a

telephone to send or receive only a fixed set

of words (Kuno and Sahai, 2002). It is a

basic misplacement of function. The

messaging infrastructure should not to act

as a supervisor defining what may and may

not be said.

• Unexpected messages may turn out to be

valuable, because they may contain clues as

to how they should be handled. The

simplest example of this is a message

containing a non-standard abbreviation,

which may be guessed at and, by a further

exchange of messages, confirmed.

Similarly, generic messaging provides a

crucial feedback path by showing the

recommender agent the way in which its

correspondent web service is attempting to

contact it.

5.2 Determining Recommendation

Policy through Web Services

The overall architecture followed in our approach is

illustrated in Figure 2. As shown, the

recommendation tool is appropriately wrapped in

order to describe the kind of service to be provided.

To be easily located by users, such descriptions of

services will be placed in a shared public registry. It

is through this registry that users may look up for the

services they need each time. The correspondent

agent, which needs functions that can be provided by

the specific Web Service, sends the appropriate

request as an XML document in a SOAP envelope.

Web Services may make requests of multiple

services in parallel and wait for their responses. The

set of services to be provided in the FTMarket

platform will be increased and will constitute a

APPLYING HYBRID RECOMMENDATION POLICIES THROUGH AGENT-INVOKED WEB SERVICES IN

E-MARKETS

165

services repository. It is noted that it is not necessary

for all these services to be provided through a single

server; multiple servers, located in distinct

providers, may be used. Finally, it is made clear that

the foreseen services, through the associated tools,

communicate with a set of (local or remote)

knowledge and model bases.

6 CONCLUSIONS

This paper presented our approach on the integration

of hybrid recommendation techniques into an agent-

based transportations transaction management

platform. First of all, we proposed a hybrid approach

that combines different recommendation techniques,

in order to provide the user with more accurate

suggestions. The overall process is coordinated by a

recommender agent, who is responsible for invoking

a correspondent Web Service which carries out

multiple tasks, such as knowledge rules application,

the appropriate recommendation technique selection

and performs the knowledge synthesis through the

exploitation of collaborative filtering techniques and

data mining algorithms. The presence of the

recommendation agent guarantees that the user will

be provided with continuous recommendation and

dynamic update of the recommendation.

REFERENCES

Burke, R. 2002. Hybrid Recommender Systems: Survey

and Experiments. User Modeling and User-Adapted

Interaction, 12, pp. 331-370.

Cho, Y., Kim J. and Kim, S. 2002. A personalized

recommender system based on web usage mining and

decision tree induction. Expert Systems with

Applications, 23, pp. 329-342.

Crauser A., Mehlhorn K., Meyer U. and Sanders P., 1998.

A Parallelization of Dijkstra's Shortest Path

Algorithm. In Proceedings of 23rd International

Symposium, MFCS'98, Brno, Czech Republic.

Greenwood D. and Calisti M., 2004. ‘Engineering Web

Service - Agent Integration’. In IEEE Conference of

Systems, Man and Cybernetics, The Hague.

Karacapilidis N., Lazanas A., Megalokonomos G. and

Moraitis P., 2006. On the Development of a Web-

based System for Transportation Services. Information

Sciences, Vol.176 (13), pp. 1801-1828.

Klusch, M. and Sycara, K., 2001. Brokering and

Matchmaking for Coordination of Agent Societies: A

Survey. In A. Omicini et al. (eds.), Coordination of

Internet Agents, Springer, 197-224.

Kuno, H. and Sahai, A., 2002. ‘My agent wants to talk to

your service: personalizing web services through

agents’. Proc. of the Ist International Workshop on

Challenges in Open Agent Systems, Bologna, Italy.

Lazanas A., Evangelou C., and Karacapilidis N. 2005:

Ontology-Driven Decision Making in Transportation

Transactions Management. In W. Abramowicz (ed.),

Proc. of the 8th International Conference on Business

Information Systems (BIS 2005), Poznan, Poland,

April 20-22, pp. 228-241.

Lazanas A., Karacapilidis N. and Pirovolakis Y., 2006.

Providing Recommendations in an Agent-Based

Transportation Transactions Management Platform. In

the 8th International Conference on Enterprise

Information Systems, Paphos, Cyprus.

O’Mahony M, Hurley N., and Silvestre C., 2002.

Promoting Recommendations: An attack on

Collaborative Filtering: In: Proceedings of DEXA

2002 Conference, LNCS, Vol. 2453, Springer-Verlag,

Berlin, pp. 494-503.

Sarwar, B.M., Karypis, G., Konstan, J.A. and Riedl, J.,

2000. Analysis of Recommender Algorithms for E-

Commerce. In: Proceedings of the ACM Conference

on e-Commerce, Minneapolis, MI, October 17-20,

2000, ACM Press, pp. 158-167.

Schafer, J.B., Konstan, J. and Riedl, J., 2000. Electronic

Commerce Recommender Applications. Journal of

Data Mining and Knowledge Discovery, 5 (1/2), pp.

115-152.

Wang, H., Huang, J., Qu, Y. and Xie, J. (2004) ‘Web

services: problems and future directions’, Journal of

Web Semantics, Vol. 1, pp.309–320.

ICEIS 2007 - International Conference on Enterprise Information Systems

166
