TRANSPARENT EXTENSION OF SINGLE-USER

APPLICATIONS TO MULTI-USER REAL-TIME

COLLABORATIVE SYSTEMS

An Aspect Oriented Approach to Framework Integration

Ansgar R. S. Gerlicher

London College of Communication, Hochschule der Medien, Stuttgart, Dingelstedtstr. 5, Hannover, Germany

Keywords: CSCW, Groupware, Collaborative Editing, Collaboration Transparency, Software-Architecture, Aspect-

Oriented Programming, XML, Distributed-Systems.

Abstract: This paper discusses the transformation of a single-user SVG editing application into a multi-user real-time

collaborative editing system. The application’s extension with collaboration functionality was realized by

using a novel aspect-oriented programming approach to framework integration. This approach is platform

independent, supports heterogeneous applications and does not require an application specific API or access

to the application’s source code. The collaboration functionality in this case is provided by the Collaborative

Editing Framework for XML (CEFX) which uses the Document Object Model as a standard interface to the

application’s data model.

1 INTRODUCTION

Cooperative work is a day-to-day activity in many

areas. Software development teams cooperatively

develop applications or write documentation. Engi-

neers cooperatively design a circuit diagram or work

together on a 3D model of a new machine. The

documents that are cooperatively edited range from

simple text documents over 2D graphics to complex

3D models.

However, software support for real-time group

editing in commercial applications today is uncom-

mon. Thus support for collaboration is often limited

to turn-taking, split-combine and copy-merge. Exist-

ing real-time group editors - derived from research

projects - are usually very specialized and despite

latest achievements in the research field of Com-

puter Supported Cooperative Work, many such sys-

tems suffer from a lack of user acceptance in the

professional area. One reason for this seems to be a

low motivation of users to learn new user interfaces

and application functions if they can not see their

personal benefit in the collaboration features

(Grudin, J., 1994). Another reason may be that exist-

ing real-time group editors generally can not com-

pete with established single-user editors regarding

the functionality and usability (Xia, Sun et al. 2004).

A more promising approach therefore is to ex-

tend accepted single-user editing applications with

collaborative real-time editing functionality. The

difficulty with this approach is to extend an applica-

tion transparently (that is without modifying the ap-

plication’s source code) with as little effort as possi-

ble and at the same time providing the best support

for real-time collaboration.

Systems for application sharing such as VNC,

NetMeeting or Netviewer allow sharing the view of

any single-user application among a group of users.

These systems are application independent and ap-

plication transparent. The effort to share an applica-

tion is very little, but they only support strict

WYSIWIS. Independent user interaction on the

shared document or application is not supported.

A number of research projects investigated in

how to transparently extend single-user applications

with collaborative editing functionality (Xia, Sun et

al., 2004, Li, Li, Yu and Yang, 2003, Begole, 1999).

Their approaches support real-time collaboration and

relaxed WYSIWIS. However, these approaches ei-

ther depend on an application’s programming inter-

face (API) or require translating operating system

events into meaningful editing operations. This is

labour intensive and the integration code has to be

327

R. S. Gerlicher A. (2007).

TRANSPARENT EXTENSION OF SINGLE-USER APPLICATIONS TO MULTI-USER REAL-TIME COLLABORATIVE SYSTEMS - An Aspect Oriented

Approach to Framework Integration.

In Proceedings of the Ninth International Conference on Enterprise Information Systems, pages 327-334

 SciTePress

rewritten for each new application that is to be ex-

tended.

In this paper, we propose a novel approach to ex-

tending a single-user application with collaborative

real-time editing functionality. Our approach sup-

ports relaxed WYSIWIS and heterogeneous applica-

tions. An application is thereby extended without

modification of the source code and without being

dependent on an application API or on operating

system event translation. Our approach only assumes

a standard interface to the applications data model

and a runtime environment that supports introspec-

tion. We use the functionality of the Collaborative

Editing Framework for XML (CEFX) in order to

extend an application (Gerlicher, 2006). CEFX,

among other things, takes care of synchronising the

shared document. This paper discusses how we ap-

plied the concepts of aspect-oriented programming

(AOP) in order to integrate CEFX into an existing

single-user editing application.

The paper is structured as follows. In the next

section, the different approaches of recent research

projects are discussed and compared with our ap-

proach. Section 3 discusses our approach, the CEFX

software architecture, the implementation and how

awareness support can be achieved. Section 4 dis-

cusses the requirements for this approach and then

conclusions are drawn in the last section.

2 RELATED WORK AND GOALS

Xia, Sun et al. propose the Transparent Adaptation

(TA) approach for the extension of single-user ap-

plications with collaboration functionality (Xia, Sun

et al., 2004). In CoWord, they have extended the

Microsoft Word application transparently by making

use of the Microsoft application and execution envi-

ronment APIs.

The TA approach requires each application to be

adapted before being shared. The adaptation of an

application requires the developer to have a detailed

knowledge of the application and execution envi-

ronment specific API. Additionally an interpretation

of the user actions in relation to the current applica-

tion contexts is required. Operational Transforma-

tion (OT) (Chen, Sun et al., 1998) is used for the

concurrency control of a shared Word document.

This requires to map each operation executed on the

application’s data model into an operation that can

be processed by the OT concurrency control mecha-

nism. This is the responsibility of the Collaboration

Adapter in CoWord. However, mapping user actions

to OT operations can become complex and requires

that the application’s data model supports positional

addressing of objects, which may not be feasible for

complex 3D modelling applications. These limita-

tions of CoWord are not inherent to the OT approach

but come from the design choices made concerning

the integration of concurrency control into an appli-

cation.

A similar approach is proposed by Li et al. called

Intelligent Collaboration Transparency (ICT) (Li, Li,

Yu and Yang, 2003). The focus of their work is on

sharing heterogeneous applications of the same ap-

plication family. They propose a system that allows

extending single-user applications such as GVim

and MS Word. For each application a so called ICT

agent is implemented that captures events from the

operating system and the application, translates them

into semantic operations and then transmits those to

the other collaborating sites, where the events are

replayed in the form of a sequence of editing events.

Their event capture and replay mechanism makes

intensive use of application and operating system

specific APIs and thus suffers from the same prob-

lems as the TA approach in terms of implementation

complexity. Additionally the complexity is increased

by supporting heterogeneous applications. This re-

quires a formalisation of application semantics in

order to be able to translate the user actions of one

application to the relating user actions of another

application.

The high implementation effort was one of the

reasons for the second generation of the ICT project,

ICT2. In contrast to their previous work, ICT2 does

not attempt to intercept and understand the operating

system level events. Instead it uses an adapted ver-

sion of the diffing algorithm (Myers, 1986) to derive

the editing sequences between document states (Lu

and Li, 2004). However, this new approach is not

suited for fine-grained real-time group editing such

as TA and ICT, because of its limitations in terms of

performance. The support for heterogeneous appli-

cations is limited to those applications that have the

same writing style. Sharing a document between for

example Latex and Word is not supported. The diff

algorithm that is applied supports determining the

differences of text documents only. In order to sup-

port structured and formatted documents, more so-

phisticated diffing algorithms would be required (Li

and Lu, 2006).

Begole (Begole, 1999) proposes a different ap-

proach. The Flexible JAMM (Java Applets Made

Multi-User) project extends a single-user application

by replacing selected components of it with multi-

user versions. The basic idea of this approach is not

to use an application or operating system specific

ICEIS 2007 - International Conference on Enterprise Information Systems

328

API for the integration of collaboration function, but

the Java Swing API. This has the advantage that the

components which are replaced are well known and

it is not required to implement a translation layer as

in the TA approach or convert user actions into ap-

plication semantic commands or API calls as in ICT.

The disadvantage is that the set of applications that

are suitable for an extension is restricted to Java

Swing based applications.

To summarise, all approaches use a certain API

in order to extend a single-user application. TA and

ICT both use an API on operating system and on

application level. JAMM uses an API on the level of

the runtime’s graphical user interface (GUI) library.

The first two approaches face the problem of im-

plementation complexity for each new application

that is to be extended. The JAMM approach has the

problem of being dependent on the fulfilment of

certain runtime requirements.

The goal of our approach is to reduce the com-

plexity of integrating a collaboration framework into

a single-user application and provide a solution that

is more general, supporting many different types of

applications. We argue that this can be achieved by

using aspect-oriented programming and concentrat-

ing on the application’s data model instead of an

application, operating system or GUI library API.

The application data model describes how data is

represented and used. For example in a text editing

application, the data model represents the text that is

edited. The structure of the data model can thereby

be different to its visual representation. One aspect

of an application is the manipulation of the data

model. The code for updating or querying the data

model can be distributed within the entire applica-

tion. In the terminology of AOP such aspects are

called crosscutting concerns. In our approach, we

identify these crosscutting concerns or system-level-

concerns within an application and define advices

that then create events for the underlying collabora-

tion framework in order to synchronise the data

model between the different sites. This has the ad-

vantage that once developed advices can be reused

for all applications that use the same methods for the

manipulation of their data model. This is for exam-

ple the case for all applications using the Document

Object Model (DOM) as a standard interface for the

manipulation of XML content. Although new ad-

vices have to be developed for applications that use

other methods for the data model manipulation, we

assume that the implementation effort is low com-

pared to other methods.

3 THE AOP APPROACH

For extending a single-user application with collabo-

rative real-time editing functionality, the Collabora-

tive Editing Framework for XML (CEFX) was used.

CEFX is a collaborative real-time system specialised

on XML based applications. It satisfies the collabo-

rative requirements of communication, group

awareness, session management and concurrency

control (Pichiliani and Hirata, 2006).

We selected the GLIPS Graffiti editor (GLIPS

Graffiti Editor) as single-user application for the

transparent integration of CEFX. The GLIPS Graffiti

editor is a cross-platform SVG graphics editor de-

veloped by ITRIS (ITRIS). It enables to create regu-

lar SVG files. As GLIPS is a Java application, it was

necessary to use an aspect-oriented extension to the

Java programming language. We used AspectJ for

the development of the required aspects.

Aspect-oriented programming (AOP) is a pro-

gramming paradigm for the separation and encapsu-

lation of concerns, especially crosscutting concerns,

within a software. The most popular AOP language

is AspectJ (The AspectJ Project), developed by

Gregor Kiczales et al. at Xerox PARC (PARC).

In order to encapsulate crosscutting concerns at

one place, so called aspects are defined which are

then integrated into the software not earlier then at

compile time. Using AOP implementations that sup-

port byte-code weaving (AspectJ), allows to extend

applications without access to their source code. An

aspect can alter the behaviour of the base code (the

non-aspect part of a program) by applying advices

(additional behaviour) at various join points (points

in a program) specified in a quantification or query

called a pointcut (that detects whether a given join

point matches). An aspect can also make binary-

compatible structural changes to other classes, like

adding members or parents. (Aspect-oriented pro-

gramming).

The following section describes the relevant

parts of the CEFX software architecture. Section 3.2.

discusses the implementation of the advices and in

section 3.3 the integration of awareness mechanisms

is discussed.

3.1 Software Architecture

CEFX is based on a hybrid software architecture,

which is a mixture of a centralised and a replicated

architecture. The central server side is responsible

for the session handling and management of the

shared documents. When a client connects to the

server in order to work on a certain document, the

server checks if a session for that requested docu-

TRANSPARENT EXTENSION OF SINGLE-USER APPLICATIONS TO MULTI-USER REAL-TIME

COLLABORATIVE SYSTEMS - An Aspect Oriented Approach to Framework Integration

329

ment is already open and connects the client to it.

The client then retrieves a copy of the shared docu-

ment from the server. Each operation that is exe-

cuted at a client site is executed locally first and then

propagated to each other client in a session and to

the server site. This guarantees good response times.

CEFX is composed of a set of plug-in compo-

nents that are responsible for the different aspects of

a collaboration system. The flexible plug-in architec-

ture of CEFX supports the extension of the frame-

work itself by providing new plug-in components.

The figure below depicts a simplified model of the

internal structure of the client part of CEFX.

cd Ov erviewCEFX Client

CEFXDOMAdapter

CEFXController

ConcurrencyController

«interface»

OperationExecutor

Netw orkController

AwarenessController

AwarenessWidget

Extens ionRegistry

«interface»

org.w3c.dom.Document

ConflictRes olutionProv ide r

1 1

0..* 1

«realize»

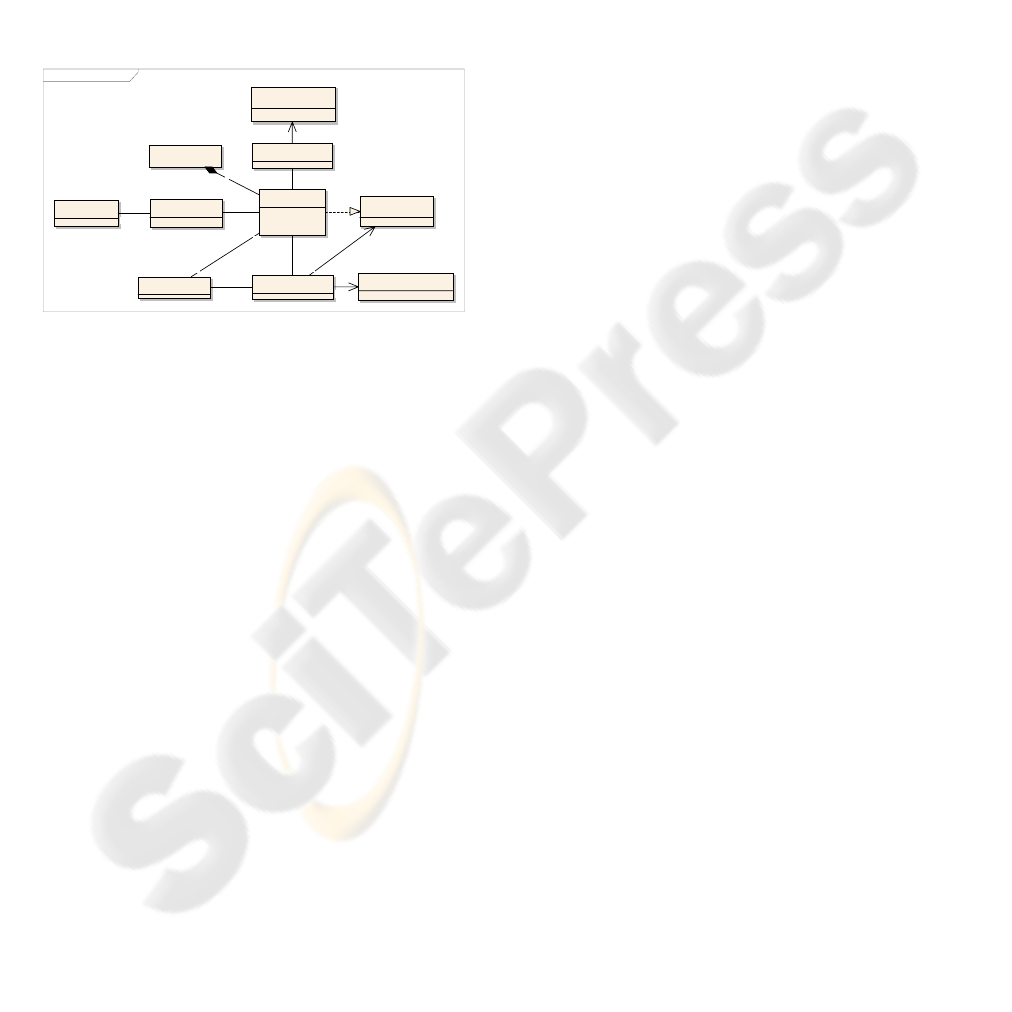

Figure 1: CEFX client components.

The CEFX Controller is the central controller

component of the framework. It owns a Extension

Registry (ER) which contains information on plug-in

components that need to be instantiated. The CEFX

Controller processes all framework events and dele-

gates them to the corresponding components.

The Network Controller (NC) is responsible for

sending and retrieving information over the network

The Concurrency Controller (CC) at each client and

the server site takes care of the synchronisation of

the shared documents and handles conflicts. The

concurrency control algorithm used was specifically

developed for the synchronisation of XML docu-

ments. It follows the same principles of causality

and convergence as the algorithms described in

Davis, Sun et al., 2002, Ignat and Norrie, 2002 and

Molli et al. 2002. In contrast to these algorithms

universal unique ids (UUIDs) are used for address-

ing nodes and operational transformation is not ap-

plied for preserving user intentions. However, a de-

tailed explanation of the used consistency mainte-

nance algorithm in CEFX goes beyond the scope of

this paper.

In the case of a conflict the Conflict Resolution

Provider (CRP) provides hints to the concurrency

controller on how the conflicting operations should

be treated.

Furthermore each client site has an Awareness

Controller (AC) that is responsible for the propaga-

tion of awareness events, such as mouse selection

events. It delegates awareness information to the

corresponding awareness widgets which are respon-

sible for the visualisation of these events.

The CEFX DOM Adapter (DA) is our entry

point to the framework. At the beginning of each

collaborative session, when a document is opened by

the user, the DA is provided with a reference to the

Document Object Model (DOM) of the application.

This is done by one of the advices that are called if a

certain join point within the application is executed.

For each local modification of the DOM, the DA

creates an operation which is then executed and

propagated to the other sites. Incoming operations

are - after passing different synchronisation steps -

eventually executed directly on the DOM of the ap-

plication, as if they were executed locally by a user

action.

3.2 Implementation

When extending the GLIPS Graffiti editor, the

crosscutting concerns that we were interested in is

the modification of the applications data model. The

first step was to identify the relevant join points that

are executed, when the data model is modified. User

operations such as drawing a line, changing the col-

our of an object or deleting a object modify the ap-

plications data model.

The GLIPS Graffiti editor is used to create and

edit Scalable Vector Graphics (SVG). As SVG is an

XML document format, GLIPS uses an XML docu-

ment internally as data model. For the modification

of the XML document, GLIPS makes use of the

DOM API. For rendering the SVG graphics to the

screen, the Apache Batik library is used (Batik SVG

Toolkit). Batik provides its own implementation of

the DOM which complies to the W3C Document

Object Model specification (W3C Document Object

Model).

This simplified the identification of the relevant

join points. All calls to functions defined by the

W3C DOM API were possible candidates for a rele-

vant join point.

The next step was to write an Aspect class that

encapsulates the crosscutting concerns at one place.

The Aspect class is similar to a Java class and can

contain normal Java code and additionally AspectJ

components. A simple example:

public aspect DOMAccessAspect {

…

}

ICEIS 2007 - International Conference on Enterprise Information Systems

330

The defined Aspect is then weaved into the applica-

tions bytecode. The applications source code is not

modified. The Aspect class defines point cuts that

are executed by AspectJ when the matching join

points are reached within the application.

We identified calls to the following W3C DOM

API methods as most relevant to the modification of

the GLIPS data model:

Node appendChild(…)

Node insertBefore(…)

Node removeChild(…)

void setAttributeNS(…)

void setAttribute(…)

The methods appendChild() and insertBe-

fore()

are called, whenever a node is added to the

document. This is the case for example if the user

draws a line in the SVG document. The method

re-

moveChild()

is called, whenever a node is re-

moved from the document. That is the case if the

user deletes an object from the document. The meth-

ods

setAttributeNS() and setAttribute() are

called if for example the user changes the colour of

an object. In SVG the colour information of an ob-

ject is contained in the value of the

style attribute.

The figure below shows a scenario of what hap-

pens, if for example the colour of an object is

changed. Whenever the method

setAttribute()

on an element node of the XML document is called,

the call is intercepted by AspectJ. Instead of directly

executing the code of the DOM implementation pro-

vided by Batik, the defined pointcut of our aspect

class selects the relevant join point and the specific

advice is applied. The advice then delegates the call

to the DA. The DA creates an update operation

which is handled by the CEFX Controller and asyn-

chronously propagated to all sites of the current edit-

ing session by the NC. The operation is instantly

executed on the local element node and the attribute

value is updated.

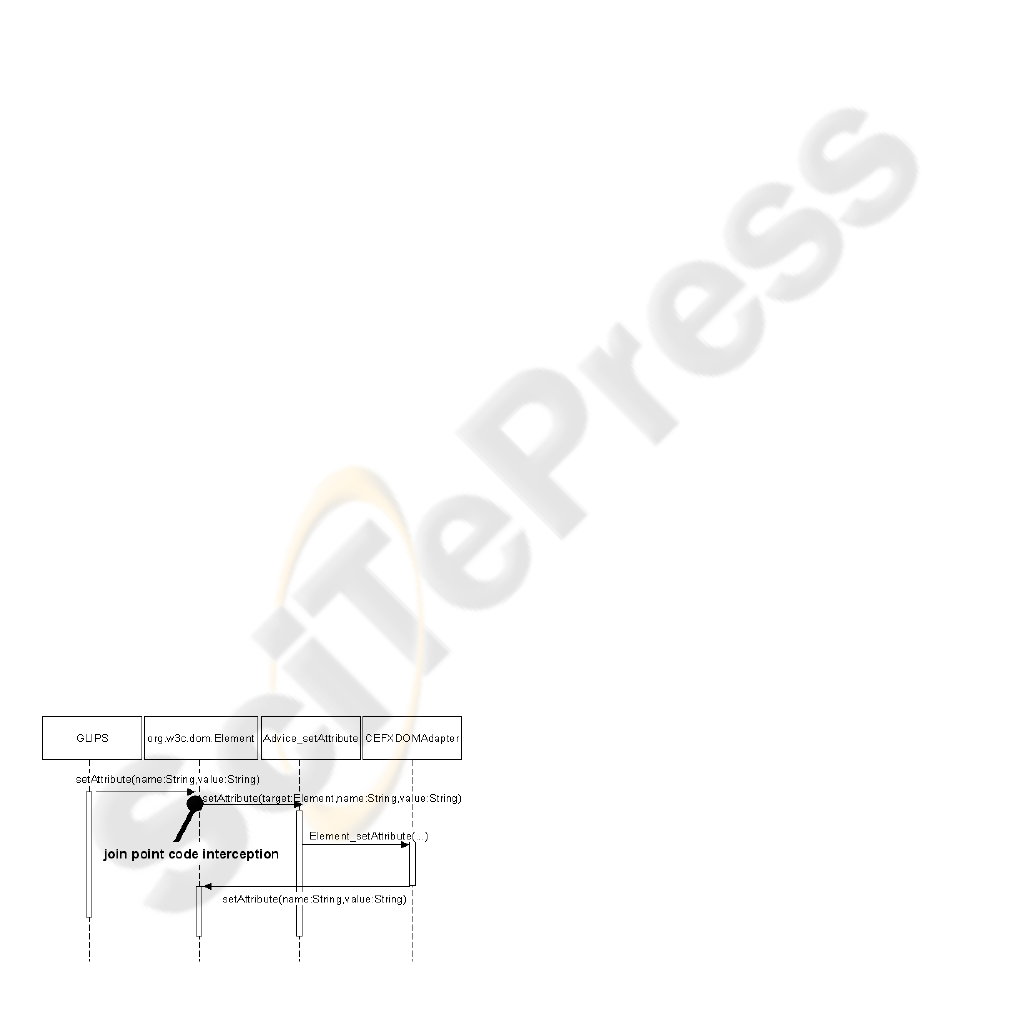

Figure 2: Scenario of code interception.

Pointcuts pick out interesting join points in the exe-

cution of a program. These join points can be for

example method invocations and executions. An

AspectJ pointcut definition gives a name to a point-

cut. The code snippet below shows how the pointcut

of the above scenario is defined in AspectJ.

…

pointcut setAttributePC(Element p,

String attr, String value):

target(p) && args(attr,value) &&

call (

void setAttribute(String,String))

&& !within(DOMAccessAspect);

…

This pointcut picks out all join points matching a

call to a method with the same signature and pa-

rameters as given in the

call() statement. For each

pointcut an advice is defined, that contains the code

that is to be executed if the pointcut is met.

For each of the relevant pointcuts, we defined an

advice. The advice, that is executed for the above

pointcut is shown in the following code snippet.

…

void around(Element p, String attr,

String value):

setAttributePC(p,attr,value)

{

Advices.setAttribute(p,attr,value);

}

…

The static method setAttribute() of the class

Advices is called here. The class Advices is a

helper class containing the advices code. This was

done for clarity reasons and in order to separate the

Java code from AspectJ code. The code that is exe-

cuted here is shown in the following code snippet.

…

public static void setAttribute

(Element p,String attr,

String value)

{

CEFXDOMAdapter doma =

CEFXUtil.getDOMAdapter();

if (doma != null) {

if(doma.isCollaborationReady()) {

doma.Element_setAttribute(p,attr,

value);

return;

}

p.setAttribute(attr, value);

}

…

TRANSPARENT EXTENSION OF SINGLE-USER APPLICATIONS TO MULTI-USER REAL-TIME

COLLABORATIVE SYSTEMS - An Aspect Oriented Approach to Framework Integration

331

First a reference to the

CEFXDOMAdapter is re-

trieved by calling the static method

getDO-

MAdapter()

of the CEFXUtil class, a utility class

provided by CEFX. If the DA is already initialised

and ready for collaboration, the call to

setAttrib-

ute()

is delegated to the corresponding DA

method. If the DA was not properly initialised, the

setAttribute() of the target object is called di-

rectly, setting the new value to the attribute. This is

done for example, if the client is not connected to a

collaboration session.

For all other relevant pointcuts the same proce-

dure was applied. The following code shows an ex-

ample on how the other advices were defined using

anonymous pointcuts.

…

Node around(Element p, Element c):

target(p) && args(c) &&

call(Node appendChild(Node)) &&

!within(DOMAccessAspect)

{

return Advices.appendChild(p,c);

}

…

Additionally to the advices for the manipulation of

the data model, advices for creating or loading of a

document and the initialisation of the render context

are needed. Creating a new SVG document or load-

ing and parsing of an existing document is handled

by the

SAXSVGDocumentFactory class provided

by Batik. Rendering of an SVG document to the

screen is handled by the

SVGCanvas class (the ren-

der context) provided by GLIPS. When a document

is opened, the DA is provided with a reference to it,

in order to integrate changes from the remote sites.

After the execution of a remote operation, the render

context of the application is notified in order to re-

paint the document. For this reason, the DA is pro-

vided with a reference to the application’s render

context. The following advice code is executed,

when a document is opened by the user.

…

SVGDocument

around(SAXSVGDocumentFactory fac,

String uri):

target(fac) && args(uri) &&

call(SVGDocument createSVGDocu-

ment(String)) &&

!within(DOMAccessAspect)

{

//Initalisation of the DA

CEFXDOMAdapter da =

new CEFXDOMAdapterImpl();

//Proving DA with factory reference

da.setDocumentFactory(fac);

//Creating the document and

//providing DA with a reference to it

SVGDocument doc = (SVGDocument)

da.createDocument(uri);

…

}

…

The DA is also provided with a reference to the

document factory. This is required for example, if a

session for the opened document already exists. In

this case, CEFX loads the document from the server

and handles the document parsing and initialisation.

The advice for setting the render context is called

when the

SVGCanvas is initialised within the appli-

cation. The following code illustrates how this is

achieved.

…

after(SVGCanvas panel): target(panel)

&& call(* initializeCanvas(*))

{

CEFXDOMAdapter da =

CEFXUtil.getDOMAdapter();

if (da != null) {

da.setRenderContext(panel);

}

…

The SVGCanvas class is derived from

javax.swing.JlayeredPane and provides a

method

initializeCanvas(). The advice is exe-

cuted after the initialisation method has been called.

Thus in this case the method call is not intercepted.

The advice is solely used for notifying CEFX of the

initialisation and providing it with a reference to the

render context.

To summarize, using aspect-oriented program-

ming for the integration of CEFX into the GLIPS

Graffiti editor did not require much programming

effort. Only seven advices were needed to provide

GLIPS with the basic collaboration functionality.

Five of the used advices were related to the DOM

API and can be reused for other applications using

the DOM. One advice was specific to the Batik li-

brary and one was specific to the application. The

overall performance of the application did not

change noticeable.

AspectJ is one of many existing implementations

of AOP. In this case for example HyperJ (HyperJ

Overview) could alternatively be used. AOP imple-

mentations exist for many different languages and

platforms such as Java, C#, VB.NET, JavaScript,

C/C++, Lua, Python, Ruby, Perl, PHP, Common

Lisp and many others.

ICEIS 2007 - International Conference on Enterprise Information Systems

332

3.3 Awareness Support

The discussed advices are used to integrate CEFX in

a way that satisfies the requirements of communica-

tion, session management and concurrency control.

In order to satisfy the requirement of group aware-

ness, additional effort is necessary.

CEFX provides simple awareness widgets that

allow to notify each user in a collaborative session

for example on other user’s mouse movements. This

can help a user to get an understanding of what other

users are working at. The awareness widgets are

little windows, controlled by the CEFX client and

independent of the extended application. The appli-

cation is not aware of those widgets.

For the integration of the awareness support pro-

vided by CEFX into the GLIPS editor, additional

advices can be used. Java applications make use of

certain interfaces from the

java.awt.event pack-

age in order to retrieve information on mouse clicks

and mouse movements. In the following example we

show how we notified CEFX of a user’s mouse

clicks. A new Aspect class containing advices for

mouse events was developed.

public aspect SelectionAspect {

…

after(MouseEvent event):

args(event) && execution(

void mousePressed(MouseEvent))&&

!within(SelectionAspect)

{

Advices.mousePressed(event);

}

…

The above code snippet shows the advice that is

executed when the user presses the mouse button.

The static method

mousePressed() of the Advices

helper class delegates the mouse event to the

MouseEventPropagator component of CEFX.

…

public static void

mousePressed(MouseEvent event)

{

CEFXDOMAdapter da =

CEFXUtil.getDOMAdapter();

if (da != null) {

MouseEventPropagator li =

(MouseEventPropagator)

da.getEventPropagator(event);

if(li!=null)

{

li.mousePressed(event);

}

…

The MouseEventPropagator component is regis-

tered with the AC component of CEFX and is re-

sponsible for propagating the mouse events to the

other sites, where they are displayed in the corre-

sponding awareness widgets. The same kind of ad-

vices can be implemented for all other kinds of user

events such as typing the keyboard or mouse move-

ments. Using AOP here allows a transparent integra-

tion of awareness mechanisms into the application.

4 REQUIREMENTS

AOP implementations are available for a large num-

ber of programming languages and platforms. One

requirement though is that the target application is

written in a language that is supported by AOP. Ad-

ditionally some AOP implementations require re-

compilation of the application’s source code in order

to weave the generated aspect code into it. Other

AOP implementations do not require source code.

AspectJ for example supports byte-code weaving

and advanced load-time weaving. This allows using

AOP without access to the application’s source

code, which makes it suitable for the extension of

commercial applications.

The integration of CEFX into the GLIPS applica-

tion had the advantage that GLIPS uses the DOM for

accessing it’s data model. This simplified the identi-

fication of relevant join points. For applications that

do not use a standard interface for modifying their

data model the identification of the join points may

be more difficult, but still feasible.

It is worth noticing that the support for heteroge-

neous applications in this approach is limited to ap-

plications using the same type of XML document.

The support for real heterogeneous applications (us-

ing different XML document types) is a subject for

future research.

5 CONCLUSIONS

This paper proposes a novel approach to the integra-

tion of a collaborative editing framework in order to

transparently extend a single-user application with

group editing functionality.

We assume that using standardised data model

interfaces and aspect-oriented concepts can dramati-

cally reduce implementation efforts in comparison to

other approaches using window event translation

and application specific programming interfaces.

This paper shows how little the effort is to transpar-

TRANSPARENT EXTENSION OF SINGLE-USER APPLICATIONS TO MULTI-USER REAL-TIME

COLLABORATIVE SYSTEMS - An Aspect Oriented Approach to Framework Integration

333

ently extend a single-user SVG editing application

using this approach. The application was extended,

by making use of the standard Document Object

Model and the Collaborative Editing Framework for

XML. The developed aspect-oriented programming

advises are reusable and the next step will be to ex-

tend a number of other single-user applications with

group editing functionality.

More and more applications today use XML as a

file format, for example OpenOffice, Mircosoft

Word 2007 and a number of editors for other XML

based file formats. If those applications make use of

the DOM API internally for the modification of their

data model, this will ease their extension with real-

time collaboration features.

However, one aim of this research project is to

provide collaboration support to existing and future

applications used for the design of vehicle electrical

systems in the automotive industries. Today, the

SVG format is a de facto standard for the representa-

tion of circuit diagrams in this area. Other XML

based document formats such as ELOG (Elec-

trological Model) are currently under development.

The development of a vehicle electrical system is a

complex process requiring intensive collaboration

between a number of different companies such as

the OEM, the suppliers and manufacturers of the

cable loom and different subcontractors, but the cur-

rent applications used in this area do not provide

support for real-time collaboration. Providing a sys-

tem that supports real-time collaborative engineering

would allow all parties to work on a single source.

This could lead to a better quality and higher pro-

ductivity.

REFERENCES

Chen, D., Sun, C., Jia, X., Zhang, Y., Yang, Y., 1998.:

Achieving convergence, causality-preservation, and

intention-preservation in real-time cooperative editing

systems. In ACM Transactions on Computer-Human

Interaction, Vol.5, No.1, pp.63-108.

Ignat, C., Norrie, M. C., 2002.: Tree-based model algo-

rithm for maintaining consistency in real-time collabo-

rative editing systems. In ACM Proceedings of the

Fourth International Workshop on Collaborative Edit-

ing Systems, New Orleans, Louisiana.

Molli, P., Skaf-Molli, H., Oster, G., Jourdain, S., 2002.:

Sams: Synchronous, asynchronous, multisynchronous

environments. In Proccedings of the Seventh Interna-

tional Conference on CSCW in Design, Rio de Ja-

neiro, Brazil.

Davis, A., Sun, C., Lu, J., 2002.: Generalizing Operational

Transformation to the Standard General Markup Lan-

guage. In Proceedings of ACM 2002 Conference on

Computer Supported Cooperative Work, New Orleans,

Louisiana, USA.

Xia, S., Sun, D., Sun, C., Chen, D., Shen, H., 2004.: Lev-

eraging single-user applications for multi-user collabo-

ration: the CoWord approach. In Proceedings of ACM

2004 Conference on Computer Supported Cooperative

Work, Chicago, IL USA.

Lu, J., Li, R., Li, D., 2004.: A state difference based ap-

proach to sharing semi-heterogeneous single-user edi-

tors. In Proceedings of CSCW'04 workshop on col-

laborative systems (IWCES-6) and application sharing

systems. Chicago.

Li, D., Li, R., Yu, Y., Yang, Y., 2003.: Using Familiar

Single-User Editors for Collaborative Editing. In Pro-

ceedings of the 36th Annual Hawaii International

Conference on System Sciences (HICSS'03).

Begole, J.M.A., 1999.: Flexible Collaboration Transpar-

ency: Supporting Worker Independence in Replicated

Application-Sharing Systems. Ph.D. Dissertation. Vir-

ginia Polytechnic Institute and State University,

Blacksburg.

Gerlicher, A.R.S., 2006: A Framework for Real-time Col-

laborative Engineering in the Automotive Industries.

In Proceedings of Third International Conference on

Cooperative Design, Visualization and Engineering,

CDVE 2006, Mallorca, Spain.

Myers, E. W., 1986.: An O(ND) difference algorithm and

its variations. Algorithmica I, pages 251-266.

Li, D., Lu, J., 2006.: A Lightweight Approach to Trans-

parent Sharing of Familiar Single-User Editors. In

Proceedings of ACM CSCW'06, Banff, Alberta, Can-

ada.

Pichiliani, M. and Hirata, C. M., 2006.: A Guide to Map

Application Components to Support Multi-User Real-

time Collaboration. ITA (short paper), Collaborate-

Com 2006, Atlanta, Georgia, USA.

Grudin, J., 1994.: Groupware and social dynamics: eight

challenges for developers. Communications of the ACM,

Volume 37 ,Issue 1, pages 92 – 105.

HyperJ Overview (Tarr, P). Retrieved January 14, 2007,

from http://www.alphaworks.ibm.com/tech/hyperj.

GLIPS Graffiti Editor (n.d.). Retrieved January 14, 2007,

from http://glipssvgeditor.sourceforge.net/.

ITRIS (n.d.). Retrieved January 14, 2007, from

http://www.itris.fr.

PARC, Palo Alto Research Center, Inc. Retrieved January

14, 2007, from http://www.parc.xerox.com/.

The AspectJ Project (n.d.). Retrieved January 14, 2007,

from http://www.aspectj.org.

Aspect-oriented programming - Wikipedia (n.d.). Re-

trieved January 14, 2007, from

http://en.wikipedia.org/wiki/Aspect-

oriented_programming.

Batik SVG Toolkit (n.d.). Retrieved January 14, 2007,

from http://xmlgraphics.apache.org/batik/.

W3C Document Object Model (n.d.). Retrieved January

14, 2007, from http://www.w3.org/DOM.

Electrological Model, ELOG, VDA. Retrieved January 14,

2007, from http://www.ecad-if.de/elog.html.

ICEIS 2007 - International Conference on Enterprise Information Systems

334
