Mining Workflow Event Log to Find Parallel Task

Dispatching Rules

Liu Yingbo

1,2

, Wang Jianmin

and Sun Jiaguang

Department of Computer Science, Tsinghua University 100084, Beijing, China

School of Software, Tsinghua University 100084, Beijing, China

Abstract. In many workflow applications, actors are free to pick up work items

in their work list. It is not unusual for an actor to start a work item before com-

pleting previously accepted one. Frequent occurrence of this behavior implies

potential patterns of work parallelism, which is serviceable to a workflow

scheduler to better dispatch ongoing tasks. In this paper, we apply association

rule mining techniques to workflow event log to analyze various kinds of activ-

ity parallel execution patterns. When an actor accepts a new work item, the par-

allel execution rules mined from event log can help a workflow scheduler to

find those work items that might be suitable to be undertaken by the same actor

simultaneously. In the experiment on three vehicle manufacturing enterprises,

we have found 32 strong rules of 40 different workflow activities. We describe

our approach and report on the result of our experiment.

1 Introduction

It is a common experience in our daily life that some tasks could be done in a parallel

way, for instance, "In the way I go to buy milk, I might as well bring back some

bread…", A smart use of this knowledge is, in the end, an aid to a our productivity

and results in a great saving of time. In today's enterprises, employees have already

learned to coordinate their activities in such a manner. Consider, for example, a vehi-

cle manufacturing enterprise we investigated, within a period of 31 months there are

99765 work items of 922 different kinds of activity that has been performed by 147

actors, statistics of workflow event log shows that more than one third of completed

work items (36541) are performed in parallel with one or more other ones by the

same actor, which means potential parallel work patterns may exist among activities.

As a means of discovering these parallel activities, we present an approach to ana-

lyze the workflow event log. This approach first groups different workflow event

entry into transactions and then association rules mining is applied to the transactions

to find which activities are likely to be executed together. This information can help a

This work is supported by the Project of National Natural Science Foundation of China (No. 60373011) ,

the 973 Project of China (No.2002CB312006) and Program for New Century Excellent Talents in

University (NCET)

Yingbo L., Jianmin W. and Jiaguang S. (2007).

Mining Workﬂow Event Log to Find Parallel Task Dispatching Rules.

In Proceedings of the 4th International Workshop on Computer Supported Activity Coordination, pages 45-54

DOI: 10.5220/0002408300450054

 SciTePress

workflow management system better coordinate the activities of ongoing processes

and it also helps process designers gain insight into potential work parallelism,

thereby, improve the process design accordingly.

With this approach, we have been able to find out 12 rules of 10 activities in a

data set of 31-months and we have also obtained 18 rules of 26 activities in a 14-

months data set. However, in a data set of less than 4 months, only 2 rules of 4 activi-

ties were found.

This paper makes two contributions: it presents an approach of identifying parallel

activity execution rules and it evaluates the possibility of applying this approach on

real data sets.

The rest of paper is organized as follow: We begin by introducing the background

of parallel work dispatching mechanism in workflow and the enterprises we investi-

gated (Section 2), then we introduce our approach of finding parallel execution rules,

including data preprocessing and data mining method (Section 3). After introducing

our approach, we keep on presenting the experiment result (Section 4) and we discuss

on these results (Section 5). Related efforts on process mining and process scheduling

are given in section 6. Finally, we summarize our work (Section 7).

2 Background

Understanding our approach requires a basic knowledge about work item dispatching

mechanism in workflow[1]. In addition, we provide an overview on three enterprises

we investigated.

2.1 Parallel Work Item Dispatching Mechanism in Workflow

Workflow Service Workflow Client

Actor

Event Log

Transactions

Rules

Grouping Mining

Matching

Work

Items

Qeury

Scheduler

Work

List

Suggestions

Work

Item

Dispatch

Notify

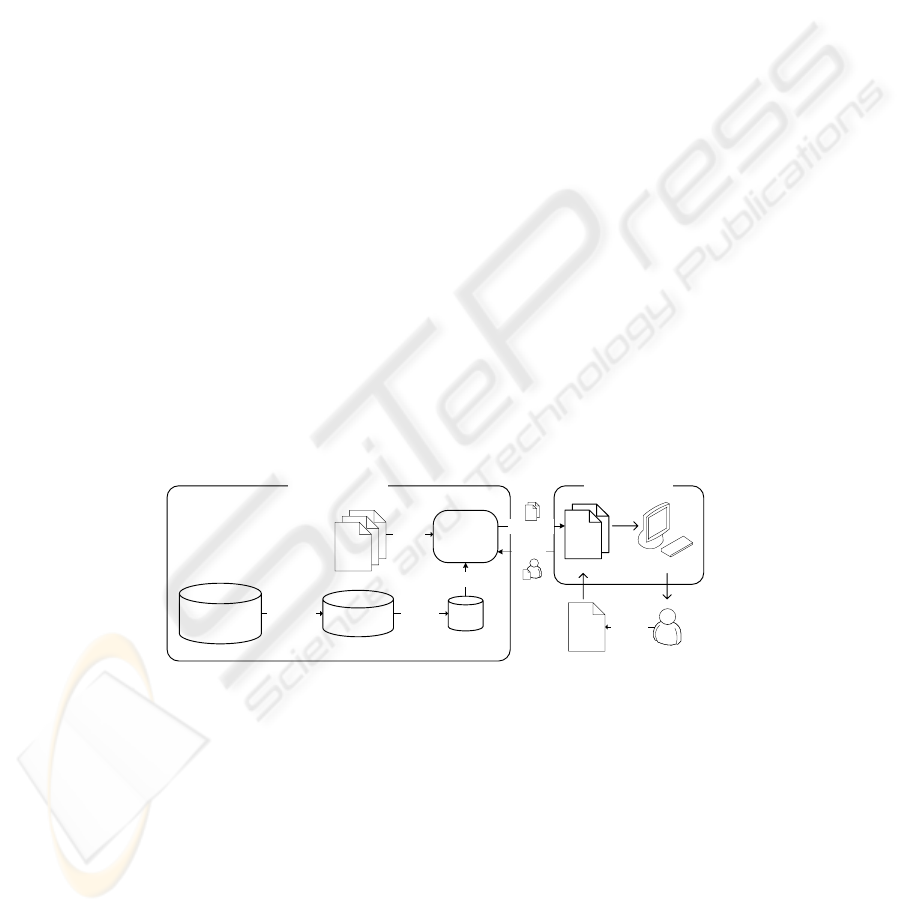

Fig. 1. Batch work dispatch mechanism in workflow management systems.

Figure 1 illustrates the architecture of parallel work dispatching mechanism in work-

flow, the workflow service reads the event log (far left), groups the event entries into

transactions, mines the transactions for rules which describe implications between

activities: "If an actor is going to buy some milk then he might be willing to bring

back some bread too.", when an actor accepts a work item (say "Buy Milk"), the

workflow client notifies the scheduler this fact and the scheduler match the rules with

ongoing processes to find appropriate work items (say "Buy Bread") for parallel exe-

cution, then, it dispatch these work items to the work list as a suggestion to the actor.

In the discussion of this paper, we focus on finding parallel execution rules. Next, we

provide information about three enterprises as a further introduction to the back-

ground.

2.2 Overview of Workflow Event Log in Enterprises

All these three enterprises are vehicle manufacturing enterprises. We investigate them

because workflow is successfully used in many aspects of their business, like: con-

figuration change, order processing, design review, technical notification, standard

release, and new material classification etc.

Table 1. General overview of three enterprises' workflow event log.

Enterprise A B C

Operation Time 117 days 421 days 949 days

Number of Actors 179 244 147

Workflow Activities 256 399 922

Completed Work Items 10808 42099 99765

Parallel Execution 3600 13675 36541

Table 1 is a general overview of workflow event log in these enterprises. In order

to maintain confidential, we use A, B and C to represent them. As illustrated in the

table, the workflow system in these enterprises has a different length of operation

time. Besides, there are many actors who have completed lots of activities, which

clearly reveals the fact that workflow has been heavily used. Moreover, in all these

enterprises, nearly one third of completed work items are parallel executed by the

assigned actor, which motivates us to investigate the parallel execution patterns. Next

we present our approach.

3 Mining Parallel Activities

3.1 Grouping Event Entries to Transactions

We begin by introducing some definitions for event log, event entries, and transac-

tions, adopting some notions used in [1] [2].

Definition 1 (Workflow Event Log). Let A be the set of activities defined in work-

flow models, P a set of actors and T a set of time points. E=A

is the set of pos-

sible event entries (e.g. <a, p, s, e> means the execution of a is performed by p

started from s and ended at e). In the following discussion, we use C

∈

to represent

all the event entries in an enterprise's workflow event log.

Definition 2 (Parallel Executed Activities). For a given event entry c

∈

C (c = <a,

p, s, e>), the parallel executed activities of this event entry are those activities that has

already been accepted by actor p when the activity a starts, they can be defined by

following function T: C

→

Definition 3 (Transactions of Workflow Event Log). The transactions of a work-

flow event log are obtained by collecting all the parallel activity sets that contains two

or more different activities, and it is denoted by T

[C].

[]

{

}

1)(#|)( >∧∈=

xTCxxTCT

(2)

3.2 Excluding Outlier Event Entries

In real situation, there always exist some work items which are executed for an ex-

tremely long period of time. For instance, in Enterprise C, the maximum activity

execution time is 252 days. These long lasting work items are usually caused by busi-

ness irrelevant reasons like unfinished testing or invalid operation etc. Their execu-

tion always overlaps with the execution of other work items, and inevitablly leads to a

large number of unnecessary transactions. Therefore, it is important to preprocess the

event log by excluding these outliers.

50 60 70 80 90 100

0.5

1.5

2.5

x 10

Percentage of Used Event Entries per Actor

Number of Transations

Enterprise A

Enterprise B

Enterprise C

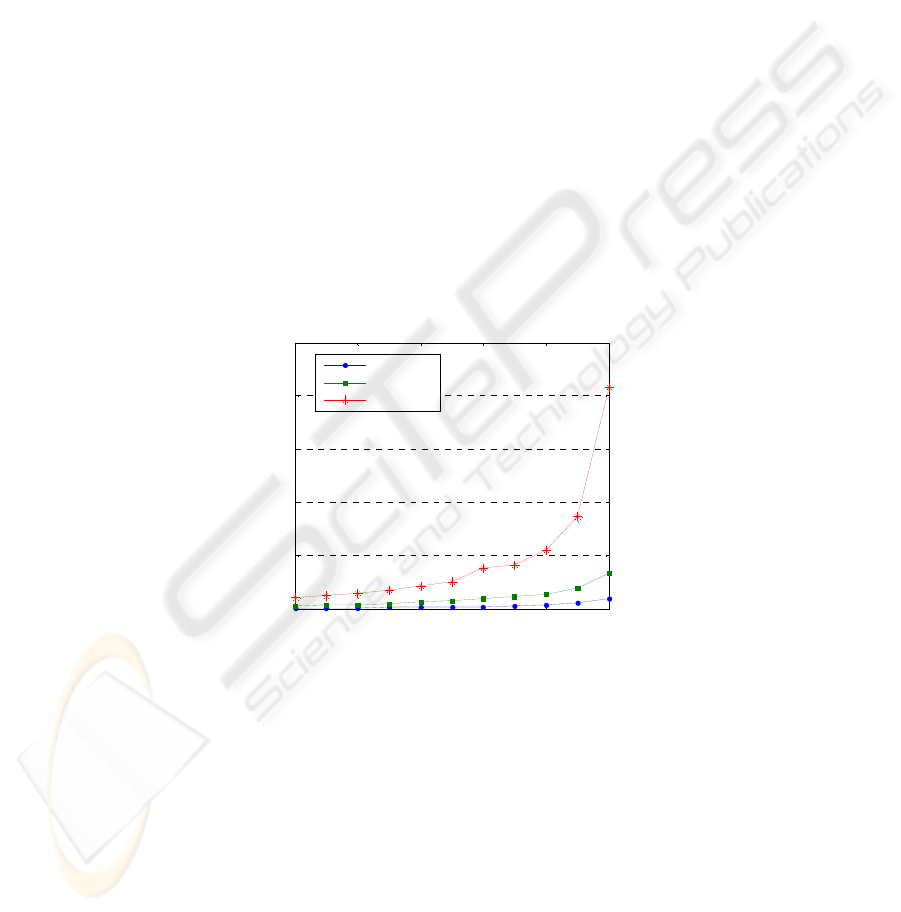

Fig. 2. Number of transactions for different percentage of event entries.

In our experiment, we use K percent shortest executed event entries for each actor

as a way of data preprocessing. Figure 2 illustrates the trend of transaction number

with K = 50, 55…90, 95, and 100. It clearly shows that K percentage filtering has

caused a significant reduction of transaction number, especially in Enterprise C.

However, the reduction tends to be small as K decreases. Therefore, we select the

value of K by minimizing the reduction of transaction number while maintaining as

many event entries as possible. Table 2 lists the selected K and the transaction num-

ber in three enterprises.

{

}

]','['',',','|')(,,,, essppCespaacTCespac

∈

∧

>∈

>∈=<∀

(1)

Table 2. Identified transactions in three enterprises.

Enterprise A B C

Selected K 95 95 90

Identified Transactions 516 1878 5471

Included Activities 110 225 527

3.3 From Transactions to Rules

Given the transactions as described in the previous section, the next step is to find out

parallel activity execution rules. Our approach of finding parallel activities is based

on Association Rule mining technique[3]. This technique takes as input a set of trans-

actions and generates a number of interesting rules.

Typically, association rules are considered interesting if they satisfy both a mini-

mum support and minimum confidence. In the context of parallel activity association

rule mining, the support and confidence can be interpreted as follow:

For any two activity sets S and D, S∩ D = Φ, the rule S=>D holds in the transac-

tion set T

[C] with support s, where s is the percentage of the transactions in T

[C]

that contains S∪ D, this is taken to be the probability, P(S∪ D). The rule S=>D has

confidence c in the transaction set T

[C] if c is the percentage of transactions in T

[C]

containing S that also contain D. This is taken to be the conditional probability, P(S |

D).

In practice, such thresholds are set by users or domain experts. Since we are not

familiar with the business context, it is unlikely for us to correctly specify these pa-

rameters at the first beginning. Therefore, we determine such thresholds by enumerat-

ing different values of support and confidence, and then we decide which value is

suitable for mining by observing the number of generated rules.

4 Experiment and Results

We use the Apriori Algorithm[4] to compute the association rules, the Apriori

Algorithm takes a minimum support and minimum confidence and then computes the

set of all associations rules in two phases: First, it iterates over the set of transactions

and forms the frequent activity sets from the activities that satisfy minimum support.

Then, it computes rules from the frequent activity sets. More precisely, from each of

the frequent activity set S

∈

A, it creates those rules S − X => X where X is a subset of

S. (Note that all these rules have the same support, but different confidences.) Only

rules that are above the minimum confidence are returned.

In order to determine a suitable value for each enterprise, we enumerate different

support threshold from 0.2% to 7% with an increment of 0.2%, and for each support

value, we further enumerate the confidence threshold from 50% to 100% with an

increment of 5%.

4.1 Selecting Support and Confidence Threshold

100

150

Confidence

Enterprise A

Support

Rules

100

150

Confidence

Enterprise B

Support

Rules

100

200

300

400

Confidence

Enterprise C

Support

Rules

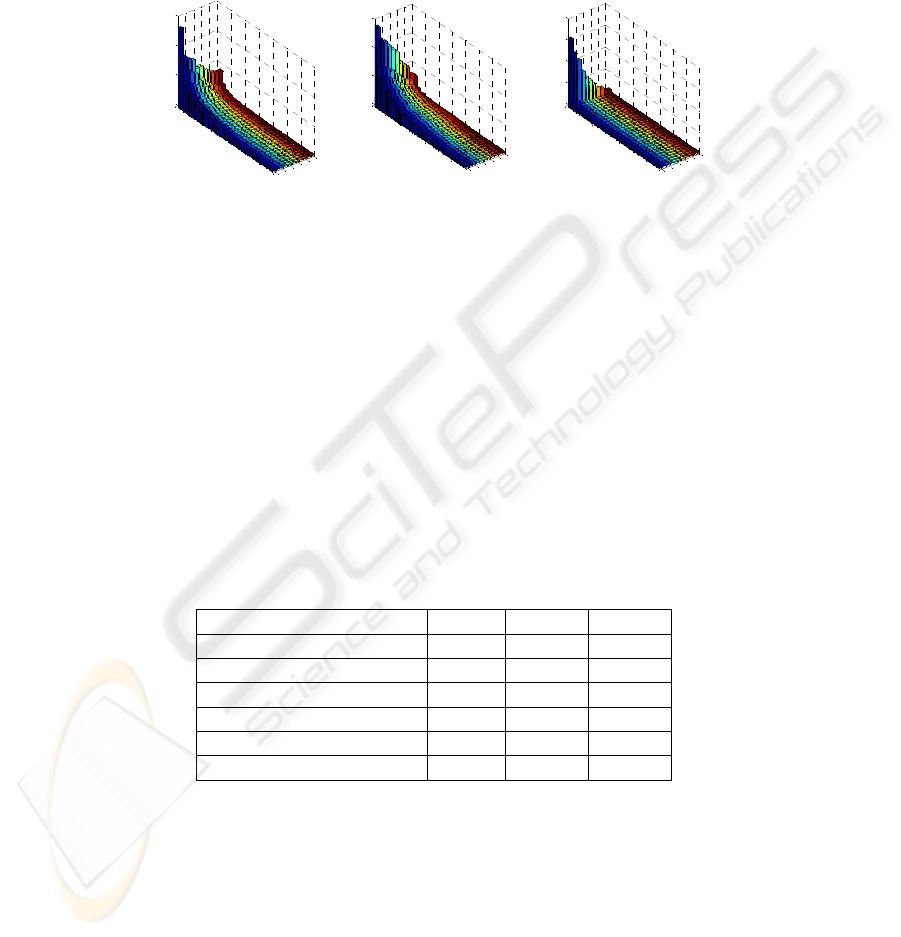

Fig. 3. Box plot of rule number with different support and confidence threshold.

Figure 3 illustrates the number of generated rules with different values of supports

and confidences using 3D bar chart. In three enterprises, the number of rules reduces

as support and confidence thresholds become higher. However, in Enterprise C, this

number drops significantly as support threshold changing form 0.2% to 0.6%. In our

opinion, it is related to domain specific reasons, since in enterprise C, there are 5471

transactions. Changing of support from 0.2% to 0.6% means the requirement of mini-

mum occurrence for each rule changes from 11 to 33, which is a big difference in an

enterprises' daily operation. However, in enterprise A and B, the difference of is

much smaller under the same requirement of confidence (from 1 to 3 in A and from 4

to 11 in B). Therefore, it is reasonable for us to consider a rule to be interesting ac-

cording to its occurrence number. Table-3 lists the selected support/confidence

threshold and the number of generated rules.

Table 3. Generated rules of selected support and confidence threshold.

Enterprise A B C

Selected Support 4% 1.6% 0.8%

Minimum Occurrence 21 30 44

Selected Confidence 85% 70% 65%

Conditional Occurrence 18 21 27

Number of Rules 2 18 12

Parallel Activities 4 26 10

4.2 Some Example Parallel Activity Execution Rules

According to Table 3, the number of interesting rules are not as many as we had ex-

pected, further investigation shows that, in all three enterprises, each rule contains no

more than two different activities, most of these activities are similar kinds of work in

different process definitions. Some rule examples are listed below (at the end of each

rule, the support, occurrence number and confidence are provided):

- In Enterprise A, the only tow rules are all concerned with the review activity of

cooling treatment operation. It is described as follow:

Cooling Treatment Operation in Second Level Component Confirmation Process

of Part Design Drawing => Cooling Treatment Operation in Second Level Compo-

nent Confirmation Process of Technological Document (5.8%, 30, 93.3%)

- In Enterprise B, the activities of assembling shop confirmation in different en-

gineering change management processes are always occurred together:

Assembling Shop Confirmation in Technological Notification Process => Assem-

bling Shop Confirmation in Quality Standards Notification Process (3.9%, 74,

100.0%)

- In Enterprise C, the activity of check payment and issue invoice is occurred in

an extremely frequent way during product sales related processes:

Check Payment in Product Release Process => Check Payment in Product Ship-

ment Process (16.1%, 883, 92.4%)

Issue Invoice in Product Release Process => Issue Invoice in Product Shipment

Process (11.6%, 634, 91.8%)

5 Discussion

Until now we have been describing the results, in this section, we provide our

discussion on the results and some possible issues.

5.1 Evaluation on Applicability

In our opinion, the only sure way to know whether our approach are helpful for im-

proving enterprise's business process is to perform an empirical study in which we put

the role of evaluation into the hands of domain experts in three enterprises. Because,

a full utilization of these rules will depend to some degree on familiarity with enter-

prises not the workflow system, for this reason, we argue that such a study is abso-

lutely necessary and we plan one as part of our future work.

5.2 Possible Extensions

We believe our approach warrant further study because of the context in which it can

be applied, for activity parallel execution is just one form of pattern. As a matter of

fact, there are many other kinds of patterns behind the parallel executed activities, for

instance, association between design documents of different product families, and

association between customer requirements etc. Therefore, other mining approaches

can also be applied, such as multidimensional association rule mining and symbolic

interval knowledge mining[5] etc. The mined result may provide more business ori-

ented insights beyond our common understanding of enterprises.

5.3 Threats to Validity

Despite the result reported in this paper, there are some threats to the validity of our

approach that need to be mentioned:

Firstly, we have studied the event log of three vehicle manufacturing enterprises.

Although these enterprises themselves are very different, they just represent part of

the characteristics of enterprises in vehicle manufacturing domain, thus, we cannot

claim that their workflow execution histories would be representative in other enter-

prises and more importantly, in other domains. Secondly, we have made no attempt to

assess the quality of event log, thus, the rules we mined may reflect good practice as

well as bad ones. However, we believe that actors make more "good" decisions than

"bad" ones, thus, there is more good than bad to learn from history.

6 Related Work

Our work applies a data mining approach to schedule work items among actors in

workflow management systems. Hence, it is related to process mining and process

scheduling.

6.1 Process Mining

Process mining is a vast area in the literature of workflow, it aims at improving the

application of workflow by providing techniques and tools for discovering process,

control data[6],[7],[8],[9] organizational[10], and social structures[11] from workflow

event logs. Although, there is a considerable amount of work about process mining,

most of them concerns discovering process model from event log, early effort on this

topic is presented in [6] by Agrawal et al. and in [12] by Cook and Wolf, however,

their approaches are limited to sequential processes. In [13], Aalst et al presented a

new algorithm to extract a process model from event log and represent it in terms of

Petri net. Later on, Wen Lijie et al improved Aalst's algorithm to find Non-Free-

Choice constructs which represents the global dependencies among tasks[14]. In [15],

Gianluigi Greco et al, proposed two algorithms to discover frequent patterns of work-

flow execution, their approach borrows the idea of frequent item set mining[3] to find

sub components of workflow which are frequently appear in the successful execu-

tions and then constructs the workflow model by connecting these components. Other

work about process mining focus on applying genetic data mining approaches, like

data warehouse and machine learning, to workflow event log[16],[17],[18],[10].

6.2 Process Scheduling

Scheduling, however, despite its successful application in manufacturing fields, is not

widely accepted in workflow. Grego'rio Baggio Tramontina et al discussed some of

the problems that prevent existing scheduling techniques from being used in work-

flow [19], in addition, they proposed a "Gauss and Solve" scheduling approach to

utilize traditional scheduling approaches. Carlo Combi et al focus on temporalities in

the conceptual organizational model and task assignment policies. They proposed a

temporal organizational model to describe different temporal constrains of resources,

and they designed a scheduling algorithm, which evaluates the priority of tasks ac-

cording to the expected deadline for completion and expected duration[20]. Eder et

al's work focuses on personal scheduling. They changed their objective of scheduling

from ordering cases in workflow system to assisting individual workflow participants.

To meet this end, they provide workflow participants information about upcoming

tasks so that they can proactively take measures to prepare for those tasks[21] . This

idea is also represented in Liu JianXun et al's work, they observe that many tasks in

the workflow can be prepared before they are actually dispatched, so they proposed

an agent based framework to model such tasks in the workflow definition [22]. Other

work about workflow scheduling concerns scheduling in a single workflow instance,

Pinar Senkul and Ismail H. Toroslu proposed a architecture which provides a specifi-

cation language that can model resource information and resource allocation con-

straints, particularly, they use constraint programming to schedule workflows with

resource allocation constraints[23].

7 Summary

In this paper, we have presented an approach to improve the task dispatching mecha-

nism of workflow management system. Our approach uses a Boolean association rule

mining algorithm that is applied to workflow event log to discover frequent parallel

executed activities. In the data sets of three vehicle manufacturing enterprises, we

have been able to discover 32 strong rules of 40 workflow activities. In addition to

presenting our approach and results, we have presented our discussion on possible

extension of our approach.

We believe that our approach shows some promise for improving the current state

of task assignment mechanism in workflow management systems. Our future plan

includes an empirical study of usability of our mined rules. An investigation on other

kind of association patterns in workflow related data and experiment of other analyti-

cal techniques on temporal characteristic of workflow.

References

1. N. Russell, A.H.M.t. Hofstede, D. Edmond, and W.M.P.v.d. Aalst, Workflow Resource

Patterns. (2005), Eindhoven University of Technology: Eindhoven.

2. M. Fabian, Algorithms for Time Series Knowledge Mining, in Proceedings of the 12th

ACM SIGKDD international conference on Knowledge discovery and data mining. (2006),

ACM Press: Philadelphia, PA, USA.

3. H. Jiawei and M. Kamber, Data Mining : Concepts and Techniques (2001), San Francisco:

Morgan Kaufmann. 550.

4. C. Borgelt. Efficient Implementations of Apriori and Eclat. in 1st Workshop of Frequent

Item Set Mining Implementations (FIMI 2003). (2003). Melbourne, FL, USA.

5. F.A. James, Maintaining Knowledge About Temporal Intervals. Commun. ACM, (1983).

26(11): p. 832-843.

6. R. Agrawal, D. Gunopulos, and F. Leymann. Mining Process Models from Workflow

Logs. in International Conference on Extending Database Technology(EDBT). (1998).

7. A. K. A. de Medeiros, W.M.P.v.d. Aalst, and A. Weijters, Workflow Mining: Current

Status and Future Directions, in On the Move to Meaningful Internet Systems 2003:

Coopis, Doa, and Odbase. (2003). p. 389-406.

8. W. M. P.v.d. Aalst, B.v. Dongen, J. Herbst, L.G.S. Maruster, and A. Weijters, Workflow

Mining: A Survery of Issues and Approaches. Journal of Data and Knowledge Engineering,

(2003). 47: p. 237-267.

9. W. M. P.v.d. Aalst and A. Weijters, Process Mining: A Research Agenda. Computers in

Industry, (2004). 53(3): p. 231-244.

10. M.Z. Muehlen, Organizational Management in Workflow Applications – Issues and Per-

spectives. Information Technology and Management (2004). 5(3-4): p. 271 - 291.

11. W. M. P.v.d. Aalst, H.A. Reijers, and M. Song, Discovering Social Networks from Event

Logs. Computer Supported Cooperative Work (CSCW) (2005). 14(6): p. 549-593.

12. J. Cook and A. Wolf, Discovering Models of Software Process from Event-Based Data.

ACM Transactions on Software Engineering and Methodology, (1998). 7(3).

13. W. M. P.v.d. Aalst, T. Weijters, and L. Maruster, Workflow Mining: Discovering Process

Models from Event Logs. IEEE TRANSACTIONS ON KNOWLEDGE AND DATA

ENGINEERING, (2004). 16(9): p. 1128-1142.

14. W. Lijie, W.M.P.v.d. Aalst, J. Wang, and J. Sun, Mining Process Models with Non-Free-

Choice Constructs(to Be Published). Data & Knowledge Engineering, (2007).

15. G. Greco, A. Guzzo, G. Manco, and D. Sacca, Mining and Reasoning on Workflows. Ieee

Transactions on Knowledge and Data Engineering, (2005). 17(4): p. 519-534.

16. G. Daniela, C. Fabio, C. Malu, D. Umeshwar, S. Mehmet, and S. Ming-Chien, Business

Process Intelligence. Comput. Ind., (2004). 53(3): p. 321-343.

17. J. Eder, G.E. Olivotto, and W. Gruber, A Data Warehouse for Workflow Logs, in Engineer-

ing and Deployment of Cooperative Information Systems, Proceedings. (2002). p. 1-15.

18. M.z. Muehlen, Workflow-Based Process Monitoring and Controlling-Or: What Can You

Measure You Can Control, in Workflow Handbook 2001 Workflow Management Coali-

tion, L.Fischer, Editor. (2000), Lighthouse Point,. p. 61-67.

19. Greg, B. rio, W. Jacques, and E. Clarence, Applying Scheduling Techniques to Minimize

the Number of Late Jobs in Workflow Systems, in Proceedings of the 2004 ACM sympo-

sium on Applied computing. (2004), ACM Press: Nicosia, Cyprus.

20. C. Combi and G. Pozzi. Task Scheduling for a Temporal workflow Management System.

in Thirteenth International Symposium on Temporal Representation and Reasoning,

Time'06. (2006).

21. J. Eder, P. Horst, G. Wolfgang, and N. Michael. Personal Schedules for Workflow Sys-

tems. in Proceedings on Business Process Management: International Conference, BPM

2003, Eindhoven, The Netherlands, June 26-27, 2003. (2003).

22. J. X. Liu, S.S. Zhang, J. Cao, and J.M. Hu, An Agent Enhanced Framework to Support Pre-

Dispatching of Tasks in Workflow Management Systems, in Engineering and Deployment

of Cooperative Information Systems, Proceedings. (2002). p. 80-89.

23. P. Senkul and I. H. Toroslu, An Architecture for Workflow Scheduling under Resource

Allocation Constraints. Information Systems, (2005). 30(5): p. 399-422.
