A VOIP PLATFORM AS A VIRTUAL PBX SERVICE

Walter Balzano, Maria Rosaria Del Sorbo and Mario Epifania

Department of Physical Sciences, University of Naples “Federico II”, Via Cinthia, 4, 80126 Naples, Italy

Keywords: VoIP, IP-PBX, systems vitualization, Asterisk, Isolation, easy system restore.

Abstract: Voice over IP telephony, allowed by large band and low cost communication through Internet, is the base of

a project of a communication platform for IP-PBX. The new idea is to use open source software to

implement an IP phone switch system by a business LAN, where a virtual PBX can provide services and

reliable communication. The challenge is to virtualize many systems in one physical system using Linux

vservers resources. This approach yields many advantages: easy restore from crash events, security and

simple resource management. The drawback is a heavier hardware load, solvable using more powerful CPU

and memory architectures.

1 INTRODUCTION

Latest communication achievements, such as large-

band transmission technologies and audio-video

more efficient compression algorithms, have

allowed recent speed growth in the Web data flows.

These innovations have generated protocols with

faster multimedia content transmissions and shorter

response times (

Mauro, 2005). The VoIP, Voice over

Internet Protocol (Davidson, 2006), is a part of these

new technologies: it aims to phone communicating

by the World Wide network (

Wallingford, 2005).

One of the advantages of VoIP communicating

systems is a real reduction of phone services costs,

due to a good trade-off between geographic

distances and bandwidth employment allowed by

package commutation (Clark, 2001). Moreover,

VoIP makes possible new services creation, based

on the integration of audio, video and other

information data on the same multi-service network

(Chatterjee, 2005). The integration of traditional

phone services with data exchange on a IP business

network in one communication infrastructure, is

called IP-PBX. In fact, IP-PBX is a software running

on a server to control all connection and

composition procedures of internal and external

Local Area Network communications. IP-PBX

doesn’t need any special hardware (Ohrtman, 2003):

traditional PBX (Private Branch eXchange)

functions are managed associating phone numbers to

terminal IP addresses, properly coordinating the

connection requests (

Sulkin, 2002).

IP-PBX systems connect many communication

media, providing new services such as digital

receptionist, IVR tree, voicemail, business databases

access by the Caller ID and so on.

This project presents a Small Medium Business

(SMB) VoIP solution: an Open Communication

Platform to allow IP phone switch system

implementation. Costs optimization has been gained

using open source software and a specific VoIP,

Session Initiation Protocol (SIP).

2 THE COMMUNICATION

PLATFORM

2.1 Virtual IP-PBX

Currently, IP-PBX is based on three standards:

 IP-enabled PBX (TDM is the main

technology but IP cards can enable VoIP on

some emplacements).

 Hybrid IP-PBX (integration of packet and

circuit commutations with advantages from

both approaches but with the double wiring

drawback).

 Full IP-PBX (based on devices satisfying

QoS constraints (Kist, 2003), with efficient

security functions).

303

Balzano W., Rosaria Del Sorbo M. and Epifania M. (2007).

A VOIP PLATFORM AS A VIRTUAL PBX SERVICE.

In Proceedings of the Ninth International Conference on Enterprise Information Systems - SAIC, pages 303-308

DOI: 10.5220/0002409903030308

 SciTePress

A Virtual (or Hosted) IP-PBX system

implements its own functions as a service without

physical PBX devices, reducing the costs; all the IP-

PBX services are provided by a centralized

infrastructure. Open source software allows further

economy, even if it needs upgrades and bugs

monitoring. Asterisk, an open source Digium’s PBX

platform, provides PBX services. It is designed for

maximum flexibility by Application Programming

Interfaces (API), defined around a central PBX core

system. This advanced core handles PBX internal

interconnection, plain abstracted from specific

protocols, codecs, and hardware interfaces from the

telephony applications. This feature makes Asterisk

independent by specific hardware.

2.2 The Architecture

Our research is focused on the definition of an Open

Communication Platform correctly and efficiently

managing calls routing.

A software modular architecture supports this

implementation and is based on SIP Entities. SIP is

remarkable for its “lightness” and compatibility with

other IP protocol and open source software (Abbasi,

2005). SIP entities follow the client/server model

and interact by messages exchanges and error code

feedbacks as shown in Figure 1.

Media Proxy

Virtual PBX 1

Virtual PBX 2

Virtual PBX 3

OpenSER

PSTN GW

ASTERISK

Media &

Registar Server

MySQL DB

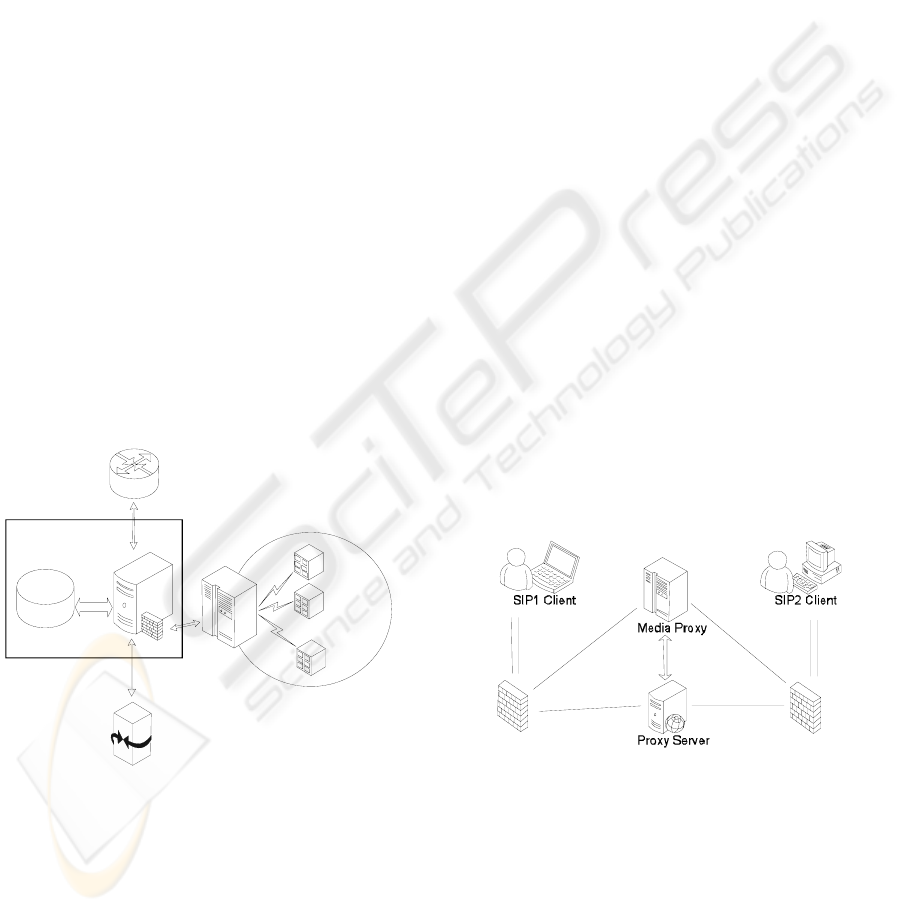

Figure 1: Platform Architecture scheme.

Main architectural components are:

(A) PSTN Gateway (PSTN GW), representing

a bridge between IP network and the traditional

telephony, using a LCR (Least Cost Routing) policy,

which exploits cheaper outbound providers (

Yuan

Zhang, 2002). This module has been implemented by

an Asterisk instance on a server, sending outbound

calls on PSTN by trunks, connection channels

configured by the dialplan (

Van Meggelen, 2005).

(B) Proxy and Registrar Server, routing call

flows and registering IP-PBX user accounts. This

device works like a server for the call originating

machine and like a client for the destination

terminal. So, the call management is delegable,

limiting resources requirements on user terminals.

The proxy and registrar functions are

implemented by OpenSER (Open SIP Express

Router), an open source SIP server. It is written in

pure Unix/Linux system C language, with specific

architecture optimizations to offer high performance

and works as net speed balancer.

This module independently performs user

account registrations on a Mysql database,

supporting Asterisk PBXs and limiting their work to

PBX functions: this can result in more scalable

architectures.

Proxy server operation is tied to the Media proxy

features and activity (Stojsic, 2001).

Address Translation (NAT) Traversal problem,

affecting SIP protocols (Tam, 2002). These

protocols suffer NAT environments, because during

call signalling phase, the caller send to the called the

address to re-contact it on the net; but the called

regards its LAN address as its absolute address and,

when the called tries to contact it on the net, it can’t

route the packets.

The Media Proxy acts as a mediator in this

troublesome routing.

Figure 2: Media Proxy at work.

Figure 2 shows the Media proxy operation: a correct

procedure is guaranteed by a Proxy Server, which

establishes the SIP between two user agents.

The main Media proxy features are:

 to ensure SIP client transparent operation

behind NAT nets,

 to manage all multimedia session flows,

ICEIS 2007 - International Conference on Enterprise Information Systems

304

 to distribute RTP traffic load on multiple

proxy servers, running on multiple hosts,

 to specify Proxy Server use by the

caller/called SIP domain.

(D) IP-PBX SWITCH, representing the

platform core. IP-PBX SWITCH consists of all

Virtual Subnet IP-PBX, managed by the service

supply company. Every Virtual IP-PBX instance is

implemented by Asterisk.

Investigating on this main module we conceived

an innovative and efficient virtual architecture,

shown in next paragraphs.

Finally, the entire platform is administrated by

multi-layer interfaces, which monitors every module

and provide IP-PBX services.

2.3 Virtual Asterisk PBX

Every service supply subnet needs its own PBX,

even if virtualized and remote accessible. Then, a

double problem rises:

 A hardware cost problem, to buy a

dedicated Asterisk server for each subnet.

 A space problem, because servers need

room and many servers can crowd the

business server farm.

This situation isn’t acceptable for SMB reality,

because hardware cost and space problems depress

profit strategies and limit business increase.

The virtualization strategy involves an accurate

study of all steps from the basic concept of virtual

machines to the most important virtualization

techniques:

 emulation: a full system simulation, or "full

virtualization with dynamic recompilation"

where the virtual machine simulates the

complete hardware, allowing an

unmodified OS to run in a really different

environment.

 paravirtualization: the virtual machine does

not simulate hardware but offers a special

API that requires OS modifications.

 native virtualization and "full

virtualization": virtual machine only

partially simulates hardware, allowing an

unmodified OS to be run alone, but the

guest OS must be designed for the same

type of CPU. "Native virtualization" also

stands for hardware assistance through

Virtualization Technology.

Next step provides an IP-PBX switch system

model. Asterisk machines, in fact, can be virtual

machines and they can remarkably limit the space

occupation of real Private Client Services (PCS).

However this solution might be insufficient to

reduce high hardware cost: a) managing several

virtual machines on one real machine requires a

powerful computer; b) virtual machines are a kind of

heavy virtualization that steps down to the physical

layer and needs a partition to be replicated on every

virtual machine.

A virtual server is shared by more users; each of

them can administrate his space and his resources as

a single dedicated server.

To understand how they work and what kind of

different virtual machine they support, it’s necessary

an accurate comparative analysis of hypervisors, or

Virtual machine monitors, such as vmware

workstations, Qemu, Xen and Virtuozzo.

The open source Linux-Vserver project is used

to implement our virtual server system.

Vservers, as Xen hypervisor, are a different

approach to Virtual Machine Monitor: Xen uses only

one kernel for each virtual server, it has minimum

overhead and allows many UNIX tasks.

This solution is based on user environment space

division in different Virtual Private Servers (VPS)

entities: each VPS appears as a real server to locally

running processes.

Different Linux distributions use patched kernel

to supply special support to unusual hardware or to

extra features: Linux Vservers allow different Linux

distributions to run simultaneously on a single

patched shared kernel, without direct access to

hardware and sharing resources in an efficient way.

The kernel main purpose is to build a true and

own abstraction layer on the hardware to allow

processes (tasks) to work and operate on resources

(data) without knowing underlying hardware details.

Ideally this processes would be completely

hardware unaware, written in an interpreted

language and also don’t require any hardware

specific knowledge.

More processes can run simultaneously, so the

kernel has to assign a time-machine slice and

hardware access to each task (multitasking). Each

virtual server has got its own packets, services, users

and it’s limited to use only some IP address and only

some file system zones.

We can think a virtual server as a new system

using chroot system call concept with specific root

user and its own configurable resources manager,

different hostname and IP address.

Our idea was to use an Asterisk vserver for each

IP subnet requiring PBX services, to exploit the

simple management of its features, as voicemail, to

integrate them with the software functions.

A VOIP PLATFORM AS A VIRTUAL PBX SERVICE

305

Asterisk Vservers represent a virtual PBX

instance and more vservers can run on a single

physical machine (Des Ligneris, 2005). Each virtual

system created by Linux vserver has its own root

access and every owner (subnet using the service)

can load and execute Asterisk PBX features: this is

an example of a so called Virtual Private Asterisk

(VPA).

Therefore, the vservers hosting device holds in a

relatively small box an efficient phone exchange

switch and the patched kernel is shared between

VPS with proper strategies. This technology

introduces many profits: first, every VPS can work

at the maximum performance allowed by the system.

In fact, processes within virtual server run as regular

processes on the host system. Then, it is possible to

develop an action more memory-efficient and I/O-

efficient than the whole-system emulation, which

cannot return unused memory or share a disk cache

with the host. Furthermore, VPS overhead is

pointless, because there is a shared kernel for all

VPS and no hardware emulation.

Regarding security concerns, every VPS is

contained into its relative security context: a VPS

can’t directly access the host system kernel without

licence and there are several security layers. For

example, other VPS users and owners cannot load

our modules or alter kernel directly if they aren’t

root. Above discussion points out the opportunity of

huge cost reductions for SMB that want to invest in

the new VoIP PBX market.

2.4 Isolation Model

Isolation between Vservers simultaneously running

on the host is guaranteed by kernel modifications:

 Context Separation

 Network Separation

 The Chroot Barrier

 Upper Bound for Caps

 File system XID Tagging

Context separation consists in hiding to a given

process all the processes out of it and in forbidding

every interaction between processes belonging to

different contexts. It needs some data structures

extensions to make processes context sensitive and

to allow differentiation of identical User ID (UID)

exploited in different contexts.

There is a default context, oriented to guarantee

the host boot and a special context, called Spectator,

that ensures a global host processes sight. Network

separation limits processes into an IP address space

available for the host.

Some isolation problems can rise: a process

might perform binding operation on a special

address, IPADDR_ANY for example, and this can

be done without modifying any process running in

the vserver. To reduce total system overhead we

don’t use virtual network devices, acting on kernel

socket binding system for packet transmission.

For our project we configure the Vservers subnet

as a C class subnet (192.168.100.xxx). Host machine

containing vservers has the fixed address

192.168.100.253; other IP addresses about Asterisk

instances vservers have progressive numbers starting

from 1 (for instance VPBX1 has IP 192.168.100.1,

VPBX2 has IP 192.168.100.2 and so on). Figure 3

shows the network address scheme:

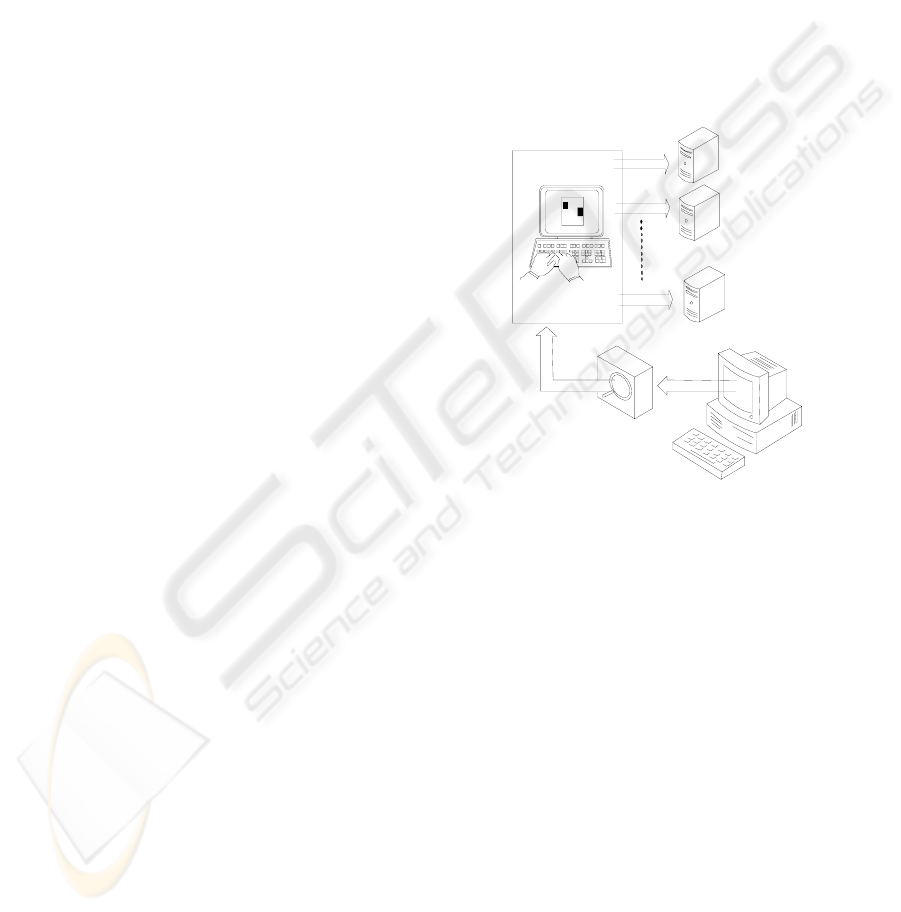

VIRTUAL SERVER 1

VIRTUAL SERVER

Virtual Machine

GENTOO (Emulation)

HYPERVISOR

Super Processor

SO GENTOO

VIRTUAL SERVER 2

Figure 3: Complete virtual subnet.

An example of a code segment follows (shell

command lines for the virtual subnet creation):

>> host# vserver-new pstn-gateway --hostname

PSTN-GW --context 1249 –interface

eth0:192.168.100.249/24 template ./gentoo-

template-x86-20060317.tar.bz2 x86

>> host# vserver-new H323-asterisk --

hostname H.323 --context 1250 --interface

eth0:192.168.100.250/24 template ./gentoo-

template-x86-20060318.tar.bz2 x86

>> host# vserver-new MySQL --hostname MySQL

--context 1252 --interface

eth0:192.168.100.252/24 template ./gentoo-

template-x86-20060319.tar.bz2 x86

>> host# vserver-new VPbx01 --hostname

VPbx01 --context 1001 --interface

eth0:192.168.100.1/24 template ./gentoo-

template-x86-20060320.tar.bz2 x86

When chroot(), open() or fchdir() system calls

are executed, in the next call there will be an

ICEIS 2007 - International Conference on Enterprise Information Systems

306

information loss; Linux Vserver manages this event

by a simple and efficient method: a mark, called

Chroot Barrier, placed in vserver father directory

which disallows going out of boundaries.

Linux doesn’t implement the file system POSIX

features that would make safer the setuid and setgid

executables: it’s safer to set an upper bound for all

context processes adding a supplementary capability

mask which limits all processes to belong to the

mask context.

File system eXchange station ID (XID) tagging

increases context isolation and enable Context Disk

Limit and Per Context Quota Support on a shared

partition between more Vservers. It’s difficult to

manage the context ID entity for every file, because

it needs file system representation disk

modifications or the extraction of some bits from

existing data structures. It’s possible the storage of

XID, for instance, implementing a not invasive

solution, that is to use the most significant bit of

UID and GID. Now we evaluate the security profits

presented by vservers.

A corrupted vserver can’t affect and damage the

host server. The host can be used to study in a safe

manner the crashed vserver with the purpose to

repair it: this is a very innovative feature that can be

performed by no other Linux installation. Vservers

mobility is another good characteristic of our IP-

PBX system: after mainframe system crashes it’s

very easy to move vservers from a machine to

another (high disaster recovery). Vservers, IP-PBX

system instances, are just simple directories in the

host machine and then full portable: we can quickly

restart the services stopped in the crashed machine.

So, our IP phone exchange switch system

contains all Asterisk PBX instances (representing

every business virtual PBX) on a single company

Mainframe running a Gentoo-distro: Linux Gentoo

offers a compiling system better than the traditional

pre-compiled binaries and permits flexibility and

performance optimization. Users, through Gentoo

Portage Settings, can easily customize every system

packet, compile the Kernel, as the system requires,

and produce executables fit to their own platform.

3 CASE STUDY

Virtualization is a part of the entire project, starting

from the PBX system architecture and arriving to its

implementation. The physic box is the mainframe

placed into business company which contains the

Asterisk vservers instances; it must have high CPU

performances and large memory space to provide an

optimal quality of VoIP services.

The model using a single machine for many

Asterisk vservers can be helpful but, at the same

time, hazardous for system reliability: host machine

hardware crash events can corrupt the whole service

and require long times to repair, wasting

performance indicators. The introduction of machine

virtualization concepts can help us in solving this

problem, replicating the host Gentoo machine by a

virtual machine.

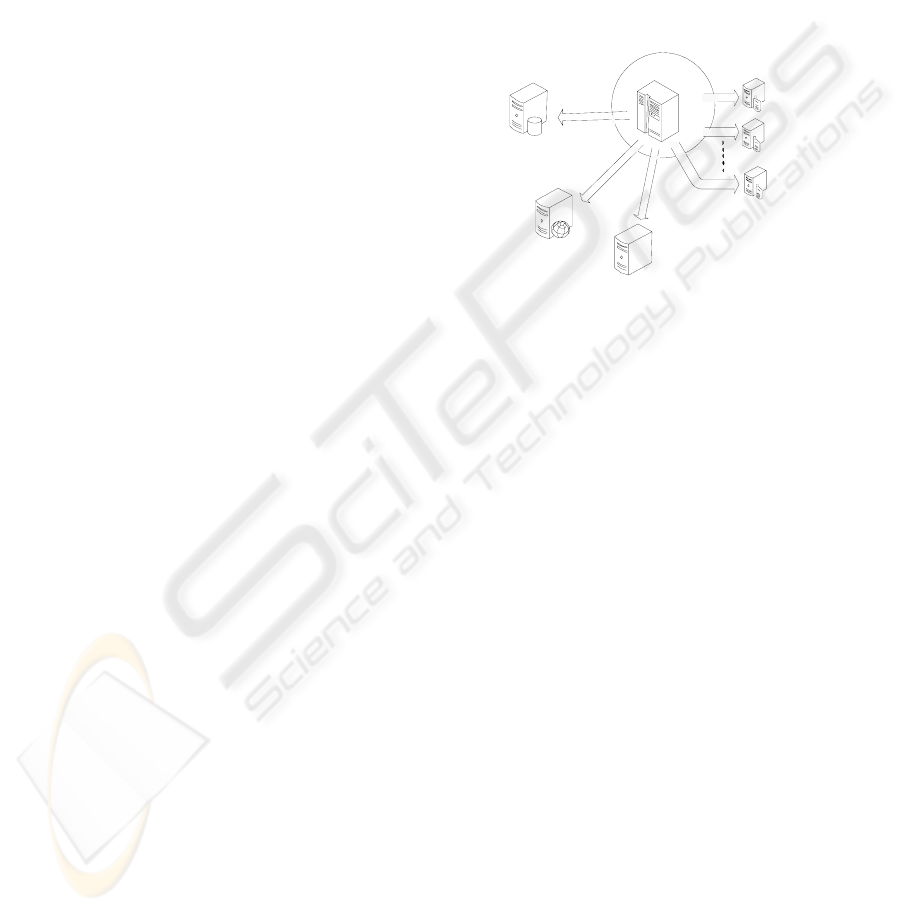

H.323 Server

(192.168.100.250)

Virtual PBX 1

(192.168.100.1)

MainFrame Host

(192.168.100.253)

Virtual PBX 2

(192.168.100.2

)

Virtual PBX

(192.168.100. )

PSTN GW

(192.168.100.249)

MySQL

(192.168.100.252)

Subnet

(192.168.100.xxx)

Figure 4: Virtual machine emulation.

This solution has remarkably increased the

degree of reliability of the system, because the

system crashes can be easily resolved: in case of

breakdowns it’s possible to restore the system in a

short time using a backup copy of the virtual

machine. Moreover, it’s easy to move the virtual

machine for system platform upgrading, without

constraints in hardware reconfiguration in another

host. The framework of a virtual machine is saved as

single row and so it’s easy to backup, to copy and to

move it. The double encapsulation model is related

to a double layer isolation: the virtual telephones

exchanges (the Vservers) are conceived to be

executed on a virtual machine, contained in a

physical machine. Then, there is a really

“protecting” shell that closes the physical machine

and looks after it from problems and errors.

Thus the machine stays lastingly undamaged and

could be hardly corrupted. Therefore, even if the

virtual machine is corrupted and damaged, the

physical machine isn’t ever involved and then the

virtual machine can be quickly resumed using its

backup copy. There is a drawback behind the

advantages to have this double virtual layer with

high fault tolerance and system scalability: a heavier

load for the mainframe, forced to support the

elaboration of a light emulation (vservers) in one

heavy emulation (virtual machine). Nevertheless it

can be regarded as a slight detail if we consider the

A VOIP PLATFORM AS A VIRTUAL PBX SERVICE

307

advantages introduced by virtualization, because the

provider subnet mainframe must have such

computing characteristics that it can guarantee a fast

process of all requests from an IP-PBX, and this

indicator influences VoIP QoS through the

maximum efficiency provided (

Hardy, 2003).

4 CONCLUSIONS

This project is a new VoIP technologies application

which implements services management methods of

VoIP PBX systems by virtualization techniques.

Platform architecture has been built step by step

tracing a safe and scalable model, and this

technology can be considered as a starting point for

future researchers, who want to follow a

development of the virtual machine potential

applications to obtain several profits in data

processing.

With the aim of monitoring our virtual switch

system we have used Cacti, a “complete network

graphing solution designed to harness the power of

RRDTool's (Round Robin Database Tool)

data

storage and graphing functionality. It provides a fast

poller, advanced graph templating, multiple data

acquisition methods, and user management features

out of the box. All of this is wrapped in an intuitive,

easy to use interface that makes sense for LAN-sized

installations up to complex networks with hundreds

of devices”.

However, virtual servers opens new horizons in

systems management.

With few efforts we can realize on a single

physical system, with the required hardware

features, many absolutely independent and

cooperating systems.

So, from the central system we can administrate

and monitor all these virtual systems, simplifying

the management operations and the eventual recover

or backup actions.

The security field is the most important future

development of virtual server: by intrusion detection

tools, we can easily realize a safe host isolated by

the system, for specific use, fully manageble from

host system. Then in practise we can “inbox” our

firewall and fight hackers that often try to access our

systems.

Finally, the testing environment can consider

virtual servers as separate systems, where it’s

possible to execute various tests and experiments

which won’t affect the main host system.

REFERENCES

Abbasi, T.et al., 2005, A comparative study of the SIP and

IAX VoIP protocols, Canadian Conference on

Electrical and Computer Engineering, pp. 179-183.

Chatterjee, S. et al., 2005, SIP-based enterprise converged

networks for voice/video-over-IP: implementation and

evaluation of components, IEEE Journal on Selected

Areas in Communications, Vol. 23, Issue 10, pp.1921

– 1933.

Clark D. D. et al., 2001, Internet Telephony , MIT Press,

Boston MA.

Davidson, J. et al., 2006, Voice over IP Fundamentals,

Cisco Press, Indianapolis, IN.

Des Ligneris, B., 2005, Virtualization of Linux based

computers: the Linux-VServer project, HPCS 2005,

19th International Symposium on High Performance

Computing Systems and Applications, pp.340-346.

Hardy, W. C., 2003, VoIP service Quality, McGraw-Hill

Professional, New York, NY.

Kist, A.A.; Harris, R.J., 2003, Using virtual SIP links to

enable QoS for signaling, ICON2003, The 11th IEEE

International Conference on Networks, pp. 301 – 306.

Mauro D.R., Schmidt K.J., 2005, Essential SNMP,

O’Reilly, Sebastopol, CA.

Ohrtman, F., 2003, Softswitch Architecture for VoIP,

McGraw-Hill Professional, New York, NY.

Stojsic, G.et al., 2001, Formal definition of SIP proxy

behavior, EUROCON'2001, International Conference

on Trends in Communications, Vol. 2, pp. 289-292.

Sulkin A., 2002, PBX Systems for IP Telephony, McGraw-

Hill Professional, New York, NY.

Tam, K.K.; Goh, H.L., 2002, Session Initiation Protocol,

IEEE ICIT '02, IEEE International Conference on

Industrial Technology, Vol. 2, pp.1310 – 1314.

Van Meggelen J. et al., 2005, Asterisk: The Future of

Telephony, O’Reilly, Sebastopol, CA.

Wallingford T., 2005, Switching to VoIP, O’Reilly,

Sebastopol, CA.

Yuan Zhang, 2002, SIP-based VoIP network and its

interworking with the PSTN, Electronics &

Communication Engineering Journal, Vol. 14, Issue

6, pp.273 – 282.

ICEIS 2007 - International Conference on Enterprise Information Systems

308
