Incremental Non-negative Matrix Factorization for

Dynamic Background Modelling

Serhat S. Bucak

, Bilge Gunsel

and Ozan Gursoy

Multimedia Signal Processing and Pattern Recognition Lab. Dept. of Electronics and

Comm. Eng. Istanbul Technical University 34469 Maslak Istanbul, Turkey

Abstract. In this paper, an incremental algorithm which is derived from Non-

negative Matrix Factorization (NMF) is proposed for background modeling in

surveillance type of video sequences. The adopted algorithm, which is called as

Incremental NMF (INMF), is capable of modeling dynamic content of the

surveillance video and controlling contribution of the subsequent observations

to the existing representation properly. INMF preserves additive, parts-based

representation, and dimension reduction capability of NMF without increasing

the computational load. Test results are reported to compare background

modeling performances of batch-mode and incremental NMF in surveillance

type of video. Moreover, test results obtained by the incremental PCA are also

given for comparison purposes. It is shown that INMF outperforms the

conventional batch-mode NMF in all aspects of dynamic background modeling.

Although object tracking performance of INMF and the incremental PCA are

comparable, INMF is much more robust to illumination changes.

1 Introduction

Automatic visual tracking in surveillance video sequences has been an important

research area. The fundamental step of this problem is modeling the statistical

properties of background successfully and adapting the background representation to

content changes experienced in the latter stages of the video scene [1].

Background modeling of samples obtained from outdoor surveillance video

sequences may be more challenging as the illumination is very likely to change

throughout the scene. Moreover, the variety among the semantic features of scene

objects, such as their size, relative motion, occlusion, etc. make the problem even

harder. Therefore, the background modeling algorithm should be robust against

distortions caused by illumination, as well as having the ability of adapting to

dynamic background changes and modifying the former background representation

according to content changes. What is meant by a dynamic change is entrance/leaving

of an object into/from the scene or changes in object’s motions. For instance, when a

mobile object in the scene stops, the algorithm should integrate that object into the

†

This work is partially supported by the Scientific and Technological Research Council of

Turkey (TUBITAK) BIDEP

Gunsel B., S. Bucak S. and Gursoy O. (2007).

Incremental Non-negative Matrix Factorization for Dynamic Background Modelling.

In Proceedings of the 7th International Workshop on Pattern Recognition in Information Systems, pages 107-116

DOI: 10.5220/0002425501070116

 SciTePress

background model as soon as possible. In contrast, a formerly stable object should be

treated as a foreground object immediately after it moves.

Nonnegative Matrix Factorization (NMF), with its ability to reduce dimension and

extract intuitive features in an efficient and simple way, is a powerful decomposition

technique. Furthermore, its constraint of non-negativity makes NMF an intuitive,

parts-based representation by allowing only additive combinations of the basis vectors

[2], [3]. This is why NMF attracted interest of researchers in several applications

including face recognition [4], and biomedical applications [3].

NMF’s prior success in revealing latent features in data and its dimension

reduction capability makes it a hot prospect for video applications. Thus, we propose

usage of NMF for the statistical modeling of background in surveillance video.

However, the conventional NMF with its batch nature is not suitable for video content

representation. Therefore, in [5] an incremental NMF algorithm (INMF) which is

suitable to video analysis is introduced. In this paper INMF is adopted to the

statistical background modeling problem and an on-line algorithm which allows

dynamic updating of the background model in surveillance video is derived.

In the literature, there is a number of work on statistical modeling of the

background. In [6], incremental principal component analysis (IPCA) is proposed for

dynamic background modeling. In addition, there are also other algorithms which use

the batch-mode PCA [7], or robust PCA [6] for the background modeling. As of our

knowledge, there is no reported work that uses NMF with the same objective.

The paper is organized as follows: Necessary mathematical definitions and

difficulties with the conventional NMF are given in section 2. In Section 3, the

incremental NMF is described. After summarizing usage of the incremental PCA

algorithm for background modeling in Section 4, test results are reported in Section 5.

The final remarks are given in Section 6.

2 The Conventional Non-negative Matrix Factorization

2.1 Mathematical Definitions

The aim of non-negative matrix factorization (NMF), with rank r, is to decompose the

data matrix

mn×

∈RV

into two matrices; which are

rn×

∈ RW , also called as the

mixing matrix, and

mr×

∈ RH , named as the encoding matrix [2],[3].

WHV

≈

(1)

As it is formulated in Eq. (1), NMF aims to find an approximate factorization that

minimizes the reconstruction error. Different cost functions based on the

reconstruction error have been defined in the literature, but because of its simplicity

and effectiveness, the squared error given in Eq. (2) is used in this work.

()

(

)

∑∑

−=−=

|||| WHWHV ,

(2)

where subscription ij stands for the ij

matrix entity.

108

In order to minimize the mean squared error F, which is a convex function of W

and H separately, Lee and Seung offered the multiplicative update rules given in

Eq. (3), where t refers to the iteration number, T denotes the transpose, a = 1,2,…,r ;

i = 1,2,….,n, and j = 1,2,…,m.

()

aj aj

ttt

WWH

()

ia ia

tt t

WH H

(3)

2.2 Difficulties with the Conventional NMF

By offering dimension reduction as well as giving intuitive, additive and parts-based

representations of the data, NMF can be considered as an efficient method for video

processing. However, the conventional NMF requires re-execution of the algorithm

repeatedly as each new frame arrives, if the background representation is to be

updated. The effect of this on computational complexity has two aspects. Firstly, as

new frames are gathered, the rank of the data matrix V and correspondingly the rank

of the encoding matrix H increase, causing an increase in the number of update

operations per iteration. Secondly, bigger ranks for matrices V and H will obviously

increase the computational load, as there are matrix multiplications in the update

formulas. Besides, as it is shown in Eq.(3), storing the matrix V is a necessity for

batch-mode NMF, since V is used in update operations of both W and H. This

requirement is another reason that makes batch NMF impractical for video

processing. Therefore, a proper incremental NMF algorithm which is able to update

the previous representations of video according to the last arrived frame without

causing a heavy workload is introduced in [5].

Regarding the background modeling problem in surveillance video, in the batch-

mode NMF, the effect of each sample (frame) on the representation is the same,

which may cause a difficulty in tracking the dynamic content changes throughout the

scene. This is because an efficient background modeling scheme should be capable of

assigning higher weights to the recent frames while it reduces the effect of old frames

in the representation properly. Therefore, in this paper we propose a scheme that

adopts INMF algorithm [5] to the dynamic background modeling problem. It is

achieved by deriving an exponential weighting scheme which allows timely tracking

the dynamic background changes. The proposed algorithm is presented in the next

section.

3 Dynamic Background Modeling by Incremental NMF

The background modeling scheme should be able to make the representation adaptive

for content changes, without increasing the computation load. Thus, an incremental-

mode algorithm that updates the current representation as each new frame is received

would answer the requirements. In the following paragraphs, we describe the

109

proposed algorithm which adopts incremental NMF [5] to the background modeling

problem.

Since the data matrix is constructed by cascading the frames, a new frame will add

a new column to both the matrices V and H shown in Eq. (1). Moreover, in each step,

the mixing matrix

W should be updated with the contribution of the new frame. To

achieve this, first of all, effect of the new frame (sample) on the cost function should

be examined.

Let F defined in Eq.(2) be the cost function of m frames; thus is denoted as

F .

Similarly, the matrices V, W and H shown in Eq.(2) which are calculated for the first

m frames are denoted by

V ,

W and

H , respectively. As a new sample ((m+1)

frame) v arrives, a new component that formulizes reconstruction error of v is added

to the cost function as it is shown in Eq.(4). In Eq.(4)

v refers the i

element of v and

h denotes the a

component of h, which is the new column of the encoding matrix.

In Eq.(4) we introduce a parameter, α, which is crucial in controlling the algorithm’s

ability to adapt to dynamic content changes. α can take any value in the interval

(0,1).

()

∑∑

⎟

⎠

⎞

⎜

⎝

⎛

−+−=

iaimm

hWvFF

αα

(4)

In order to obtain a NMF representation for the new data matrix

()

+×

∈

V ,

we need to minimize

with respect to

1m+

W and

1m+

H . Since the cost function

defined in Eq.(4) is a convex function of

1m+

W and

1m+

H separately, as it is

used for the conventional NMF [3], we can use the gradient descent algorithm in the

optimization. Note that each frame in

1m+

V is reconstructed by the help of the

corresponding column of the encoding matrix

1m+

H , thus we just need to take the

derivatives with respect to

h , and

W which refers to the ia

entity of the mixing

matrix

1m+

. Taking the partial derivatives and choosing a proper step size yields the

update rules given in Eq.(5) [5].

⎟

⎠

⎞

⎜

⎝

⎛

⎟

⎠

⎞

⎜

⎝

⎛

hWW

()

ttT

⎟

⎠

⎞

⎜

⎝

⎛

+−

⎟

⎠

⎞

⎜

⎝

⎛

+−

hhHHW

vhHV

αα

(5)

Note that, unlike the conventional NMF that requires updating all the elements of

1m+

W and

1m+

H , whenever the (m+1)

frame arrives, INMF does not need to update

all elements of the encoding matrix

1m+

for the previous frames, but only the

components corresponding to the new frame are updated. As a result, the number of

updating per iteration is fixed, that significantly reduces the computational

complexity. Furthermore, since the matrices

V and

H remain the same throughout

the iterations, the algorithm computes the multiplications

VH and

HH once,

which also reduces the complexity. Update iterations are repeated till convergence

110

and the basis matrix

W is used as the initial state for running the algorithm when the

(m+1)

frame is received.

In order to adopt the presented incremental NMF algorithm to the background

modeling problem, role of α should be examined in detail. Let m be the number of

surveillance frames that used for constructing the initial background representation.

Consequently

F becomes the cost function corresponding to the m background

frames and

denotes the reconstruction error of the (m+k)

frame. Following this

notation, generalization of Eq.(4) for m+k frames is straightforward and yields Eq.(6):

() ()

(

)

....111

kmm

fffFF

−

++−+−+−=

αααααα

(6)

Note that α controls algorithm’s adaptability to content changes. Because

selected in the interval

(0,1)

, it is straightforward to rank the weights of each frame on

the background representation by Eq.(7)

()

(

)

,...11

ααααα

<<−<−

−− kk

(7)

where

()

,...,2,1,1 =−

−

αα

denotes the weighting factor of (m+i)

frame.

It should be emphasized that when the number of observed frames, k, increases,

effect of the initial background model on the new representation decreases.

Furthermore, effect of the earlier frames on the representation is smaller than the

latest frames, resulting in an adaptive background modeling. We can control

adaptation rate of the model to dynamic changes by α. For bigger α, the influence of

the last observation on the factorization will be higher.

4 Statistical Background Modeling by Incremental PCA

Principal Component Analysis (PCA) is a method often used to build a low-

dimensional representation space spanned by a set of orthogonal vectors. The

conventional methods of PCA operate in batch mode. The incremental PCA (IPCA)

algorithm extends the static version of PCA modeling to a dynamic and adaptive

method by introducing an incremental updating scheme. In this work, the IPCA

algorithm proposed in [6] is implemented for dynamic background modeling. Test

results obtained by the IPCA and by the proposed INMF are evaluated for comparison

purposes.

Let C be the

nn ×

covariance matrix of the data where n is the number of frames

used for background modeling. It is shown that equality described in Eq.(8) is hold

when a matrix W contains the eigenvectors of C as its columns, and

Λ is a diagonal

matrix of eigenvalues.

WΛCW

(8)

Conventionally, the eigenvectors corresponding to the highest eigenvalues, thus

columns of W where r<n are used in the PCA representation of a dynamic

background.

111

After construction of the background model, a new data vector

′

can be

projected as

()

μvWh −

′

, where

is the mean vector. The foreground objects

are represented by the reconstruction error,

+−

′

= WhvF

For dynamic background modeling by IPCA, the impact of the new image must be

added to the current model by using an appropriate updating rule. When a new

observation vector

′

is received, the mean PCA vector can be updated as in Eq.(9).

(

)

(

)

vμvμμ

new

ααα

−+=

′

−+= 11

(9)

where

and

−1 are the updating weights that determines contribution of the

previous and new observations to the background representation, respectively. As it is

shown in Eq.(9), where v denotes the new mean-normalized observation data vector,

the effects of the old frames on the representation decay exponentially over time.

Selection of the parameter

is application-dependent and has to be decided

experimentally.

Consequently, the new covariance matrix

Tnew

AAC = can be formed by

observation vectors where the matrix A and its entities are described by Eq.(10). Note

that all of the entities except

are approximated from the eigenvectors of the

current model.

[]

,...,

yyA

iii

αλ

= , v

−=

ri K1

(10)

Eigenvectors and eigenvalues of the background model are updated by eigen-

decomposition of the new covariance matrix. Instead of

matrix

new

C , using

()()

11 +×+ rr

matrix AAB

= for eigen-decomposition problem and then

multiplying both sides by

A leads to Eq. (11).

eAAeAA

new

(11)

By defining

new

Aew = , eigen-decomposition of

new

C , which requires calculation of

new eigenvectors

new

w and new eigenvalues

new

of the model, can be completed.

5 Test Results

In order to compare the performances of batch-mode NMF, INMF and incremental

PCA on dynamic background modeling in surveillance type of video, several tests are

carried out on the surveillance video sequences taken from PET2001 database [8].

First test is performed to evaluate the effect of

on the INMF’s background

representation. Figure 1(a) illustrates distribution of the reconstruction error of each

frame,

, versus frame number for two different

values. The incremental nature of

the algorithm, which makes the effects of the previous frames decay exponentially,

allows the choice of a small rank to represent the background adequately. Thus, rank

of the representation is set to

r=2. The sequence used in this test contains the frames

from 800 to 1500 of dataset1 training camera1 sequence of PETS2001 database. First

112

10 frames are used for the background representation. Small f

values until frame no

900 shown in Figure 1(a) illustrate that the initial background representation is

successful. Moreover, when a motion is detected in the scene, the plot starts to

fluctuate. The significant increases in the plot correspond to appearance of a new

foreground object whereas the sharp drops refer to the stopping objects that integrated

into the background representation. As it is expected, when the contribution of the last

observation is small means for smaller values of

, the reconstruction error reaches to

higher levels without a major change in the characteristics of the distribution (Figure

1(a)). It should also be noted that, since consecutive frames are very similar in

surveillance video, convergence is quickly achieved in a small iteration number.

We have tested the dynamic background modeling performances of the batch NMF

and the proposed incremental NMF representations on the same video frames. Rank

is set to

r=2 for both models and

is set to 0.2 for INMF. Figure 1(b) illustrates

distribution of the reconstruction error versus frame number. It is observable that the

reconstruction error of INMF remains much smaller than that of batch NMF.

Furthermore, although the error is small for both decompositions at the beginning, it

never drops to the initial value for the batch NMF. This is because the batch process

cannot adapt the background representation according to content changes properly.

This makes it unsuitable to an on-line video content analysis. However, the proposed

incremental NMF is capable of updating the initial background model according to

the dynamic changes. For this reason, the reconstruction error drops to the initial

value whenever all of the moving objects become part of the background.

Figure 2 visually demonstrates performance in tracking the foreground objects and

updating the background model for the NMF, INMF and IPCA. Figure 2(a) illustrates

frame 971 taken from the dataset1 training camera 1 video sequence of PETS2001

dataset. In this frame, a new car (car 1) enters to the scene as the green car (car 2) in

the corner starts to leave from the parking lot. In Figure 2b, which corresponds to

frame number 1436, car 1 parked to a slot next to the red car and stopped. Car 2 left

out its parking slot and moved to the left, thus it is about leaving the scene. In

addition, two new walking men exist in this frame. Therefore, it is expected that a

powerful method should detect the moving objects which are the two men and car 2 in

this scene. In fact, as it is shown in Figure 2(c), (d) and (e), three of the methods are

capable of detecting these foreground objects. However, as it is observable in Figure

2(c), the batch NMF also detects the parked car 1 as a foreground object.

Furthermore, the old location of car 2 is also not cleared. The reason for their

existence is that the batch NMF is not capable of updating the background model and

fails to include car 2 into the background model and to remove car 2’s old location

from the background. However, adaptive updating of the background model is

achieved by the INMF successfully (Figure 2(d)). Hence, the proposed INMF is

capable of controlling the algorithm’s adaptability to dynamic content changes. As it

can be seen in Figure 2(e), the IPCA shows a similar performance.

Superiority of the INMF on IPCA becomes much clearer under the illumination

changes that may frequently occur in an outdoor surveillance video scene. The

distribution of

for the frames 2600 to 2990 of dataset2 training camera 2 of

PETS2001 database is plotted in Figure 3. Plots are obtained by the INMF with

r=2,

=0.05 and IPCA with r=2,

=0.95. As it is shown, the minimum reconstruction

error obtained by the IPCA remains much higher than the error of INMF. Furthermore

113

it makes peaks when the illumination changes significantly. However the minimum

reconstruction error achieved by the INMF remains stable within the same video clip.

Weakness of the IPCA and robustness of the INMF are visually observable from the

Figure 4. Figure 4(a) and (b) illustrate the original video frames 2635 and 2874,

respectively. Illumination difference between these frames is recognizable. Figures

4(c) and (d) show the reconstructed difference image obtained by the IPCA with

r=2,

=0.95 and obtained by the INMF with r=2,

=0.05, respectively. INMF’s ability

to remodel the background by adapting it to the illumination changes avoids the

appearance of the noise components (Figure 4(d)) that are clearly visible in the scaled

difference image for IPCA representation (Figure 4(c)). The main reason behind why

IPCA fails in adopting the background to the illumination changes is theoretically

IPCA modeling assumes the transformed frames constitute a Gaussian cluster and as

it is given by Eq.(10), mean vector of the Gaussian is updated at each iteration.

However, illumination changes significantly move the mean vector that can not be

incrementally compensated by the IPCA.

6 Conclusions

In this paper, a new approach for dynamic background modeling problem which is

based on non-negative matrix factorization is proposed. The proposed representation

allows modeling the background successfully and adapting the dynamic scene

changes into the background model properly.

Comparison between the conventional batch NMF, the proposed incremental NMF

and the incremental PCA representation has been made in order to demonstrate the

INMF’s success in video surveillance applications. It is concluded that the INMF is

much more robust to illumination changes than the IPCA. Test results demonstrate

that the INMF is capable of adapting to dynamic background changes within around

0.5 seconds. Currently we are working on deriving new functions in order to decrease

the adaptation delay to the order of milliseconds.

References

1. Gutchess, D., Trajkovic, M., Cohen-Solal, E., Lyons, D., Jain, A.: A Background Model

Initialization Algorithm for Video Surveillance. Proceedings of International Conference on

Computer Vision. (2001)

Lee, D.D., Seung, H.S.: Learning the Parts of Objects by Nonnegative Matrix Factorization.

Nature, Vol. 401. (1999) 788-791

Pascual-Montano, A., Carazo, J.M., Kochi, K., Lehmann, D., Pascual-Marqui, R.D.:

Nonsmooth Nonnegative Matrix Factorization. IEEE Transactions on Pattern Analysis and

Machine Intelligence, Vol. 42. (2006) 403-415

Hoyer, P.O.: Non-negative Matrix Factorization with Sparseness Constraints. Journal of

Machine Learning Research, Vol. 5. (2004) 1457-1469

Bucak, S.S., Gunsel, B.: Video Content Representation by Incremental Non-negative

Matrix Factorization. Submitted to IEEE International Conference on Image Processing.

(2007)

114

6. Li, Y., Xu, J., Morphett, L., Jacobs, R.: An Integrated Algorithm of Incremental and Robust

PCA. Proceedings of IEEE International Conference on Image Processing. (2003)

Oliver, N., Rosario, B., Pentland, A.: A Bayesian Computer Vision System for Modeling

Human Interactions. IEEE Transactions on Pattern Analysis and Machine Intelligence,

Vol.22, no.8. (2002) 831-841

PET2001 Surveillance Video Database (http://ftp.pets.rdg.ac.uk/)

(a) (b)

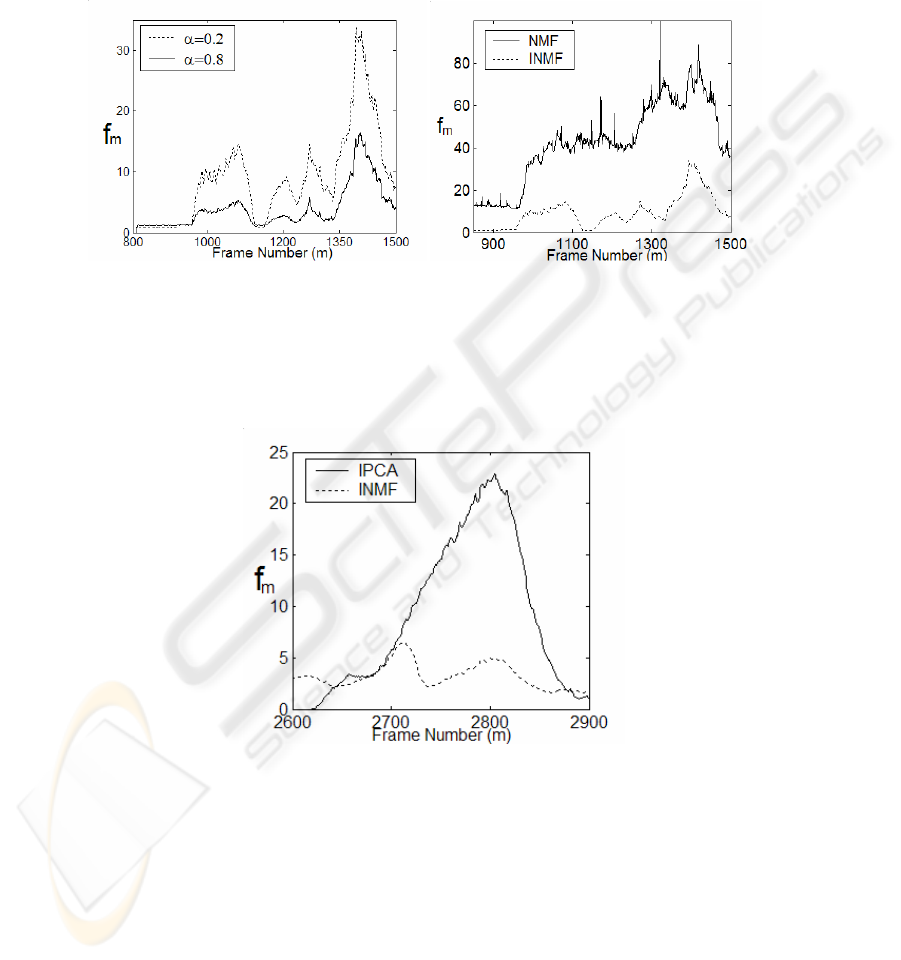

Fig. 1. (a) Distribution of f

for different

values in INMF representation versus frame

number (

r=2, frames from 800 to 1500). (b) Distribution of f

versus frame number for INMF

with

r=2,

=0.2 and for batch-NMF with r = 2 (frames from 800 to 1500).

Fig. 3. Distribution of f

with respect to frame number (frames from 2600 to 2900). The INMF

with

r=2,

=0.05 and IPCA with r=2,

=0.95 are used for comparison of robustness to

illumination changes.

115

(a) (b)

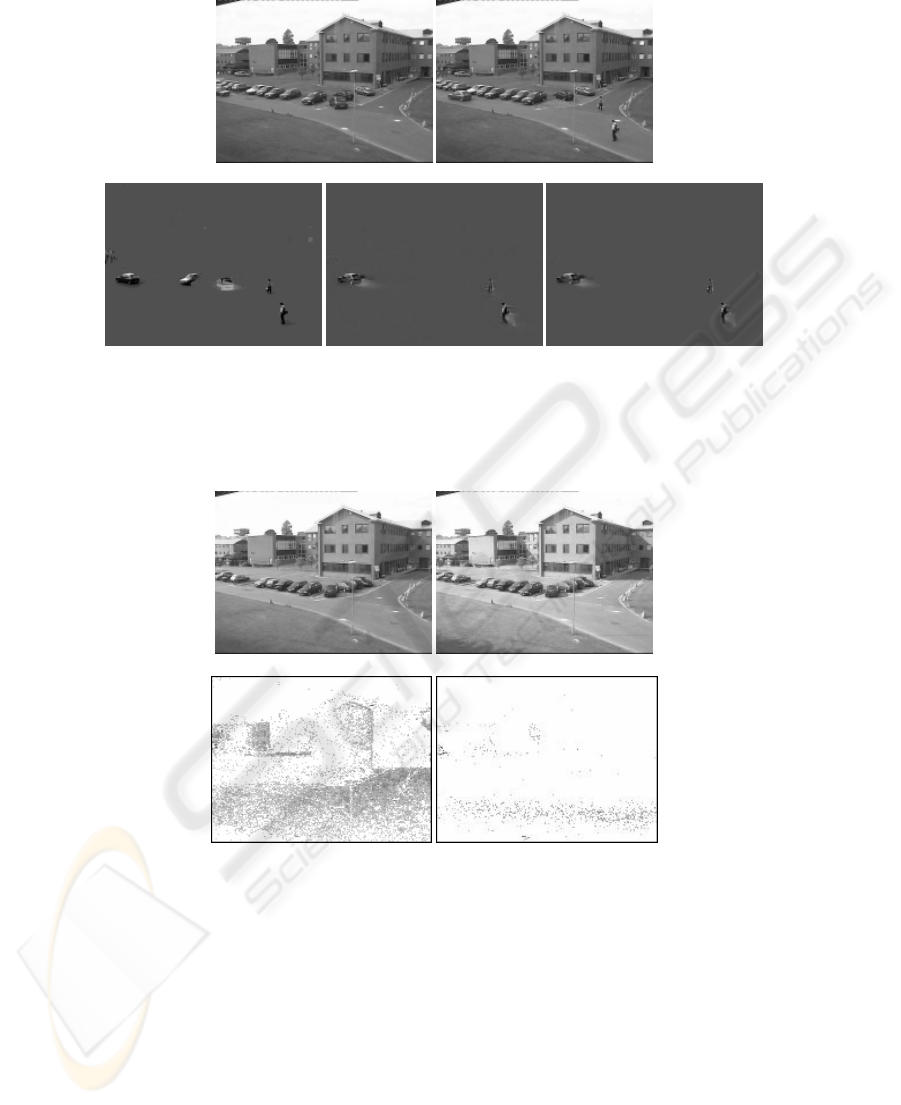

ig. 2 (a) Original video frame 971. (b) Original video frame 1436. Reconstructed difference

image obtained for the frame 1436

=0.2

and

(e) by IPCA with space size r=2,

=0.8.

(a) (b)

Fig. 4. Robustness to illumination changes: (a) Original video frame 2635. (b) Original video

frame 2874.

=0.95 for the

video frame shown in (b).

(d) Reconstructed difference image obtained by INMF with r=2,

=0.05 for the video frame shown in (b).

116
