Implementing Mobile DRM with MPEG-21 and OMA

Silvia Llorente, Jaime Delgado and Xavier Maroñas

Departament d’Arquitectura de Computadors, Universitat Politècnica de Catalunya

C/ Jordi Girona 1-3, E-08034, Barcelona, Spain

Abstract. Digital Rights Management (DRM) is an important issue when try-

ing to provide advanced multimedia content distribution services. DRM is

mostly thought for personal computers, but now, with the emerging mobile de-

vices which include multimedia support and higher bandwidth capabilities, us-

ers demand more valuable content for their mobile devices. The most relevant

initiatives in the area, MPEG 21 and OMA DRM have been used for imple-

menting a DRM system for mobiles. A lot of work has still to be done in this

area and what we present here is a combination of techniques coming from

MPEG 21 and OMA for providing a more complex system with combined ca-

pabilities.

1 Introduction

The provision of multimedia content for mobile devices is increasing day by day.

This implies that content providers want their contents to be protected in a more com-

plex way, too. On the other hand, devices have more resources in terms of screen

size, processing capabilities and formats supported and users want to take profit.

In this paper we present a way of providing digital rights management (DRM) for

mobiles based on two of the most important initiatives in this area: MPEG-21 and

OMA.

The structure of this paper is as follows. First, we introduce MPEG-21 and OMA,

and their most relevant parts for the work presented here. Then, in section 4, we de-

scribe the DRM system for mobiles implemented. Section 5 presents some commer-

cial implementations of OMA DRM systems. Finally, we present some conclusions in

section 6.

2 MPEG-21

MPEG-21 standard deals with different aspects of multimedia information manage-

ment. In the MPEG-21 context, the information is structured in Digital Items, the unit

of distribution and transaction. The other fundamental element are users, which inter-

act with Digital Items. The objective of MPEG-21 is to provide a multimedia frame-

work for assuring that systems providing multimedia content are interoperable.

Llorente S., Delgado J. and Maroñas X. (2007).

Implementing Mobile DRM with MPEG-21 and OMA.

In Proceedings of the 5th International Workshop on Security in Information Systems, pages 166-175

DOI: 10.5220/0002428601660175

 SciTePress

Apart from the Digital Item, there is a lot of related information that describes ad-

ditional aspects regarding the content, such as Rights Expression Language expres-

sions (REL, Part 5) [1] and Event Reporting information (ER, Part 15) [2].

2.1 MPEG-21 Rights Expression Language

MPEG 21 REL specifies the syntax and semantics for issuing rights for users to act

on multimedia content. One important concept in REL is the License that is a con-

tainer of grants. Fig. 1 shows the basic structure of a REL License.

License

Gr a nt

Principal

Right

Resource

Condition

Title

Inventory

Issuer

OtherInfo

Authorization story

Authori zer

Primitive grant

License

Principal

Authorized grant or

grantGroup

Authorization story

Authorization context

Time instant

Authorization Request

Principal

Right

Authorization context

Interval of time

Resource

License elements

Grant elements that do

not require an authorizer

is authorizatio n

proof for

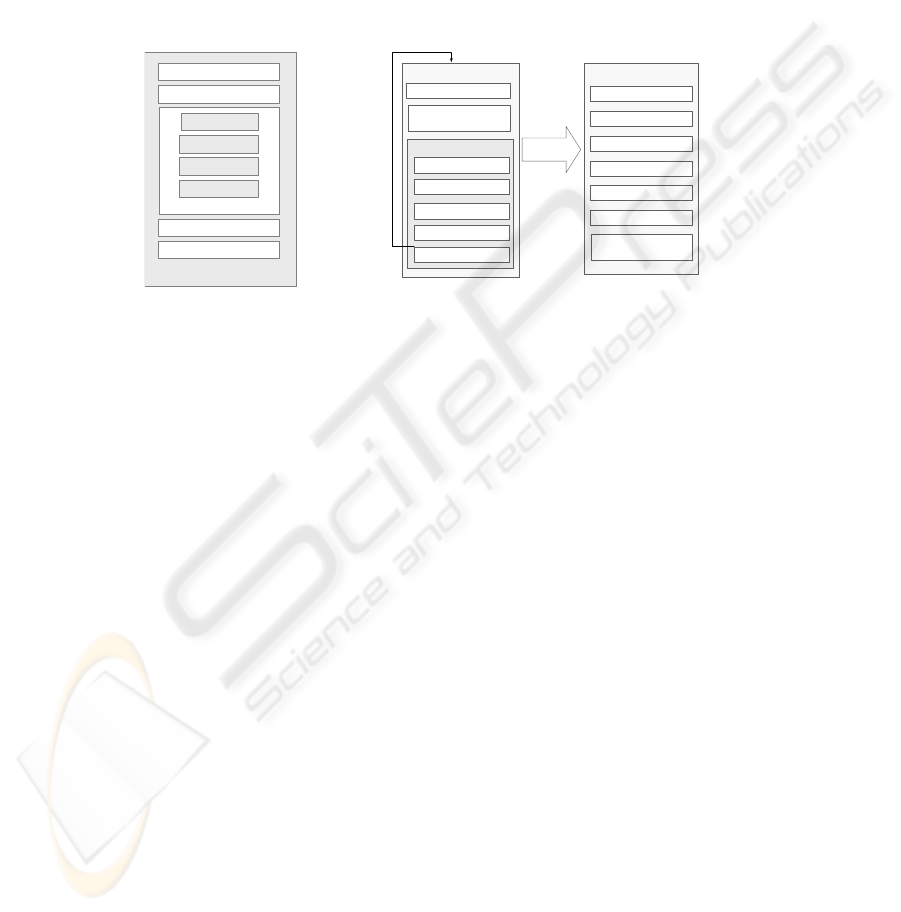

Fig. 1 and 2. Basic MPEG 21 REL License and REL Authorisation Model.

Inside a REL license, the most important element is the Grant, which expresses

that some Principal may exercise some Right against some Resource, subject, possi-

bly, to some Condition. A Grant is an XML structure that is formed by four elements:

Principal, which represents an entity involved in granting or exercising rights, Right,

that specifies an action a principal can perform on a resource, Resource, that repre-

sents the object against which the Principal of a Grant has the right to perform, and

Condition that represents terms and conditions that must be satisfied to consume the

object. The issuer element defines the party issuing this license to the Principal, with

the information defined inside the Grant (resource, right and conditions).

Implementation of the MPEG-21 Authorisation model. Inside the MPEG-21 REL

standard, an authorisation algorithm based on MPEG-21 REL licenses and some

other structures, like Authorisation Request and Story, was defined [1].

The authorisation algorithm defines how a user can be authorised to perform some

action over a resource on the basis of the licenses he owns. Moreover, also the chain

of licenses is checked, that is, the parent licenses that allowed the creation of the

license owned by the user. The authorisation algorithm makes use of an authorization

request, an authorization context, an authorization story and an authorizer, as shown

in Fig. 2. It allows the definition of different business models depending on distribu-

tion. See [3] for details on authorisation of user actions.

Although MPEG-21 defines several structures in its authorisation model, at Dis-

tributed Multimedia Applications Group (DMAG) [4], we have defined some UML

and relational models [5] in order to represent both MPEG-21 REL and OMA DRM

167

REL [6] licenses. The aim of these models is to speed up the authorisation of actions

based on the licenses owned by a user over a resource. It is also possible to perform

translations between these two languages.

When we use both relational and UML models, the authorisation is based on per-

forming SQL queries against a database containing licenses and, from the information

retrieved, implement the corresponding part of the Authorisation algorithm. The algo-

rithm checks if the conditions are fulfilled for any of the licenses owned by the user

over the resource. To do so, the information retrieved from the database is stored in

the classes represented by the UML model and the algorithm works against them,

instead of using the original licenses in XML language nor SQL results.

2.2 MPEG-21 Event Reporting

Event Reporting is standardised as part 15 of MPEG-21 standard [2]. With Event

Reporting, MPEG-21 tries to provide a standardised mechanism for informing about

Events occurred among Peers and Users forming part of a system, which includes

several communicating parties. The sending of ER’s depends on the system [7].

B: RW, P:RW

</AccessRights>

</Descriptor>

<OriginalERR

id="ID:mepg:mpeg21:DII:ERRDID:003">

ID:mepg:mpeg21:DII:ERRDID:003

</OriginalERR>

</Source>

Broadcaster ID:B, User ID: U,

DI ID:mpeg:mpeg21:DII:DPDID:001,

Time:2004-07-15T14:13+1:00

</ERData>

</ER>

License

Asset

Permission

Right

Constraints

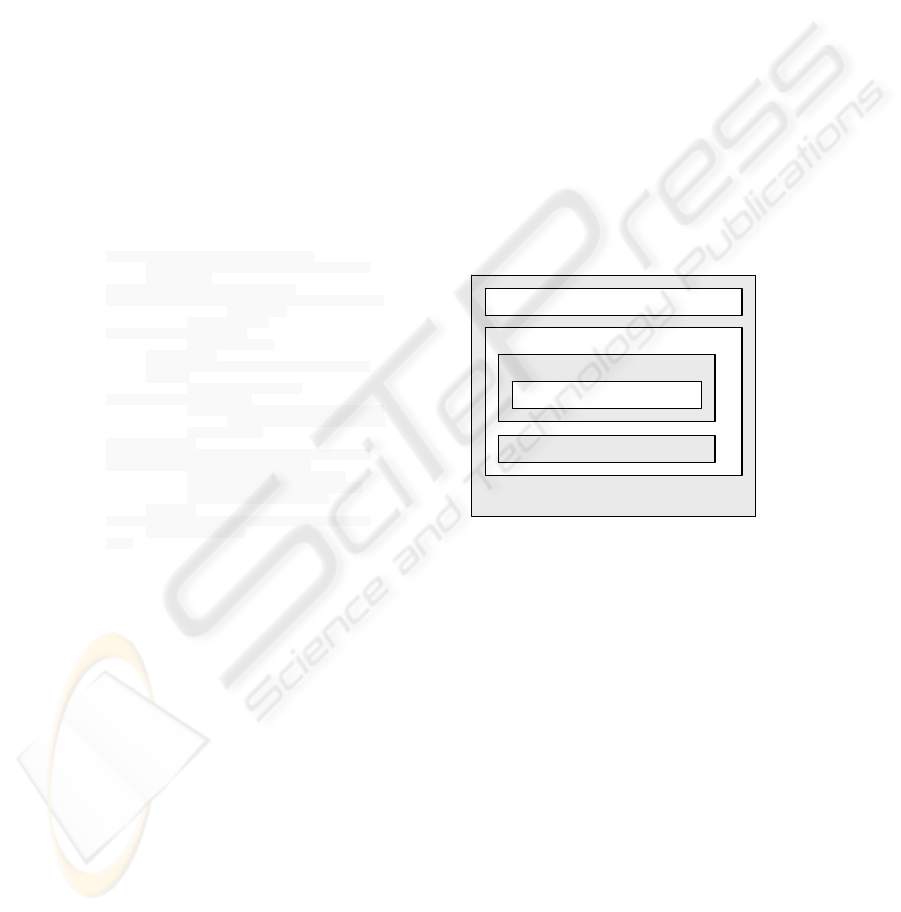

Fig. 3 and 4. Example of an ER and OMA DRM REL License.

In any case, when an ER is generated for informing of a particular action done by a

user, it contains information about the associated Digital Item, the resource and the

conditions under which this resource was consumed by the user. Fig. 3 shows and

example of an ER in XML format.

3 Open Mobile Alliance (OMA) DRM and OMA DRM REL

Open Mobile Alliance (OMA) [6] is the leading industry forum for the mobile envi-

ronment. It was formed in 2002 by nearly 200 companies, including mobile operators,

device and network suppliers, information technology companies and content and

168

service providers. The requirements of the whole value chain actors’ can be consid-

ered, as all of them are part of the forum.

The main aim is to provide specifications for supporting the creation of interoper-

able end-to-end mobile services, independent from networks and platforms.

OMA has developed OMA DRM [6], its digital rights management architecture to

provide protection of content inside the mobile environment. They have also defined

a rights expression language, OMA DRM REL [6], based on ODRL [8]. It is cur-

rently in its version 2. Using OMA DRM REL it is possible to express rights over an

asset (content) defining permissions and constraints (conditions) on its usage. To

define OMA DRM REL language, ODRL XML Schemas are used [9], which define

the rights expression language and the rights data dictionary separately. OMA defines

its own rights expression language and data dictionary, both based on ODRL ones.

Although ODRL permits the creation of licenses with a structure very similar to

MPEG-21 REL ones, the subset defined by OMA DRM REL is more limited. Fig. 4

shows the basic structure of an OMA DRM REL license. OMA licenses do not define

the party element, as it is implicit to the user of the mobile device. Moreover, the

rights are a subset of the ones in MPEG-21 REL. Moreover, it does not define the

issuer, either, as it is usually the company providing the service to the mobile. The

constraints can be defined at permission and right levels. Constraints at permission

level affect to all rights defined inside the permission.

4 Implementing a Mobile DRM Solution

This section describes the implementation of a mobile DRM solution that selects and

combines different mechanisms from both MPEG-21 and OMA DRM, making the

necessary adaptations in order to be able to provide a functional solution for the mo-

bile environment on the mediaMobil [10] project. A derivation of some of the mod-

ules is also being developed in an Integrated Project, AXMEDIS project [11].

The reason for using both standards is that each of them provides different features

suitable for the mobile environment. For instance, we decided to use OMA DRM

REL licenses to express the rights given to users of the mobile devices as they were

more compact and intended for the mobile environment, but, as authorisation algo-

rithm we have used our adapted version of the MPEG-21 REL one. Moreover, we

have used MPEG-21 ER concepts to keep track of user actions, although we are also

using a compact version of Event Report information (to store them on the mobile

device).

The limitations mostly came from the characteristics of the devices used: limited

resources, limited storage and processing, size, etc. Some other limitations where

imposed by the development environment available for the mobile devices, as the

Java language libraries support depends on the brand and the model of the mobile

device.

Fig. 5 shows the general architecture of the system implemented. Several services

are involved and different versions had to be implemented. The mobile device has an

implementation of the authoriser, part of the Event Reporting and a Status Cache for

169

storing some information of the actions performed, to be able to authorise them. On

the server side, we have two services, the Rights and the Event Reporting Managers.

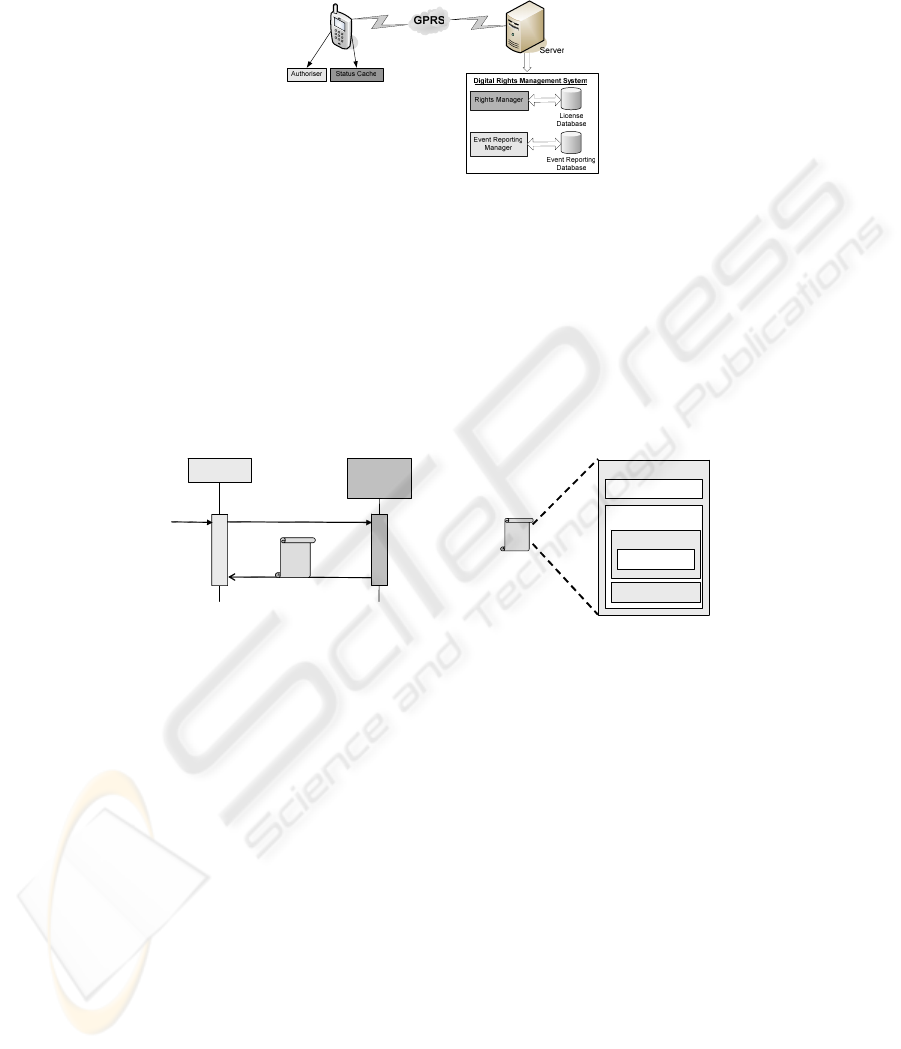

Fig. 5. General Architecture of the Implemented system.

4.1 Licensing

The Licensing implemented in this system works by using Web services and a web

application implemented using servlets and Java Server pages. The user of the mobile

device is who asks for a new license for consuming multimedia content. To do so, it

is needed that he installs a special type of Java application specific for mobile devices

called Java Midlet. The implemented application has several menus, which guide the

user in the purchasing of a license. In our case, the user should fill three parameters:

Client

Rights

Manager

Purchase license

XML

User fills the

resource,

right and

constraint

OMA License

Resource

XML

Permission

Rights

Constraints

Fig. 6 and 7. License purchasing and Purchased OMA License general structure.

• The resource the user wants to consume with this device.

• The right the user wants to exercise over the resource. The rights available are:

Play, Display, Execute, Print and Export. They are defined in OMA DRM REL.

• The constraints for performing the consumption of the resource. We are currently

supporting two types of constraints: Time and number of consumptions con-

straints. For time constraint we can have 1 minute, 1 hour and 1 day constraint.

Time constraint indicates that, from the first time the right is exercised, the user

has 1 minute, 1 hour or 1 day to exercise the right again, respectively. Status

Cache controls the time of resource consumption. For number of consumptions

constraint, the user has to indicate how many times he wants to consume the re-

source. Each time the user exercises a right, it is stored in the Status Cache to

control he has not reached the maximum.

Fig. 6 shows the general behaviour of license purchase. The client is the applica-

tion installed in the mobile device and the Rights Manager is the Web Service based

application where licenses can be purchased and managed.

170

Fig. 7 graphically shows the general format of the license sent to the mobile user.

It contains the Resource, the Permission, which contains the Right and the constraints

associated to the right and, finally, the constraints for the permission, if any.

<o-ex:rights xmlns:o-ex="http://odrl.net/1.1/ODRL-EX"

xmlns:o-dd="http://odrl.net/1.1/ODRL-DD"

xmlns:oma-dd="http://www.openmobilealliance.com/oma-dd"

xmlns:ds="http://www.w3.org/2000/09/xmldsig#"

xmlns:xenc="http://www.w3.org/2001/04/xmlenc#">

<o-ex:context>

<o-dd:version>2.0</o-dd:version>

<o-dd:uid>RightsObjectID</o-dd:uid>

</o-ex:context>

<o-ex:agreement>

<o-ex:asset>

<o-ex:context>

<o-dd:uid>ContentID</o-dd:uid>

</o-ex:context>

<o-ex:digest>

<ds:DigestMethod

Algorithm="http://www.w3.org/2000/09/xmldsig#sha1"/>

<ds:DigestValue>DCFHash</ds:DigestValue>

</o-ex:digest>

<ds:KeyInfo>

<xenc:EncryptedKey>

<xenc:EncryptionMethod

Algorithm=

"http://www.w3.org/2001/04/xmlenc#kw-aes128"/>

<xenc:CipherData>

<xenc:CipherValue>

EncryptedCEK

</xenc:CipherValue>

</xenc:CipherData>

</xenc:EncryptedKey>

<ds:RetrievalMethod URI="REKReference"/>

</ds:KeyInfo>

</o-ex:asset>

<o-ex:permission>

<o-dd:play>

<o-ex:constraint>

<o-dd:datetime>

<o-dd:end>2007-12-31T23:59:59Z</o-dd:end>

</o-dd:datetime>

</o-ex:constraint>

</o-dd:play>

</o-ex:permission>

</o-ex:agreement>

</o-ex:rights>

Client Event Reporting

Manager

2. Look for license

3. Recover context

4. Authorise

5. Update context

6. Send Event Report

1. User asks for

authorisation

Fig. 8 and 9. OMA License in XML format and Steps for Authorising Content Consumption.

Fig. 8 shows an OMA license in XML format. In this license, the Resource is rep-

resented by the identifier ContentID inside the XML element

o-dd:uid of the element

o-ex:asset. The right is play, as indicated by the element o-dd:play, inside the

o-ex:permission element. Finally, the constraint represented is a time constraint

associated to the right. The element representing it is

o-dd:datetime inside o-

ex:constraint

. If the constraint type had been number of consumptions, the element

representing it would have been

o-dd:count.

4.2 Authorising

Once the user has purchased the license, he can exercise the right over the resource

contained inside it. The user requests the authorisation of the action, indicating which

resource he wants to consume and which right he wants to exercise. This request

generates several actions that end in the authorisation or not of the exercise of the

right.

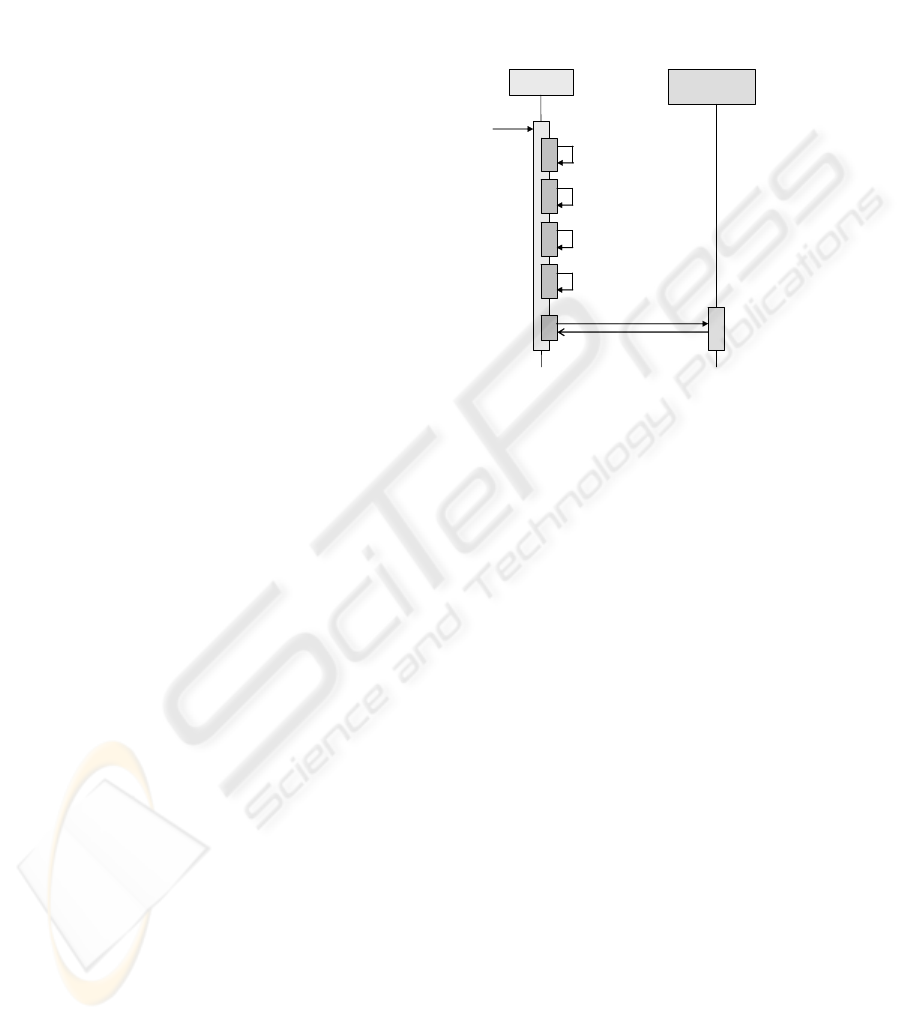

The steps, shown in Fig. 9, for performing the authorisation are as follows:

1. User asks for authorisation. He has to indicate the resource he wants to consume

and the right he wants to exercise.

2. With this information, the client application tries to find out the license which

may authorise the requested right in the local storage.

3. Next step is to recover the context information (number of executions, etc), asso-

ciated to this right and resource from Status Cache.

4. Once the license and the context information associated to the right and resource

have been found, the authorisation algorithm can be executed. If the constraints

171

are accomplished, then the authorisation response will be positive. If not, the next

license found will be used for trying the authorisation again. If no license is able

to authorise, then the authorisation response is negative.

5. After authorisation, the context information is updated depending on the con-

straints of the license. If it is of type number, number of consumptions is stored.

If it is of type time, the first time when the authorisation was requested is stored.

6. Finally, the Event Reporting Manager is informed of the authorisation request

done by the client. This is the only step that requires external connection.

4.3 Keeping Track of User Actions

As explained in section 4.2, to keep track of user actions, an event report is sent after

the user requests an authorisation. The event report is only sent on positive authorisa-

tion (it is not relevant for the system if the user cannot exercise the right), to limit the

number of payment connections done by the mobile device. Positive Event Reports

are stored in the Event Report database to be consulted in the future.

We have seen in section 2.2 that the MPEG-21 Event Reports are expressed in

XML format. We performed an adaptation of this report format, designing a relational

database, instead of working with XML files. The table has 5 different fields, all of

type String: EventID, that identifies the Event Report, ObjectID, that identifies object

the over action has been done, Action, that for resources indicates the right and

TimeofIssuance, that indicates the date and time when the event report was generated.

The client part for requesting the event reporting information was not implemented

as the parties that could be interested in where not part of the project.

4.4 Storing Information in the Mobile Device

In order to be able to perform authorisations, two different types of information are

locally stored in the device: licenses (in XML format) and context information. Con-

text information was designed as a relational table, but its specific implementation

depends on the mobile device system being used. Licenses and context information

are both saved into a J2ME RecordStore object. This object lets us to store a series of

bytes, indicating only the position where it will be stored. To store something in this

structure we have to create a string containing all context information. This means

that, when you want to retrieve specific data, you have to go one by one and parse the

information, as there is no search functionality provided.

The information inside the context information is the identifier of the license re-

turned by the Rights Manager, the identifier of the resource, the right and, depending

on the constraint, a time instant or a number of executions. Context information is

essential for authorisation, as it stores the relevant values for the constraints contained

in the licenses.

172

4.5 Problems Encountered using Different Mobile Platforms

During the implementation and set up of this system, we used two different mobile

devices, a Qteck 2020i PDA with Pocket PC and a Nokia 6680 mobile phone with

Java support. The implementation of the application was done with Netbeans 5.0,

using some J2ME support libraries for accessing Web Services and web applications.

Those libraries were j2me-ws for connecting with Web services from J2ME and kxml

v2 for parsing the license for authorising content consumption requested by the user.

For the Qteck PDA we were able to install the Midlet application with direct ac-

cess to Web Services. To do so, we included into the Midlet the j2me-ws library, as it

was not available in the Pocket PC platform natively. Then, the client application was

able directly connect to the server containing Rights and Event Reporting Managers.

On the other hand, for the Nokia mobile phone, we were not able to include

j2me-ws library, as the mobile does not support the addition of new libraries. So, if a

library needed by a Midlet is not inside the mobile natively, then the Midlet will not

work. To overcome this problem, we had to implement a web application that acted

as a client of the Web Service. In this case, the mobile application contacted the in-

termediary web application, which sent the information to the Web Service. The re-

sponse from the Web Service was passed from the intermediary to the mobile appli-

cation. The rest of the functionality was the same in both cases, we only had to

change the connection with the Web Services due to the limitations of the Nokia

phone. The solution to this problem is to use another Nokia phone model which in-

cluded the required library, but it was not available in the Spanish market at the time

when the project was being developed.

4.6 Some Views of the Application

In this section we show some screenshots of the implemented application. It is based

on forms for facilitating the user the introduction of information, in order to over-

come the difficulty associated to the user of the PDA and mobile phone keyboards.

Fig. 10 shows the main screen of the Java Midlet. The available operations are

buying a license with time constraints or number of executions constraints, ask for

authorisation of a user action and look for information stored inside the Status Cache.

Fig. 11 and 12 show how a time constraint license can be bought. The resource

field has to be filled and the right and the time constraint type have to be selected. In

this case, operation has been successful and the identifier of the license bought is

shown, LID144.

Fig. 13 shows the authorisation of an action. The user fills the resource name and

selects the right. If authorisation is positive, the Event Report number generated is

returned. Fig. 14 and 15 show how to request information inside the Status Cache.

Resource name and right is needed (similar to authorisation). For the license search,

the result shows license identifier and the XML file. For context information associ-

ated to a time constraint, the result is the license identifier, the resource name, the

right and final time when the right can be exercised.

173

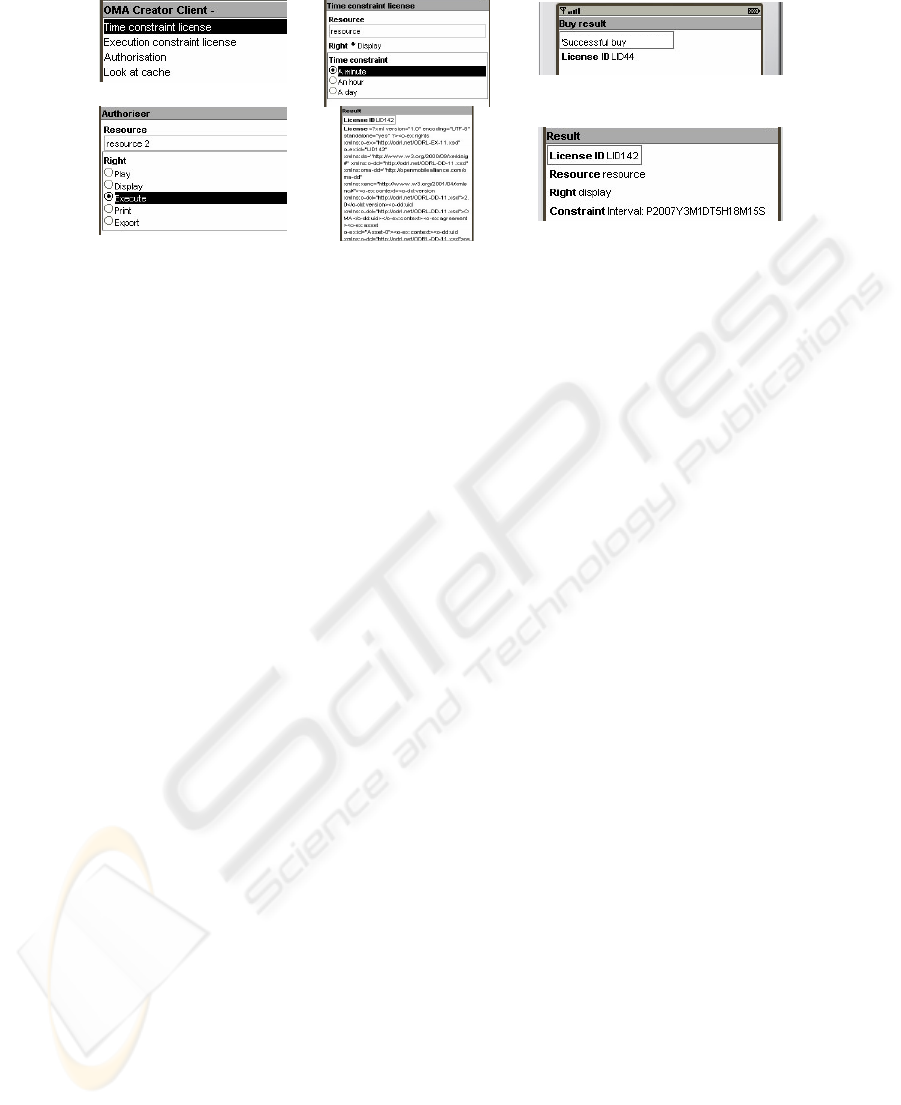

Fig. 10 to 15. Views of the application.

5 Related Work

There are some commercial solutions that implement OMA DRM on mobile devices.

In this section we present the most relevant ones and the solutions they propose in the

mobile environment. The first one is a client-server model solution that comes from

Nokia [12]. They have implemented a system only operational for Nokia products

that allows controlling all the process from the content creation until the content con-

sumption. Another commercial solution is the one developed by CoreMedia [13]. It is

currently applied to content offered by Vodafone, through Vodafone Live! service

[14]. They offer a framework supporting OMA DRM v.1 and v.2 [6] or even Win-

dows Media DRM [15]. They implement something similar to Event Reporting to

control user actions. Other companies like Discretix [16] or SafeNet [17], offer

equivalent products.

Comparing our implementation with the commercial solutions, we see that we pro-

vide two extra features over commercial solutions. The first one is a complete Event

Reporting mechanism, based in MPEG-21 standard. The other added value is that our

software is not a commercial product but the result of a research project and it is

based on open specifications. Our main advantage is that our implementation could

be used on any mobile device, independently from the device brand and even from

the type of device, permitting interoperability.

6 Conclusions and Future Work

In this paper we have presented a DRM system for mobiles implemented in a research

project. This system included different modules that were based on the most relevant

initiatives in the area: MPEG-21 and OMA DRM. We have selected some compo-

nents from both. This is a first step to provide interoperability between them.

Nevertheless, this is only a small part of all what has to be done in order to provide

a complete DRM system for the mobile environment. The following (but not only)

features should be added in order to provide a secure and reliable system:

• Security in the communication between the mobile device and the services.

174

• Connection of the DRM features with the player application rendering the con-

tent to the user. Content should be also protected (ciphering).

• Ciphering of the Status Cache.

• Use of licenses expressed in MPEG-21 REL.

Most of these functionalities were planned in the system we wanted to implement,

but, due to the limitations in support libraries for mobiles and the timing of the pro-

ject, it was not possible to add them. This is the future work in this area, together with

the integration with the OMA DRM v2.0 already present in some mobile devices, like

Nokia N95. Nevertheless, integration with the OMA DRM inside this mobile device

is only supported by the specific C++ framework provided by Nokia, so a more ge-

neric application implemented with Java Midlets will not be able to be integrated.

Acknowledgements

This work has been partly supported by the Spanish Administration (DRM-MM pro-

ject, TSI 2005-05277), the i2cat Machine project [10], the FP6 Integrated Project

AXMEDIS [11] and the FP6 Network of Excellence VISNET-II [18].

References

1. ISO/IEC 21000:5 – Part 5: Rights Expression Language. In ISO/IEC Standards. ISO/IEC.

2. ISO/IEC 21000:15 – Part 15: Event Reporting. In ISO/IEC Standards. ISO/IEC.

3. Rodríguez, E., Llorente, S., Delgado, J. Use of Rights Expression Languages for protect-

ing multimedia information. In WEDELMUSIC 2004 Proceedings. IEEE Computer Soci-ety.

4. Distributed Multimedia Applications Group (DMAG). http://dmag.upf.edu.

5. Llorente, S., Delgado. J., Barrio, R., Maroñas, X. Translation between XML based rights

expressions using UML and relational models. In AXMEDIS 2006 Proceedings. IEEE

Computer Society.

6. Open Mobile Alliance (OMA). In http://www.openmobilealliance.com.

7. Torres, V., Delgado, J., Llorente, S. An implementation of a trusted and secure DRM archi-

tecture. In Lecture Notes in Computer Science 4277. Springer-Verlag.

8. Ianella, R., 2007. Open Digital Rights Language (ODRL). In http://odrl.net.

9. Open Digital Rights Language (ODRL) XML Schemas. In http://odrl.net/1.1/ODRL-EX-

11.xsd and http://odrl.net/1.1/ODRL-DD-11.xsd.

10. Fundació i2cat. http://www.i2cat.cat.

11. FP6 AXMEDIS project. http://www.axmedis.org.

12. Nokia development Forum. http://forum.nokia.com.

13. Coremedia. http://www.coremedia.com.

14. Vodafone live. http://live.vodafone.es.

15. Windows Media DRM. http://www.microsoft.com/windows/windowsmedia/for-

pros/drm/default.mspx

16. Discretix. http://www.discretix.com.

17. SafeNet, 2007. SafeNet Inc. http://www.safenet-inc.com.

18. FP6 VISNET-II Network of Excellence. http://www.visnet-noe.org

175
