REPRESENTING LANGUAGES IN UML

A UML Proﬁle for Language Engineering

Francisco Gort

azar, Abraham Duarte and Micael Gallego

Department of Computer Science, Universidad Rey Juan Carlos, Tulip

an, M

ostoles, Madrid, Spain

Keywords:

UML proﬁle, UML metamodel, Language Engineering, abstract syntax, concrete syntax, DSLs.

Abstract:

In this paper a UML proﬁle for textual concrete syntax speciﬁcation is described. The proﬁle provides the

necessary elements to associate the concrete syntax of a language L to an abstract syntax model of L. Such

augmented abstract syntax model is called the language model of L. This language model avoids keeping the

abstract and concrete syntaxes synchronized. We take advantage of the similarities between object oriented

modeling and BNF-based language speciﬁcation, and use a proﬁle to specify the dissimilarities.

1 INTRODUCTION

UML is a general purpose modeling language, com-

monly used in object oriented development. Currently

UML provides different notations for different parts

of the development process, from use cases to deploy

diagrams. One of the most known notations is the one

centered in object oriented modeling.

However, UML has been used for other tasks

different from software systems speciﬁcation. For

these tasks UML is too general, and UML proﬁles

are used to tailor the model to a speciﬁc domain.

Some UML proﬁle examples are: real-time applica-

tions (Aldawud et al., 2003; Backus and Vallecillo,

2004; Apvrille et al., 2004), aspect oriented modeling

(Aldawud et al., 2003), QoS (Cortellessa and Pompei,

2004; Asensio et al., 2001), agent systems modeling

(Huget, 2004; Marcos and Pryor, 2003), requirements

engineering (Heaven and Finkelstein, 2004), or XML-

Schema (Provost, 2002; Carlson, 2001; Bernauer

et al., 2004; Routledge et al., 2002), among others.

In this paper we present a UML proﬁle for con-

crete syntax speciﬁcation of textual languages. The

choice of a UML proﬁle is motivated by the fact that

the abstract syntax is modeled in UML. Our aim is

to annotate this abstract syntax UML model with the

textual representation (concrete syntax) of elements

in the model. In our proposal, language structure (ab-

stract syntax) is provided by means of standard UML

elements, and concrete syntax is provided by means

of stereotypes of a UML proﬁle that are applied to

elements of the abstract syntax model.

2 ABSTRACT SYNTAX

We are concerned with automatic IDE generation.

When aiding developers, development tools rely

heavily on the abstract syntax tree (AST) of the pro-

gram that is being developed. The AST is an in-

stance of an abstract syntax model which in our case

is deﬁned with UML. As long as the abstract syntax

needs to be implemented by means of a programming

language, it is natural to express it with UML. For

instance, from the UML abstract syntax model Java

classes can be generated which represent the abstract

syntax model in Java. This is the case of IDEs such as

Eclipse

, or NetBeans

, among others.

In language deﬁnition, the same elements are used

systematically (Wimmer and Kramler, 2005; Alanen

and Porres, 2003; Antoniol et al., 2003; Hedin and

Magnusson, 2003; Lieberherr, 2005; Wile, 1997).

These elements, and their representation in the ab-

stract syntax model are described in the rest of this

section. Although the modeling decisions presented

http://www.eclipse.org

http://www.netbeans.org

Gortázar F., Duarte A. and Gallego M. (2007).

REPRESENTING LANGUAGES IN UML - A UML Proﬁle for Language Engineering.

In Proceedings of the Second International Conference on Evaluation of Novel Approaches to Software Engineering , pages 3-9

DOI: 10.5220/0002586900030009

 SciTePress

here are general, we show such decisions using an

sample language extracted from the literature (Fonde-

ment et al., 2006): the statechart language. Thus, we

will show during the rest of the paper how to deﬁne

the statechart language using the proﬁle we have de-

ﬁned.

In Section 3 we will show how to apply the con-

crete syntax proﬁle to these elements to specify the

textual projection of the abstract syntax concepts.

2.1 Language Concepts

Classes and interfaces represent statechart language

concepts like state, state machine, or transition. Lan-

guage concepts expose an inner structure which is

represented in the abstract syntax as associations and

attributes of classes. These concepts usually pertain

to some classiﬁcation, which is expressed by means

of inheritance relationships.

It follows a textual fragment of a

StateMachine

as deﬁned in (Fondement et al., 2006). The fragment

corresponds to a

CompositeState

deﬁnition:

CompositeState closed {

initial State locked

State unlocked

}

Figure 1 shows the fragment of the correspond-

ing abstract syntax. Three different concepts appear

in the abstract syntax model:

State,

which corre-

sponds to an abstract state;

CompositeState

, which

corresponds to a composite state (

closed

in the ex-

ample); and

SimpleState

which corresponds to a

simple state (

locked

CompositeState

State

-initial:boolean

-name:String

SimpleState

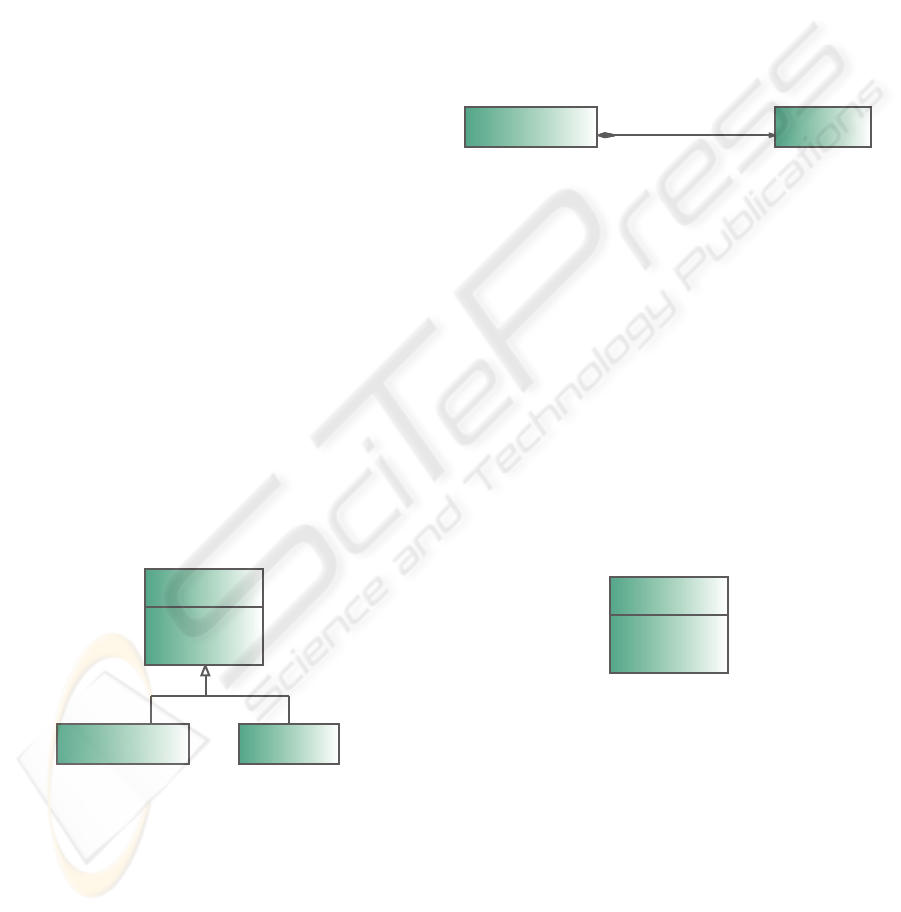

Figure 1: Language concepts.

2.2 Sequences

In most languages there are elements that are arranged

into sequences. In a statechart there are several exam-

ples of elements arranged into sequences, like states

and transitions. The language might impose restric-

tions on the bounds of a list. Commonly, the upper

bound is undeﬁned, but the lower bound is usually

zero or one. For instance, a composite state in the stat-

echart language might contain no inner states. Lists of

elements are represented in UML as associations with

a multiplicity of 0..n, or 1..n.

Given the previous statechart example, Fig-

ure 2 shows the abstract syntax fragment corre-

sponding to the containment relationship between

CompositeState

and its inner states. A com-

position association between

CompositeState

and

StateVertex

is used to represent the containment re-

lationship. The name of this association is

states

As long as a composite state might not have inner

states, the multiplicity of the association is 0..n.

CompositeState StateVertex

-states

-container

0..1

Figure 2: Lists of elements.

2.3 Optional Elements

Optional elements are those that might appear in a

concrete position. These elements can be further di-

vided into two groups:

• Elements associated with a true/false value. When

they are present, they represent a true value, oth-

erwise, they represent a false value. These ele-

ments are represented in the abstract syntax with

a boolean property. In a state declaration such as

initial State unlocked

, a state is declared as

the initial state. Figure 3 shows the corresponding

abstract syntax representation of such modiﬁer.

State

-initial:boolean

-name:String

Figure 3: Optional elements of kind true/false.

• Elements associated with some structure. Con-

sider, for instance, the event that triggers a transi-

tion. When a transition is triggered by an event,

this is speciﬁed with the reserved word

fol-

lowed by the name of the event that causes it. In

the abstract syntax model these kind of elements

are represented as an association with multiplicity

0..1. Figure 4 shows this example.

ENASE 2007 - International Conference on Evaluation on Novel Approaches to Software Engineering

Transition

Event

-trigger

0..1

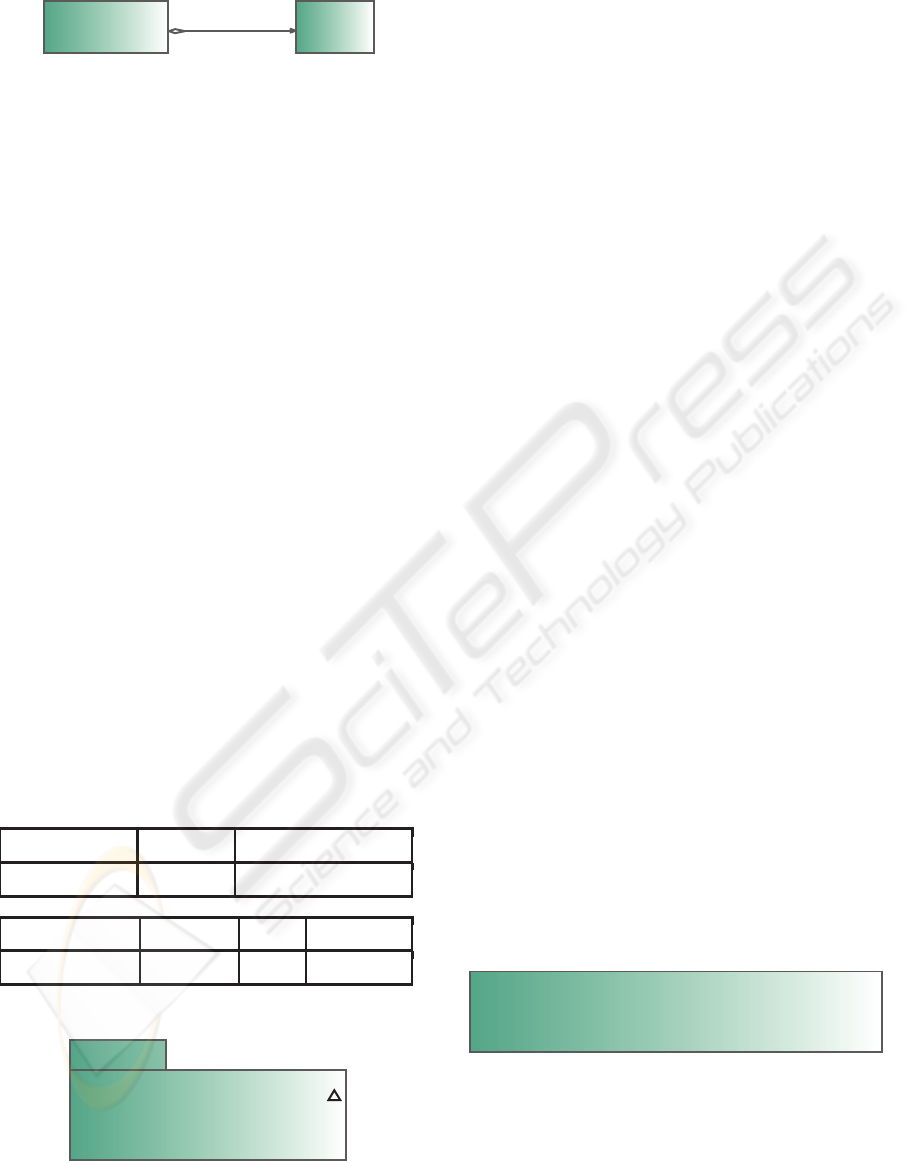

Figure 4: Optional elements of kind 0..1.

2.4 Tokens

Some elements such as identiﬁers, constants, etc, are

represented as string properties in the abstract syntax

model. Figure 3 shows a class that represents an ab-

stract state. The name of the state is represented as

the string property

name

, such as

locked

3 CONCRETE SYNTAX PROFILE

The concrete syntax is speciﬁed by means of annotat-

ing the abstract syntax. This annotation is performed

by means of stereotypes deﬁned in a UML proﬁle

(called Concrete Syntax) we have deﬁned for this pur-

pose. The stereotypes of the Concrete Syntax proﬁle

provide information of the textual projection of ab-

stract syntax elements. The proﬁle is presented by

means of the application of the stereotypes to an ab-

stract syntax model of the statechart language.

3.1 Language Model

We propose to represent a language model as a model

with stereotype ≪

Options≫. The name tag of this

stereotype is used to represent the language name (Ta-

ble 1 and Figure 5).

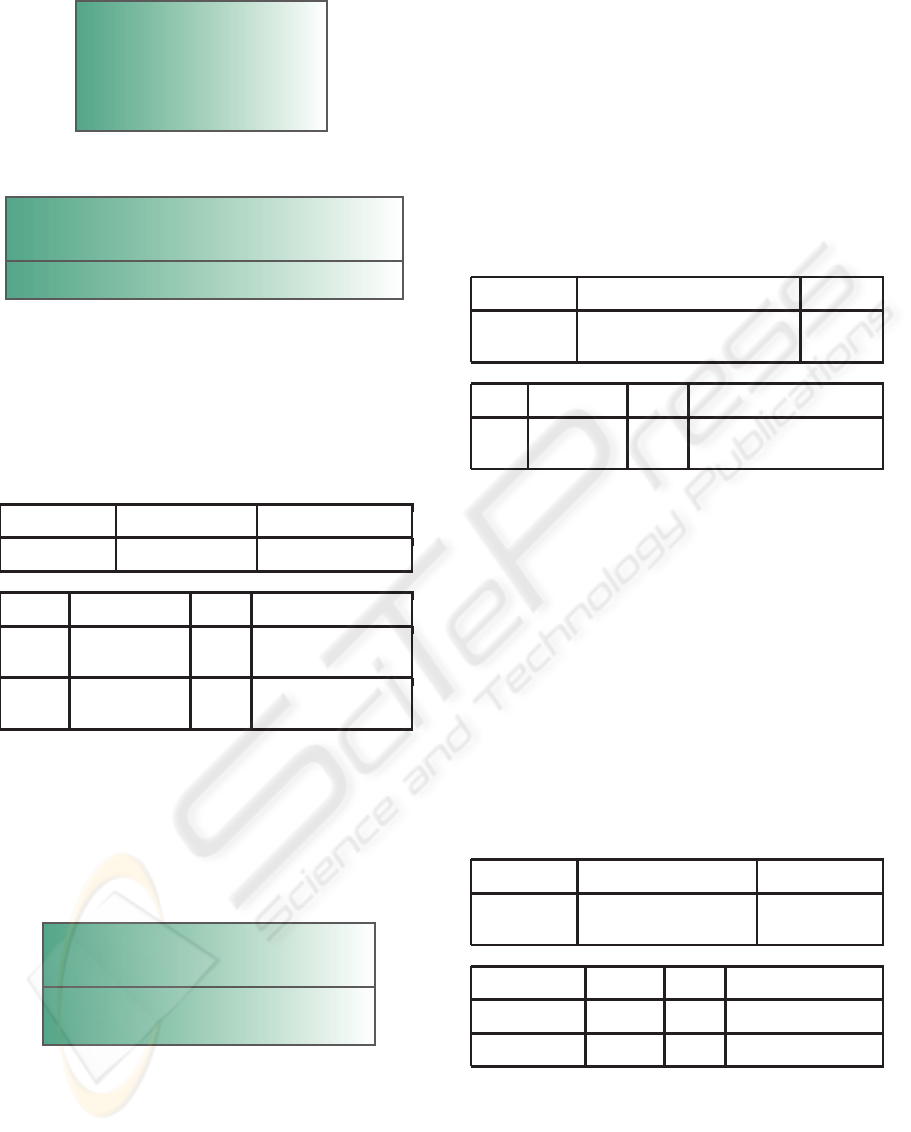

Table 1: ≪Options≫ stereotype.

Stereotype Base classes Tags

Options Model languageName

Tag Type Mult Constraint

languageName String 0..1

<<options>>

StateChart

{name=UMLStateChart}

Figure 5: The StateChart UML model.

3.2 Classes

Classes in the abstract syntax model represent con-

cepts of the language. These classes contain proper-

ties of one of the types deﬁned in the previous section.

UML does not impose an order between these proper-

ties. However, the textual representation of the class

requires an order in which the syntactic deﬁnitions

of each property must be disposed. This is done by

means of applying the ≪

Syntax≫ stereotype to the

class. The

value tag of this stereotype allows deﬁning

tokens, property references, and their arrangement:

• Tokens: are speciﬁed inside apostrophes. A ref-

erence to a token which has been deﬁned and

has been named can be used enclosed in angular

parentheses “<” and “>”.

• Property references: are speciﬁed using the name

of the property. The concrete syntax of the proper-

ties is obtained from their respective stereotypes.

• Arrangement: elements are considered in order

from left to right.

A special arrangement can be speciﬁed when a set

of elements can appear in any order. Inner states and

transitions within a composite state are such a case.

In the statechart language the following declarations

are valid:

State state1

State state2

Transition from state1 to state2

State state3

The ≪Syntax≫ stereotype allows the speciﬁca-

tion of this kind of situations, with the ()! operator,

used in conjunction with the | operator with the usual

BNF semantics:

(elem1 | elem2 | ... | elemN )!

The semantics of the ()! operator consists of rec-

ognizing as many elements of the set

elem1...elemN

as possible, without taking care of their order (Figure

6).

<<syntax>>

CompositeState

{value=initial"CompositeState"name"{"(states|transitions)!"}"}

Figure 6: Unordered groups.

REPRESENTING LANGUAGES IN UML - A UML Profile for Language Engineering

3.3 Abstract Classes and Interfaces

It is common that elements of the abstract syntax

model are related to each other by means of inher-

itance relationships. For instance, an abstract class

might represent any state, and classes derived from it

might represent concrete state declarations (such as a

simple state and a composite state). The abstract class

is part of the conceptual model. However, it does not

have a textual representation. We propose to represent

abstract concepts with the ≪

LanguageElement≫

stereotype.

Properties deﬁned in these classes can still be

used in the ≪

Syntax≫ stereotype of subclasses. In

Figure 7 the

name

property, although deﬁned in the

State

class, appears in the ≪Syntax≫ stereotype of

CompositeState

<<LanguageElement>>

State

<<tokenRef>>-name:String{value=identifier}

<<syntax>>-initial:boolean{value="initial"}

<<syntax>>

SimpleState

{value=initial"State"name}

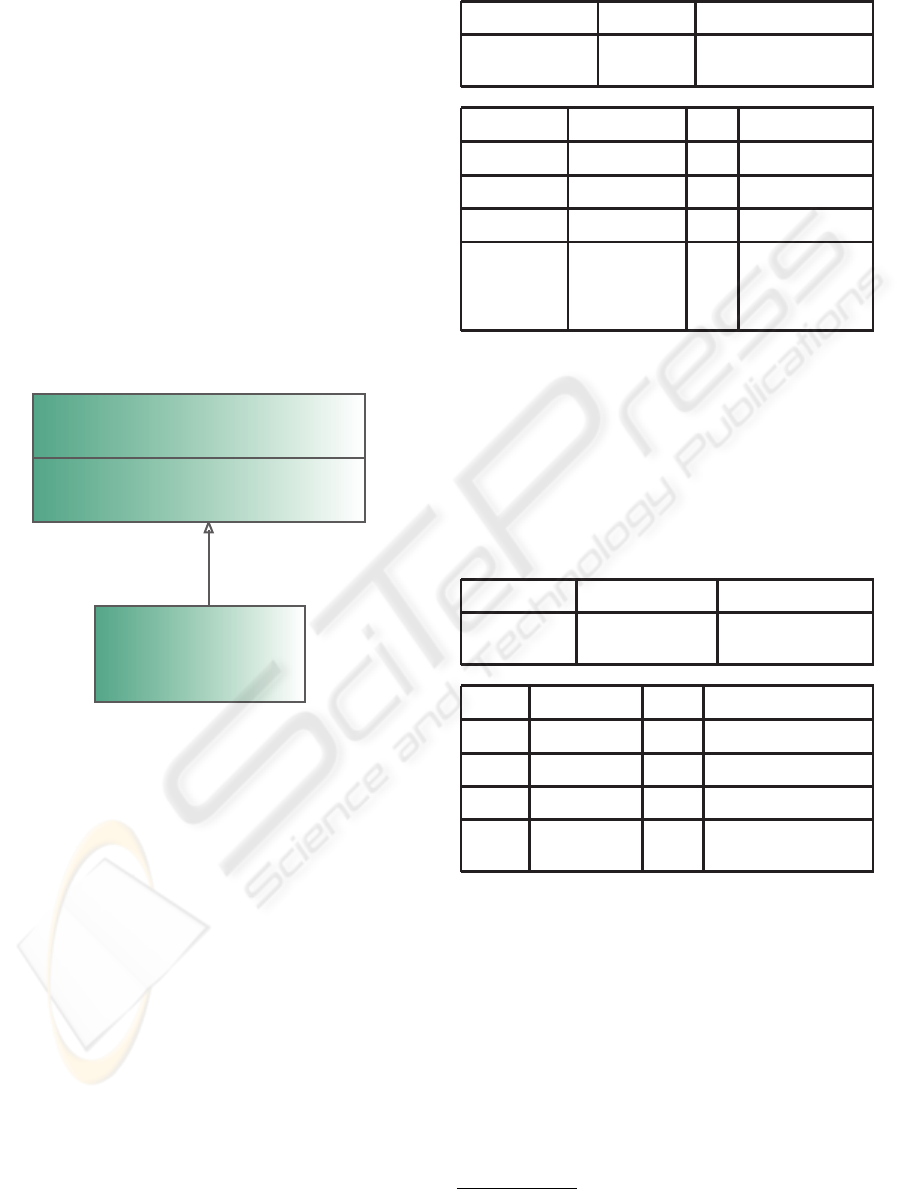

Figure 7: Referencing inherited properties.

3.4 The Root Class

There is a class in the abstract syntax model which

represents the root of the AST. This is called the root

element. We propose to annotate the root element

with the ≪

Root≫ stereotype (Table 2). Tags of this

stereotype are aimed at token deﬁnition.

3.5 Token Deﬁnition

Tokens are the vocabulary of the language. There are

different kinds of tokens, like reserved words, identi-

ﬁers, constants, among others.

We propose to deﬁne tokens as enumeration liter-

als of a special enumeration type. There is an enu-

meration literal for each token with a corresponding

Table 2: ≪Root≫ stereotype.

Stereotype Base classes Tags

Root Class tokens, macros, scopes,

initialScope

Tag Type Mult Constraint

tokens Enumeration 0..1

macros Enumeration 0..1

scopes Enumeration 0..1

initialScope

Enumeration

Literal

0..1

!scopes.isEmpty()

and

scopes.contains(

self)

name. The ≪TokenDef≫ stereotype (Table 3) is ap-

plied to each enumeration literal. Tags of this stereo-

type are used to represent the token pattern, the scope

information, the skip information, the token prece-

dence and the action to be executed each time the to-

ken is recognized.

Table 3: ≪TokenDef≫ stereotype.

Stereotype Base classes Tags

TokenDef EnumerationLiteral pattern, skip, action,

scopes

Tag Type Mult Constraint

pattern String 1..1 JFlex regexp

skip Bolean 1..1

action String 0..1 Java code

scopes

Enumeration

Literal

0..n

Figure 8 shows the deﬁnition of a token for

identiﬁers, represented as the enumeration literal

identifier

. The

pattern

tag contains the regular

expression. This regular expression is given in JFlex

format.

3.6 String Properties

String properties store identiﬁers, constants, and sim-

ilar elements. To specify which kind of token is

allowed for a given string property, we propose to

stereotype the property with stereotype ≪

TokenRef≫

The Fast Scanner Generator for Java. http://jﬂex.de

ENASE 2007 - International Conference on Evaluation on Novel Approaches to Software Engineering

<<enumeration>>

Tokens

<<tokenDef>>identifier{pattern=[:jletter:][:jletterdigit:]*}

<<syntax>>

<<root>>

StateMachine

{value="StateMachine"nametop,

tokens= Tokens}

Figure 8: Token deﬁnition.

(Table 4). The tag of this stereotype references the

enumeration literal which corresponds to the kind of

token accepted.

Table 4: ≪TokenRef≫ stereotype.

Stereotype Base classes Tags

TokenRef EnumerationLiteral token, scope

Tag Type Mult Constraint

token

Enumeration

Literal

1..1

self.isStereotypedWit

h(TokenDef)

scope

Enumeration

Literal

1..1

self.isStereotypedWit

h(Scope)

Figure 9 shows the class

State

. This class con-

tains a string property aimed at containing the state’s

name. The stereotype ≪

TokenRef≫ is applied to this

property, and its value tag references the enumeration

literal corresponding to identiﬁers.

<<LanguageElement>>

State

<<tokenRef>>-name:String{value=identifier}

<<syntax>>-initial:boolean{value="initial"}

Figure 9: String properties.

3.7 Boolean Properties

Boolean properties usually refer to some feature

which might or might not be present. Their value

usually depends on the presence of a token, or a

set of tokens, in the document. Figure 9 shows the

case of an initial state. An state is the initial state

if the string

initial

appears just before the

State

reserved word. We propose to apply the stereotype

≪

Syntax≫ to these boolean properties. (Table 5).

The

value

tag of this stereotype contains the set of

tokens which sets the value of the property. If these

tokens are present, the property is set to true, other-

wise, the property is set to false.

Table 5: ≪Syntax≫ stereotype.

Stereotype Base classes Tags

Syntax Class, Interface, Property,

EnumerationLiteral

value

Tag Type Mult Constraint

value String 1..1

()! Operator allowed just

when applied to classes

3.8 Lists

Lists usually contain elements of the same type,

sometimes with a separator. This separator might ap-

pear between each pair of elements, or at the and of

each one. In Figure 10, the

transitions

property is

stereotyped with the ≪

SyntaxList≫ stereotype (Ta-

ble 6). This stereotype contains a

separator

tag used

to specify the separator (if any), which might be a to-

ken or sequence of tokens. The

endSeparator

tag

holds a boolean value representing whether the sepa-

rator must appear between each pair of elements or at

the end of each element.

Table 6: ≪SyntaxList≫ stereotype.

Stereotype Base classes Tags

SyntaxList Property separator,

endSeparator

Tag Type Mult Constraint

separator String 1..1 Token sequence

endSeparator Boolean 1..1 Token sequence

3.9 Optional Elements

Optional elements are usually speciﬁed by means of

an association with a zero lower bound. However,

more information is sometimes needed. First, some

elements, when they are present, appear together with

REPRESENTING LANGUAGES IN UML - A UML Profile for Language Engineering

<<syntax>>

CompositeState

{value=initial"CompositeState"name"{"(states|transitions)!"}"}

<<syntax>>

Transition

{value="Transition""from"source"to"targettrigger}

<<tokenRef>>-source:String{value=identifier}

<<tokenRef>>-target:String{value=identifier}

<<syntaxList>>

-transitions *

Figure 10: ≪SyntaxList≫ usage.

other elements. Second, some elements, when they

are not present, are substituted by other elements. The

following is an example of the ﬁrst situation:

Transition from state1 to state2 on anEvent

In a transition, it is possible to indicate the event

that causes it. In the statechart language, when this

event is speciﬁed, it must be preceded by the

re-

served word. It is necessary to provide a mechanism

for specifying this information.

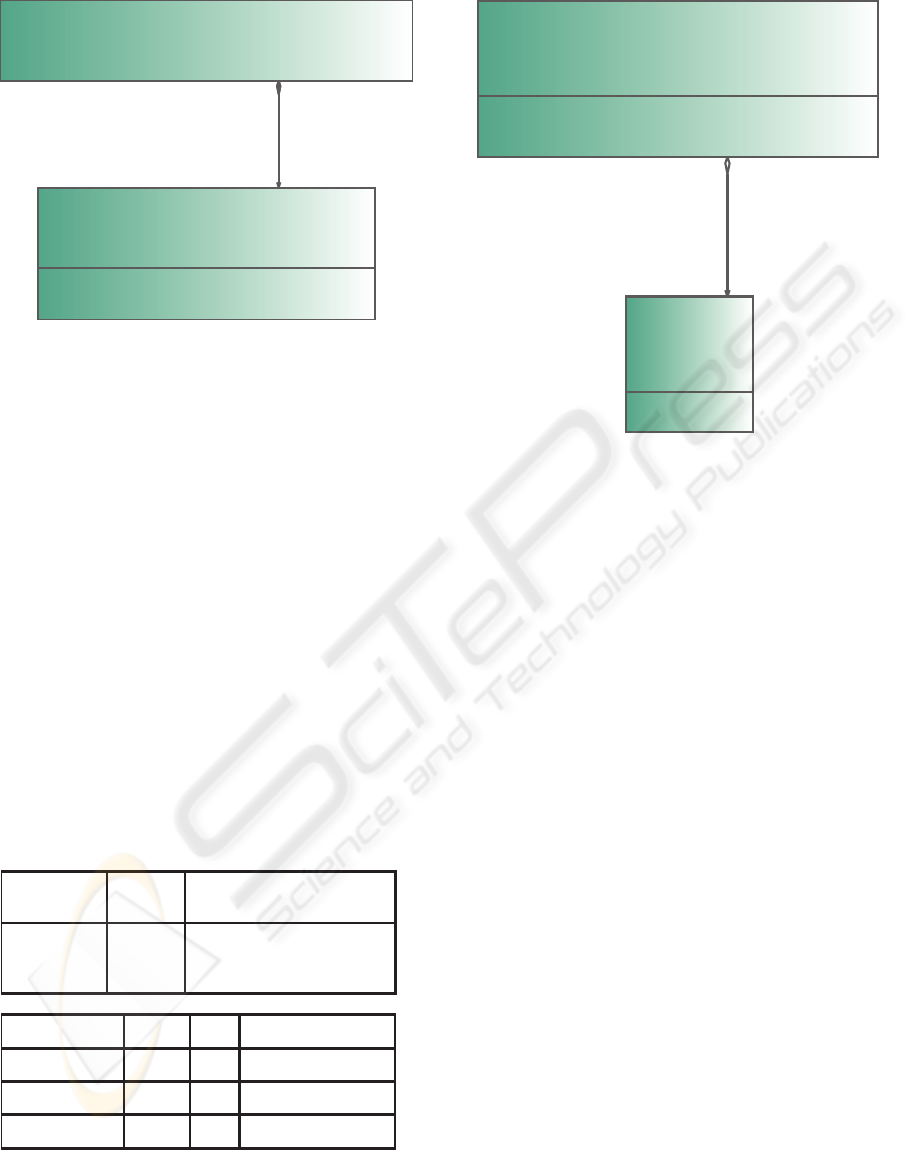

Figure 11 shows our proposal for the previ-

ous example. The

trigger

property is stereotyped

with the stereotype ≪

Optional≫ (Table 7). The

previousSyntaxDescription

tag contains the to-

kens that must appear before the element when it is

present. There is also a

laterSyntaxDescription

tag which refers to the tokens that must appear just

after the element.

Table 7: ≪Optional≫ stereotype.

Stereotype Base

classes

Tags

Optional Property

previousSyntaxDescription,

laterSyntaxDescription,

alternativeSyntaxDescription

Tag Type Mult Constraint

previousSD String 0..1 Token sequence

laterSD String 0..1 Token sequence

alternativeSD String 0..1 Token sequence

It follows an example of the second situation

(taken from the Java language):

<<syntax>>

Transition

{value="Transition""from"source"to"targettrigger}

<<tokenRef>>-source:String{value=identifier}

<<tokenRef>>-target:String{value=identifier}

<<syntax>>

Event

{value=name}

-name:String

<<optional>>

{previousSyntaxDescription="on"}

-trigger 0..1

Figure 11: Optional elements.

public abstract void methodOne();

public void methodTwo() { ... }

A method declaration might have a body. If

so, the body is enclosed in brackets. When there

is no body, it is substituted by a semicolon. The

alternativeSyntaxDescription

tag could be used

to deﬁne which tokens must appear instead of the

body when it is not present.

4 CONCLUSION

We have shown how to represent languages in UML,

such that representation expresses abstract and con-

crete syntaxes. The representation is based on a UML

proﬁle to convey the concrete syntax of languages to

the object oriented model of the abstract syntax.

Evaluation of the proﬁle has been done applying

it to a statechart language as deﬁned in (Fondement

et al., 2006). This stereotyped model has been used to

generate useful language support tools such as parsers

and editors.

By means of unifying abstract and concrete syntax

deﬁnition into a single model, we avoid the synchro-

nization needed between the abstract syntax model

and its corresponding concrete syntax speciﬁcation.

We exploit the similarities between both kind of arti-

facts, and express the dissimilarities by means of an

UML proﬁle. This proﬁle conveys the concrete syn-

tax information that cannot be directly expressed by

means of UML.

ENASE 2007 - International Conference on Evaluation on Novel Approaches to Software Engineering

Further work includes mapping known language

speciﬁcation formalisms equivalent to this one from

and to this UML representation of a language. In par-

ticular we are interested in recovering grammar infor-

mation for re-engineering and reverse engineering of

grammar software.

ACKNOWLEDGEMENTS

This work has been partially supported by MCyT

TIN2005-08943-C02-02 and URJC-CM-2006-CET-

0603.

REFERENCES

Alanen, M. and Porres, I. (2003). A relation between

context-free grammars and meta object facility meta-

models.

Aldawud, O., Elrad, T., and Bader, A. (2003). Uml proﬁle

for aspect-oriented software development.

Antoniol, G., Penta, M. D., and Merlo, E. (2003). Yaab

(yet another ast browser): Using ocl to navigate asts.

In IWPC ’03: Proceedings of the 11th IEEE In-

ternational Workshop on Program Comprehension,

page 13, Washington, DC, USA. IEEE Computer So-

ciety.

Apvrille, L., Courtiat, J.-P., Lohr, C., and de Saqui-Sannes,

P. (2004). Turtle: A real-time uml proﬁle supported by

a formal validation toolkit. IEEE Trans. Softw. Eng.,

30(7):473–487.

Asensio, J. I., Villagr, V. A., de Vergara, J. E. L., and

Berrocal, J. (2001). Uml proﬁles for the speciﬁcation

and instrumentation of qos management information

in distributed object-based applications.

Backus, L. and Vallecillo, A. (2004). An introduction to

uml proﬁles. UPGRADE, The European Journal for

the Informatics Professional, 5(2):5–13.

Bernauer, M., Kappel, G., and Kramler, G. (2004). Rep-

resenting xml schema in uml - a comparison of ap-

proaches. In ICWE, pages 440–444.

Carlson, D. (2001). Modeling xml vocabularies with uml.

Cortellessa, V. and Pompei, A. (2004). Towards a uml pro-

ﬁle for qos: a contribution in the reliability domain.

In WOSP ’04: Proceedings of the 4th international

workshop on Software and performance, pages 197–

206, New York, NY, USA. ACM Press.

Fondement, F., Schnekenburger, R., G

erard, S., and Muller,

P.-A. (2006). Metamodel-Aware Textual Concrete

Syntax Speciﬁcation. Technical report.

Heaven, W. and Finkelstein, A. (2004). Uml proﬁle to sup-

port requirements engineering with kaos. IEE Pro-

ceedings - Software, 151(1):10–27.

Hedin, G. and Magnusson, E. (2003). Jastadd: an aspect-

oriented compiler construction system. Sci. Comput.

Program., 47(1):37–58.

Huget, M.-P. (2004). Agent uml notation for multiagent

system design. IEEE Internet Computing, 8(4):63–71.

Lieberherr, K. J. (2005). Object-oriented programming with

class dictionaries. LISP and Symbolic Computation,

1:185–212.

Marcos, C. A. and Pryor, J. (2003). Una extensin de uml

para sistemas de agentes.

Provost, W. (2002). Uml for w3c xml schema design.

Routledge, N., Bird, L., and Goodchild, A. (2002). Uml and

xml schema. In ADC ’02: Proceedings of the 13th

Australasian database conference, pages 157–166,

Darlinghurst, Australia, Australia. Australian Com-

puter Society, Inc.

Wile, D. S. (1997). Abstract syntax from concrete syntax.

In ICSE ’97: Proceedings of the 19th international

conference on Software engineering, pages 472–480,

New York, NY, USA. ACM Press.

Wimmer, M. and Kramler, G. (2005). Bridging grammar-

ware and modelware. In MoDELS Satellite Events,

pages 159–168.

REPRESENTING LANGUAGES IN UML - A UML Profile for Language Engineering
