AN ONTOLOGY-BASED INFORMATION SYSTEM FOR

MULTICENTER EPIDEMIOLOGIC STUDIES ON CANCER

J. M. Vázquez

, M. Martínez

, M. G. López

, B. González-Conde

, F. M. Arnal

J. Pereira

and A. Pazos

Medical Informatics and Radiological Diagnosis Center (IMEDIR), University of A Coruña, A Coruña, Spain

Universitary Hospital Complex Juan Canalejo (CHUJC), A Coruña, Spain

Keywords: Cancer, information systems, ontologies, epidemiology, handheld devices, security.

Abstract: Diseases like cancer are caused by a diversity of different factors interacting together, whose study requires

a huge amount of data. Compiling this data is an expensive and time-consuming task that can be carried out

in an easier, faster and more secure way with the support of Information and Communication Technologies

(ICT). Nevertheless, the majority of epidemiologic studies are executed without this support of informatics

or with basic tools that are developed by unqualified professionals. As a consequence, the integrity of the

collected data cannot be assured, and the reliability of the studies is usually decreased. This work presents

an ontology-based Information System for the development of multicenter epidemiologic studies on cancer

that allows 1) collecting, storing and editing medical data from different hospitals and 2) reusing the

compiled data by means of their integration with data from other systems. This system has been

satisfactorily applied to an epidemiologic study of colorectal cancer in Galicia, Spain.

1 INTRODUCTION

Epidemiologic studies are useful to understand the

origin of diseases, to detect outbreaks of pathologies

in the population, to make decisions to optimize

resources and, in sum, to improve the welfare and

quality of life for societies worldwide. However, the

study of multifactorial diseases like cancer, which

are caused by a variety of genetic, environmental

and lifestyle factors requires a large amount of data.

Compiling these data is a laborious work that

implies: a) the recovery of the patient’s clinical

records, b) the recovery of analysis data, and c)

personal interviews with the patient and his family

in order to fill out various questionnaires (e.g. family

questionnaires, risk factor questionnaires, etc.). In

addition, medical personnel in hospitals is usually

under a lot of attendance pressure and it is very

difficult for them to devote time and energy to

arduous tasks of interviews and information

collection. Therefore, facilitating as far as possible

this work becomes a critical task.

Information and Communication Technologies

(ICT) allow the development of Information

Systems (ISs) that provide mechanisms for the data

collection (including validation rules and error

control), as well as the storage and editing of

medical data from various hospitals by means of the

Internet. ICT allow us to efficiently manage large

amounts of data and therefore enhance the quality of

epidemiologic studies. It is also possible to use ICT

and the Internet to integrate various data sources and

as such obtain an even larger set of data.

In spite of these obvious advances, there still

exists a problem that concerns a great part of

epidemiologic studies: they are usually either carried

out manually, or using basic tools that have been

developed by unqualified personnel (it is only during

the data analysis phase when professional tools tend

to be used). Moreover, these tools are rarely

designed to allow their integration with other

systems. In consequence, the integrity of the

collected data cannot be guaranteed and the

reliability of the studies is frequently decreased.

133

M. V

azquez J., Mart

ınez M., G. L

opez M., Gonz

alez-Conde B., M. Arnal F., Pereira J. and Pazos A. (2008).

AN ONTOLOGY-BASED INFORMATION SYSTEM FOR MULTICENTER EPIDEMIOLOGIC STUDIES ON CANCER.

In Proceedings of the First International Conference on Health Informatics, pages 133-139

 SciTePress

2 BACKGROUND

The region of Galicia, situated in the northwest of

Spain, represents an excellent geographical area for

carrying out genetic-epidemiologic studies of colon

and rectal cancer due to the homogeneity of its

population in several dimensions: genetically (which

facilitates this type of studies) as well as culturally

and environmentally (which allows for conducting

homogeneous recruiting subjects that would

participate in the study, as well as providing an

opportunity to study gene-environment interactions).

In addition, there are other, equally important factors

associated with conducting such a study in Galicia,

such as the relatively high incidence of colorectal

cancer in its population, and the availability of

subject families (which are frequently large families

that live in the same city or town).

All of these factors have induced the

development of several recent research projects on

cancer in Galicia during the last years: “A Pilot

Study of colorectal cancer in Galicia, Spain”, funded

by the U. S. National Cancer Institute (NCI) for the

period 2004-2006, a “Colorectal Cancer Thematic

Network in Galicia”, funded by the XUNTA de

Galicia for the period 2005-2006 and a “Colorectal

Cancer Research Network in Galicia”, funded by the

XUNTA de Galicia for the period 2006-2008/9.

Within the framework of these projects, the idea of

developing an IS to improve the development of

multicenter epidemiologic studies, was jointly raised

in 2005 by the Universitary Hospital Complex Juan

Canalejo of A Coruña and the Medical Computing

and Radiological Diagnosis Center (IMEDIR

Center) of the University of A Coruña, and funded

by the XUNTA de Galicia for the period 2005-2008.

3 OBJECTIVES

The aim of the this work consists in developing a

secure IS for the achievement of multicenter

epidemiologic studies on cancer that allows 1)

collecting, storing and editing medical data from

different hospital centers, and 2) reusing the

compiled data, by means of their integration with

data from other systems in order to carry out studies

on a larger set of data.

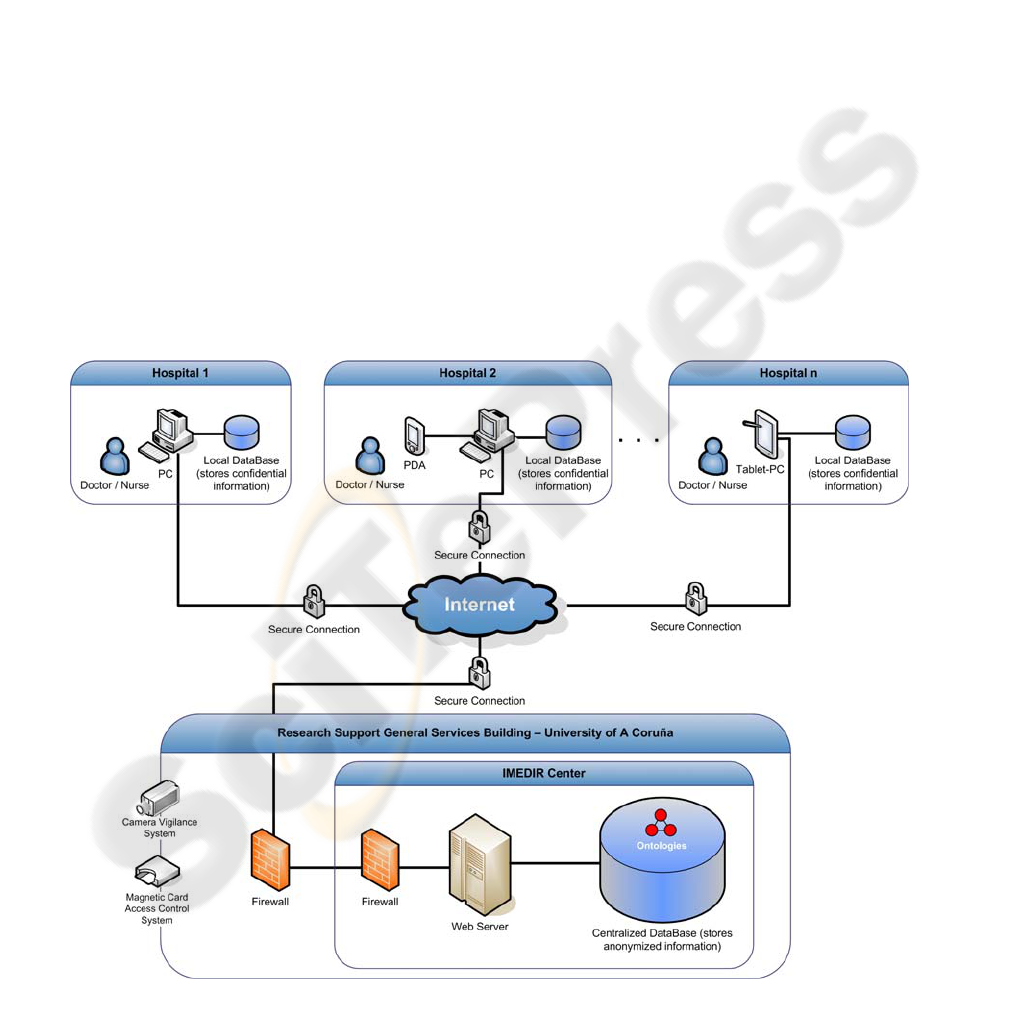

Figure 1: Physical design of the Information System.

HEALTHINF 2008 - International Conference on Health Informatics

134

4 METHODS

The development of the system was based on the

Unified Software Development Process (USDP,

Jacobson, 1999). During the Software Requirements

Specification phase (SRS), we used prototyping

techniques and interviewed many medical experts in

different hospitals. This allowed us to detect with

great detail the system requirements and to define

the interfaces according to the preferences of the

end-users.

The central system, located in the IMEDIR

Center, was developed on the J2EE platform in order

to offer more integration possibilities and follows

the architectonic patterns Model-View-Controller

(MVC) and Layers. The software for the data

compilation devices used in hospitals was developed

using the .NET Compact Framework, which

simplifies application development on smart devices

and allows to develop a very friendly user interface.

The physical design of the system is shown in the

Figure 1.

4.1 Distributed Data Collection

We studied and discussed various data collection

alternatives (Tablet PCs, PDAs, Smart Phones) and

finally opted for using Portable Digital Assistants

(PDAs), due to their characteristics of mobility, data

synchronization (e.g. with a desktop computer), data

input facilities (pen-stylus method) and an enough

size screen for a correct handling of the application

(Wiggins, 2004). The software for the PDAs was

developed on the .NET Compact Framework

because it makes it easier to build applications for

this kind of handheld devices and allows to develop

a very friendly user interface (see Figure 2). We

must consider that usability is a fundamental factor

to obtain the success of an IS, especially in medical

environments. Although at present only data

compilation software for PDAs is available, the

system is independent from the data collection

device used, so it can be easily adapted to other

devices like the previously mentioned.

The data collection software allows the

automatic validation of data, minimizing the input

errors (e.g. personal names cannot contain numerical

characters, birth dates must be past dates, etc.). In

addition, this software is able to avoid asking

questions whose answers can be inferred from

previous answers (e.g. if a patient have already

provided his birth date, he will not have to fill out

his age) and it also provides assistance to fill out the

required information: it has an on-screen help

system, shows examples of possible data inputs in

confusing questions, guides the user (e.g. the person

who makes the interview) through the questions

(because in some questionnaires the user must

follow a way or another one depending on previous

answers), avoids unasking questions by mistake or

omission, etc. All these features have been

implemented in order to decrease the length of the

medical interviews and, therefore, to reduce the cost

of the studies.

The data collected from hospitals using the

PDAs are formatted to XML and synchronized at

regular intervals by a device (PC) that is located in

each hospital and connected with the central system

at IMEDIR Center through a secure Internet

connection. A Web application, which was

developed using J2EE technology, allows the

transmission and storage of the collected data from

the PCs in hospitals to the centralized database.

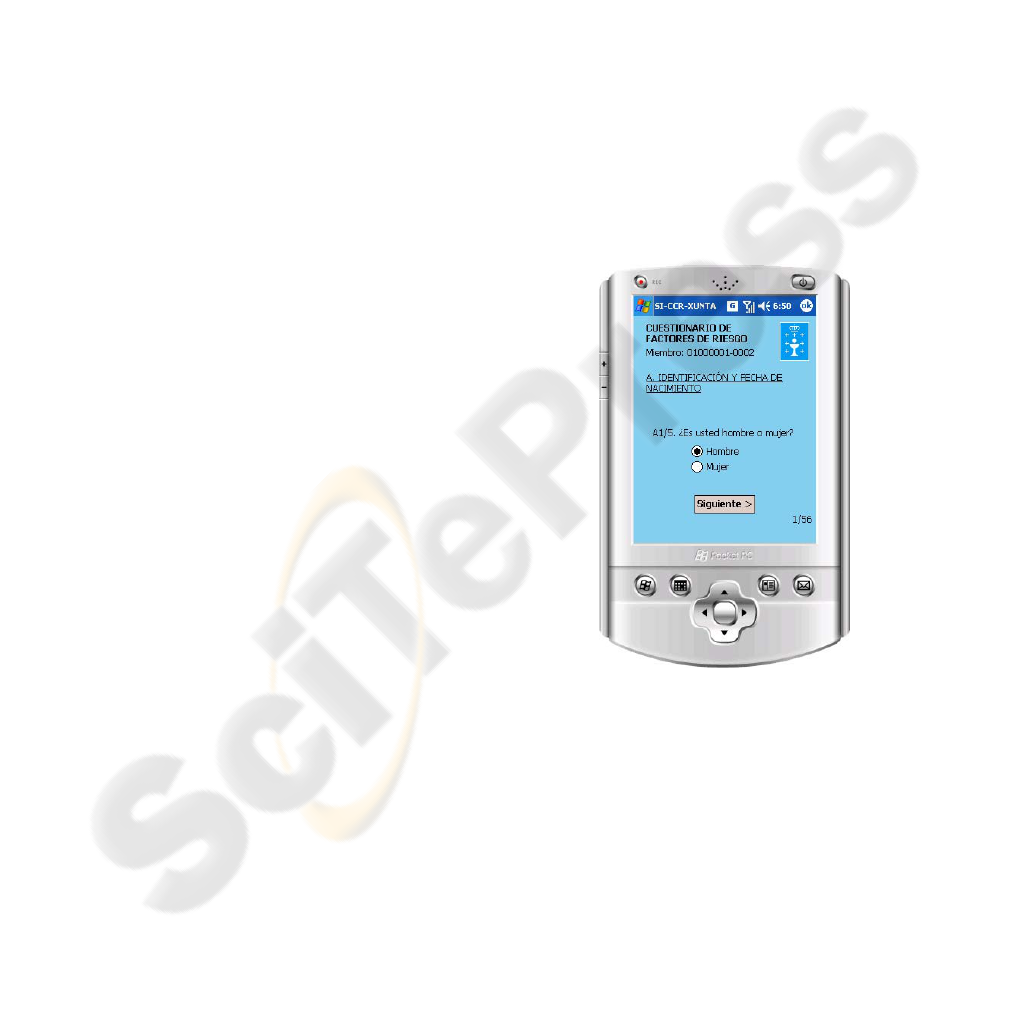

Figure 2: Screenshot of the data collection software.

4.2 Centralized Data Storage

In order to maintain the data consistency, which is

fundamental in order that the studies would be valid,

and to facilitate the data exploitation, the IS stores

all the collected data in a centralized database.

Since the proposed system stores information

arriving from multiple hospitals, which could be

placed in different geographical areas (different

cities or even in different countries), and due to the

fact that the collected data belongs to the Medical

domain, in which there exists a great terminological

AN ONTOLOGY-BASED INFORMATION SYSTEM FOR MULTICENTER EPIDEMIOLOGIC STUDIES ON

CANCER

135

heterogeneity, it is crucial to use a standard

terminology for the data storage.

At present, ontologies are viewed as an ideal

solution to solve data heterogeneity problems. They

are solid vocabularies of terms and relations among

them, agreed upon by a group of people, that can

help to overcome the semantic, syntactic and

structural ambiguity that hinders communication

between different systems and data sources.

After analyzing several options, we decided to

use the NCI Thesaurus ontology in our system

(Golbeck et al., 2004), because it is published under

an open content license and it contains a broader

range of cancer-related terms than other existing

ontologies. Using this ontology as a reference, the

information coming from each hospital is annotated

by means of a common terminology in which it is

stored. This allows the use of questionnaires that can

be written in different languages or medical

terminologies depending on the geographical

location of each hospital, because the storage is done

in agreement with a common terminology.

Furthermore, this process is not restricted to the

translation of terms, but it also covers other aspects

like, for example, units of measurement or date and

hour formats.

The system is flexible enough to use other

ontology instead of the NCI Thesaurus; however, it

only supports using one ontology at a time.

4.3 Remote Data Editing

In the proposed system, data editing refers to the act

of modifying or deleting incorrect information from

patients and/or their relatives, or storing new

information that was not known before. This may be

required by the medical staff 1) before the data have

been transmitted from the hospital to the centralized

database, or 2) when the data are already stored in

the centralized database. In the following, both kinds

of data edition are described.

The first case lies in the edition of data that are

still stored in the hospitals. They are data that have

not been transmitted to the centralized database

because they are incomplete, or because they have

not been reviewed yet. The user must authenticate

himself to the system and carry out the appropriate

changes. This is a usual kind of data edition.

The second case refers to the edition of data that

have already been sent from the hospital to the

centralized database. In this case, the user works

directly against the centralized database. This option

should be used only in exceptional cases, because it

consists of modifying information that is already

assumed to be complete and reviewed. As a safety

measure that prevents the system about the loss of

important information due to user errors or about

possible attacks from outside, this kind of edition

requires, in addition to the authentication of the

doctor or nurse who wishes to edit the data, the

permission of the system administrator, who is

located in the IMEDIR Center.

4.4 Data Integration Capabilities

The data collected during the achievement of an

epidemiologic study has a great value, both because

of the difficulty and cost (in time and economic) of

this process and due to its great potential of

reusability by means of its integration with data

from other sources, which allows to carry out new

studies with a larger amount of data.

Nevertheless, the data gathered during an

epidemiologic study are rarely reused after its

finalization. This is mainly due to that traditional

storage supports (e.g. paper) are used, as well as

specific storage formats and terminologies which

cause that the reusability of the collected data by

means of the integration with data coming from

other studies is not worthwhile.

By means of the last advances in ICT, we have

provided our system with capabilities of information

reusing and integration.

The main objective of data integration is to

provide ways to unify the information from several

distributed, heterogeneous and autonomous data

sources (e.g. information systems, databases, XML

files, etc.). An integrated view must be able to

describe the various data sources and their

interrelation, overcoming the syntactic, structural

and semantic heterogeneity problems. All of this,

with the aim of automating the process of getting

data from various resources, instead of having to

manually request data from them and then combine

the results.

However, as it is explained in Chou, 2005,

Information integration is not a trivial task. Data are

usually stored in relational databases, and it is often

the case that only the creators of the databases

understand the semantic meaning of columns in each

table. Therefore, it is difficult for a user (or a

system) to integrate the data from the databases with

data from other sources without first understanding

how they are structured, or without being explicitly

told from which columns to retrieve information.

The presented system allows 1) accessing

through the Internet to the information collected

during an epidemiologic study on colorectal cancer

HEALTHINF 2008 - International Conference on Health Informatics

136

in Galicia, Spain and 2) requesting information from

any set of information sources which have been

mapped to an ontology from the cancer domain. In

the following, we will describe how these two

functionalities were achieved.

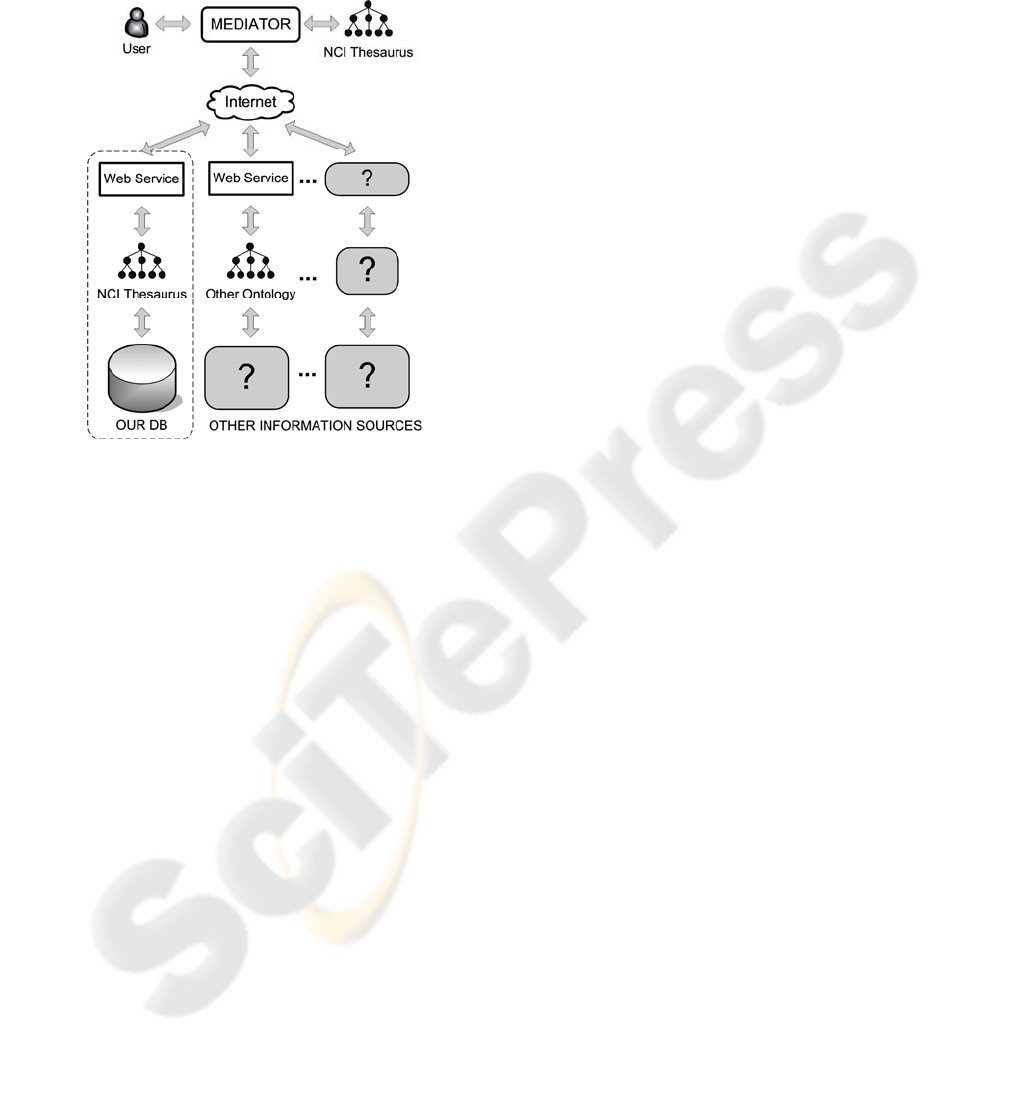

Figure 3: Data integration capabilities of the IS.

4.4.1 Making the Collected Data Publicly

Accessible

In order to make our information publicly accessible

through the Internet, we have opted for a solution

that uses ontologies and Web services.

Ontologies are useful to support the integration

of data from multiple repositories (Jakoniene &

Lambrix, 2005, Perez-Rey et al., 2005, Stevens et

al., 2000), and some of the current Integration

Information Systems incorporate ontology-related

knowledge (e.g. Deray & Verheyden, 2003, Alexiev

et al. 2005). The proposed system uses ontologies to

resolve the semantic conflicts that usually hinder

integration data by using the NCI Thesaurus

ontology as a reference vocabulary, mapping the

columns of the centralized database with terms from

that ontology.

On the other hand, Web services provide

loosely-coupled, language-neutral, and

platform-independent ways of linking applications

across the Internet. Our system is designed to allow

remote queries written in the terminology of the NCI

Thesaurus ontology, and to answer these queries

through the Internet. The elements of the IS that

provide this functionality are represented in the

Figure 3 into a dotted area.

4.4.2 Integrating Information from other

Sources

Instead of having to manually request data from

various data sources and then combine the results,

our system is also prepared to automate this process.

We have implemented this functionality on the basis

of one of the ontology-based information integration

approaches (the “Single Ontology Approach”),

proposed by Wache et al. in 2001.

In this process (see Figure 3), the IS acts as a

“Mediator” that 1) receives a request (query) from

the user, 2) processes the query and ask a set of data

sources that have been prepared to be accessed

through Web services, and 3) puts together all the

results from the data sources and returns the

combined result to the user.

At the moment, this functionality is in testing

phase, and it only works well with information

sources that are available to be queried through a

Web service by means of the terminology of the NCI

Thesaurus. However, the preliminary results have

been very satisfactory, and our intention is to

continue improving this functionality to reach the

most general and automatic behaviour possible.

4.5 Security Issues

The development of this IS also considers the

security requirements imposed by Spanish law and

Galician regulations, which are among the most

restrictive European legislations, as well as the

United States Safe Harbor Agreement. Under the

Spanish legislation in force, the medical data in this

IS are considered sensible data and specially

protected, thus the safety measures acquire special

importance. The data collection is made by the

medical staff in hospitals, that is authorized by the

law for the managing and processing of data about

personal health (LOPD 15/1999, 1999). The used

PDAs have an integrated biometric fingerprint

reader, which provides security access to the

personal data stored in the device and univocally

identifies the user, according to the measures

arranged by the law (RD 994/1999 , 1999).

In order to transfer the collected data from the

PDAs to the PC, both devices are connected by

cable, and the doctor or nurse is authenticated in the

PC by means of a cryptographic smart card of the

Galician Service of Health (SERGAS). In this smart

card there is stored a digital certificate issued by the

Fábrica Nacional de Moneda y Timbre (FNMT), a

certifier authority recognized by the Spanish state

that univocally identifies the user who uses it. All

AN ONTOLOGY-BASED INFORMATION SYSTEM FOR MULTICENTER EPIDEMIOLOGIC STUDIES ON

CANCER

137

accesses to the data are totally monitored and

registered, and it is registered for the later

accomplishment of audits (Wei et al., 2006). When

transferring the data to the PC, a dissociation process

is made in which the personal character data

necessary for the medical personnel to identify the

subject (e.g. the number of clinical history of the

patient) and the genetic-environmental data required

by the epidemiologic study, that will be transferred

later to the centralized database located in the

IMEDIR Center, are separated. In this process the

patient’s identity is dissociated of its clinical data,

which are anonimous under a numerical code, and

both are stored in the PC in a separated way. The

relation between both data types is stored in a file

which will only be accessed from the hospital.

The transmission of the anonimous data from the

PCs in the hospitals to the centralized database is

made over the Internet and through a Web

application, in which the user is authenticated by

means of the same mechanism that he/she uses when

is connected to the PC in the hospital, that is, by

means of the digital certificate that resides in the

cryptographic smart card of the SERGAS. To assure

the safety of the data during the transmission, all the

data tranfers are carried out on encrypted

connections using the Secure HyperText Transfer

Protocol (HTTPS) over the Secure Socket Layer

(SSL). To incorporate this method, a server security

certificate needs to be configured on the server, so

these technologies and protocols use public/private

key technologies (Cooper et al., 2006, Bourasa et al.,

2005). Likewise, the IMEDIR Center has an

architecture of double firewall (see Figure 1), in

which the first firewall of the building limits the

access to prevent external generic attacks, whereas

the second firewall, placed inside the IMEDIR

Center, restricts the access to the Web application by

IP address, so that only those IPs that have been

authorized (the PCs of the hospitals) can connect

with the application to transfer the data. This system

has been chosen as the most suitable due to the fact

that resting on the HTTPS protocol the development

of Web services is quite simple, and they can take

advantage of the firewall safety systems without

need to change the filter rules (Stanton, 2005).

Although the data stored in the IMEDIR Center

are anonymous, the peculiar characteristics of some

gathered families might allow their identification,

what makes necessary to maintain a high level of

security at all time. With the purpose of providing an

environment as safe as possible in the IMEDIR

Center, it has several physical safety measures, like

security cameras that provide 24-hour video

vigilance and the use of cryptographic smart cards to

control the access to the building.

5 RESULTS

The presented IS allows to carry out epidemiologic

studies on cancer that require less time for

interviews with patients and present less errors in the

compiled data, while guaranteeing the integrity of

these data. The system satisfies the special demands

of modern medical information systems, such as

security and interoperability. The use of this IS

allows to save time and money, and increase the

reliability of the performed studies. It also allows us

to integrate our data with other information systems,

through the Internet, and as such carry out new

studies with a larger amount of data (this is

particularly important in cancer studies).

This system has been successfully applied in the

execution of the “Pilot Study of Colorectal Cancer in

Galicia, Spain”, financed by the U.S. National

Cancer Institute.

6 CONCLUSIONS

The study of multifactorial diseases such as cancer

requires a large amount of data that need to be

compiled, stored and analysed, and from which new

information must be extracted. In addition, reusing

these data in other similar studies would provide

great benefits.

Information and Communication Technologies

can contribute significantly to this task thanks to the

development of Information Systems such as the

presently proposed one. This system, allows

collecting, storing and editing medical data from

different hospitals in a secure manner, and reusing

the compiled data by means of their integration with

data from other information sources with the

purpose of carrying out studies on a larger set of

data. The usefulness of this IS has been

demonstrated during the development of a real

epidemiologic study of colorectal cancer in Galicia,

Spain.

7 FUTURE DIRECTIONS

In the following, some of the ideas that could help to

improve the proposed IS are presented:

HEALTHINF 2008 - International Conference on Health Informatics

138

With regard to the data integration capabilities of

the system, we are thinking about developing an

advanced mechanism to automatically retrieving

information from sources whose information has

been prepared to be accessed. This mechanism could

be based on a set of intelligent semantic agents that

would interoperate with the various information

sources through the terminology of existing

ontologies. This would allow us automatically

retrieve and integrate a huge amount of data from

other studies that we would analyse in order to make

progresses in the treatment of pathologies like

colorectal cancer.

It also could be useful to provide the system with

data mining techniques (Tan, Steinbach & Kumar,

2006). These techniques could be deployed to scour

the large amount of epidemiologic data compiled in

order to find novel and useful patterns that might

otherwise remain unknown, and they would also be

useful to predict the outcome of future observations.

All this would help to decrease the incidence of

diseases like the cancer, and to improve its

prevention and treatment.

ACKNOWLEDGEMENTS

This work was partially supported by the Spanish

Ministry of Education and Culture (Ref TIN2006-

13274) and the European Regional Development

Funds (ERDF), grant (Ref. PIO52048) funded by the

Carlos III Health Institute, grant (Ref. PGIDIT 05

SIN 10501PR) from the General Directorate of

Research of the Xunta de Galicia and grant (File

2006/60) from the General Directorate of Scientific

and Technologic Promotion of the Galician

University System of the Xunta de Galicia. The

work of José M. Vázquez is supported by an FPU

grant (Ref. AP2005-1415) from the Spanish

Ministry of Education and Science.

REFERENCES

Alexiev, V., Breu, M., de Bruijn, J., Fensel, D., Lara, R.,

Lausen H., 2005. Information Integration with

Ontologies – Experiences from an Industrial

Showcase. John Wiley & Sons.

Bourasa, C., Gkamasa, A., Naveb, I., Primpasa, D.,

Shanib, A., Sheoryb, O., Stamosa, K., Tzruyac, Y.,

2005. Application on demand system over the Internet.

Journal of Network and Computer Applications. 28(3),

209-232.

Cooper, C. J., Cooper, S. P., Junco, D. J., Shipp, E. M.,

Whitworth, R., Cooper S. R., 2006. Web-based data

collection: detailed methods of a questionnaire and

data gathering tool. Epidemiologic Perspectives &

Innovations. Volume 3.

Chou, H. H., 2005. BioDig: Architecture for Integrating

Heterogeneous Biological Data Repositories Using

Ontologies. Thesis. Massachusetts Institute of

Technology.

Deray, T., Verheyden, P., 2003. Towards a Semantic

Integration of Medical Relational Databases by Using

Ontologies: A Case Study. OTM Workshops, LNCS

2889, 137-150. Springer-Verlag.

Golbeck, J., Fragoso, G., Hartel, F., Hendel, J., Parsia, B.,

2004. The National Cancer Institute’s Thesaurus and

Ontology. Journal of Web Semantics, Vol. 1, issue 1.

Jacobson, I., Booch, G., Rumbaugh, J., 1999. The Unified

Software Development Process. Addison Wesley.

Jakoniene, V., and Lambrix, P., 2005. Ontology-based

Integration for Bioinformatics. Proceedings of VLDB

Workshop on Ontologies-based techniques for

DataBases and Information Systems (ODBIS2005),

Trondheim, Norway.

Organic Law 15/1999 of December 13, 1999 on the

Protection of Personal Data.

Royal Decree 994/1999 of June 11, 1999.

Perez-Rey, D., Maojo, V., Garcia-Remesal, M., Alonso-

Calvo, R., Billhardt, H., Martin-Sanchez, F., Sousa,

A., 2005. ONTOFUSION: Ontology-Based

Integration of Genomic and Clinical Databases.

Computers in Biology and Medicine.

Stanton, R., 2005. Securing VPNs: comparing SSL and

IPsec. Computer Fraud & Security. 2005(9), 17-19.

Stevens, R., Baker, P., Bechhofer, S., Ng, G., Jacoby, A.,

Paton, N., Goble, C., Brass, A., 2000. TAMBIS:

Transparent access to multiple bioinformatics

information sources. Bioinformatics, 16(2), 184-186.

Tan, P., Steinbach, M. and Kumar, V., 2006. Introduction

to Data Mining. Addison Wesley.

Wache, H., Vogele, T., Visser, U., Stuckenschmidt, H.,

Schuster, G., Neumann, H., Hiibner, S., 2001.

Ontology-based integration of information - a survey

of existing approaches. Proceedings of the

International Workshop on Ontologies and

Information Sharing, 108-117.

Wei, J. C., Valentino, D. J., Bell, D. S., Baker, R. S., 2006.

A Web-based telemedicine system for diabetic

retinopathy screening using digital fundus

photography. Telemed J E Health, 12(1):50-7.

Wiggins, R.H., 2004. Personal digital assistants. Journal

of Digital Imaging. 17(1):5-17.

AN ONTOLOGY-BASED INFORMATION SYSTEM FOR MULTICENTER EPIDEMIOLOGIC STUDIES ON

CANCER

139
