ON DESIGNING AN EHCR REPOSITORY

Petr Aubrecht, Kamil Matoušek and Lenka Lhotská

The Gerstner Lab, Czech Technical University in Prague, Technická 2, 166 27 Praha 6, Czech Republic

Keywords: EHCR, databases, multiagent systems.

Abstract: In an ongoing project, a pilot study and implementation of repository design for electronic home care

records (EHCR) is described. Electronic home care record is based on the idea of electronic health record,

however it also satisfies additional information and functionality requirements specific for home care. The

design is based on the home care data and service model (K4Care model). First we analyzed the problem

and decided about the platform, storage technology, cooperation with other parts of the system being

developed, and basic structure of the EHCR. Then we focused on the design of data storage and

transformation of the K4Care model into a database structure. Finally cooperation between the database and

multiagent system is proposed.

1 INTRODUCTION

An electronic health record (EHR) is a distributed

personal health record in digital format. The EHR

should provide secure, real-time, patient-centric

information to aid clinical decision-making by

providing access to a patient's health information at

the point of care. An EHR is typically accessed on

a computer or over a network. An EHR almost

always includes information relating to the current

and historical health, medical conditions and

medical tests of its subject, thus representing

a longitudinal collection of information for and

about patients. In addition, EHR should contain data

about medical referrals, medical treatments,

medications and their application, demographic

information and other non-clinical administrative

information.

Although there are few standards for modern day

electronic records systems as a whole, there are

many standards relating to specific aspects of EHRs.

These include:

ASTM Continuity of Care Record (CCR) is

a patient health summary standard based upon

Extensible Markup Language (XML); the CCR can

be created, read and interpreted by various EHR or

Electronic Medical Record (EMR) systems,

allowing easy interoperability between otherwise

disparate entities.

American National Standards Institute (ANSI)

X12 (EDI) is a set of transaction protocols used for

transmitting virtually any aspect of patient data. It

has become popular in the United States for

transmitting billing information, because several of

the transactions became required by the Health

Insurance Portability and Accountability Act

(HIPAA) for transmitting data to Medicare.

CEN, the European Committee for

Standardization, was founded in 1961 by the

national standards bodies in the European Economic

Community and EFTA countries. Now CEN is

contributing to the objectives of the European Union

and European Economic Area with voluntary

technical standards which promote free trade, the

safety of workers and consumers, interoperability of

networks, environmental protection, exploitation of

research and development programs, and public

procurement. CEN - CONTSYS (EN 13940) is

a system of concepts to support continuity of care.

CEN - EHRcom (EN 13606) is the European

standard for the communication of information from

EHR systems. CEN - HISA (EN 12967) is a services

standard for inter-system communication in

a clinical information environment.

DICOM is a heavily used standard for

representing and communicating radiology images

and reporting

Health Level Seven (HL7) is one of several

ANSI-accredited standards developing organizations

operating in the healthcare arena. HL7 messages are

used for interchange between hospital and physician

record systems and between EMR systems and

practice management systems; HL7 Clinical

280

Aubrecht P., Matou

sek K. and Lhotsk

a L. (2008).

ON DESIGNING AN EHCR REPOSITORY.

In Proceedings of the First International Conference on Health Informatics, pages 280-285

 SciTePress

Document Architecture (CDA) documents are used

to communicate documents such as physician notes

and other material.

Integrating the Healthcare Enterprise (IHE),

while not a standard itself, is a consortial effort to

integrate existing standards into a comprehensive

best-practice solution

ISO TC 215 has defined the EHR, and also

produced a technical specification ISO 18308

describing the requirements for EHR Architectures.

OpenEHR represents a next generation public

specifications and implementations for EHR systems

and communication, based on a complete separation

of software and clinical models.

Various factors involving the timing, the right

players, market history, utility, governance play

a key role in the overall enrichment of the standard

and certification development. The standardization

and certification even though seem to bring

uniformity in the EMR development; they do not

guarantee their acceptability and sustainability in the

long run.

The core of any EHR system is a data repository

that is usually realized by a database system. Types

of databases include the following ones

(Bontempo & Saracco, 1995): hierarchical, network,

relational, and object oriented. The hierarchical and

network databases represent older forms that are not

used in newer applications. Relational database

departs significantly from those two types and is the

most common form of database today. Relational

databases are constructed using tables instead of tree

and network structures. The tables do not specify

how to retrieve the required data or navigate through

predefined path. Object oriented database is the most

recent approach to database management. The object

oriented database structure is derived from object

oriented programming and has no single inherent

database structure. The structure for any given class

or type of object can be anything a programmer

finds useful. Furthermore, an object may contain

different degrees of complexity, making use of

multiple types and multiple structures.

In the next sections we will describe individual

issues related to EHCR design in more details,

namely persistence and structure of EHCR.

2 SCHEMA OF PERSISTENCE

In programming, persistence refers specifically to

the ability to retain data structures between program

executions, such as, for example, an image editing

program saving complex selections or a word

processor saving undo history.

This is achieved in practice by storing the data in

non-volatile storage such as a file system or

a relational database or an object database. Design

patterns solving this problem are container based

persistence, component based persistence and the

Data Access Object model. When first introduced,

the idea was that persistence should be an intrinsic

property of the data, in contrast with the traditional

approach where data is read and written to disk

using imperative verbs in a programming language.

This emphasis has largely disappeared, resulting in

the use of persist as a transitive verb: On

completion, the program persists the data.

2.1 Storage Technology

For persistence, there were two ways in our case:

 Relational database;

 XML storage.

Relational databases have long history and today

are able to store data reliably and efficiently. There

exist a big number of available databases both

commercial and free.

XML databases are relatively new technology

with promising future, allowing natural storage of

data with complex structure (e.g. annotated texts).

On the other hand, there is no emphasis on

reliability. Also effectiveness of query execution

(using XPath) is usually low.

Because the content of the database is critically

important, we emphasize robustness of the storage.

Another important point is amount of data to be

stored, thus the ability of the technology to manage

huge dataset is crucial. Therefore the chosen

technology is relational database.

This requirement also affected the further

decision about which database to use. We analyzed

advantages and disadvantages of several potential

databases. The database we typically use for storage

of a big amount of data is PostgreSQL. It provides

a rich query language with strong emphasize of the

Structured Query Language (SQL) standard. It is

proven to be reliable and has a great support for

transactions. Its BSD licence is the most free and

open. From the administrative point of view,

PostgreSQL allows use of several languages for

stored procedures including Java, which can be used

for simplification of some tasks. For this database

there exists a convenient graphical interface. The

performance of PostgreSQL is more than sufficient.

ON DESIGNING AN EHCR REPOSITORY

281

Another database server is represented by Mysql.

It is known to be very fast for read-only databases.

Unfortunately, it has significant drawbacks – limited

SQL and transactions supported only in one backend

with a loss of performance. Practical experience

shows many issues e.g. saving invalid dates,

accepting syntax errors, or even unpredictable

errors. Its license is not so free, the resulting product

must either be of GNU General Public License

(GPL) or Mysql must be bought.

There are other databases, which could be used.

For example, Firebird, which is free, but with many

specifics. Microsoft SQL Server faced several

security issues in past and requires a specific

operating system.

Big players in the field – Oracle and DB/2 are

extremely expensive for our purpose. Although

Oracle provides a free version, it is limited in

database size.

Based on the analysis we decided to use

PostgreSQL. In case of remote database access, we

are going to establish a Secure Sockets Layer (SSL)

connection to the database to protect the transferred

data.

2.2 Overall Schema of Persistence

When we started the project, one of the key

questions was the format of messages in the system.

The formats discussed were the medical standards

HL/7 and ENV 13606 standards. We all decided to

implement these standards consistently with their

purpose – only for data interchange between this

system and external institutions. In detail, this

communication will be operated by specialised

translation software agents (Hyacinth, 1996). We

suggest that import will be manual in this project,

because of the small amount of medical data to

import and because the implementation is too

complex.

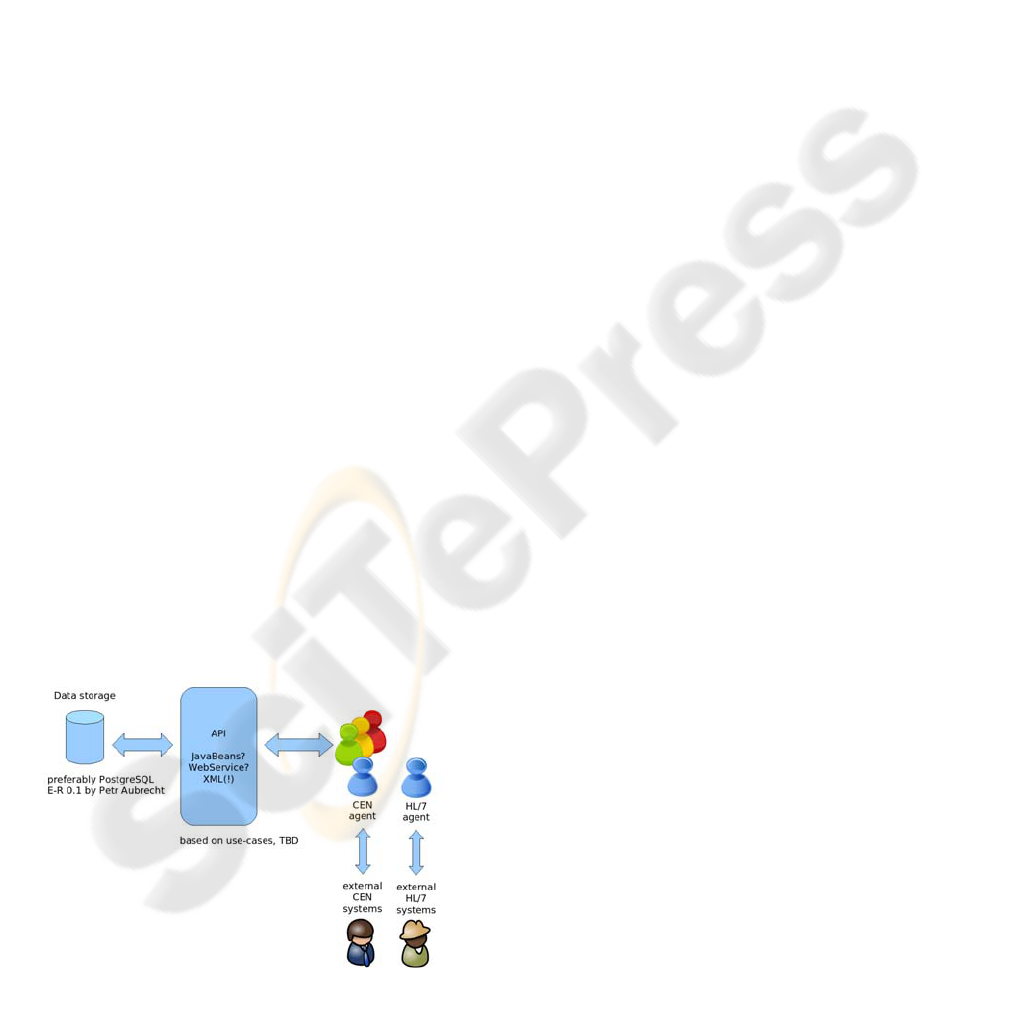

Figure 1: Schema of communication.

The format of messages within the multiagent

system – MAS (Wooldridge, 2002) will depend on

the concrete content of documents described in the

K4Care model (Campana, 2006). The overall

schema is in the Figure 1.

3 DATABASE STRUCTURE

3.1 Document Storage

For document storage there were two approaches

available:

 Data oriented with all data precisely defined

and stored in multiple tables;

 Document oriented with documents seen as an

atomic structure with no intervention with its

internal structure.

The decision is quite simple – the design of the

required documents is an incremental process,

documents are analyzed and their detailed structure

is prepared. Moreover, we expect in the future more

document types, which will lead to modification of

the structure. In the first case it requires changes in

the database structure and also in the API between

agents and data storage.

The decision is then to store particular

documents as XML documents without knowledge

(from the storage/database point of view) of its

internal structure. Together with documents their

schema will be stored – at the moment of document

storage, the schema must be known.

There is one key requirement on the document

schemas – to contain a text part for agents, which

will not understand the particular type, to be able to

display at least some information to the human

client.

3.2 Structure of EHCR

The schema evolved originally from the

fundamental report of the project (Campana, 2006),

describing the problem domain. We identified data,

which are required to be stored and then we

suggested a structure holding all the data. Later,

a part of the schema, e.g. rights of particular users to

some actions/documents, formed the ontology layer.

A part of the schema is shared with the ontology

layer. Figure 2 shows the schema of the storage.

The objects on the storage side are divided into

three groups:

The first group forms EHCR, e.g. description of

a patient and all his/her medical documentation. In

HEALTHINF 2008 - International Conference on Health Informatics

282

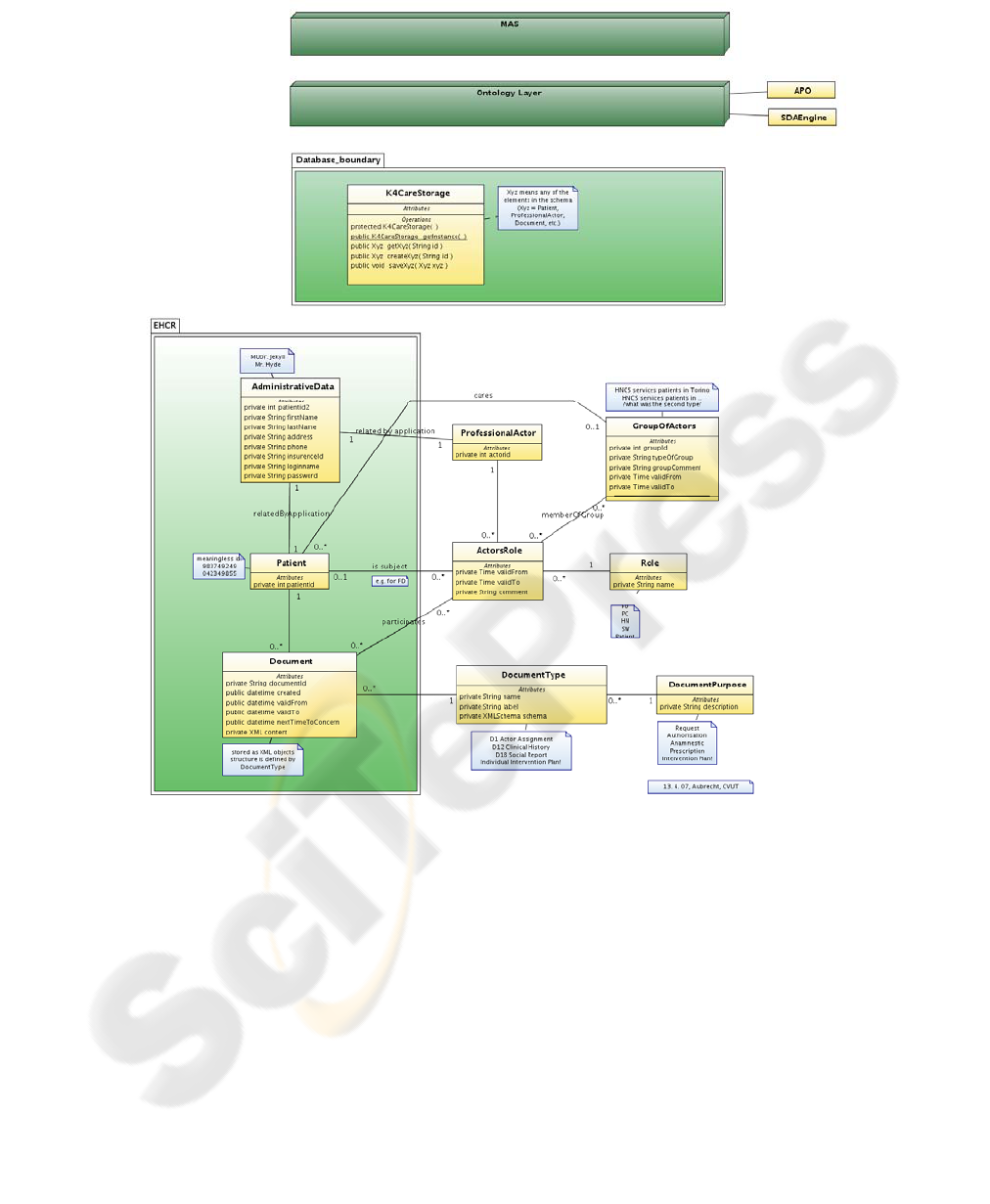

Figure 2: K4Care Model.

the schema this part is grouped into light green area.

It consists of administrative data and documents.

One of the requirements within the project was to

separate these two kinds of information, so the

relation between them is not presented in the

database, but implemented in Java program by

a kind of a cryptic function. These two parts can be

also physically separated (in two databases, possibly

on two computers) and joined by the program.

Documents are stored as XML-structured texts.

The second group of objects, ProfessionalActor,

ActorsRole, and GroupOfActors, describes the

structures used in the system. Information about

professionals is stored in a similar way to the

patients – separately from the administrative data.

An important part of these objects is dedicated to

groups of the professionals and which patients are

served by these groups.

The third group of objects, DocumentType,

DocumentPurpose, and Role, is a part of schema

shared with ontology layer. Information about

document types and purposes and about roles of

professionals must be stored in both storage (e.g.

because it is required to find professionals or

documents with a professional in some particular

role) and ontology (these information is a part of

descriptions of rules performed by the ontology

layer).

ON DESIGNING AN EHCR REPOSITORY

283

Documents represent an important part of the

whole schema. They are stored in XML format due

to the structured content, which can be changed in

the future. The corresponding XML schema is stored

in the DocumentType, so during each save operation,

the structure of the XML document can be verified.

As a result, the data store does not “understand” the

content of the XML documents. Their processing is

done by the higher levels of the system. Only a few

common attributes are stored explicitly as specific

attributes. These attributes are used in document

search.

Each document is assigned an attribute

NextTimeToConcern, which allows launching some

actions in the future, like appointments after some

period, regular vaccination, etc.

Besides the document data, the EHCR have to

store the following, so called intervention plans:

 Formal Intervention Plan (FIP). It is not going

to change for a long time and belongs to

a group of diseases, syndromes or symptoms

(from ontology layer). FIPs will not be stored

in the repository, as they are not connected to

any patient. The stored FIPs may be

associated to diseases, syndromes and even

symptoms, described by codes proposed by

medical partners using the International

Classification of Diseases version 10. These

codes should be used in the formal/individual

intervention plan descriptions.

 Individual Intervention Plan (IIP) belongs to

a single particular treatment of a patient. This

kind of intervention plan is valid only for the

time of the treatment. It is created on demand

and based on a FIP. It will be attached to the

EHCR of the patient.

The IIPs will be stored as documents, similarly

to any other medical information. The plans

including FIPs and IIPs will be expressed using

SDA* model (Riaño, 2007). An interpreter and

a graphical interface for creating and modifying the

plans are under development.

Steps written using the SDA* model will be

performed by software agents in the MAS part of the

system.

3.3 Multiagent System and Database

Cooperation

Cooperation between multiagent system and storage

is schematically shown in figure 2. First, between

these two parts is an ontology layer, responsible for

checking rights and providing semantic services to

the MAS.

In the upper part, there is the interface of the

storage to the outside components (client side). It

can be either ontology layer, as designed in the

K4Care project, or directly the multiagent system.

The opposite side uses K4CareStorage object as

an entry point to the storage and as a controller for

creation and modification of all of the available

objects. For each object it provides all of the four

operations: creation, retrieve, update, and remove.

Objects returned are connected together using

pointers to the related object, so the connection

using primary and foreign keys (used in the

database) is hidden to the client side and thus

convenient.

Both the developers of the agents and the

developers of the database may need to modify such

interfaces. These modified interfaces will be handled

carefully.

4 DOCUMENT SCHEMAS

Currently, XML schemas are being created to make

clearer the structure of the EHCR documents

planned to be used in K4Care. All the documents

defined in (Campana, 2006) can be incorporated in

EHCR as long as they belong to the patient.

The structure of the most relevant documents is

being discussed with the medical partners. Real

documents are examined and described in the form

of XML Schema. Together with documents are

stored intervention plans as a specific type of

document (in most cases with NextTimeToConcern

attribute set, when a next step of the plan should be

performed).

In the tables 1 and 2, there are shown for

illustration the most relevant service specific and

common documents to be implemented in the first

stage:

HEALTHINF 2008 - International Conference on Health Informatics

284

Table 1: Examples of the service specific documents for

the first stage.

Document name Abbreviation and type

MDE scales

D11 – anamnestic

multi-dimensional

evaluation

Set of forms filled in by the evaluation unit (EU) during

the first problem assessment and/or in occasion of the

periodical or end-treatment re-evaluation.

Clinical history

D12 – anamnestic

clinical assessment

All the available pertinent clinical information of the

patient (HCP) – previous test results, discharge sheets,

consultations, previous treatment. It is written by the

family doctor (FD) and the physician in charge of the

home care (PC); it is read by EU and the other

professionals in charge of the patient (according to their

competencies in the process of care of the individual

patient), by the patient him/herself.

Physical examination

report

D13 – anamnestic

physical examination

The report contains signs and symptoms of diseases

and/or conditions written by FD, PC, specialist

physician (SP); can be updated in any occasion of

evaluation. It is read by FD, PC, head nurse (HN); SP

and nurse (Nu) in charge of the patient.

Medical follow-up form

D19 – anamnestic

follow-up

It is written by FD or PC during the follow-up activities.

Nursing follow-up form

D20 – anamnestic

follow-up

It is written by Nu or HN during the follow-up

activities.

Table 2: Examples of the common documents for the first

stage.

Document name Abbreviation and type

Actor assignment

D01 – request

Is the information that links an individual action to

individual HCP for an action (or series of actions) to be

performed.

Actor confirmation

D02 – authorization

Is the information that declares that the actor knows the

assignment and accepts it.

5 CONCLUSIONS

The initial stage of the design and development of

EHCR data repository in the frame of the K4CARE

project has been described. Data storage was chosen

with respect to the nature of the data – absolute

requirement of secure and safe way of handling. For

this purpose there were used industrial standards for

storage: robust relational database engine with

transactions and SQL query language. In case the

application will access storage remotely, it can

provide SSL connection to the server.

The schema of data stored in the database

reflects the needs of medical specialists. Documents

themselves are stored in XML format in order to

allow further evolution of their structures. Other data

is stored in relational form to allow fast search and

concurrent access.

The overall schema is general enough to allow

cooperation with external partners using different

formats and efficient inner communication within

parts of the system.

ACKNOWLEDGEMENTS

The research has been supported by the EU FP6

project No. 026968 K4CARE “Knowledge-Based

HomeCare eServices for an Ageing Europe” and

partially by the GA CR project No. 201/05/0325

“New Methods and Tools for Knowledge Discovery

in Databases”.

REFERENCES

Bontempo, C. J., & Saracco, C. H. (1995). Database

Management Principles and Products, Upper Saddle

River, N.J.: Prentice-Hall PTR

Campana, F., et al. (2006). D01 – The K4CARE Model,

interim report.

Hyacinth, S. N. (1996). Software Agents: An Overview, In

Knowledge Engineering Review, 11(3):1–40,

September 1996, Cambridge University Press.

Riaño, D. (2007). The SDA* Model: A Set Theory

Approach. Machine Learning and Management of

Health-Care Procedural Knowledge. In CBMS 2007,

20th IEEE International Symposium on Computer-

Based Medical Systems. IEEE Computer Science

Press.

Wooldridge, M. (2002). An Introduction to MultiAgent

Systems, John Wiley & Sons Ltd.

ON DESIGNING AN EHCR REPOSITORY

285
