IMPLEMENTATION OF EPS_T2DM

Implementation of Early Prediction System for Type 2 Diabetes Mellitus

Dan Bi Kim, Ju-young Lee, Eun-jung Jang, Ji-young Lee and Taek Kim

Division of Bio-Medical Informatics, Center for Genome Science

Korea Centers for Disease Control and Prevention, Korea National Institute of Health

194, TongIl-ro, EunPyong-Gu, Seoul, Korea

Keywords: Type 2 Diabetes Mellitus, Early Prediction System, KoGES.

Abstract: This paper describes the implementation of an early prediction system for Type 2 diabetes mellitus. Type 2

diabetes mellitus is a multifactorial disease. It is not only associated with an unhealthy lifestyle but also has

a strong genetic component. Accordingly, in order to decrease an incidence rate of T2DM, it is important to

predict T2DM risk with using multifactors which are supposed to affect T2DM. We have implemented a

prediction system for T2DM, and it employs several statistical prediction models. These models are

produced by statistical analysis about cohort data of Korean Genome and Epidemiology Study (KoGES),

and include risk factors which are adequate for preventing T2DM in Korean populations. The prediction

system is written in JSF and Java, and developed into web application which is designed through object

oriented modeling. Web application of this system offers user interfaces in order to input data which is

needed for predicting risk group, select predefined prediction models, and so on. The system provides the

results which are predicted by selected models using inputted information.

1 INTRODUCTION

Type 2 diabetes mellitus (T2DM) is a multifactorial

disease in which environmental triggers interact with

genetic variants in the predisposition to the disease.

In the last thirty years, due to rapid industrialization

and the lifestyle change, the number of Korean

patients with T2DM is on an increasing trend. In

addition, more serious problem is that some

significant number of T2DM patients do not aware

of their disease before onset it. Therefore, it is not

only important to treat T2DM, but also necessary to

predict its risk and prevent it in advance.

To prevent and control a certain disease for

specified population effectively, it is necessary to

understand epidemiological features of patients. So,

we have analyzed the data collected by cohort study

from Korea National Institute of Health (KNIH).

The primary prevention method of a disease is

prediction of its risk group or patients unaware of

their disease, and decreasing the incidence of the

disease or complications by reduction of risk factors

for that group. For that reason, we have

implemented the early prediction system for T2DM

which is named EPS_T2DM.

2 MATERIALS AND METHODS

At first, we have analyzed KoGES data to find risk

factors for T2DM, and built prediction models by

statistical analysis. Then, for constructing database

schema, input values including risk factors are

defined. Finally, the entire system is implemented as

input modules, a select model module, model

processing modules and displaying module for

results.

2.1 Building Statistical Prediction

Models

This study has been supported by community based

cohort study Ansung and Ansan, Korean Genome

and Epidemiology Study (KoGES) from KNIH. The

data for this study consists of epidemiological

information and genetic information (SNP values)

for 212 T2DM public and 472 general (non-T2DM)

public (Table 1).

254

Bi Kim D., Lee J., Jang E., Lee J. and Kim T. (2008).

IMPLEMENTATION OF EPS T2DM - Implementation of Early Prediction System for Type 2 Diabetes Mellitus.

In Proceedings of the First International Conference on Health Informatics, pages 254-257

 SciTePress

Table 1: Basic characteristics. (Means±SD).

Characteristic Diabetes Non Diabetes

Numbers

212 472

Sex(F/M)

133/79 264 / 208

Age(Years)

64.50±2.82 64.03±2.86

BMI(kg/m

)

25.07±3.44 23.31±3.11

Triglyceride

(mg/dl)

196.60±131.69 149.52±70.97

Fasting

glucose(mg/dl)

111.20±28.96 74.54±3.55

Total

cholesterol(mg/dl)

202.78±44.79 180.66±31.64

HDL

cholesterol(mg/dl)

44.56±10.59 44.34±9.91

The Ansung and Ansan cohort data have been

processed using the Statistical Analysis System for

Windows (Ver. 9.1, SAS institute Inc., Cary, NC,

U.S.A), and mined by several algorithms such as

QUEST, C4.5, logistic regression, SVM, and KNN

algorithm. Among data mining results, the results of

QUEST, a binary-split decision tree algorithm for

classification and data mining, is applied to

EPS_T2DM. From this result, risk factors for T2DM

are defined and prediction models are produced.

2.2 Design of Database for Input

Values

According to data mining results, risk factors for

T2DM are as follows:

 Clinical information – Height and weight for

BMI, Waist circumference for abdominal

fatness, Blood pressure, Total cholesterol,

High-density cholesterol, Triglyceride, Fasting

glucose, and etc;

 History of diseases information – Diabetes

Mellitus, Cerebrovascular disease and other

vascular diseases, Hypertension;

 Family history of diseases information –

Diabetes Mellitus;

 Genetic Information – Selected single

nucleotide polymorphisms (SNPs) in 15 genes

in Insulin pathway, 8 genes in fatty acid

binding/translocation, and 13 genes in GLUT4

translocation and 51 more genes related to

T2DM.

Each category is represented in a table, and each

factor is corresponds to each field (Figure 1).

Figure 1: Database schema for input values.

2.3 Implementing EPS_T2DM

EPS_T2DM is based on Object Oriented Modeling.

It is developed on Fedora core 6, written in HTML,

JSF, JavaScript, Java, and etc. MySQL is used as a

database to store and access data. The entire system

is implemented with Spring Framework which is a

layered Java/J2EE application framework, and then

Model-View-Controller (MVC) design pattern is

applied. MVC is an architectural pattern which

encapsulates some data together with its processing

(the model) and isolates it from the manipulation

(the controller) and presentation (the view) part.

Figure 2 illustrates the system architecture which is

composed of five layers with UI layer, 3 layers

above, and persistence layer.

Figure 2: System architecture of EPS_T2DM.

The function of EPS_T2DM consists of 4 parts:

(1) user interfaces to get input data and user’s

selection, (2) management modules of inputted data,

(3) processing and management modules of

statistical prediction models, and (4) interfaces to

offer prediction results. JSF is used to implement

user interfaces, and XML is employed to manage

input data, SNP information, and prediction models.

IMPLEMENTATION OF EPS_T2DM

255

3 RESULTS

EPS_T2DM is implemented as a web application. It

offers interfaces in order to input SNP values and

epidemiology data which include clinical

information, history of diseases information and

family history of diseases information. After getting

input data, the system shows prediction models to

users, and users can select them. The system applies

selected models to user’s input values, and displays

prediction results that are represented whether or not

a person corresponding to the inputted data belongs

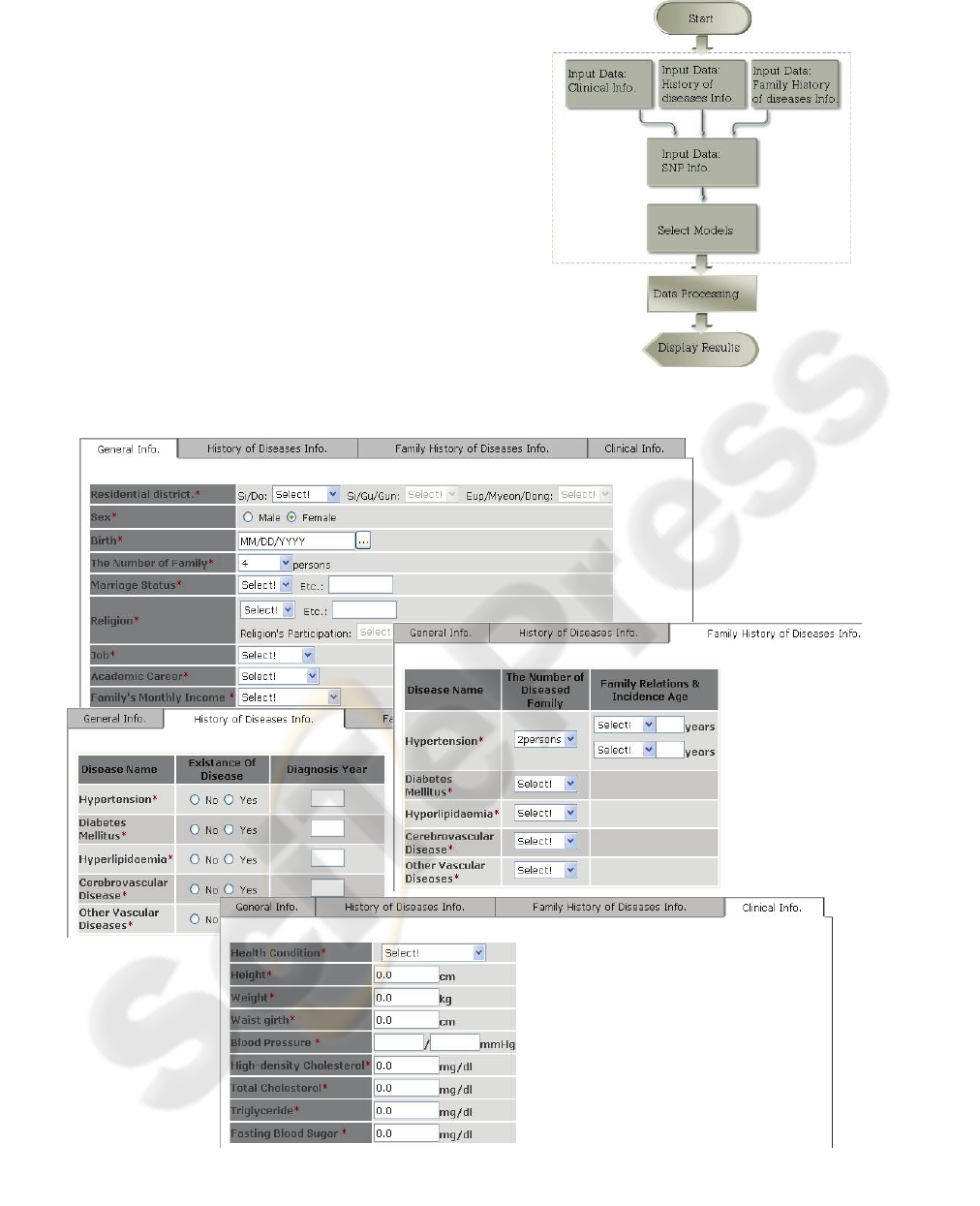

to risk group of T2DM. Figure 3 gives a flow chart

of this system.

The web interfaces consist of epidemiology

information input page with tabbed pane (Figure 4),

SNP values input page, selecting models page,

displaying results page, and so on.

Figure 3: Web application’s flow chart of EPS_T2DM.

Figure 4: The snapshots of EPS_T2DM’s web application. The interface for inputting epidemiology data which is defined

as risk factors of T2DM and other additive information such as sex, birth, etc.

HEALTHINF 2008 - International Conference on Health Informatics

256

4 DISCUSSION

In many cohort studies, various T2DM predicting

models have been developed to guide intervention

and inform health policy. Most of these studies

tested models that only used personal information

and clinical variables, not including genetic

information. However, since development of T2DM

is influenced by a complex interaction between

genetic and environmental factors, genetic

information is also needed to develop the prediction

models for T2DM.

In this study, we implemented the system to

predict the T2DM risk group with applying T2DM

risk factors and statistical prediction models that

include clinical and genetic information. The risk

factors and prediction models are base on Ansung

and Ansan, KoGES data and decision tree learning

method, and these can be updated or changed by

based data or analysis methods. EPS_T2DM is

developed as object-oriented program, so it is easy to

extended and enhance the system.

Our next step will be to expand and improve the

system. This includes followings:

 The betterment of statistical models. This

means improving accuracy or building new

prediction models by analyzing other data or

applying other data mining methods

 The enhancement of web application for

uploading or processing massive data sets.

REFERENCES

Zimme P, Alberti KG, Shaw J. (2001). Global and societal

implications of the diabetes epidemic. In Nature, 414,

782-787.

Ju-young Lee, Eun-jung Jang, Ji-young Lee, Kyung-soo

Oh, Hyun-woo Han (2007). PTPN1 Gene: The

haplotype-based interaction with Type 2 Diabetes. In

ISMB 2007, Poster 182.

Peter W.F. Wilson, James B. Meigs, Lisa Sullivan,

Caroline S. Fox, David M. Nathan, Ralph B.

D’Agostino. (2007). Prediction of Incident Diabetes

Mellitus in Middle-aged Adults. In Archives of

Internal Medicine, 167, 1068-1074.

The Diabetes Prevention Program Research Group.

(2005). Strategies to Identify Adults at High Risk for

Type 2 Diabetes. In Diabetes Care, 28, 138-144.

Alok Bhargava. (2003). A longitudinal analysis of the risk

factors for diabetes and coronary heart disease in the

Framingham Offspring Study. In Population Health

Metrics, 1:3.

Enzo Bonora, Stefan Kiechl, Johann Willeit, Friedrich

Oberhollenzer, Georg Egger, James B. Meigs,

Riccardo C. Bonadonna, Michele Muggeo. (2004).

Population-Based Incidence Rates and Risk Factors for

Type 2 Diabetes in White Individuals. In Diabetes, 53,

1782-1789.

Kyong Soo Park. (2004). Prevention of Type 2 diabetes

mellitus from the viewpoint of genetics. In Diabetes

Research and Clinical Practice, 66S, S33-S35.
