A HYBRID SEGMENTATION FRAMEWORK USING LEVEL

SET METHOD FOR CONFOCAL MICROSCOPY IMAGES

Quan Xue

, Severine Degrelle

, JuhuiWang

, Isabelle Hue

and Michel Guillomot

INRA, MIA-jouy, Lab. of Applied Mathematics and Informatics, Jouy en Josas F-78350, France

INRA, UMR 1198; ENVA; CNRS, FRE 2857, Biologie du Développement et Reproduction, Jouy en Josas F-78350, France

Keywords: Confocal microscopy, image segmentation, Level-Set, Fast Marching, Geodesic Active Contour.

Abstract: Based on variational and level set approaches, we present a hybrid framework with quality control for

confocal microscopy image segmentation. First, nuclei are modelled as blobs with additive noise and a filter

derived from the Laplacian of a Gaussian kernel is applied for blob detection. Second, nuclei segmentation

is reformulated as a front propagation problem and the energy minimization is obtained near the boundaries

of the nuclei with the Fast-Marching algorithm. For each blob, multiple locally optimized points are selected

as the initial condition of the front propagation to avoid image under-segmentation. In order to achieve

higher accuracy, a graphical interface is provided for users to manually correct the errors. Finally, the

estimated nuclei centres are used to mesh the image with a Voronoi network. Each mesh is considered as a

Geodesic Active Contour and evolves to fit the boundaries of the nuclei. Additional post-processing tools

are provided to eliminate potential residual errors. The method is tested on confocal microscopy images

obtained during trophoblast elongation in ruminants. Experimental results show that cell nuclei can be

segmented with controlled accuracy and difficulties such as inhomogeneous background or cell coalescence

can be overcome.

1 INTRODUCTION

Confocal microscopy imaging is one of the most

important technologies used to observe the cellular

developmental process. Image segmentation is a

major step to interpret the obtained images.

Correctly explored, it will provide important

information about cellular shape and tissue

organisation. Appropriate and automatic image

segmentation tools are usually necessary to assist the

analysis. However, segmenting confocal images is a

complex and laborious task. Several factors might

raise difficulties: (1) uneven background: Most of

the tissues are fluctuating during the image

acquisition and background is rarely uniform; (2)

local intensity variation inside a nucleus. Due to

imperfect staining during the experiment or intrinsic

cellular structure, one nucleus may be split into two

or more parts; (3) cell coalescence: Cell over-

clustering makes it hard to tell the exact nuclei

boundaries.

Many segmentation approaches relating to

biological images have been proposed in the

literature. Research shows that traditional image

segmentation methods such as thresholding, region

growing and edge-based approaches (Pitas, 2000)

can not be successfully applied to microscopy

images. Reported successful methods usually

focused on a specific type of images without

generality (Wu et al., 2005). Watershed

segmentation has been popular and considered as

one effective method. Thomas (Thomas and

Graham, 2007) modified watershed method to give

more accuracy for identifying intracellular structures

even in the presence of inhomogeneous background.

Wahlby (Wahlby et al., 2004) and Long (Long et al.,

2007) used both the intensity and geometry

information to appropriately detect nuclei. Those

methods are robust but the system is complicated

and need more time to adjust and analyse the

parameters to give the accurate result according to

the characteristics of images. All modified

watershed algorithms face over-segmentation

phenomena and have to provide post processes to

adjust the result, especially on cellular microscopy

images with high noise and cell coalescence. Based

on partial differential equations and variation models,

Solorzano (Solorzano et al., 2001), Chang (Chang et

277

Xue Q., Degrelle S., Wang J., Hue I. and Guillomot M. (2008).

A HYBRID SEGMENTATION FRAMEWORK USING LEVEL SET METHOD FOR CONFOCAL MICROSCOPY IMAGES.

In Proceedings of the First International Conference on Bio-inspired Systems and Signal Processing, pages 277-282

DOI: 10.5220/0001065602770282

 SciTePress

al., 2007) and Dirk (Dirk et al., 2006) provide

another direction by using level set segmentation.

The solution is derived by minimizing a global

energy function. This method benefits from well

founded mathematical theories which allow

developers to analyze, understand, improve the

existing methods and work in a continuous setting in

higher dimensional space.

The paper is organized as follows: Section 2

introduces a hybrid structure supporting quality

control. Section 3 illustrates segmentation

approaches. The system is evaluated in Section 4.

Finally, Section 5 draws a conclusion.

2 HYBRID FRAMEWORK

Drawing outlines of cells with a mouse, the result

can be regarded as absolutely accurate and objective,

but it is a hard work and difficult to repeated.

Automatic methods are fast and convenient, but

some errors occur. Therefore, the solution for image

segmentation is a trade-off between precision and

speed. When high accuracy is needed, the system

needs interactivity with the analyzer or provides an

automatic result with limited errors. To deal with a

wide variety of biological microscopy images, a

hybrid framework with quality control will be

preferable.

We constructed such a hybrid framework

combining PED-based level set approaches with

selectable interaction which supports automatic and

semi-automatic segmentation with a robust error-

checking stage, as shown in Figure 1. The nuclei are

firstly modelled into blobs with some additive noise

and Laplacian of Gaussian (LoG) filter is regarded

as a blob-detector. Using gradient information, a

front propagation fast marching is applied to

segment cellular nuclei. The result can be directly

outputted after morphology filter or used to enhance

the last result. An interactive module is provided to

prevent error propagation and Voronoi meshing is

created from those appropriate centres. From cellular

shape information, geodesic active contour (GAC) is

introduced to refine nuclei boundaries. Post

processing methods are added as supplementary

module to correct for potential errors.

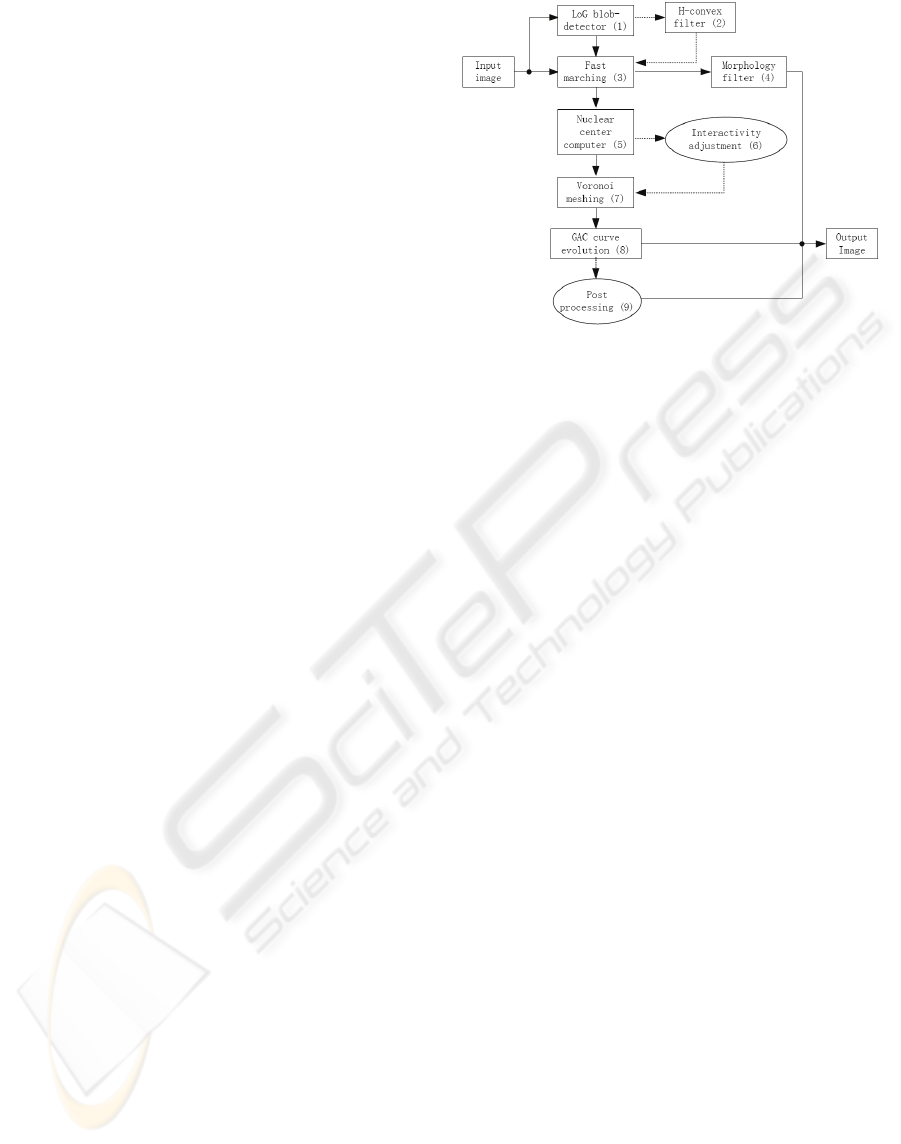

Figure 1: Diagram of hybrid framework.

3 METHOD DESCRIPTION

3.1 Blob Detection

On confocal images from ruminant trophoblast cells

e.g. Figure. 2 (A), one sees that most nuclei are

nearly round. Laplacian of Gaussian filter has been

proved to be an effective blob-detector (Byun et al.

2006) since LoG filter is able to detect particular

edges by determining the peak point of the ridge.

Therefore, we aimed at detecting regions which are

brighter than the surrounding to overcome

inhomogeneous background.

Although the nuclei of trophoblast cells are not

exactly round, our objective is focused on rotation

invariance of objects, so that it is fitful to over-fit a

circle model into the whole image. From the

experimental results, we found that the diameter of

LoG filter is proportional to nuclei average diameter

and this initial value can be set in advance since the

kind of cells are known, e.g. bovine or ovine

trophoblast. LoG filter will get a smooth image local

maximal values of which nearly correspond to the

nuclei centres shown in Figure 2. (B).

After blob-detector, an H-convex filter is added

for enhancing the local maximum. H-convex

belongs to a kind of morphological method and has

the effect of extracting objects that are brighter than

background by at least H-intensity units. It is

relatively straightforward and does not require

homogeneity in the background. The enhanced local

maximal result can be gotten in Figure 2. (C).

BIOSIGNALS 2008 - International Conference on Bio-inspired Systems and Signal Processing

278

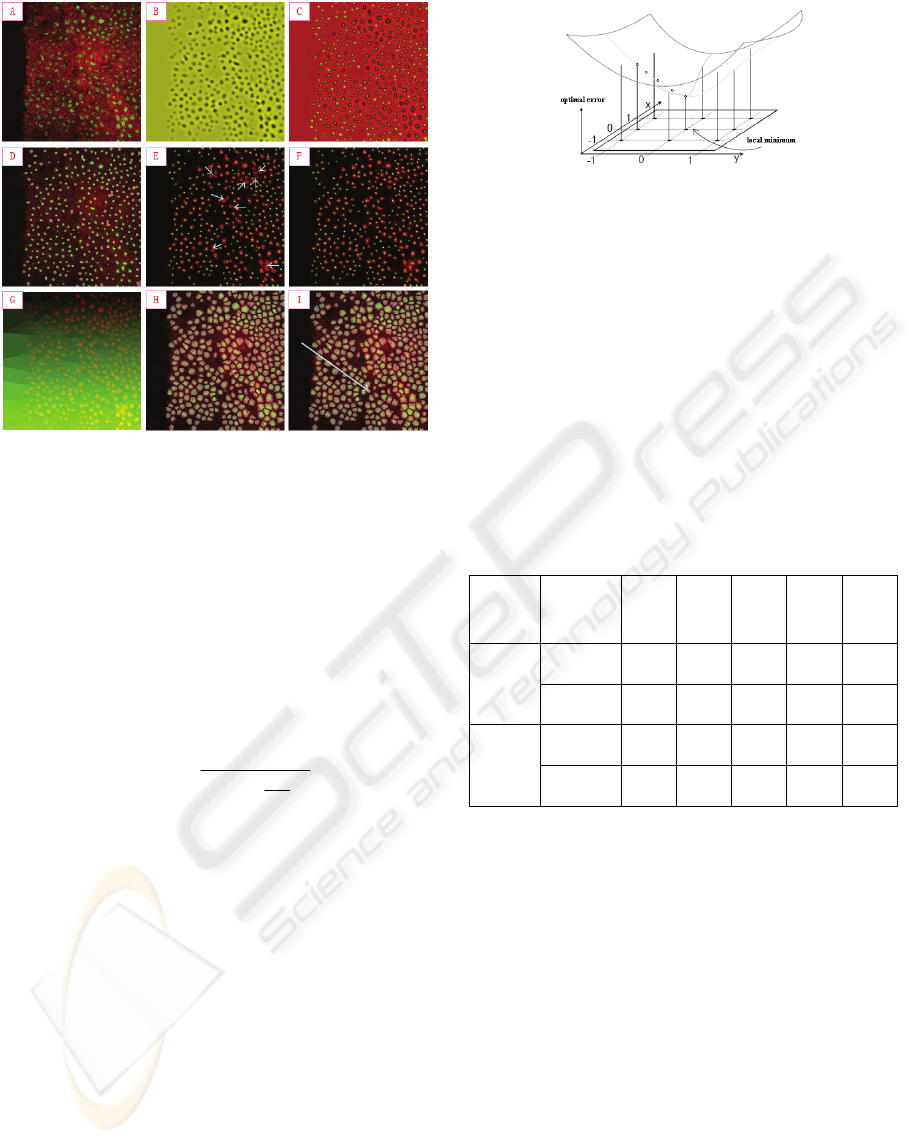

Figure 2: Results in each module.

3.2 Fast Marching

Fast marching method (Sethian, 1996) has

monotonically advancing front with positive speed

to build solutions outward from the boundary

condition by choosing the smallest time in its

evolution, until it adopts the form of the enclosing

nuclei delineated by the staining. The segmentation

result from fast marching is gotten in Figure 2 (D).

Our speed function is provided by sigmoid

function:

Min

MinMaxIS

⎟

⎠

⎞

⎜

⎝

⎛

⋅−=

⎟

⎠

⎞

⎜

⎝

⎛

−

)()(

(1)

where I is intensity of input pixel,

is the intensity

of output pixel,

Min

and

Max

are the minimum and

maximum values of output image,

defines the

width of input intensity range and

defines

intensity around which the range is centred.

Since some cell nuclei are connected closely,

segmentation results depend on initial seed

positions, so that multiple seeds will have more

chances not to miss objects. However, having seeds

distributed inside the nuclei is not helpful for

contour expansion. Therefore, instead of randomly

selecting multiple points as initial condition, we

searched the best seeds for each candidate by finding

its local minimum through comparison with

neighbours as shown in Figure 3.

Figure 3: Seeds optimization by local searching.

The selection of optimal seeds gives a better

result in detecting nuclei, and that this result is stable

shown Table 1. The more seeds can be assigned

nearby the edge of nuclei, the more precise the fast

marching segmentation can be. Table 1 also shows

that the number of initial seeds is important. If too

many seeds are put in one image, many single nuclei

will be divided into multiple parts due to local

intensity variations. Normally the distances we have

selected are 16 pixels in row, 16 pixels in column

and a searching radius of 3 pixels. For some special

trophoblast images we had to adjust these

parameters carefully.

Table 1: Comparison between random and optimal seeds.

radius

(pixels)

Number

of nuclei

4×4 8×8

16×

32×

64×

Optimal 398 360 337 339 310

Random 419 364 332 319 307

Optimal 319 312 303 304 302

Random 337 312 299 288 275

3.3 Interactivity

The centre of each nucleus can be estimated from

the above results. Despite accuracy rate is averagely

high, there is still a possibility of a few failures to

occur as indicated by white arrows on Figure 2 (E).

On our images, the error rate varies from 1% to

10%. If more than one seed is located inside a

nucleus, this will cause over-segmentation,

conversely when no seed is found within a nucleus,

the object is lost. Therefore, the centres of nuclei are

very important for the final result. In order to

prevent error propagation, human interactivity is

necessary to view and adjust results in this stage.

Through an interface, the user can make decision

based on visual examination of the nuclei, so that an

immediate feedback enables the user to produce

reliable results e.g. Figure 2 (F).

A HYBRID SEGMENTATION FRAMEWORK USING LEVEL SET METHOD FOR CONFOCAL MICROSCOPY

IMAGES

279

Figure 4: Refinement by GAC in one Voronoi mesh.

3.4 Geodesic Active Contour

From nuclei centres, Voronoi mesh is directly

produced in Figure 2 (G), which can be regarded as

a reference map in refining nuclei by geodesic active

contours (Vicent et al. 1997). Since Voronoi mesh

gives a limited small region to minimize the GAC

energy function, it is sure that one nucleus is gotten

just in one Voronoi-mesh. The refining result is

shown in Figure 2 (H).

GAC consists of double forces which control the

last shape and it is important to balance inside and

outside forces. When the propagation term is set too

high, the contour will go too far inside as illustrated

in Figure 4. In our application to ruminant

trophoblast cells, all nuclei are nearly rounded so

that curvature term is responsible for smoothness.

3.5 Post Processing

When confocal images are very blurred or tightly

clustered, a few errors cannot be avoided with

automatic detection to correct these potential errors

by human visual system. We provide a

supplementary module. As an example (Figure 2: I),

one lost nucleus has been recovered with this

module.

4 EXPERIMENTS

This section describes how our hybrid framework is

used to segment the nuclei on 2D confocal images

from ruminant trophoblast. There are more than one

thousand of images with varying cellular

characteristics and varying background noise in

dataset. Selecting different modules, four types of

pipeline are designed shown in Table 2.

Table 2: Pipelines with different modules.

Module 1 2 3 4 5 6 7 8 9

Pipeline A × × × ×

Pipeline B × × × × × ×

Pipeline C × × × × × × ×

Pipeline D × × × × × × × ×

Figure 5 gives four typical images as examples

to show the results of our framework. Our approach

is compared with the existing methods in ITK and

ImageJ which are using fast marching and K-means

clustering individually. In row 1, when confocal

images have good quality, all methods can be used

successfully, with similar errors. However, when

nuclei are clustered together (see row 2), our method

keeps stable whereas the other methods lose the

ability to separate each nucleus in the clusters. For

example, ITK can only detect the whole cluster edge

and cannot divide it further while ImageJ produces

many connected regions. In row 3, when nuclei are

organised in a special structure, the exiting methods

(ITK and ImageJ) cannot identify the objects

whereas the nuclei are correctly detected by our

method and the contour is closer to the true shape.

When there are many small nuclei and their size

changes continuously (row 4), our result is also

stable and useful.

Our framework is a scalable system with quality

control through the selection of modules and the

setting of the initial parameters based on the

characteristics of the original image to balance terms

in the energy function of level set. Through

adjusting the parameters on propagation and smooth

term, the nuclear edges can be detected and refined

step by step by active contour as in Figure 6, from

(a) to (d).

It is often necessary to complete a confocal

image automatic segmentation with an acceptable

error rate. Successful results can be obtained with

our scalable procedure. Since the modules related to

the human interaction are selectable, we can use the

level set methods directly. Figure 7 gives an

example. The first column comes from the fast

marching following the blob-detector and we use

morphology filter to enhance the result. In the

second column, results from GAC without

interactivity are provided. Some error is propagated

from fast marching module because the gravity

centre of the nuclei is wrongly estimated from fast

marching segmentation. GAC can skip the false

nuclei but will produce good results with coherent

nuclei. So, the number of nuclei from GAC

decreases for factual objects.

BIOSIGNALS 2008 - International Conference on Bio-inspired Systems and Signal Processing

280

Figure 5: Comparison of proposed algorithm with fast marching in ITK and K-mean clustering in ImageJ (high quality,

nuclei coalescence, special structure and low quality from left column to right column). The first row is the original

confocal images. The second, the third and the fourth row respectively correspond segmentation results from ITK, ImageJ

and proposed algorithm (Pipeline C).

Table 3: Segmentation results expressed as numbers of detected nuclei with each method.


Actual

number

Fast marching

in ITK

K-means in

ImageJ

FM with blob-

detector

(Pipeline A)

GAC without

interactivity

(Pipeline B)

GAC with

interactivity

(Pipeline C)

With post

processing

(Pipeline D)

(a) 280 253(-27) 265 (-15) 298 (+18) 294 (+14) 280 (+0) 280

(b) 378 281(-97) 347 (-31) 402 (+24) 373 (-5) 374 (-4) 378

(d) 704 544(-160) 652 (-52) 737 (+33) 729 (+25) 711 (+7) 704

Number 1656 1314 (-342) 1443 (-213) 1765 (+109) 1714 (+63,-5) 1657 (+7,-6) 1656

Error rates 20.65% 12.86% 6.58% 4.11% 0.79% 0%

In Table 3, we conclude and compare the

error rates from all of the methods discussed

above. “+” means over-segmented nuclei and “-”

means under-segmented. Their sum is divided by

factual total numbers to compute the error rate.

Normally we do not use post processing module

and the average error ratio is limited into 0.8%.

The experimental results show that our hybrid

segmentation framework is satisfactorily accurate.

A HYBRID SEGMENTATION FRAMEWORK USING LEVEL SET METHOD FOR CONFOCAL MICROSCOPY

IMAGES

281

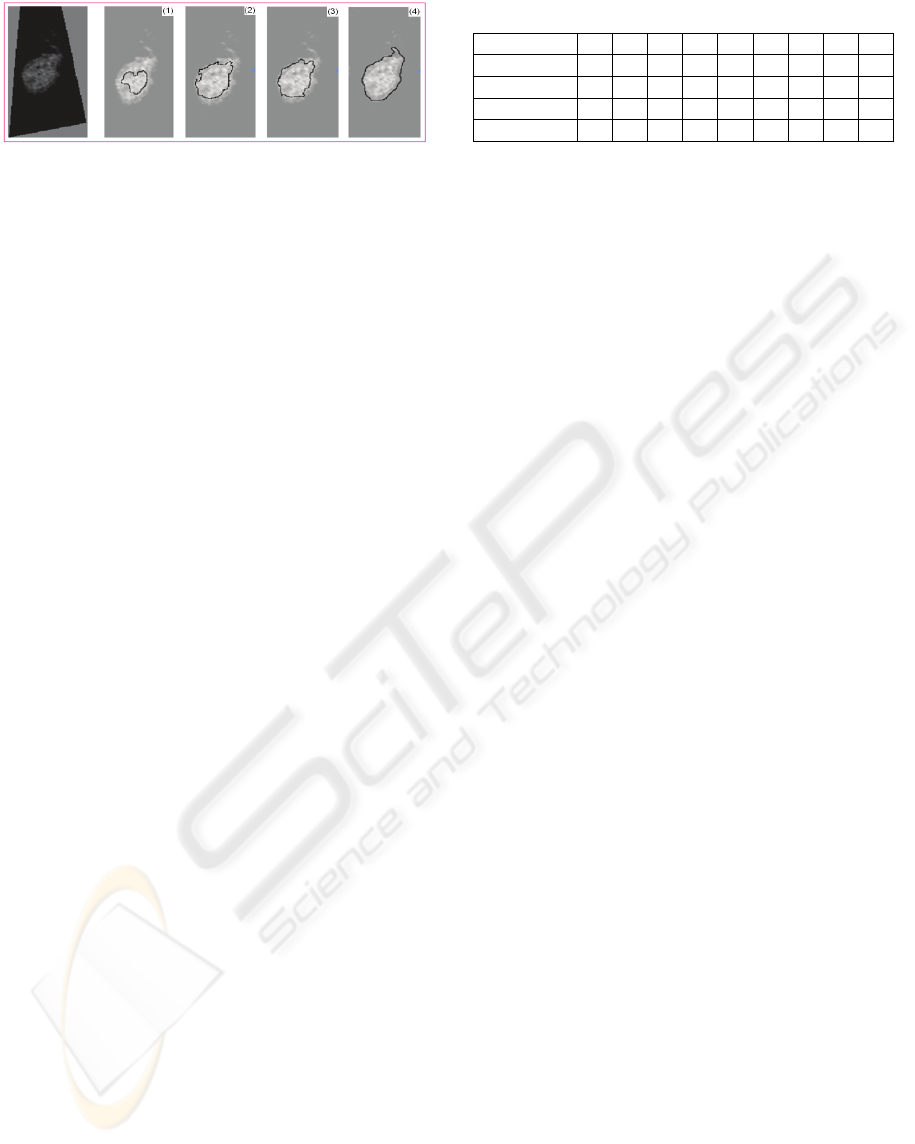

Figure 6: Refining boundary by GAC method with

quantity control.

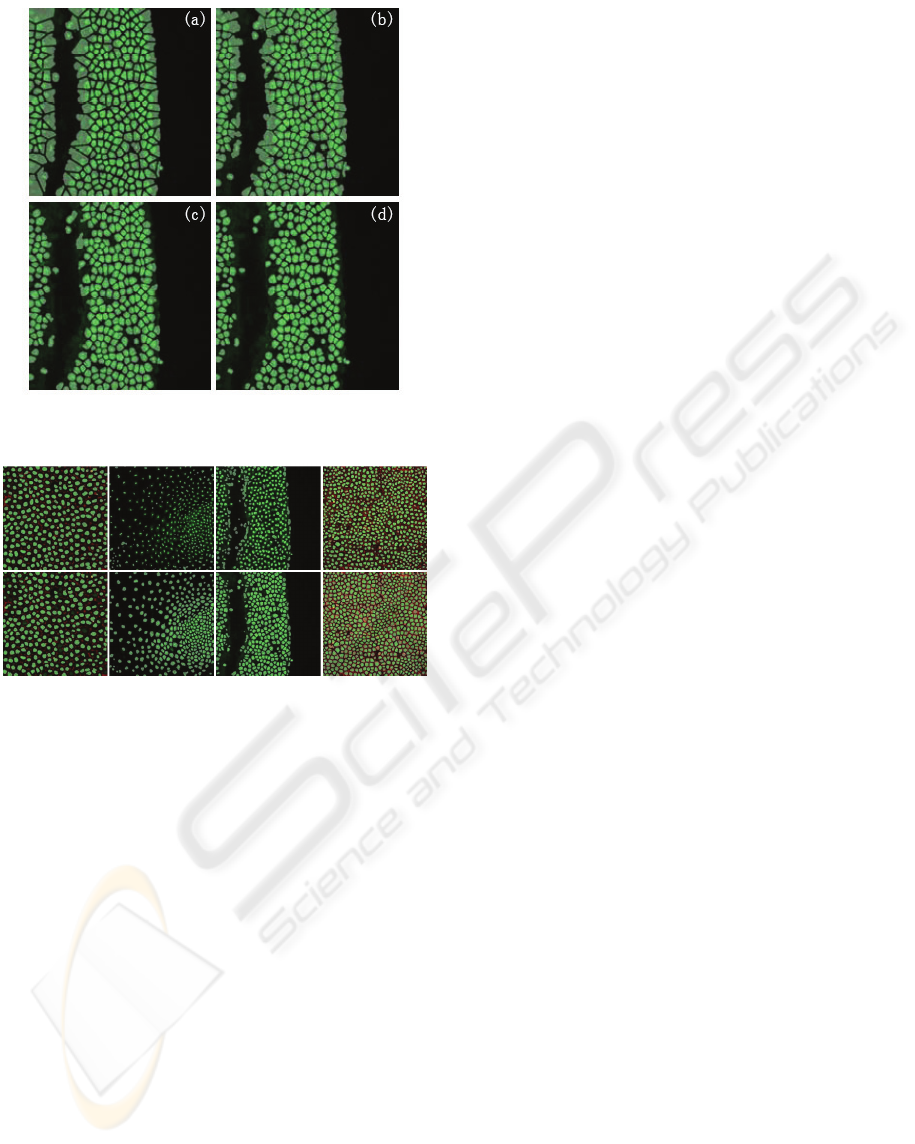

Figure 7: Automatic segmentation results by Pipeline A

(first row) and Pipeline B (second row).

5 CONCLUSIONS

This paper demonstrates the effectiveness of a

hybrid framework for cellular segmentation. It

combines the efficiency of the automatic

segmentation procedures with the accuracy of the

human visual system. Based on confocal images of

ruminant trophoblast, our experiments showed that

the proposed approach provides reliable results and

presents numerous advantages regarding to manual

analysis or automatic methods in terms of objectivity

and applicability.

ACKNOWLEDGEMENTS

QX and SD are respectively supported by an INRA

and an Ile–de-France post-doctoral fellowship.

Scientific financial support comes from an INRA

AgroBi grant to JW and IH. We thank A Trubuil P

Adenot* and G Lehmann* for helpful discussions

(*INRA MIMA2 platform) and INRA experimental

farms for embryo production.

REFERENCES

Byun. J.Y., Verardo. M.R., Sumengen. B., Lewis. G.P.,

Manjunath. B.S., Fisher. S.K., 2006. Automated tool

for the detection of cell nuclei in digital microscopic

images: Application to retinal images. Molecular

Vision, pp.949-960. August 2006.

Chang. H., Park. C., Parvin. B., 2007. Quantitative

representation of three-dimensinal cell culture models.

In ISBI’07, IEEE International Symposium on

Biomedical Imaging: From Nano to Macro, pp.536-

539. April 12-15, 2007. Washington DC, USA.

Dirk. P., Jens. R, Nick. T., Badrinath. R., 2006. Spatio-

Temporal Cell Cycle Phase Analysis Using Level Sets

and Fast Marching Methods. In MIAAB’06, 1st

international workshop on Microscopic Image

Analysis with Applications in Biology. On 5

October 2006. Copenhagen, Denmark, USA.

Long. F.L., Peng. H.C., Myers, E., 2007. Automatic

segmentation of nuclei in 3D microscopy images of

c.elegans. In ISBI’07, IEEE International Symposium

on Biomedical Imaging: From Nano to Macro,

pp.536-539. April 12-15, 2007. Washington DC, USA.

Pitas. I., 2000. Digital image processing algorithms and

applications. Wiley-Interscience publication. New

York, 1

edition

Sethian, J.A., 1996. Level set methods and fast marching

methods. CAMBRIDE UNIVERSITY Press.

Solorzano. C.O., Malladi. R., Lelievre.S.A., Lockett. S.J.,

2001. Segmentation of nuclei and cells using

membrane related protein markers. Journal of

Microscopy, Vol.201, Pt 3, pp.404-415, March 2001.

Thomas, J.G., Graham, W., 2007. WatershedCounting3D:

A new method of segmenting and counting punctuate

structures from confocal image data. Blackwell

Synergy - Traffic, Volume 8 Issue 4 pp. 339-346, April

2007.

Vicent. C., Ron. K, Guillermo. S., 1997. Geodesic Active

Contours. International Journal of Computer Vision,

Vol.22 (1), pp.61-79, 1997.

Wahlby. C., Sintorn. I.M., Erlandsson. F., Borgefors. G.,

Bengtson. E., 2004. Combining intensity, edge, and

shape information for 2D and 3D segmentation of cell

nuclei in tissue sections. Journal of Microscopy,

Vol.215, Pt 1, pp.67-76, July 2004.

Wu. H.S., Xu. R., Harpaz. N., Burstein. D., Gil. J., 2005.

Segmentation of intestinal gland images with iterative

region growing. Journal of Microscopy, Vol.220, Pt 3,

pp.190-204, December 2005.

BIOSIGNALS 2008 - International Conference on Bio-inspired Systems and Signal Processing

282
