AUTOMATIC INITIALIZATION FOR BODY TRACKING

Using Appearance to Learn a Model for Tracking Human Upper Body Motions

Joachim Schmidt

Bielefeld University, Technical Faculty, Applied Computer Science

P. O. Box 100131, D-33501 Bielefeld, Germany

Modesto Castrill

on-Santana

Institute of Intelligent Systems and Numerical Applications in Engineering

Ediﬁcio Central del Parque Tecnol

ogico, Campus de Taﬁra, University of Las Palmas de Gran Canaria - Spain

Keywords:

Human robot interaction, face detection, model acquisition, automatic initialization, human body tracking.

Abstract:

Social robots require the ability to communicate and recognize the intention of a human interaction partner.

Humans commonly make use of gestures for interactive purposes. For a social robot, recognition of gestures

is therefore a necessary skill. As a common intermediate step, the pose of an individual is tracked over

time making use of a body model. The acquisition of a suitable body model, i.e. self-starting the tracker,

however, is a complex and challenging task. This paper presents an approach to facilitate the acquisition

of the body model during interaction. Taking advantage of a robust face detection algorithm provides the

opportunity for automatic and markerless acquisition of a 3D body model using a monocular color camera.

For the given human robot interaction scenario, a prototype has been developed for a single user conﬁguration.

It provides automatic initialization and failure recovery of a 3D body tracker based on head and hand detection

information, delivering promising results.

1 INTRODUCTION

As stated by McNeill gestures play an important role

in human communication (McNeill, 1992). Accord-

ing to this, a social robot requires the abilities to lo-

calize, track and interpret human behavior during an

interaction session. Pursuing this challenge is an ac-

tive ﬁeld in Computer Vision research, due to the re-

strictions imposed by approaches developed so far for

this purpose.

A simple 3D body model based on joints and

their motion is sufﬁcient for humans to perform ac-

tion recognition (Johansson, 1973). 3D body acquisi-

tion and tracking provides the data source necessary

to accomplish such a task, offering a great domain of

applications: Surveillance, Activity Recognition, Hu-

man Computer/Robot Interaction, Mobile Robotics,

etc.

The task of tracking a human body in monocu-

lar images is commonly carried out by ﬁtting artic-

ulated kinematic models representing the appearance

of a person to mono- or multiocular images (Siden-

bladh et al., 2000; Sigal et al., 2004; Sminchisescu

and Triggs, 2005). The surveys of Gavrila (Gavrila,

1999), and Moeslund and Granum (Moeslund and

Granum, 2001) provide a good overview of the topic

of model based 3D body tracking. In addition to a

kinematic body model describing the appearance of

the body, bringing in prior knowledge about familiar

body conﬁgurations (Brox et al., 2006) can help to

constrain the search process, preventing the produc-

tion of unrealistic pose estimates. Difﬁculties in rec-

ognizing ambiguous poses, as is common in monoc-

ular tracking, can be overcome when 3D information

is available, e.g., acquired from time-of-ﬂight sensors

or stereo camera systems, as shown by (S. Knoop,

2006). For most of the above approaches, however,

the question of initialization stays open or is sub-

ject to manual or semi-automatic procedures. Us-

ing body tracking in human robot interaction often

comes with strong restrictions, e.g., the number and

type of cameras available or the gesture repertoire to

be observed. Tracking systems incorporating auto-

matic or semi-automatic initialization often make use

of learned appearance models (Ramanan and Forsyth,

2003), rely on stereotyped poses (Urtasun et al., 2005)

or on combining a repertoire of learned pose estimates

and visual appearance (Sigal and Black, 2006a; Tay-

535

Schmidt J. and Castrillón-Santana M. (2008).

AUTOMATIC INITIALIZATION FOR BODY TRACKING - Using Appearance to Learn a Model for Tracking Human Upper Body Motions.

In Proceedings of the Third International Conference on Computer Vision Theory and Applications, pages 535-542

DOI: 10.5220/0001071005350542

 SciTePress

cher et al., 2006; Bissacco et al., 2007). Initialization

can also be formulated as the problem of pose esti-

mation or object reconstruction from a single image

using strong models (Lee and Cohen, 2004).

Summarizing, recent literature has described dif-

ferent approaches focused on tracking people. How-

ever, there is still a gap between tracking algorithms

and systems working in the real world, mainly due to

the fact that for most tracking approaches the chal-

lenges of automatic initialization and error recovery

are not addressed. In this paper, we present a system

within a typical human robot interaction scenario, i.e.,

where an individual is communicating with an artiﬁ-

cial actor. The basic idea guiding the design of our

system is to integrate robust face and hand detection

results into a model representation that can be used

for automatic initialization and failure recovery of a

pose tracking algorithm.

Section 2 gives an overview about the functional-

ity of the approach describing the system modules in

detail. The experimental results and conclusions are

presented respectively in Sections 3 and 4.

2 SYSTEM

2.1 Overview

In this section we present our approach of a self-

starting 3D body model tracker in a human robot in-

teraction scenario.

There are a number of features that should be con-

sidered in order to make a system ﬂexible enough

to operate within this context: 1) The person and its

body dimensions must not necessarily be known a pri-

ori, but the distance of the human to the robot has to

be adequate for interaction. 2) Images are acquired

using a single monocular color camera as the system

is intended to be used on a mobile robot without em-

ploying further sensors. 3) During system design, we

also avoided speciﬁc background models to allow the

tracking to be independent from the appearance of the

observed scene. To further allow a moving camera,

image background substraction based techniques like

motion history images are avoided as well.

For the proposed initialization procedure, some

restrictions, well suited for human robot interaction,

can be derived from the given scenario: 1) The per-

son is trying to communicate, therefore his intention

is to cooperate with the system. 2) The upper body,

including the head, torso and both hands, is visible

and no large self occlusion occurs. 3) The person is

standing in an upright position, facing the camera and

having the arms outstretched.

Algorithm 1: Algorithmic processing overview.

estimate initial pose from single image:

if face is detected then

extract skin and shirt samples

update color models for skin and shirt

create segmented images

detect hands using skin and shirt color segmentation

generate initial density estimating the correct pose:

if hands are detected then

ﬁnd probable model poses based on the distances of the

hands and the face, use 5 DOF for model

else

body model facing the camera, arms hanging down, use

3 DOF for model

track human body:

wait until initial density is provided

if tracking for the ﬁrst time then

start tracking: use density as prior

else

keep tracking:

if initial density is provided then

use density as recovery component,

use updated skin and shirt color models for tracking

else

track relying on current model

Figure 1: System overview. Faces are detected, shirt and

skin color are learned, hand and face positions are used to

estimate a density for initializing the tracking and for er-

ror recovery. Modules denoted by *. have been used in

the existing body model tracking framework, but had to be

manually initialized.

Succinctly the process, depicted in Figure 1 and

brieﬂy outlined in Algorithm 1, applies ﬁrst face de-

tection. A face has to be detected for estimating an

initial pose density and, starting the tracking. Its color

is modeled and based on this, both hands are located.

Face and hands information, if detected, are utilized

to estimate the likelihood for an initial body model

location. Once initialized, the body tracker performs

continuously considering face and hands information

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

536

whenever available. Future face and hand features al-

low the tracking system to have an additional valida-

tion control useful to recover the tracking from fail-

ures.

The different system modules are described in the

following subsections.

2.2 Face and Facial Element Detection

Several approaches have recently appeared present-

ing reliable face detection in real time (Schneiderman

and Kanade, 2000; Viola and Jones, 2004), making

face detection less environment-dependent. However,

cue combination can provide greater robustness and

higher processing speed, particularly for live video

stream processing (Castrill

on Santana et al., 2007),

outperforming single cue based detectors such as (Vi-

ola and Jones, 2004).

The face detection system (Castrill

on Santana

et al., 2007), integrates among other cues, differ-

ent classiﬁers based on the general object detection

framework by Viola and Jones (Viola and Jones,

2004), skin color, multilevel tracking, etc. The chosen

detection system provides not only face detection but

also facial feature location information in many situa-

tions. Extending a face detector with inner feature de-

tection (eyes, nose and mouth) also reduces the num-

ber of false alarms. As more restrictions are imposed,

it is less likely that all the detectors are activated si-

multaneously with false alarms, thereby minimizing

the inﬂuence of such errors.

Figure 2: Normalized face sample and likely locations for

nose and mouth positions after normalization.

Positive samples were obtained by annotating

manually the eye, nose and the mouth location in

7000 facial images taken randomly from the inter-

net. The images were later normalized by means of

eyes information to 59 ×65 pixels, see Figure 2(left).

Five different detectors were computed: (1,2) Left

and right eye (18 × 12 pixels), (3) eye pair (22 × 5),

(4) nose, and (5) mouth (22 × 15).

The facial element detection procedure is only ap-

plied in those areas which bear evidence of containing

a face. This is true for regions in the current frame,

where a face has been detected, or in areas with de-

tected faces in the previous frame. For video stream

processing, given the estimated area for each feature,

candidates are searched in those areas not only by

means of Viola-Jones’ based detectors, but also by

sum-of-squared differences (SSD) tracking previous

facial elements. Once all the candidates have been

obtained, the combination with the highest probabil-

ity is selected and a likelihood based on the normal-

ized positions for nose and mouth is computed for this

combination, see Figure 2.

2.3 Color Modeling

To add further details to the representation of the indi-

vidual detected, our system learns models of the skin

and the shirt color taking into account the previously

detected face region. This is done only for a robustly

detected face, for which at least three facial features

- the face itself, its eyes and the nose or the mouth -

have been detected as a trusted result. This consid-

eration is used to reduce the possibility of false de-

tections, i.e. false positives. A color model is then

learned or updated (if already created for that individ-

ual) only from these trusted faces, reducing the prob-

ability of using erroneous face detections.

(a) (b) (c)

Figure 3: (a) Input image, (b) skin color segmentation, (c)

shirt color segmentation.

Eye locations allow the estimation of the face con-

tainer. In a lower position a second container is used

to select an area of the user’s shirt. Both containers

are utilized to model respectively the skin and shirt

colors of the user by means of a histogram based color

model (Swain and Ballard, 1991). Figure 3 presents

the segmentation of the input image, based of these

histograms, see Figure 3(b) for skin and Figure 3(c)

for shirt color-like areas. It can be observed that the

shirt is segmented easily but hands and skin-like ar-

eas, are not necessarily clear and compact.

Due to the sensitivity of the histogram based skin

color model, we analyzed another color model repre-

sentation. The mask of the skin blob extracted from

the face container determines the skin pixels to be em-

ployed as training samples, see Figure 4(a). The skin

color of each individual is then learned and further

adapted throughout tracking as a mixture of gaussians

in RG-color space (Fritsch et al., 2002), see Figure 4.

2.4 Hand Detection

Multiple difﬁculties are present regarding robust and

efﬁcient hand detection in video, mainly due to the

AUTOMATIC INITIALIZATION FOR BODY TRACKING - Using Appearance to Learn a Model for Tracking Human

Upper Body Motions

537

inherent variability of the articulated hand structure,

the large domain of gestures, the restriction of real-

time performance, varying illumination conditions

and complex background clutter. Therefore, different

restrictions are commonly considered or even manual

initialization is performed for this task.

However, the literature is rich in hand detection

approaches that have traditionally been based on skin

color segmentation (Storring et al., 2004), due to their

reduced processing cost. Recent approaches (Stenger

et al., 2004; K

olsch and Turk, 2004), however, have

utilized the Viola-Jones’ object detection framework

(Viola and Jones, 2004) even when hands are not that

easy to describe as faces. They are highly deformable

objects, so training a single cascade classiﬁer for de-

tecting hands is a complex and arduous task. For

that reason, a different classiﬁer for each recogniz-

able gesture has been trained (Stenger et al., 2004),

but also a single classiﬁer for a limited set of hands

olsch and Turk, 2004).

Considering the unrestricted context considered,

where the use of multiple detectors would produce

an approach not suitable for real time processing, we

have chosen the skin color approach for faster pro-

cessing. However, instead of using a predeﬁned color

space deﬁnition, the information obtained from the

face blob is used, as described above, to estimate the

skin color model for that individual, see Figure 4.

The skin color model is then employed to locate other

skin-like blobs in the image.

As we mentioned above, the approach considers

that both hands are visible, no gloves are used, their

distance to the face is similar, and that a vertical line

falling from the face center would leave each hand on

one side. If all those conditions ﬁt, and two well pro-

portionated and coherent skin blobs are located then

they are suggested as hands candidates, and provided

to the 3D tracker initialization module, see Figure 5.

2.5 Human Body Model Acquisition

In our approach, the human body is modeled as a

kinematic 3D body model, see also (Schmidt et al.,

2006), composed of asymmetrically truncated cones

connected by joints as depicted in Figure 5. It resem-

bles the kinematic structure of the human body and

also incorporates the natural joint angle constraints.

In total, a pose of our model can be described by

14 degrees of freedom (DOF) for the joint angles (4

per arm) and the position and orientation in space (3

translational, 3 rotational).

The appearance of the human, in turn, is modeled

by the truncated cones. The proportions of the body

parts vary for each individual, but still, its characteris-

tics can be described quite well using a standardized

model, e.g., (Humanoid Animation Working Group,

2007) and adjusting the actual size of the limbs and

the kinematic conﬁguration in proportion to the height

of the person. In this approach, we use a standard

body model and vary the overall size in the image

only, the size of the limbs and the kinematic structure

is kept constant.

(a)

(b)

(c)

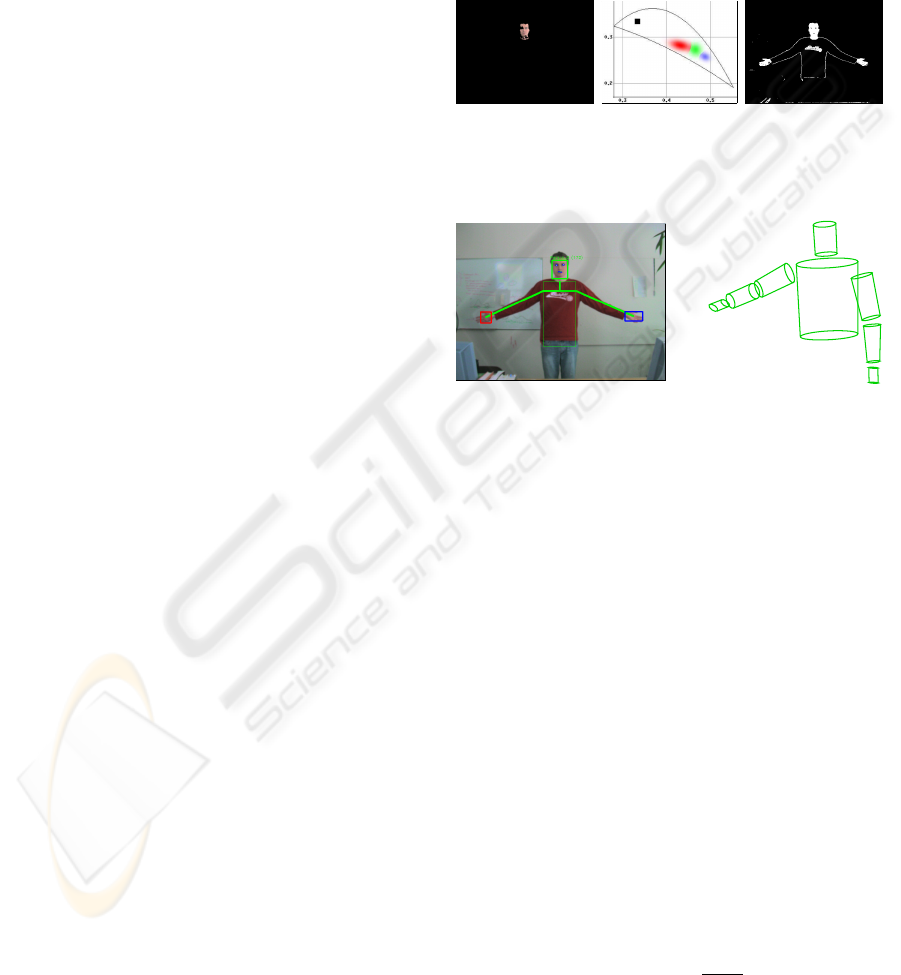

Figure 4: (a) Skin color training pixels produced from the

face detection, (b) example skin locus and learned mixture

of gaussians in RG-color space, (c) resulting segmentation.

(a)

(b)

Figure 5: (a) Detected head and hands location, (b) articu-

lated 3D model for the upper body.

Estimating the correct pose is even more difﬁcult

on a single frame than on a sequence where also tem-

poral dependencies could be used. Restrictions on the

scenario and the expected poses help to simplify the

task. For initialization, we assume the person to be

facing the robot with the arms outstretched. As a con-

sequence, the model can be constrained to be oriented

towards the camera and the arm limbs to move only in

a plane parallel to the image plane, having the elbow

relaxed. This allows reducing the number of DOF to

be determined during initialization to only 5 parame-

ters: Three for the model position and one for the el-

evation of each arm. In situations in which no hands

can be found, the arms are assumed to be close to the

torso, reducing the dimensionality d of the parameter

space further to 3.

The 2D distances between the detected face, d

and left and right hand features, d

and d

, and the

corresponding model limbs are converted into likeli-

hoods using the following Gaussian weighting func-

tion:

p(c) = exp



−

)

2σ



(1)

where the standard deviations σ

are choosen to cover

the maximal observable distance depending on the

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

538

image size for each utilized feature c ∈ {F, HL, HR}.

For a number of different poses, these distances are

almost the same, as the positions of the face and the

hands in the image will not change drastically when

translating the model in the depth direction. The like-

lihood p(c) that a model pose x

at the current time t

causes the observation y

can be formulated as

p(y

| x

) =

∏

c∈{F,HL,HR}

p(c) (2)

with p(c) = 1 if the feature is not present. In the d-

dimensional space R

of all possible poses, an initial-

ization particle set SI

= {s

(n)

}

n=1

is used to represent

the observation density with the associated weights

(n)

}

n=1

distributed according to p(x

| y

) and w

normalized to

∑

n=1

(n)

= 1.

Using this particle set, we employ a kernel parti-

cle ﬁlter for searching the pose space for initialization

postures agreeing with the results from the face and

hand detection. The result is a particle distribution

estimating the likelihood density in the reduced pa-

rameter space. The distribution indeed shows a good

estimation seen from the image plane perspective, but

it covers a wider range in the depth direction, as the

distance to the camera respective the size of the model

can only be determined indirectly.

Up to this point, the problem of ﬁtting the model

to three given points in the image can be solved much

more easily, e.g., making use of inverse kinemat-

ics. But using a multiple-hypothesis approach for

both tracking and initialization gives us the advan-

tage of allowing for the initialization procedure to

generate more than one possible outcome and also

leaves room for further extensions of the presented

approach, which will possibly result in higher dimen-

sional statespaces.

2.6 3D Body Model Tracking

For estimating the pose of the human in a new frame,

we apply the monocular 3D body model tracking al-

gorithm presented in (Schmidt et al., 2006). The hu-

man upper body is tracked using the model depicted

in Figure 5 with 14 DOF. To match a given pose of

the model with the image data, the 3D body model is

backprojected into the image resulting in a 2D poly-

gon representation. For each limb, several cues based

on color (skin, mean color) and/or intensity (edge,

ridge) are evaluated. To give an example, the edge

cue evaluates the intensity gradient at the boundary of

the 2D polygon representing the arm limb. The like-

lihood for a speciﬁc pose is obtained by fusing the

ﬁlter responses for all cues and all limbs and transfer-

ring them into likelihoods with a cue-speciﬁc weight-

ing function representing the expected characteristics

of the cue. Combining multiple cues makes the es-

timation more robust against local disturbances but

typically also results in a high number of false local

maxima in the parameter space.

The problem of estimating the correct pose of the

model for each image can now be expressed as ﬁnd-

ing the one local maximum in the high-dimensional

parameter space, that ﬁts best the current pose while

still obeying all given constraints, e.g., the joint angle

limits. This pose estimation for a complicated articu-

lated model from monocular observations is a highly

ambiguous task. The resulting posterior likelihoods

over human pose space are typically multi-modal with

a high number of false local maxima. When evolv-

ing over time, new modes often emerge from regions

with low probability while existing modes degener-

ate or even vanish. To track the correct pose of the

human, the structure of the high-dimensional proba-

bility density has to be efﬁciently exploited, taking

into account the constraints and the dynamics of the

model. The utilized kernel particle ﬁlter (Schmidt

et al., 2006) propagates such multi-modal distribu-

tions and provides a probabilistic search for the best

matching body conﬁguration.

A major problem of all tracking approaches is the

tendency to get stuck in false local maxima. To over-

come this drawback, the presented approach adds a

recovery component to the existing tracking frame-

work. Recovering from tracking errors is achieved by

inserting a ﬁxed percentage α (e.g., 5% - 20%) of par-

ticles from the initialization distribution SI

into the

tracking distribution ST

{ST

}

bα·Nc

n=1

= Φ(SI

, n) (3)

with Φ(SI

) sampling from the distribution accord-

ing to the weight of the particles. These particles do

not necessarily represent the correct pose and in most

cases will be neglected during the tracking process. If

the tracking gets stuck in a wrong pose, the recovery

particles explore the parameter space in a region out-

side of the current search radius of the tracking pro-

cess while they are still more directed - and therefore

more likely to resemble the correct pose - than ran-

domly distributed particles.

2.7 Integration

All the modules have been implemented as plugins for

a graphical plugin shell (L

omker et al., 2006), which

provides a framework for image grabbing, display,

etc. The plugins are written in C/C++, making some

of them use of the OpenCV (Intel, 2006) libraries for

image analysis. An integration architecture (Fritsch

AUTOMATIC INITIALIZATION FOR BODY TRACKING - Using Appearance to Learn a Model for Tracking Human

Upper Body Motions

539

and Wrede, 2007) is used for communication between

different modules, which allows us to split the sys-

tem up into multiple instances distributed to differ-

ent computers in a network or to different cores on

the same computer. Currently, the system is divided

into four instances: 1) face and hand detection, 2)

color modeling, 3) initial distribution generation and

4) body model tracking.

3 EXPERIMENTS

For evaluation, the system has been applied to image

sequences of three persons pointing at objects on a

table with 836 frames in total.

(a) (b) (c) (d)

Figure 6: Results for subjects B (a-b) and C (c-d) from

tracking with learned body model: (a) and (c) show the most

likely poses, (b) and (d) the ﬁnal tracking results.

Given the position of the face in an image, either

the height of the person or the distance to the camera

can be determined due to the monocular setup. For the

experiments we assumed a ﬁxed height for the person,

thus only varying the distance during initialization.

Ground truth has been generated by manually an-

notating the position of the hands and the head. To

show the effectiveness of the presented approach both

for initialization and recovery from tracking failures,

the automatic initialization setup is compared to the

manually initialized setup as described in (Schmidt

et al., 2006). For the latter, we still need a relatively

high number of particles to ensure robust tracking

over a longer image sequence, furthermore it is nec-

essary to adjust the measures of the body model for

each person accurately. We conﬁgure the system in

two ways: 1) 1500 particles and 6 meanshift itera-

tions, 2) 500 particles and three meanshift iterations.

The automatically initialized system is also set up to

use 500 particles, three mean shift iterations but uses

a generic body model for all subjects. For each it-

eration, α = 5% recovery particles are inserted into

the tracking distribution. All setups employ the same

cues with identical parameterization.

Figure 6 shows typical tracking results using the

automatically acquired body model. For Figure 6(a)

and (c) the most likely poses are colord white, less

Table 1: Position error RMSE (root mean squared error) and

standard deviation σ in pixel. Comparison of three setups:

manual initialization with 1500 particles and with 500 par-

ticles, automatic initialization and error recovery with 500

particles (presented approach). The colored mean error val-

ues for subject B can also be seen in Figure 7.

manual initialization automatic init

1500 particles 500 particles 500 particles

sequence # pict. RMSE σ RMSE σ RMSE σ

subj A 318 18.73 13.87 52.65 41.31 30.11 26.05

subj B 242 14.52 8.58 32.86 23.26 21.96 22.13

subj C 276 12.04 10.14 72.64 38.30 54.82 57.76

200 250 300 350 400

100

150

image #

error [pixel]

automaic init

500 particles

1500 particles

see image in

Figure 6 (a,b)

Figure 7: Comparing tracking errors of subject B for man-

ual and automatic initialization setups. Also compare to Ta-

ble 1. Note the tracking loss around frames 265 and 340

and the recovery afterwards.

likely poses red. Note the multi-modal distribution

in Figure 6(c) due to ambiguous measurements of the

pose. Figure 6(b) and (d) show the ﬁnal tracking re-

sult and the learned shirt color.

Table 1 shows the tracking quality as the differ-

ences between the annotated position of the right hand

and the model position projected into the image plane

as RMSE and standard deviation in pixel for each se-

quence. For the presented approach, the RMSE stays

between 20 – 55 pixel, which is accurate enough for

detecting gestures in a human robot interaction sce-

nario (Haasch et al., 2005). In contrast to the exist-

ing tracking approach, the standard deviation is much

higher for the presented approach, which suggests

that the tracking suffers from losses but is often able

to recover again as depicted in Figure 7 taking sub-

ject B as an example (blue line). Tracking gets lost

around frames 265 and 340, but as soon as the situa-

tion gets less complicated, the inserted recovery parti-

cles are able to guide the tracking towards the correct

pose again. Thus, the loss is only temporary and re-

sults in a comparably low RMSE as for 1500 particles

(red line), but using only a third of the number of par-

ticles. Employing an identical parameterization using

500 particles but without the automatic initialization

and recovery behaviour leads to an even less accurate

tracking (green line) with a 30% higher error in aver-

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

540

age. For subject C, the system tends to lose tracking

over and over again for sophisticated postures, e.g.,

the hand pointing directly towards the camera, where

also the recovery component does not work result-

ing in high errors for both approaches. The scaled

standard body model does not suit this subject well

enough. This is also reﬂected by the high RMSE of

more than 70 pixel. Actually, the tracking was stuck

in one position while the person moved, producing

varying error values. Robust tracking for this subject

is nevertheless possible. The former approach applied

a personalized body model and an increased compu-

tational effort, yielding accurate results. This clearly

shows the limits of the presented approach and calls

for automatically adapted model kinematics and limb

sizes

The usability of the presented system for the hu-

man robot interaction is much higher compared to the

former tracking approach. Persons interacting with

such a system now have the possibility to repeat un-

recognized gestures.

4 CONCLUSIONS AND

OUTLOOK

In this paper we have deﬁned an approach to acquire

a human body model in the human robot interaction

context. In that scenario, it is expected that the hu-

man will try to make himself or herself visible. We

can therefore make use of a currently available face

detector as a starting hint.

Following this idea, we have built a prototype sys-

tem that makes use of a robust face detection algo-

rithm and some common sense considerations con-

cerning the given task and scenario during a human

robot interaction session. The system is able to pro-

vide initialization data and also validation data to a

tracking framework. This second feature is of great

interest for building a robust 3D body tracker. The

main features of this prototype are that the process is

performed close to real time with a monocular and un-

calibrated camera, without the requirement of mark-

ers nor the restriction of a static camera. The system is

currently performing asynchronously. Face and hand

detection perform in real-time while initialization and

tracking still require more computational power and

provide results in the order of one frame per second

without optimized code.

The prototype presented here has tackled a re-

duced number of sequences, the achieved results are

promising. Appearance based initialization of the

model and initialization of the body tracking system

performs robustly throughout the applied sequences,

making the system more usable for human robot in-

teraction. The possibility to validate the tracking and

recover it from errors is an important step towards ro-

bust system design.

For that reason, in short term the prototype re-

quires a harder experimental evaluation setup consid-

ering different scenarios (e.g., sitting at a desk), more

sophisticated conditions (e.g., skin colored back-

grounds, moving camera), and a larger set of individ-

uals and gestures performed. For further evaluation,

using 3D ground truth data, e.g., (Sigal and Black,

2006b) is desirable to also capture the depth accuracy

of the tracking system.

Automatic and appearance independent body

model acquisition provides new cues which can be

of great use not only to improve the face detection,

but also for person tracking or identiﬁcation. The lat-

ter argument is not new, e.g., humans do not make

use of inner facial features only for recognition (Sinha

and Poggio, 1996). In this sense, multimodal recogni-

tion has recently become a topic of interest. Many of

these approaches, however, mainly focus on face and

voice modalities, neglecting kinematic properties of

the body or simple features such as shirt color that do

not change during an interaction session. Additional

cues can provide greater robustness in the context

of real world recognition applications where a robot

is moving, environmental conditions are not control-

lable or people are not permanently facing the robot.

ACKNOWLEDGEMENTS

Work partially funded by the Spanish Ministry of Educa-

tion and Science and FEDER funds (TIN2004-07087) and

the Department of Universities and Research of the Canary

Islands Government.

REFERENCES

Bissacco, A., Yang, M.-H., and Soatto, S. (2007). Fast hu-

man pose estimation using appearance and motion via

multi-dimensional boosting regression. In Proceed-

ings of IEEE Computer Society Conference on Com-

puter Vision and Pattern Recognition (CVPR).

Brox, T., Rosenhahn, B., Kersting, U., and Cremers, D.

(2006). Nonparametric density estimation for human

pose tracking. In Franke, K., Mueller, R., Nicko-

lay, B., and Schaefer, R., editors, Pattern Recognition

2006, DAGM, volume 4174, pages 546–555, Berlin.

LNCS, Springer-Verlag, Berlin Heidelberg.

Castrill

on Santana, M., D

eniz Su

arez, O.,

Hern

andez Tejera, M., and Guerra Artal, C. (2007).

ENCARA2: Real-time detection of multiple faces

at different resolutions in video streams. Journal of

AUTOMATIC INITIALIZATION FOR BODY TRACKING - Using Appearance to Learn a Model for Tracking Human

Upper Body Motions

541

Visual Communication and Image Representation,

pages 130–140.

Fritsch, J., Lang, S., Kleinehagenbrock, M., Fink, G. A.,

and Sagerer, G. (2002). Improving adaptive skin color

segmentation by incorporating results from face de-

tection. In Int. Workshop on Robot and Human Inter-

active Communication (ROMAN), pages 337–343.

Fritsch, J. and Wrede, S. (2007). Software Engineering for

Experimental Robotics, volume 30 of Springer Tracts

in Advanced Robotics, chapter An Integration Frame-

work for Developing Interactive Robots, pages 291–

305. Springer, Berlin.

Gavrila, D. M. (1999). The visual analysis of human move-

ment: A survey. Computer Vision and Image Under-

standing: CVIU, 73(1):82–98.

Haasch, A., Hofemann, N., Fritsch, J., and Sagerer, G.

(2005). A multi-modal object attention system for a

mobile robot. In Int. Conf. on Intelligent Robots and

Systems, pages 1499–1504.

Humanoid Animation Working Group (2007). Information

technology – Computer graphics and image process-

ing – Humanoid animation (H-Anim). http://www.h-

anim.org/.

Intel (2006). Intel Open Source Computer Vision Library,

v1.0. www.intel.com/research/mrl/research/opencv.

Johansson, G. (1973). Visual perception of biological mo-

tion and a model for its analysis. Perception and Psy-

chophysics, 14:201–211.

olsch, M. and Turk, M. (2004). Robust hand detection. In

Proceedings of the International Conference on Auto-

matic Face and Gesture Recognition.

Lee, M. and Cohen, I. (2004). Human upper body pose es-

timation in static images. In Proc. of European Con-

ference on Computer Vision ECCV), pages 126–138.

omker, F., Wrede, S., Hanheide, M., and Fritsch, J. (2006).

Building modular vision systems with a graphical plu-

gin environment. In Proc. of International Conference

on Vision Systems, page 2, St. Johns University, Man-

hattan, New York City, USA. IEEE.

McNeill, D. (1992). Hand and Mind: What Gestures Reveal

about Thought. University of Chicago Press.

Moeslund, T. B. and Granum, E. (2001). A survey of com-

puter vision-based human motion capture. Computer

Vision and Image Understanding: CVIU, 81(3):231–

268.

Ramanan, D. and Forsyth, D. A. (2003). Finding and track-

ing people from the bottom up. In Conf. on Computer

Vision and Pattern Recognition, volume 2, pages 467–

474.

S. Knoop, S. Vacek, R. D. (2006). Sensor fusion for 3d hu-

man body tracking with an articulated 3d body model.

In Proceedings of the IEEE International Conference

on Robotics and Automation, pages 1686–1691, Walt

Disney Resort, Orlando, Florida.

Schmidt, J., Kwolek, B., and Fritsch, J. (2006). Kernel

Particle Filter for Real-Time 3D Body Tracking in

Monocular Color Images. In Proc. of Automatic Face

and Gesture Recognition, pages 567–572, Southamp-

ton, UK. IEEE.

Schneiderman, H. and Kanade, T. (2000). A statistical

method for 3d object detection applied to faces and

cars. In IEEE Conference on Computer Vision and

Pattern Recognition, pages 1746–1759.

Sidenbladh, H., Black, M., and Fleet, D. (2000). Stochastic

tracking of 3D human ﬁgures using 2D image motion.

In Europ. Conf. on Computer Vision, pages 702–718.

Sigal, L., Bhatia, S., Roth, S., Black, M. J., and Isard, M.

(2004). Tracking loose-limbed people. In Conf. on

Computer Vision and Pattern Recognition, volume 1,

pages 421–428.

Sigal, L. and Black, M. J. (2006a). Predicting 3d people

from 2d pictures. In IV Conference on Articulated Mo-

tion and Deformable Objects - AMDO 2006, volume

4069, pages 185–195, Mallorca, Spain. IEEE Com-

puter Society, LNCS.

Sigal, L. and Black, M. J. (2006b). Synchronized video

and motion capture dataset for evaluation of articu-

lated human motion. Technical Report Techniacl Re-

port CS-06-08, Brown University.

Sinha, P. and Poggio, T. (1996). I think I know that face ...

Nature, 384(6608):384–404.

Sminchisescu, C. and Triggs, B. (2005). Mapping minima

and transitions of visual models. Int. J. of Computer

Vision, 61(1).

Stenger, B., Thayananthan, A., Torr, P., and Cipolla:, R.

(2004). Hand pose estimation using hierarchical de-

tection. In ECCV Workshop on HCI, pages 102–112.

Storring, M., Moeslund, T., Y.Liu, and Granum, E. (2004).

Computer vision-based gesture recognition for an

augmented reality interface. In 4th IASTED Inter-

national Conference on VISUALIZATION, IMAGING,

AND IMAGE PROCESSING, pages 766–771.

Swain, M. J. and Ballard, D. H. (1991). Color indexing.

International Journal on Computer Vision, 7(1):11–

32.

Taycher, L., Shakhnarovich, G., Demirdjian, D., and Dar-

rell, T. (2006). Conditional random people: Tracking

humans with crfs and grid ﬁlters. In IEEE Conference

on Computer Vision and Pattern Recognition (CVPR),

pages 222–229.

Urtasun, R., Fleet, D., and Fua, P. (2005). Monocular

3d tracking of the golf swing. In IEEE Conference

on Computer Vision and Pattern Recognition (CVPR),

page 1199, San Diego.

Viola, P. and Jones, M. J. (2004). Robust real-time face

detection. International Journal of Computer Vision,

57(2):151–173.

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

542
