3D ARTICULATED HAND TRACKING BY NONPARAMETRIC

BELIEF PROPAGATION ON FEASIBLE CONFIGURATION

SPACE

Tangli Liu, Wei Liang and Yunde Jia

School of Computer Science&Technology, Beijing Institute of Technology, 5 South Zhongguancun Street

Haidian District, Beijing 100081, P. R. China

Keywords: Articulated hand tracking, graphical model, NBP.

Abstract: An efficient articulated hand tracking method underlying the 3D graphical model from monocular image

sequences is proposed in this paper. Due to the inaccurate dependences among the components of human

hand leading to distorted estimates in previous work, we design a pertinence graphical model combined

with domain–specific heuristics among the components of human hand describing the hand’s 3D structure,

kinematics, and dynamics. The proposed model decomposes multivariate, joint distributions into a set of

local interactions among small subsets. The modular structure provides an intuitive language for expressing

domain–specific knowledge about the variable relationships, and facilitates tracking each hand component

independently. And then, we provide a novel belief propagation algorithm to inference in hand graphical

model. The algorithm can accommodate an extremely broad class of potential functions besides the

potentials appropriate for our model. The experimental results show the robustness and efficiency of

tracking each hand component.

1 INTRODUCTION

Tracking unrestricted 3D human hand movement

has fundamental importance for human-computer

interaction (HCI). Articulated human hand tracking

is inherently a very difficult problem due to: 1) high

degree of freedom (about 27 degrees) of the

articulated hand movement (Wu et al., 2005); 2)

occlusion among hand components; 3) the posterior

distribution of hand configuration is multimodal and

spiky and so forth.

The existing methods for tracking hand motion

could be divided into two categories. One is the

appearance-based approach that estimates articulated

motion states directly from images by learning the

mapping from an image feature space to the hand

configuration space. The other is the model-based

approach that estimates articulated motion states by

projecting a 3D model on to the image space and

then compares the projections with the observations

(Stenger et al., 2001; Wu et al., 2001; Isard and

Blake, 1998). One advantage of the former is that

real time tracking can be processed. However, large

and dense reference images should be collected in

advance to get an accurate estimation. Also,

effective learning or retrieval in a large image set is

very demanding. The latter approach can provide an

accurate estimation when a 3D model is well

initialized, while inevitably perform searching in a

high dimensional space.

The performance of a model-based tracker

depends on the type of the used model. The tracking

results are more accurate if the model is more

complex enough. However, there is a trade-off

between accurate modelling and efficient

observation (Lin et al., 2002).

Fortunately, the natural human motion is often

highly constrained and the motions among various

joints are closely correlated (Chao et al., 1989). Till

now some simple and closed form constraints have

been found in biomechanics and applied to hand

motion analysis (Tony et al., 2006), further

investigations on the representations and utilizations

of complex motion constraints and the configuration

space have not yet been conducted. With the rich

restrictions of hand motion, the intrinsic and feasible

hand motion seems to be constrained within a subset

(or the feasible configuration space) of original high

DOF (degree of freedom) space. Once the feasible

508

Liu T., Liang W. and Jia Y. (2008).

3D ARTICULATED HAND TRACKING BY NONPARAMETRIC BELIEF PROPAGATION ON FEASIBLE CONFIGURATION SPACE.

In Proceedings of the Third International Conference on Computer Vision Theory and Applications, pages 508-513

DOI: 10.5220/0001075405080513

 SciTePress

configuration space is characterized, it could

dramatically reduce the search space in hand

configuration space.

Graphical models provide a powerful

framework for specifying precise, modular

descriptions of computer vision tasks and

developing corresponding learning and inference

algorithms. Inference algorithms for visual scenes

must then be tailored to the high–dimensional,

continuous variables and complex distributions. The

graphical model decomposes multivariate, joint

distributions into a set of local interactions among

small subsets. The modular structure provides an

intuitive language for expressing domain–specific

knowledge about the variable relationships, and

facilitates tracking each hand component

independently. Recently, graphical models are

widely used in tracking articulated objects such as

human hand and body (Isard, 2003; Sigal et al.,

2004; Frey et al., 1998). Sudderth et al. apply a

graphical model describing the 3D hand structure,

kinematics, and dynamics (Sudderth et al., 2004).

This graph encodes global hand pose via the 3D

position and orientation of several rigid components,

and thus exposes local structure in a high-

dimensional articulated model. The tracking

problem is formulated as one of inference in a

graphical model and belief propagation (Frey et al.,

1998) can be used to estimate the pose of the hand at

each time-step.

In this paper, we extract the occlusion

constraints from the image cues and syncretize these

relationships with the traditional restrictions for

articulated human hand tracking. In section 4, the

experimental results demonstrate our model can deal

with self occlusion while tracking hand. Then, we

provide a novel belief propagation algorithm to

inference over hand graphical model. The algorithm

can accommodate an extremely broad class of

potential functions besides the potentials appropriate

for our model.

Our work has three main contributions: 1) We

introduce occlusion constraints into the existing

models to allow graphical model-based hand

tracking method handle the self-occlusion instance.

2) Novel potential functions appropriate for the

proposed hand model are incorporated in the

tracking process, thus leading to a very efficient

computation. 3) We design a more efficient belief

propagation method by embedding Continuously

Adaptive Mean Shift (CAMSHIFT) algorithm in

sampling procedure of NBP to focus the samples on

the more likely locations. Moreover we use

sequential density mode propagation in the feasible

configuration space derived from the above

procedure to accelerate the efficiency of NBP

remarkably.

2 A SELF-ASSEMBLING HAND

MODEL

Human hand is composed of sixteen approximately

rigid components: three phalanges or links for each

finger and thumb, as well as the palm (Wu and

Huang, 2001). Following Stenger’s work (Stenger et

al., 2001), we model each rigid body by cylinders

with fixed size, as illustrated in figure 1(b) and the

real hand image is showed by figure 1(a). These

geometric primitives are well matched to the true

geometry of the hand, and in contrast to 2.5D

“cardboard” models (Wu et al., 2001), allow

tracking from arbitrary orientations.

(a) (b) (c)

(d) (e) (f)

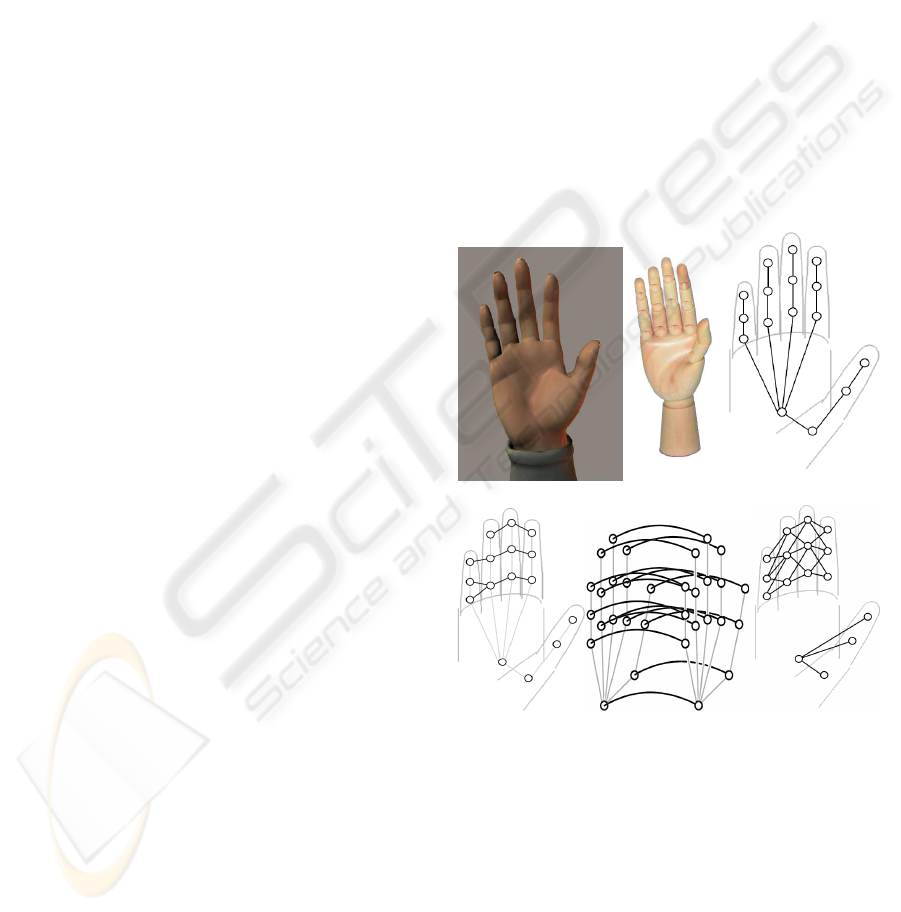

Figure 1: Self-assembling hand model: (a) human hand (b)

cylinders with fixed size to represent each hand phalanx

temporal dynamics (f) occlusion relationships.

Each component has an associated

configuration vector defining the component’s

position and orientation in 3D space. Placing each

part in a global coordinate frame enables the part

detectors to operate independently while the full

hand is assembled by inference over the graphical

model.

3D ARTICULATED HAND TRACKING BY NONPARAMETRIC BELIEF PROPAGATION ON FEASIBLE

CONFIGURATION SPACE

509

2.1 Kinematic Representation and

Constraints

To determine the image evidence for a given hand

configuration, the 3D position and orientation (or

pose) of each hand component should be

determined. As traditional graphical models, we

assume the variables in a node are independent of

those in non-neighbourhood. Each

component/phalange is modelled by a cylinder

having two fixed (person specific) and six estimated

parameters. The fixed parameters

(, )

iii

correspond to the phalange’s length, width

respectively. The estimated parameters

(,)

iii

represent the configuration of the part

i in a global

coordinate frame where

XR∈

and

(3)

∈

are

the 3D position of the proximal joint and the angular

orientation of the part respectively. The rotations are

represented by unit quaternions. The configuration

of the whole hand is represented by

}

{

116

,,eeΕ= ⋅⋅⋅

Let

be the set of all pairs of rigid bodies

which are connected by joints, or equivalently the

edges in the kinematic graph of figure 1(c).The

kinematics constraints are written as

(, )

ij i j

if the e e is valid rigid body

configuration associated with

ome setting of the angles of i j

otherwise

⎧

⎪

⎨

⎪

⎩

(1)

Viewing the component configurations as random

variables, the following prior explicitly enforces all

constraints implied by the original joint angle

(, )

() ( , )

ij i j

ij E

xxx

∈

∝

∏

(2)

It is noticeable that the position and orientation of

each finger are determined by an independent set of

joint angles. So,

(.)

is statistically independent.

The kinematics constraints avoid irregular hand

configuration.

2.2 Structural Constraints

Obviously, the hand’s joint angles are coupled

because different fingers can never occupy the same

physical volume. As proposed by Sudderth et

al.(Sudderth et al., 2004), the structure constraints

(, )

ij i j

are written as

1||() ()||

(, )

ij ij

ij i j

eX e X

otherwise

−>

⎧

⎨

⎩

(3)

where

,ij

is a threshold determined by fixed

parameters

and

. So the structural prior is

(, )

() ( , )

ij i j

ij E

xxx

∈

∝

∏

(4)

describes those pairs of bodies which are likely

to intersect (Figure 1(d)). This constraint prevents

different fingers from tracking the same image data.

2.3 Temporal Dynamics

The hand configuration at time t is denoted by

and its history is

{, ,}

⋅⋅⋅ . Similarly the set

of image features at time t is

z with history

{, ,}

⋅⋅⋅ . All these methods estimate

time t+1 through Bayesian formulation.

11 11 1

(| ) (|)(|)

tt tt tt

xZ pzxpxZ

++ ++ +

∝

(5)

where

(|) (|)(|)

tt tt ttt

px Z px x px Z dx

∫

. A

general assumption is made for the probabilistic

framework that the object dynamics form a temporal

Markov chain. So the new state is conditioned

directly only on the immediately preceding state

，

independent of the earlier history. And we assume

that for each component,

(|)

px x

represents our

dynamical model of hand motion which obeys the

Gaussian distribution.

2.4 Occlusion Constraints

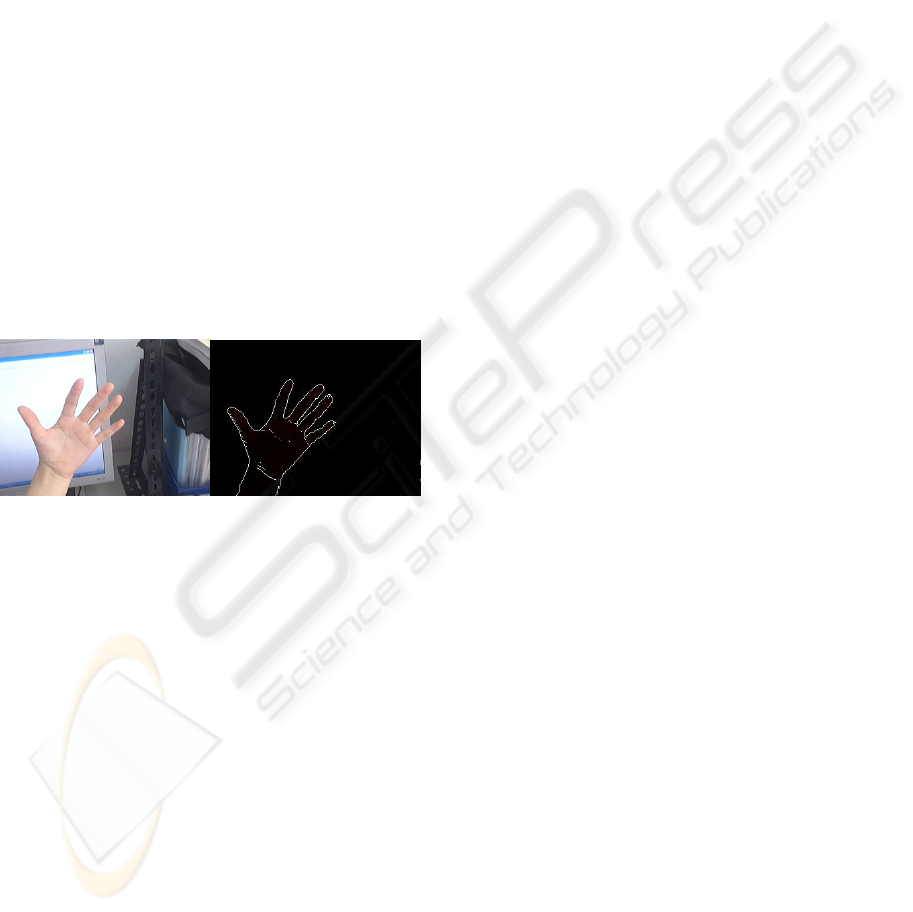

We employ edge (Figure 2) and color cues to

construct the observation model. Edges and colors

should be transformed into likelihood measurements

consistently with the hand constraints described

above. We utilize both color and edge cues by

selecting the technique of histograms, therefore the

resulting probability distribution forms through a

Bayesian formulation are represented as

(|)

pU x

and

(|)

(

denotes 3D hand pose and

, the

image). We let

u represent the color and intensity

of an individual pixel, and

{}Uu

=∈

the full image

defined by some rectangular pixel lattice

In this paper, the cylinder model of each hand

component with the hypothetical configuration is

projected in the real image plan. A gradient based

edge detection mask is used to detect edges of the

real image. For the likelihood described by

occlusion–sensitive color and edge cues, the

occlusion masks

k must be chosen consistently

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

510

with the 3D hand pose

. These consistency

constraints can be expressed by the following

potential function

()

0,(),

(, ,)

jij

jiu i

if x occludes x u x

Ox k x

and k

otherwise

∈

⎧

⎪

⎨

⎪

⎩

(6)

() ()

{| },

iiu iu

if pixel u in the projection

kku k

of i is occluded by other part

otherwise

⎧

⎪

=∈ =

⎨

⎪

⎩

(7)

()

denotes the set of pixels in the projected

silhouette of 3D hand pose

The following potential encodes all of the

occlusion relationships between rigid bodies and

,()()

(,, , ) ( , , )(, , )

ijiijj jiu i iju j

kxk Oxk xOxk x

∈

∏

(8)

These occlusion constraints exist between all pairs

of nodes. However, as with the structural prior, we

enforce only those pairs (Figure 1(f)) most prone to

occlusion

(,) , ,

(, )

(, , )

Oxz ij i i j j

ij E

xkx k

∈

∝

∏

(9)

Figure 2: Feature extraction. A real image is on the left,

the resulting edge is on the right.

3 EFFICIENT BELIEF

PROPAGATION ON FEASIBLE

CONFIGURATION SPACE

3.1 Potential Functions

We have shown that a local representation of the

geometric hand model’s configuration

allows

(| )

px Z

, the posterior distribution of the hand

model at time

t given observed image

z , to be

expressed as

(| ) ()()( |,)( |,)

() () ( | , ) ( | ,)

tt t t ttt ttt

KSc e

tt ttt ttt

KS c iie ii

pxZ p xpxpZ xkpZ xk

p xp x pZ xk pZ xk

∝

∏

(10)

When

video frames are observed, the overall

posterior distribution then equals

(| ) ( | ) ( | )

tt tt

px Z px Z p x x

−

∝

∏

(11)

Equation (11) is an example of a pairwise Markov

random field, which takes the following general

form

(, )

(| ) (, ) (,)

ijii ii

ij E i

xZ xx xZ

ψψ

∈∈Θ

∝

∏

(12)

Here, the nodes

correspond to the sixteen

components of the hand model at each time point,

and the edges E arise from the union of the graphs

encoding kinematic, structural, and temporal

constraints. Visual hand tracking can thus be posed

as inference in graphical model. Thus, the resulting

distribution probability are factored into two

potential types: one can be considered as the

relationships between two neighbouring nodes in the

hyper graph which encodes kinematic, structural,

and temporal constraints, another can be viewed as

the node’s local information at each point at time

including image cues and occlusion instances. This

framework is general for tracking articulated objects

besides human hand by varying the potential

functions.

3.2 NBP Embedded With CAMSHIFT

Inferring the hand pose in our framework is defined

as estimating belief in the graphical model. To cope

with the continuous 6D parameter space of each

hand component, the non-Gaussian conditionals

between nodes, and the non-Gaussian likelihood, we

develop an efficient nonparametric belief

propagation algorithm underlying the work in

(Sudderth et al, 2004).

Each NBP message update involves two stages:

sampling from the estimated marginal, followed by

Monte Carlo approximation of the outgoing

message. NBP uses mixture of Gaussians to

approximate the continuous potential functions of

the graph. For each iteration, the parameters of the

mixture of Gaussians are recomputed using Gibbs

sampling. The computational complexity for each

node is

()OdkM

, where d is the degree of the node,

M the number of samples and k the fixed iteration

number of the Gibbs sampler. To ensure good

approximation, the Gibbs sampler require a large

number of particles (a typical setting is M = 100 and

κ = 100, which make the NBP algorithm inevitably

slow. According to (Sudderth et al, 2004), with 200

3D ARTICULATED HAND TRACKING BY NONPARAMETRIC BELIEF PROPAGATION ON FEASIBLE

CONFIGURATION SPACE

511

particles, the matlab implementation requires about

one minute for each NBP iteration.

Repeatedly sampling from products of mixture

of Gaussians makes the algorithm computationally

very expensive. To tackle this problem we embed

Continuously Adaptive Mean Shift (CAMSHIFT)

algorithm into NBP to drive the samples around the

more likely locations, meanwhile its scalable widow

size increases the accuracy of projected rigid hand

component size. Actually our method merge the

“indistinguishable” component by mode detection

we can achieve a much more compact (

'NN

)

approximation of the products of the messages

represented as mixture of Gaussians. (Suppose that

the approximate density has

unique modes and

is the total number of the components of d input

mixtures of M Gaussians).

Instead of approximating the products of d

messages in one step, the sequential density

approximation achieves the compact Gaussian

mixture representation by d-1 step. That is, first

multiply two messages represented as the Gaussians

mixtures of M components and apply above density

approximation algorithm. The approximated

compact representation is then multiplied with the

third nonparametric messages. The density

approximation is applied again. The above

procedure is repeated until the dth nonparametric

message is multiplied and approximated. The

complexity of sequential density approximation is

(( 1) )Od M−

, which is quite acceptable. With

CAMSHIFT method and the sequential density

mode propagation, the sampling procedure focus on

the feasible configuration space leading to efficient

inference over the articulated hand model.

4 EXPERIMENTAL RESULTS

We test our method by tracking hand with no special

marker from monocular image sequences in an

indoor environment. Quantitative comparison of

hand motion angles is performed with “ground

truth” from 5DT Cyber Glove. Figure 6 depicts the

differences between our tracking results and the

ground truth. Since the 5DT Cyber Glove does not

provide the function of measuring the displacement

of the hand movement, the tracking results are

presented in Figure 3, 4, 5 intuitively without the

corresponding quantitative analysis.

For notational convenience, we define a belief

propagation order: from the fingertip to the palm is

“forward” and the inverse is “backward”. In this

paper, we perform message update forward and then

backward because the message update order

influences the tracking results according to the

efficient belief propagation. Each hand joint placed

in global coordinate frame enables the joints

observation to operate independently while the

whole hand is assembled by the process of graphical

model inference.

38 48 56

60 72 96

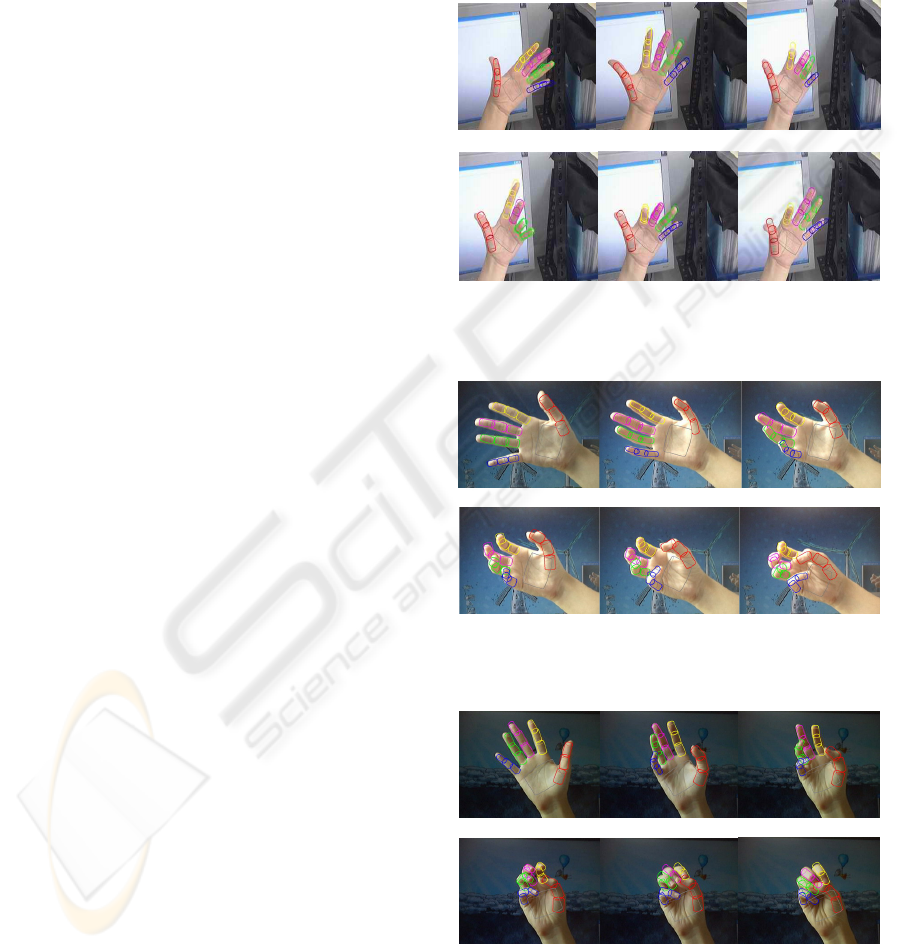

Figure 3: The first tracking results are at the time of 38,

48, 56, 60, 72, 96 frame.

0 9 39

49 69 89

Figure 4: The second tracking results are at the time of 0,

9, 39, 49, 69, 89 frame.

0 22 32

53 63 75

Figure 5: The third tracking results are at the time of 0, 22,

32, 53, 63, 75 frame.

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

512

The comparisons between tracking results from

the first image series shown in figure 3 and ground

truth from 5DT Cyber Glove are shown in Figure 6.

The NBP in feasible configuration space based

articulated 3D tracker can achieve 2.5 frames/second

in average for the shown 320 × 240 image series on

a Pentium (R) D 3.4G desktop.

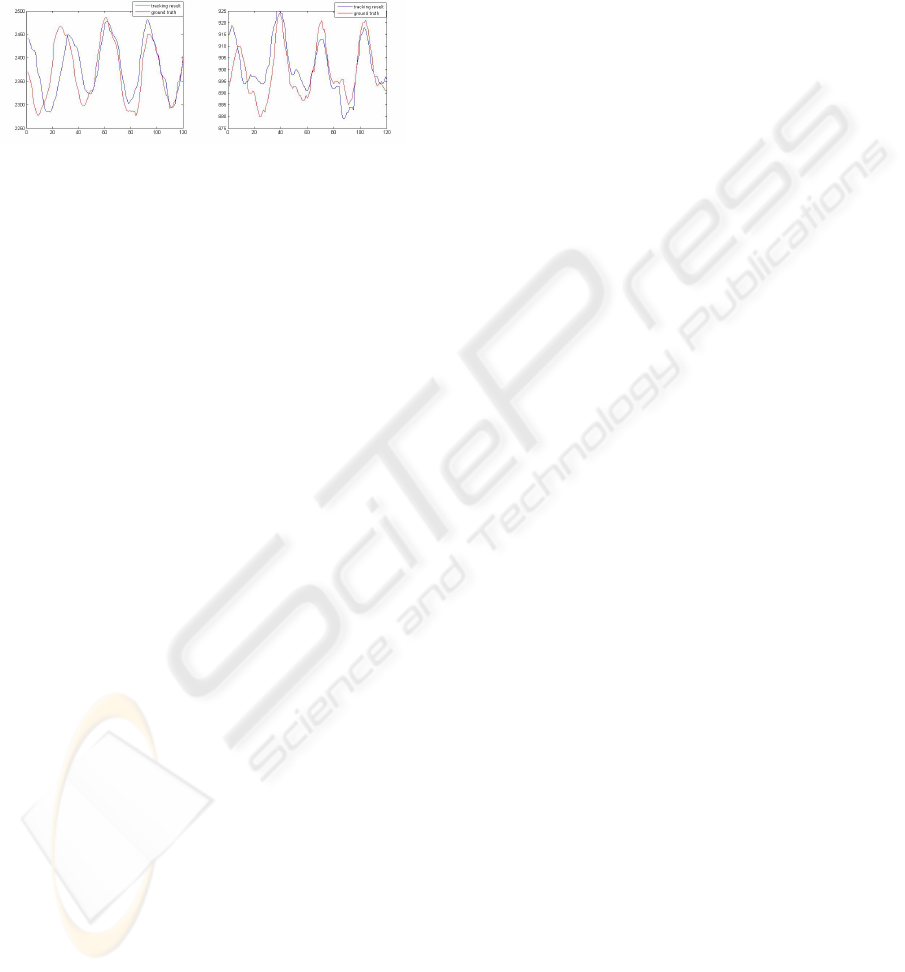

Figure 6: The comparison between our tracking results of

figure 3 and the ground truth. The abscissa represents

training data (frames), the ordinate represents phalange’s

angle. (left) distal phalanx of middle finger, (right) distal

phalanx of little finger.

5 CONCLUSIONS

Due to the high dimensionality of human hand

incurring complexity of hand tracking, graphical

models are widely used to decompose multivariate,

joint distributions into a set of local interactions. In

addition to the traditional physiological constraints

and temporal information, we also introduce

occlusion constraints of hand motion. The advantage

of this framework is that self occlusion could be

partially solved. Consequently, the hand tracking is

transformed into an inference of graphical model.

We utilize embedded sequential mode

propagation underlying NBP in a restrict hand

motion space obtained by CAMSHIFT to perform

hand tracking. It accelerates tracking procedure

remarkably. The experiment results show the

capability of the entire framework.

REFERENCES

Wu, Y., Lin, J., Huang, T. S., December 2005. Analyzing

and Capturing Articulated Hand Motion in Image

Sequences. In Vol. 27, No. 12, IEEE Transactions on

Pattern Analysis and Machine Intelligence.

Stenger, B., Wu, Y., Mendonca, P. R. S., 2001. Model-

based 3D tracking of an articulated hand. In pp. 310-

315, Vol. 2. Proc. IEEE Conf. Computer Vision and

Pattern Recognition.

Wu, Y., Lin, J. Y., Huang, T. S., 2001. Capturing natural

hand articulation. In pp. 426-432, Vol. 2. Proc. IEEE

Int. Conf. Computer Vision.

Isard, M., Blake, A, 1998. CONDENSATION —

conditional density propagation for visual tracking. In

pp. 5-28, Vol. 29. International Journal of Computer

Vision.

Sudderth, E. B., Mandel, M. I., Freeman, W. T., Willsky,

A. S., May 2004. Visual Hand Tracking Using

Nonparametric Belief Propagation. In MIT Laboratory

For Information & Decision Systems Technical

Report.

Lin, J. Y., Wu, Y., Huang, T. S., December 2002.

Capturing Human Hand Motion in Image Sequences.

In pp. 99-104. Proc. IEEE Workshop Motion and

Video Computing.

Chao, E., An, K., Cooney, W., Linscheid, R., 1989.

Biomechanics of the Hand: A Basic Research Study.

In Mayo Foundation, Minn.: World Scientific.

Tony, X. H., Ning, H. Z., Huang, T. S., 2006. Efficient

Nonparametric Belief Propagation with Application to

Articulated Body Tracking. In pp. 214-221, Vol. 1,

Proc IEEE Conf. Computer Vision and Pattern

Recognition.

Isard, M., 2003. PAMPAS: Real-Valued Graphical

Models for Computer Vision. In pp. 18-20, Vol. 1,

Proc IEEE Conf. Computer Vision and Pattern

Recognition.

Sigal, S., Bhatia, S., Roth, S., Black, M. J., Isard, M.,

2004. Tracking Loose-limbed People. In pp. 421-428,

Vol. 1, Proc IEEE Conf. Computer Vision and Pattern

Recognition.

Frey, B. J., Bhatia, S., MacKay, D. J. C., 1998. A

revolution: Belief propagation in graphs with cycles.

In pp. 479-485, Vol. 1, Neural Information Processing

Systems 10, MIT Press.

Wu, Y., Huang, T. S., May 2001. Hand modeling, analysis,

and recognition. In pp. 51-60, IEEE Signal Proc.

Mag..

Stenger, B. J., Mendonca, P. R. S., Cipolla, R., 2001.

Model–based 3D tracking of an articulated hand. In pp.

310-315

, Vol. 2, Proc IEEE Conf. Computer Vision

and Pattern Recognition.

3D ARTICULATED HAND TRACKING BY NONPARAMETRIC BELIEF PROPAGATION ON FEASIBLE

CONFIGURATION SPACE

513
