IMA

GE PROCESSING IN MATERIAL ANALYSES OF ARTWORKS

Miroslav Bene

Department of Software Engineering, Charles University, Prague, Czech Republic

Barbara Zitov

Institute of Information Theory and Automation, Academy of Sciences of Czech Republic, Prague, Czech Republic

Janka Hradilov

Academic Laboratory of Materials Research of Paintings, Academy of Fine Arts, Prague, Czech Republic

David Hradil

Institute of Inorganic Chemistry, Academy of Sciences of Czech Republic,

z, Czech Republic

Keywords:

Cultural heritage, Image retrieval, Descriptors, Classiﬁcation.

Abstract:

In this paper we present a system for processing, description and archiving material analyses used during art

restoration - Nephele. The aim of the material analyses of painting layers is to identify inorganic and organic

compounds using microanalytical methods, and to describe stratigraphy and morphology of layers. The results

are used to interpret the applied painting technique. The Nephele system is a database system for material

analysis reports, extended with image preprocessing modules and image retrieval facility. The implemented

digital image processing methods are image registration, layers segmentation, and grains segmentation. In the

archiving part of the Nephele, in addition to traditional database functions we have incorporated image-based

retrieval methods into the developed system. They are based on feature descriptions such as the Haralick

descriptors of co-occurrence matrices. The presented examples of achieved results show the applicability of

the system.

1 INTRODUCTION

The image processing methods play an important role

in very distant application areas such as art restora-

tion. These algorithms are a useful tool for restor-

ers due to their ability to improve quality and inter-

pretability of the input data obtained from restored

artworks. Painting materials research, which helps

make choice of the proper materials for the very

restoration, is the ﬁeld where our proposed system -

Nephele (Fig. 1) - tries to facilitate the work of restor-

ers.

Each painting materials analysis is precisely de-

scribed in the form of a report, which contains general

information about the artwork as well as description

and results of the analyses which were held. Reports

database could serve as a knowledge base for further

restoration cases. Moreover, based on obtained data

and experiences, new analytical methods and descrip-

tion styles can be found and proposed.

Our work is mainly aimed at helping with proper

identiﬁcation of pigments and binders in color lay-

ers, where the layer is deﬁned as a consistent and

distinguishable part of the painting proﬁle. Such

classiﬁcation gives important information about the

age of the used paints and their possible place of

origin. The infrared reﬂectography, which is the

most popular method in the area of cultural her-

itage for color layers identiﬁcation, is not suitable

for the purposes of stratigraphy (learning about lay-

ers). Stratigraphy is usually studied in the visible

spectrum (VS) (Fig. 2(a)), in the ultraviolet spectrum

(UV) (Fig. 2(b)), and by means of the scanning elec-

tron microscopy (SEM). These input data can be mis-

aligned due to the changing conditions. Therefore,

a method for removal of geometrical differences be-

tween the VS and UV images is incorporated in the

proposed system. Apart from this, creation of prelim-

521

Beneš M., Zitová B., Hradilová J. and Hradil D. (2008).

IMAGE PROCESSING IN MATERIAL ANALYSES OF ARTWORKS.

In Proceedings of the Third International Conference on Computer Vision Theory and Applications, pages 521-524

DOI: 10.5220/0001079705210524

 SciTePress

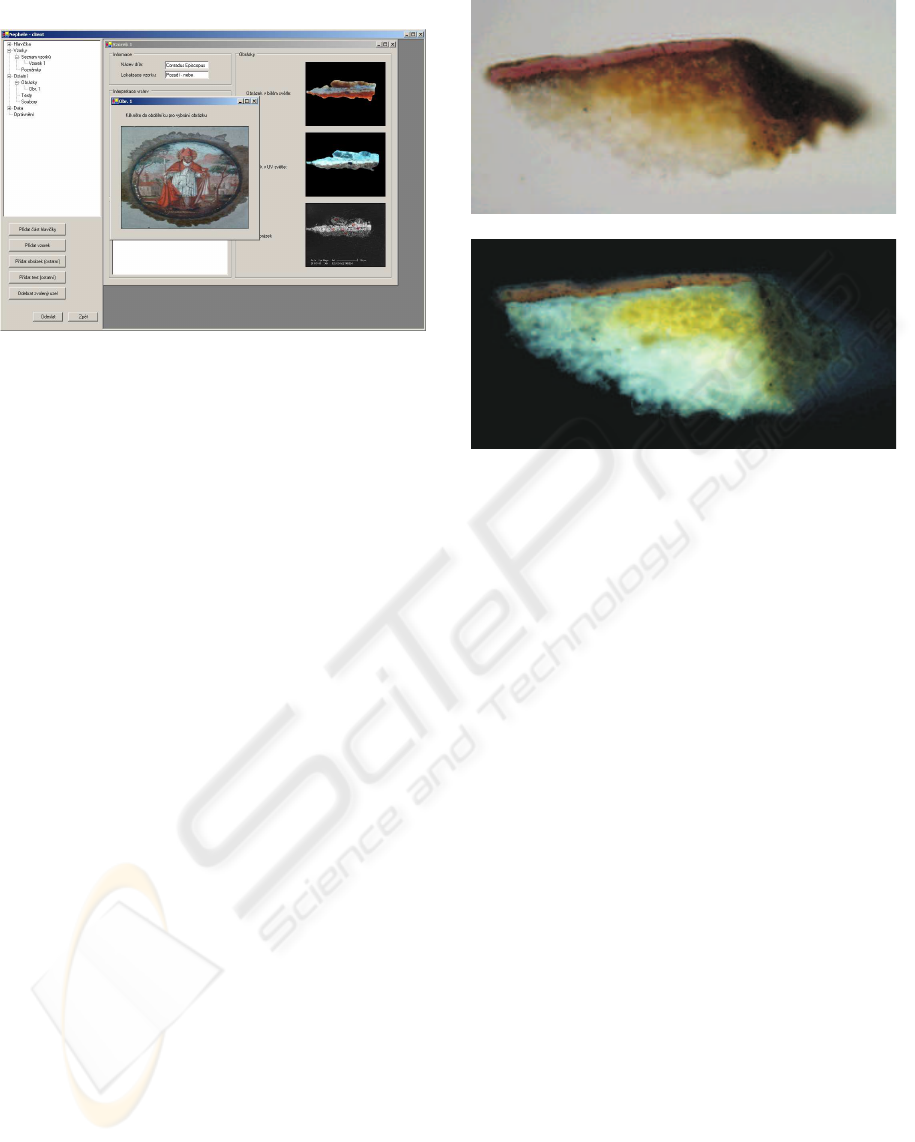

Figure 1: Illustrative example of the main window of the

Nephele. user interface. The restored artwork is shown,

together with the VS, UV and SEM images of one micro-

scopic specimen.

inary color layer segmentation and grains segmenta-

tion were implemented for further processing.

The second part of our contribution consists of the

efﬁcient data retrieval. For such painting materials re-

search reports database, the look-up of the archived

reports based only on the text information is often not

enough. The ability to fetch reports which describe

visually similar specimens/materials can increase the

helpfulness of the database. We have incorporated

content-based image retrieval methods into the devel-

oped system.

The image preprocessing part of the proposed sys-

tem is described in Section 2, consisting of the image

registration module and image segmentation module.

Section 3 introduces the content-based image retrieval

included in Nephele. Section 4 introduces the grains

segmentation together with our future plans in this

area.

2 IMAGE PREPROCESSING

Stratigraphy, which helps to identify pigments and

binders in color layers, is usually studied in the VS,

UV, and SEM images (Figs. 2). The analysis works

with minute surface samples (0.3mm in diameter)

from the selected areas of the artwork. The samples

are embedded in a polyester resin and grounded at a

right angle to the surface plane to expose the layers.

The VS and UV image information is then combined

and the ﬁnal estimate of color layer borders is created,

based on the image data and the experience of the ex-

perts (possible order and combination of materials for

speciﬁc artworks, time period, area, etc.). The SEM

images can bring even more precise information about

(a)

(b)

Figure 2: The images of the artwork specimen in the visible

(a)-top and the ultraviolet (b)-bottom spectra. The single

color layers are apparent, especially on the VS (a) image.

the layer structure, however, they are not available for

all cases.

During the UV and VS image acquisition process

the VS and UV image pairs of the sample are often

geometrically misaligned due to the manipulation er-

rors etc. This difference has to be removed before

the analysis to be able to compare the corresponding

structures in the images. Up to now it used to be done

manually by an operator. The proposed image regis-

tration module of the system solves the spatial align-

ment of the image pairs.

Mutual information (MI), originating in the infor-

mation theory, is a recognized solution for the mul-

timodal registration problem, where images of the

same scene are acquired by different sensors. It is

a measure of the statistical dependency between two

data sets. The main reason for choosing MI was that

it does not impose strong limitations on used sensors.

One of the ﬁrst articles proposing this technique is the

one by Viola and Wells (Viola and Wells, 1997).

In our approach, we use the speed up of the

method, based on the averaging pyramid together

with the discrete estimate of histogram. The opti-

mization of the maxima location is a modiﬁed ver-

sion of the method published in (Penney et al., 1998).

Moreover, we use the one-channel data, either green

channel of the RGB image representation or the ﬁrst

element of the principal component transform (PCT),

to reduce the dimensionality of the problem.

After the image rectiﬁcation, the color layers can

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

522

be estimated. The segmentation module performs

only preliminary segmentation based on both the VS

and UV images, because the construction of the full

segmentation is a complex task where usually expert

knowledge is necessary (certain materials cannot be

neighbors, others are always together, etc.). This

could be solved by a proper expert system, but this

exceeds the topic of our research.

The proposed method is based on cluster analy-

sis using the set of three RGB channels of the VS and

three RGB channels of UV specimen images plus spa-

tial information (x and y coordinates included as an-

other two channels). It starts by an iterative k-means

clustering. The number of classes is set a priori as

a maximum expected number of layers by the user.

More complex approaches based on texture analysis

or other higher level information could bring slightly

better results, nevertheless, without expert knowledge

the segmentation still remains preliminary.

Often, relatively smooth transitions from one layer

to the other produced ragged borders. The ﬁrst im-

provement of consistency was achieved by includ-

ing spatial coordinates to the segmentation feature

space. Even better results were obtained after apply-

ing morphological operators to detected segmentation

and performing a minimum class size check. Further

application of segmentation techniques is mentioned

in the Section 4.

3 IMAGE RETRIEVAL

FACILITIES

The material analysis reports are often used as a

knowledge base for consequent restorations. For such

usage, it is very important to have effective tools to

look-up the relevant reports. One of the possible ex-

tensions of the usual database functionality is to make

use of the similarity between images contained in re-

ports. The visual image similarity can imply that the

used technique/materials on the analyzed artwork is

the same/similar as in the archived report or that it

can point to the same author, therefore such informa-

tion can be very relevant. Thus, the image-based data

retrieval is often used nowadays beside the traditional

text-based search in database systems. The database

entries containing images are looked up according

to the image similarity to the query image. The so-

called content-based image retrieval (CBIR) has be-

come very popular recently (Veltkamp and Tanase,

2000) and is used as a part of multimedia systems in

art galleries (Addis et al., 2003; Goodall et al., 2004).

In our Nephele system, the image-based data

querying exploits the VS and UV images of speci-

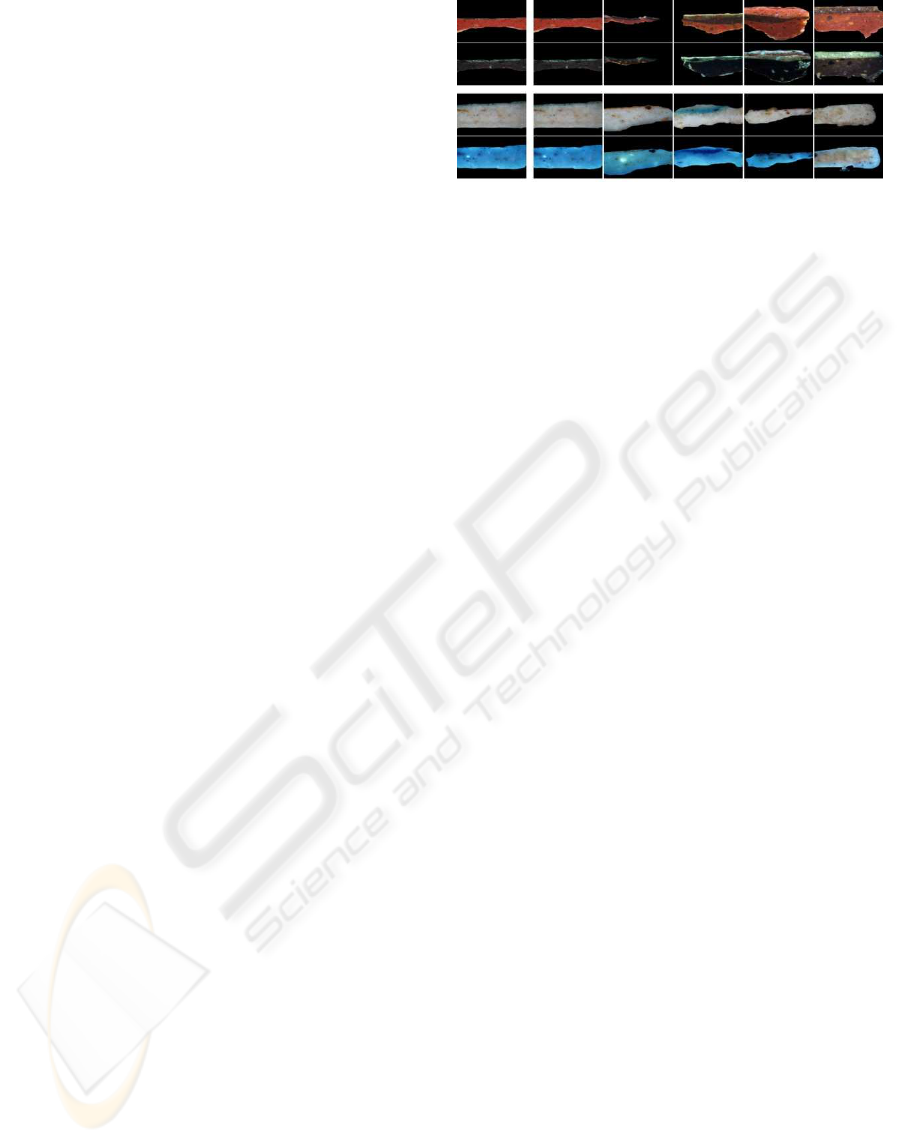

Figure 3: Results of the image retrieval. Left column con-

tains query specimens, next columns in the corresponding

rows are results of the retrieval in order of similarity.

mens. The similarity of specimens is not based upon

speciﬁc shape or structure elements which are the re-

sults of the random process of sample cut-off. For the

considered methods of image retrieval the color and

texture characteristics were chosen as the main fea-

tures.

The retrieval is based on color features and co-

occurrence matrices (Haralick et al., 1973). They re-

ﬂect the joint probability of the occurrence of grey

level pairs of two pixels with a deﬁned spatial rela-

tionship, formed by a shape operator. The used shape

operators were up to two pixels long and all color

channels were processed separately. Based on prelim-

inary experiments the four Haralick descriptors were

computed from the co-occurrence matrices (Contrast,

Inverse difference moment, Entropy, Variance) (Har-

alick et al., 1973). Apart from them, the color de-

scriptors were included, too, to reﬂect the main color

trends in the data. The image average color and the

spectral standard deviation were chosen. Moreover,

the R

∗

-tree indexing structure (Beckmann et al., 1990)

with weighted Euclidean metric was implemented to

speed-up the retrieval.

The applicability of the method is presented in

Fig. 3. There are query images (leftmost column) to-

gether with the most similar responses (in the respec-

tive rows, in order of similarity from left to right).

The visual similarity of the specimens in rows is ap-

parent. The further evaluation of the retrieval would

not be statistically signiﬁcant, because the results are

not easy to quantify and the set of samples is rather

small.

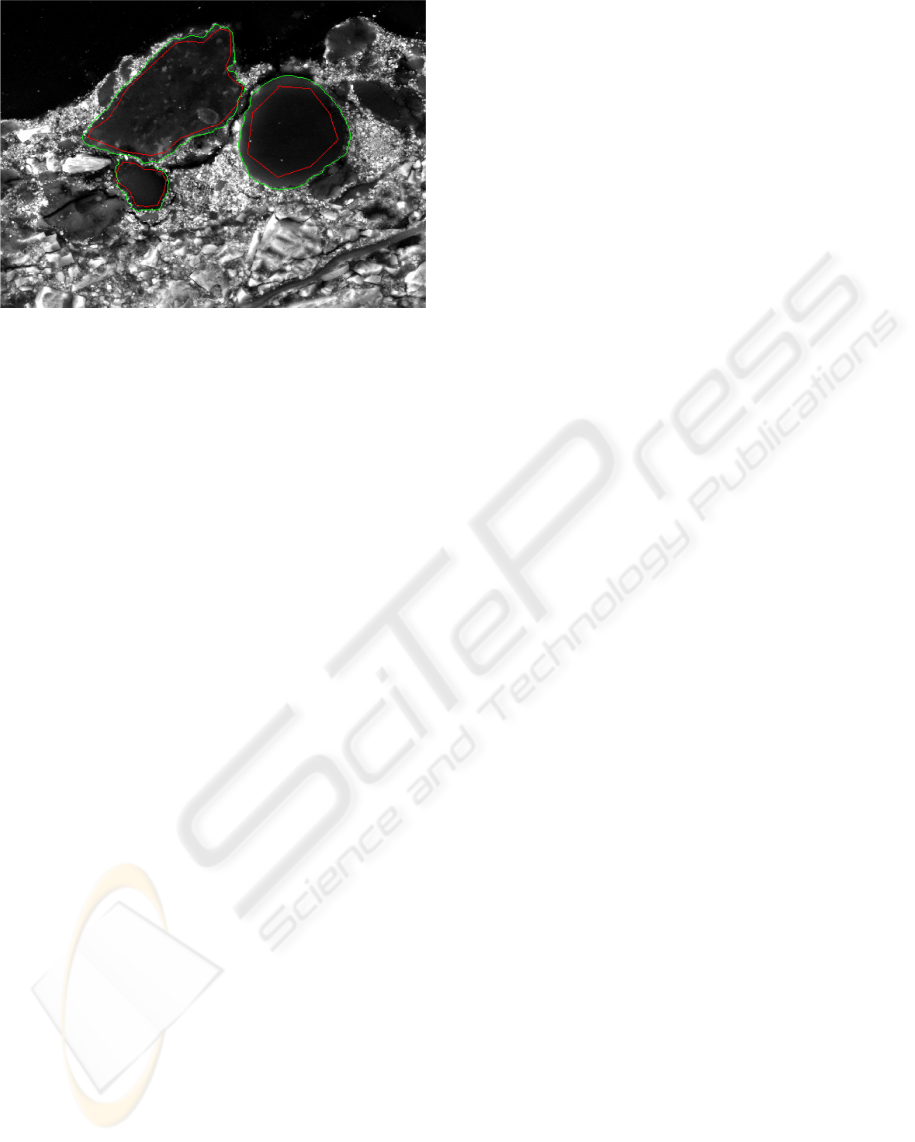

4 LAYERS DESCRIPTION

The lately included part of the Nephele system should

lead towards the description module for material char-

acterization. Based on the demand of material sci-

entists, we intend to offer the possibility of the layer

description by means of the selected set of features.

Such analyses are able to better deﬁne used materials,

IMAGE PROCESSING IN MATERIAL ANALYSES OF ARTWORKS

523

Figure 4: Example of grains segmentation. Green border

represents the resulting segmentation.

they will improve the ability to uncover the authors

of the artwork by revealing the characteristics of their

work with pigments, binders and other components.

One of the ﬁrst necessary step towards is the segmen-

tation of the grains in the single layers. The best data

source for such task is the SEM data, where individual

grains can be most clearly distinguished. Our algo-

rithmic solution of the grain segmentation is based on

the Parametric Snakes (Xu and Prince, 1998). Fig. 4

shows the example of segmented grains in a SEM im-

age.

5 CONCLUSIONS

The proposed system Nephele can facilitate the work

of material scientists and consequently restorers and

offer them a better access to the archived reports they

use. To our knowledge, no other similar system has

been published up to now. The introduced digital

image processing methods enable acquired data pre-

processing for further analyses as well as improve of

querying above the reports database. The preprocess-

ing of the VS and UV specimen images, used for the

identiﬁcation of pigment and binder present in the art-

work, consists of image registration, which makes use

of the mutual information approach, and segmenta-

tion technique based on the modiﬁed k-means clus-

tering. The included image retrieval system is able

to provide fetching of reports with visually similar

specimen data. The image retrieval is built upon

the VS and UV images of the specimens. They

are represented using the Haralick descriptors of co-

occurrence matrices together with the color descrip-

tors. In the future, single layers will be characterized

by means of the selected sets of features for a bet-

ter deﬁnition of the used materials. Recently, the ﬁrst

step - grains segmentation - was implemented, based

on the parametric snakes model. The presented exam-

ples of achieved results show the applicability of the

system.

ACKNOWLEDGEMENTS

This work was partially supported by the Grant

Agency of Charles University under the project No.

72507, partially by the Ministry of Education of the

Czech Republic under the projects No. 1M0572 (re-

search center) and No. MSM6046144603, and ﬁnally

by the Grant Agency of the Czech Republic under the

project No. 203/07/1324.

REFERENCES

Addis, M., Boniface, M., Goodall, S., Grimwood, P., Kim,

S., Lewis, P., Martinez, K., and Stevenson, A. (2003).

Integrated image content and metadata search and re-

trieval across multiple databases. LNCS, 2728:91–

100.

Beckmann, N., Kriegel, H.-P., Schneider, R., and Seeger,

B. (1990). The R

∗

-tree: An efﬁcient and robust ac-

cess method for points and rectangles. In 1990 ACM

SIGMOD International Conference on Management

of Data, volume 19, pages 322–331.

Goodall, S., Lewis, P. H., Martinez, K., Sinclair, P.,

Giorgini, F., Addis, M., Boniface, M., Lahanier, C.,

and Stevenson, J. (2004). Sculpteur: Multimedia re-

trieval for museums. LNCS, 3115:638–646.

Haralick, R. M., Shanmugam, K., and Dinstein, I. (1973).

Textural features for image classiﬁcation. IEEE

Transactions on Systems, Man and Cybernetics,

SMC-3(6):610–621.

Penney, G. P., Weese, J., Little, J. A., Desmedt, P., Hill,

D. L. G., and Hawkes, D. J. (1998). A comparison of

similarity measures for use in 2D–3D medical image

registration. IEEE Trans. Medical Imaging, 17:586–

595.

Veltkamp, R. C. and Tanase, M. (2000). Content-based im-

age retrieval systems: A survey. Technical Report,

UU-CS-2000-34.

Viola, P. and Wells, W. M. (1997). Alignment by maximiza-

tion of mutual information. Int’l. Journal of Computer

Vision, 24:137–154.

Xu, C. and Prince, J. L. (1998). Snakes, shapes, and gra-

dient vector ﬂow. IEEE Trans. on Image Processing,

7(3):359–369.

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

524
