GEOMETRIC ALGORITHMS ON CUDA

Antonio J. Rueda and Lidia Ortega

University of Ja´en. Escuela Polit´ecnica Superior. Paraje Las Lagunillas s/n, 23071, Ja´en, Spain

Keywords:

GPGPU, CUDA, 3D meshes, inclusion test, self-intersection test.

Abstract:

The recent launch of the NVIDIA CUDA technology has opened a new era in the young ﬁeld of GPGPU

(General Purpose computation on GPUs). This technology allows the design and implementation of parallel

algorithms in a much simpler way than previous approaches based on shader programming. The present work

explores the possibilities of CUDA for solving basic geometric problems on 3D meshes like the point inclusion

test or the self-intersection detection. A solution to these problems can be implemented in CUDA with only a

small fraction of the effort required to design and implement an equivalent solution using shader programming,

and the results are impressive when compared to a CPU execution.

1 INTRODUCTION

The General Purpose computation on GPUs

(GPGPU) is a young area of research that has

attracted attention of many research groups in the last

years. Although graphics hardware has been used

for general-purpose computation since the 1970s,

the ﬂexibility and power processing of the modern

graphics processing units (GPUs) has generalized its

use for solving many problems in Signal Processing,

Computer Vision, Computational Geometry or

Scientiﬁc Computing (Owens et al., 2007).

The programming capabilities of the GPU evolve

very rapidly. The ﬁrst models only allowed lim-

ited vertex programing; then pixel programing was

added and gradually, the length of the programs and

its ﬂexibility (use of loops, conditionals, texture ac-

cesses, etc.) were increased. The last generation of

NVIDIA GPUs (8 Series) supports programming at a

new stage of the graphics pipeline: the geometry as-

sembling. GPU programming has been extensively

used in the last years for implementing impressive

real-time physical effects, new lighting models and

complex animations (Fernando, 2004; Pharr and Fer-

nando, 2005), and have allowed a major leap forward

in the visual quality and realism of the videogames.

But it should be kept in mind that vertex, pixel

and geometry programming capabilities were aimed

at implementing graphics computations. Their use

for general purpose computing is difﬁcult in many

cases, implying the complete redesign of algorithms

whose implementation in CPU require only a few

lines. Clearly the rigid memory model is the biggest

problem: memory reads are only possible from tex-

tures or a limited set of global and varying parame-

ters, while memory writes are usually performed on a

ﬁxed position in the framebuffer. Techniques such as

multipass rendering, rendering to texture, and use of

textures as lookup tables are useful to overcome these

limitations, but programming GPUs remains being a

slow and error-prone task. On the positive side, the

implementation effort is usually compensated with a

superb performance, up to 100X faster than CPU im-

plementations in some cases.

The next step in the evolution of GPGPU is the

CUDA technology of NVIDIA. For the ﬁrst time, a

GPU can be used without any knowledge of OpenGL,

DirectX or the graphics pipeline, as a general pur-

pose coprocessor that helps the CPU in the more com-

plex and time-expensivecomputations. With CUDA a

GPU can be programmed in C, in a very similar style

to a CPU implementation, and the memory model is

now simpler and more ﬂexible.

In this work we explore the possibilities of the

107

J. Rueda A. and Ortega L. (2008).

GEOMETRIC ALGORITHMS ON CUDA.

In Proceedings of the Third International Conference on Computer Graphics Theory and Applications, pages 107-112

DOI: 10.5220/0001094201070112

 SciTePress

CUDA technology for performing geometric compu-

tations, through two case-studies: point-in-mesh in-

clusion test and self-intersection detection. So far

CUDA has been used in a few applications (Nguyen,

2007) but this is the ﬁrst work which speciﬁcally com-

pares the performance of CPU vs CUDA in geometric

applications.

Our goal has been to study the cost of implemen-

tation of two typical geometric algorithms in CUDA

and its beneﬁts in terms of performance against equiv-

alents CPU implementations. The algorithms used

in each problem are far from being the best, but the

promising results in this initial study motivate a future

development of optimized CUDA implementations of

these and similar geometric algorithms.

2 COMMON UNIFIED DEVICE

ARCHITECTURE (CUDA)

The CUDA technology was presented by NVIDIA

in 2006 and is supported by its latest generation of

GPUs: the 8 series. A CUDA program can be imple-

mented in C, but a preprocessor called NVCC is re-

quired to translate its special features into code that

can be processed by a C compiler. Therefore host

and device CUDA code can now be combined in a

straightforward way.

A CUDA-enabled GPU is composed of several

MIMD multiprocessors that contain a set of SIMD

processors (NVIDIA, 2007). Each multiprocessor has

a shared memory that can be accessed from each of its

processors, and there is a large global memory com-

mon to all the multiprocessors. Shared memory is

very fast and is usually used for caching data from

global memory. Both shared and global memory can

be accessed from any thread for reading and writing

operations without restrictions.

A CUDA execution is composed of several blocks

of threads. Each thread performs a single computa-

tion and is executed by a SIMD processor. A block is

a set of threads that are executed on the same multi-

processor and its size should be chosen to maximize

the use of the multiprocessor. A thread can store data

on its local registers, share data with others threads

from the same block through the shared memory or

access the device global memory. The number of

blocks usually depends on the amount of data to pro-

cess. Each thread is assigned a local identiﬁer inside

the block with three components, starting at (0, 0,

0), although in most cases only one component (x) is

used. The blocks are indexed using a similar scheme.

A CUDA computation starts at a host function by

allocating one or more buffers in the device global

memory and transferring the data to process to them.

Another buffer is usually necessary to store the results

of the computation. Then the CUDA computation

is launched by specifying the number of blocks and

threads per block, and the name of the thread function.

The thread function retrieves the data to process from

the data buffers, which are passed as pointers. Then

the computation is performed and the result stored in

the results buffer. Finally, the host function retrieves

the results buffer to CPU memory.

The learning curve of CUDA is much faster

than that of GPGPU based on shader program-

ming with OpenGL/DirectX and Cg/HLSL/GLSL.

The programming model is more similar to CPU pro-

gramming, and the use of the C language makes

most programmers feel comfortable. CUDA is also

designed as an stable scalable API for developing

GPGPU applications that will run on several gener-

ations of GPUs. On the negative side, CUDA loses

the powerful and efﬁcient mathematical matrix and

vector operators that are available in the shader lan-

guages, in order to keep its compatibility with the C

standard. It is likely that in many cases an algorithm

carefully implemented in a shader language could run

faster than its equivalent CUDA implementation.

3 POINT-IN-MESH INCLUSION

TEST ON CUDA

The point-in-mesh inclusion test is a simple classical

geometric algorithm, useful in the implementation of

collision detection algorithms or in the conversion to

voxel-based representations. A GPU implementation

of this algorithm is only of interest with large meshes

and many points to test, as the cost of setting up the

computation is high.

For our purpose we have chosen the algorithm

of Feito & Torres (Feito and Torres, 1997) which

presents several advantages: it has a simple imple-

mentation, it is robust and can be easily parallelized.

The pseudocode is shown next:

bool inclusionTest(Mesh M, Point p)

o = point(0, 0, 0) // Origin point

res = 0 // Inclusion counter

foreach face f of M do

t = tetrahedron(f, o)

if inside(t, p) then

res = res + 1

elseif atFaces(t, p) then

res = res + 0.5

endif

endforeach

return isOdd(res)

end

GRAPP 2008 - International Conference on Computer Graphics Theory and Applications

108

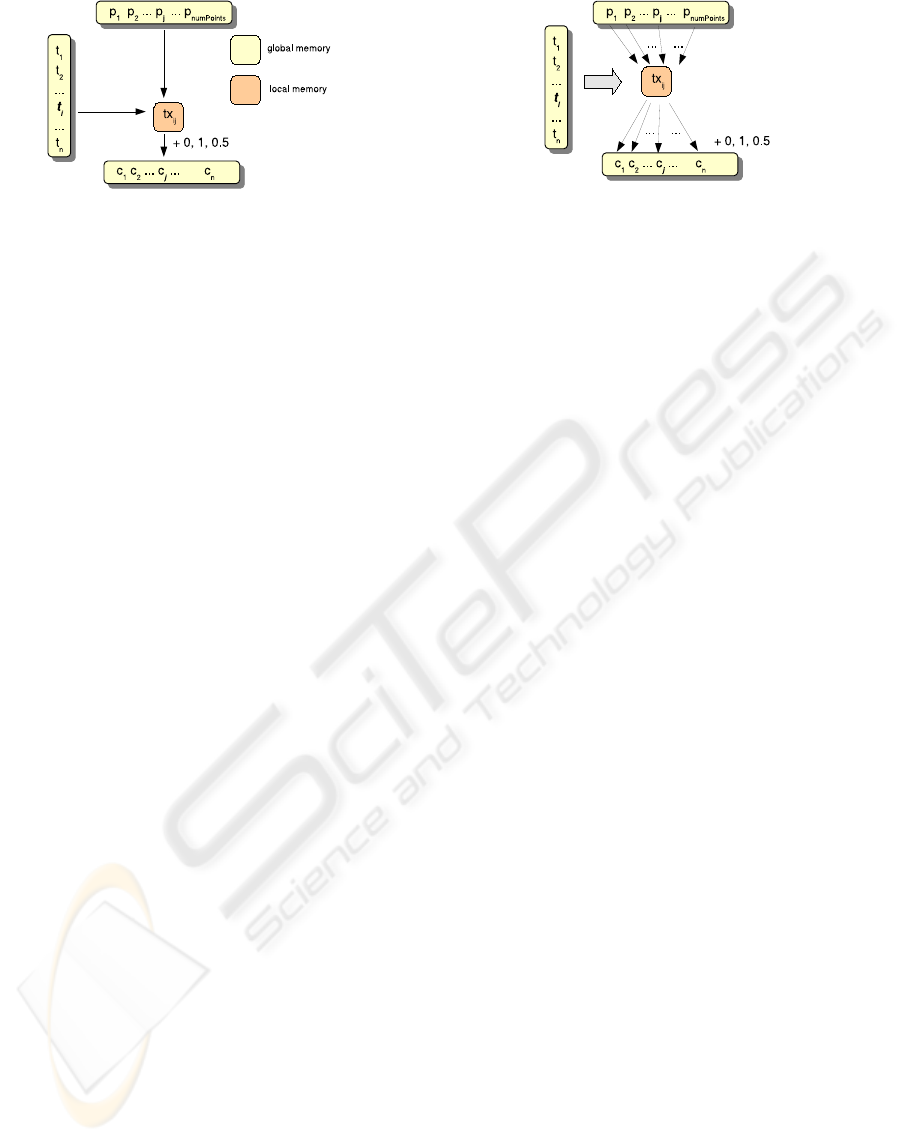

Figure 1: CUDA matrix-based implementation of the inclu-

sion test.

The algorithm constructs a set of tetrahedra between

the origin of coordinates and each triangular face of

the mesh. The point is tested for inclusion against

each tetrahedron and a counter is incremented if the

result of the test is positive. If the point is inside an

odd number of tetrahedra, the point is inside the mesh.

Notice that if the point is at a face shared by two tetra-

hedra, the counter is added 0.5 by each one to avoid a

double increment that would lead to incorrect results.

The programming model of CUDA ﬁts especially

well with problems whose solution can be expressed

in a matrix form. In our case, we could construct a

matrix in which the rows are the tetrahedra to pro-

cess and the columns, the points to test. This matrix

is divided into blocks of threads, and each thread is

made responsible of testing the point in the column

j against the tetrahedron in the row i, and adding the

result of the test (0,1,0.5) to the counter j (see Fig-

ure 1). Unfortunately, this approach has an important

drawback: the support for atomic accesses to mem-

ory, that ensure a correct result after read-write opera-

tions on the same value in global memory performed

from several concurrent threads, is only available in

devices of compute capability 1.1, that is the GeForce

8500 and 8600 series (NVIDIA, 2007). This prob-

lem can be avoided if each thread stores the result of

the point-in-tetrahedron inclusion test in the position

(i, j) of a matrix of integers. After the computation,

the matrix is retrieved to CPU memory, and each in-

clusion counter j is simply calculated from the sum

of the values of the row j. But this implementation

makes an inefﬁcient use of the device memory, requir-

ing the allocation of a huge matrix when working with

large meshes and many points to test. Moreover these

two approaches generates an overwhelming number

of threads during the GPU execution, which leads to

poor results.

We choose a different strategy, computing in each

thread the inclusion test of one or severalpoints on the

entire mesh. Each thread iterates on the mesh, copy-

ing a triangle from global memory to a local variable

and performing the inclusion test on the points, then it

accumulates the result in a vector that stores an inclu-

Figure 2: CUDA implementation of the inclusion test.

sion counter per point (Figure 2). It could be argued

that the task assigned to each thread is very heavy,

specially when compared with the matrix-based im-

plementations but in practice it works very well. Two

implementation aspects require a special attention.

First, the accesses from the threads to the triangle list

must be interleaved to avoid conﬂicts that could pe-

nalize performance. And second, the relatively high

cost of retrieving a triangle from global memory to a

processor register makes interesting testing it against

several points. These points must be also cached in

processor registers for maximum performance, and

therefore its number is limited.

The host part of the CUDA computation starts

by allocating a buffer of triangles and a buffer of

points to test in the device memory, and copying

these from the data structures in host memory. An-

other buffer is allocated to store the inclusion coun-

ters, which are initialized to 0. The number of blocks

of threads are estimated as a function of the total

number of points to test, the number of points per

block and the number of points processed by a sin-

gle thread: numBlocks = numPoints/(BLOCKSIZE∗

THREADPOINTS). The last two constants should

be chosen with care to maximize performance: a high

number of threads per block limits the number of reg-

isters available in a thread, and therefore, the num-

ber of points that can be cached and processed. A

low number of threads per block makes a poor use of

the multiprocessors. Finally, after the GPU computa-

tion has completed, the buffer of inclusion counters is

copied back to the host memory.

A thread begins by copying THREADPOINTS

points from the point buffer in global memory to a

local array, that is stored in registers by the CUDA

compiler. The copy starts at the position (blockIdx.x∗

BLOCKSIZE + threadIdx.x) ∗ THREADPOINTS to

assign a different set of points to each thread. Af-

ter this, the iteration on the triangle list starts by

copying the triangles to a local variable and call-

ing a point-in-tetrahedron inclusion test function. In

case of success, the inclusion counter of the corre-

sponding point is updated. A good interleaving is en-

GEOMETRIC ALGORITHMS ON CUDA

109

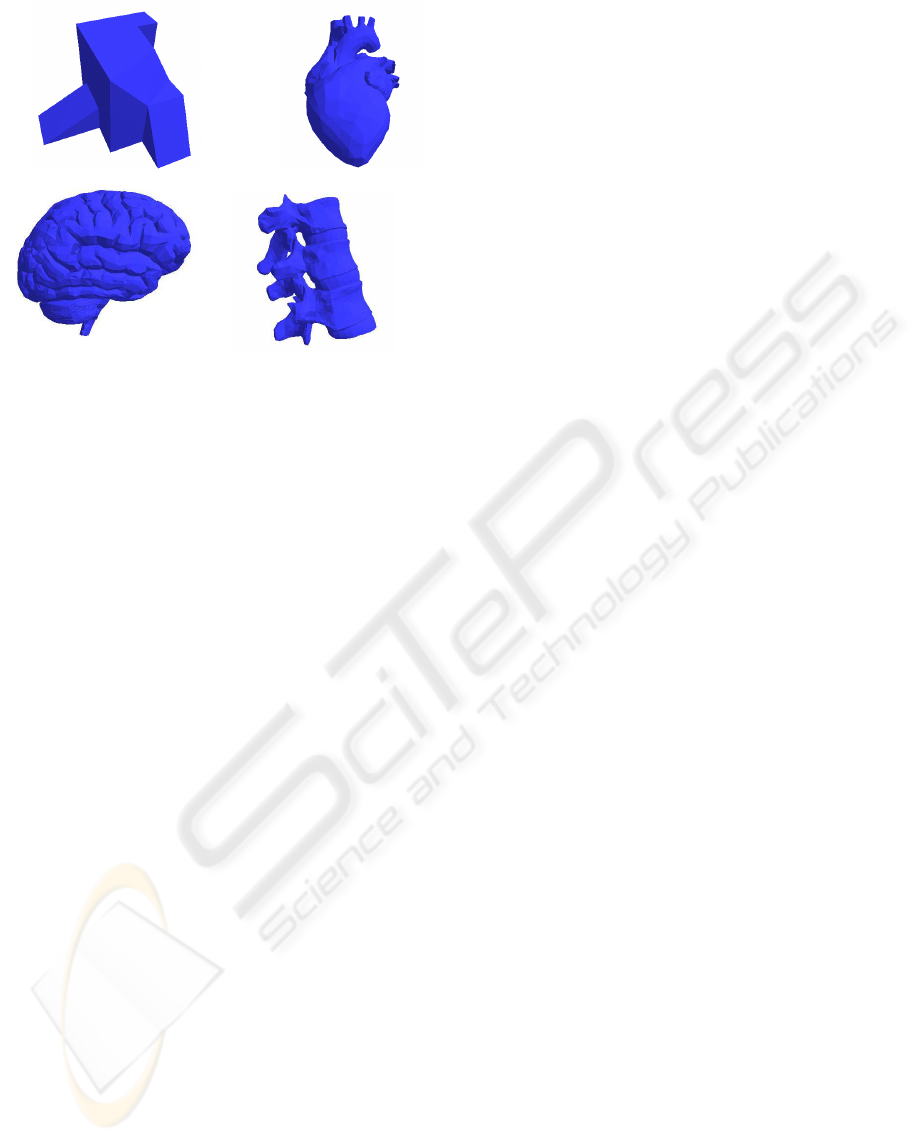

Figure 3: Models used for running the inclusion and self-

intersection tests.

sured by starting the iteration at the position given by

blockIdx.x∗ BLOCKSIZE + threadIdx.x.

We implemented a CUDA version of the algo-

rithm, using blocks of 64 threads and testing 16 points

per thread, and an optimized version for CPU. The

computer used for the experiments has an Intel Core

Duo CPU running at 2.33Ghz., a NVIDIA GeForce

8800GTX GPU and Linux-based operating system.

Four different models, with increasing number of

faces were used (Figure 3). The improvements of

the GPU against the CPU version of the algorithm are

shown in Table 1. As expected, the CPU only beats

the GPU implementation with very simple meshes. In

the rest of cases, the GPU outperforms the CPU up

to 77X in the case of the largest model and higher

number of points to test. Notice that the GPU com-

pletes this computation in less than 7 seconds, while

the CPU requires 8 minutes.

4 SELF-INTERSECTION TEST

ON CUDA

Triangle-mesh is nowadays the most extended method

of representing 3D models. The higher number of tri-

angles representing the surface, the higher is the re-

alism sensation when rendering the ﬁgure. Further-

more, meshes need to be well-formed in order to pro-

vide accuracy to different geometric algorithms. In

this context, incomplete connection meshes (meshes

with unnecessary holes) or self-intersection faces,

make some algorithms work wrong. For instance, a

3-Dimensional printer needs a hole-free mesh to be

able to produce the physical model, and the inclusion

test described in Section 3 needs non-selﬁntersection

meshes to reach to successful results.

We ﬁnd different CPU strategies in the literature

to detect, prevent or eliminate self-intersections in tri-

angle meshes (Gain and Dogsson, 2001; Lai and Laia,

2006). However in many cases the difﬁculty of these

improved approaches is not worthwhile with the ob-

tained time-improvement of the straightforward solu-

tion.

The same argument can be used for GPGPU al-

gorithms based on shader programming, such as the

method proposed in (Choi et al., 2006) for detecting

self-intersections in triangle meshes. One of the most

interesting applications to self-collisions detection is

the interactive simulation of deformable objects in

real-time. Some examples are deformations of hu-

man organs and soft tissue, clothed articulated human

characters, elastic materials, etc. In all these cases the

computational bottleneck is collision detection. The

major time improvement found for this approach is

17X, after applying a GPU algorithm with different

steps including: a previous phase to discard triangles

using visibility-based culling; a second step imple-

ments the topological culling using an stencil test with

the aim of discarding pairs of triangles as well; and

ﬁnally the remaining set of triangle pairs are exam-

ined for collisions using M¨oller triangle-triangle test

(Moller, 1997). The process uses three 1D textures

to represent the triangles, a quadrilateral for all pair-

wise combination and a hierarchical readback struc-

ture in order to improve the readback of collision re-

sults from GPU.

We propose a CUDA based solution for self-

intersection detection, joining simplicity in the imple-

mentation and gaining overall performance, as shown

in the implementation results. The straightforward

CPU algorithm compares each triangle with the rest

of faces in the mesh, searching for intersections. The

result is an array of booleans for each face in the

mesh:

void selfintersecTest(Mesh M,bool res[])

foreach face

of M do

res[i] = false // default result

foreach face

of M do

if (i!= j)

if (IntersecTriTri(

)) then

res[i] = true

break

endif

endforeach

end

We use this simple approach with the additional ad-

vantage of the straightforward parallelization using

different criteria. Several of them have been tested

GRAPP 2008 - International Conference on Computer Graphics Theory and Applications

110

Table 1: Improvements of the GPU vs the CPU implementation of the inclusion test algorithm.

number of points tested

mesh (number of triangles) 1000 10000 100000

simple (42) 0.05 0.5 3.7

heart (1619) 1.2 10 38

bone (10044) 2.6 29 55

brain (36758) 3.5 35 77

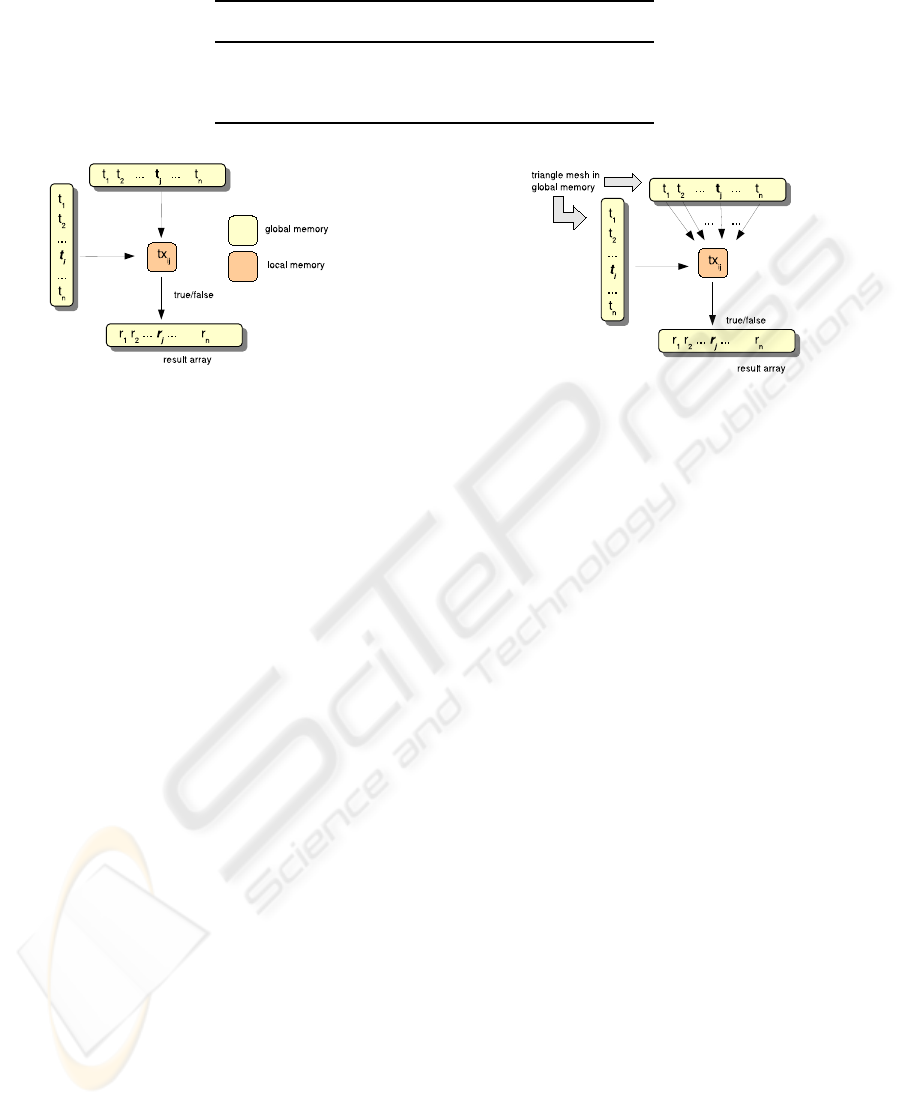

Figure 4: CUDA matrix-based implementation of the self-

intersection test.

carrying out interesting conclusions. We next de-

scribe two of these strategies.

The ﬁrst approach we have tested uses a matrix

form, following the scheme of Figure 4, in a similar

way to the ﬁrst approach of the inclusion test. Each

face f

(row) is tested for intersection against face f

(column) in a thread using M¨oller triangle-triangle in-

tersection test (Moller, 1997). If face f

ﬁnds at least

one intersection, a true value is written in i position of

the result array, res[i] = true. Each block works with

BLOCKSIZExBLOCKSIZE threads. The number of

blocks is consequently (nTriangles/BLOCKSIZE x

nTriangles/BLOCKSIZE).

Our experiments have been carried out in the same

computer conﬁguration described for the inclusion

test in Section 3, with 64 threads per block, this is,

BLOCKSIZE=8. A greater value does not guarantee a

successful execution in CUDA. We have found faster

GPU running times for this approach in the range

3X − 16X for meshes from 1, 619 to 36,758 triangles.

However, this scheme of solution is not the op-

timal one. Surprisingly, a more efﬁcient approach

comes by a simpler strategy (observe Figure 5): each

thread is charged of testing one face against the rest

of nTriangles − 1 triangles in the mesh. The num-

ber of threads per block is BLOCKSIZE and the

number of blocks is nTriangles/BLOCKSIZE. As

each thread deals with only one face of the trian-

gle list and writes the solution in only one position

in the result array, there is no synchronization prob-

lems acceding to global memory. The exclusive tri-

angle that each thread processes is retrieved from

global to local memory from the position blockIdx.x∗

Figure 5: CUDA implementation of the self-intersection

test.

BLOCKSIZE + threadIdx.x, with the additional ad-

vantage of providing good interleaving. Even though

the charge of work associated to each thread is really

signiﬁcant, the cost of retrieving triangles from global

to local memory is minimized.

We show in Table 2 the results obtained for dif-

ferent meshes considering BLOCKSIZE = 64. The

best results are found in larger meshes, for instance,

the brain needs 3,6 minutes in CPU and less than 6

seconds in GPU to detect its self-intersections.

5 CONCLUSIONS AND FUTURE

WORKS

After running different geometric algorithms for 3D

meshes with different approaches, we reach some

conclusions about using CUDA technology:

• Most of the geometric algorithms can be rewritten

for CUDA, however the best running times are ob-

tained in quadratic algorithms whose paralleliza-

tion strategy can be given in a matrix form. Linear

algorithms as the computation of a bounding box,

are much more efﬁcient in CPU. The same con-

clusion can be drawn for some hierarchical par-

allel algorithms, such as the construction of the

convex hull. In this case many threads can work

independently discarding points in partial convex

hulls, however at the end of the iterative process,

only one thread must merge all partial solutions,

what slows down the process. Furthermore, in the

GEOMETRIC ALGORITHMS ON CUDA

111

Table 2: Improvements of the GPU vs the CPU implementation of the self-intersection test algorithm.

mesh (number of triangles) improvements CPU time(ms) GPU time(ms)

simple (42) 0.06 0.57 104

heart (1619) 4.22 462 109

bone (10044) 42 24524 583

brain (36758) 39 217700 5596

worst case all vertices are in the convex hull (sup-

pose a 3D ball), what suppose a total lack of par-

alellization.

• The algorithms we studied in this paper, the in-

clusion and the self-intersection tests, are both

quadratic algorithms. However the best CUDA

implementation in both cases rules out a matrix

parallelization, overloading each thread with a lin-

ear process that reduces the retrieving from global

memory to the processor registers. Therefore,

in the inclusion test, a thread deals with several

points that are tested for inclusion on the entire

mesh. The self-intersection approach also special-

izes each thread in a simple face in order to run the

triangle-triangle intersection test against the rest

of triangles of the mesh. The best comparative re-

sults are obtained for meshes with a high number

of triangles.

• A further characteristic of the algorithms tested in

this paper are that threads do not need synchro-

nization to access to memory positions and neither

they have to share data to provide a joint solution.

All threads can work independently, what speeds

up the execution. However not all problems can

be solved by this simple solution, needing syn-

chronization when acceding to shared or global

memory using sentences as syncthreads().

As a ﬁnal conclusion, CUDA technology for GPGPU-

based algorithms can be considered a gamble on the

next future because of the small effort required in the

CPU-GPU translation and implementation of the al-

gorithms, as well as the performance improvement

against the same version of the CPU approach. In

many cases, this technology obtains better results us-

ing straightforward versions of the solutions com-

pared with optimized approaches in CPU that usually

use sophisticated data structures.

We expect that successive generations of NVIDIA

GPUs will be able to support new features, as the

atomic access to memory in recent GeForce 8500

and 8600 series. Our next goal consists of applying

CUDA to different Computer Graphics and Computa-

tional Geometry problems such as collision detection,

mesh simpliﬁcation, or compresion and LOD tech-

niques.

ACKNOWLEDGEMENTS

This work has been partially granted by the Minis-

terio de Ciencia y Tecnolog´ıa of Spain and the Eu-

ropean Union by means of the ERDF funds, un-

der the research project TIN2004-06326-C03-03 and

TIN2007-67474-C03-03 and by the Conserjer´ıa de

Innovaci´on, Ciencia y Empresa of the Junta de An-

daluc´ıa, under the research project P06-TIC-01403.

REFERENCES

Choi, Y.-J., Kim, Y. J., and Kim, M.-H. (2006). Rapid pair-

wise intersection tests using programmable gpus. The

Visual Computer, 22(2):80–89.

Feito, F. and Torres, J. (1997). Inclusion test for general

polyhedra. Computer & Graphics, 21:23–30.

Fernando, R. (2004). GPU Gems: Programming Tech-

niques, Tips and Tricks for Real-Time Graphics. Pear-

son Higher Education.

Gain, J. E. and Dogsson, N. A. (2001). Preventing self-

intersection under free-form deformation. IEEE Tran-

sations On Visualization and Computer Graphics, 7.

Lai, J.-Y. and Laia, H.-C. (2006). Repairing triangular

meshes for reverse engineering applications. Ad-

vances in Engineering Software, 37(10):667–683.

Moller, T. (1997). A fast triangle-triangle intersection test.

journal of graphics tools, 2(2):25–30.

Nguyen, H. (2007). GPU Gems 3. Addison-Wesley Profes-

sional.

NVIDIA, C. (2007). NVIDIA CUDA Programming Guide

(version 1.0). NVIDIA Corporation.

Owens, J. D., Luebke, D., Govindaraju, N., Harris, M.,

Krger, J., Lefohn, A. E., and Purcell, T. J. (2007).

A survey of general-purpose computation on graphics

hardware. Computer Graphics Forum, 26(1):80–113.

Pharr, M. and Fernando, R. (2005). GPU Gems 2 : Pro-

gramming Techniques for High-Performance Graph-

ics and General-Purpose Computation. Addison-

Wesley Professional.

GRAPP 2008 - International Conference on Computer Graphics Theory and Applications

112
