LICENSE PLATE NUMBER RECOGNITION

New Heuristics and a Comparative Study of Classiﬁers

C´esar Garc´ıa-Osorio, Jos´e-Francisco D´ıez-Pastor, Juan J. Rodr´ıguez and Jes´us Maudes

Higher Polytechnic School, University of Burgos, Avda. Cantabr´ıa, Burgos, Spain

Keywords:

Computer Vision, Digital Image Processing, Optical Character Recognition, Smoothing Spatial Filter.

Abstract:

We describe an artiﬁcial vision system used to recognize the Spanish car license plate numbers in raster images.

The algorithm is designed to be independent of the distance from the car to the camera, the size of the plate

number, the inclination and the light conditions. In the preprocessing steps, the algorithm takes a raster image

as input and gives an ordered list of license plate areas candidates. Only in very rare occasions the second and

third candidates are needed; most of the cases the ﬁrst candidate is the correct one. During the preprocessing

a new ﬁlter has been used. This ﬁlter is only applied to low saturation areas, getting better results this way. In

order to choose the best classiﬁer for the classifying stage, a comparative study has been performed using the

data mining tool Weka.

1 INTRODUCTION

License plate number recognition or license plate

recognition (LPR) is one of the most practical ap-

plication of image processing and pattern recogni-

tion techniques. Its most common use is the control

of parking areas (Sirithinaphong and Chamnongthai,

1999) and trafﬁc monitoring (Setchell, 1997). In these

contexts the distance to the camera, position, inclina-

tion and other variables that affect the image are quite

well controlled and hence it is possible to take ad-

vantageof these restricted working conditions (Emiris

and Koulouriotis, 2001). The application presented

in this paper is designed to work in not so restricted

and structured environments. We want to locate the li-

cense plate and recognizeits number independentlyof

its size, orientation, position or lightening condition.

The only restriction we assume is that the background

of the license plate number is white and the characters

color is black. This is the common style for the Span-

ish license plates which we want to recognize.

The process of license plate number recognition

involve three main steps: i) license plate localization,

ii) character segmentation, and iii) character recogni-

tion. We have structured the rest of the paper in ac-

cordance with these steps. However, we will give an

introduction to the Spanish licence plate number sys-

tem ﬁrst.

1.1 Spanish License Plates Formats

The increase in the number of cars has put to the lim-

its the license plate number systems. So, plate num-

ber systems have needed to be adapted as the num-

ber of cars approached the maximum number these

systems could register. In Spain, initially, the plate

number were composed by one or two letters to code

the province followed by up to six digits. This sys-

tem lasted till 1971 when the plate numbers in Madrid

(Urios-Mond´ejar, 2007), the capital of Spain, were

approaching the number 999999. In the new system

there were four digits and a letter in a ﬁrst moment,

and later was necessary to use two letters. With the

joining of Spain to the European union a new change

happened.

In the year 2000, and close again to the coding

limit of the system, a new change is made. In the

new system a plate number is composed by four dig-

its followed by three letters. Besides, the province

code disappeared and an European Union logo with

blue background and a ‘E’ in white

appeared in the

left side of the plate number. As well, whenever a

plate number need to be substituted because it is de-

teriorated, the new plate number will came with the

European Union logo, even if the plate number is in

the old format with the province code.

‘E’ for “Espa˜na”, “Spain” in Spanish

268

García-Osorio C., Díez-Pastor J., J. Rodríguez J. and Maudes J. (2008).

LICENSE PLATE NUMBER RECOGNITION - New Heuristics and a Comparative Study of Classiﬁers.

In Proceedings of the Fifth International Conference on Informatics in Control, Automation and Robotics - RA, pages 268-273

DOI: 10.5220/0001502302680273

 SciTePress

Table 1: Common Spanish plate number formats

With province code and no let-

ter

With province code and letters

With province code, letters and

European Union logo

Current plate number code

In Table 1 it is possible to see all these

formats

. These and others facts about Span-

ish plate numbers can be found in the webpage

http://www.geocities.com/amoros29/.

2 LICENSE PLATE

LOCALIZATION

2.1 Image Preprocessing

The ﬁrst stage of the process is to locate the licence

plate area in the input photo. In order to do so, we

need to emphasize regions of high spatial frequency

that correspond to edges. Therefore, we ﬁrst use the

classic Sobel ﬁlter. As the input to this step of the pro-

cess is an RGB color image, and we know that in the

license plate the background is white and the char-

acters are black, we will apply the horizontal Sobel

ﬁlter to the areas of low saturation. The saturation is

obtained from RGB color image using the formula

S =

(

0 if max{R,G,B}=0,

max{R,G,B}−min{R,G,B}

max{R,G,B}

otherwise.

(1)

All the achromatic colors (grey scale colors) have the

same saturation and lower than any chromatic color.

Note that the white could be actually gray depending

on illumination conditions. The black and white pix-

els of the license plate areas will have low saturation.

So, we discard all the pixels with high saturation and

apply the Sobel ﬁlter only to the pixels with low satu-

ration. Experimentally, we found that the best results

are obtained when applying the Sobel ﬁlter to pixels

with saturation lower than 0.35. In Figure 1 we can

see the results of using this heuristic.

In the Spanish plate number system there are two rows

plate numbers too, as well as other special plate numbers,

that has not been taken into account in the applications ex-

plained in this paper.

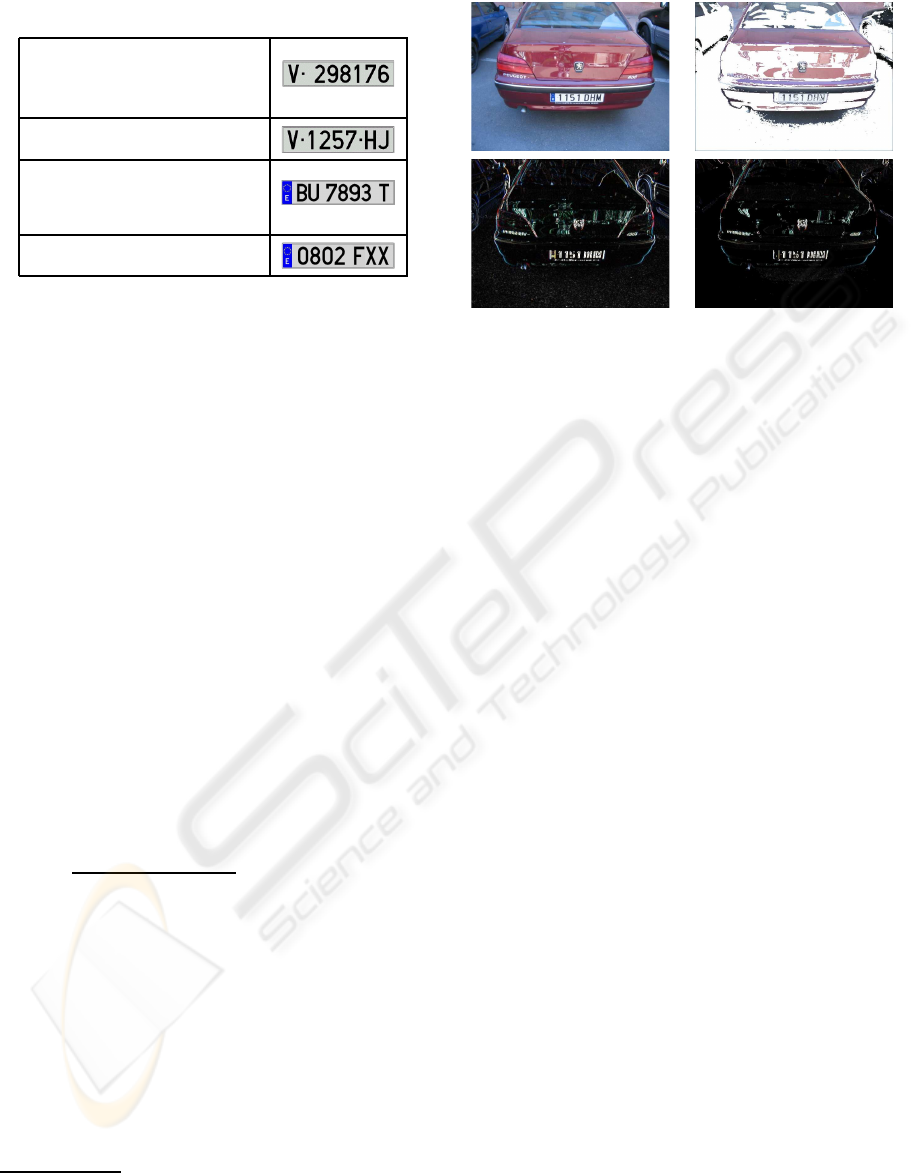

Figure 1: Top left: Original RGB image. Bottom left: After

applying traditional Sobel ﬁlter. Top right: the image with-

out the low saturation areas. Bottom right: After applying

the conditional Sobel ﬁlter.

Another heuristic we use here is to discard the

30% top part of the image and the 10% of the bottom

part. This areas never have a license plate number

(Rodr´ıguez, 1999).

Next in the process is the binarization. We obtain

a black and white image from the result of the pre-

vious transformation. The binarization threshold is

chosen to get a black and white image with only 2%

of the pixels being white, this way only those pixels

with high intensity variation are considered as edges

in the license plate. The edges due to background, or

without that high intensity variation are discarded.

After all the previous preprocessing, the license

plate will appear as a sequence of white and black

transitions with a lot of white pixels concentrated in

the license plate area. In other parts of the image the

concentration of white pixels is lower. As the last step

of this stage we use an horizontal soften ﬁlter. This

ﬁlter can be thought as a kind of mean or average ﬁl-

ter. The idea is to count the number of white pixel in

a rectangular area with center at each pixel. Empir-

ically, we found the best results were obtained with

a size 3x61. If the number of white pixels is greater

than 50 we leave that pixel white. That is, M(x, y) =

1 (1=white), if

∑

i=−30

∑

j=−1

M(x+ i, y+ j) > 50.

When we apply this ﬁlter to a line with a lot of low

concentrated edge pixels, all those pixels are elimi-

nated. On the contrary, when we apply this ﬁlter to a

line with less edge pixels but high concentrated, the

line will became white.

One could think that the effect of applying this ﬁl-

ter is the same as the dilation/erosion of mathematical

morphology (Serra, 1982), but this ﬁlter seems to be

less sensitive to noise. In Figure 3 we can see the re-

sults of dilation/erosion with different window sizes.

LICENSE PLATE NUMBER RECOGNITION - New Heuristics and a Comparative Study of Classifiers

269

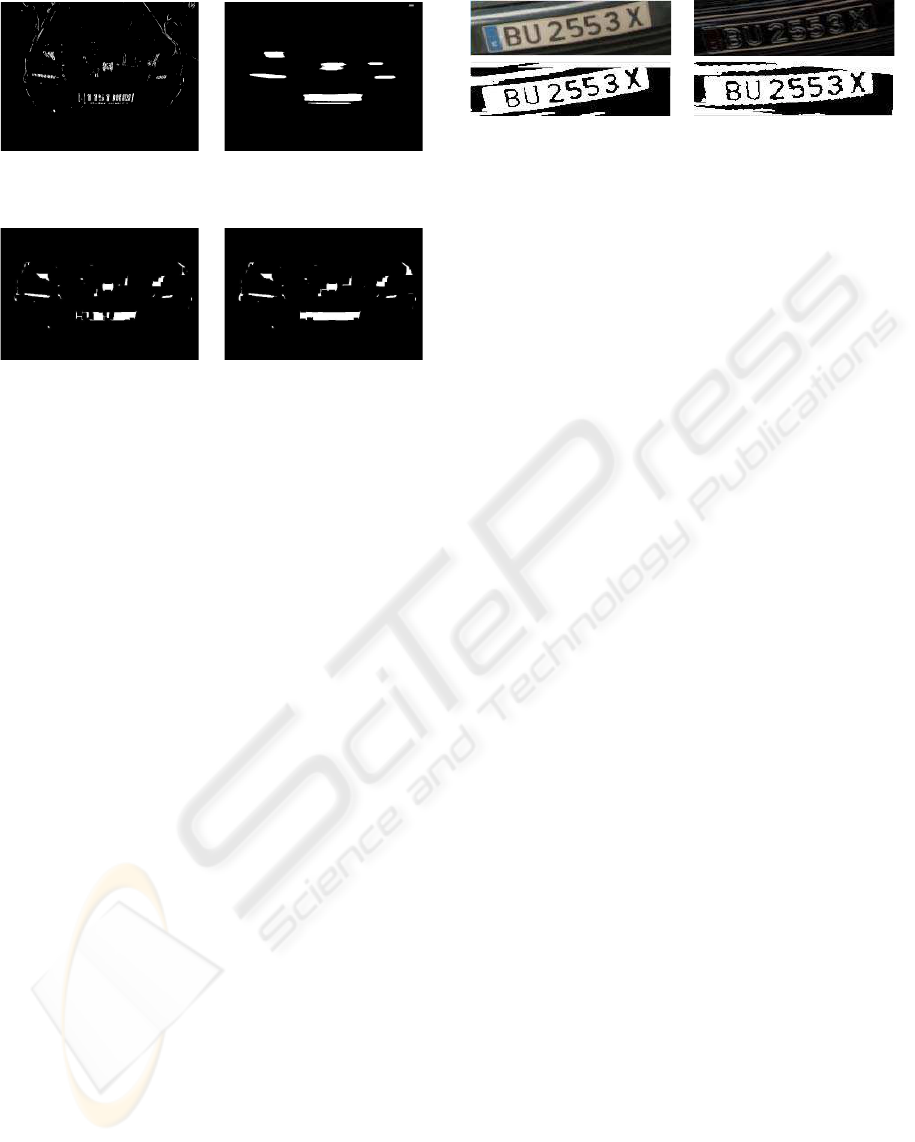

Figure 2: Left: Image after binarization. Right: Image after

applying the horizontal soften ﬁlter.

Figure 3: Left: Image after dilation/erosion with a window

15 pixels width. Right: Image after dilation/erosion with a

window 20 pixels width.

2.2 Selection of Plate Candidate

After applying the last step of the previous stage, we

have a black image with one or more white areas can-

didate to be a license plate. However, only one of

those areas correspondsto the real license plate, while

the others are consequence of noise or other objects in

the background. Now, we need an algorithm to deter-

mine which one of these white areas is the real plate.

We have used several heuristics. First, we only

keep the ten biggest areas, this way we eliminate most

of the areas due to noise. We then order those ten plate

candidates according to the following criteria

• ratio of width to heights greater than two, since a

license plate is wider than taller.

• distance to the center of the image, the areas far

from the center are unlikely to be plates.

For two areas with similar characteristics we choose

the one with lower positions, we do this because we

have found that some times the area due to the edges

in the car radiator will give end as a false positive

plate.

Note, that we keep all the ten areas not discarded.

Later, if in the following stages we realize that the

selection of plate area was incorrect we recover the

following plate candidate from the ordered list. In the

experiment this only happened in few occasions.

3 CHARACTER SEGMENTATION

After the previous stage, we obtained a license plate

image. We need to do further image processing before

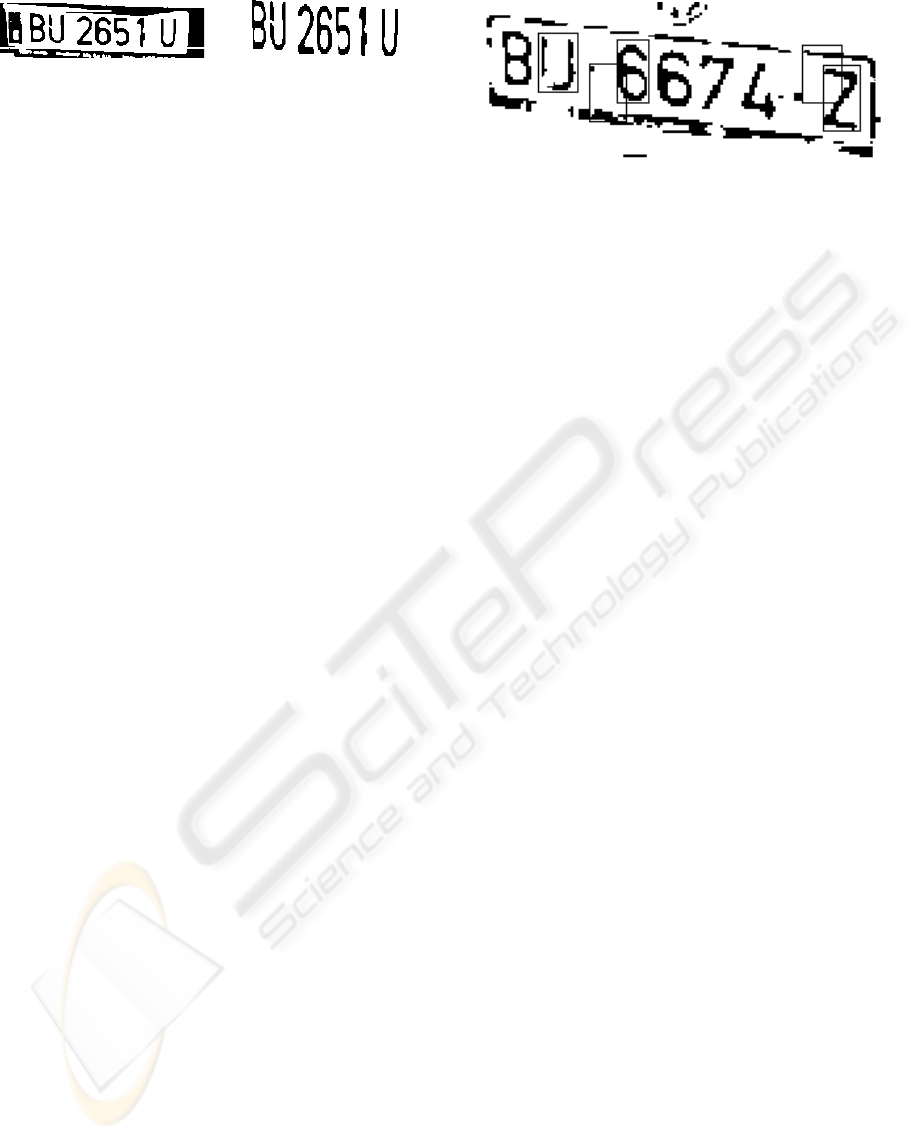

Figure 4: Top left: Original RGB image. Bottom left: After

applying traditional Sobel ﬁlter. Top right: After binariza-

tion. Bottom right: After rotation.

starting to locate the characters in the plate. We have

not tried any new heuristic with these steps. We apply

the classic Sobel ﬁlter (Gonzalez and Woods, 2002),

gradient binarization (Rodr´ıguez, 1999) and Hough

transform (Gonzalez and Woods, 2002) to correct the

plate inclination if needed (see Figure 4).

3.1 Character Localization

Now with the preprocessed plate we use a novel

method to locate the characters in the plate. That is

one of the most delicate steps of the process.

First, we try to adjust further the license plate and

we eliminate from the border of the image all the rows

and columns with only white or only black pixels.

Second, we apply a coarse method to discard

those blobs of black pixels which are obviously con-

sequence of noise and are not really characters. This

process must be conservative, because we do not want

to discard correct characters. We have follow several

heuristics:

• We discard all the areas whose width is greater

than 1/8 of the width of the area we have identiﬁed

as a license plate candidate. As the license plate

will have a minimum of seven characters, an area

with bigger width will be for sure not a character.

• We discard as well the areas which are taller than

0.7 the height of the plate.

• We use the color information to eliminate the ar-

eas with at least 50% of high saturation pixels.

This areas correspond to the blue European Union

logo. This have the effect of eliminate other chro-

matic areas in case our location of the license plate

would have not adjust close enough to the plate.

• If the width of the widest area is lower than 1/20

of the width of the area we have identify as the

license plate, we have found a case of false pos-

itive. We need to start the process with the next

candidate from the list of plate candidates.

Next, we apply a more reﬁned strategy. A charac-

ter will be a blob of connected black pixels (or sev-

eral, if the characters parts have been disconnected as

a consequenceof the previous preprocessing) fully in-

side of a rectangular area of dimensions calculate as a

ICINCO 2008 - International Conference on Informatics in Control, Automation and Robotics

270

Figure 5: License plate before and after eliminating the

black areas that does not correspond with characters.

percentage of the dimensions of the license plate area.

We align in turn the top left corner of this rectangle

with the top left corner of all the blobs, starting with

the one in the very top left. Be β

the blob we have

used to align the rectangle. It will not be the case that

does not fully ﬁx inside the rectangle, because all

that big blobs have been discarded with the previous

coarse method. Now, if there is piece of another blob

that is partially inside the rectangle, but not fully

inside, we can discard β

. It will not be a character

or part of a character, β

is probably noise. If there

are not others blobs partially inside the rectangle, and

there is another blob β

fully inside the rectangle, we

can consider both β

and β

as parts of the same char-

acter. This method is able to group pieces of char-

acters that have been disconnected after applying the

ﬁlters, and at the same time discards any remaining

noise.

In Figure 6 we can see an example of the method.

The coarse method was not able to eliminate all the

noise. The plate border is broken and was not big

enough as to be discarded. Besides the “U” appears

broken in two pieces. In the proposed method the

rectangle will be aligned with the top left pixel of the

ﬁrst piece, and as the other piece is fully inside the

rectangle both pieces are identiﬁed as part of the same

character. On the contrary, the small blob due to the

number plate screw is not consider part of the charac-

ter because when we align the rectangle with its top

left pixel, the six is only partially inside the rectangle.

The same happens in the right side, when we align the

rectangle with a border, and the “Z” is only partially

inside the rectangle.

We have found this method slightly better than the

traditional horizontal projection method for character

segmentation and less sensible to broken characters.

Still, in same rare circunstantes we could group some

scattered points and identify them as parts of charac-

ters. But this cases could be easily managed using as

criteria the number of black pixels.

3.2 Character Normalization

Before using a classiﬁer to identify the characters we

need to normalize them. There are three reasons for

normalization:

• We can reduce the number or attributes and that

will make the learning of the classiﬁer faster.

Figure 6: Character segmentation.

• We will have the same number of attributes for

all the characters because they will have the same

dimensions.

• We will improve the efﬁciency of the classiﬁer as

the input is more similar to the others instances in

its class, and more different from the instances in

other classes.

The normalization steps are:

• Center the character.

• Resize it to 16× 16 keeping its ratio width/height

(this is specially important for characters like “I”).

4 CHARACTER RECOGNITION

In this last section, we analyze and compare which set

of characteristics and classiﬁers give the best classiﬁ-

cation results. To do this study we use Weka (Wit-

ten and Frank, 2002), a data mining tool written in

Java http://www.cs.waikato.ac.nz/ml/weka/. We eval-

uate the performance of seven different classiﬁers and

four different sets of characteristics using 2070 char-

acters from about 700 licence plates.

We use 10×10-fold cross validation, in each of

the experiments 90% of the instances were used for

training and 10% for validation, and this was repeated

another nine times, with different 10% of instances

each.

An important characteristic we could extract from

the character image is the number of holes in the char-

acters. That increase the classiﬁcation accuracy for

characters like “P” and “F” or “B”, “8”, “6” and “9”.

The sets of characteristics use in this study were:

a. In this data set we represent each of the 2070 char-

acters using the whole 16 × 16 = 256 pixels of

the character image together with the number of

holes: 257 attributes in total. This is basically

the character without any characteristic extraction

process.

b. We use the horizontal and vertical projections of

the character. This gives 16 characteristics from

the horizontal projections, 16 characteristics from

LICENSE PLATE NUMBER RECOGNITION - New Heuristics and a Comparative Study of Classifiers

271

the vertical projections, plus the number of holes:

33 characteristics.

c. In this data set each character is represented by its

main four Kirsch compass ﬁlters, horizontal, ver-

tical, and both diagonals. The results are down

sampled to a 4 × 4 image, and the original im-

age is down samples as well. This gives 5× 16 =

80 characteristics, plus the additional one for the

number of holes: 81 characteristics.

d. We use a overlapped down sample of the original

image. Each 4 × 4 block of pixels gives a value,

then this mask is moved two pixels right, and so

till the right side, then the mask is lower two pixels

and the process repeated from the left. We obtain

49 attributes, plus the number of holes: 50 char-

acteristics.

Regarding the classiﬁers, we tried the following:

1. functions.MultilayerPerceptron, with parameters:

GUI=false, autoBuild=true, Debug=false, De-

cay=false, HidenLayers=(number of attributes +

number of classes)/2, LearningRate=0.3, momen-

tum=0.2, nominalToBinaryFilter=true, normal-

izeAtributes=true, normalizeNumericClass=true,

RandomSeed=0, trainingTime=500, validation-

SetSize=0 and validationThreshold=20. Neu-

ral Networks has been used as classiﬁers in

(Draghici, 1997; Nijhuis et al., 1995)

2. bayes.NaiveBayesUpdateable, with options: de-

bug=false, useKernelStimator=false and useSu-

pervisedDiscretization=false.

3. functions.SMO, Platt’s sequential minimal opti-

mization algorithms for training Support Vector

Machines (Platt, 1999; Zheng and He, 2006;

Chengwen et al., 2006), with options: buildLogis-

ticModels=false, C=1.0, checksTurnedOff=false,

Epsilon=1.0E-12, ﬁlterType=Normalize training

data, Kernel=PolyKernel, RamdomSeed=1 and

toleranceParameter=0.0010.

4. lazy.IBk, with no distance weigthing and op-

tions: KNN=1, crossValidate=false, Debug=false,

MeanSquared=false, NearestNeighbourSearchAl-

goritm=LinearNN, WindowsSize=0.

5. meta.AdaBoostM1, with options: classiﬁer=J48,

Debug=false, NumIterations=10, useResam-

pling=false, WeightThreshold=100.

6. meta.Bagging, with options: classiﬁer=J48,

Debug=false, NumIterations=10, bagSizePer-

cent=100, calcOutOfBag=false, Seed=1.

7. trees.J48, with options: binarySplits=false, Conﬁ-

denceFactor=0.25, debug=false, MinNumObj=2,

numFolds=3, reducedErrorPruning=false,

Table 2: Results comparison

a. b. c. d.

1 99.10 97.88 98.15 99.03

2 96.42 89.44 89.86 93.65

3 99.19 96.85 98.01 99.09

4 97.86 96.38 96.45 97.74

5 97.56 95.39 96.23 96.81

6 95.46 92.92 93.87 95.94

7 94.04 89.17 91.04 93.66

SavaInstanceData=false, Seed=1, subtreeRais-

ing=true, Umpruned=false, UseLaplaze=false.

The results of the experiments are shown in Ta-

ble 2. The underline values indicate a signiﬁcant

worse accuracy compares with the multi layer percep-

tron that has been used as the base of the comparison.

We can see that all the classiﬁers have an accuracy

higher than 90% for all the data sets, what shows the

beneﬁts of all the preprocess and normalization work.

Note, thought, that the best results are obtained when

the character is used without any characteristic extrac-

tion (a). The worse set of characteristics are the hori-

zontal and vertical projections (b).

Regarding the classiﬁers, as we could expect, Ad-

aBoost and Bagging improve the performance of the

J48 that they are using as base learner, being Ad-

aBoost better than Bagging. The best classiﬁers is

the SMO using directly the binary matrix that repre-

sent the character. However, ﬁnally we decide to use

the multi layer perceptron, it is only a bit slower but

is faster and its memory requirements are more than

three times lower.

5 CONCLUSIONS

We have described an artiﬁcial vision system used to

recognize the Spanish cars license plate numbers in

raster images. We combine the use classic image pro-

cessing techniques with some new ideas, such as the

soften ﬁlter and the character segmentation method.

In the study of classiﬁers we conﬁrmed the ben-

eﬁts of the preprocessing stages achieving accuracies

above 90% for different sets of characteristics. For

two of the classiﬁers we increase the accuracy to 99%.

In future version, we expect to take into account

the two row Spanish license plates, and the special

license plates with different combination of back-

ground and foreground colors.

As well, as one of the reviewers suggested, we

want to prepare a more detailed study of the use of

ICINCO 2008 - International Conference on Informatics in Control, Automation and Robotics

272

the soften ﬁlter, specially regarding its robustness to

noise in comparison with other ﬁlter in the literature.

ACKNOWLEDGEMENTS

This work has been possible thanks to the project

BU004B06 from the “Consejer´ıa de Educaci´on de la

Junta de Castilla y Le´on”, Spain.

REFERENCES

Chengwen, H., Yannan, Z., Jiaxin, W., and Zehong, Y.

(2006). An improved method for the character recog-

nition based on svm. In 24th IASTED International

Conference on Artiﬁcial Intelligence and Applica-

tions, pages 457–461, Anaheim, CA, USA. ACTA

Press.

Draghici, S. (1997). A neural network based artiﬁcial vision

system for license plate recognition. In International

Journal of Neural Systems, volume 8, pages 113–126.

Emiris, D. E. and Koulouriotis, D. E. (2001). Automated

optic recognition of alphanumeric content in car li-

cense plates in a semi-structured environment. In In-

ternational Conference on Image Processing, ICIP,

volume 3, pages 50–53.

Gonzalez and Woods (2002). Digital Image Processing.

Addison-Wesley, Reading, MA, USA.

Nijhuis, J., Brugge, M., Helmholt, K., Pluim, J., Spaanen-

burg, L., Venema, R., and Westenberg, M. (1995).

Car license plate recognition withneural networks and

fuzzy logic. In IEEE International Conference on

Neural Networks, volume 5, pages 2232–2236. ACTA

Press.

Platt, J. (1999). Fast training of support vector machines

using sequential minimal optimization. In Scholkopf,

B., Burges, C., and Smola, A., editors, Advances in

kernel methods: support vector learning, pages 185–

208. MIT Press.

Rodr´ıguez, F. M. (1999). Contribuci´on al reconocimiento

de caracteres en im´agenes complejas. PhD thesis, Es-

cuela T´ecnica Superior de Ingenieros de Telecomuica-

ciones, Campus Universitario, 36310, Vigo, Galicia,

Spain.

Serra, J. (1982). Image analysis and mathematical mor-

phology. Academic Press, London, 2nd edition.

Setchell, C. J. (1997). Applications of Computer Vision to

Road-trafﬁc Monitoring. PhD thesis, Faculty of Engi-

neering, Department of Electrical and Electronic En-

gineering.

Sirithinaphong, T. and Chamnongthai, K. (1999). The

recognition of car license plate for automatic park-

ing system. In Fifth International Symposium on Sig-

nal Processing and Its Applications, ISSPA, volume 1,

pages 455–457.

Urios-Mond´ejar, D. (2007). Sitio de las matr´ıculas

espa˜nolas. http://www.geocities.com/amoros29/. (last

visited: 2-Dec-2007).

Witten, I. H. and Frank, E. (2002). Data Mining: PRacti-

cal Machine Learning Tools and Techniques. Morgan

Kauffman, 500 Sansome Street, Suite 400, San Fran-

cisco, CA 94111, 2nd edition.

Zheng, L. and He, X. (2006). Number plate recognition

based on support vector machines. In IEEE Interna-

tional Conference on Video and Signal Based Surveil-

lance (AVSS’06), page 13, Washington, DC, USA.

IEEE Computer Society.

LICENSE PLATE NUMBER RECOGNITION - New Heuristics and a Comparative Study of Classifiers

273
